Center position
1. Remove the head restraint.2. Fold down the cup holder, unfasten the Velcro that attaches the anchor
bracket cover, and lift the cover.3. Route the top strap through the sloton top of the seat, pass the strap
through the seat, then latch the hook
onto the anchor bracket.
Close the cover and return the cup
holder to the original position.

’05 TUNDRA_U (L/O 0408)
135
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

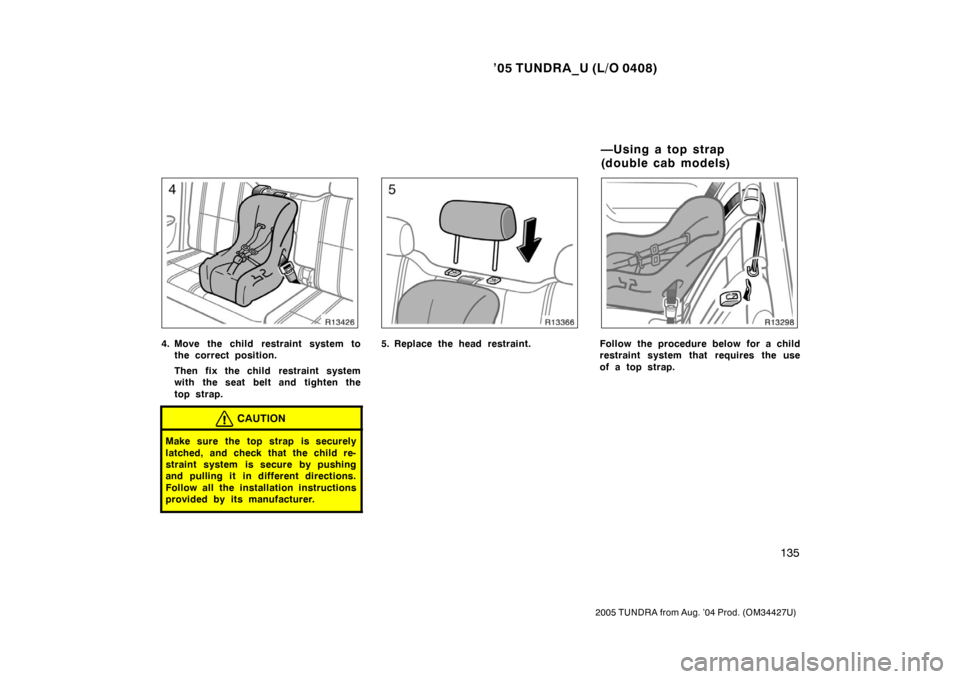

4. Move the child restraint system to
the correct position.
Then fix the child restraint system
with the seat belt and tighten the
top strap.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
5. Replace the head restraint.Follow the procedure below for a child
restraint system that requires the use
of a top strap.
— U sin g a to p st rap
(double cab models)

’05 TUNDRA_U (L/O 0408)
136
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

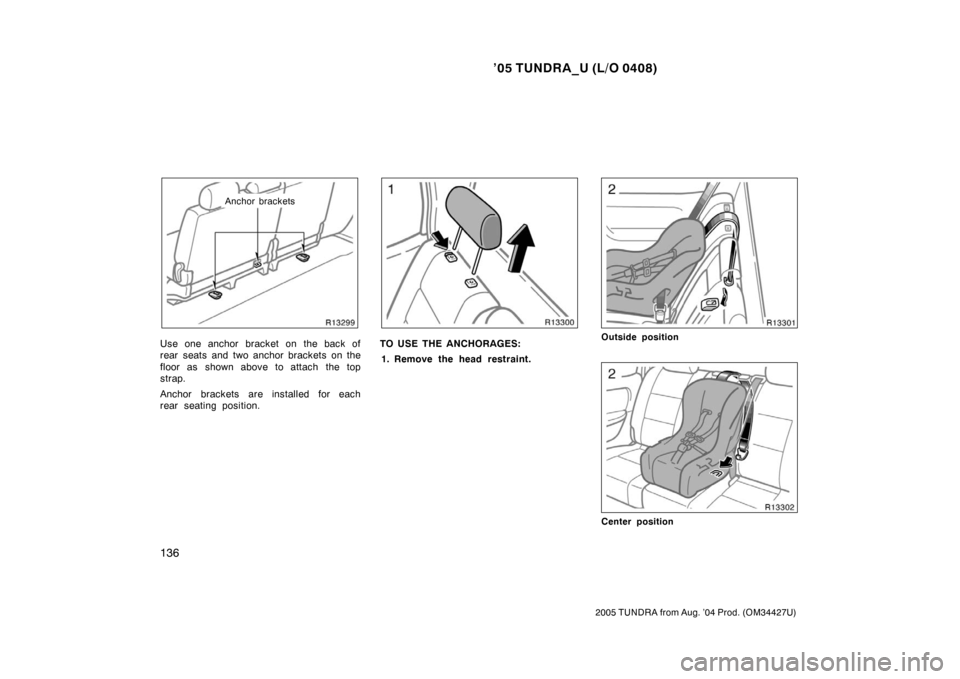

Anchor brackets
Use one anchor bracket on the back of
rear seats and two anchor brackets on the
floor as shown above to attach the top
strap.
Anchor brackets are installed for each
rear seating position.TO USE THE ANCHORAGES:

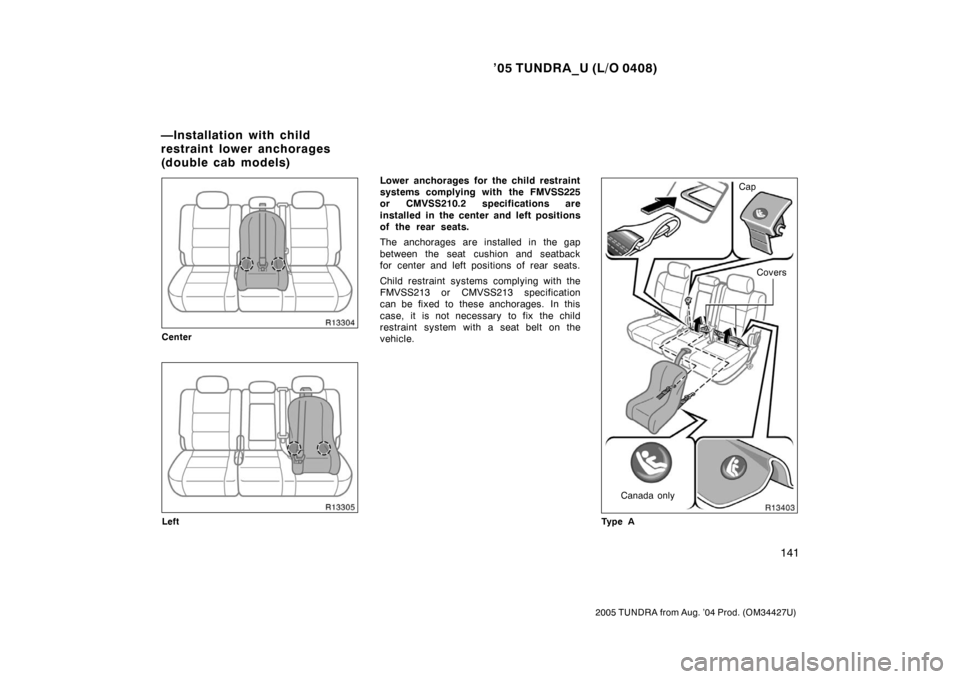

1. Remove the head restraint.Outside position
Center position

’05 TUNDRA_U (L/O 0408)
137
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
2. Fix the child restraint system with
the seat belt.
Latch the hook onto the anchorages
and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” in this
Section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
3. Replace the head restraint.Lower anchorages for the child restraint
systems complying with the FMVSS225
or CMVSS210.2 specifications are
installed in the front seat.
The anchorages are installed in the gap
between the seat cushion and seatback of
the right side of the seat as shown in the
illustration.
Child restraint systems complying with the
FMVSS213 or CMVSS213 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.
—Installation with child
restraint lower anchorages
(standard cab models)

’05 TUNDRA_U (L/O 0408)
138
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
Canada only
Ty p e ACanada only
Ty p e B
For owners in Canada
The symbol on a child restraint system
indicates the presence of a lower connec-
tor system.
CHILD RESTRAINT SYSTEM
INSTALLATION
Ty p e A — 1. Widen the gap between the seat cushion and seatback slightly and
confirm the position of the lower an-
chorages near the button on the
seatback.
2. Latch the hooks of lower straps onto the anchorages and tighten the lower
straps.
Ty p e B — 1. Widen the gap between the seat cushion and seatback slightly and
confirm the position of the lower an-
chorages near the button on the
seatback.
2. Latch the buckles onto the anchor- ages.

’05 TUNDRA_U (L/O 0408)
139
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” in this Section.)
For installation details, refer to the instruc-
tion manual equipped with each product.
CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
After securing the child restraint
system, never slide or recline the
seat.

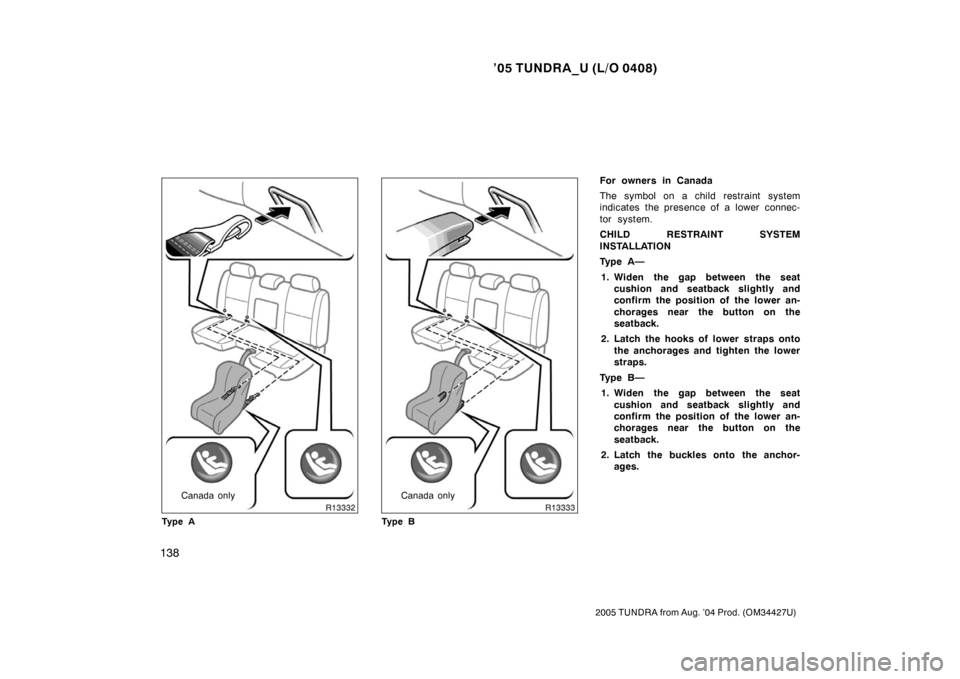

Lower anchorages for the child restraint
systems complying with the FMVSS225
or CMVSS210.2 specifications are
installed in the rear seat.
The anchorages are installed in the gap
between the seat cushion and seatback of
the outsides of the rear seat as shown in
the illustration.
Child restraint systems complying with the
FMVSS213 or CMVSS213 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.
Canada only
Ty p e A
—Installation with child
restraint lower anchorages
(access cab models)

’05 TUNDRA_U (L/O 0408)
140
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
Canada only
Ty p e B
For owners in Canada
The symbol on a child restraint system
indicates the presence of a lower connec-
tor system.
CHILD RESTRAINT SYSTEM
INSTALLATION
Ty p e A — 1. Widen the gap between the seat cushion and seatback slightly and
confirm the position of the lower an-
chorages near the button on the
seatback.
2. Latch the hooks of lower straps onto the anchorages and tighten the lower
straps.
Ty p e B — 1. Widen the gap between the seat cushion and seatback slightly and
confirm the position of the lower an-
chorages near the button on the
seatback.
2. Latch the buckles onto the anchor- ages. If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” in this Section.)
For installation details, refer to the instruc-
tion manual equipped with each product.
CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
After securing the child restraint
system, never slide or recline the
seat.

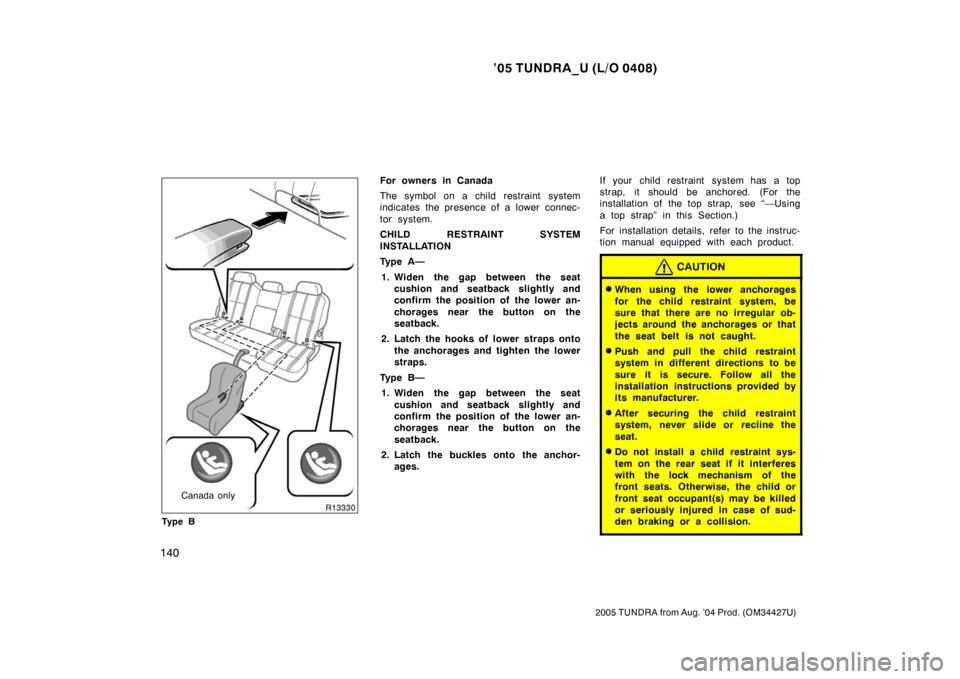

Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.

’05 TUNDRA_U (L/O 0408)
141
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
Center
Left

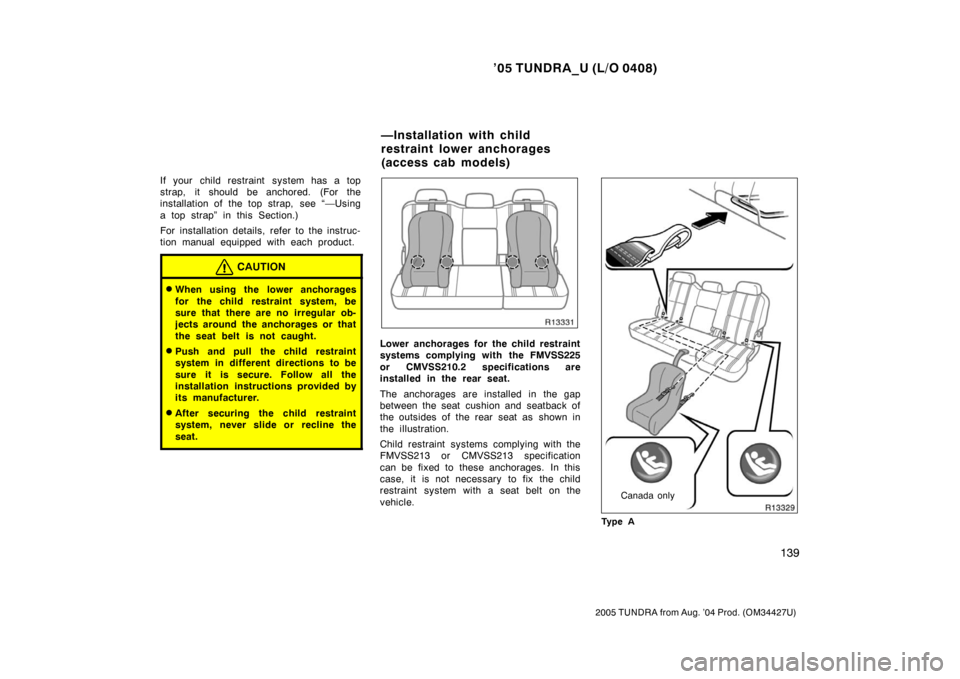

Lower anchorages for the child restraint
systems complying with the FMVSS225
or CMVSS210.2 specifications are
installed in the center and left positions
of the rear seats.
The anchorages are installed in the gap
between the seat cushion and seatback
for center and left positions of rear seats.
Child restraint systems complying with the
FMVSS213 or CMVSS213 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.Cap
Covers
Canada only
Ty p e A
—Installation with child
restraint lower anchorages
(double cab models)
