2005 TOYOTA TUNDRA Owners Manual

’05 TUNDRA_U (L/O 0408)
102
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

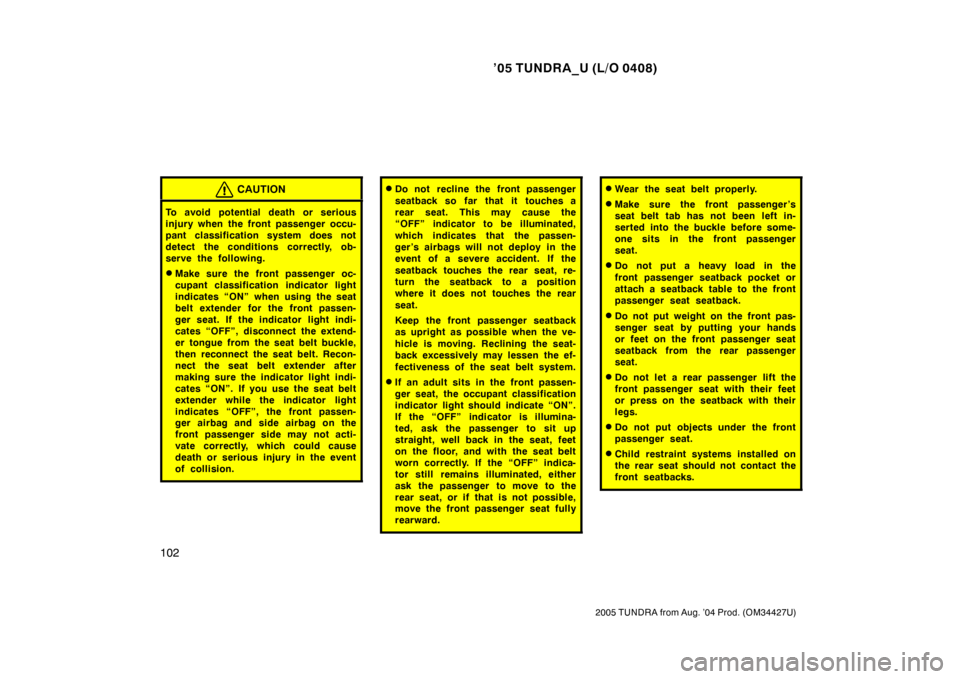

CAUTION
To avoid potential death or serious
injury when the front passenger occu-
pant classification system does not
detect the conditions correctly, ob-
serve the following.
Make sure the front passenger oc-
cupant classification indicator light
indicates “ON” when using the seat
belt extender for the front passen-
ger seat. If the indicator light indi-
cates “OFF”, disconnect the extend-
er tongue from the seat belt buckle,
then reconnect the seat belt. Recon-
nect the seat belt extender after
making sure the indicator light indi-
cates “ON”. If you use the seat belt
extender while the indicator light
indicates “OFF”, the front passen-
ger airbag and side airbag on the
front passenger side may not acti-
vate correctly, which could cause
death or serious injury in the event
of collision.
Do not recline the front passenger
seatback so far that it touches a
rear seat. This may cause the
“OFF” indicator to be illuminated,
which indicates that the passen-
ger’s airbags will not deploy in the
event of a severe accident. If the
seatback touches the rear seat, re-
turn the seatback to a position
where it does not touches the rear
seat.
Keep the front passenger seatback
as upright as possible when the ve-
hicle is moving. Reclining the seat-
back excessively may lessen the ef-
fectiveness of the seat belt system.
If an adult sits in the front passen-
ger seat, the occupant classification
indicator light should indicate “ON”.
If the “OFF” indicator is illumina-
ted, ask the passenger to sit up
straight, well back in the seat, feet
on the floor, and with the seat belt
worn correctly. If the “OFF” indica-
tor still remains illuminated, either
ask the passenger to move to the
rear seat, or if that is not possible,
move the front passenger seat fully
rearward.
Wear the seat belt properly.
Make sure the front passenger ’s
seat belt tab has not been left in-
serted into the buckle before some-
one sits in the front passenger
seat.
Do not put a heavy load in the
front passenger seatback pocket or
attach a seatback table to the front
passenger seat seatback.
Do not put weight on the front pas-
senger seat by putting your hands
or feet on the front passenger seat
seatback from the rear passenger
seat.
Do not let a rear passenger lift the
front passenger seat with their feet
or press on the seatback with their
legs.
Do not put objects under the front
passenger seat.
Child restraint systems installed on
the rear seat should not contact the
front seatbacks.

’05 TUNDRA_U (L/O 0408)
103
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
When it is unavoidable to install the
forward −facing child restraint sys-
tem on the front passenger seat,
install the child restraint system on
the front passenger seat in the
proper order. (As for the installation
order, see “—Installation with seat
belt” in this Section.)
Do not remove the front seats.
Do not kick the front passenger
seat or subject it to severe impact.
Otherwise, the SRS warning light
may come on to indicate a malfunc-
tion of the detection system. In this
case, contact your Toyota dealer im-
mediately.
The front passenger occupant classifica-
tion indicator light may indicate “ON” (the
front passenger airbag and side airbag on
the front passenger seat may deploy)
even if observing the above cautions,
when a child sits in, or a forward −facing
child restraint system is installed on the
front passenger seat. Refer to all the cau-
tions in “SRS driver airbag and front pas-
senger airbag”, “SRS side airbags and
curtain shield airbags” and “Child restraint”
in this Section.

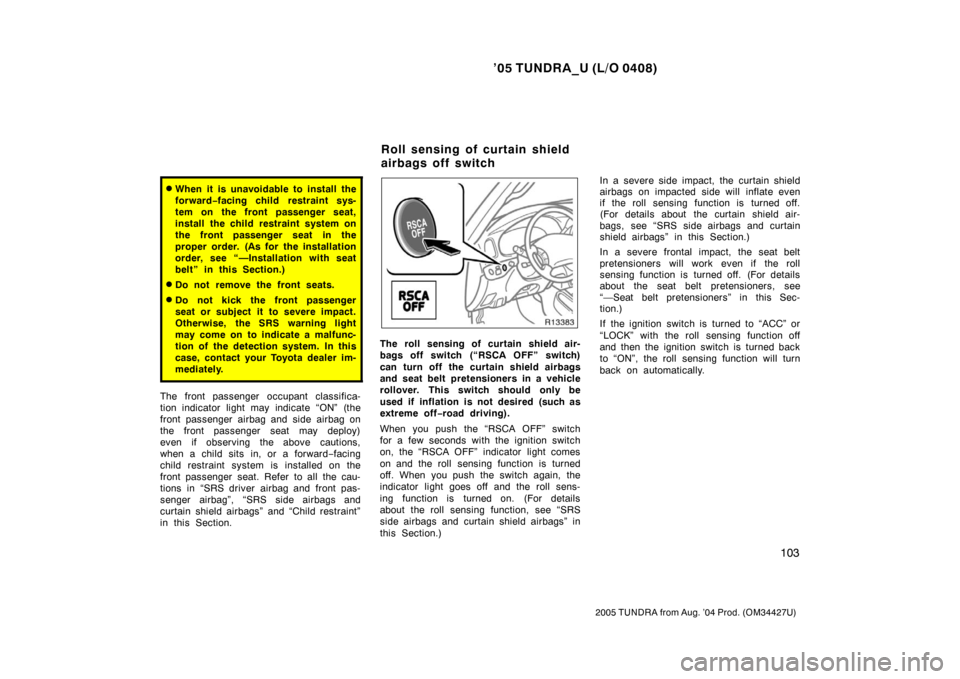

The roll sensing of curtain shield air-
bags off switch (“RSCA OFF” switch)
can turn off the curtain shield airbags
and seat belt pretensioners in a vehicle
rollover. This switch should only be
used if inflation is not desired (such as
extreme off −road driving).
When you push the “RSCA OFF” switch
for a few seconds with the ignition switch
on, the “RSCA OFF” indicator light comes
on and the roll sensing function is turned
off. When you push the switch again, the
indicator light goes off and the roll sens-
ing function is turned on. (For details
about the roll sensing function, see “SRS
side airbags and curtain shield airbags” in
this Section.) In a severe side impact, the curtain shield
airbags on impacted side will inflate even
if the roll sensing function is turned off.
(For details about the curtain shield air-
bags, see “SRS side airbags and curtain
shield airbags” in this Section.)
In a severe frontal impact, the seat belt
pretensioners will work even if the roll
sensing function is turned off. (For details
about the seat belt pretensioners, see
“—Seat belt pretensioners” in this Sec-
tion.)
If the ignition switch is turned to “ACC” or
“LOCK” with the roll sensing function off
and then the ignition switch is turned back
to “ON”, the roll sensing function will turn
back on automatically.
Roll sensing of curtain shield
airbags off switch

’05 TUNDRA_U (L/O 0408)
104
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

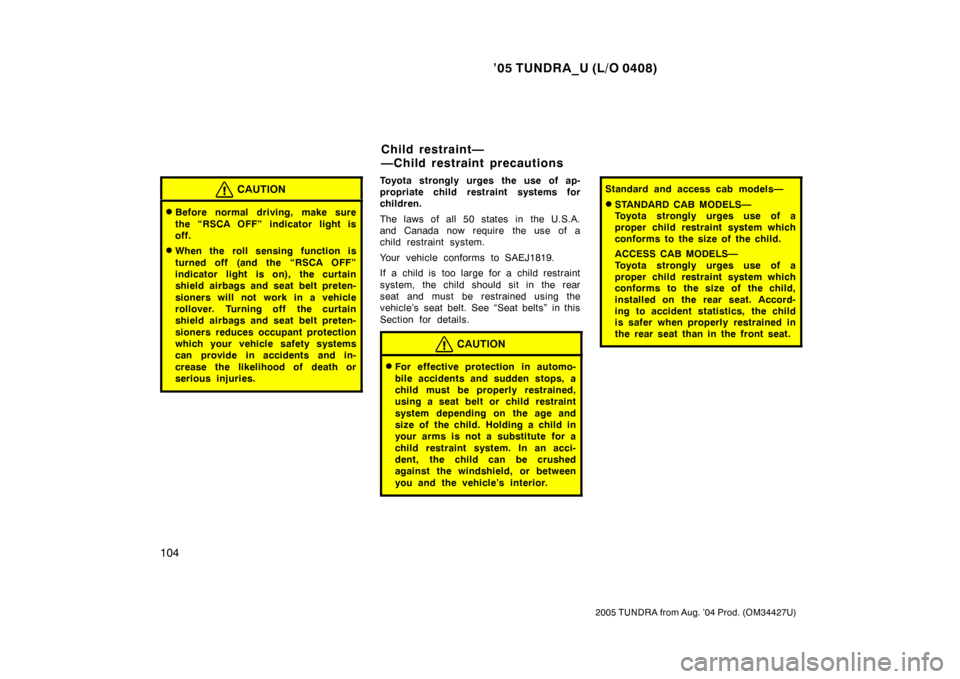

CAUTION
Before normal driving, make sure
the “RSCA OFF” indicator light is
off.
When the roll sensing function is
turned off (and the “RSCA OFF”
indicator light is on), the curtain
shield airbags and seat belt preten-
sioners will not work in a vehicle
rollover. Turning off the curtain
shield airbags and seat belt preten-
sioners reduces occupant protection
which your vehicle safety systems
can provide in accidents and in-
crease the likelihood of death or
serious injuries.
Toyota strongly urges the use of ap-
propriate child restraint systems for
children.
The laws of all 50 states in the U.S.A.
and Canada now require the use of a
child restraint system.
Your vehicle conforms to SAEJ1819.
If a child is too large for a child restraint
system, the child s hould sit in the rear
seat and must be restrained using the
vehicle’s seat belt. See “Seat belts” in this
Section for details.
CAUTION
For effective protection in automo-
bile accidents and sudden stops, a
child must be properly restrained,
using a seat belt or child restraint
system depending on the age and
size of the child. Holding a child in
your arms is not a substitute for a
child restraint system. In an acci-
dent, the child can be crushed
against the windshield, or between
you and the vehicle’s interior.
Standard and access cab models—
STANDARD CAB MODELS—
Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child.
ACCESS CAB MODELS—
Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child,
installed on the rear seat. Accord-
ing to accident statistics, the child
is safer when properly restrained in
the rear seat than in the front seat.
Child restraint—
—Child restraint precautions

’05 TUNDRA_U (L/O 0408)
105
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

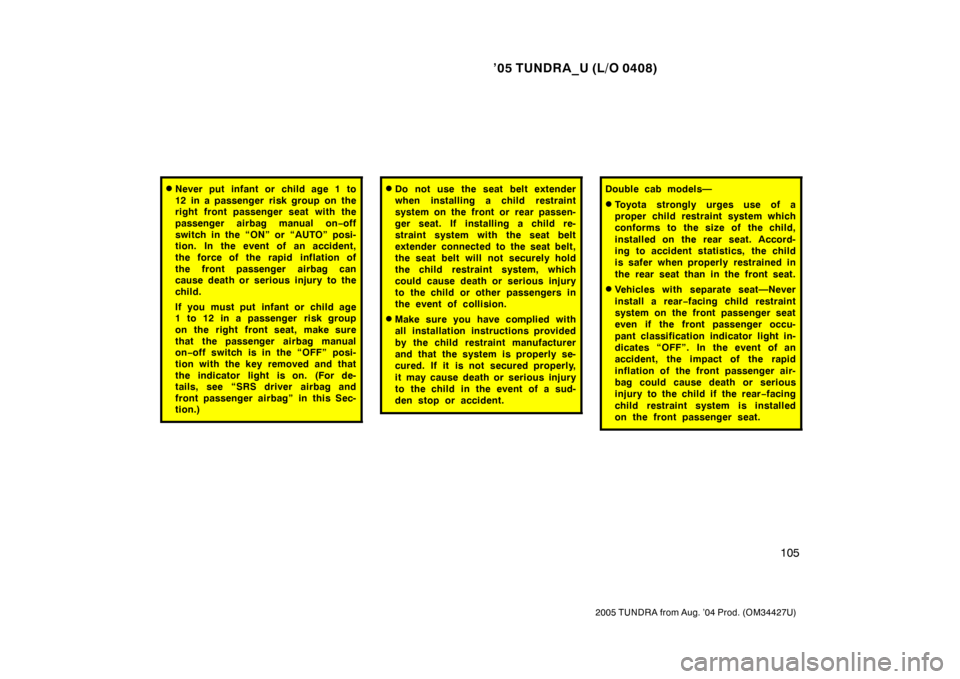

Never put infant or child age 1 to
12 in a passenger risk group on the
right front passenger seat with the
passenger airbag manual on −off
switch in the “ON” or “AUTO” posi-
tion. In the event of an accident,
the force of the rapid inflation of
the front passenger airbag can
cause death or serious injury to the
child.
If you must put infant or child age
1 to 12 in a passenger risk group
on the right front seat, make sure
that the passenger airbag manual
on− off switch is in the “OFF” posi-
tion with the key removed and that
the indicator light is on. (For de-
tails, see “SRS driver airbag and
front passenger airbag” in this Sec-
tion.)Do not use the seat belt extender
when installing a child restraint
system on the front or rear passen-
ger seat. If installing a child re-
straint system with the seat belt
extender connected to the seat belt,
the seat belt will not securely hold
the child restraint system, which
could cause death or serious injury
to the child or other passengers in
the event of collision.
Make sure you have complied with
all installation instructions provided
by the child restraint manufacturer
and that the system is properly se-
cured. If it is not secured properly,
it may cause death or serious injury
to the child in the event of a sud-
den stop or accident.
Double cab models—
Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child,
installed on the rear seat. Accord-
ing to accident statistics, the child
is safer when properly restrained in
the rear seat than in the front seat.
Vehicles with separate seat—Never
install a rear −facing child restraint
system on the front passenger seat
even if the front passenger occu-
pant classification indicator light in-
dicates “OFF”. In the event of an
accident, the impact of the rapid
inflation of the front passenger air-
bag could cause death or serious
injury to the child if the rear −facing
child restraint system is installed
on the front passenger seat.

’05 TUNDRA_U (L/O 0408)
106
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

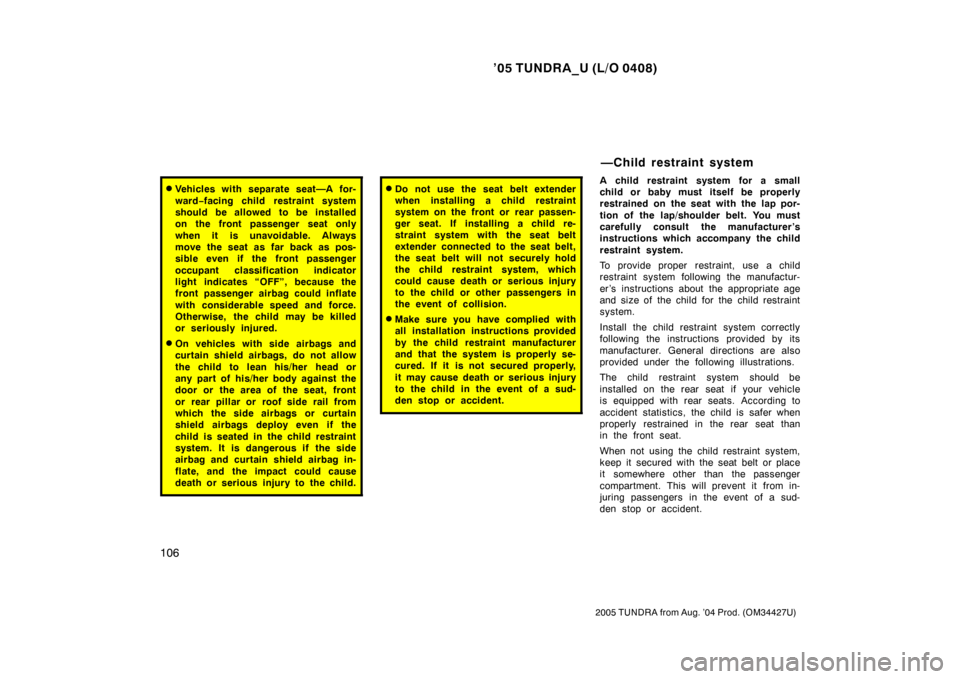

Vehicles with separate seat—A for-
ward−facing child restraint system
should be allowed to be installed
on the front passenger seat only
when it is unavoidable. Always
move the seat as far back as pos-
sible even if the front passenger
occupant classification indicator
light indicates “OFF”, because the
front passenger airbag could inflate
with considerable speed and force.
Otherwise, the child may be killed
or seriously injured.
On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean his/her head or
any part of his/her body against the
door or the area of the seat, front
or rear pillar or roof side rail from
which the side airbags or curtain
shield airbags deploy even if the
child is seated in the child restraint
system. It is dangerous if the side
airbag and curtain shield airbag in-
flate, and the impact could cause
death or serious injury to the child.
Do not use the seat belt extender
when installing a child restraint
system on the front or rear passen-
ger seat. If installing a child re-
straint system with the seat belt
extender connected to the seat belt,
the seat belt will not securely hold
the child restraint system, which
could cause death or serious injury
to the child or other passengers in
the event of collision.
Make sure you have complied with
all installation instructions provided
by the child restraint manufacturer
and that the system is properly se-
cured. If it is not secured properly,
it may cause death or serious injury
to the child in the event of a sud-
den stop or accident.

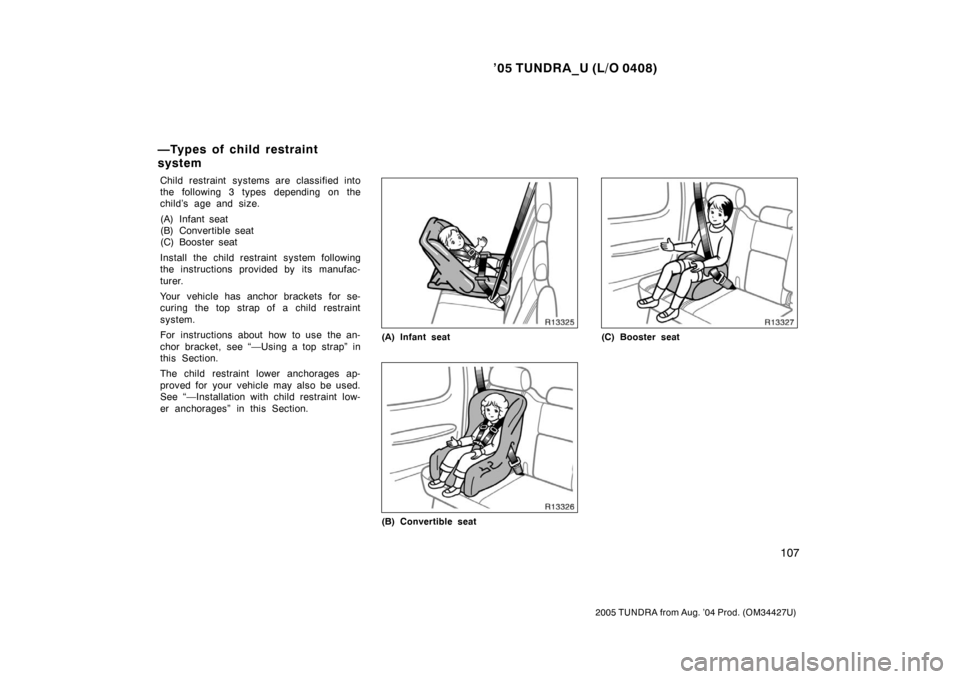

A child restraint system for a small
child or baby must itself be properly
restrained on the seat with the lap por-
tion of the lap/shoulder belt. You must
carefully consult the manufacturer ’s
instructions which accompany the child
restraint system.
To provide proper restraint, use a child
restraint system following the manufactur-
er ’s instructions about the appropriate age
and size of the child for the child restraint
system.
Install the child restraint system correctly
following the instructions provided by its
manufacturer. General directions are also
provided under the following illustrations.
The child restraint system should be
installed on the rear seat if your vehicle
is equipped with rear seats. According to
accident statistics, the child is safer when
properly restrained in the rear seat than
in the front seat.
When not using the child restraint system,
keep it secured with the seat belt or place
it somewhere other than the passenger
compartment. This will prevent it from in-
juring passengers in the event of a sud-
den stop or accident.
—Child restraint system

’05 TUNDRA_U (L/O 0408)
107
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
Child restraint systems are classified into
the following 3 types depending on the
child’s age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufac-
turer.
Your vehicle has anchor brackets for se-
curing the top strap of a child restraint
system.
For instructions about how to use the an-
chor bracket, see “—Using a top strap” in
this Section.
The child restraint lower anchorages ap-
proved for your vehicle may also be used.
See “—Installation with child restraint low-
er anchorages” in this Section.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
—Types of child restraint
system

’05 TUNDRA_U (L/O 0408)
108
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
(A) INFANT SEAT INSTALLATION
An infant seat must be used in rear −
facing position only.Except for separate seat with automatic
transmission
For separate seat with automatic trans-
mission
CAUTION
Never install a rear −facing child re-
straint system on the front seat with
the passenger airbag manual on −off
switch in the “ON” or “AUTO” posi-
tion. In the event of an accident, the
force of the rapid inflation of the
front passenger airbag can cause
death or serious injury to the child if
the rear −facing child system is
installed on the front passenger seat.
—Installation with seat belt
(standard cab models and
access cab models)

’05 TUNDRA_U (L/O 0408)
109
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
Except for separate seat with automatic
transmission
For separate seat with automatic trans-
mission
When you install a rear −facing child re-
straint system which belongs to a pas-
senger risk group on the right front
seat, turn the passenger airbag manual
on− off switch counterclockwise to the
“OFF” position and remove the key.
(For details, see “SRS driver airbag and
front passenger airbag” in this Section.)
The indicator light comes on when the
system is off.
CAUTION
If you must install a rear −facing child
restraint system on the right front
seat, make sure that the passenger
airbag manual on −off switch is in the
“OFF” position with the key removed
and that the indicator light is on.
CAUTION
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupants, may be killed
or seriously injured in case of sud-
den braking or a collision.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the rear right
seat.
