2005 TOYOTA TUNDRA Owners Manual

’05 TUNDRA_U (L/O 0408)
302
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
Standard and access cab models with rear console box
: See “Instrument panel vents” in this Section.
∗: On some models

’05 TUNDRA_U (L/O 0408)
303
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the hot air, allowing the air
conditioning to cool the interior more
quickly.
Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).
On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.
Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.
On cold days, set the fan speed to
high for a minute to help clear the
intake ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except “OFF”.

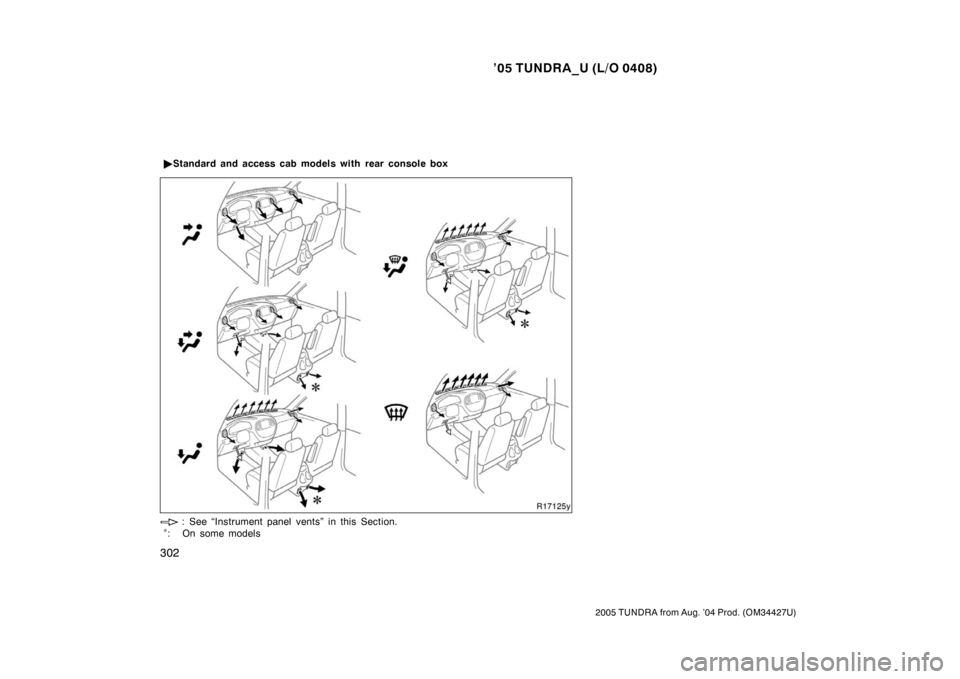

Double cab models
: See “Instrument panel vents” in this Section.
Operating tips

’05 TUNDRA_U (L/O 0408)
304
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
If following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporarily set to
RECIRCULATE, which will close off the
outside passage and prevent outside
air and dust from entering the vehicle
interior.
Heating
For best results, set controls to:
Fan speed— Any setting except “OFF”
Temperature— To w a r d s WARM
(red zone)
Air intake—FRESH (outside air)
Air flow—FLOOR
Lower vent—CLOSED
Air conditioning—OFF
For quick heating, select recirculated
air for a few minutes. To keep the
windows from fogging, select fresh af-
ter the vehicle interior has been
warmed.
Press the “A/C” button on for dehumidi-
fied heating.
Choose floor/windshield air flow to heat
the vehicle interior while defrosting or
defogging the windshield. Air conditioning
For best results, set controls to:
Fan speed— Any setting except “OFF”
Temperature— To w a r d s COLD
(blue zone)
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—ON
For quick cooling, move the air intake
selector to recirculate for a few min-
utes.
Ventilation
For best results, set controls to:
Fan speed— Any setting except “OFF”
Temperature— To w a r d s COLD
(blue zone)
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—OFF
Defogging
The inside of the windshield
For best results, set controls to:
Fan speed— Any setting except “OFF”
Temperature— To w a r d s WARM (red
zone) to heat; COLD
(blue zone) to cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Lower vent—CLOSED
Turning the air flow selector to the wind-
shield or floor/windshield position turns on
the defogging function and fun speed may
increase with the purpose of clearing the
front view.
When turning the air flow selector to
windshield position, the air intake selects
FRESH automatically. This is to clean up
the front view more quickly. It is not
possible to return to RECIRCULATE in
this position.
Vehicles with “A/C” button—
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.

’05 TUNDRA_U (L/O 0408)
305
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
On humid days, do not blow cold air
on the windshield—the difference be-
tween the outside and inside tempera-
tures could make the fogging worse.
Defrosting
The outside of the windshield
For best results, set controls to:
Fan speed— Any setting except “OFF”
Temperature— To w a r d s WARM
(red zone)
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Lower vent—CLOSED
Turning the air flow selector to the wind-
shield or floor/windshield position turns on
the defrosting function and fun speed may
with the purpose of clearing the front
view.
When turning the air flow selector to
windshield position, the air intake selects
FRESH automatically. This is to clean up
the front view more quickly. It is not
possible to return to RECIRCULATE in
this position.
Vehicles with “A/C” button—
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
To heat the vehicle interior while de-
frosting the windshield, choose floor/
windshield air flow.
Side vents
Lower vent
Instrument panel and rear
vents

’05 TUNDRA_U (L/O 0408)
306
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
Rear vents (double cab models only)
If air flow control is not satisfactory, check
the instrument panel and rear vents. The
instrument panel and rear vents may be
opened or closed as shown.
For removing frost or fog, it is recom-
mended that you close the lower vent
when using the “Floor”, “Floor/Windshield”
or “Windshield” mode.

’05 TUNDRA_U (L/O 0408)
307
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Multi−information display 308
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock 318
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Cigarette lighter and ashtrays 318
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlets (12 VDC) 319
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Power outlet (115 VAC) 320
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Glove box 322
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Garage door opener box 322
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Auxiliary boxes 325
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Rear console box 327
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Coin holder 329
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Compact disc and cassette tape holder 332
. . . . . . . . . . . . . . . . . . . . . . .
Cassette tape holder 333
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Cup holders 334
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Note pad holder 336
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Grocery bag/cargo net hooks 336
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Floor mat 337
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1− 10

’05 TUNDRA_U (L/O 0408)
308
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
1. “E/M” button
2. Garage door opener buttons
3. “MODE” button
4. Garage door opener indicator
5. Outside temperature display
6. Compass
Multi−information display—

’05 TUNDRA_U (L/O 0408)
309
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
Operate the multi −information display
with the ignition switch on.
When the ignition switch is turned to
“ON”, the last previously used mode dis-
played just before the ignition switch is
turned off will appear.
When the instrument panel lights are
turned on, the brightness of the display
will be reduced. “E/M” button
This button is used to switch between
English/U.S. Customary System and
metric units of the outside temperature
display.
Each time you push this button, the dis-
play switches. This is also linked to the
multi
−information display. The display vari-
ations are as follows;
Indication
Outside
temperature
English/U.S. Customary System (E)F
Metric (M)C
The initial mode will be English/U.S. Cus-
tomary System units, however, if the unit
is switched to metric and the ignition
switch is off, it will display metric units
when the ignition switch is turned to “ON”. “MODE” button
This button is used to select the item.
Every time you push the “MODE” button,
the display toggles.
For more details, see “—Outside tempera-
ture display” in this Section.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
—Before using the
multi
−information display
