Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in your
Toyota contain explosive chemicals. If the vehicle is
scrapped with the airbags and pretensioners left as they
are, this may cause an accident such as fire. Be sure to
have the systems of the SRS airbag and seat belt preten-
sioner removed and disposed of by a qualified service
shop or by your Toyota dealer before you dispose of your
vehicle.
On−pavement and off −road
driving tips
This vehicle will handle and maneuver differently from an
ordinary passenger car because it is designed for off −road
use also. It has a significantly higher rollover rate than
other types of vehicles. In addition, this vehicle has a
higher ground clearance and center of gravity than that of
an ordinary passenger car. This vehicle design feature
causes this type of vehicle to be more likely to rollover.
Failure to operate this vehicle correctly may result in loss
of control, accidents or vehicle rollover causing death or
serious injury. Be sure to read “Off −road vehicle precau-
tions” in Section 2 and “Off −road driving precautions” in
Section 3.

’05 TUNDRA_U (L/O 0408)
x
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
Leak detection pump
This pump performs fuel evaporation leakage check. This
check is done approximately five hours after the engine is
turned off. So you may hear sound coming from under-
neath the rear deck for several minutes. It does not indi-
cate a malfunction.

’05 TUNDRA_U (L/O 0408)
xi
2005 TUNDRA from Aug. ’04 Prod. (OM34 427U)
Model code
Check the model code to see what type of model your vehicle is.
U C K 3 0 − T R D
The model code appears on the Certification Label with the heading “MODEL”.
See “Your Toyota’s identification” in Section 2 for the Certification Label location.
Grade
D: Standard grade
S: SR5 grade
L: Limited grade
Engine type
GSK: 1GR −FE en-
gine
UCK: 2UZ −FE engine
Driving system
30, 31: Two −wheel drive
40, 41: Four −wheel driveDeck type
R: Standard bed
S: StepSide bed
Cab type
T: Standard cab
A: Access cab
P: Double cab

’05 TUNDRA_U (L/O 0408)
1
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Instrument cluster overview 11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 13
. . . . . . . . . . . . . . . . . . . . . .
SECTION 1− 1

’05 TUNDRA_U (L/O 0408)
2
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

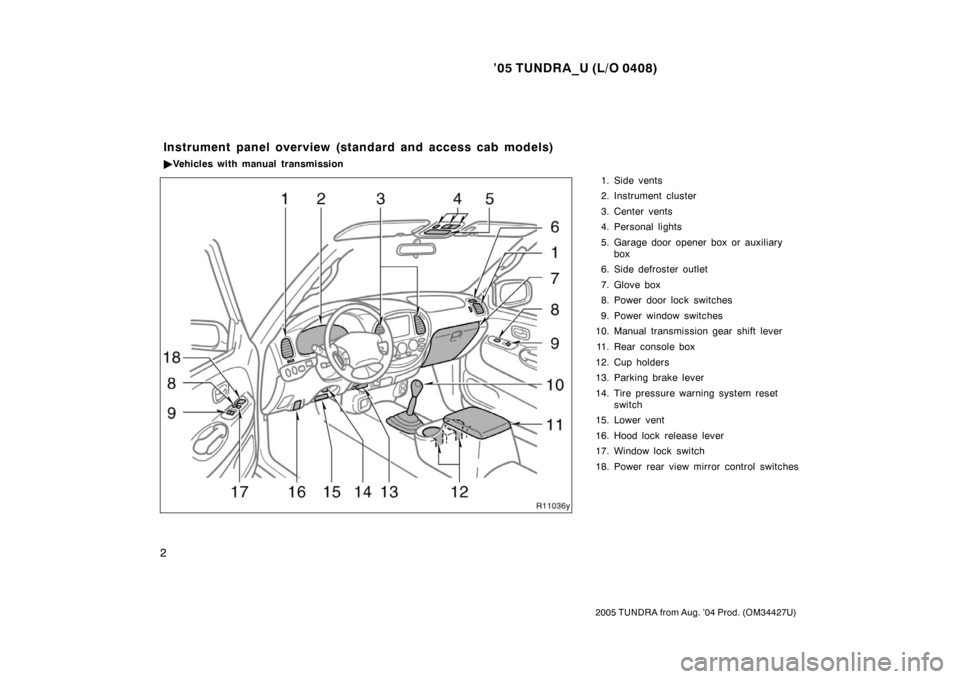

1. Side vents
2. Instrument cluster
3. Center vents
4. Personal lights
5. Garage door opener box or auxiliary
box
6. Side defroster outlet
7. Glove box
8. Power door lock switches
9. Power window switches
10. Manual transmission gear shift lever
11. Rear console box
12. Cup holders
13. Parking brake lever
14. Tire pressure warning system reset switch
15. Lower vent
16. Hood lock release lever
17. Window lock switch
18. Power rear view mirror control switches
Instrument panel overview (standard and access cab models)
 Vehicles with manual transmission

’05 TUNDRA_U (L/O 0408)
3
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

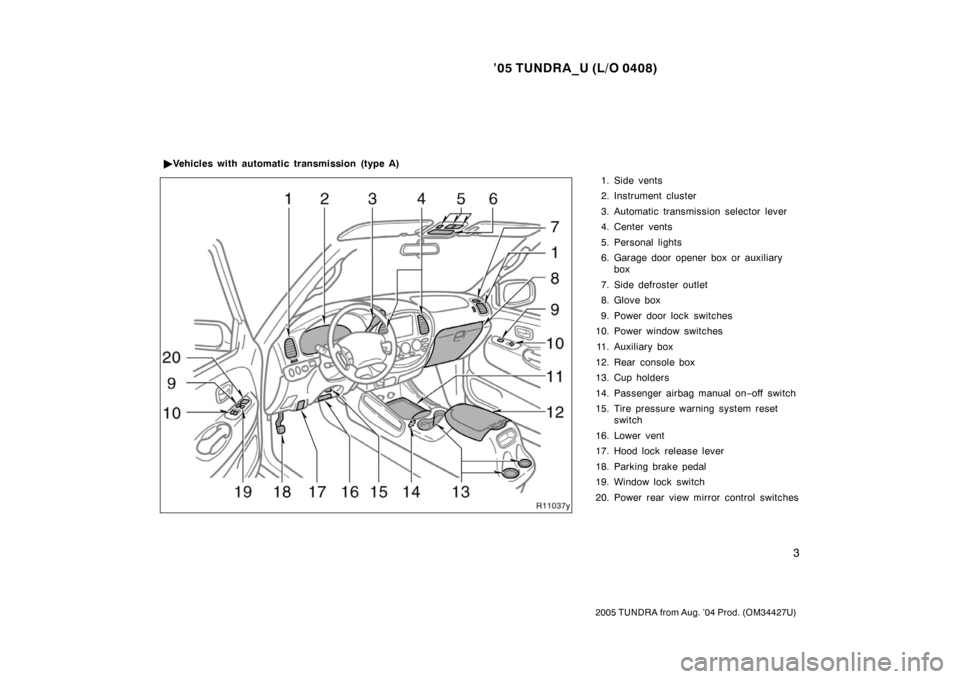

1. Side vents
2. Instrument cluster
3. Automatic transmission selector lever
4. Center vents
5. Personal lights
6. Garage door opener box or auxiliary
box
7. Side defroster outlet
8. Glove box
9. Power door lock switches
10. Power window switches
11. Auxiliary box
12. Rear console box
13. Cup holders
14. Passenger airbag manual on −off switch
15. Tire pressure warning system reset switch
16. Lower vent
17. Hood lock release lever
18. Parking brake pedal
19. Window lock switch
20. Power rear view mirror control switches

Vehicles with automatic transmission (type A)

’05 TUNDRA_U (L/O 0408)
4
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

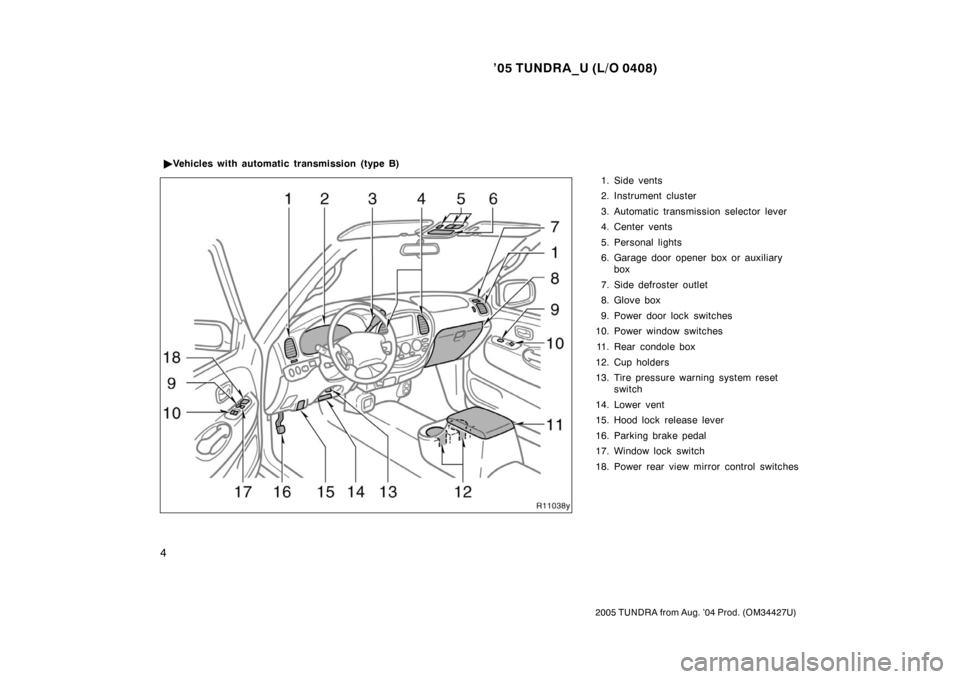

1. Side vents
2. Instrument cluster
3. Automatic transmission selector lever
4. Center vents
5. Personal lights
6. Garage door opener box or auxiliary
box
7. Side defroster outlet
8. Glove box
9. Power door lock switches
10. Power window switches
11. Rear condole box
12. Cup holders
13. Tire pressure warning system reset switch
14. Lower vent
15. Hood lock release lever
16. Parking brake pedal
17. Window lock switch
18. Power rear view mirror control switches

Vehicles with automatic transmission (type B)

’05 TUNDRA_U (L/O 0408)
5
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

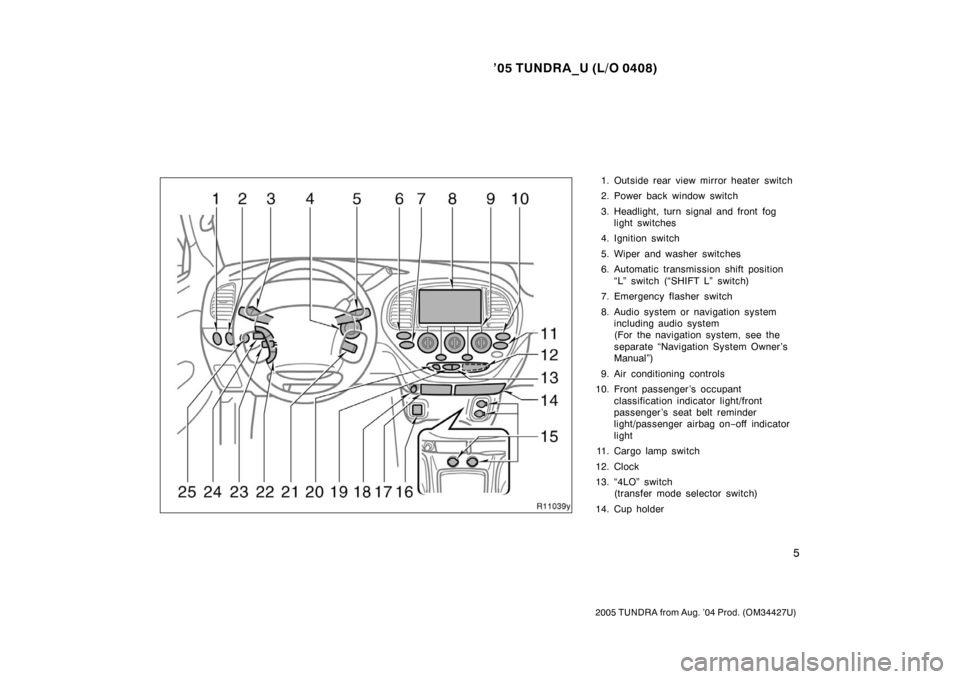

1. Outside rear view mirror heater switch
2. Power back window switch
3. Headlight, turn signal and front fog
light switches
4. Ignition switch
5. Wiper and washer switches
6. Automatic transmission shift position “L” switch (“SHIFT L” switch)
7. Emergency flasher switch
8. Audio system or navigation system including audio system
(For the navigation system, see the
separate “Navigation System Owner ’s
Manual”)
9. Air conditioning controls
10. Front passenger ’s occupant classification indicator light/front
passenger ’s seat belt reminder
light/passenger airbag on −off indicator
light
11. Cargo lamp switch
12. Clock
13. “4LO” switch (transfer mode selector switch)
14. Cup holder
