15. Power outlets
16. Passenger airbag manual on −off switch
17. Ashtray
18. Cigarette lighter
19. “2WD/4HI” switch (transfer mode selector switch)
20. “AUTO LSD” switch
21. Cruise control switch
22. Audio remote control switches
23. Tilt steering lock release lever
24. Toyota vehicle intrusion protection system (TVIP) indicator light
25. Instrument panel light control knob

’05 TUNDRA_U (L/O 0408)
7
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

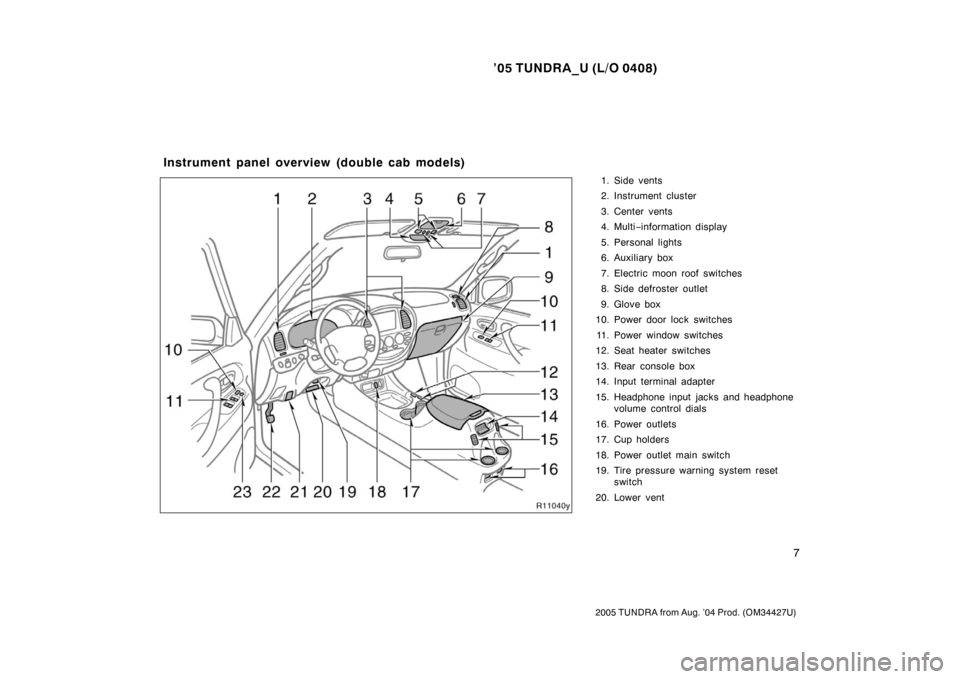

1. Side vents
2. Instrument cluster
3. Center vents
4. Multi −information display
5. Personal lights
6. Auxiliary box
7. Electric moon roof switches
8. Side defroster outlet
9. Glove box
10. Power door lock switches
11. Power window switches
12. Seat heater switches
13. Rear console box
14. Input terminal adapter
15. Headphone input jacks and headphone volume control dials
16. Power outlets
17. Cup holders
18. Power outlet main switch
19. Tire pressure warning system reset switch
20. Lower vent
Instrument panel overview (double cab models)

’05 TUNDRA_U (L/O 0408)
8
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
21. Hood lock release lever
22. Parking brake pedal
23. Window lock switch

’05 TUNDRA_U (L/O 0408)
9
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

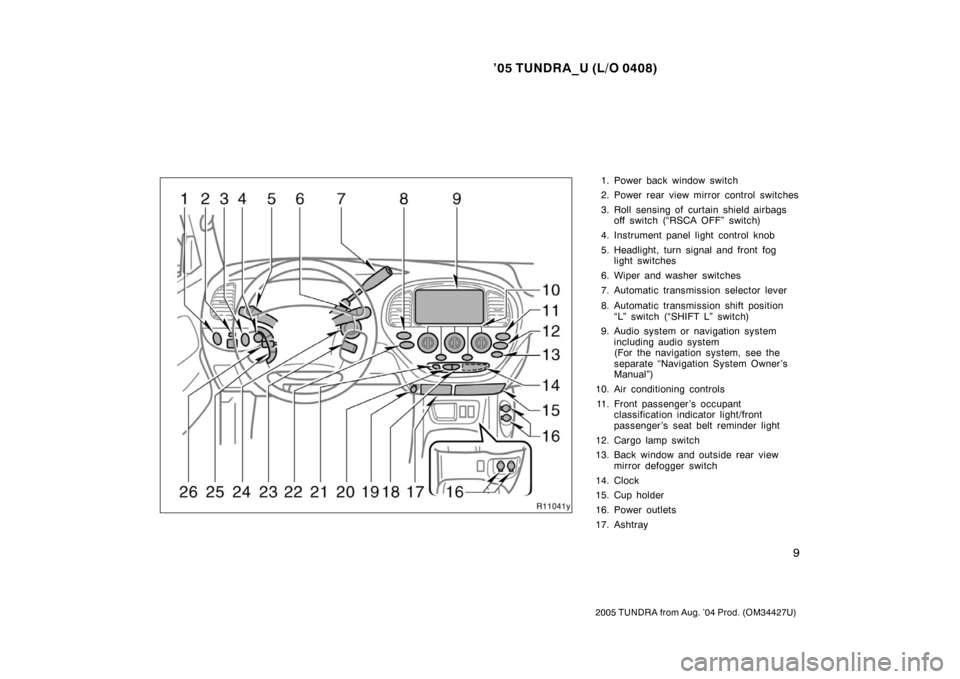

1. Power back window switch
2. Power rear view mirror control switches
3. Roll sensing of curtain shield airbags
off switch (“RSCA OFF” switch)
4. Instrument panel light control knob
5. Headlight, turn signal and front fog light switches
6. Wiper and washer switches
7. Automatic transmission selector lever
8. Automatic transmission shift position “L” switch (“SHIFT L” switch)
9. Audio system or navigation system including audio system
(For the navigation system, see the
separate “Navigation System Owner ’s
Manual”)
10. Air conditioning controls 11. Front passenger ’s occupant classification indicator light/front
passenger ’s seat belt reminder light
12. Cargo lamp switch
13. Back window and outside rear view mirror defogger switch
14. Clock
15. Cup holder
16. Power outlets
17. Ashtray

’05 TUNDRA_U (L/O 0408)
10
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
18. “4LO” switch
(transfer mode selector switch)
19. Cigarette lighter
20. “2WD/4HI” switch (transfer mode selector switch)
21. “AUTO LSD” switch
22. Emergency flasher switch
23. Cruise control switch
24. Ignition switch
25. Audio remote control switches
26. Tilt steering lock release lever

’05 TUNDRA_U (L/O 0408)
11
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
1. Engine coolant temperature gauge
2. Service reminder indicators and
indicator lights 3. Speedometer
4. Fuel gauge
5. Trip meter reset knob
6. Odometer and two trip meters
Instrument cluster overview

Without tachometer

’05 TUNDRA_U (L/O 0408)
12
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
1. Service reminder indicators and
indicator lights
2. Oil pressure gauge
3. Tachometer 4. Speedometer
5. Fuel gauge
6. Engine coolant temperature gauge
7. Trip meter reset knob
8. Odometer and two trip meters
9. Voltmeter

With tachometer

’05 TUNDRA_U (L/O 0408)
13
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
Driver ’s seat belt reminder light∗
1
Low engine oil pressure warning light∗1
Low fuel level warning light∗1
Brake system warning light∗1
Discharge warning light∗1
Malfunction indicator lamp∗1
Anti −lock brake system warning light∗
1or
Front passenger ’s seat belt reminder light∗1
Vehicle stability control system warning
light∗1
Traction control system warning light∗1
“AUTO LSD” system warning light∗1
SRS warning light∗1
Automatic transmission fluid temperature
warning light∗1 (four −wheel drive models)
Unengaged “Park” warning light
∗
1
Low windshield washer fluid level warning
light∗1
Open door warning light∗1
Low tire pressure warning light∗1
Engine oil replacement reminder light∗1
(for vehicles sold in U.S.A.)
Indicator symbols on the instrument panel
