Page 3214 of 5135
700S9±01
±
WINDSHIELD/WINDOWGLASS/MIRROR POWER WINDOW CONTROL SYSTEM
70±5
AVENSIS REPAIR MANUAL (RM1018E)
PROBLEM SYMPTOMS TABLE
SymptomSuspected AreaSee Page
All power windows do not operate
1. Ignition switch assy
2. IG1 relay
3. Power window regulator master switch assy
4. Instrument panel J/B assy (Integration relay)
5. Wire harness80±2
70±6
70±6
70±6
±
Only one power window does not operate
1. D±FR P/W fuse
2. P±FR P/W fuse
3. D±RR P/W fuse
4. P±RR P/W fuse
5. Power window regulator master switch assy
6. Power window regulator switch assy
7. Door window regulator sub±assy (Power window
motor)
8. Wire harness±
±
±
±
70±6
70±6
70±6
±
AUTO UP/DOWN function does not operate
1. Power window regulator master switch assy
2. Power window regulator switch assy
3. Door window regulator sub±assy (Power window motor)70±6
70±6
70±6
Window lock system does not operate1. Power window master switch assy70±6
Window cannot be operated after ignition switch is turned OFF1. Front door courtesy lamp switch assy
2. Instrument panel J/B assy (Integration relay)70±6
70±6
Page 3228 of 5135
B660325 Clips
or
oror
or
or
or
71±18
±
INSTRUMENT PANEL/METER INSTRUMENT PANEL SUB±ASSY LOWER
AVENSIS REPAIR MANUAL (RM1018E)
36.REMOVE INSTRUMENT PANEL LOWER ASSY
(a)Disconnect the hood lock control cable.
(b)Using a clip remover, remove the 2 clips.
(c)Remove the 2 bolts 7 screws or .
(d)Disengage the wire harness 5 clamps.
(e)Remove the instrument panel lower assy.
37.REMOVE OUTER MIRROR SWITCH ASSY W/BEZEL
38.REMOVE FUSE BOX OPENING COVER
39.REMOVE GLOVE BOX LAMP ASSY
40.REMOVE INSTRUMENT PANEL BRACKET SUB±ASSY CENTER
(a)Remove the screw and the instrument panel bracket sub±assy center.
41.REMOVE INSTRUMENT PANEL SUB±ASSY LOWER
42.INSTALL INSTRUMENT PANEL AIR BAG ASSY (See page 60±29)

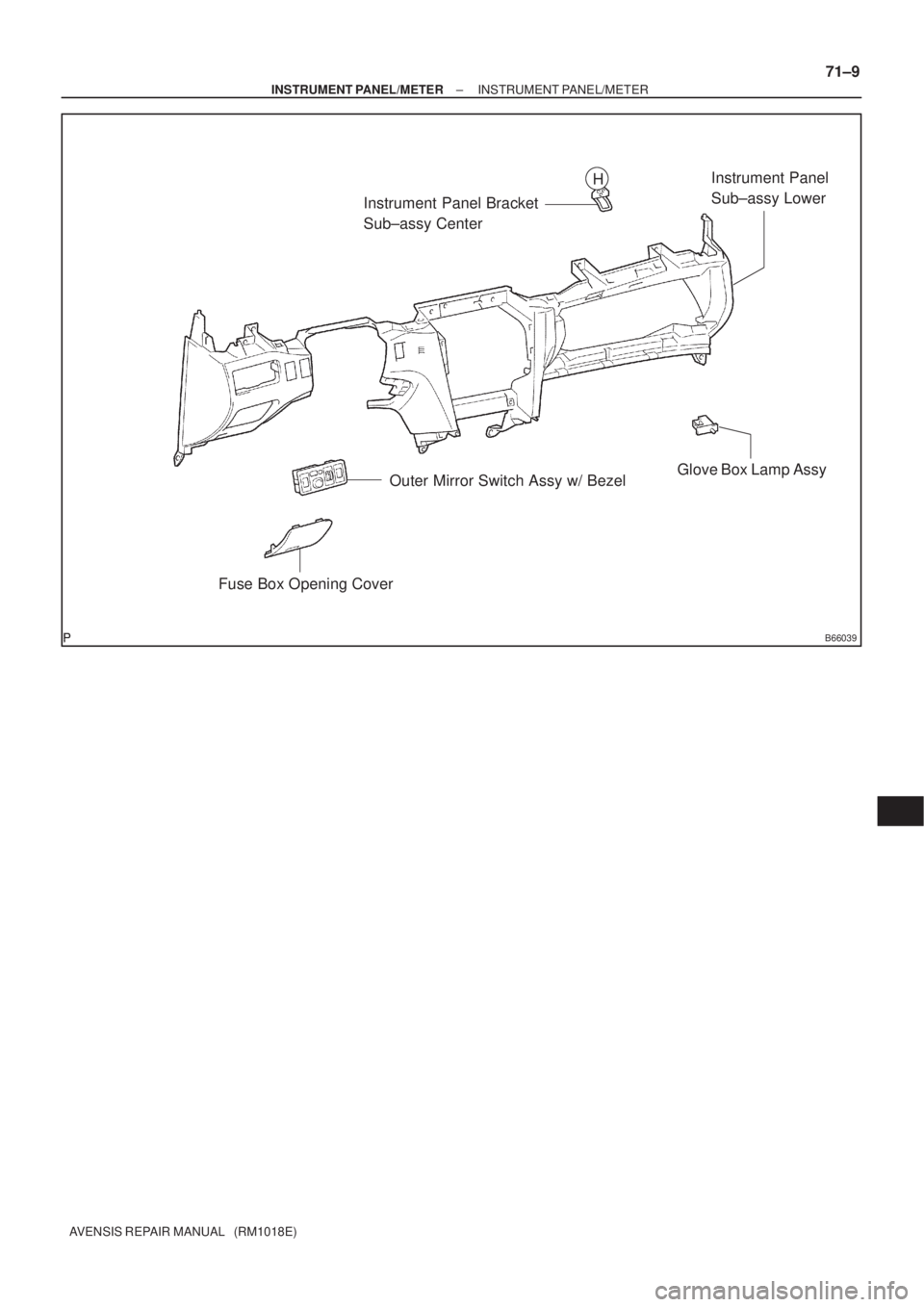

Page 3234 of 5135
B66039
Instrument Panel Bracket
Sub±assy CenterInstrument Panel
Sub±assy Lower
Glove Box Lamp Assy
Outer Mirror Switch Assy w/ Bezel
Fuse Box Opening Cover
H
± INSTRUMENT PANEL/METERINSTRUMENT PANEL/METER
71±9
AVENSIS REPAIR MANUAL (RM1018E)

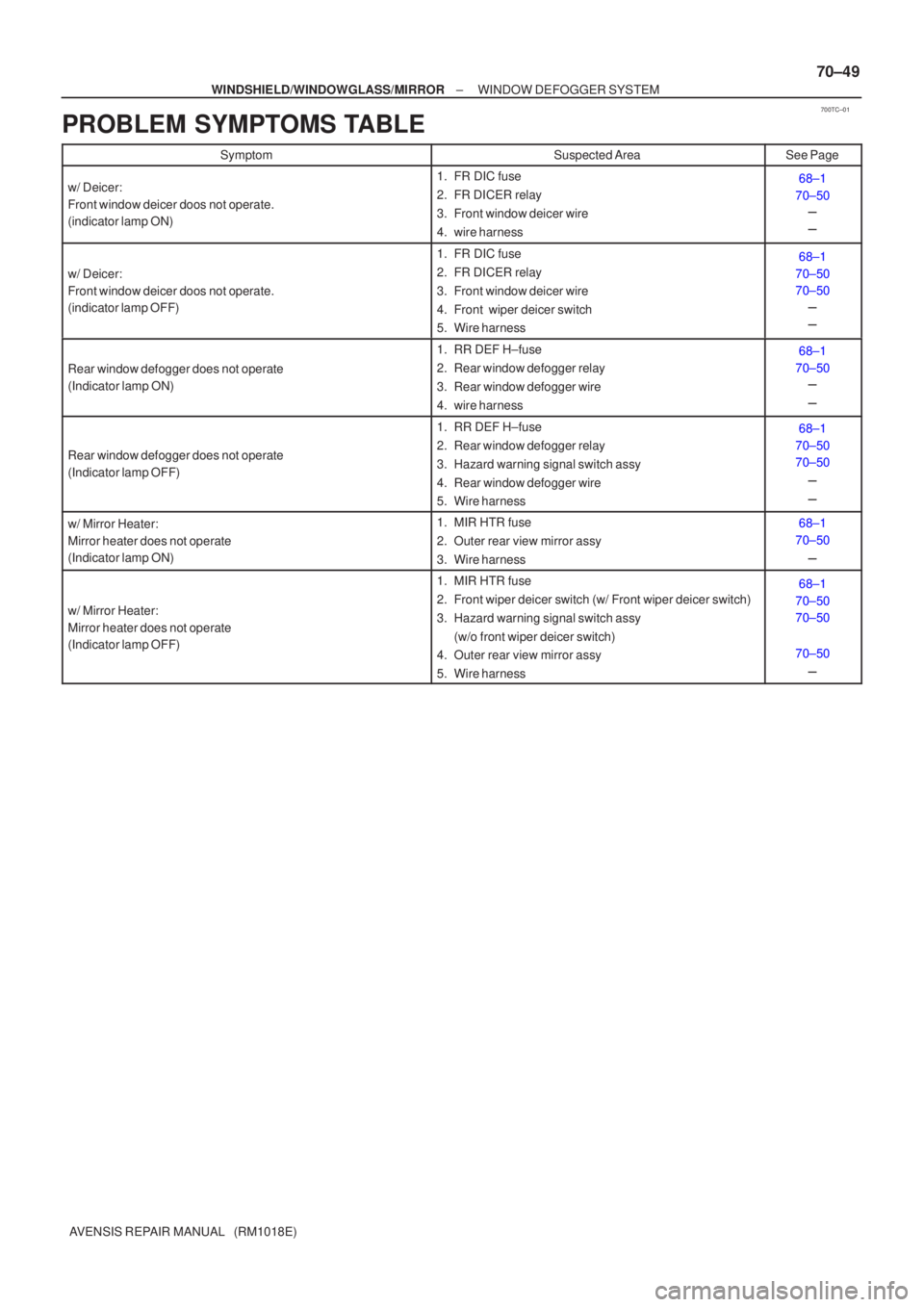

Page 3257 of 5135
700TC±01
±
WINDSHIELD/WINDOWGLASS/MIRROR WINDOW DEFOGGER SYSTEM
70±49
AVENSIS REPAIR MANUAL (RM1018E)
PROBLEM SYMPTOMS TABLE
SymptomSuspected AreaSee Page
w/ Deicer:
Front window deicer doos not operate.
(indicator lamp ON)1. FR DIC fuse
2. FR DICER relay
3. Front window deicer wire
4. wire harness68±1
70±50
w/ Deicer:
Front window deicer doos not operate.
(indicator lamp OFF)
1. FR DIC fuse
2. FR DICER relay
3. Front window deicer wire
4. Front wiper deicer switch
5. Wire harness68±1
70±50
70±50
Rear window defogger does not operate
(Indicator lamp ON)
1. RR DEF H±fuse
2. Rear window defogger relay
3. Rear window defogger wire
4. wire harness68±1
70±50
Rear window defogger does not operate
(Indicator lamp OFF)
1. RR DEF H±fuse
2. Rear window defogger relay
3. Hazard warning signal switch assy
4. Rear window defogger wire
5. Wire harness68±1
70±50
70±50
w/ Mirror Heater:
Mirror heater does not operate
(Indicator lamp ON)1. MIR HTR fuse
2. Outer rear view mirror assy
3. Wire harness68±1
70±50
w/ Mirror Heater:
Mirror heater does not operate
(Indicator lamp OFF)
1. MIR HTR fuse
2. Front wiper deicer switch (w/ Front wiper deicer switch)
3. Hazard warning signal switch assy (w/o front wiper deicer switch)
4. Outer rear view mirror assy
5. Wire harness68±1
70±50
70±50
70±50

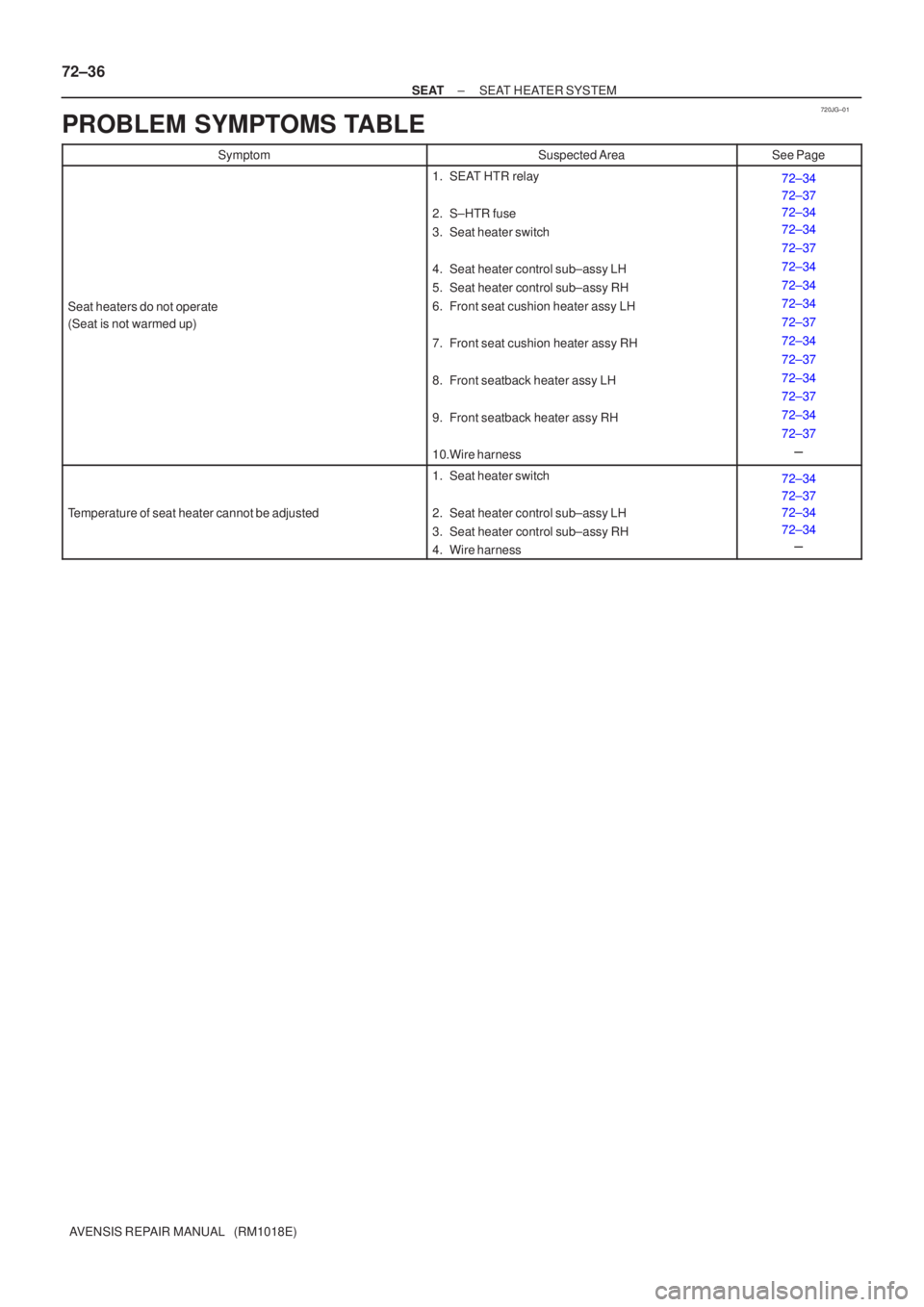

Page 3258 of 5135
720JG±01
72±36
±
SEAT SEAT HEATER SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
PROBLEM SYMPTOMS TABLE
SymptomSuspected AreaSee Page
Seat heaters do not operate
(Seat is not warmed up)
1. SEAT HTR relay
2. S±HTR fuse
3. Seat heater switch
4. Seat heater control sub±assy LH
5. Seat heater control sub±assy RH
6. Front seat cushion heater assy LH
7. Front seat cushion heater assy RH
8. Front seatback heater assy LH
9. Front seatback heater assy RH
10.Wire harness72±34
72±37
72±34
72±34
72±37
72±34
72±34
72±34
72±37
72±34
72±37
72±34
72±37
72±34
72±37
Temperature of seat heater cannot be adjusted
1. Seat heater switch
2. Seat heater control sub±assy LH
3. Seat heater control sub±assy RH
4. Wire harness72±34
72±37
72±34
72±34
Page 3259 of 5135
720JF±01
B67299
LHD Models
RHD ModelsInstrument Panel J/B Assy
SEAT HTR Relay
S±HTR Fuse
Instrument Panel J/B Assy
SEAT HTR Relay
S±HTR Fuse
72±34
± SEATSEAT HEATER SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
SEAT HEATER SYSTEM
LOCATION

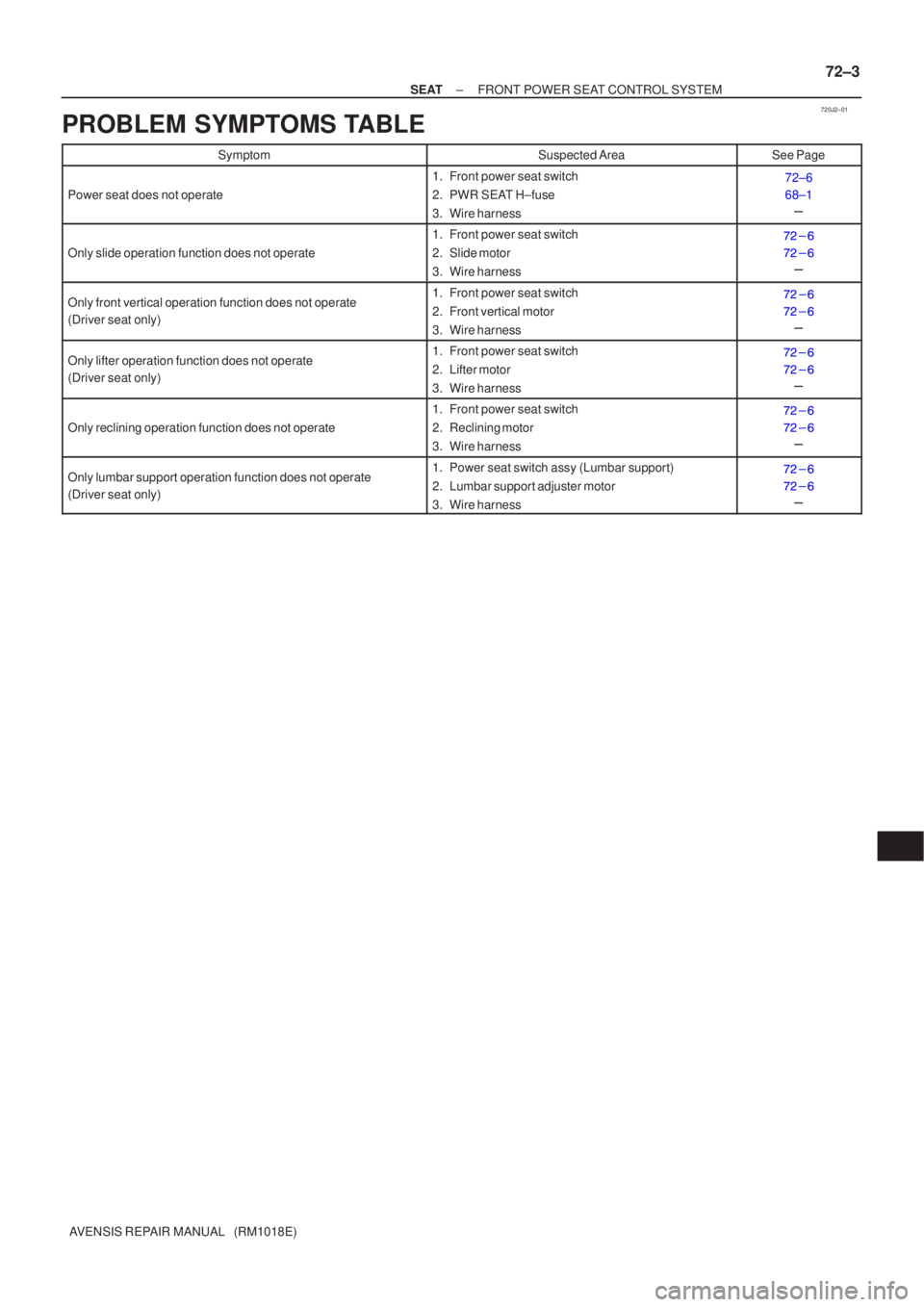

Page 3291 of 5135
720J2±01
±
SEAT FRONT POWER SEAT CONTROL SYSTEM
72±3
AVENSIS REPAIR MANUAL (RM1018E)
PROBLEM SYMPTOMS TABLE
SymptomSuspected AreaSee Page
Power seat does not operate
1. Front power seat switch
2. PWR SEAT H±fuse
3. Wire harness72±6
68±1
Only slide operation function does not operate
1. Front power seat switch
2. Slide motor
3. Wire harness
Only front vertical operation function does not operate
(Driver seat only)1. Front power seat switch
2. Front vertical motor
3. Wire harness
Only lifter operation function does not operate
(Driver seat only)1. Front power seat switch
2. Lifter motor
3. Wire harness
Only reclining operation function does not operate
1. Front power seat switch
2. Reclining motor
3. Wire harness
Only lumbar support operation function does not operate
(Driver seat only)1. Power seat switch assy (Lumbar support)
2. Lumbar support adjuster motor
3. Wire harness

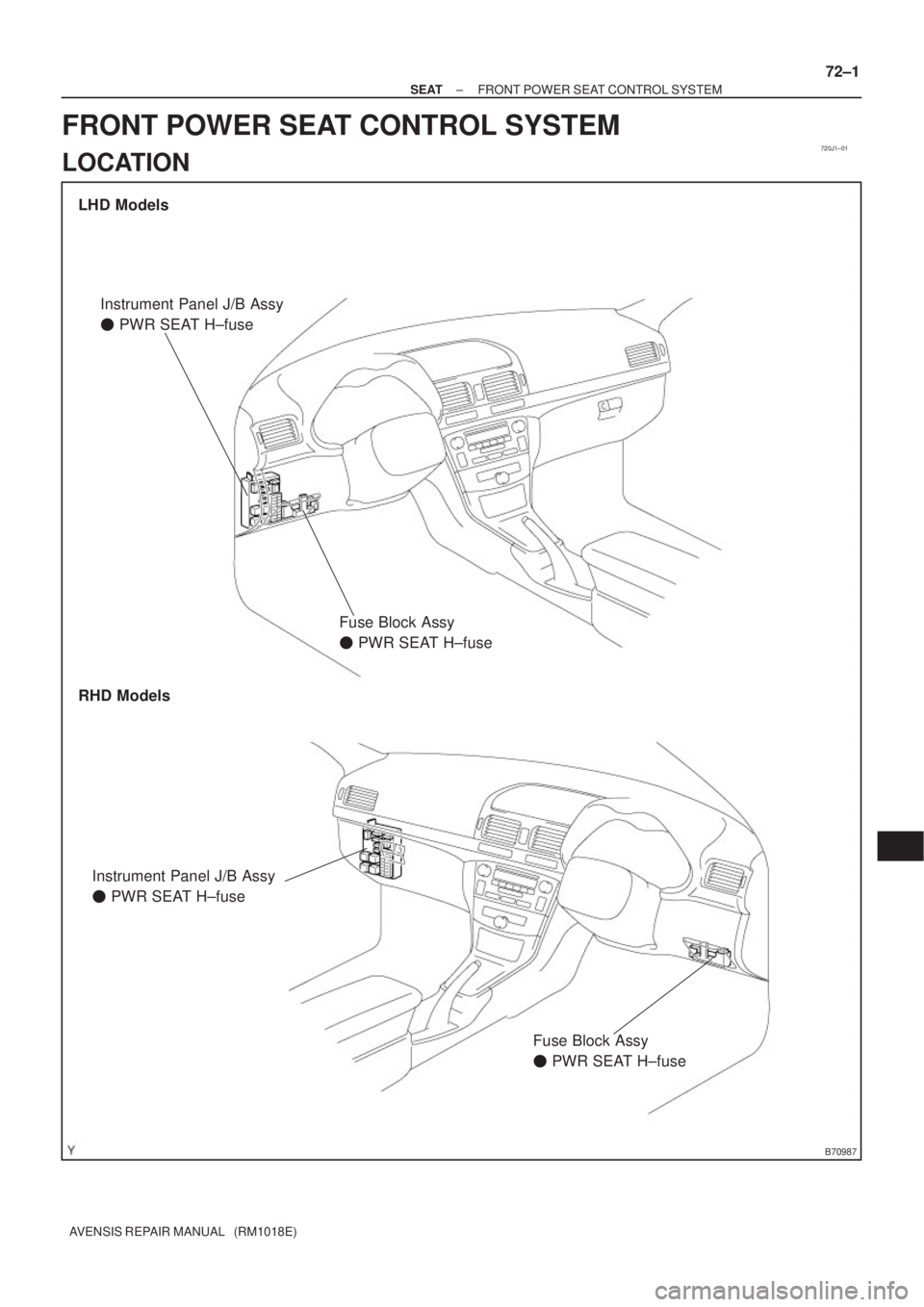

Page 3292 of 5135
720J1±01
B70987
LHD Models
RHD ModelsInstrument Panel J/B Assy
PWR SEAT H±fuse
Fuse Block Assy
PWR SEAT H±fuse
Instrument Panel J/B Assy
PWR SEAT H±fuse
Fuse Block Assy
PWR SEAT H±fuse
± SEATFRONT POWER SEAT CONTROL SYSTEM
72±1
AVENSIS REPAIR MANUAL (RM1018E)
FRONT POWER SEAT CONTROL SYSTEM
LOCATION
