2005 NISSAN X-TRAIL display

AV-92
NAVIGATION SYSTEM

2. RGB HARNESS CHECK
1. Turn the ignition switch OFF.
2. Disconnect NAVI control unit connector and display connector.

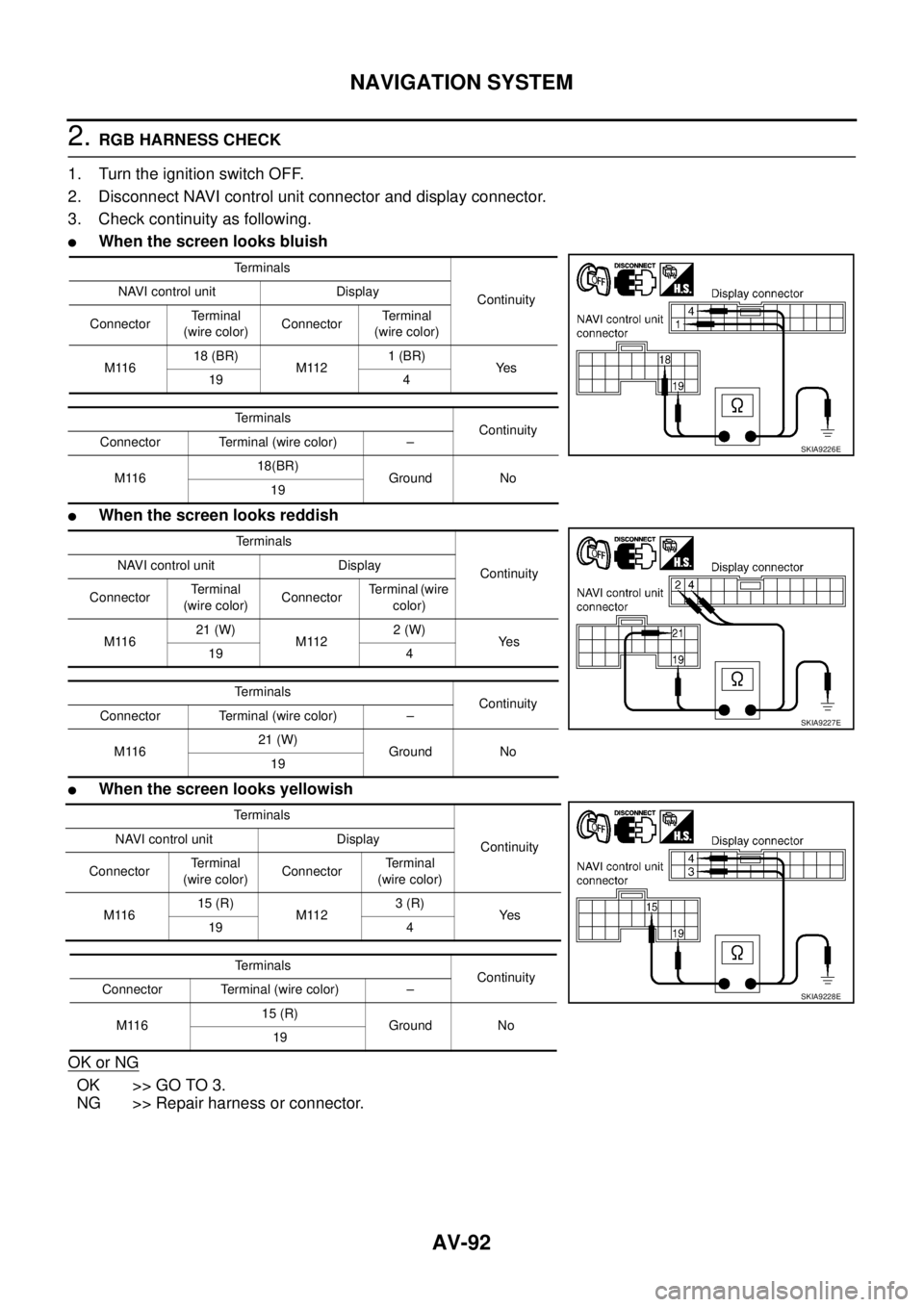

3. Check continuity as following.

When the screen looks bluish

When the screen looks reddish

When the screen looks yellowish
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
Terminals
Continuity NAVI control unit Display
ConnectorTerminal
(wire color)ConnectorTerminal
(wire color)
M11618 (BR)
M1121 (BR)
Ye s
19 4
Terminals
Continuity
Connector Terminal (wire color) –
M11618(BR)
Ground No
19
Terminals
Continuity NAVI control unit Display
ConnectorTe r m i n a l
(wire color)ConnectorTerminal (wire
color)
M11621 (W)
M1122 (W)
Ye s
19 4
Terminals
Continuity
Connector Terminal (wire color) –
M11621 (W)
Ground No
19
Terminals
Continuity NAVI control unit Display
ConnectorTerminal
(wire color)ConnectorTerminal
(wire color)
M11615 (R)
M1123 (R)
Ye s
19 4
Terminals
Continuity
Connector Terminal (wire color) –
M11615 (R)
Ground No
19
SKIA9226E
SKIA9227E
SKIA9228E

NAVIGATION SYSTEM
AV-93
C
D
E
F
G
H
I
J
L
MA
B
AV

3. RGB SIGNAL CHECK
1. Connect NAVI control unit connector and display connector.
2. Turn the ignition switch ON.
3. Display “Color bar” by “CONFIRMATION/ADJUSTMENT” mode.
4. Check the following with CONSULT-II or oscilloscope.

When the screen looks bluish
Voltage signal between NAVI control unit connector M116 termi-
nal 18 (BR) and 19.

When the screen looks reddish
Voltage signal between NAVI control unit connector M116 terminal 21 (W) and 19.

When the screen looks yellowish
Voltage signal between NAVI control unit connector M116 terminal 15 (R) and 19.
OK or NG
OK >> Replace display.
NG >> Replace NAVI control unit.
RGB Screen Is Not ShownEKS00F3I
1. HARNESS CHECK
1. Turn the ignition switch OFF.
2. Disconnect NAVI control unit connector and display connector.
3. Check continuity between NAVI control unit harness connector
M116 terminal 12 (Y), 19 and display harness connector M112
terminal 8 (Y), 4.
4. Check continuity between NAVI control unit harness connector
M112 terminal 12 (Y), 19 and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair harness or connector.18 (BR) – 19 : Refer to AV- 6 2 , "
Terminals and Refer-
ence Value for NAVI Control Unit" .
21 (W) – 19 : Refer to AV- 6 2 , "
Terminals and Refer-
ence Value for NAVI Control Unit" .
15 (R) – 19 : Refer to AV- 6 2 , "
Terminals and Refer-
ence Value for NAVI Control Unit" .
SKIA9493E
12 (Y) - 8 (Y) : Continuity should exist.
19 - 4 : Continuity should exist.
12 (Y), 19 - Ground : Continuity should not exist.
SKIA9109E

AV-94
NAVIGATION SYSTEM

2. RGB AREA SIGNAL CHECK
1. Connect NAVI control unit connector and display connector.
2. Turn ignition switch ON.
3. Push “INFO” switch.

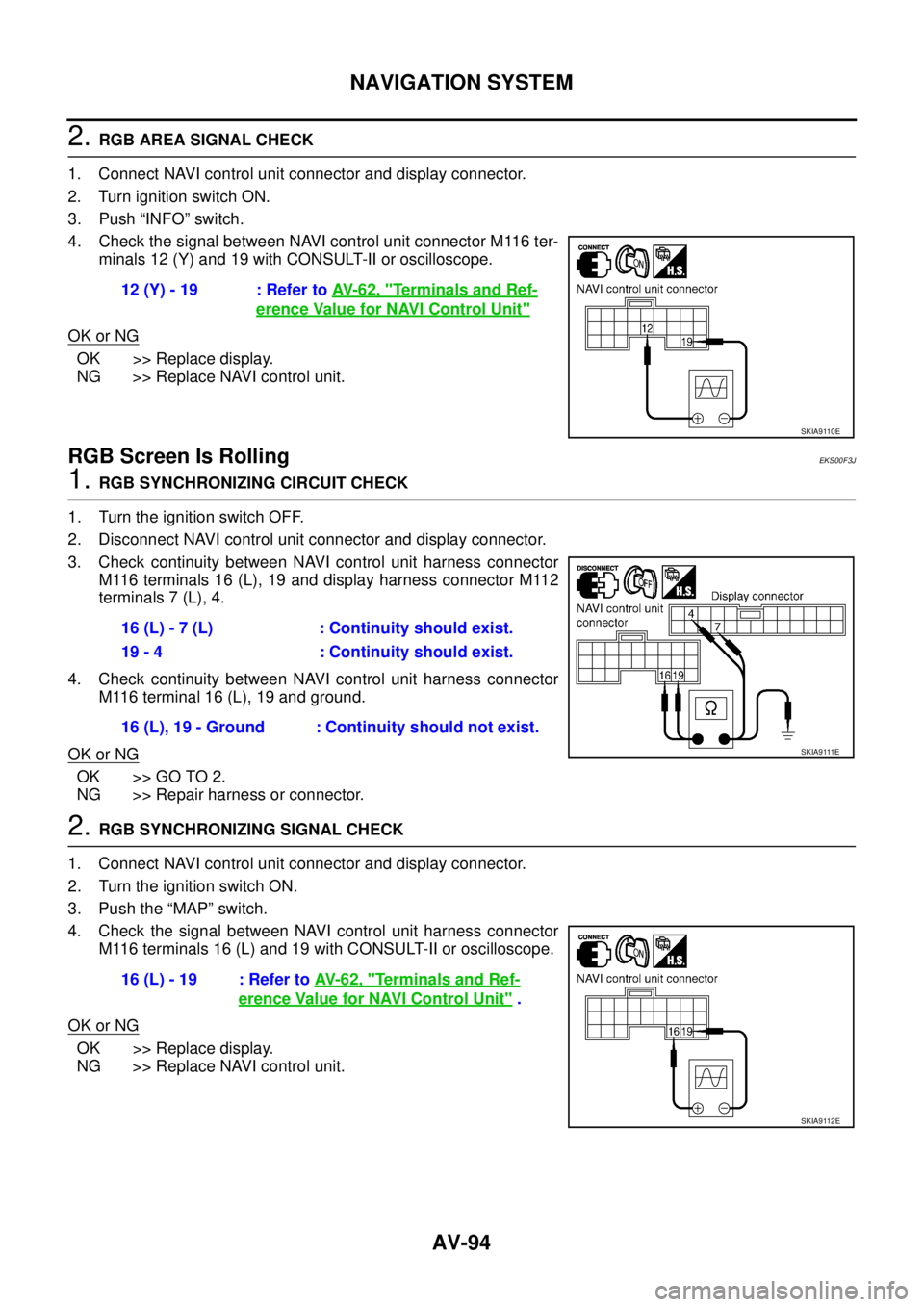

4. Check the signal between NAVI control unit connector M116 ter-
minals 12 (Y) and 19 with CONSULT-II or oscilloscope.
OK or NG
OK >> Replace display.
NG >> Replace NAVI control unit.
RGB Screen Is RollingEKS00F3J
1. RGB SYNCHRONIZING CIRCUIT CHECK
1. Turn the ignition switch OFF.
2. Disconnect NAVI control unit connector and display connector.
3. Check continuity between NAVI control unit harness connector
M116 terminals 16 (L), 19 and display harness connector M112
terminals 7 (L), 4.
4. Check continuity between NAVI control unit harness connector
M116 terminal 16 (L), 19 and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair harness or connector.
2. RGB SYNCHRONIZING SIGNAL CHECK
1. Connect NAVI control unit connector and display connector.
2. Turn the ignition switch ON.
3. Push the “MAP” switch.
4. Check the signal between NAVI control unit harness connector
M116 terminals 16 (L) and 19 with CONSULT-II or oscilloscope.
OK or NG
OK >> Replace display.
NG >> Replace NAVI control unit.12 (Y) - 19 : Refer to AV- 6 2 , "
Terminals and Ref-
erence Value for NAVI Control Unit"
SKIA9110E
16 (L) - 7 (L) : Continuity should exist.
19 - 4 : Continuity should exist.
16 (L), 19 - Ground : Continuity should not exist.
SKIA9111E
16 (L) - 19 : Refer to AV- 6 2 , "Terminals and Ref-
erence Value for NAVI Control Unit" .
SKIA9112E

NAVIGATION SYSTEM
AV-97
C
D
E
F
G
H
I
J
L
MA
B
AV

7. VOICE CHANGE RELAY ON SIGNAL CHECK

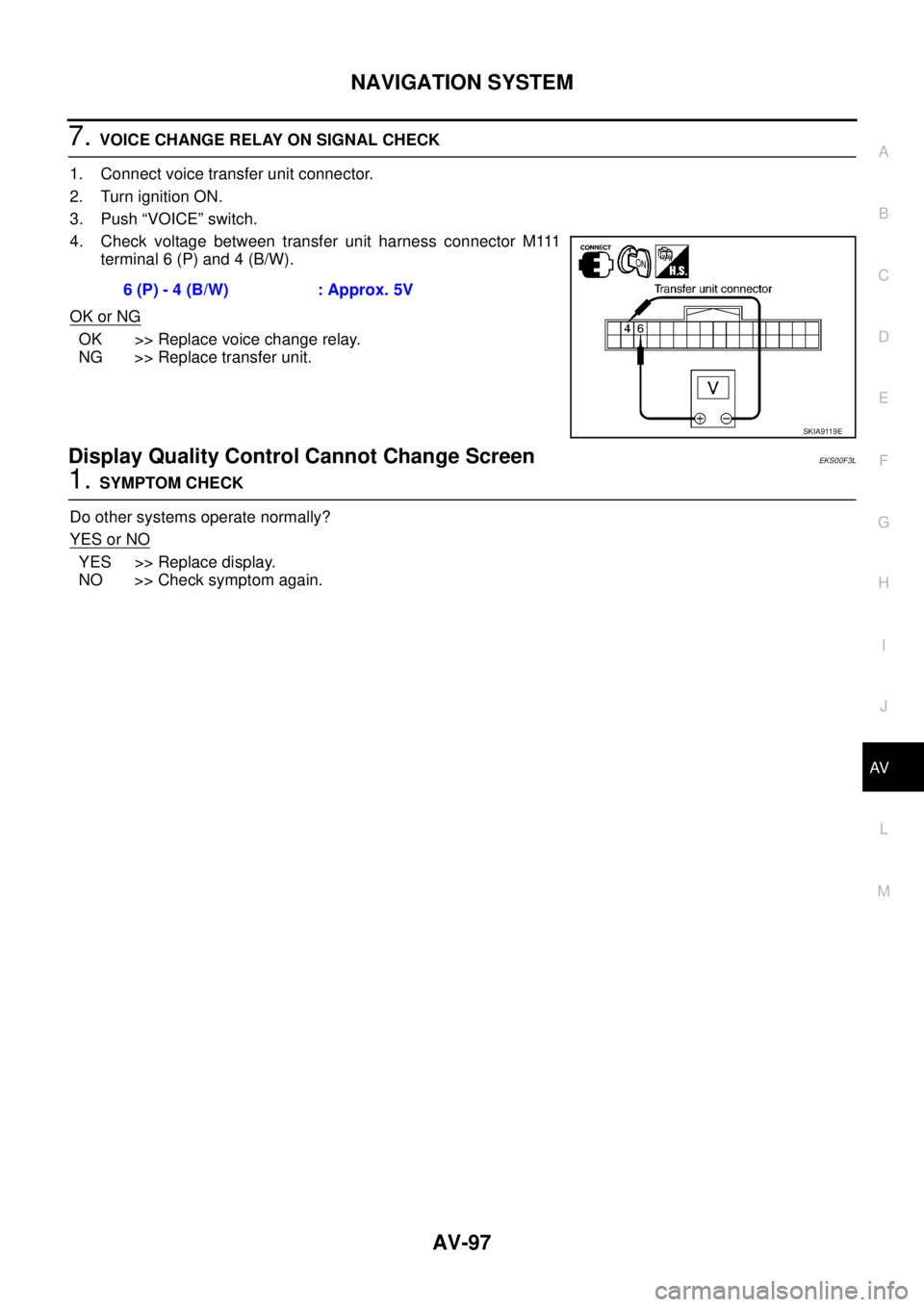

1. Connect voice transfer unit connector.
2. Turn ignition ON.
3. Push “VOICE” switch.
4. Check voltage between transfer unit harness connector M111
terminal 6 (P) and 4 (B/W).
OK or NG
OK >> Replace voice change relay.
NG >> Replace transfer unit.
Display Quality Control Cannot Change ScreenEKS00F3L
1. SYMPTOM CHECK
Do other systems operate normally?
YES or NO
YES >> Replace display.
NO >> Check symptom again.6 (P) - 4 (B/W) : Approx. 5V
SKIA9119E

AV-98
NAVIGATION SYSTEM

Example of Symptoms Judged Not MalfunctionEKS00F3N
BASIC OPERATIONS
VEHICLE MARKS
Symptom Possible cause Remedy
No image comes on.The brightness adjustment is at the lowest set-
ting.Adjust to brighter setting.
No map comes on the screen.No map DVD-ROM is inserted, or it is inserted
upside down.Insert the DVD-ROM correctly.
The map display mode is switched off. Push the “MAP” button.
No voice guidance is available. or
The volume is not high enough.The volume is not set correctly or it is turned
off.Adjust the volume correctly.
The screen is too dim. The move-
ment is slow.The temperature in the vehicle is low. Wait for the temperature to rise.
There are darker or brighter dots
in the display.It is inherent to LC displays. This is not malfunction.
Symptom Possible cause Remedy
The location names differ between
PLAN VIEW and BIRDVIEW
® .This is because the displayed information is
reduced so that the screen does not become
too crowded. There is also a chance that
names of the roads or locations will be repeat-
edly displayed. The name appearing on the
screen may be different because of the pro-
cessing procedure.It should not be regarded as malfunction.

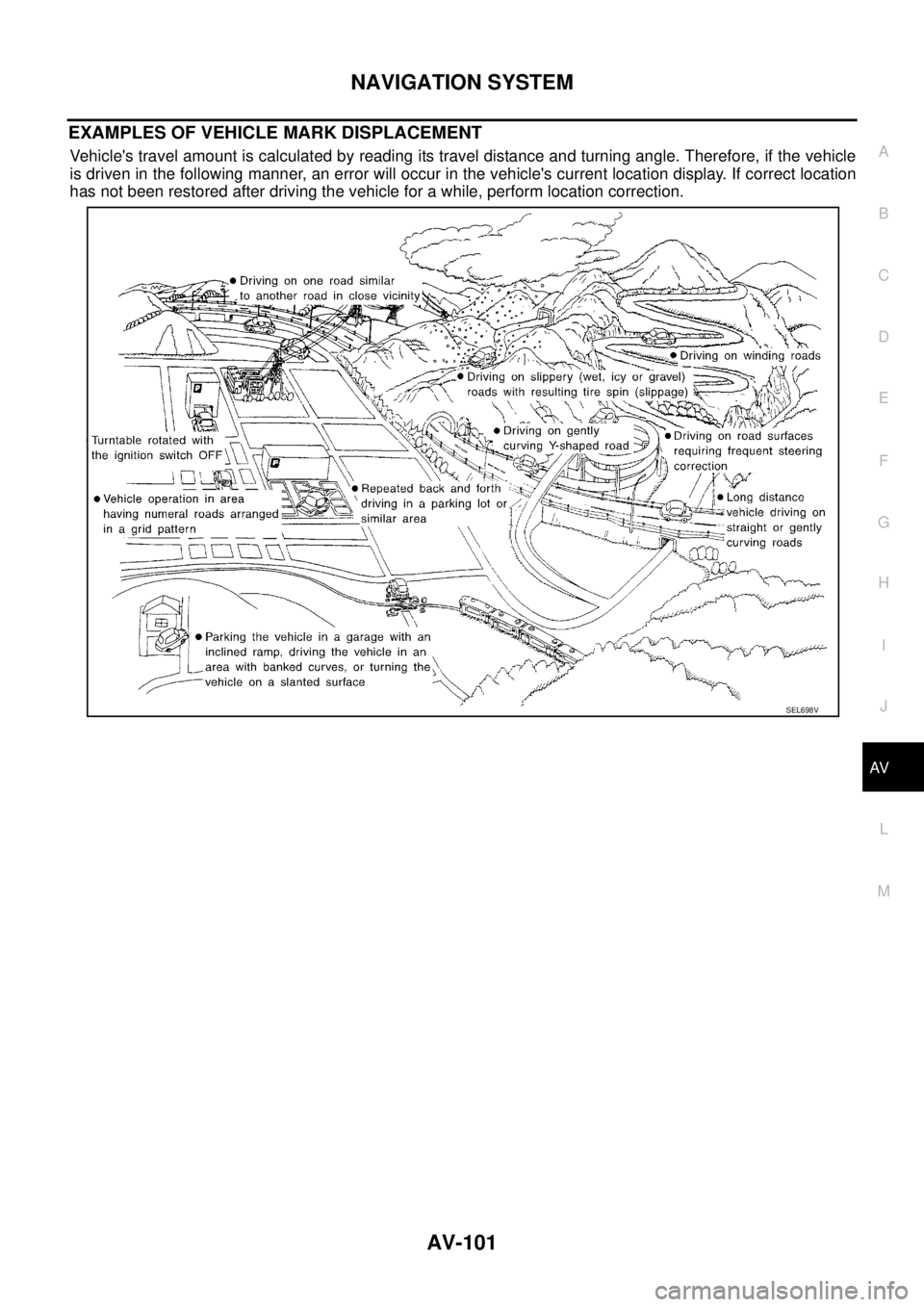

The vehicle mark is not shown
correctly.The vehicle might have moved with the ignition
off, for example on a ferry boat or car trans-
porter.Drive the vehicle with GPS on for some dis-
tance.
The screen does not switch to
night mode even after turning the
headlights on.The last time the lights were turned on, your
setting was in daytime mode.Turn the headlights on again, go to DISPLAY
SETTINGS screen and set it to the night
mode.
The map does not scroll even
when the vehicle is traveling.The display is not switched to the map screen. Push the “MAP” button.
The vehicle mark does not show
up.The display is not switched to the map screen. Push the “MAP” button.
GPS indicator on the screen
remains gray.GPS signals are not received because the vehi-
cle is indoors or in the shade of buildings.Move the vehicle outdoors with a clear view of
the sky.
GPS satellites are in poor locations.Wait for the satellites to move to better loca-
tions.
The location of the vehicle mark
does not match the actual posi-
tion.Driving on slippery road surface If the vehicle mark does not move to the cor-
rect position even after the vehicle has been
driven for approximately 10 km (6 miles),
adjust the current location. If necessary, adjust
the moving speed of the vehicle. Driving on slanted area
Rough or violent driving.If the position maker does not move to the cor-
rect position even after the vehicle has been
driven for approximately 10 km (6 miles),
adjust the current location.
GPS indicator remains gray.Please check the GPS indicator on the screen
to see if it remains gray.
Errors (gain or loss) result in calculating the
speed from the speed pulse because the vehi-
cle has tire chains on, or the system was trans-
ferred to a different vehicle.It will move by driving the vehicle for 30 min-
utes [in case it is running at 30 km/h (19
MPH)]. If you still notice errors, adjust moving
speed.
The map data has an error or is incomplete (if
the location error always happens in the same
area).Please wait for the updated Map

NAVIGATION SYSTEM
AV-99
C
D
E
F
G
H
I
J
L
MA
B
AV

MAP DVD-ROM
DESTINATION, WAY POINTS OR MENU CONTENTS CANNOT BE CHOSEN OR SET
VOICE GUIDANCE
Symptom Possible cause Remedy
The message “Error” appears
after operation.Map DVD-ROM is soiled or partially damaged.Check the DVD-ROM and wipe it clean with a
soft cloth.
In case you see any damage, replace the
DVD-ROM.
Symptom Possible cause Remedy
Turn list is not displayed.Route calculation has not yet been requested.Set the destination and request route calcula-
tion.
The vehicle mark is not on the suggested route.Please drive the vehicle along the suggested
route.
Route guidance is off. Turn the route guidance on.
In re-routing, the way points are
not included in the calculation.The system has judged that the vehicle has
already passed the point.If you want to go to that point again, edit the
route again.
Route information is not dis-
played.Route calculation has not yet been requested.Set the destination and request route calcula-
tion.
The vehicle mark is not on the suggested route.Please drive the vehicle along the suggested
route.
Route guidance is off. Turn the route guidance on.
Route is not calculated automati-
cally.The vehicle is not running on a route that can
be calculated from.Enter the route that can be calculated from.
Alternatively, you can calculate the route man-
ually. In this case, the entire route will be cal-
culated again.
It is impossible to request a
detour.Your vehicle is not running on the suggested
route.Restart route calculation or join the suggested
route.
The detour found is the same as
the previous suggestion.The system took many conditions into consider-
ation, but the same result was obtained.This is not malfunction.
It is impossible to set the way-
points.The number of way points exceeds 5.It is impossible to set more than 5 way points.
Please divide them in groups to find them all.
Symptom Possible cause Remedy
The voice guidance is not avail-
able.Voice guidance is only available at certain inter-
sections marked with
. In some cases, the
guidance is not available even when the vehicle
should make a turn.System is not malfunction.
The vehicle is off the suggested route.Return to the recommended route or re-search
the route.
Voice guidance is set off. Turn the voice guidance on.
Route guidance is set off. Turn the route guidance on.
The guidance content does not
correspond to the actual condition.The content of the voice guidance may vary,
depending on the types of junctions to make
turns on.Follow the actual rules and regulations.

AV-100
NAVIGATION SYSTEM

ROUTE CALCULATION
NOTE:
Except for the ordinance-designated cities and the prefectural capitals. (Applicable areas may be changed in the updated map disc.) Symptom Possible cause Remedy
Although the system is set with
the moving direction as the prefer-
ence, it does not find the route by
matching the preference.There is no route found in that direction. This is not malfunction.
Route is not indicated.There is no road close to the destination that
can be found by this system.Reset the destination close to the road dis-
played with orange, or wider ones. Especially
with roads which have separate lanes for
opposite directions, be careful in setting the
destination or way points on it, as results may
differ depending on the lane you choose.
The starting point to the destination is too close. Set more distant destinations.
The route is not displayed continu-
ously at way points that are for
example not calculated routes
from the vehicle's current position.Suggested routes may be displayed discontinu-
ously near way points as route calculation is
done at each way point.This is not malfunction.
The suggested route the vehicle
has travelled is erased.Suggested routes are stored in memory by the
blocks; if the vehicle travels past way point 1,
the former data will be erased.This is not malfunction.
A very detoured route is sug-
gested.If there are restrictions (such as one-way traffic)
on roads close to the starting point or destina-
tion, the system may suggest a detoured route.Try slightly moving the starting point or desti-
nation.
The landmark description does
not correspond to the actual one.It may be caused by insufficient or incorrect
data on the DVD-ROM.Please wait for the update Map DVD-ROM.
The suggested route does not
exactly connect to the starting
point, way points, or destination.There is no data for route calculation closer to
these points.Set these points on the main road displayed in
thick orange. Please note that in some cases
even main roads lack the data for route calcu-
lation.

NAVIGATION SYSTEM
AV-101
C
D
E
F
G
H
I
J
L
MA
B
AV

EXAMPLES OF VEHICLE MARK DISPLACEMENT
Vehicle's travel amount is calculated by reading its travel distance and turning angle. Therefore, if the vehicle
is driven in the following manner, an error will occur in the vehicle's current location display. If correct location
has not been restored after driving the vehicle for a while, perform location correction.
SEL698V
