Page 4274 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual LAN-30
[CAN]
CAN SYSTEM (TYPE 2)
Work FlowEKS00LUC
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “ABS” and “ALL MODE AWD/4WD” displayed
on CONSULT-II.
2. Print all the d](/manual-img/5/57403/w960_57403-4273.png "NISSAN X-TRAIL 2005 Service Repair Manual LAN-30
[CAN]
CAN SYSTEM (TYPE 2)
Work FlowEKS00LUC
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “ABS” and “ALL MODE AWD/4WD” displayed
on CONSULT-II.
2. Print all the d")

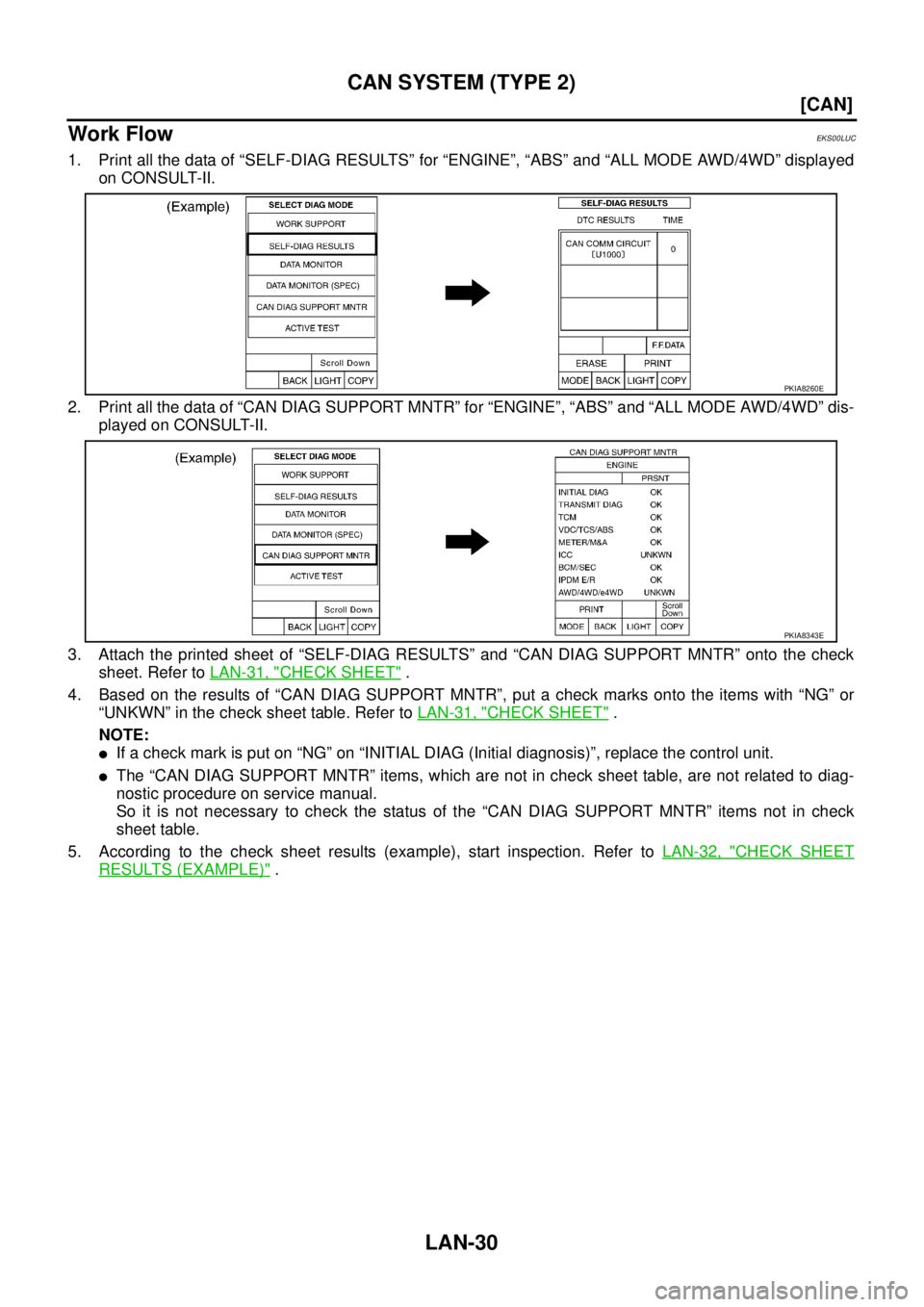

LAN-30
[CAN]
CAN SYSTEM (TYPE 2)
Work FlowEKS00LUC
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “ABS” and “ALL MODE AWD/4WD” displayed
on CONSULT-II.
2. Print all the data of “CAN DIAG SUPPORT MNTR” for “ENGINE”, “ABS” and “ALL MODE AWD/4WD” dis-
played on CONSULT-II.
3. Attach the printed sheet of “SELF-DIAG RESULTS” and “CAN DIAG SUPPORT MNTR” onto the check
sheet. Refer to LAN-31, "
CHECK SHEET" .
4. Based on the results of “CAN DIAG SUPPORT MNTR”, put a check marks onto the items with “NG” or
“UNKWN” in the check sheet table. Refer to LAN-31, "
CHECK SHEET" .
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
The “CAN DIAG SUPPORT MNTR” items, which are not in check sheet table, are not related to diag-
nostic procedure on service manual.
So it is not necessary to check the status of the “CAN DIAG SUPPORT MNTR” items not in check
sheet table.
5. According to the check sheet results (example), start inspection. Refer to LAN-32, "
CHECK SHEET
RESULTS (EXAMPLE)" .
PKIA8260E
PKIA8343E
Page 4290 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual LAN-46
[CAN]
CAN SYSTEM (TYPE 3)
Work FlowEKS00LUN
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “A/T”, “ABS” and “ALL MODE AWD/4WD” dis-
played on CONSULT-II.
2. Pr](/manual-img/5/57403/w960_57403-4289.png "NISSAN X-TRAIL 2005 Service Repair Manual LAN-46
[CAN]
CAN SYSTEM (TYPE 3)
Work FlowEKS00LUN
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “A/T”, “ABS” and “ALL MODE AWD/4WD” dis-
played on CONSULT-II.
2. Pr")
LAN-46
[CAN]
CAN SYSTEM (TYPE 3)
Work FlowEKS00LUN
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “A/T”, “ABS” and “ALL MODE AWD/4WD” dis-
played on CONSULT-II.
2. Print all the data of “CAN DIAG SUPPORT MNTR” for “ENGINE”, “A/T”, “ABS” and “ALL MODE AWD/
4WD” displayed on CONSULT-II.
3. Attach the printed sheet of “SELF-DIAG RESULTS” and “CAN DIAG SUPPORT MNTR” onto the check
sheet. Refer to LAN-47, "
CHECK SHEET" .
4. Based on the results of “CAN DIAG SUPPORT MNTR”, put a check marks onto the items with “NG” or
“UNKWN” in the check sheet table. Refer to LAN-47, "
CHECK SHEET" .
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
The “CAN DIAG SUPPORT MNTR” items, which are not in check sheet table, are not related to diag-
nostic procedure on service manual.
So it is not necessary to check the status of the “CAN DIAG SUPPORT MNTR” items not in check
sheet table.
5. According to the check sheet results (example), start inspection. Refer to LAN-48, "
CHECK SHEET
RESULTS (EXAMPLE)" .
PKIA8260E
PKIA8343E
Page 4315 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 4)
LAN-71
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Work FlowEKS00LV0
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “ABS” and “ALL MODE AWD/4WD” displayed
on CON](/manual-img/5/57403/w960_57403-4314.png "NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 4)
LAN-71
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Work FlowEKS00LV0
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “ABS” and “ALL MODE AWD/4WD” displayed
on CON")

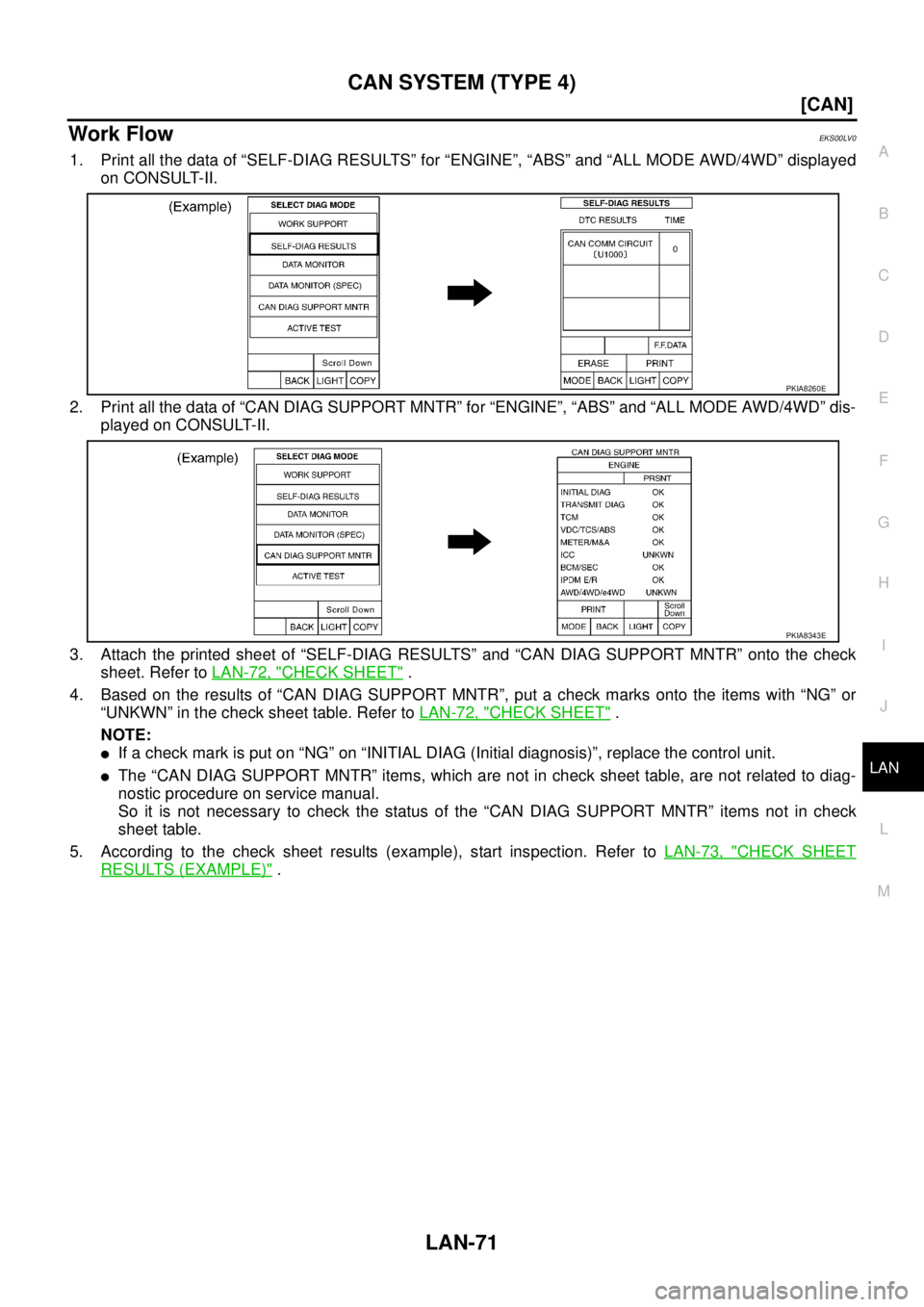

CAN SYSTEM (TYPE 4)
LAN-71
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Work FlowEKS00LV0
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “ABS” and “ALL MODE AWD/4WD” displayed
on CONSULT-II.
2. Print all the data of “CAN DIAG SUPPORT MNTR” for “ENGINE”, “ABS” and “ALL MODE AWD/4WD” dis-
played on CONSULT-II.
3. Attach the printed sheet of “SELF-DIAG RESULTS” and “CAN DIAG SUPPORT MNTR” onto the check
sheet. Refer to LAN-72, "
CHECK SHEET" .
4. Based on the results of “CAN DIAG SUPPORT MNTR”, put a check marks onto the items with “NG” or
“UNKWN” in the check sheet table. Refer to LAN-72, "
CHECK SHEET" .
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
The “CAN DIAG SUPPORT MNTR” items, which are not in check sheet table, are not related to diag-
nostic procedure on service manual.
So it is not necessary to check the status of the “CAN DIAG SUPPORT MNTR” items not in check
sheet table.
5. According to the check sheet results (example), start inspection. Refer to LAN-73, "
CHECK SHEET
RESULTS (EXAMPLE)" .
PKIA8260E
PKIA8343E
Page 4333 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 5)
LAN-89
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Work FlowEKS00LVC
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “ABS” and “ALL MODE AWD/4WD” displayed
on CON](/manual-img/5/57403/w960_57403-4332.png "NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 5)
LAN-89
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Work FlowEKS00LVC
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “ABS” and “ALL MODE AWD/4WD” displayed
on CON")
CAN SYSTEM (TYPE 5)
LAN-89
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Work FlowEKS00LVC
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “ABS” and “ALL MODE AWD/4WD” displayed
on CONSULT-II.
2. Print all the data of “CAN DIAG SUPPORT MNTR” for “ENGINE”, “ABS” and “ALL MODE AWD/4WD” dis-
played on CONSULT-II.
3. Attach the printed sheet of “SELF-DIAG RESULTS” and “CAN DIAG SUPPORT MNTR” onto the check
sheet. Refer to LAN-90, "
CHECK SHEET" .
4. Based on the results of “CAN DIAG SUPPORT MNTR”, put a check marks onto the items with “NG” or
“UNKWN” in the check sheet table. Refer to LAN-90, "
CHECK SHEET" .
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
The “CAN DIAG SUPPORT MNTR” items, which are not in check sheet table, are not related to diag-
nostic procedure on service manual.
So it is not necessary to check the status of the “CAN DIAG SUPPORT MNTR” items not in check
sheet table.
5. According to the check sheet results (example), start inspection. Refer to LAN-91, "
CHECK SHEET
RESULTS (EXAMPLE)" .
PKIA8260E
PKIA8343E
Page 4351 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 6)
LAN-107
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Work FlowEKS00LVO
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “A/T”, “ABS” and “ALL MODE AWD/4WD” dis-](/manual-img/5/57403/w960_57403-4350.png "NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 6)
LAN-107
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Work FlowEKS00LVO
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “A/T”, “ABS” and “ALL MODE AWD/4WD” dis-")
CAN SYSTEM (TYPE 6)
LAN-107
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Work FlowEKS00LVO
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “A/T”, “ABS” and “ALL MODE AWD/4WD” dis-
played on CONSULT-II.
2. Print all the data of “CAN DIAG SUPPORT MNTR” for “ENGINE”, “A/T”, “ABS” and “ALL MODE AWD/
4WD” displayed on CONSULT-II.
3. Attach the printed sheet of “SELF-DIAG RESULTS” and “CAN DIAG SUPPORT MNTR” onto the check
sheet. Refer to LAN-108, "
CHECK SHEET" .
4. Based on the results of “CAN DIAG SUPPORT MNTR”, put a check marks onto the items with “NG” or
“UNKWN” in the check sheet table. Refer to LAN-108, "
CHECK SHEET" .
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
The “CAN DIAG SUPPORT MNTR” items, which are not in check sheet table, are not related to diag-
nostic procedure on service manual.
So it is not necessary to check the status of the “CAN DIAG SUPPORT MNTR” items not in check
sheet table.
5. According to the check sheet results (example), start inspection. Refer to LAN-109, "
CHECK SHEET
RESULTS (EXAMPLE)" .
PKIA8260E
PKIA8343E
Page 4377 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 7)
LAN-133
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Work FlowEKS00NL2
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE” and “ABS” displayed on CONSULT-II.
2. Print all t](/manual-img/5/57403/w960_57403-4376.png "NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 7)
LAN-133
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Work FlowEKS00NL2
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE” and “ABS” displayed on CONSULT-II.
2. Print all t")

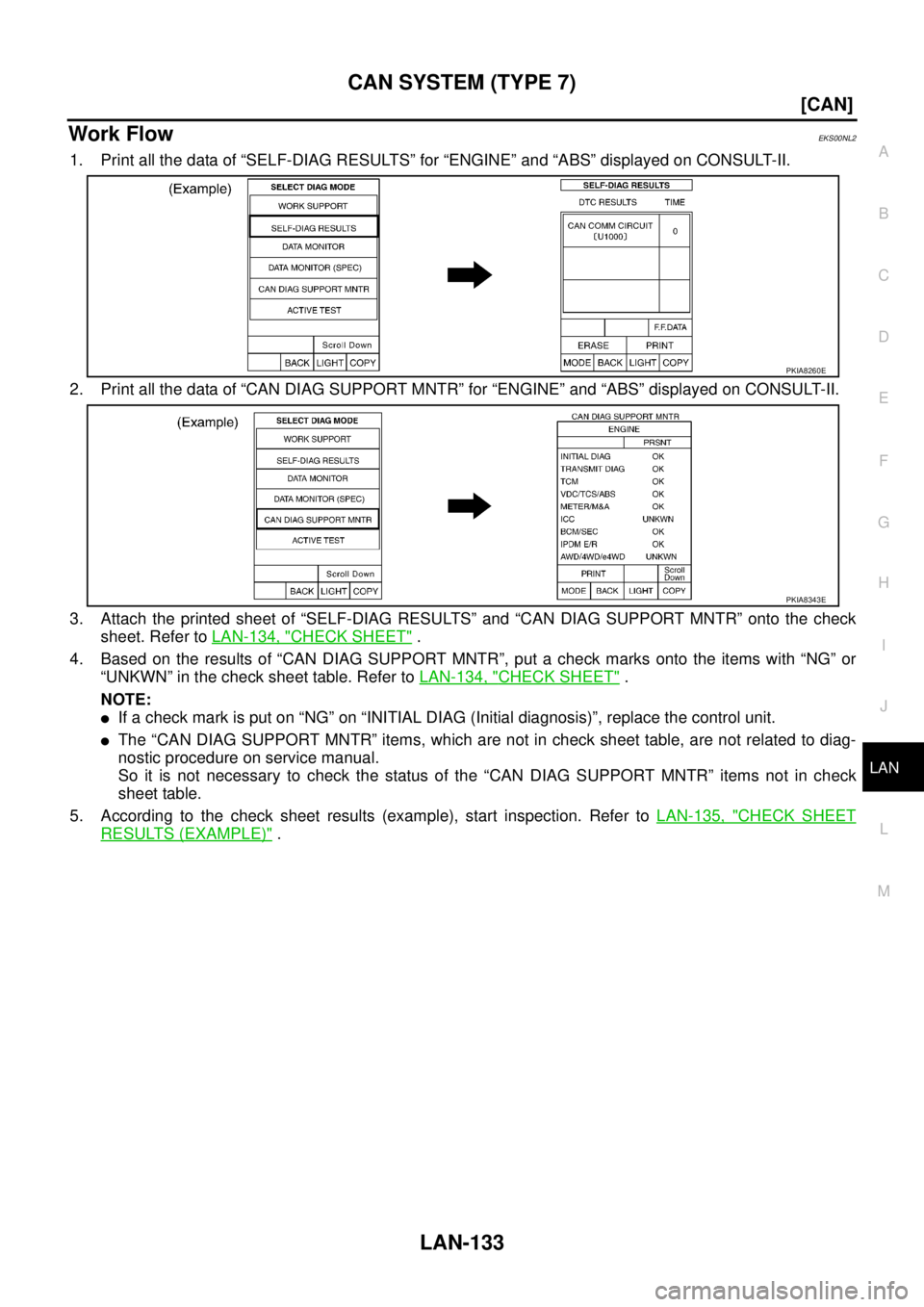

CAN SYSTEM (TYPE 7)
LAN-133
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Work FlowEKS00NL2
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE” and “ABS” displayed on CONSULT-II.
2. Print all the data of “CAN DIAG SUPPORT MNTR” for “ENGINE” and “ABS” displayed on CONSULT-II.
3. Attach the printed sheet of “SELF-DIAG RESULTS” and “CAN DIAG SUPPORT MNTR” onto the check
sheet. Refer to LAN-134, "
CHECK SHEET" .
4. Based on the results of “CAN DIAG SUPPORT MNTR”, put a check marks onto the items with “NG” or
“UNKWN” in the check sheet table. Refer to LAN-134, "
CHECK SHEET" .
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
The “CAN DIAG SUPPORT MNTR” items, which are not in check sheet table, are not related to diag-
nostic procedure on service manual.
So it is not necessary to check the status of the “CAN DIAG SUPPORT MNTR” items not in check
sheet table.
5. According to the check sheet results (example), start inspection. Refer to LAN-135, "
CHECK SHEET
RESULTS (EXAMPLE)" .
PKIA8260E
PKIA8343E
Page 4390 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual LAN-146
[CAN]
CAN SYSTEM (TYPE 8)
Work FlowEKS00NHU
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE” and “ABS” displayed on CONSULT-II.
2. Print all the data of “CAN DIAG SUPP](/manual-img/5/57403/w960_57403-4389.png "NISSAN X-TRAIL 2005 Service Repair Manual LAN-146
[CAN]
CAN SYSTEM (TYPE 8)
Work FlowEKS00NHU
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE” and “ABS” displayed on CONSULT-II.
2. Print all the data of “CAN DIAG SUPP")

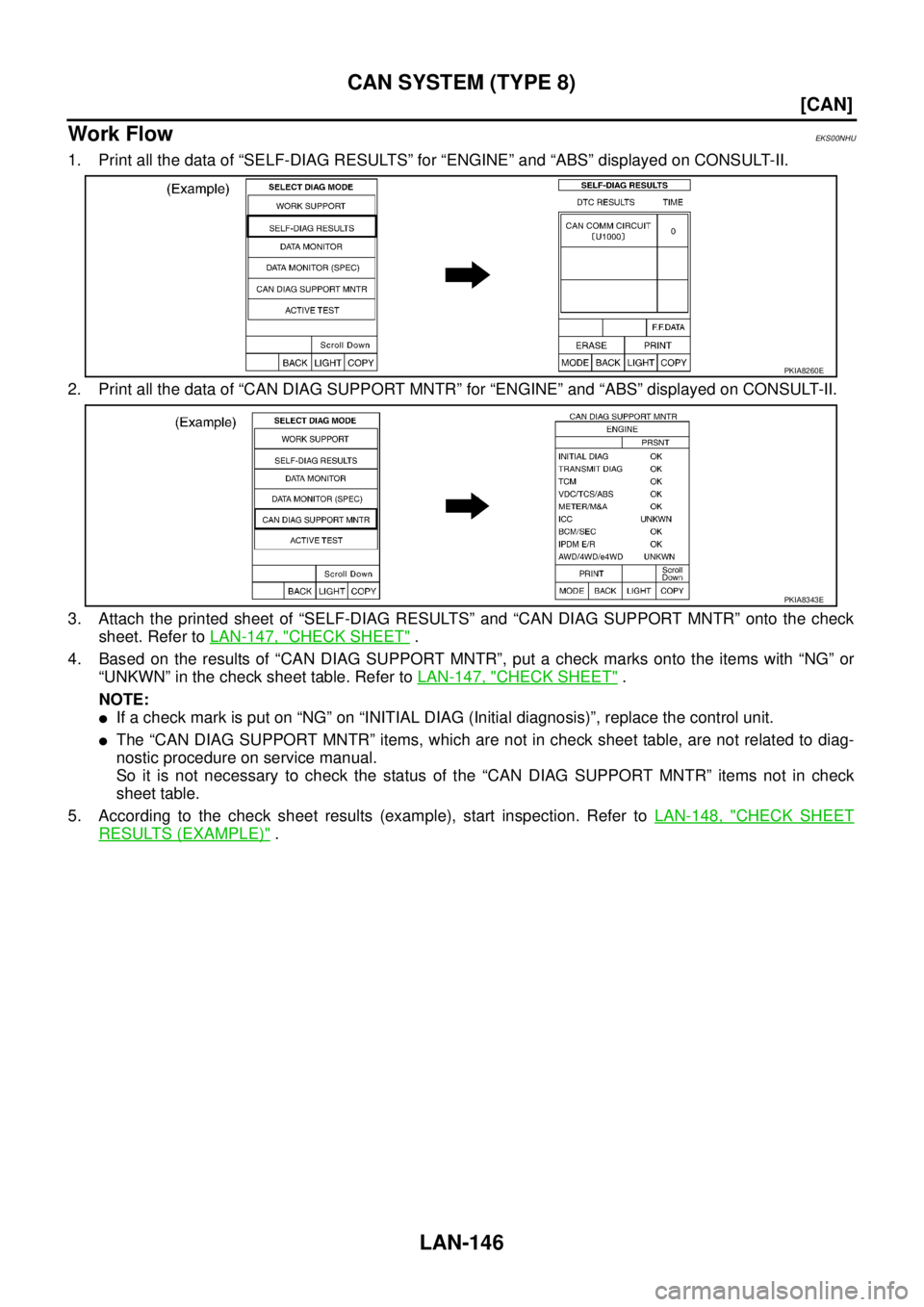

LAN-146
[CAN]
CAN SYSTEM (TYPE 8)
Work FlowEKS00NHU
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE” and “ABS” displayed on CONSULT-II.
2. Print all the data of “CAN DIAG SUPPORT MNTR” for “ENGINE” and “ABS” displayed on CONSULT-II.
3. Attach the printed sheet of “SELF-DIAG RESULTS” and “CAN DIAG SUPPORT MNTR” onto the check
sheet. Refer to LAN-147, "
CHECK SHEET" .
4. Based on the results of “CAN DIAG SUPPORT MNTR”, put a check marks onto the items with “NG” or
“UNKWN” in the check sheet table. Refer to LAN-147, "
CHECK SHEET" .
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
The “CAN DIAG SUPPORT MNTR” items, which are not in check sheet table, are not related to diag-
nostic procedure on service manual.
So it is not necessary to check the status of the “CAN DIAG SUPPORT MNTR” items not in check
sheet table.
5. According to the check sheet results (example), start inspection. Refer to LAN-148, "
CHECK SHEET
RESULTS (EXAMPLE)" .
PKIA8260E
PKIA8343E
Page 4403 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 9)
LAN-159
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Work FlowEKS00NLB
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE” and “ABS” displayed on CONSULT-II.
2. Print all t](/manual-img/5/57403/w960_57403-4402.png "NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 9)
LAN-159
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Work FlowEKS00NLB
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE” and “ABS” displayed on CONSULT-II.
2. Print all t")

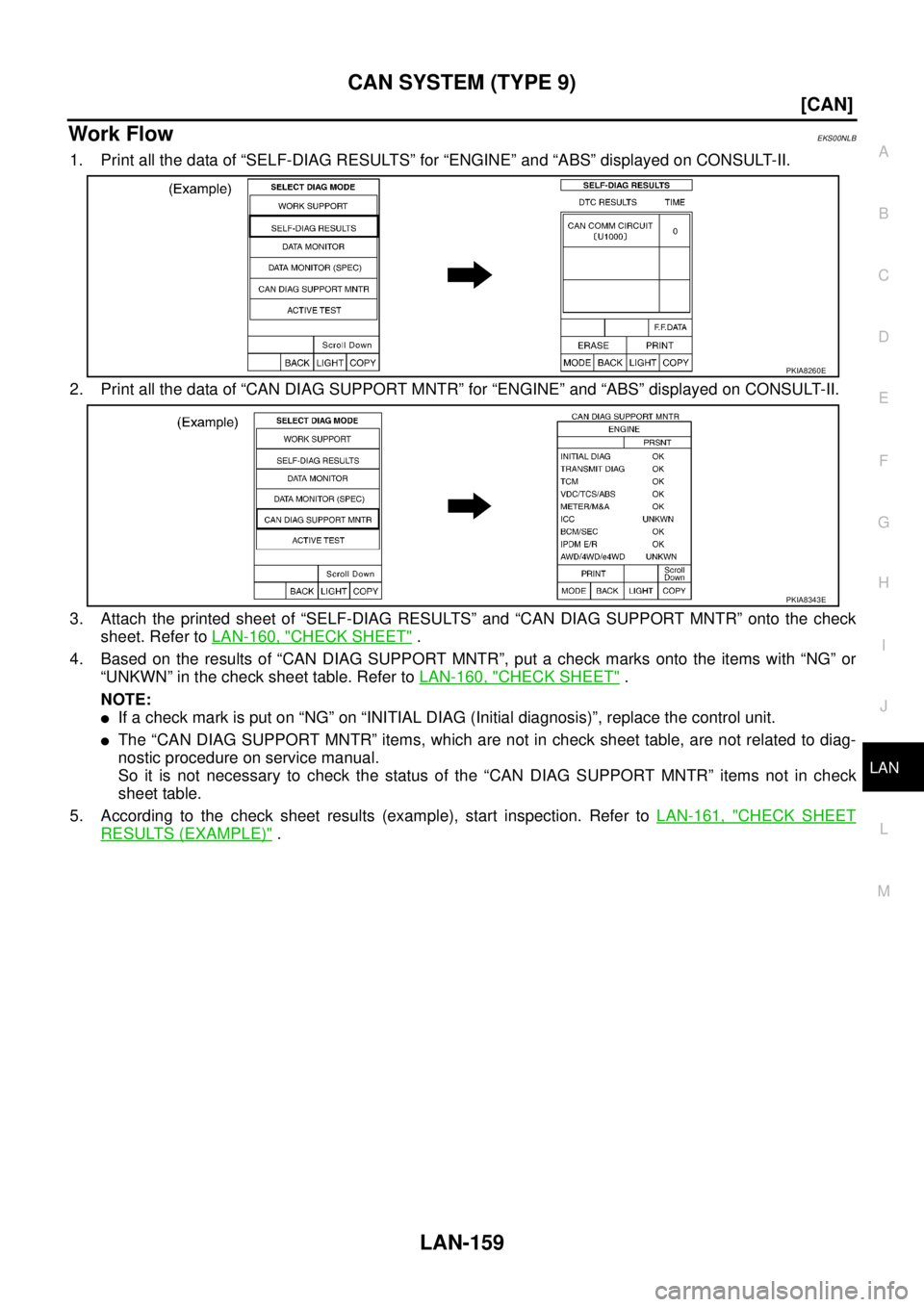

CAN SYSTEM (TYPE 9)
LAN-159
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Work FlowEKS00NLB
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE” and “ABS” displayed on CONSULT-II.
2. Print all the data of “CAN DIAG SUPPORT MNTR” for “ENGINE” and “ABS” displayed on CONSULT-II.
3. Attach the printed sheet of “SELF-DIAG RESULTS” and “CAN DIAG SUPPORT MNTR” onto the check
sheet. Refer to LAN-160, "
CHECK SHEET" .
4. Based on the results of “CAN DIAG SUPPORT MNTR”, put a check marks onto the items with “NG” or
“UNKWN” in the check sheet table. Refer to LAN-160, "
CHECK SHEET" .
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
The “CAN DIAG SUPPORT MNTR” items, which are not in check sheet table, are not related to diag-
nostic procedure on service manual.
So it is not necessary to check the status of the “CAN DIAG SUPPORT MNTR” items not in check
sheet table.
5. According to the check sheet results (example), start inspection. Refer to LAN-161, "
CHECK SHEET
RESULTS (EXAMPLE)" .
PKIA8260E
PKIA8343E
