2005 NISSAN X-TRAIL display

ATC-56
TROUBLE DIAGNOSIS

20 L/W Power supply for IGN2 ON - Battery voltage
21 GY Water temperature sensor ONAt idle [after warming up,
approx. 80°C (176°F)]
CAUTION:
The waveforms vary depend-
ing on coolant temperature
22 LG/BRear window defogger ON
signalONRear window defogger: ON Approx. 0
Rear window defogger: OFF Approx. 12
23 B/WRear window defogger feed
back signalONRear window defogger: ON Approx. 12
Rear window defogger: OFF Approx. 0
24 B/Y Sensor ground ON - Approx. 0
25 BR/Y Intake sensor - - -
28 YPower supply for ambient
temperature displayON - Approx. 5
30 PU Compressor feed back signal ON-Approx. 0
When refrigerant pressure sen-
sor connector is disconnectedApprox. 5 Te r m i -
nal No.Wire
colorItemIgnition
switchConditionVoltage
(V)
SKIA0056J

TROUBLE DIAGNOSIS
ATC-61
C
D
E
F
G
H
I
K
L
MA
B
AT C

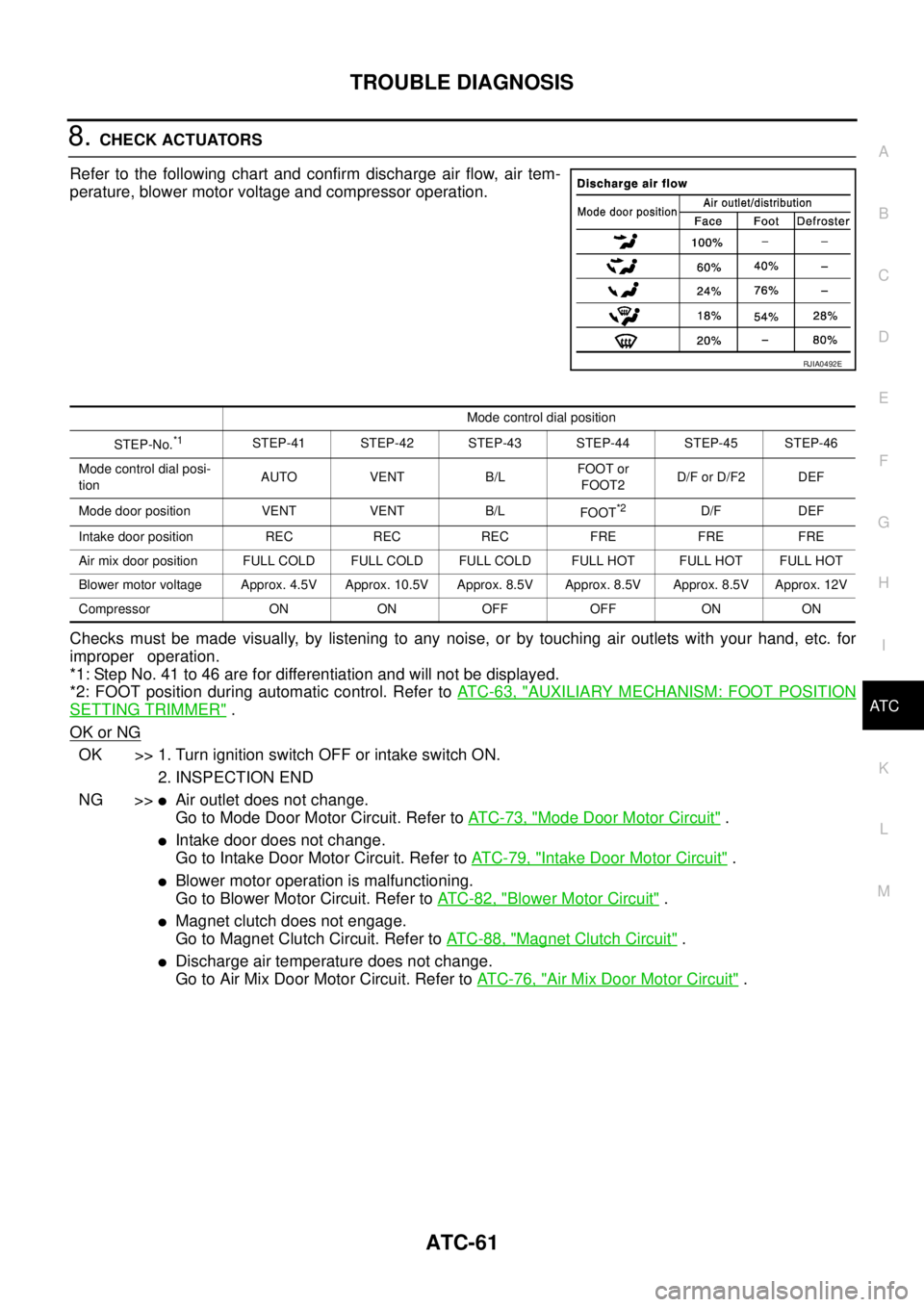

8. CHECK ACTUATORS
Refer to the following chart and confirm discharge air flow, air tem-
perature, blower motor voltage and compressor operation.
Checks must be made visually, by listening to any noise, or by touching air outlets with your hand, etc. for
improper operation.
*1: Step No. 41 to 46 are for differentiation and will not be displayed.
*2: FOOT position during automatic control. Refer to AT C - 6 3 , "
AUXILIARY MECHANISM: FOOT POSITION
SETTING TRIMMER" .
OK or NG
OK >> 1. Turn ignition switch OFF or intake switch ON.
2. INSPECTION END
NG >>

Air outlet does not change.
Go to Mode Door Motor Circuit. Refer to AT C - 7 3 , "
Mode Door Motor Circuit" .

Intake door does not change.
Go to Intake Door Motor Circuit. Refer to AT C - 7 9 , "
Intake Door Motor Circuit" .

Blower motor operation is malfunctioning.
Go to Blower Motor Circuit. Refer to AT C - 8 2 , "
Blower Motor Circuit" .

Magnet clutch does not engage.
Go to Magnet Clutch Circuit. Refer to AT C - 8 8 , "
Magnet Clutch Circuit" .

Discharge air temperature does not change.
Go to Air Mix Door Motor Circuit. Refer to AT C - 7 6 , "
Air Mix Door Motor Circuit" .
RJIA0492E
Mode control dial position
STEP-No.
*1STEP-41 STEP-42 STEP-43 STEP-44 STEP-45 STEP-46
Mode control dial posi-
tionAUTO VENT B/LFOOT or
FOOT2D/F or D/F2 DEF
Mode door position VENT VENT B/L
FOOT
*2D/F DEF
Intake door position REC REC REC FRE FRE FRE
Air mix door position FULL COLD FULL COLD FULL COLD FULL HOT FULL HOT FULL HOT
Blower motor voltage Approx. 4.5V Approx. 10.5V Approx. 8.5V Approx. 8.5V Approx. 8.5V Approx. 12V
Compressor ON ON OFF OFF ON ON

AV-1
AUDIO VISUAL, NAVIGATION & TELEPHONE SYS-
TEM
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION AV
A
B
AV

AUDIO VISUAL, NAVIGATION & TELEPHONE SYSTEM
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Wiring Diagrams and Trouble Diagnosis .................. 3
AUDIO ......................................................................... 4
System Description .................................................. 4
WITH CASSETTE DECK ...................................... 4
WITHOUT CASSETTE DECK .............................. 6
Component Parts Location ....................................... 8
Wiring Diagram —AUDIO— (With Cassette Deck) ..... 9
LHD MODELS ....................................................... 9
RHD MODELS ..................................................... 11
Schematic (Without Cassette Deck) ...................... 13
LHD MODELS ..................................................... 13
RHD MODELS .................................................... 14
Wiring Diagram —AUDIO— (Without Cassette
Deck) ...................................................................... 15
LHD MODELS WITH NAVIGATION .................... 15
LHD MODELS WITHOUT NAVIGATION ............ 18
RHD MODELS WITH NAVIGATION ................... 21
RHD MODELS WITHOUT NAVIGATION ............ 24
Terminals and Reference Value for Audio Unit With
Cassette Deck ........................................................ 27
Terminals and Reference Value for Audio Unit With-
out Cassette Deck .................................................. 28
Audio Steering Wheel Switch Resistance Check ... 29
Trouble Diagnoses ................................................. 30
AUDIO UNIT ....................................................... 30
Inspection ............................................................... 30
AUDIO UNIT ....................................................... 30
ANTENNA ........................................................... 30
Audio Steering Wheel Switch Does Not Operate
(With Cassette Deck) ............................................. 31
Audio Steering Wheel Switch Does Not Operate
(Without Cassette Deck) ........................................ 31
Speed Sensitive Volume System Does Not Work
(With Cassette Deck) ............................................. 33
Removal and Installation of Audio Unit (With Cas-
sette Deck) ............................................................. 34REMOVAL ........................................................... 34
INSTALLATION ................................................... 34
Removal and Installation of Audio Unit (Without
Cassette Deck) ....................................................... 35
REMOVAL ........................................................... 35
INSTALLATION ................................................... 35
Removal and Installation of Speakers .................... 35
REMOVAL ........................................................... 35
INSTALLATION ................................................... 35
Removal and Installation of Tweeters ..................... 35
REMOVAL ........................................................... 35
INSTALLATION ................................................... 36
AUDIO ANTENNA .................................................... 37
Antenna Route ........................................................ 37
Removal and Installation of Roof Antenna ............. 37
NAVIGATION SYSTEM ............................................. 38
System Description ................................................. 38
NAVIGATION SYSTEM ....................................... 38
Component Description .......................................... 41
NAVI CONTROL UNIT ........................................ 41
GPS ANTENNA ................................................... 41
DISPLAY .............................................................. 42
NAVI SWITCH ..................................................... 42
TRANSFER UNIT ................................................ 43
VOICE CHANGE RELAY .................................... 43
TMC TUNER ....................................................... 43
System Operation Description ................................ 44
NAVIGATION SYSTEM ....................................... 44
MAP VIEWING STYLE ........................................ 44
MAP DISPLAY ..................................................... 45
FUNCTION OF NAVI SWITCH ............................ 46
Precautions for NAVI Control Unit Replacement .... 49
Component Parts And Harness Connector Location
... 50
Schematic ............................................................... 51
Wiring Diagram — NAVI — .................................... 52
LHD MODELS ..................................................... 52
RHD MODELS .................................................... 57
Terminals and Reference Value for NAVI Control
Unit ......................................................................... 62

AV-2 Terminals and Reference Value for Display ............ 64
Terminals and Reference Value for NAVI Switch .... 65
Terminals and Reference Value for Transfer Unit ... 66
Terminals and Reference Value for TMC Tuner ...... 68
Terminals and Reference Value for Voice Change
Relay ...................................................................... 68
Self-Diagnosis Function .......................................... 70
DESCRIPTION .................................................... 70
DIAGNOSIS ITEM ............................................... 70
Self-Diagnosis Mode .............................................. 71
OPERATION PROCEDURE ................................ 71
SELF–DIAGNOSIS RESULT ............................... 72
CONFIRMATION/ADJUSTMENT Mode ................. 73
OPERATION PROCEDURE ................................ 73
DISPLAY .............................................................. 74
VEHICLE SIGNALS ............................................. 75
HISTORY OF ERRORS ...................................... 75
NAVIGATION ....................................................... 78
FEATURE RESTRICTION SETTING .................. 79
Power Supply and Ground Circuit Check for NAVI
Control Unit ............................................................. 80
Power Supply and Ground Circuit Check for Display ... 81
Power Supply and Ground Circuit Check for NAVI
Switch ..................................................................... 82
Power Supply and Ground Circuit Check for Trans-
fer Unit .................................................................... 83
Power Supply and Ground Circuit Check for TMC
Tuner ...................................................................... 84
Communication Line Check (Between NAVI Control
Unit and TMC Tuner) .............................................. 85
Communication Line Check (Between Display and
NAVI switch) ........................................................... 85
Communication Line Check (Between NAVI Switch
and Transfer Unit) ................................................... 86
Communication Line Check (Between NAVI Control
Unit and Transfer Unit) ........................................... 86
Communication Line Check (Between Transfer Unit
and Display) ............................................................ 88
Vehicle Speed Signal Check .................................. 89
Illumination Signal Check ....................................... 90
Ignition Signal Check .............................................. 90
Reverse Signal Check ............................................ 91
Color of RGB Image Is Not Proper ......................... 91
RGB Screen Is Not Shown ..................................... 93
RGB Screen Is Rolling ............................................ 94
Guide Sound Is Not Heard ..................................... 95
Display Quality Control Cannot Change Screen .... 97
Example of Symptoms Judged Not Malfunction ..... 98
BASIC OPERATIONS ......................................... 98
VEHICLE MARKS ............................................... 98
MAP DVD-ROM ................................................... 99DESTINATION, WAY POINTS OR MENU CON-
TENTS CANNOT BE CHOSEN OR SET ............ 99
VOICE GUIDANCE .............................................. 99
ROUTE CALCULATION ....................................100
EXAMPLES OF VEHICLE MARK DISPLACE-
MENT .................................................................101
VEHICLE MARK SHOWS A POSITION WHICH
IS COMPLETELY WRONG ...............................104
VEHICLE MARK JUMPS ...................................104
VEHICLE MARK IS IN A RIVER OR SEA .........105
VEHICLE MARK AUTOMATICALLY ROTATES .105
WHEN DRIVING ON SAME ROAD, SOME-
TIMES VEHICLE MARK IS IN RIGHT PLACE
AND SOMETIMES IT IS WRONG PLACE ........105
LOCATION CORRECTION BY MAP-MATCH-
ING IS SLOW .....................................................105
ALTHOUGH GPS RECEIVING DISPLAY IS
GREEN, VEHICLE MARK DOES NOT RETURN
TO CORRECT LOCATION ................................105
NAME OF CURRENT PLACE IS NOT DIS-
PLAYED .............................................................105
CONTENTS OF DISPLAY DIFFER FOR BIRD-
VIEW® AND THE (FLAT) MAP SCREEN ..........105
Program Loading ..................................................106
Removal and Installation of NAVI Control Unit ......107
REMOVAL ..........................................................107
INSTALLATION ..................................................107
Removal and Installation of GPS Antenna ............107
REMOVAL ..........................................................107
INSTALLATION ..................................................107
Removal and Installation of GPS Antenna Feeder .108
REMOVAL ..........................................................108
INSTALLATION ..................................................108
Removal and Installation of NAVI Switch ..............109
REMOVAL ..........................................................109
INSTALLATION ..................................................109
Removal and Installation of Display ......................109
REMOVAL ..........................................................109
INSTALLATION ..................................................109
Removal and Installation of Transfer Unit .............110
REMOVAL ..........................................................110
INSTALLATION ..................................................110
Removal and Installation of TMC Tuner ................110
REMOVAL ..........................................................110
INSTALLATION ..................................................110
Removal and Installation of Voice Change Relay . 110
REMOVAL ..........................................................110
INSTALLATION ..................................................110
TELEPHONE (PRE WIRE) ...................................... 111
Wiring Diagram — PHONE — .............................. 111

AUDIO
AV-5
C
D
E
F
G
H
I
J
L
MA
B
AV

NATS Audio Link
Description
The link with the NATS IMMU implies that the audio unit can basically only be operated if connected to the
matching NATS IMMU to which the audio unit was initially fitted on the production line.
Since radio operation is impossible after the link with the NATS is disrupted theft of the audio unit is basically
useless since special equipment is required to reset the audio unit.
Initialization process for audio units that are linked to the NATS IMMU
New audio units will be delivered to the factories in the “NEW” state, i.e. ready to be linked with the vehicle's
NATS. When the audio unit in “NEW” state is first switched on at the factory, it will start up communication with
the vehicle's immobilizer control unit (IMMU) and send a code (the “audio unit Code”) to the IMMU. The IMMU
will then store this code, which is unique to each audio unit, in its (permanent) memory.
Upon receipt of the code by the IMMU, the NATS will confirm correct receipt of the audio unit code to the audio
unit. Hereafter, the audio unit will operate as normal.
During the initialization process, “NEW” is displayed on the audio unit display. Normally though, communica-
tion between audio unit and IMMU takes such a short time (300 ms) that the audio unit seems to switch on
directly without showing “NEW” on its display.
Normal operation
Each time the audio unit is switched on afterwards, the audio unit code will be verified between the audio unit
and the NATS before the audio unit becomes operational. During the code verification process, “WAIT” is
shown on the audio unit display. Again, the communication takes such a short time (300 ms) that the audio
unit seems to switch on directly without showing “WAIT” on its display.
When the radio is locked
In case of an audio unit being linked with the vehicle's NATS (immobilizer system), disconnection of the link
between the audio unit and the IMMU will cause the audio unit to switch into the lock (“SECURE”) mode in
which the audio unit is fully inoperative. Hence, repair of the audio unit is basically impossible, unless the
audio unit is reset to the “NEW” state for which special decoding equipment is required.
Clarion has provided their authorized service representatives with so called “decoder boxes” which can bring
the audio unit back to the “NEW” state, enabling the audio unit to be switched on after which repair can be car-
ried out. Subsequently, when the repaired audio unit is delivered to the final user again, it will be in the “NEW”
state to enable re-linking the audio unit to the vehicle's immobilizer system. As a result of the above, repair of
the audio unit can only be done by an authorized Clarion representative (when the owner of the vehicle
requests repair and can show personal identification).
Service Procedure
Item Service procedure Description
Battery disconnection No additional action required. —
Radio needs repair Repair needs to be done by authorized
representative of radio manufacturer since
radio cannot be operated unless it is reset
to NEW state, using special decoding
equipment.—
Replacement of radio by new part No additional action required. Radio is delivered in NEW state.
Transferring radio to another vehicle/
replacement of radio by an “old” partRadio needs to be reset to NEW state by
authorized representative of radio manu-
facturer.—
Replacement of IMMU Radio needs to be reset to NEW state by
authorized representative of Clarion.After switching on the radio, it will display
“SECURE” after 1 minute.
No communication from IMMU to radio 1. If NATS is malfunctioning, check NATS
system.
2. After NATS is repaired, reset radio to
NEW state by authorized representative
of Clarion.After switching on the radio, the radio will
display “SECURE” after 1 minute. Further
use of radio is impossible until communica-
tion is established again, or after radio is
reset by authorized representative of Clar-
ion.
When initialized between ECM and IMMU. Radio needs to be reset to NEW status by
authorized representative of Clarion.After switching on the radio, it will display
“SECURE” after 1 minute.

AUDIO
AV-7
C
D
E
F
G
H
I
J
L
MA
B
AV

NATS Audio Link
Description
The link with the NATS IMMU implies that the audio unit can basically only be operated if connected to the
matching NATS IMMU to which the audio unit was initially fitted on the production line.
Since radio operation is impossible after the link with the NATS is disrupted theft of the audio unit is basically
useless since special equipment is required to reset the audio unit.
Initialization process for audio units that are linked to the NATS IMMU
New audio units will be delivered to the factories in the “NEW” state, i.e. ready to be linked with the vehicle's
NATS. When the audio unit in “NEW” state is first switched on at the factory, it will start up communication with
the vehicle's immobilizer control unit (IMMU) and send a code (the “audio unit Code”) to the IMMU. The IMMU
will then store this code, which is unique to each audio unit, in its (permanent) memory.
Upon receipt of the code by the IMMU, the NATS will confirm correct receipt of the audio unit code to the audio
unit. Hereafter, the audio unit will operate as normal.
During the initialization process, “NEW” is displayed on the audio unit display. Normally though, communica-
tion between audio unit and IMMU takes such a short time (300 ms) that the audio unit seems to switch on
directly without showing “NEW” on its display.
Normal operation
Each time the audio unit is switched on afterwards, the audio unit code will be verified between the audio unit
and the NATS before the audio unit becomes operational. During the code verification process, “WAIT” is
shown on the audio unit display. Again, the communication takes such a short time (300 ms) that the audio
unit seems to switch on directly without showing “WAIT” on its display.
When the radio is locked
In case of an audio unit being linked with the vehicle's NATS (immobilizer system), disconnection of the link
between the audio unit and the IMMU will cause the audio unit to switch into the lock (“SECURE”) mode in
which the audio unit is fully inoperative. Hence, repair of the audio unit is basically impossible, unless the
audio unit is reset to the “NEW” state for which special decoding equipment is required.
Clarion has provided their authorized service representatives with so called “decoder boxes” which can bring
the audio unit back to the “NEW” state, enabling the audio unit to be switched on after which repair can be car-
ried out. Subsequently, when the repaired audio unit is delivered to the final user again, it will be in the “NEW”
state to enable re-linking the audio unit to the vehicle's immobilizer system. As a result of the above, repair of
the audio unit can only be done by an authorized Clarion representative (when the owner of the vehicle
requests repair and can show personal identification).
Service Procedure
Item Service procedure Description
Battery disconnection No additional action required. —
Radio needs repair Repair needs to be done by authorized
representative of radio manufacturer since
radio cannot be operated unless it is reset
to NEW state, using special decoding
equipment.—
Replacement of radio by new part No additional action required. Radio is delivered in NEW state.
Transferring radio to another vehicle/
replacement of radio by an “old” partRadio needs to be reset to NEW state by
authorized representative of radio manu-
facturer.—
Replacement of IMMU Radio needs to be reset to NEW state by
authorized representative of Clarion.After switching on the radio, it will display
“SECURE” after 1 minute.
No communication from IMMU to radio 1. If NATS is malfunctioning, check NATS
system.
2. After NATS is repaired, reset radio to
NEW state by authorized representative
of Clarion.After switching on the radio, the radio will
display “SECURE” after 1 minute. Further
use of radio is impossible until communica-
tion is established again, or after radio is
reset by authorized representative of Clar-
ion.
When initialized between ECM and IMMU. Radio needs to be reset to NEW status by
authorized representative of Clarion.After switching on the radio, it will display
“SECURE” after 1 minute.

AV-30
AUDIO

Trouble DiagnosesEKS00EHY
AUDIO UNIT
InspectionEKS00EHX
AUDIO UNIT
All voltage inspections are made with:

Ignition switch ON or ACC

Audio unit ON

Audio unit connected
ANTENNA
Using a jumper wire, clip an auxiliary ground between antenna and body.

If reception improves, check antenna ground (at body surface).

If reception does not improve, check main feeder cable for short circuit or open circuit.
Symptom Possible causes Repair order
Audio unit inoperative (no digital
display and no sound from speak-
ers).1. 10A fuse
2. 15A fuse
3. Audio unit ground
4. Audio unit1. Check 10A fuse [No. 4, located in fuse block
(J/B)]. Turn ignition switch ON and verify that
battery positive voltage is present at terminal
10 (with cassette deck), 3 (without cassette
deck) of audio unit.
2. Check 15A fuse (No. 32, located in fuse and
fusible link box) and verify that battery posi-
tive voltage is present at terminal 6 (with cas-
sette deck), 9 (without cassette deck) of
audio unit.
3. Check audio unit ground.
4. Remove audio unit for repair.
Individual rear speaker is noisy or
inoperative.1. Each speaker
2. Output circuit to each speaker1. Check speaker.
2. Check the output circuits to each speaker
between audio unit and each speaker.
AM/FM stations are weak or noisy. 1. Roof antenna
2. Audio unit ground
3. Audio unit1. Check roof antenna.
2. Check audio unit ground condition.
3. Remove audio unit for repair.
Audio unit generates noise in AM
and FM modes with engine run-
ning.1. Poor audio unit ground
2. Loose or missing ground bonding straps
3. Ignition condenser or rear window defogger
noise suppressor condenser
4. Ignition coil
5. Audio unit1. Check audio unit ground.
2. Check ground bonding straps.
3. Replace ignition condenser or rear window
defogger noise suppressor condenser.
4. Check ignition coil.
5. Remove audio unit for repair.
Audio unit generates noise in AM
and FM modes with accessories
on (switch pops and motor noise).1. Poor audio unit ground
2. Antenna
3. Accessory ground
4. Malfunctioning accessory1. Check audio unit ground.
2. Check antenna.
3. Check accessory ground.
4. Replace accessory.

NAVIGATION SYSTEM
AV-39
C
D
E
F
G
H
I
J
L
MA
B
AV

Map-Matching
Map-matching compares a current location detected by the method
in the “Location Detection Principle“ (refer to AV- 3 8
) with a road map
data from Map DVD-ROM stored in DVD-ROM drive.
NOTE:
The road map data is based on data stored in the map DVD-ROM.
The vehicle position may not be corrected under the following circumstances and after driving for a certain
time when GPS information is difficult to receive. In this case, the vehicle mark on the display must be cor-
rected manually.

In map-matching, alternative routes to reach the destination will
be shown and prioritized, after the road on which the vehicle is
currently driven has been judged and the vehicle mark has been
repositioned.
If there is an error in distance and/or direction, alternative routes
will be shown in different order of priority, and the incorrect road
can be avoided.
If two roads are running in parallel, they are of the same priority.
Therefore, the vehicle mark may appear on either of them alter-
nately, depending on maneuvering of the steering wheel and
configuration of the road.

Map-matching does not function correctly when a road on which
the vehicle is driving is new and not recorded in the map DVD-
ROM, or when road pattern stored in the map data and the
actual road pattern are different due to repair.
When driving on a road not present in the map, the map-match-
ing function may find another road and position the vehicle mark
on it. Then, when the correct road is detected, the vehicle mark
may change to it.

Effective range for comparing the vehicle position and travel
direction calculated by the distance and direction with the road
data read from the map DVD-ROM is limited. Therefore, when
there is an excessive gap between current vehicle position and
the position on the map, correction by map-matching is not possible.
SEL685V
SEL686V
SKIA0613E
