295 Practical hints
Towing the vehicle
Front towing eye
The front towing eye is located on the
passenger side below the bumper.
1Towing eyeRear towing eyeThe rear towing eye is located behind the
right side cover in the bumper panel.
1Cover
2Towing eye
To remove cover:

Pry out the cover1 using a flat blade
screwdriver (
page 264).
To reinstall cover:

Engage cover at bottom and press in
top securely.
!When towing the vehicle with all wheels
on the ground, note the following:
With the automatic central locking
activated and the key in steering lock
position2, the vehicle doors lock if the
left front wheel is turning at vehicle
speeds of approx. 9 mph (15 km / h) or
more.
To prevent the vehicle doors from
locking, deactivate the automatic
central locking (
page 93).
Towing of the vehicle should only be
done using the towing eye. Never
attach tow cable, tow rope or tow rod
to vehicle chassis, frame or suspension
parts.
Warning!
G
In order to avoid possible serious burns or
injury, use extreme caution when removing
the cover, because the rear exhaust pipe is
extremely hot.

296 Practical hintsTowing the vehicleVehicles with sport package*1Cover
2Towing eye
To remove cover:
Grip cover1 at bottom and securely
pull out.
To reinstall cover:

Engage cover and press in securely.
Stranded vehicle
Freeing a stranded vehicle, on which the
wheels are dug into sand or mud, should
be done with the greatest of care, especial-
ly if the vehicle is heavily loaded.
Avoid pulling the vehicle jerkily or diago-
nally, since it could result in damage to the
chassis alignment.
Never try to free a vehicle that is still cou-
pled to a trailer.
If possible, a vehicle equipped with trailer
hitch receiver should be pulled backward
in its own previously made tracks.

297 Practical hintsFuses
Fuses
The electrical fuses in your vehicle serve to
stop the supply of electricity to a device
that is malfunctioning. This helps to
prevent damage to the other vehicle
electronics.
The following aids are available to help you
change fuses (
page 298):


Fuse chart


Spare fuses


Fuse extractorThe electrical fuses are located in different
fuse boxes:


Main fuse box in engine compartment
(page 298)


Fuse box in front passenger footwell
(page 299)
Warning!
G
Only use fuses approved for Mercedes-Benz
with the specified amperage for the system
in question. Otherwise, a short circuit could
result and cause a fire.!Only install fuses that have been tested
and approved by Mercedes-Benz and
that have the specified amperage
rating.
Otherwise, electrical parts or systems
could be damaged.
Never attempt to repair or bridge a
blown fuse. Have the cause determined
and remedied by an authorized
Mercedes-Benz Light Truck Center.

298 Practical hintsFusesAids for changing fuses
Fuse chart
A chart explaining fuse allocation and fuse
amperages can be found in the main fuse
box in the engine compartment
(page 298).
Spare fuses
Spare fuses are found in the main fuse box
in the engine compartment (
page 298).
Fuse extractor
The fuse extractor is found in the main fuse
box in the engine compartment
(
page 298).
Main fuse box
The main fuse box is located in the engine
compartment on the driver’s side.
1Clamps
2Main fuse box cover
Removing / installing main fuse box
cover
Opening the hood.

Release clamps1.

Lift fuse box cover2 up.

Install main fuse box cover in reverse
order.3Fuse chart
4Fuse extractor
5Spare fuses

299 Practical hintsFuses
Fuse box in front passenger footwell
The fuse box is located in the front
passenger compartment.
1Lock
2CoverRemoving / installing cover

Open passenger-side door.

Turn both locks1
90°counterclockwise.

Remove cover2 in direction of arrow.

Install cover2 in reverse order.

300

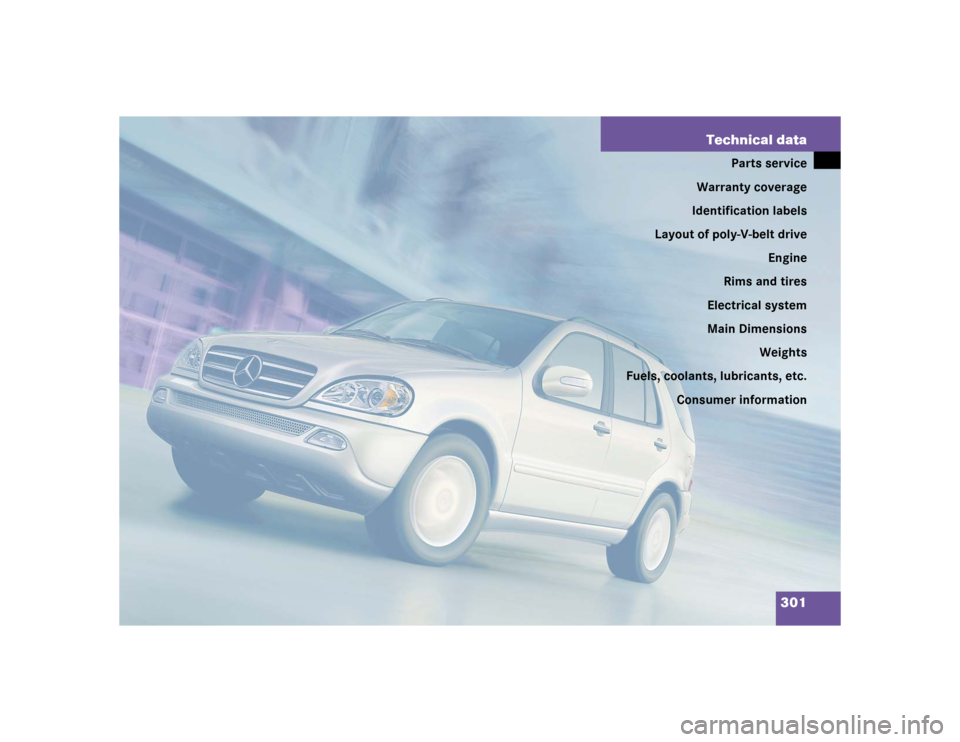

301 Technical data
Parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and tires
Electrical system
Main Dimensions
Weights
Fuels, coolants, lubricants, etc.
Consumer information

302 Technical dataThe “Technical data” section provides the
necessary technical data for your vehicle.Parts service
All authorized Mercedes-Benz Centers
maintain a stock of genuine
Mercedes-Benz parts required for mainte-
nance and repair work. In addition, strate-
gically located parts distribution centers
provide quick and reliable parts service.
More than 300 000 different parts for
Mercedes-Benz models are available.
Genuine Mercedes-Benz parts are subject-
ed to stringent quality inspections. Each
part has been specifically developed, man-
ufactured or selected for and adapted to
Mercedes-Benz vehicles.
Therefore, genuine Mercedes-Benz parts
should be installed.
!The use of non-genuine Mercedes-Benz
parts and accessories not authorized
by Mercedes-Benz could damage the
vehicle, which is not covered by the
Mercedes-Benz Limited Warranty, or
could compromise the vehicle’s
durability or safety.
