2005 MERCEDES-BENZ ML500 Owner's Manual

71 Safety and Security
Occupant safety
Installation of infant and child restraint
system
Guide top tether strap between head
restraint and top of seat back. Head
restraint must be installed and posi-
tioned such that the top tether strap
can pass freely between the head re-
straint and top of seat back.

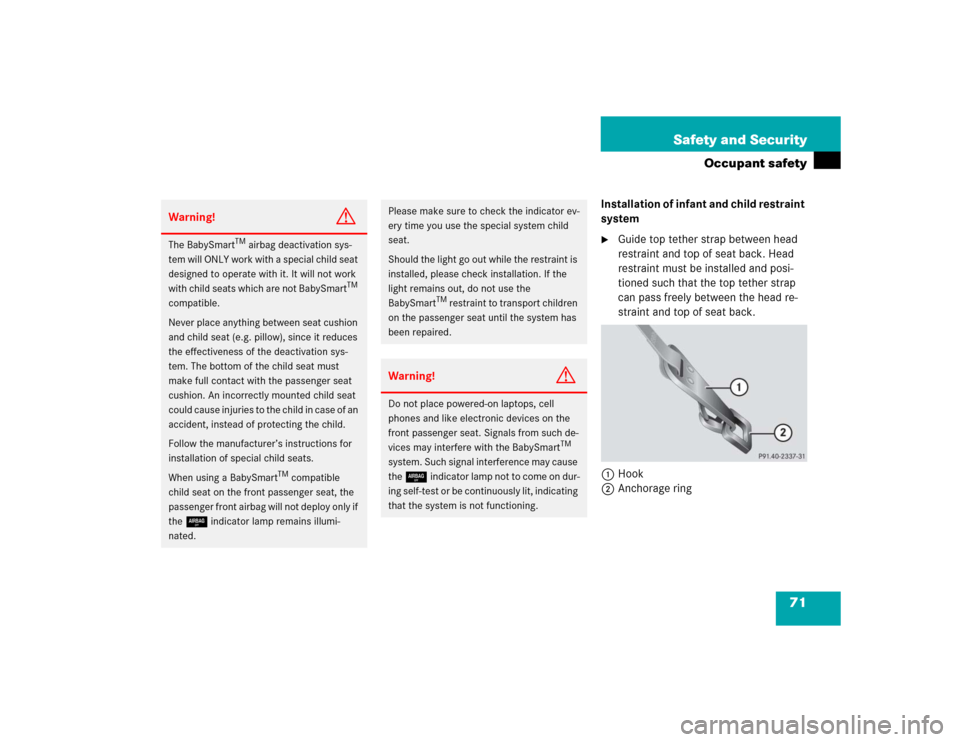

1Hook
2Anchorage ring
Warning!
G
The BabySmart
TM airbag deactivation sys-
tem will ONLY work with a special child seat
designed to operate with it. It will not work
with child seats which are not BabySmart
TM
compatible.
Never place anything between seat cushion
and child seat (e.g. pillow), since it reduces
the effectiveness of the deactivation sys-
tem. The bottom of the child seat must
make full contact with the passenger seat
cushion. An incorrectly mounted child seat
could cause injuries to the child in case of an
accident, instead of protecting the child.
Follow the manufacturer’s instructions for
installation of special child seats.
When using a BabySmart
TM compatible
child seat on the front passenger seat, the
passenger front airbag will not deploy only if
the 7indicator lamp remains illumi-
nated.
Please make sure to check the indicator ev-
ery time you use the special system child
seat.
Should the light go out while the restraint is
installed, please check installation. If the
light remains out, do not use the
BabySmart
TM restraint to transport children
on the passenger seat until the system has
been repaired.
Warning!
G
Do not place powered-on laptops, cell
phones and like electronic devices on the
front passenger seat. Signals from such de-
vices may interfere with the BabySmart
TM
system. Such signal interference may cause
the 7indicator lamp not to come on dur-
ing self-test or be continuously lit, indicating
that the system is not functioning.

72 Safety and SecurityOccupant safety
Securely fasten the hook1 to the an-
chorage ring2.
For safety, make sure the hook has at-
tached to the ring beyond the safety
catch, as illustrated.
Once the top tether anchorage hook is
attached, the child restraint itself can be
secured. Tigthen the top tether strap
according to the child restraint manufac-
turer’s instructions.
Vehicle without third row seats
3Anchorage rings for second row seats
4Anchorage rings for third row seats*This vehicle is provided with three tether
anchorages3 for a top tether strap be-
hind the second row seats.
Vehicle with third row seats*
3Anchorage rings for second row seats
4Anchorage rings for third row seats*This vehicle is provided with tether anchor-
ages for a top tether strap behind the
second row seats3 and the third row
seats4.
When using the third row observe the
following:


Installation of infant and child restraint
systems with a top tether strap is al-
lowed only on both third row seats plus
the center second row seat.


When using the center second row seat
for a top tether strap, the left third row
seat should only be used for a child re-
straint system, since exiting the vehicle
may not be possible in an emergency
due to the routing of the top tether
strap.


When installing an infant or child re-
straint system with a top tether strap
on the left second row seat, the left
third row seat should not be occupied.
!Do not use the tether anchorages4
for a top tether strap on a second row
seat.

73 Safety and Security
Occupant safety
Child seat anchors – LATCH type
This vehicle is equipped with two LATCH
(Lower A
nchors and T
ethers for CH
ildren)
type anchors (at each of the rear seats) for
the installation of a LATCH child seat with
matching mounting fittings.
1Anchors

Install a LATCH type child seat accord-
ing to the manufacturer’s instructions.
!An infant and child restraint system
must not be installed on the right
second row seat while a passenger
rides in a third row seat. An infant and
child restraint system installed on the
right second row seat will prevent the
use of the easy-entry / exit feature
(page 101).
iWith a child seat installed in the left
rear seat, the seat belt for the center
seat occupied by a passenger must op-
erate freely. Guide seat belt between
its seat cushion mount and backrest
mount along outside of right side child
seat mount.
Non-LATCH type child seats may also
be used and can be installed using the
vehicle’s seat belt system. Install child
seat according to the manufacturer’s
instructions.

74 Safety and SecurityOccupant safety
Blocking of rear door window operation

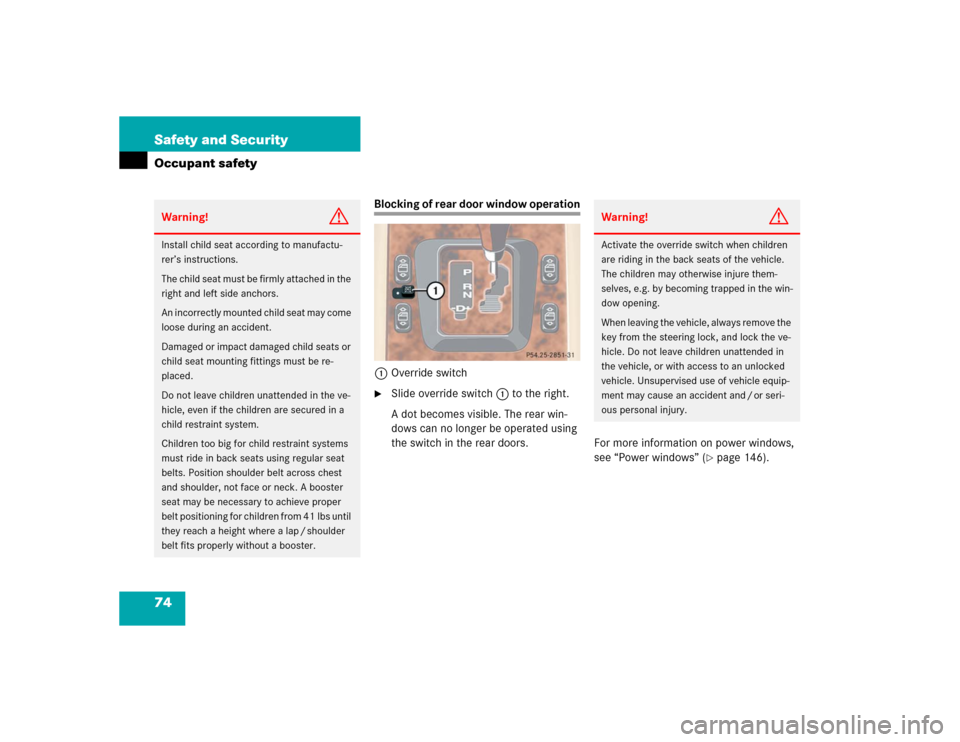

1Override switch
Slide override switch1 to the right.
A dot becomes visible. The rear win-
dows can no longer be operated using
the switch in the rear doors.For more information on power windows,
see “Power windows” (
page 146).
Warning!
G
Install child seat according to manufactu-
rer’s instructions.
T h e c h i l d s e a t m u s t b e f i r m l y a t t a c h e d i n t h e
right and left side anchors.
An incorrectly mounted child seat may come
loose during an accident.
Damaged or impact damaged child seats or
child seat mounting fittings must be re-
placed.
Do not leave children unattended in the ve-
hicle, even if the children are secured in a
child restraint system.
Children too big for child restraint systems
must ride in back seats using regular seat
belts. Position shoulder belt across chest
and shoulder, not face or neck. A booster
seat may be necessary to achieve proper
belt positioning for children from 41 lbs until
they reach a height where a lap / shoulder
belt fits properly without a booster.
Warning!
G
Activate the override switch when children
are riding in the back seats of the vehicle.
The children may otherwise injure them-
selves, e.g. by becoming trapped in the win-
dow opening.
When leaving the vehicle, always remove the
key from the steering lock, and lock the ve-
hicle. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and / or seri-
ous personal injury.

75 Safety and Security
Panic alarm
Panic alarm
An audible alarm and flashing turn signal
lamps will operate for approximately
2½ minutes.
1Âbutton
Activating
Press and hold button1 for at least
one second.
Deactivating
Press button1 again.
or

Insert key in steering lock.
iFor operation in the USA only:
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.

76 Safety and SecurityDriving safety systemsIn this section you will find information on
the following driving safety systems:

ABS (A
ntilock B
rake S
ystem)


BAS (B
rake A
ssist S
ystem)


4-ETS (E
lectronic T
raction S
ystem)


EBP (E
lectronic B
rake P
roportioning)


ESP (E
lectronic S
tability P
rogram)
ABS
The Antilock Brake System (ABS) regulates
the brake pressure so that the wheels do
not lock during braking. This allows you to
maintain the ability to steer your vehicle.
The ABS is functional above a speed of ap-
proximately 5 mph (8 km / h) independent
of road surface conditions.
On slippery road surfaces, the ABS will re-
spond even with light brake pressure.
The -indicator lamp in the instrument
cluster (
page 25) comes on when you
turn the key in the steering lock to
position2. It goes out when the engine is
running.
iIn winter operation, the maximum ef-
fectiveness of the ABS, the BAS, the
ESP, the EBP, and the 4-ETS is only
achieved with winter tires (M + S tires)
or snow chains as required.
Warning!
G
The following factors increase the risk of
accidents:

Excessive speed, especially in turns


Wet and slippery road surfaces


Following another vehicle too closely
The ABS, BAS, ESP and 4-ETS cannot reduce
this risk.
Always adjust your driving style to the pre-
vailing road and weather conditions.
Warning!
G
Do not pump the brake pedal. Use firm,
steady brake pedal pressure instead. Pump-
ing the brake pedal defeats the purpose of
the ABS and significantly reduces braking
effectiveness.

77 Safety and Security
Driving safety systems
Braking
At the instant one of the wheels is about to
lock up, a slight pulsation can be felt in the
brake pedal, indicating that the ABS is in
the regulating mode.
Keep firm and steady pressure on the
brake pedal while experiencing the pul-
sation.
Continuous, steady brake pedal pressure
yields the advantages provided by the ABS,
namely braking power and the ability to
steer the vehicle.
The pulsating brake pedal can be an indica-
tion of hazardous road conditions and
functions as a reminder to take extra care
while driving.Emergency brake maneuver

Keep continuous full pressure on the
brake pedal.LOW RANGE– ABS
During off-road driving, a special low range
system for the ABS is operational with
transmission in LOW RANGE mode
(
page 127).
When applying the service brakes at
speeds below approximately
18 mph (30 km / h), the front wheels are
locked cyclically to shorten the braking
distance (dig-in effect). This affects steer-
ing the vehicle.
iWith the ABS malfunctioning, the BAS,
the ESP, and the 4-ETS are also
switched off.
Normal driving and braking functions
are still available.

78 Safety and SecurityDriving safety systemsFor more information, see “Practical Hints”
(page 248).
BAS
The Brake Assist System (BAS) operates in
emergency situations. If you apply the
brakes very quickly, the BAS automatically
provides full brake boost, thereby poten-
tially reducing braking distance. Apply con-
tinuous full braking pressure until the
emergency braking situation is over. The
ABS will prevent the wheels from locking.
When you release the brake pedal, the
brakes function again as normal. The BAS
is then deactivated.
The ¿indicator lamp in the instrument
cluster (
page 25) comes on when you
turn the key in the steering lock to
position2. It goes out when the engine is
running.
For more information, see “Practical hints”
(
page 251).
Warning!
G
The ABS cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase braking or steering efficiency be-
yond that afforded by the condition of the
vehicle brakes and tires or the traction
afforded. The ABS cannot prevent acci-
dents, including those resulting from exces-
sive speed in turns, following another
vehicle too closely, or hydroplaning. Only a
safe, attentive, and skillful driver can pre-
vent accidents. The capabilities of an ABS
equipped vehicle must never be exploited in
a reckless or dangerous manner which
could jeopardize the user’s safety or the
safety of others.
Warning!
G
The BAS cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase braking efficiency beyond that af-
forded by the condition of the vehicle brakes
and tires or the traction afforded. The BAS
cannot prevent accidents, including those
resulting from excessive speed in turns, fol-
lowing another vehicle too closely, or hydro-
planing. Only a safe, attentive, and skillful
driver can prevent accidents. The capabili-
ties of a BAS equipped vehicle must never
be exploited in a reckless or dangerous
manner which could jeopardize the user’s
safety or the safety of others.
