2005 MERCEDES-BENZ ML500 Owner's Manual

47 Getting started
Driving
Starting the engine Automatic transmission
Gearshift pattern for automatic
transmissionPPark position with gear selector lever
lock
RReverse gear
NNeutral
DDrive position
For more information, see “Automatic
transmission” (
page 120).Starting

Make sure the gear selector lever is set
toP.

Do not depress accelerator.

Turn the key in the steering lock to
position3 and hold until the engine
starts (
page 33).

Depress the brake pedal.
The gear selector lever lock is released.
For information on turning off the engine,
see “Turning off engine” (
page 55).
Warning!
G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide, and inhaling it can cause uncon-
sciousness and lead to death.
Do not run the engine in confined areas
(such as a garage) which are not properly
ventilated. If you think that exhaust gas
fumes are entering the vehicle while driving,
have the cause determined and corrected
immediately. If you must drive under these
conditions, drive only with at least one win-
dow fully open.

48 Getting startedDrivingStarting difficulties
If the engine does not start as described,
carry out the following steps:
Turn key in steering lock to position0
and repeat starting procedure.
Remember that extended starting at-
tempts can drain the battery.

Get a jump start (
page 291).
If the engine does not start after several
starting attempts, there could be a mal-
function in the engine electronics or in the
fuel supply system.

Notify an authorized Mercedes-Benz
Light Truck Center.Parking brake
1Parking brake pedal
2Release handle

Release the parking brake by pulling on
handle2.
The warning lampÉ in the instru-
ment cluster goes out.
Driving

Depress the brake pedal.

Move gear selector lever to positionD
orR.

Release the brake pedal.

Carefully depress the accelerator
pedal.
Once the vehicle is in motion, the auto-
matic central locking system engages
and the locking knobs drop down.
Warning!
G
When leaving the vehicle, always remove the
key from the steering lock, and lock the
vehicle.
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could release the parking brake,
which could result in an accident and / or se-
rious personal injury.
iWait for the gear selection process to
complete before setting the vehicle in
motion.

49 Getting started
Driving
After a cold start, the automatic transmis-
sion shifts at a higher engine revolution.
This allows the catalytic converter to reach
its operating temperature earlier.
For more information, see “Driving instruc-
tions” (
page 197).
For information on off-road driving, see
“Off-road driving” (
page 204).
!If you hear a warning signal when driv-
ing off, you have forgotten to release
the parking brake.
Release the parking brake.Warning!
G
It is dangerous to shift the gear selector
lever out ofP orN if the engine speed is
higher than idle speed. If your foot is not
firmly on the brake pedal, the vehicle could
accelerate quickly forward or in reverse. You
could lose control of the vehicle and hit
someone or something. Only shift into gear
when the engine is idling normally and when
your right foot is firmly on the brake pedal.
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of loss of control.!Place the gear selector lever in
positionR only when the vehicle is
stopped in order to avoid damaging the
transmission.
!Do not run cold engine at high engine
speeds. Running a cold engine at high
engine speeds may shorten the service
life of the engine.!Simultaneously depressing the acceler-
ator pedal and applying the brake re-
duces engine performance and causes
premature brake and drivetrain wear.

50 Getting startedDrivingSwitching on headlamps
The combination switch is located on the
left of the steering column.Combination switch1 Off
2Low beam headlamps on
Turn combination switch to
positionõ.
The low beam headlamps are switched
on.
For more information, see “Lighting”
(
page 107).
Turn signals and high beam
The combination switch is on the left of the
steering column.Combination switch1Turn signals, right
2Turn signals, left
3High beamTurn signals

Press combination switch in direction
of arrow1 or2.
The corresponding turn signal indicator
lampK orL in the instrument
cluster flashes.
The combination switch resets auto-
matically after major steering wheel
movements.
High beam

Push combination switch forward in di-
rection of arrow3.
The high beam indicator lampA in
the instrument cluster comes on.
For more information, see “Lighting”
(
page 107).iTo signal minor directional changes,
move combination switch only to point
of resistance and release. The corre-
sponding turn signals will flash three
times.

51 Getting started
Driving
Windshield wipers
The wiper switch is located on the right of
the steering column.Wiper switch0Windshield wipers off
1Intermittent wiping
2Normal wiper speed
3Fast wiper speed
4Wiping with windshield wiper fluid
Switch on ignition (
page 33).Switching on windshield wipers

Press the wiper switch to the desired
position1,2 or3, depending on
the intensity of the rain.
Single wipe

Press wiper switch briefly in the direc-
tion of arrow2.
The windshield wipers wipe one time
without washer fluid.
Wiping with windshield washer fluid

Pull and hold wiper switch in direction
of arrow4.
The windshield wiper operates with
washer fluid.
For information on filling up the washer
reservoir, see “Windshield washer system
and headlamp cleaning system*”
(
page 230).
!Vehicles with rain sensor*:
Do not leave windshield wipers in inter-
mittent setting when the vehicle is tak-
en to an automatic car wash or during
windshield cleaning. Wipers will oper-
ate in the presence of water sprayed on
the windshield, and wipers may be
damaged as a result.
The switch should not be left in inter-
mittent setting as the wipers will wipe
the windshield once every time the en-
gine is started. Dust that accumulates
on the windshield might scratch the
glass and / or damage the wiper blades
when wiping occurs on a dry wind-
shield.

52 Getting startedDriving

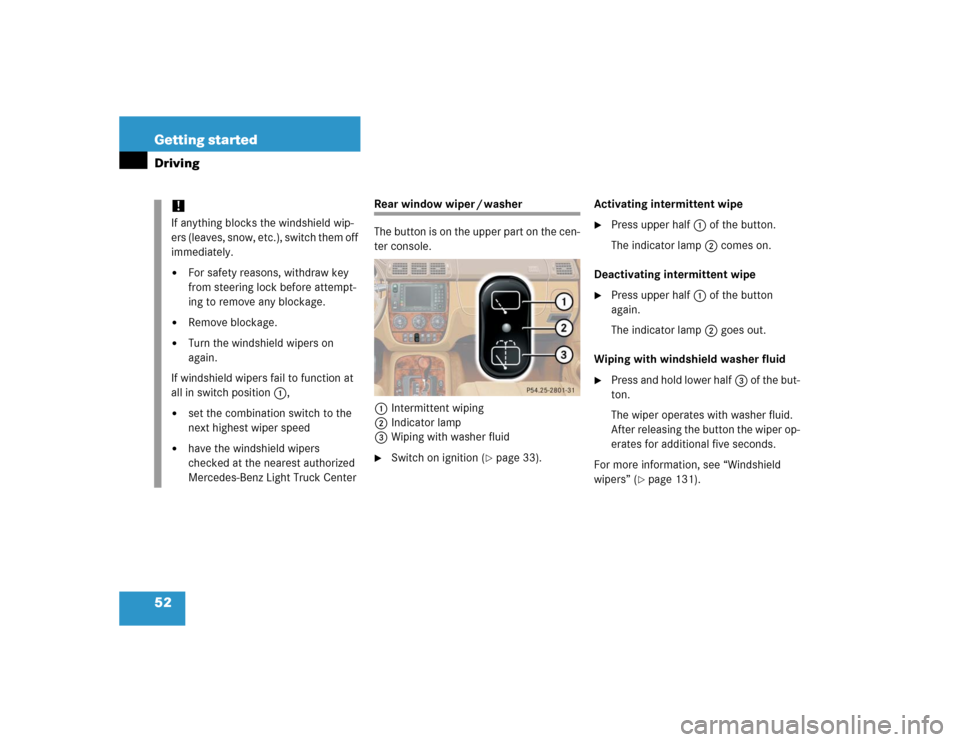

Rear window wiper / washer
The button is on the upper part on the cen-
ter console.
1Intermittent wiping
2Indicator lamp
3Wiping with washer fluid
Switch on ignition (
page 33).Activating intermittent wipe

Press upper half1 of the button.
The indicator lamp2 comes on.
Deactivating intermittent wipe

Press upper half1 of the button
again.
The indicator lamp2 goes out.
Wiping with windshield washer fluid

Press and hold lower half3 of the but-
ton.
The wiper operates with washer fluid.
After releasing the button the wiper op-
erates for additional five seconds.
For more information, see “Windshield
wipers” (
page 131).
!If anything blocks the windshield wip-
ers (leaves, snow, etc.), switch them off
immediately.

For safety reasons, withdraw key
from steering lock before attempt-
ing to remove any blockage.


Remove blockage.


Turn the windshield wipers on
again.
If windshield wipers fail to function at
all in switch position1,


set the combination switch to the
next highest wiper speed


have the windshield wipers
checked at the nearest authorized
Mercedes-Benz Light Truck Center

53 Getting started
Driving
Problems while driving
The engine runs erratically and misfires

An ignition cable may be damaged.


The engine electronics may not be
operating properly.


Unburned gasoline may have entered
the catalytic converter and damaged it.

Give very little gas.

Have the problem repaired by an au-
thorized Mercedes-Benz Light Truck
Center as soon as possible.The coolant temperature is above
248°F (120°C)
The coolant is too hot and is no longer
cooling the engine.

Stop the vehicle as soon as possible
and turn off the engine. Allow engine
and coolant to cool.

Check the coolant level and add cool-
ant if necessary (
page 227).In case of accident
If the vehicle is leaking gasoline:

Do not start the engine under any cir-
cumstances.

Notify local fire and / or police authori-
ties.
If the extent of the damage cannot be de-
termined:

Notify an authorized Mercedes-Benz
Light Truck Center.
If no damage can be determined on the


major assemblies


fuel system


engine mount:

Start the engine in the usual manner.

54 Getting startedParking and lockingYou have now completed your first drive.
You have properly stopped and parked
your vehicle. End your drive as follows.
Parking brake
1Parking brake
2Release handle
Step firmly on parking brake1.
When the engine is running, the warn-
ing lampÉ in the instrument clus-
ter will be illuminated.
Warning!
G
Wait until the vehicle is stationary before re-
moving the key from the steering lock. The
vehicle cannot be steered when the key is
removed.Warning!
G
With the engine not running, there is no
power assistance for the brake and steering
system. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the
vehicle.
Warning!
G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury as a re-
sult of vehicle movement, before turning off
the engine and leaving the vehicle always:

Keep right foot on brake pedal.


Firmly depress parking brake pedal.


Move the gear selector lever to
positionP.


Slowly release brake pedal.


When parked on an incline, turn front
wheel towards the road curb.


Turn the key to steering lock position0
and remove.


Take the key and lock vehicle when leav-
ing.
