2005 MERCEDES-BENZ ML500 Owner's Manual

183 Controls in detail
Useful features
The Response Center will then unlock your
vehicle with the remote door unlocking
feature.Stolen Vehicle Recovery services
In the event your vehicle was stolen:

Report the incident to the police.
The police will issue a numbered
incident report.

Pass this number on to the
Mercedes-Benz Response Center along
with your password issued to you when
you subscribed to the service.
The Response Center will then attempt
to covertly contact the vehicle’s
Tele Aid system. Once the vehicle is
located, the Response Center will
contact the local law enforcement and
you. The vehicle’s location will only be
provided to law enforcement.
Garage door opener
The built-in remote control is capable of
operating up to three separately controlled
devices, for example garage door openers,
gate openers, or other devices compatible
with HomeLink
® or some other systems.
You can program the signal transmitter
buttons.
iThe remote door unlock feature is avail-
able if the relevant cellular phone net-
work is available.
The SOS button will flash and the mes-
sage
EMERGENCY CALL –
CALL CONNECTED
w i l l a p p e a r i n t h e M C S
display to indicate receipt of the door
unlock command.
Once the vehicle is unlocked, a
Response Center specialist will
attempt to establish voice contact with
the vehicle occupants.
If the outside liftgate handle was pulled
for more than 20 seconds before door
unlock authorization was received by
the Response Center, you must wait
15 minutes before pressing the outside
liftgate handle again.
iWhen the anti-theft alarm or the
tow-away alarm stays on for more than
30 seconds, a call is initiated automat-
ically to the Response Center. See
anti-theft alarm system (
page 83)
and tow-away alarm (
page 84).

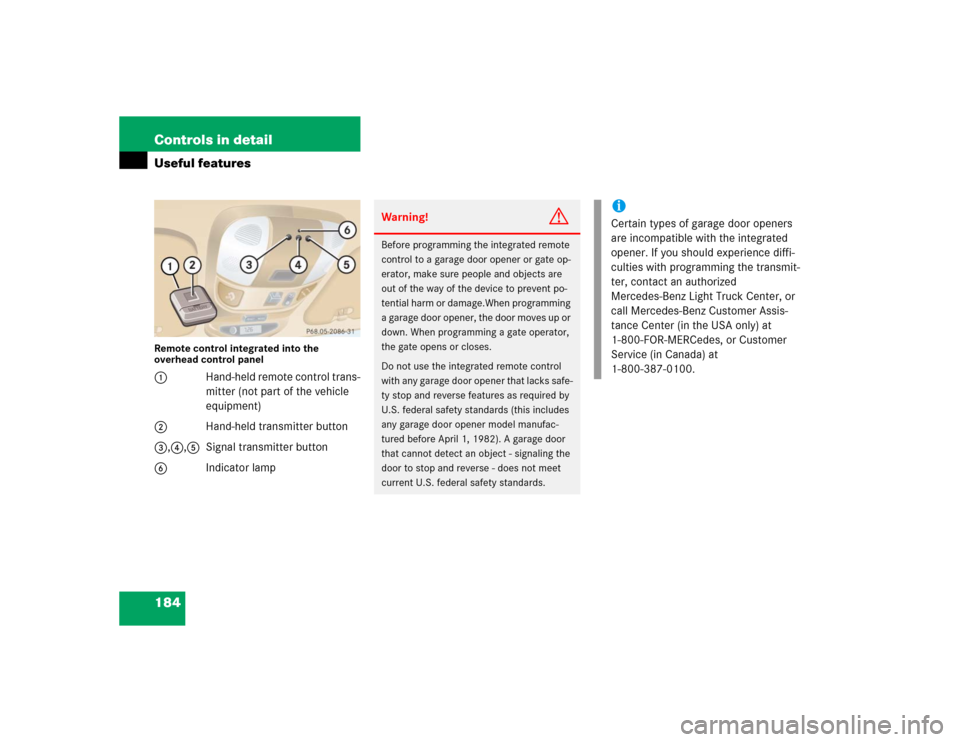

184 Controls in detailUseful featuresRemote control integrated into the
overhead control panel1Hand-held remote control trans-
mitter (not part of the vehicle
equipment)
2Hand-held transmitter button
3,4,5 Signal transmitter button
6Indicator lamp
Warning!
G
Before programming the integrated remote
control to a garage door opener or gate op-
erator, make sure people and objects are
out of the way of the device to prevent po-
tential harm or damage.When programming
a garage door opener, the door moves up or
down. When programming a gate operator,
the gate opens or closes.
Do not use the integrated remote control
with any garage door opener that lacks safe-
ty stop and reverse features as required by
U.S. federal safety standards (this includes
any garage door opener model manufac-
tured before April 1, 1982). A garage door
that cannot detect an object - signaling the
door to stop and reverse - does not meet
current U.S. federal safety standards.
iCertain types of garage door openers
are incompatible with the integrated
opener. If you should experience diffi-
culties with programming the transmit-
ter, contact an authorized
Mercedes-Benz Light Truck Center, or
call Mercedes-Benz Customer Assis-
tance Center (in the USA only) at
1-800-FOR-MERCedes, or Customer
Service (in Canada) at
1-800-387-0100.

185 Controls in detail
Useful features
Programming or reprogramming the
integrated remote control
Step 1:
Switch on ignition.
Step 2:

If you have previously programmed an
integrated signal transmitter button
and wish to retain its programming,
proceed to step 3. Otherwise, press
and hold the two outer signal transmit-
ter buttons3 and5 and release
them only when the indicator lamp6
begins to flash after approximately
20 seconds (do not hold the button for
longer than 30 seconds). This proce-
dure erases any previous settings for
all three channels and initializes the
memory. If you later wish to program a
second and / or third hand-held trans-
mitter to the remaining two signal
transmitter buttons, do not repeat this
step and begin directly with step 3.Step 3:

Hold the end of the hand-held remote
control transmitter1 of the device
you wish to train approximately 2 to
5 in (5 to12 cm) away from the surface
of the integrated remote control locat-
ed on the interior rear view mirror,
keeping the indicator lamp6 in view.
Step 4:

Using both hands, simultaneously
press the hand-held transmitter
button2 and the desired integrated
signal transmitter button (3, 4
or5). Do not release the buttons until
completing step 5.
The indicator lamp6 on the integrat-
ed remote control will flash, first slowly
and then rapidly.
iFor operation in the USA only:
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.


186 Controls in detailUseful featuresStep 5:
When the indicator lamp6 flashes
rapidly, release both buttons.
Step 6:

Press and hold the just-trained
integrated signal transmitter button
and observe the indicator lamp6.
If the indicator lamp6 stays on con-
stantly, programming is complete and
your device should activate when the
integrated signal transmitter button is
pressed and released.Step 7:

To program the remaining two buttons,
repeat the steps above starting with
step 3.Rolling code programming
To train a garage door opener (or other roll-
ing code devices) with the rolling code fea-
ture, follow these instructions after
completing the “Programming” portion
(steps 1 through 6) of this text. (A second
person may make the following training
procedures quicker and easier.)
Step 8:

Locate “training” button on the garage
door opener motor head unit.
Exact location and color of the button
may vary by garage door opener brand.
Depending on manufacturer, the
“training” button may also be referred
to as “learn” or “smart” button. If there
is difficulty locating the transmitting
button, refer to the garage door opener
operator’s manual.
iThe indicator lamp6 flashes the first
time the signal transmitter button is
programmed. If this button has already
been programmed, the indicator lamp
will only start flashing after
20 seconds.
iIf the indicator lamp6 flashes rapidly
for about two seconds and then turns
to a constant light, continue with pro-
gramming steps 8 through 12 as your
garage door opener may be equipped
with the “rolling code” feature.


187 Controls in detail
Useful features
Step 9:
Press “training” button on the garage
door opener motor head unit.
The “training light” is activated.
You have 30 seconds to initiate the
following step.
Step 10:

Firmly press, hold for two seconds and
release the programmed integrated
signal transmitter button (3, 4
or5).
Step 11:

Press, hold for two seconds and
release same button a second time to
complete the training process.
Some garage door openers (or other rolling
code equipped devices) may require you to
perform this procedure a third time to
complete the training.Step 12:

Confirm the garage door operation by
pressing the programmed integrated
signal transmitter button (3, 4
or5).
Step 13:

To program the remaining two buttons,
repeat the steps above starting with
step 3.Gate operator / Canadian programming
Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit)
after several seconds of transmission
which may not be long enough for the inte-
grated signal transmitter to pick up the sig-
nal during programming. Similar to this
Canadian law, some U.S. gate operators
are designed to “time-out” in the same
manner.
If you live in Canada or if you are having dif-
ficulties programming a gate operator (re-
gardless of where you live) by using the
programming procedures, replace step 4
with the following:

188 Controls in detailUseful featuresStep 4:
Continue to press and hold the inte-
grated signal transmitter button (3,
4 or5) while you press and re-press
(“cycle”) your hand-held remote con-
trol transmitter1 every two seconds
until the frequency signal has been
learned. Upon successful training, the
indicator lamp6 will flash slowly and
then rapidly after several seconds.

Proceed with programming step 5 and
step 6 to complete.
Operation of remote control

Switch on ignition.

Select and press the appropriate inte-
grated signal transmitter button (3,
4or5 to activate the remote con-
trolled device.
The integrated remote control trans-
mitter continues to send the signal as
long as the button is pressed – up to
20 seconds.Erasing the remote control memory

Switch on ignition.

Simultaneously hold down the signal
transmitter buttons3 and5, for ap-
proximately 20 seconds, or until the in-
dicator lamp6 fl as hes r ap idl y. Do not
hold for longer than 30 seconds.
The codes of all three channels are
erased.Reprogramming a single integrated
signal transmitter button
To program a device using a signal trans-
mitter button previously trained, follow
these steps:

Press and hold the desired signal
transmitter button (3, 4 or5).
Do not release the button.

The indicator lamp will begin to flash
after 20 seconds. Without releasing
the integrated signal transmitter
button, proceed with programming
starting with step 3.
iIf you sell your vehicle, erase the codes
of all three channels.

189 Controls in detail
Useful features
Trip computer*
The trip computer is located in the
overhead console.
1RESET
2MODE
3Display
Switching on the trip computer
Switch on ignition.
Display3 shows one of the available
functions.

If a function display does not appear,
press MODE2.Selecting functions

Press MODE2 repeatedly until the
desired display appears.
The functions are displayed in the
following order:


Date


Compass


Stop watch


Present fuel consumption


Average fuel consumption


Distance remaining


Country


Switching off trip computerSetting the date

Press MODE2 repeatedly until the
date appears.

Press RESET1.
The month shown flashes.

Press MODE2 to advance to selected
month.

Press RESET1.
The day shown flashes.

Press MODE2 to advance to selected
day.

Press RESET1.
The year shown flashes.

Press MODE2 to advance to selected
year.

Press RESET1.
The display stops flashing and the date
is set.
iWith engine not running, the display
switches off automatically 30 seconds
after the last entry.

190 Controls in detailUseful featuresCompass
The compass displays the direction the
vehicle is traveling. The display3 will
show you N, NE, E, SE, S, SW, W or NW.
To make sure the display is correct, the
compass must be set to the proper geo-
graphic zone (
page 191). It may also be
necessary to calibrate the compass
(
page 191).

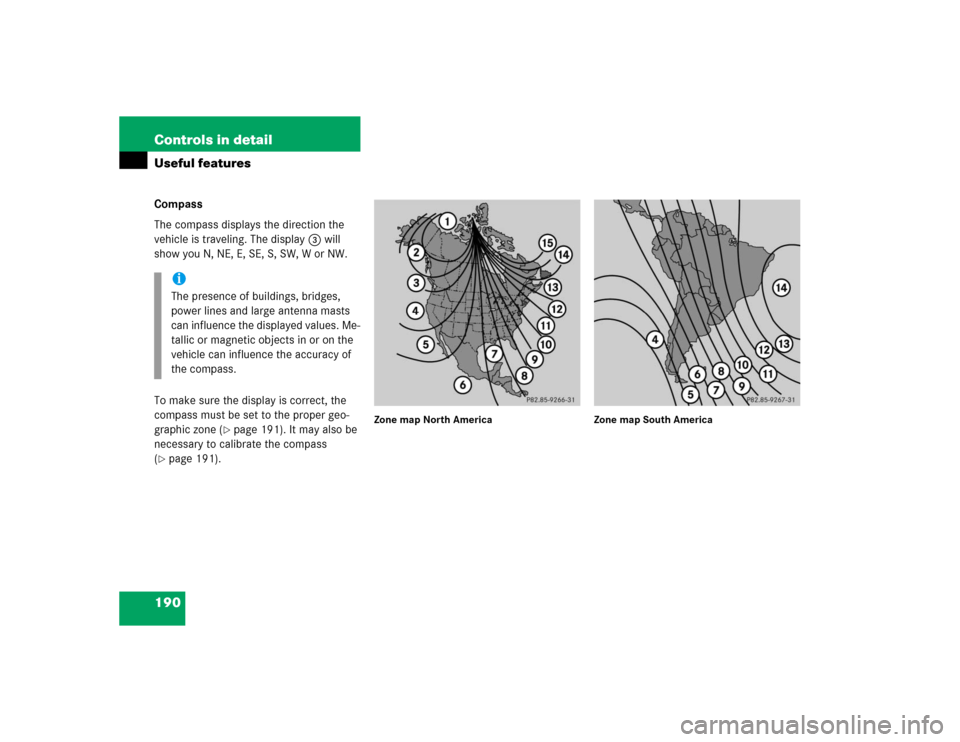

Zone map North America Zone map South America
iThe presence of buildings, bridges,
power lines and large antenna masts
can influence the displayed values. Me-
tallic or magnetic objects in or on the
vehicle can influence the accuracy of
the compass.
