2005 MERCEDES-BENZ ML500 Owner's Manual

167 Controls in detail
Useful features
Useful features
Storage compartments Glove box
1Glove box lid release
2Glove box lid
Opening the glove box

Grab in recess and pull lid release1.
The glove box lid2 opens downward.
Closing the glove box

Push glove box lid up to close.Storage compartment under front
passenger seat*
The storage compartment is lockable with
its separate key.
1Lock cylinder
2Handle
Locking and unlocking the storage com-
partment

Turn the key clockwise.
The storage compartment is locked.

Turn the key counterclockwise.
The storage compartment is unlocked.
Warning!
G
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when stowing objects in the vehicle. Put lug-
gage or cargo in the cargo compartment if
possible. Do not pile luggage or cargo higher
than the seat backs.
Always use partition net when transporting
cargo. Partition net cannot secure hard or
heavy objects.
Parcel nets cannot secure hard or heavy ob-
jects.
Keep compartment lids closed. This will help
to prevent stored objects from being thrown
about and injuring vehicle occupants during
an accident.
iThe opened glove box is illuminated
with the key in steering lock position1
(page 33).

168 Controls in detailUseful featuresOpening the storage compartment
Press the lock cylinder in and pull stor-
age compartment out using handle2.
Closing the storage compartment

Push the storage compartment in until
the lock engages.Armrest storage compartments
A flat storage tray with a deeper storage
compartment underneath is located below
the armrest. Both can be opened separate-
ly.
1Button to open storage tray
2Button to open storage compartment
3Open cover4Storage tray
5Coin holder
Opening the storage tray

Press button1 and lift up armrest.
The armrest contains two coin holders.
Opening the storage compartment

Press button2 and lift up armrest.

169 Controls in detail
Useful features
Opening the storage compartment in
front of armrest
Slide the cover3 rearward.
The storage compartment below con-
tains a cup holder (
page 170).
Cup holders Cup holder in instrument panel
A cup holder is located on both the right
and left side of the instrument panel.
Opening the cup holder

Briefly touch top of cover.
The cup holder opens automatically.
Closing the cup holder

Fold the cup holder upwards and press
on it until it engages.
Warning!
G
When not in use, keep the cup holder
closed. Place only containers that fit into the
cup holder to prevent spills. Use lids on
open containers and do not fill containers to
a height where the contents, especially hot
liquids, could spill during vehicle maneu-
vers.

170 Controls in detailUseful featuresCup holder in front of armrest
Opening the cup holder
Slide cover rearward (
page 169).

Fold the cup holder forward.
Closing the cup holder

Fold the cup holder backward.

Slide cover forward.Cup holder in rear center console
Opening the cup holder

Briefly touch the cover.
The cup holder opens automatically.
Closing the cup holder

Press the cup holder forward and press
on it until it engages.
Armrest in rear seat bench
Pull the armrest down by its top.
!Close the cup holder before folding the
rear seat bench.

171 Controls in detail
Useful features
Ashtrays and cigarette lighter Ashtray and cigarette lighter in the
front center console
1Ashtray
2Cigarette lighter
3Cover plate
Opening the ashtray

Briefly touch cover plate3.
The ashtray opens automatically.Removing ashtray insert

Secure vehicle from movement by set-
ting the parking brake. Move the gear
selector lever to positionN.
Now you have more room to take out
the insert.

Grip the insert on the sides and pull it
out upwards.
Reinstalling ashtray insert

Install ashtray insert.

Close the ashtray.
Warning!
G
Never touch the heating element or sides of
the cigarette lighter; they are extremely hot.
Hold the knob only.
When leaving the vehicle always remove the
key from the steering lock. Do not leave chil-
dren unattended in the vehicle, or with ac-
cess to an unlocked vehicle. Unsupervised
use of vehicle equipment may cause an ac-
cident and / or serious personal injury.iThe cigarette lighter socket can be
used to accommodate electrical acces-
sories up to a maximum of 50 W.
If the engine is off, the battery may be-
come discharged when used for long
periods of time.
Warning!
G
Remove ashtray only with vehicle standing
still. Set the parking brake to secure vehicle
from movement. Move gear selector lever to
positionN. With gear selector lever in
positionN, turn off the engine.

172 Controls in detailUseful featuresCigarette lighter
Switch on the ignition.

Push in cigarette lighter2
(page 171).
The cigarette lighter will pop out auto-
matically when hot.
Ashtray and cigarette lighter in the rear
center console
1Ashtray
2Cigarette lighter
3Cover plate
Opening the ashtray

Briefly touch cover plate3.
The ashtray opens automatically.
Removing ashtray insert

Grip the insert on the sides and pull it
out upwards.Reinstalling ashtray insert

Install ashtray insert.

Close the ashtray.
Cigarette lighter

Switch on the ignition.

Push in cigarette lighter2.
The cigarette lighter will pop out auto-
matically when hot.
!Close the ashtray in the rear center
console before folding the rear seat
bench.

173 Controls in detail
Useful features
Electrical outletElectrical outletOne outlet is located in the front passen-
ger footwell and another on the right-hand
side of the luggage compartment.
Flip up cover and insert electrical plug
(cigarette lighter type).
Telephone*
Radio transmitters, such as a portable tele-
phone or a citizens band unit, should only
be used inside the vehicle if they are con-
nected to an antenna that is installed on
the outside of the vehicle.
The external antenna must be approved by
Mercedes-Benz. Please contact an autho-
rized Mercedes-Benz Light Truck Center
for information on the installation of an ap-
proved external antenna. Refer to the radio
transmitter operation instructions regard-
ing use of an external antenna.
iThe outlets function even if the key is
not in the ignition.
The electrical outlet can be used to
accommodate electrical consumers
(e.g. air pump, auxiliary lamps) up to a
maximum of 180 W.
If the engine is off, the battery may be-
come discharged if used for long peri-
ods of time.
Warning!
G
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system, pos-
sibly resulting in an accident and / or serious
personal injury.

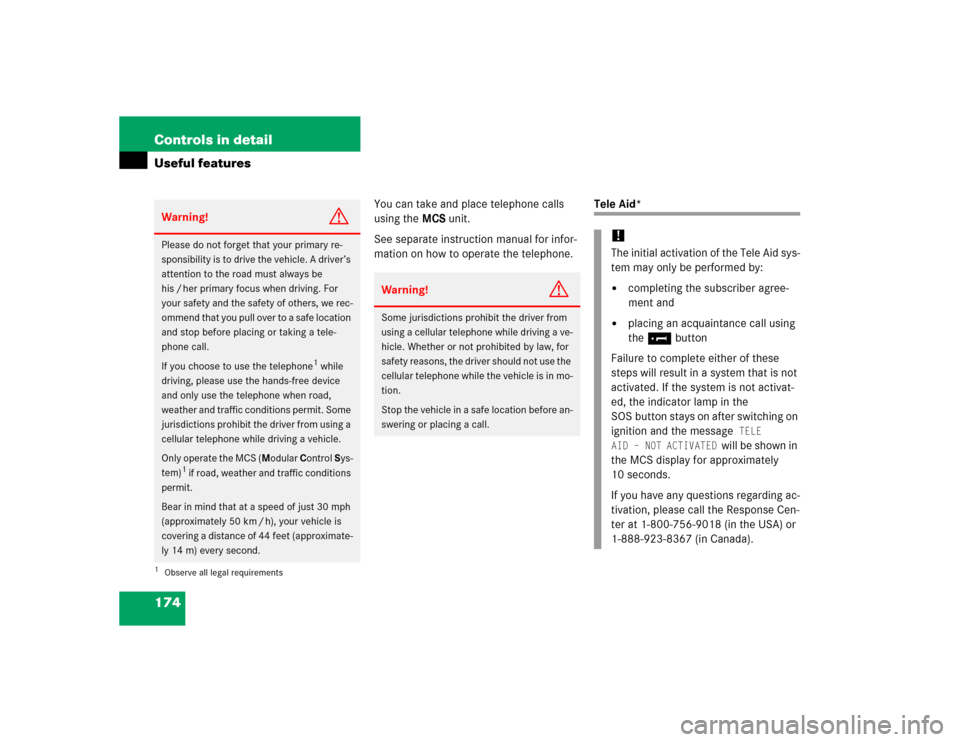

174 Controls in detailUseful features
You can take and place telephone calls
using the MCS unit.
See separate instruction manual for infor-
mation on how to operate the telephone.
Tele Aid*
Warning!
G
Please do not forget that your primary re-
sponsibility is to drive the vehicle. A driver’s
attention to the road must always be
his / her primary focus when driving. For
your safety and the safety of others, we rec-
ommend that you pull over to a safe location
and stop before placing or taking a tele-
phone call.
If you choose to use the telephone
1 while
driving, please use the hands-free device
and only use the telephone when road,
weather and traffic conditions permit. Some
jurisdictions prohibit the driver from using a
cellular telephone while driving a vehicle.
Only operate the MCS (Modular Control Sys-
tem)
1 if road, weather and traffic conditions
permit.
Bear in mind that at a speed of just 30 mph
(approximately 50 km / h), your vehicle is
covering a distance of 44 feet (approximate-
ly 14 m) every second.
1Observe all legal requirements
Warning!
G
Some jurisdictions prohibit the driver from
using a cellular telephone while driving a ve-
hicle. Whether or not prohibited by law, for
safety reasons, the driver should not use the
cellular telephone while the vehicle is in mo-
tion.
Stop the vehicle in a safe location before an-
swering or placing a call.
!The initial activation of the Tele Aid sys-
tem may only be performed by:

completing the subscriber agree-
ment and


placing an acquaintance call using
the ¡button
Failure to complete either of these
steps will result in a system that is not
activated. If the system is not activat-
ed, the indicator lamp in the
SOS button stays on after switching on
ignition and the message
TELE
AID – NOT ACTIVATED will be shown in
the MCS display for approximately
10 seconds.
If you have any questions regarding ac-
tivation, please call the Response Cen-
ter at 1-800-756-9018 (in the USA) or
1-888-923-8367 (in Canada).
