2005 MERCEDES-BENZ ML500 Owner's Manual

103 Controls in detailSeats
Folding down single seat
1Head restraint
2Hook
3Tensioner
4Hook and loop fastener strip
Remove cargo floor plate
(page 165).

Remove head restraint1 from seat
cushion.

Lift tensioner3 upward to a horizon-
tal position to release tension of the
belt.

Disengage hook2 while holding onto
the seat firmly with one hand.

Attach belt at hook and loop fastener
strip4 (
page 103) on underside of
seat.
5Backrest release
6Seat release

Fold seat down until it locks securely in
place.
The red marking on the seat release6
should not be visible.

Store cargo floor plates inside the
backrest (
page 165).

Pull backrest release5 and unfold
backrest until it locks securely in place.

Install head restraint1 in backrest
(page 103).
Storing single seat

Remove head restraint from backrest
(page 103).

Pull backrest release5 and fold back-
rest forward until it locks securely in
place.

Remove cargo floor plates from the
backrest.

Pull seat release6 (
page 103) and
fold seat up.


104 Controls in detailSeats
Disengage belt and engage hook2
(page 103) in ceiling mount.

Pull on free end of belt until tight.

Install head restraint in openings
provided in seat cushion.

Install cargo floor plates (
page 165).Removing single seat
1Hook
2Tensioner
3Hook and loop fastener strip
4Release lever

Lift tensioner2 upward to a horizon-
tal position to release tension of the
belt.

Disengage hook1 while holding onto
the seat firmly with one hand.

Attach belt at hook and loop fastener
strip3 on underside of seat.

Move release lever4 upward and re-
move seat.
Installing single seat

Place seat into the mounting clamps
and click the seat into place.
Warning!
G
After folding the seats up, manually place
the lap belt portion of the seat belt behind
the seat (arrow). Otherwise, the lap belt may
be subject to damage and could rip.


105 Controls in detail
Memory function*
Memory function*
With the memory button you can store up
to three different settings for the driver-
and passenger seat.
Together with the driver’s seat you can
store the exterior rear view mirrors.
For the front passenger seat you can store
the seat position.
1Position button
2Memory button

Switch on ignition (
page 33).
!Prior to operating the vehicle, the driv-
er should check and adjust the seat
height, seat position fore and aft, and
seat backrest angle if necessary, to
ensure adequate control, reach and
comfort. The head restraint should also
be adjusted for proper height. See also
the section on airbags (
page 59) for
proper seat positioning.
In addition, adjust the steering wheel to
ensure adequate control, reach, opera-
tion and comfort. Both the interior and
exterior rear view mirrors should be ad-
justed for adequate rear vision.
Fasten seat belts. Infants and small
children should be seated in a properly
secured restraint system that complies
with U.S. Federal Motor Vehicle Safety
Standard 213 and 225 and Canadian
Motor Vehicle Safety Standards 213
and 210.2.
Warning!
G
Do not activate the memory function while
driving. Activating the memory function
while driving could cause the driver to lose
control of the vehicle.

106 Controls in detailMemory function*Storing positions into memory
Adjust the seat (
page 38) and exteri-
or rear view mirrors (page 41) to the
desired position.

Push memory button2 (
page 105).

Release memory button and press one
of the position buttons1 within three
seconds.
All the settings are stored at the select-
ed position.
Recalling positions from memory

Press and hold one of the position
buttons1 until seat and rear view mir-
rors have fully moved to the stored po-
sitions.
Storing exterior rear view mirror
parking position
For easier parking, you can adjust the pas-
senger-side exterior rear view mirror so
that you can see the right rear wheel as
soon as you engage reverse gearR.
For information on activating the parking
position feature, see “Activating exterior
rear view mirror parking position”
(page 129).Storing parking position

Stop the vehicle.

Switch on ignition (
page 33).

Press button2.
The passenger-side exterior rear view
mirror is selected.

Adjust the exterior rear view mirror
with button3 so that you see the rear
wheel and the road curb.

Press memory button2 (
page 105).

Within three seconds, press bottom of
adjustment button3.
The parking position is stored if the
mirror does not move.
!Do not operate the power seats using
the memory button if the seat backrest
is in an excessively reclined position.
Doing so could cause damage to front
or rear seats.
iReleasing the button immediately
stops movement to the stored posi-
tions.
iIf the mirror does move, repeat the
above steps. After the setting is stored
you can move the mirror again.
The selected position will be stored rel-
ative to the position button1
(page 105) pressed.

107 Controls in detail
Lighting
Lighting
For information on how to switch on the
headlamps and use the turn signals, see
the “Getting started” section (
page 50).
Combination switch
The combination switch is on the left of the
steering column.
1High beam
2High beam flasherDOff
Daytime running lamp mode
(Canada only) (
page 109)
UAutomatic headlamp mode
Daytime running lamp mode
(Canada only) (page 109)
CParking lamps (also tail lamps, li-
cense plate lamps, side marker
lamps, instrument panel lamps)
õLow beam headlamps (or high
beam headlamps when the combi-
nation switch is pushed forward)
and parking lamps
ƒLeft or right standing lamps
(symbol on underside of switch)
iIf you drive in countries where vehicles
drive on the other side of the road than
the country in which the vehicle is reg-
istered, you must have the headlamps
modified for symmetrical low beams.
Relevant information can be obtained
at your authorized Mercedes-Benz
Light Truck Center.

108 Controls in detailLightingManual headlamp mode
The low beam headlamps and the parking
lamps can be switched on and off with the
combination switch.
Automatic headlamp mode
The following lamps switch on and off au-
tomatically depending on the brightness of
the ambient light.

Low beam headlamps


Tail and parking lamps


License plate lamps


Side marker lamps

Turn the combination switch to
positionU.
With the key in steering lock position1
only the parking lamps will switch on
and off automatically.
With the engine is running, the low
beam headlamps, the tail and parking
lamps, the license plate lamps, and the
side marker lamps will switch on and
off automatically.
They will be switched on constantly,
when you switch on the front fog
lamps.
iWith the key removed from the steering
lock and the driver’s door open, a warn-
ing sounds if the parking lamps or low
beam headlamps are switched on
(page 107).

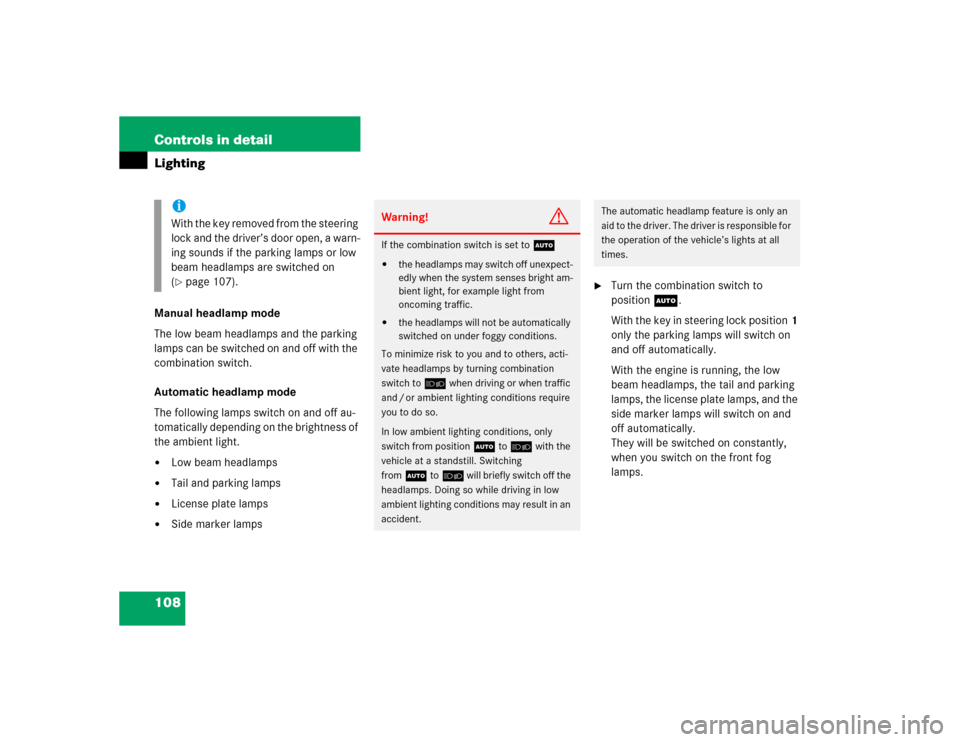

Warning!
G
If the combination switch is set toU

the headlamps may switch off unexpect-
edly when the system senses bright am-
bient light, for example light from
oncoming traffic.


the headlamps will not be automatically
switched on under foggy conditions.
To minimize risk to you and to others, acti-
vate headlamps by turning combination
switch toõ when driving or when traffic
and / or ambient lighting conditions require
you to do so.
In low ambient lighting conditions, only
switch from positionU toõ with the
vehicle at a standstill. Switching
fromUtoõ will briefly switch off the
headlamps. Doing so while driving in low
ambient lighting conditions may result in an
accident.
The automatic headlamp feature is only an
aid to the driver. The driver is responsible for
the operation of the vehicle’s lights at all
times.

109 Controls in detail
Lighting
Daytime running lamp mode
Canada only:
Turn combination switch to
positionD orU.
When the engine is running, the low
beam headlamps are switched on.
In low ambient light conditions, the fol-
lowing lamps will switch on additional-
ly:

Tail and parking lamps


License plate lamps


Side marker lamp
For nighttime driving you should turn the
combination switch to positionõ to
permit activation of the high beam head-
lamps.
When the engine is running, and you shift
from a driving position to positionN orP,
the low beam headlamps will switch off
with a three minutes delay.When the engine is running, and you


turn the combination switch to
positionC, the parking lamps
switch on additionally.


turn the combination switch to
positionõ, the manual headlamp
mode has priority over the daytime run-
ning lamp mode.
The corresponding exterior lamps
switch on (
page 107).Night security illumination
Use this function to set wether and how
long you would like the exterior lamps to il-
luminate during darkness after exiting the
vehicle and all doors closed.
When a time is set for the night security il-
lumination and the combination switch is
set to positionUbefore turning off the
engine, the following lamps will come on
after you have removed the key from the
steering lock:


Tail and parking lamps


License plate lamps


Side marker lamps


Front fog lamps
iWith the daytime running lamp mode
and the combination switch in
positionD, the high beam head-
lamps cannot be switched on.
The high beam flasher is always avail-
able.
iYou can reactivate this function within
ten minutes by opening a door.
If you do not open a door or do not
close an opened door after turning off
the engine, the lamps will automatically
switch off after 60 seconds.

110 Controls in detailLightingSetting illumination time
1Fog lamps switch
Switch on ignition (
page 33).

Turn combination switch to
positionD.

Press and hold the upper part of fog
lamps switch1 until the clock in the
instrument cluster displays the actual
illumination time.

Release fog lamps switch1.

Press the upper part of fog lamps
switch1 again.
Each time the switch is pressed, the
illumination time increases by
15 seconds. You can set the illumina-
tion time between 0 (off) and
60 seconds.
The time is factory-set to 0 seconds.
Approximately five seconds after
pressing the switch, the illumination
time is adopted and the clock is dis-
played again.

Turn the combination switch to
positionU before turning off the en-
gine (
page 107).
The night security illumination is acti-
vated.Deactivating night security illumination
temporarily
You can temporarily deactivate the
delayed shut-off feature.

Before exiting the vehicle, turn the key
in the steering lock to position0.

Then turn it to position2 and back to
position0.
The delayed shut-off feature is deacti-
vated. It will reactivate as soon as you
reinsert the key in the steering lock.
