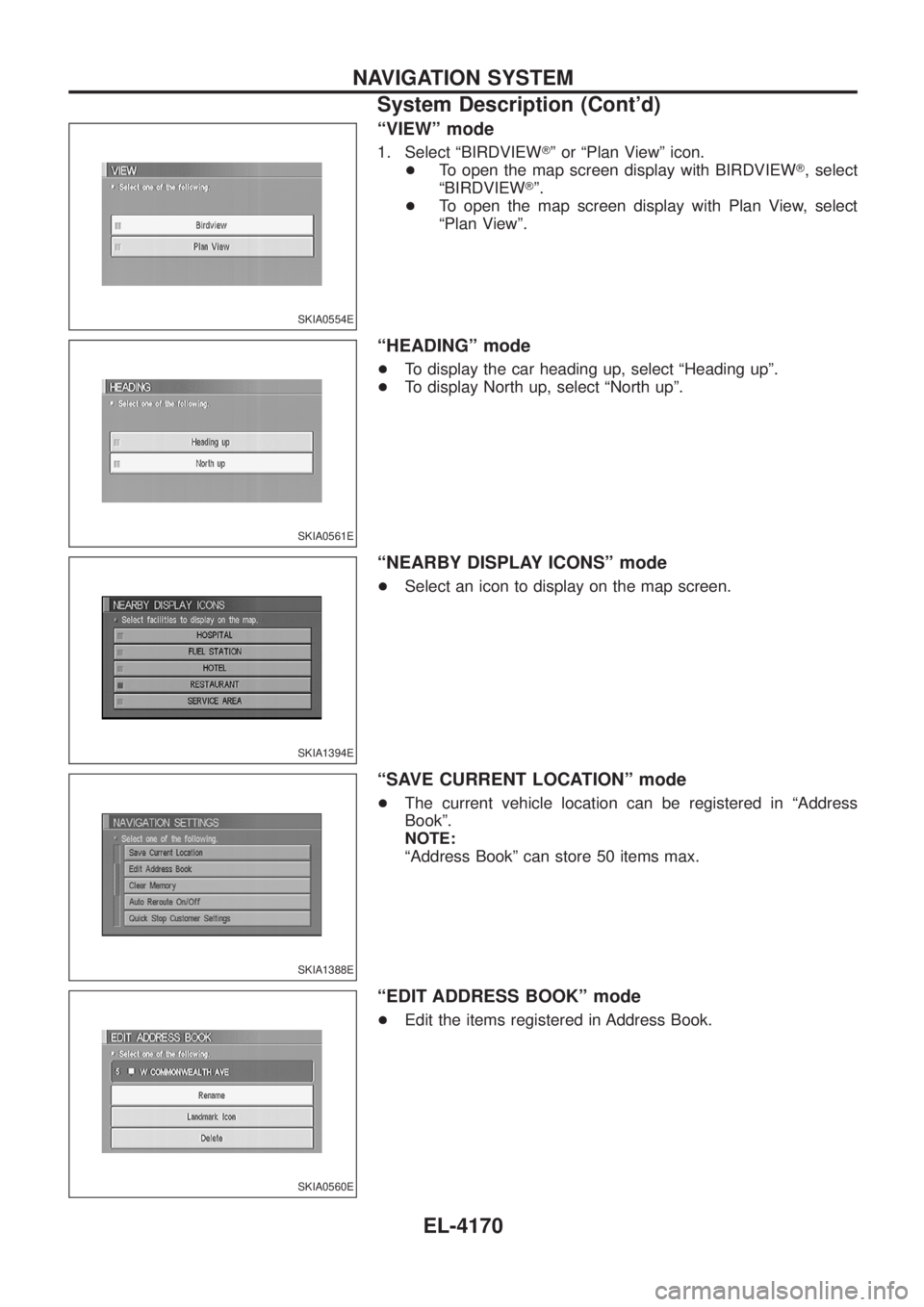

ªVIEWº mode
1. Select ªBIRDVIEWTº or ªPlan Viewº icon.
+ To open the map screen display with BIRDVIEW T, select
ªBIRDVIEW Tº.
+ To open the map screen display with Plan View, select
ªPlan Viewº.
ªHEADINGº mode
+To display the car heading up, select ªHeading upº.
+ To display North up, select ªNorth upº.
ªNEARBY DISPLAY ICONSº mode
+Select an icon to display on the map screen.
ªSAVE CURRENT LOCATIONº mode
+The current vehicle location can be registered in ªAddress
Bookº.
NOTE:
ªAddress Bookº can store 50 items max.
ªEDIT ADDRESS BOOKº mode
+Edit the items registered in Address Book.
SKIA0554E
SKIA0561E
SKIA1394E
SKIA1388E
SKIA0560E
NAVIGATION SYSTEM
System Description (Cont'd)
EL-4170

ªCLEAR MEMORYº mode
+To delete all the stored places in ªAddress Bookº, ªAvoid Areaº
and ªPrevious Destº, select ªYesº.
ªAUTO RE-ROUTEº mode
+To Perform the auto re-route of route, select ªONº.
+ Not to Perform the auto re-route of route, select ªOFFº.
ªQUICK STOP CUSTOMER SETTINGSº mode
+Select a category for the ªQuick Stopº menu.
ªSET AVERAGE SPEEDº mode
+Set the average vehicle speed to calibrate the estimated jour-
ney time for the destination.
+ Set three items; ªMotorwayº, ªMain Roadsº, and ªOrdinary
Roadsº.
ªGPS INFORMATIONº mode
+Latitude, longitude, altitude, astrometric state, and satellite
location are displayed as GPS information.
NOTE:
Altitude is displayed only in three-dimensional status.
SKIA9146E
SKIA0558E
SKIA1389E
SKIA9544E
SKIA0555E
NAVIGATION SYSTEM
System Description (Cont'd)
EL-4171

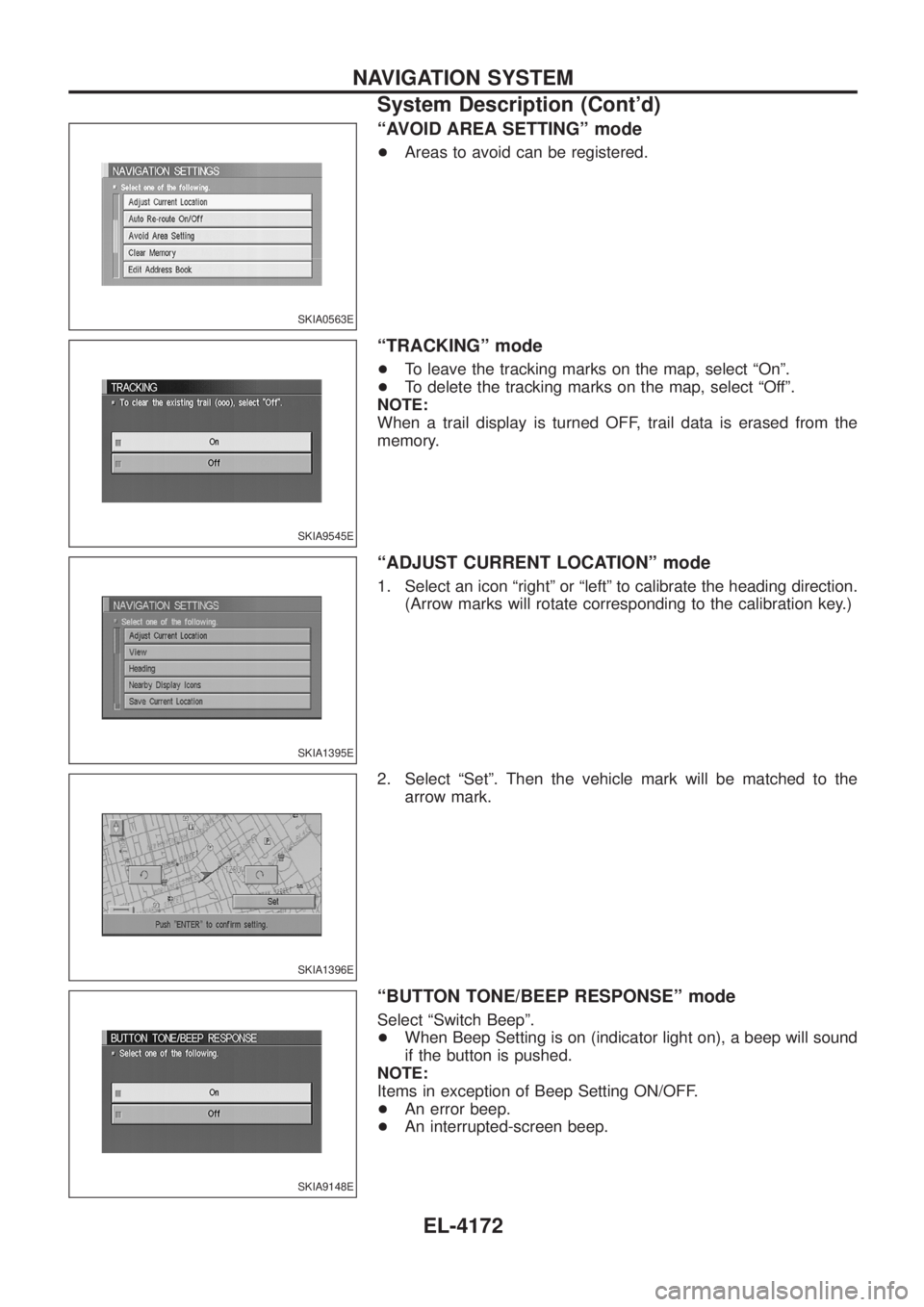

ªAVOID AREA SETTINGº mode
+Areas to avoid can be registered.
ªTRACKINGº mode
+To leave the tracking marks on the map, select ªOnº.
+ To delete the tracking marks on the map, select ªOffº.
NOTE:
When a trail display is turned OFF, trail data is erased from the
memory.
ªADJUST CURRENT LOCATIONº mode
1. Select an icon ªrightº or ªleftº to calibrate the heading direction. (Arrow marks will rotate corresponding to the calibration key.)
2. Select ªSetº. Then the vehicle mark will be matched to the arrow mark.
ªBUTTON TONE/BEEP RESPONSEº mode
Select ªSwitch Beepº.
+When Beep Setting is on (indicator light on), a beep will sound
if the button is pushed.
NOTE:
Items in exception of Beep Setting ON/OFF.
+ An error beep.
+ An interrupted-screen beep.
SKIA0563E
SKIA9545E
SKIA1395E
SKIA1396E
SKIA9148E
NAVIGATION SYSTEM
System Description (Cont'd)
EL-4172

Precautions for NAVI Control Unit Replacement
+When replacing the NAVI control unit, eject the map DVD-ROM before disconnecting the battery.
+ The NAVI control unit has the following information stored in its memory. Record the memory contents
before replacing the control unit, and input them in the new unit as necessary.
+Brightness of light when ON/OFF
+ Dimming switching
+ Display color switching
+Latest status (map screen/BIRDVIEW T, reduced scale, rotation angle of map screen,
route guide ON/OFF, track ON/OFF, etc.)
+ Current position
+ Destination, passing poin t1-5
+ Registered places, their names, etc.
NOTE:
Only removing the battery does not erase the memory.
Component Parts And Harness Connector
Location
PKIB1033E
NAVIGATION SYSTEM
EL-4173

Schematic
TEL074N
NAVIGATION SYSTEM
EL-4174

Wiring Diagram Ð NAVI Ð
TEL075N
NAVIGATION SYSTEM
EL-4175

TEL076N
NAVIGATION SYSTEM
Wiring Diagram Ð NAVI Ð (Cont'd)EL-4176

TEL077N
NAVIGATION SYSTEM
Wiring Diagram Ð NAVI Ð (Cont'd)EL-4177
