2004 NISSAN PATROL Electronic Repair Manual

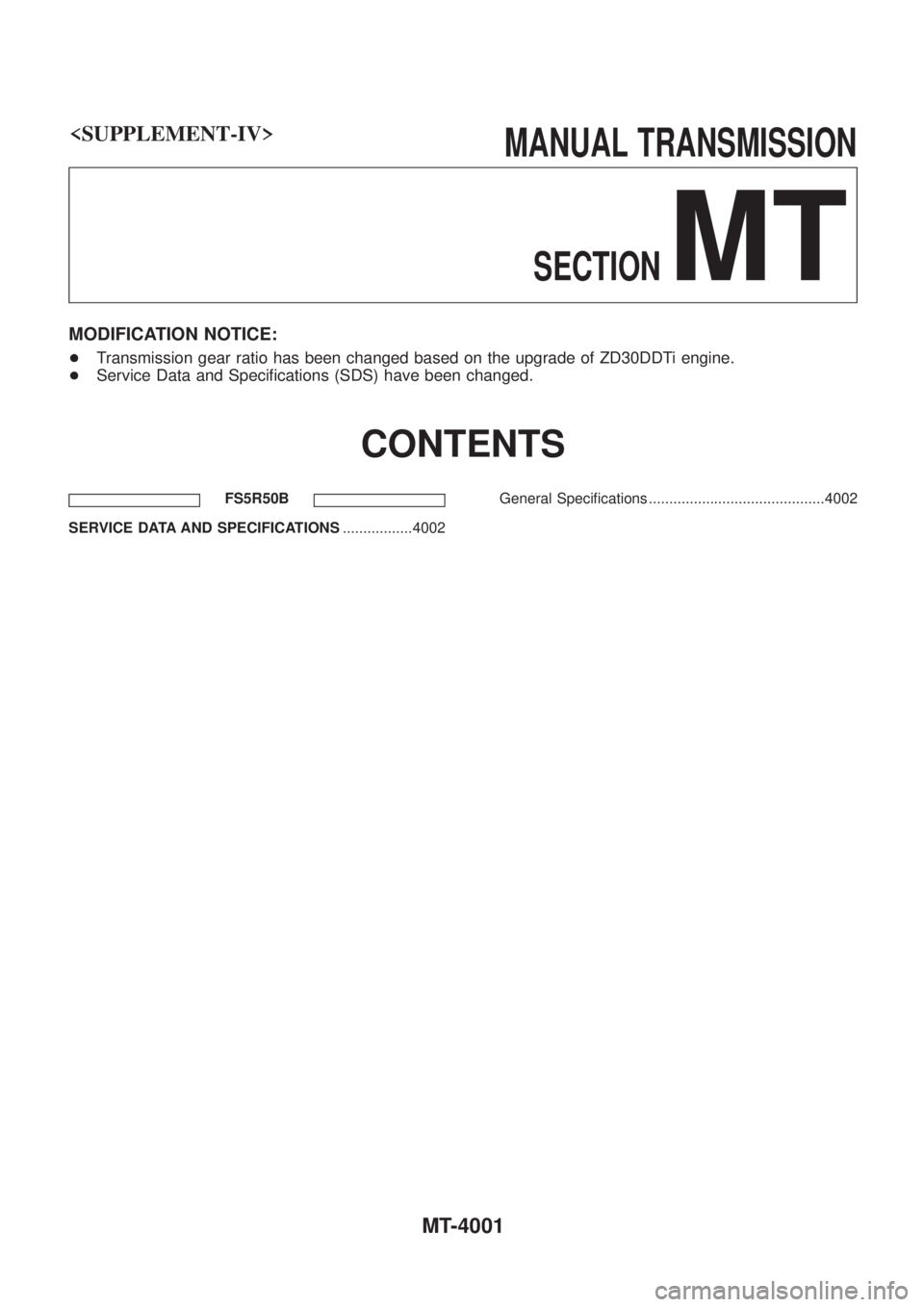

MANUALTRANSMISSION
SECTION
MT
MODIFICATION NOTICE:
+ Transmission gear ratio has been changed based on the upgrade of ZD30DDTi engine.
+ Service Data and Speci®cations (SDS) have been changed.
CONTENTS
FS5R50B
SERVICE DATA AND SPECIFICATIONS .................4002General Speci®cations ...........................................4002
MT-4001

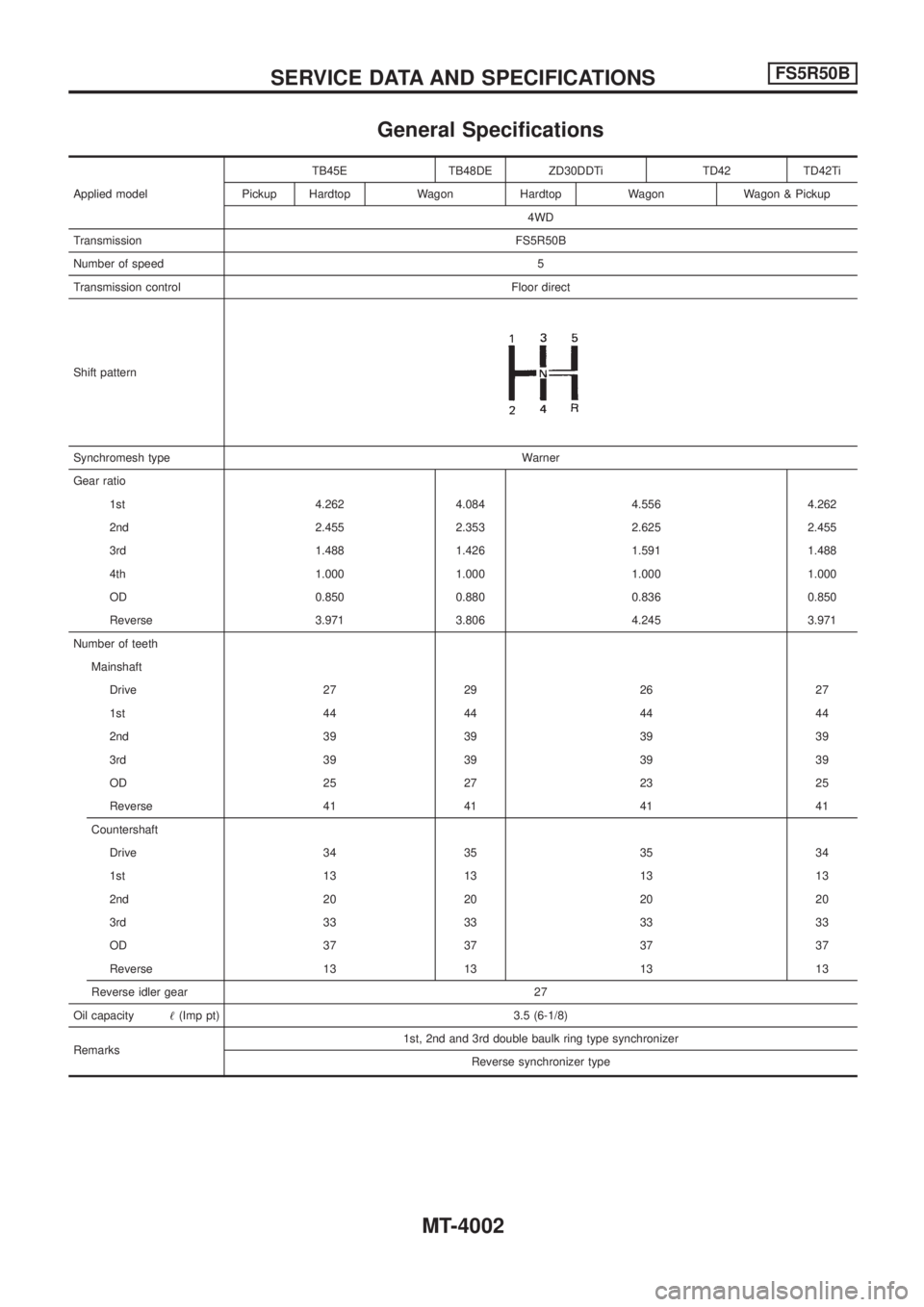

General Speci®cations
Applied modelTB45E TB48DE ZD30DDTi TD42 TD42Ti
Pickup Hardtop Wagon Hardtop Wagon Wagon & Pickup
4WD
TransmissionFS5R50B
Number of speed5
Transmission control Floor direct
Shift pattern
Synchromesh type Warner
Gear ratio
1st 4.262 4.084 4.556 4.262
2nd 2.455 2.353 2.625 2.455
3rd 1.488 1.426 1.591 1.488
4th 1.000 1.000 1.000 1.000
OD 0.850 0.880 0.836 0.850
Reverse 3.971 3.806 4.245 3.971
Number of teeth
Mainshaft
Drive 27 29 26 27
1st 44 44 44 44
2nd 39 39 39 39
3rd 39 39 39 39
OD 25 27 23 25
Reverse 41 41 41 41
Countershaft
Drive 34 35 35 34
1st 13 13 13 13
2nd 20 20 20 20
3rd 33 33 33 33
OD 37 37 37 37
Reverse 13 13 13 13
Reverse idler gear 27
Oil capacity!(Imp pt) 3.5 (6-1/8)
Remarks1st, 2nd and 3rd double baulk ring type synchronizer
Reverse synchronizer type
SERVICE DATA AND SPECIFICATIONSFS5R50B
MT-4002

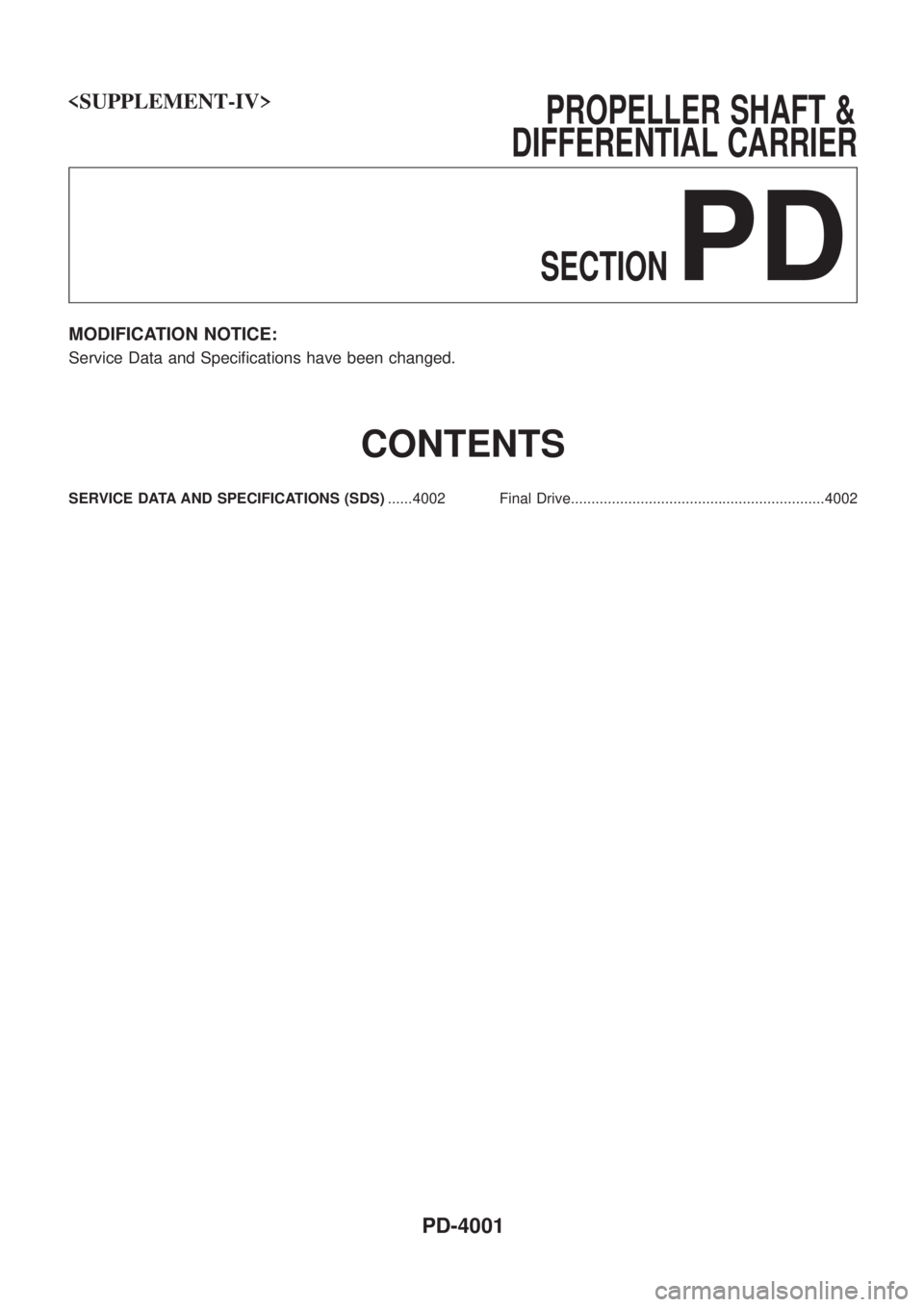

PROPELLERSHAFT&
DIFFERENTIAL CARRIER
SECTION
PD
MODIFICATION NOTICE:
Service Data and Speci®cations have been changed.
CONTENTS
SERVICE DATA AND SPECIFICATIONS (SDS) ......4002 Final Drive..............................................................4002
PD-4001

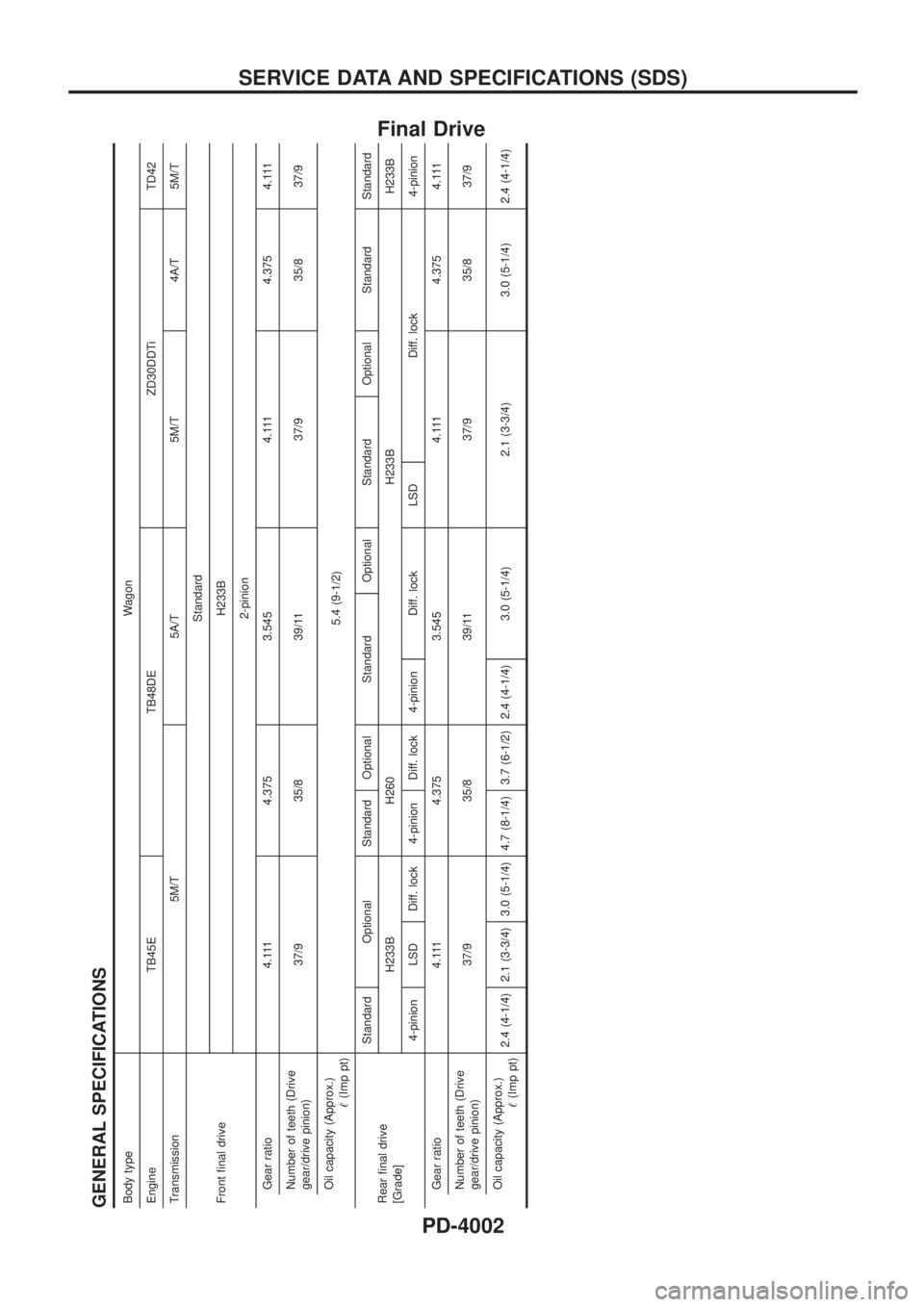

Final Drive
GENERAL SPECIFICATIONSBody typeWagon
Engine TB45E TB48DE ZD30DDTi TD42
Transmission 5M/T 5A/T 5M/T 4A/T 5M/T
Front ®nal driveStandard
H233B
2-pinion
Gear ratio 4.111 4.375 3.545 4.111 4.375 4.111
Number of teeth (Drive
gear/drive pinion)37/9 35/8 39/11 37/9 35/8 37/9
Oil capacity (Approx.)
!(Imp pt)5.4 (9-1/2)
Rear ®nal drive
[Grade]Standard Optional Standard Optional Standard Optional Standard Optional Standard Standard
H233B H260 H233B H233B
4-pinion LSD Diff. lock 4-pinion Diff. lock 4-pinion Diff. lock LSD Diff. lock 4-pinion
Gear ratio 4.111 4.375 3.545 4.111 4.375 4.111
Number of teeth (Drive
gear/drive pinion)37/9 35/8 39/11 37/9 35/8 37/9
Oil capacity (Approx.)
!(Imp pt)2.4 (4-1/4) 2.1 (3-3/4) 3.0 (5-1/4) 4.7 (8-1/4) 3.7 (6-1/2) 2.4 (4-1/4) 3.0 (5-1/4) 2.1 (3-3/4) 3.0 (5-1/4) 2.4 (4-1/4)
SERVICE DATA AND SPECIFICATIONS (SDS)
PD-4002

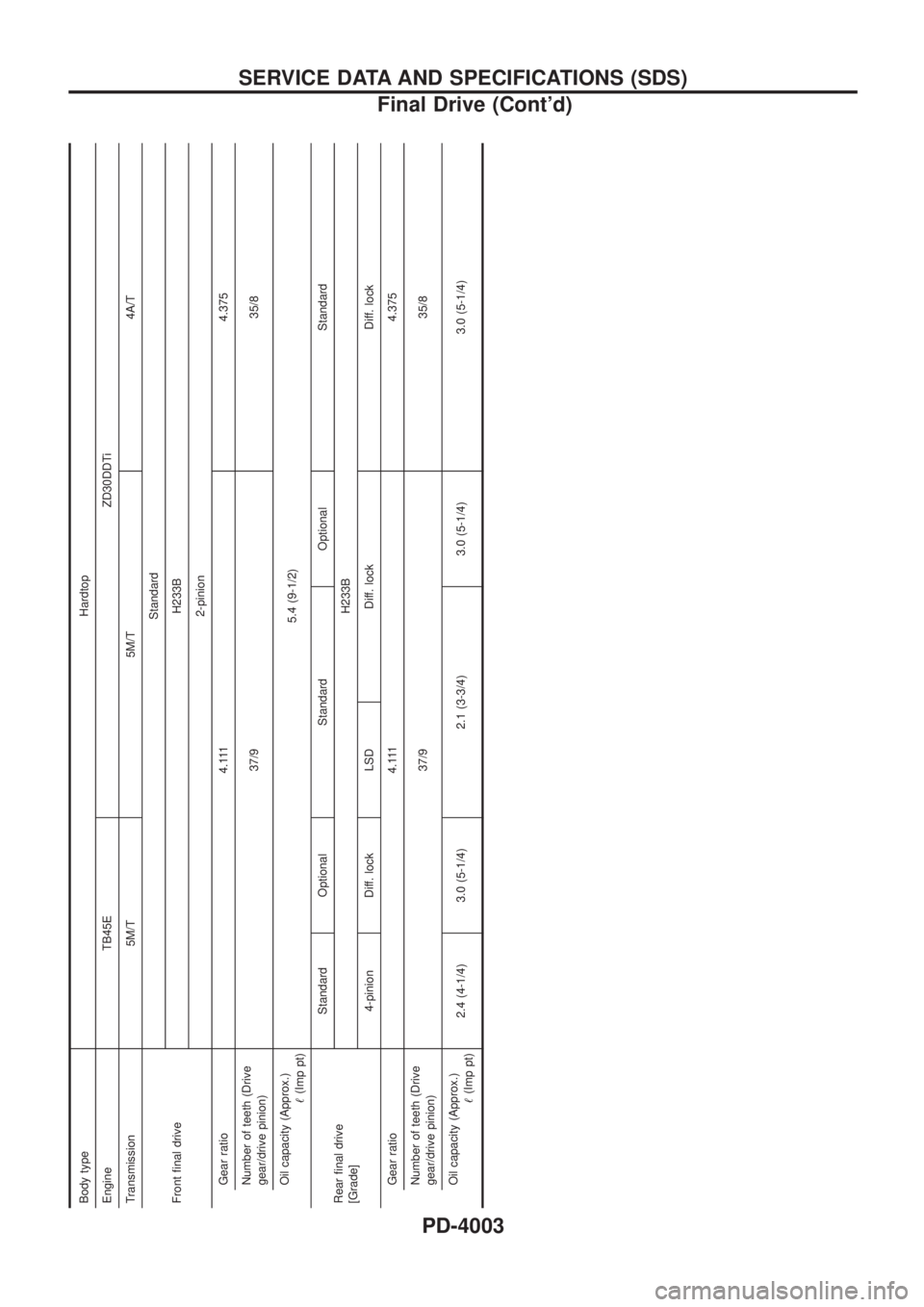

Body typeHardtop
Engine TB45EZD30DDTi
Transmission 5M/T 5M/T 4A/T
Front ®nal driveStandard
H233B
2-pinion
Gear ratio 4.1114.375
Number of teeth (Drive
gear/drive pinion)37/935/8
Oil capacity (Approx.)
!(Imp pt)5.4 (9-1/2)
Rear ®nal drive
[Grade]Standard Optional Standard Optional Standard
H233B
4-pinion Diff. lock LSD Diff. lock Diff. lock
Gear ratio 4.1114.375
Number of teeth (Drive
gear/drive pinion)37/935/8
Oil capacity (Approx.)
!(Imp pt)2.4 (4-1/4) 3.0 (5-1/4) 2.1 (3-3/4) 3.0 (5-1/4) 3.0 (5-1/4)
SERVICE DATA AND SPECIFICATIONS (SDS)
Final Drive (Cont'd)
PD-4003

\

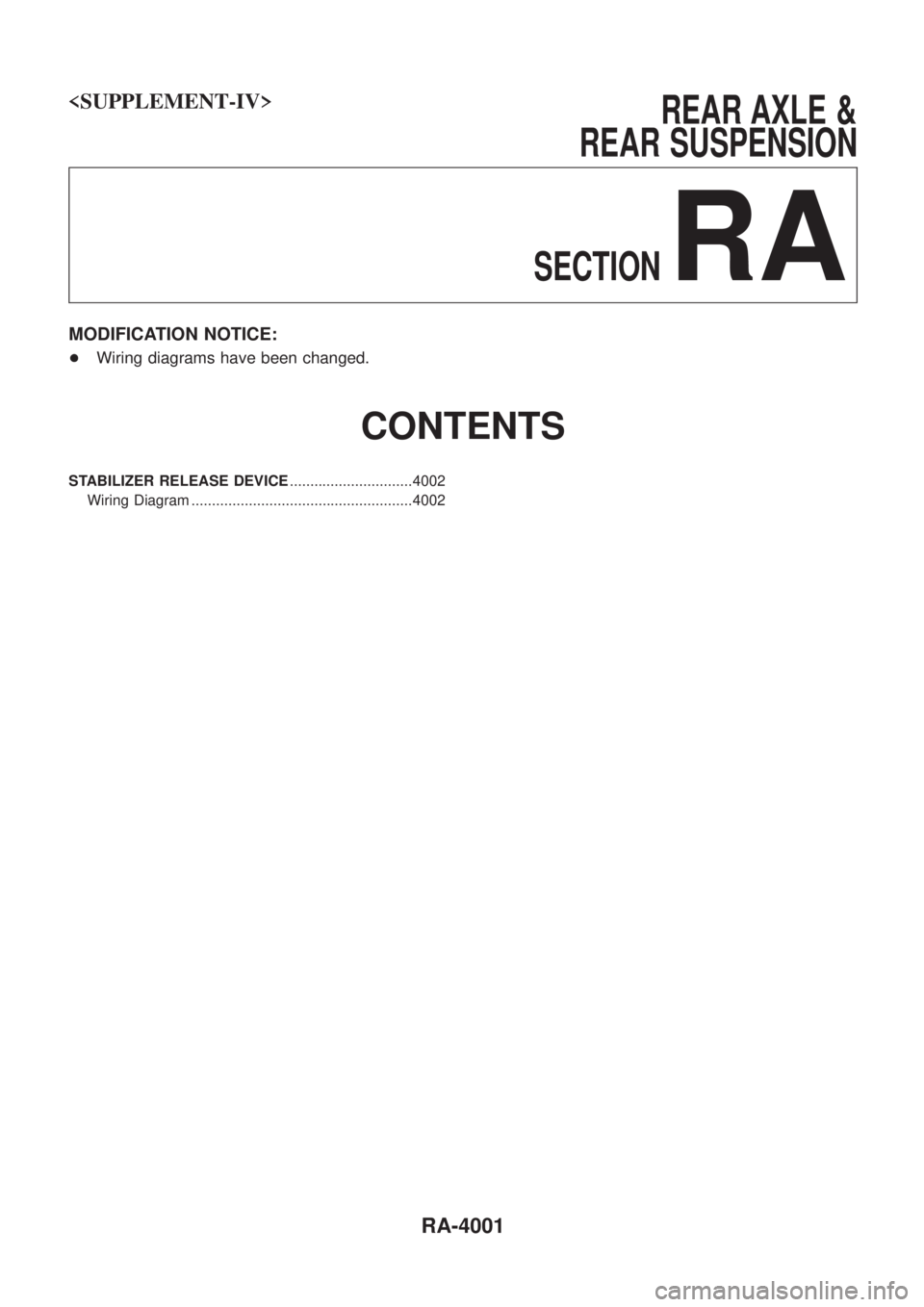

REARAXLE&
REAR SUSPENSION
SECTION
RA
MODIFICATION NOTICE:
+ Wiring diagrams have been changed.
CONTENTS
STABILIZER RELEASE DEVICE ..............................4002
Wiring Diagram ......................................................4002
RA-4001

Wiring Diagram
LHD MODELS
TRA011M
STABILIZER RELEASE DEVICE
RA-4002

LHD MODELS
TRA012M
STABILIZER RELEASE DEVICE
Wiring Diagram (Cont'd)
RA-4003
