2004 NISSAN PATROL Electronic Repair Manual

Wiring Diagram
TEC529M
HEAT UP SWITCHZD30DDTi
EC-4054

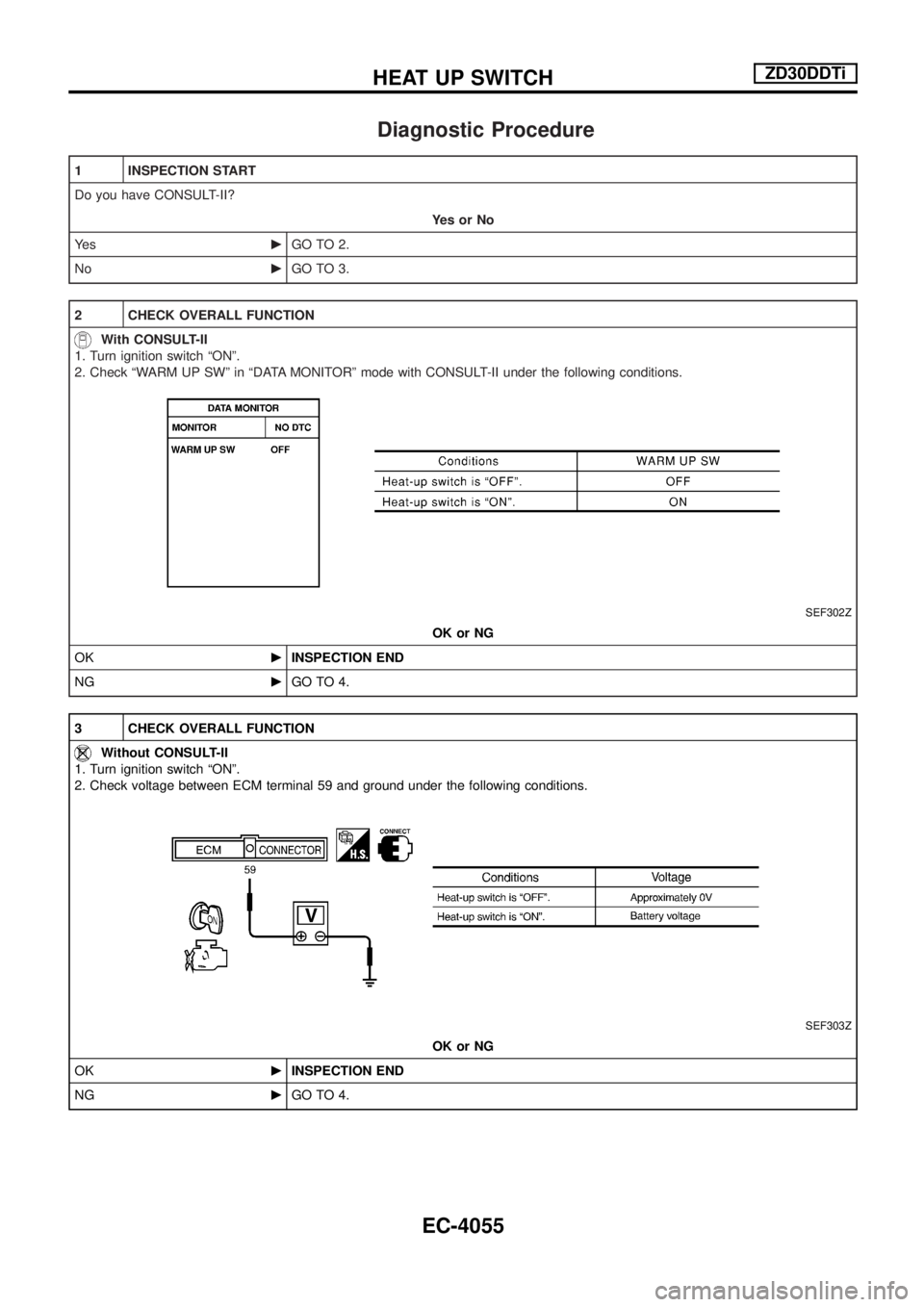

Diagnostic Procedure
1 INSPECTION START
Do you have CONSULT-II?
YesorNo
Ye scGO TO 2.
NocGO TO 3.
2 CHECK OVERALL FUNCTION
With CONSULT-II
1. Turn ignition switch ªONº.
2. Check ªWARM UP SWº in ªDATA MONITORº mode with CONSULT-II under the following conditions.
SEF302Z
OK or NG
OKcINSPECTION END
NGcGO TO 4.
3 CHECK OVERALL FUNCTION
Without CONSULT-II
1. Turn ignition switch ªONº.
2. Check voltage between ECM terminal 59 and ground under the following conditions.
SEF303Z
OK or NG
OKcINSPECTION END
NGcGO TO 4.
HEAT UP SWITCHZD30DDTi
EC-4055

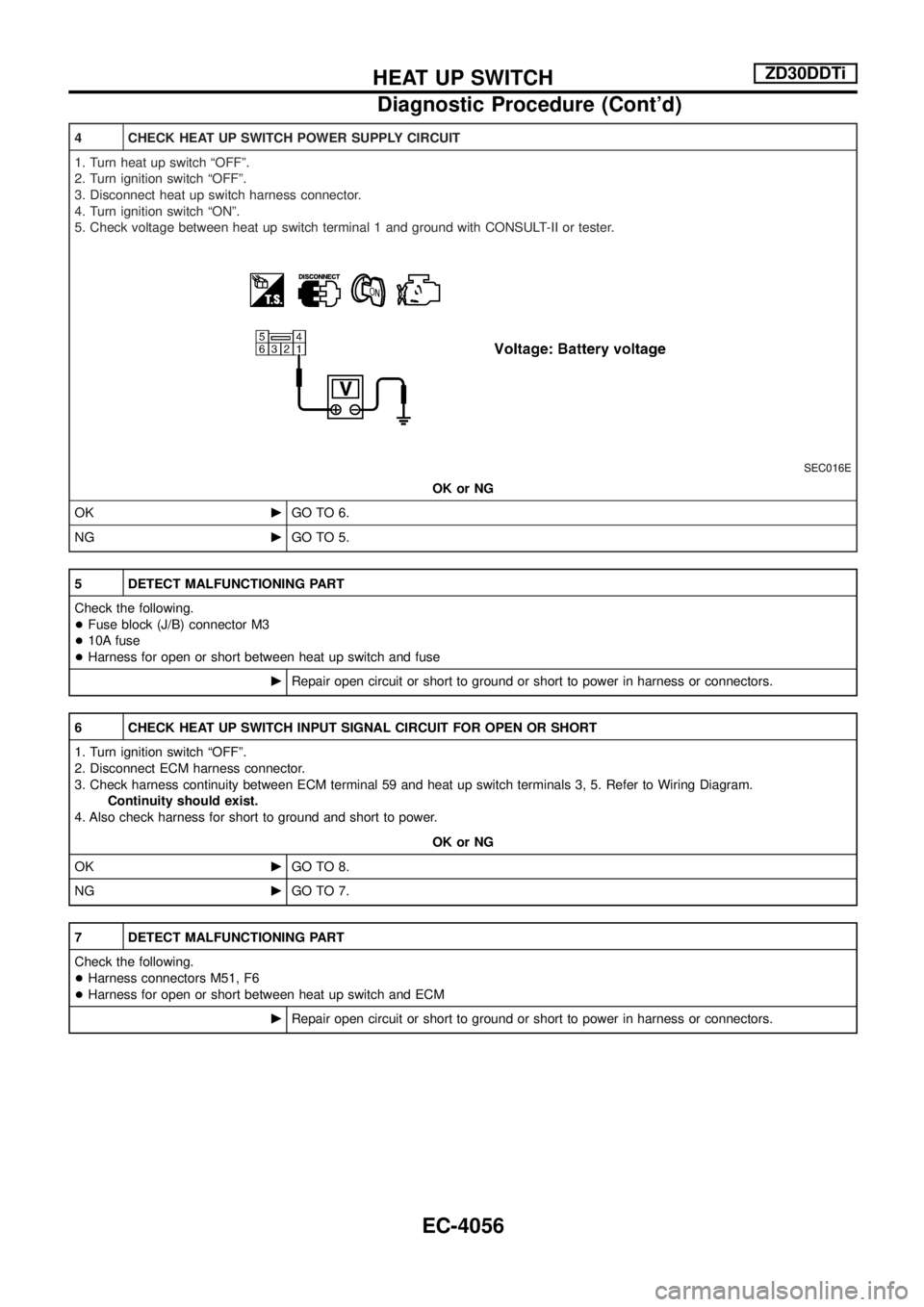

4 CHECK HEAT UP SWITCH POWER SUPPLY CIRCUIT
1. Turn heat up switch ªOFFº.
2. Turn ignition switch ªOFFº.
3. Disconnect heat up switch harness connector.
4. Turn ignition switch ªONº.
5. Check voltage between heat up switch terminal 1 and ground with CONSULT-II or tester.
SEC016E
OK or NG
OKcGO TO 6.
NGcGO TO 5.
5 DETECT MALFUNCTIONING PART
Check the following.
+Fuse block (J/B) connector M3
+10A fuse
+Harness for open or short between heat up switch and fuse
cRepair open circuit or short to ground or short to power in harness or connectors.
6 CHECK HEAT UP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Turn ignition switch ªOFFº.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 59 and heat up switch terminals 3, 5. Refer to Wiring Diagram.
Continuity should exist.
4. Also check harness for short to ground and short to power.
OK or NG
OKcGO TO 8.
NGcGO TO 7.
7 DETECT MALFUNCTIONING PART
Check the following.
+Harness connectors M51, F6
+Harness for open or short between heat up switch and ECM
cRepair open circuit or short to ground or short to power in harness or connectors.
HEAT UP SWITCHZD30DDTi
Diagnostic Procedure (Cont'd)
EC-4056

8 CHECK HEAT UP SWITCH INDICATOR LAMP GROUND CIRCUIT FOR OPEN OR SHORT
1. Check harness continuity between heat up switch terminal 6 and ground.
Refer to Wiring Diagram.
Continuity should exist.
2. Also check harness for short to power.
OK or NG
OKcGO TO 9.
NGcRepair open circuit or short to power in harness or connectors.
9 CHECK HEAT UP SWITCH INDICATOR LAMP
Check harness continuity between heat up switch terminals 5 and 6 under the following conditions.
SEC018E
OK or NG
OKcGO TO 10.
NGcReplace heat up switch.
10 CHECK HEAT UP SWITCH
Check continuity between heat up switch terminals 1 and 3 under the following conditions.
SEC017E
OK or NG
OKcGO TO 11.
NGcReplace heat up switch.
11 CHECK INTERMITTENT INCIDENT
Refer to ªTROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTº, EC-107 in Service Manual (Publication No. SM9E-Y61CG3).
cINSPECTION END
HEAT UP SWITCHZD30DDTi
Diagnostic Procedure (Cont'd)
EC-4057

Wiring Diagram
TEC530M
AIR CONDITIONER CONTROLZD30DDTi
EC-4058

Circuit Diagram
TEC539M
ENGINE AND EMISSION CONTROL OVERALL SYSTEMTD42Ti
EC-4059

Vehicle Speed Sensor (VSS)
TEC540M
TROUBLE DIAGNOSES FOR NON-DETECTABLE ITEMSTD42Ti
EC-4060

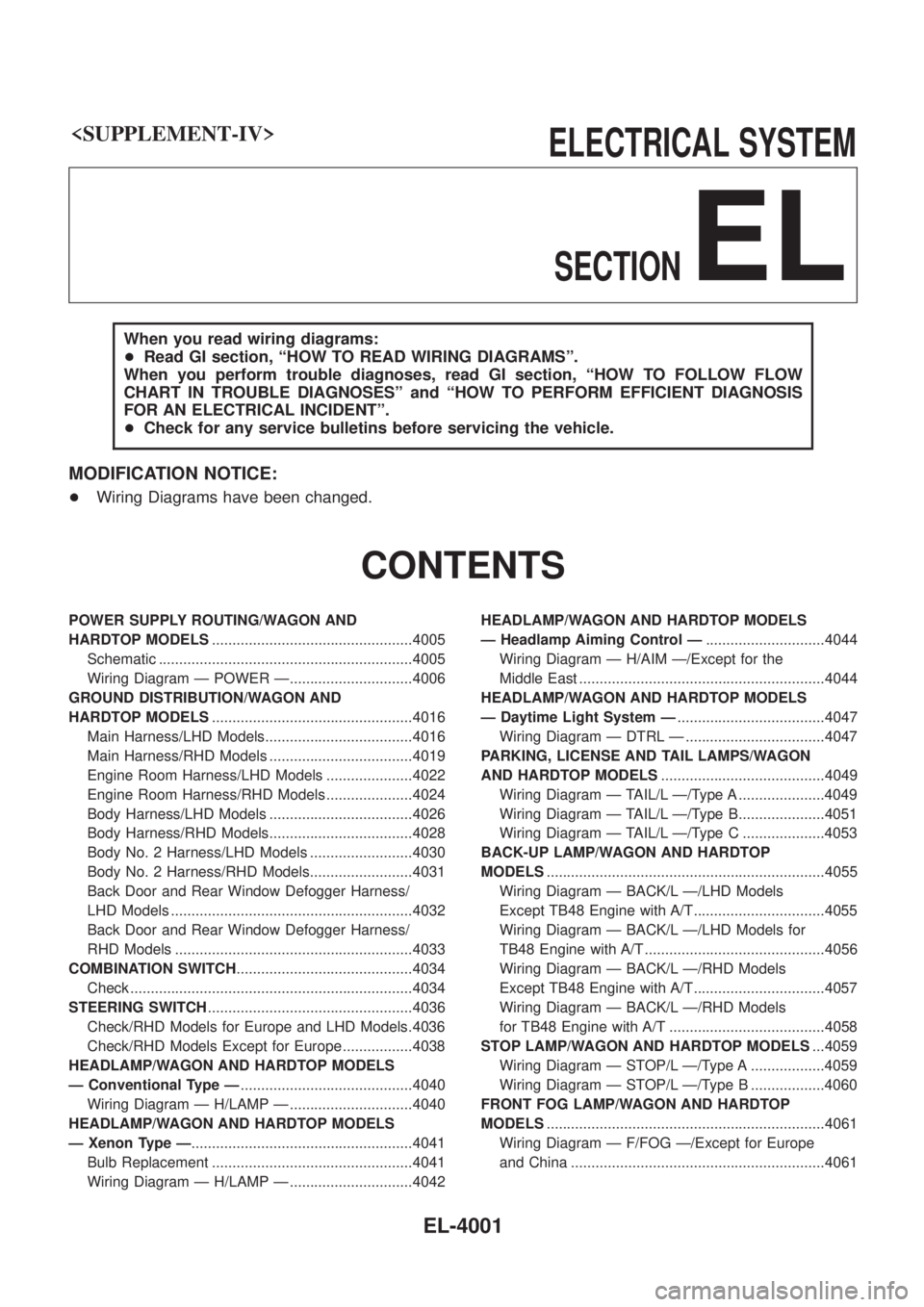

ELECTRICALSYSTEM
