2004 NISSAN PATROL Electronic Repair Manual

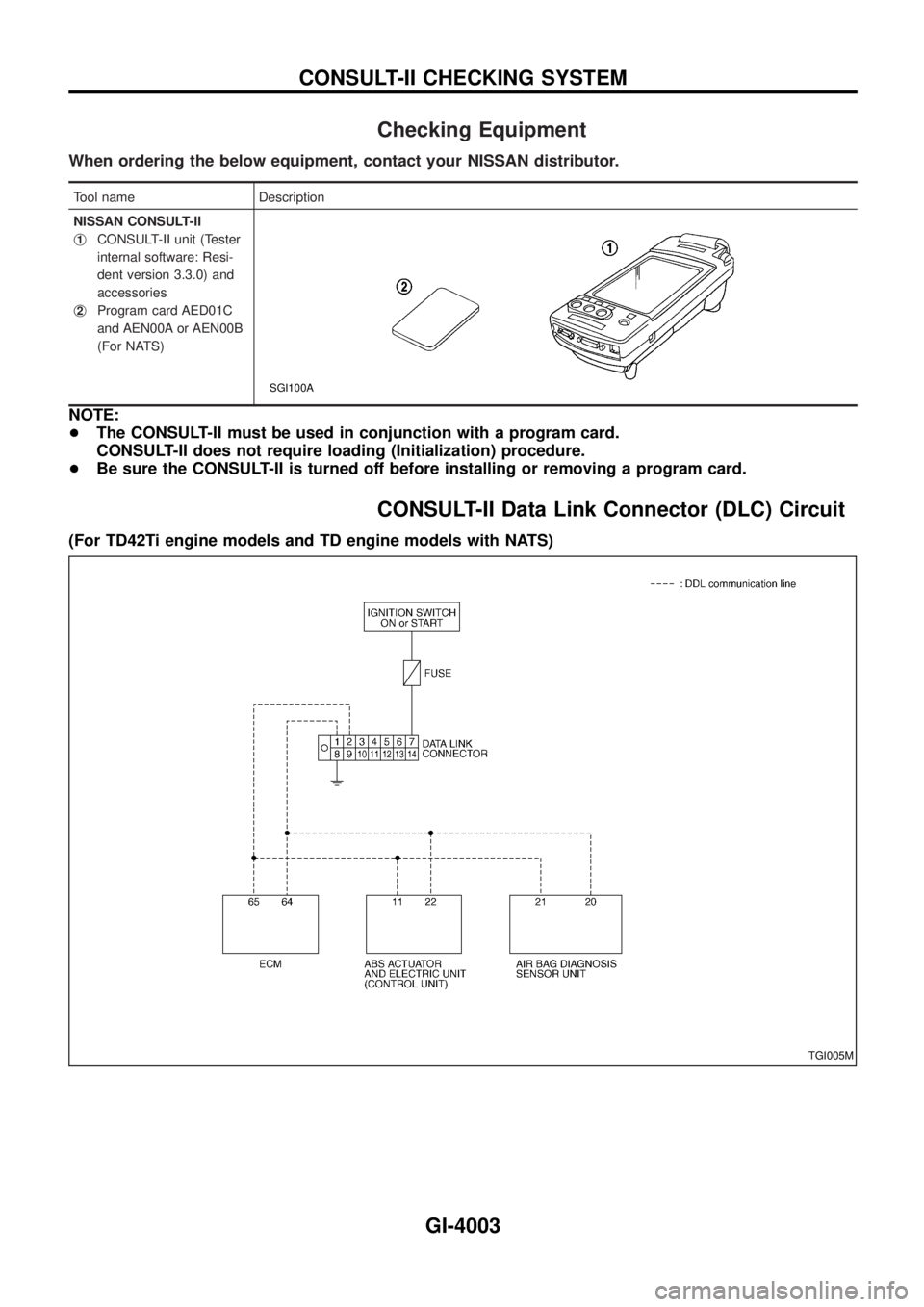

Checking Equipment
When ordering the below equipment, contact your NISSAN distributor.
Tool name Description
NISSAN CONSULT-II
j
1CONSULT-II unit (Tester
internal software: Resi-
dent version 3.3.0) and
accessories
j
2Program card AED01C
and AEN00A or AEN00B
(For NATS)
SGI100A
NOTE:
+The CONSULT-II must be used in conjunction with a program card.
CONSULT-II does not require loading (Initialization) procedure.
+Be sure the CONSULT-II is turned off before installing or removing a program card.
CONSULT-II Data Link Connector (DLC) Circuit
(For TD42Ti engine models and TD engine models with NATS)
TGI005M
CONSULT-II CHECKING SYSTEM
GI-4003

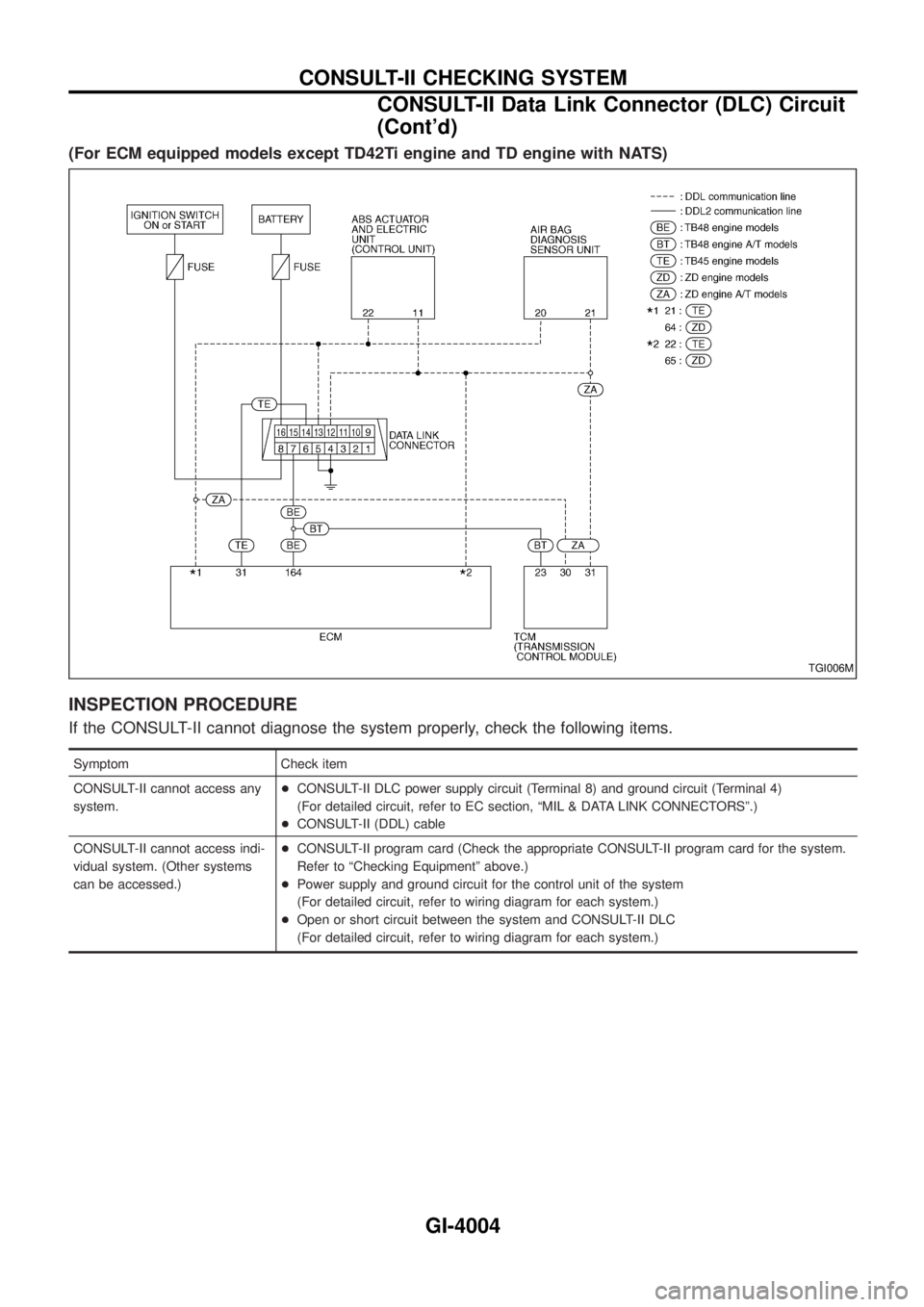

(For ECM equipped models except TD42Ti engine and TD engine with NATS)
INSPECTION PROCEDURE
If the CONSULT-II cannot diagnose the system properly, check the following items.
Symptom Check item
CONSULT-II cannot access any
system.+CONSULT-II DLC power supply circuit (Terminal 8) and ground circuit (Terminal 4)
(For detailed circuit, refer to EC section, ªMIL & DATA LINK CONNECTORSº.)
+CONSULT-II (DDL) cable
CONSULT-II cannot access indi-
vidual system. (Other systems
can be accessed.)+CONSULT-II program card (Check the appropriate CONSULT-II program card for the system.
Refer to ªChecking Equipmentº above.)
+Power supply and ground circuit for the control unit of the system
(For detailed circuit, refer to wiring diagram for each system.)
+Open or short circuit between the system and CONSULT-II DLC
(For detailed circuit, refer to wiring diagram for each system.)
TGI006M
CONSULT-II CHECKING SYSTEM
CONSULT-II Data Link Connector (DLC) Circuit
(Cont'd)
GI-4004

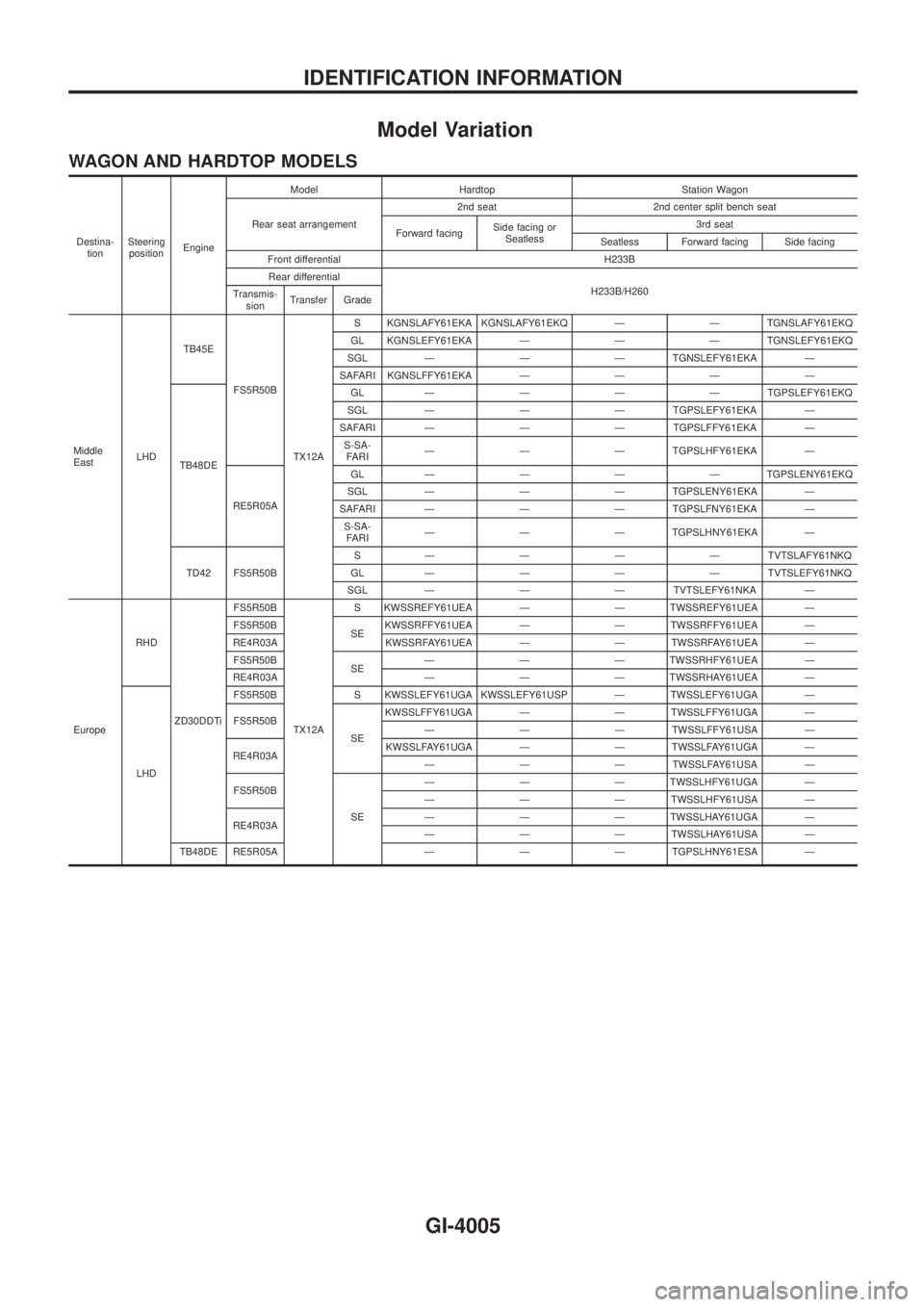

Model Variation
WAGON AND HARDTOP MODELS
Destina-
tionSteering
positionEngineModel Hardtop Station Wagon
Rear seat arrangement2nd seat 2nd center split bench seat
Forward facingSide facing or
Seatless3rd seat
Seatless Forward facing Side facing
Front differential H233B
Rear differential
H233B/H260
Transmis-
sionTransfer Grade
Middle
EastLHDTB45E
FS5R50B
TX12AS KGNSLAFY61EKA KGNSLAFY61EKQ Ð Ð TGNSLAFY61EKQ
GL KGNSLEFY61EKA Ð Ð Ð TGNSLEFY61EKQ
SGL Ð Ð Ð TGNSLEFY61EKA Ð
SAFARI KGNSLFFY61EKAÐÐÐÐ
TB48DEGLÐÐÐÐTGPSLEFY61EKQ
SGL Ð Ð Ð TGPSLEFY61EKA Ð
SAFARI Ð Ð Ð TGPSLFFY61EKA Ð
S-SA-
FARIÐ Ð Ð TGPSLHFY61EKA Ð
RE5R05AGLÐÐÐÐTGPSLENY61EKQ
SGL Ð Ð Ð TGPSLENY61EKA Ð
SAFARI Ð Ð Ð TGPSLFNY61EKA Ð
S-SA-
FARIÐ Ð Ð TGPSLHNY61EKA Ð
TD42 FS5R50BSÐÐÐÐTVTSLAFY61NKQ
GLÐÐÐÐTVTSLEFY61NKQ
SGL Ð Ð Ð TVTSLEFY61NKA Ð
EuropeRHD
ZD30DDTiFS5R50B
TX12AS KWSSREFY61UEA Ð Ð TWSSREFY61UEA Ð
FS5R50B
SEKWSSRFFY61UEA Ð Ð TWSSRFFY61UEA Ð
RE4R03A KWSSRFAY61UEA Ð Ð TWSSRFAY61UEA Ð
FS5R50B
SEÐ Ð Ð TWSSRHFY61UEA Ð
RE4R03A Ð Ð Ð TWSSRHAY61UEA Ð
LHDFS5R50B S KWSSLEFY61UGA KWSSLEFY61USP Ð TWSSLEFY61UGA Ð
FS5R50B
SEKWSSLFFY61UGA Ð Ð TWSSLFFY61UGA Ð
Ð Ð Ð TWSSLFFY61USA Ð
RE4R03AKWSSLFAY61UGA Ð Ð TWSSLFAY61UGA Ð
Ð Ð Ð TWSSLFAY61USA Ð
FS5R50B
SEÐ Ð Ð TWSSLHFY61UGA Ð
Ð Ð Ð TWSSLHFY61USA Ð
RE4R03AÐ Ð Ð TWSSLHAY61UGA Ð
Ð Ð Ð TWSSLHAY61USA Ð
TB48DE RE5R05A Ð Ð Ð TGPSLHNY61ESA Ð
IDENTIFICATION INFORMATION
GI-4005

PREFIX AND SUFFIX DESIGNATIONS
TGNSLAFY61 EKA
A: 3rd/2nd seat forward facing
Q: 3rd/2nd seat side facing
P: 3rd/2nd seat seatless
K: Middle East
E: RHD for Europe
G: Central/South Europe
S: North Europe
E: Multiport fuel injection system engine
N: Diesel engine
U: Turbocharger engine
F: 5-speed ¯oor shift manual transmission
A: 4-speed ¯oor shift automatic transmission
N: 5-speed ¯oor shift automatic transmission
A: S, STD, DX E: GL (SGL), ST, S F: SGL, TI, SAFARI, SE
H: GRX, S-SAFARI, SE
L: LH drive R: RH drive
S: Long wheelbase
GN: TB45E engine VT: TD42 engine
WS: ZD30DDTi engine GP: TB48DE engine
T: Station Wagon
K: Hardtop
IDENTIFICATION INFORMATION
Model Variation (Cont'd)
GI-4006

Identi®cation Number
VEHICLE IDENTIFICATION NUMBER (Chassis number)
Pre®x and suffix designations
For the Middle East
For Europe (Except for Israel)
JN1TESY61 U0XXXXXX
Vehicle serial number
0: Stopgap (no meaning)
U: Europe
S: Long wheelbase (4WD)
Engine type
E: ZD30DDTi F: TB48DE
Body type
T: Station Wagon K: Hardtop
Manufacturer
JN1: Japan produced vehicle
SGI993-R
IDENTIFICATION INFORMATION
GI-4007

For Israel
JN1TESY61 5XXXXXXX
Vehicle serial number
Manufacturing plant
X: Hiratsuka
Model year
5: 2005 model year
S: Long wheelbase (4WD)
Engine type
E: ZD30DDTi
Body type
T: Station Wagon K: Hardtop
Manufacturer
JN1: Japan produced vehicle
Dimensions
FOR THE MIDDLE EAST
Wagon Hardtop
Overall length*1 mm (in) 5,080 (200.0)*2, *5
5,030 (198.0)*3, *6
5,075 (199.8)*4, *74,460 (175.6)*3, *6
4,505 (177.4)*4, *7
Overall width mm (in) 1,840 (72.4)*3
1,940 (76.4)*2, *41,840 (72.4)*3
1,940 (76.4)*4
Overall height mm (in) 1,855 (73.0) 1,840 (72.4)
Front tread mm (in) 1,555 (61.2)*3
1,605 (63.2)*2, *41,555 (61.2)*3
1,605 (63.2)*4
Rear tread mm (in) 1,575 (62.0)*3
1,625 (64.0)*2, *41,575 (62.0)*3
1,625 (64.0)*4
Wheelbase mm (in) 2,970 (116.9) 2,400 (94.5)
*1: With winch, 15 mm (0.59 in) is added to the overall length. With front spoiler, 30 mm (1.18
in) is added.
*2: 275/70R16, 275/65R17 tires
*3: 235/80R16, 235/80R16LT tires
*4: 265/70R16, 265/70R16LT tires
*5: 15 mm (0.59 in) is added with pintle hook, and 50 mm (1.97 in) is added with spare tire
cover.
*6: 100 mm (3.94 in) is added with spare tire cover.
*7: 20 mm (0.79 in) is added with pintle hook, and 55 mm (2.17 in) is added with spare tire
cover.
FOR EUROPE
Wagon Hardtop
Overall length mm (in) 5,145 (202.6)*1, *4
5,045 (198.6)*2
5,095 (200.6)*34,525 (178.1)*1, *4
4,475 (176.2)*2
4,620 (181.9)*3
Overall width mm (in) 1,940 (76.4)*1, *3
1,840 (72.4)*21,940 (76.4)*1, *3
1,840 (72.4)*2
Overall height mm (in) 1,855 (73.0) 1,840 (72.4)
Front tread mm (in) 1,605 (63.2)*1, *3
1,555 (61.2)*21,605 (63.2)*1, *3
1,555 (61.2)*2
Rear tread mm (in) 1,625 (64.0)*1, *3
1,575 (62.0)*21,625 (64.0)*1, *3
1,575 (62.0)*2
Wheelbase mm (in) 2,970 (116.9) 2,400 (94.5)
*1: For models equipped with 275/65R17 tires
*2: For models equipped with 235/80R16 tires
*3: For models equipped with 265/70R16 tires
*4: 50 mm (1.97 in) is added with spare tire cover.
IDENTIFICATION INFORMATION
Identi®cation Number (Cont'd)
GI-4008

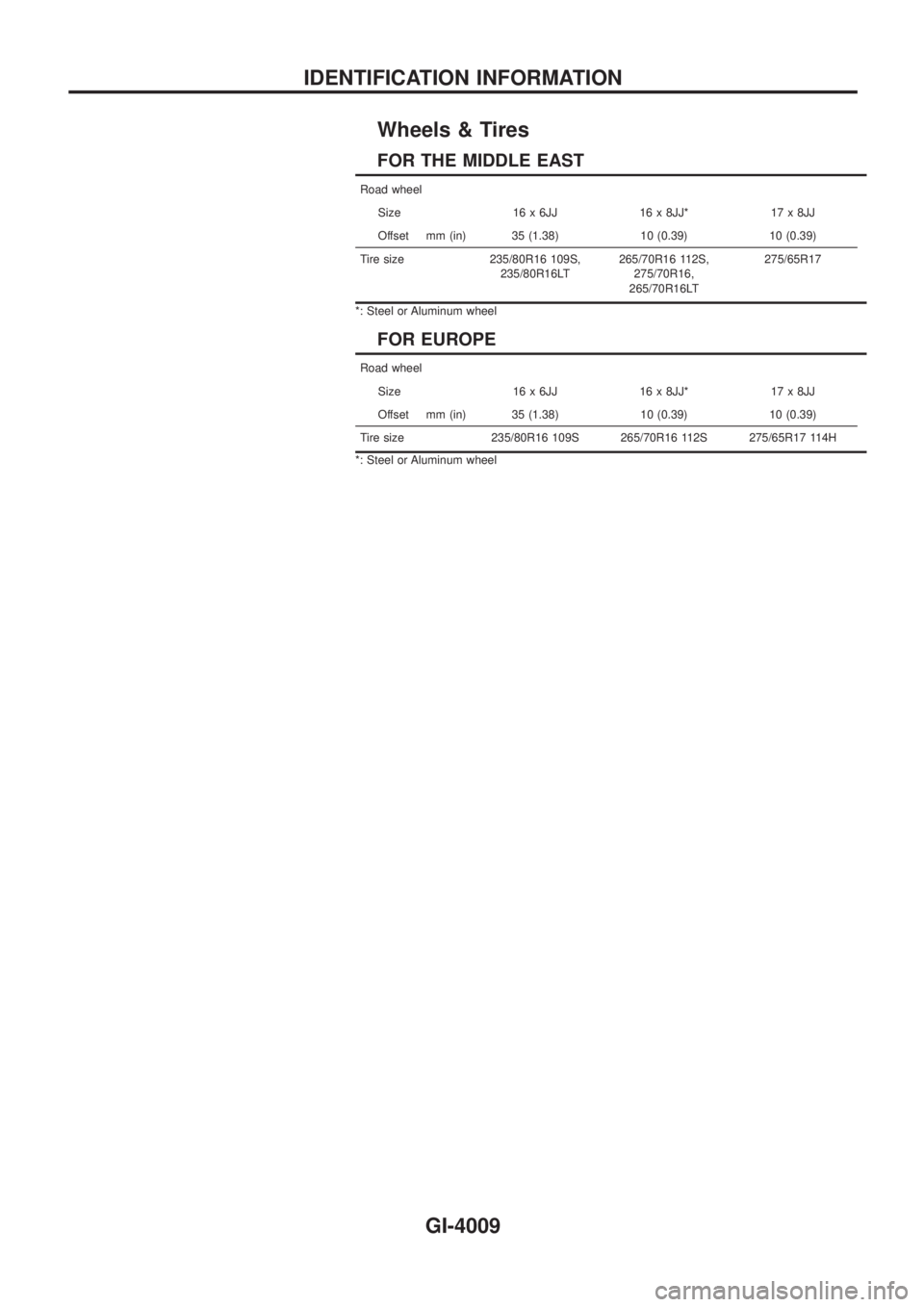

Wheels & Tires
FOR THE MIDDLE EAST
Road wheel
Size 16 x 6JJ 16 x 8JJ* 17 x 8JJ
Offset mm (in) 35 (1.38) 10 (0.39) 10 (0.39)
Tire size 235/80R16 109S,
235/80R16LT265/70R16 112S,
275/70R16,
265/70R16LT275/65R17
*: Steel or Aluminum wheel
FOR EUROPE
Road wheel
Size 16 x 6JJ 16 x 8JJ* 17 x 8JJ
Offset mm (in) 35 (1.38) 10 (0.39) 10 (0.39)
Tire size 235/80R16 109S 265/70R16 112S 275/65R17 114H
*: Steel or Aluminum wheel
IDENTIFICATION INFORMATION
GI-4009

\
