2004 NISSAN PATROL Electronic Repair Manual

Check
RHD MODELS FOR EUROPE AND LHD MODELS
CEL573M
COMBINATION SWITCH
EL-4034

RHD MODELS EXCEPT FOR EUROPE
CEL574M
COMBINATION SWITCH
Check (Cont'd)EL-4035

Check/RHD Models for Europe and LHD Models
WITH ASCD AND AUDIO SWITCH
CEL575M
STEERING SWITCH
EL-4036

WITHOUT ASCD AND AUDIO SWITCH
CEL577M
STEERING SWITCH
Check/RHD Models for Europe and LHD Models
(Cont'd)EL-4037

Check/RHD Models Except for Europe
WITH ASCD AND AUDIO SWITCH
CEL576M
STEERING SWITCH
EL-4038

WITH ASCD AND AUDIO SWITCH
CEL578M
STEERING SWITCH
Check/RHD Models Except for Europe (Cont'd)EL-4039

Wiring Diagram Ð H/LAMP Ð
TEL972M
HEADLAMP/WAGON AND HARDTOP MODELS Ð Conventional Type Ð
EL-4040

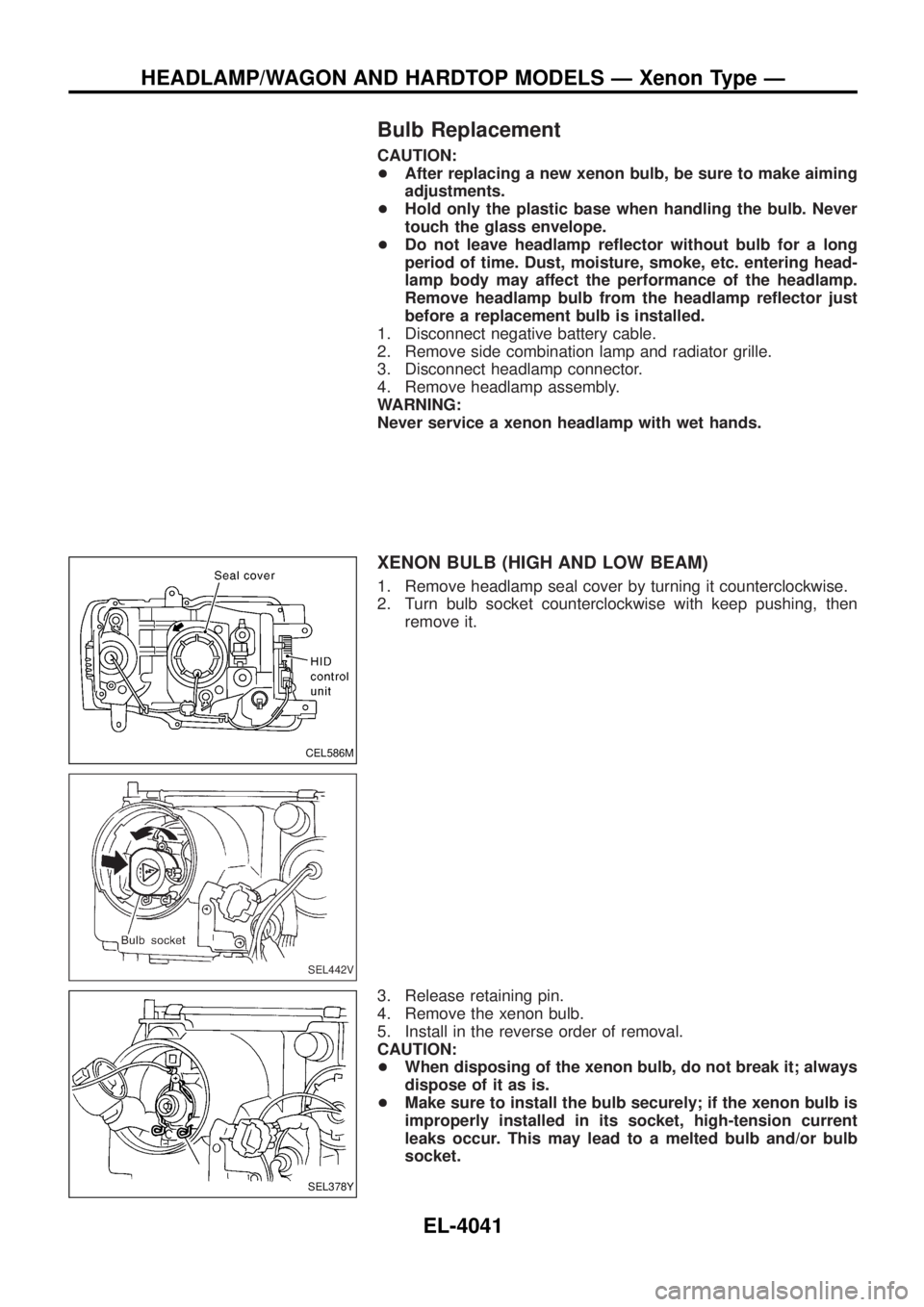

Bulb Replacement
CAUTION:
+After replacing a new xenon bulb, be sure to make aiming
adjustments.
+ Hold only the plastic base when handling the bulb. Never
touch the glass envelope.
+ Do not leave headlamp re¯ector without bulb for a long
period of time. Dust, moisture, smoke, etc. entering head-
lamp body may affect the performance of the headlamp.
Remove headlamp bulb from the headlamp re¯ector just
before a replacement bulb is installed.
1. Disconnect negative battery cable.
2. Remove side combination lamp and radiator grille.
3. Disconnect headlamp connector.
4. Remove headlamp assembly.
WARNING:
Never service a xenon headlamp with wet hands.
XENON BULB (HIGH AND LOW BEAM)
1. Remove headlamp seal cover by turning it counterclockwise.
2. Turn bulb socket counterclockwise with keep pushing, then remove it.
3. Release retaining pin.
4. Remove the xenon bulb.
5. Install in the reverse order of removal.
CAUTION:
+ When disposing of the xenon bulb, do not break it; always
dispose of it as is.
+ Make sure to install the bulb securely; if the xenon bulb is
improperly installed in its socket, high-tension current
leaks occur. This may lead to a melted bulb and/or bulb
socket.
CEL586M
SEL442V
SEL378Y
HEADLAMP/WAGON AND HARDTOP MODELS Ð Xenon Type Ð
EL-4041
