2004 NISSAN PATHFINDER Owners Manual

FM-AM-SATELLITE RADIO WITH
CASSETTE PLAYER AND
COMPACT DISC (CD) PLAYER/CD
CHANGERSatellite radio reception capability is not func-
tional, and “NO SAT” will be displayed while
scrolling through audio modes, unless optional
satellite receiver and antenna were installed, and
an XM
or SIRIUS
TM
satellite radio service
subscription is active. For information on satellite
radio, contact a NISSAN dealer.
Audio main operationHead unit
The radio has an FM diversity reception system,
which employs two antennas printed on the front
windshield. This system automatically switches
to the antenna which is receiving. The best
signal at a given moment.
The tape deck employs a permalloy head which
allows for improved reproduction of high fre-
quency ranges. Noise is also greatly reduced by
the combined use of the Dolby NR (Noise
Reduction) system. The auto loudness circuit
enhances the low frequency range automatically
in both radio reception and tape and CD play-
back.ON⋅OFF/Volume control:
Turn the ignition key to ACC or ON, and then
push the ON⋅OFF/VOL control knobwhile the
system is off to call up the mode (radio, tape or
CD) which was playing immediately before the
system was turned off. When no CD or tape is
loaded, the radio will come on. While the system
is on, pushing the ON⋅OFF/VOL control knob
turns the system off.
To turn the radio off, push the ON⋅OFF/VOL
control knob.
Turn the ON⋅OFF/VOL control knobto adjust
the volume.
AUDIO button (BASS, TREBLE, FADER,
BALANCE and NR (Dolby)):
Push the AUDIO button to change the selecting
mode as follows.
BASS→TREBLE→FADER→BALANCE→
NR (when cassette playing)→BASS
To adjust BASS, TREBLE, FADER and BAL-
ANCE, push the AUDIO button until the desired
mode BASS, TREBLE, FADER or BALANCE
appears in the display. Push the TUNE
(
or
) button to adjust Bass and
Treble to the desired level. Use the TUNE
(
or
) button also to adjust Fader or
Balance modes. Fader adjusts the sound levelbetween the front and rear speakers and Bal-
ance adjusts the sound between the right and
left speakers.
To change the NR (Dolby) mode to OFF or ON,
push the TUNE (
or
) button while
cassette tape is playing. When Dolby is ON, the
display indicates the
mark.
After 10 seconds, the radio or cassette tape
display reappears. Once the sound quality is set
to the desired level, push the AUDIO button
repeatedly until the radio or cassette tape dis-
play appears.
Dolby noise reduction manufactured under li-
cense from Dolby Laboratories Licensing Cor-
poration. Dolby NR and the double-D symbol
are trademarks of Dolby Laboratories Li-
censing Corporation.
Metal or chrome tape usage:
The cassette player will be automatically set to
high performance play when playing a metal or
chrome cassette tape.
FM-AM-SAT radio operationRADIO FM/AM/SAT mode select:
Pushing the RADIO mode select button will
change the mode as follows:
AM→FM1→FM2→SAT1→SAT2→AM
Heater, air conditioner and audio systems
4-23


04.3.9/R50-D/V5


Satellite radio reception capability is not func-
tional, and “NO SAT” will be displayed while
scrolling through audio modes, unless optional
satellite receiver and antenna were installed, and
an XM
or SIRIUS
TM
satellite radio service
subscription is active. For information on satellite
radio, contact your NISSAN dealer.
When RADIO mode select button is pushed
while the ignition switch is in the ACC or ON, the
radio will come on at the station/channel last
played.
The last station/channel played will also come on
when the ON/OFF knobis pushed to ON.
If a compact disc or tape is playing when the
RADIO mode select button is turned to ON, the
compact disc or tape will automatically be
turned off and the last radio station/channel
played will come on.
The FM stereo indicator ST will glow during FM
stereo reception. When the stereo broadcast
signal is weak, the radio will automatically
change from stereo to monaural reception.
Satellite radio mode (if equipped with optional
factory installed satellite receiver and antenna
(retrofit unavailable), and with an active XM
or
SIRIUS
TM
satellite radio service subscription):
To select the satellite radio mode SAT1 or
SAT2, push the RADIO mode select button untilSAT1 or SAT2 appears on the display.

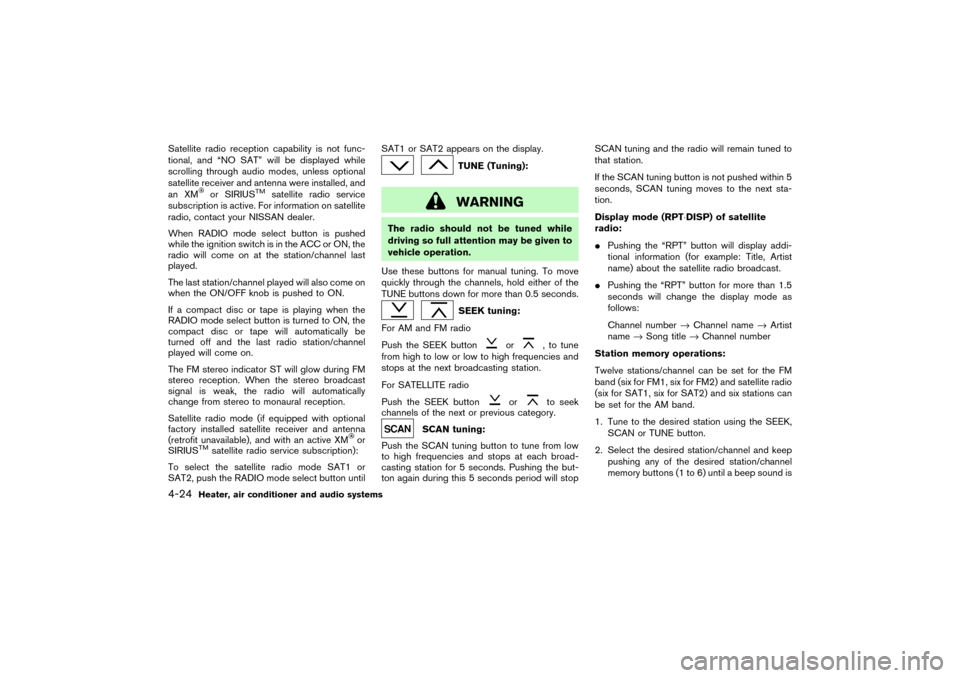

TUNE (Tuning):WARNING
The radio should not be tuned while
driving so full attention may be given to
vehicle operation.
Use these buttons for manual tuning. To move
quickly through the channels, hold either of the
TUNE buttons down for more than 0.5 seconds.
SEEK tuning:
For AM and FM radio
Push the SEEK button
or
, to tune
from high to low or low to high frequencies and
stops at the next broadcasting station.
For SATELLITE radio
Push the SEEK button
or
to seek
channels of the next or previous category.
SCANtuning:
Push the SCAN tuning button to tune from low
to high frequencies and stops at each broad-
casting station for 5 seconds. Pushing the but-
ton again during this 5 seconds period will stopSCAN tuning and the radio will remain tuned to
that station.
If the SCAN tuning button is not pushed within 5
seconds, SCAN tuning moves to the next sta-
tion.
Display mode (RPT⋅DISP) of satellite
radio:

Pushing the “RPT” button will display addi-
tional information (for example: Title, Artist
name) about the satellite radio broadcast.

Pushing the “RPT” button for more than 1.5
seconds will change the display mode as
follows:
Channel number→Channel name→Artist
name→Song title→Channel number
Station memory operations:
Twelve stations/channel can be set for the FM
band (six for FM1, six for FM2) and satellite radio
(six for SAT1, six for SAT2) and six stations can
be set for the AM band.
1. Tune to the desired station using the SEEK,
SCAN or TUNE button.
2. Select the desired station/channel and keep
pushing any of the desired station/channel
memory buttons (1 to 6) until a beep sound is
4-24
Heater, air conditioner and audio systems


04.3.9/R50-D/V5


heard. (The radio mutes when the select
button is pushed.)
3. The channel indicator will then come on and
the sound will resume. Memorizing is now
complete.
4. Other buttons can be set in the same manner.
If the battery cable is disconnected, or if the fuse
blows, the radio memory will be cancelled. In
that case, reset the desired stations.
Automatic preset button:
To select the preset FM, AM, SAT or PTY
station/channel, push the AUTO.P button for
less than 1.5 seconds.
To preset the FM, AM, SAT or PTY
station/channel, push the AUTO.P button for
more than 1.5 seconds.Program type (Category (CAT))
button:
When PTY button is pressed during FM mode,
the PTY name of the current tuned station is
displayed. When the PTY (CAT) button is
pressed during satellite radio mode, the cat-
egory name of the current channel is displayed.
During this time if the PTY data code is zero, or
the data is unreadable; the display will show
NONE.1. PTY (CAT) selection mode
PTY (CAT) name selection can be done by the
up/down TUNE button
or
in the PTY
(CAT) selection mode.
After selecting a PTY (CAT) name, push the
TUNE button
or
within 10 seconds.
Tuning to the PTY (CAT) station will start. If you
do not push the TUNE button within the 10
second period, the PTY (CAT) mode will be
canceled.
It is possible to shift the PTY (CAT) name by one
step, with one push of the up/down tuning
button
or
.
PTY name selection can also be achieved by
pressing the preset buttons.
Initial PTY names are stored in the preset but-
tons; but these can be changed by pressing the
preset buttons for more than 1.5 seconds when
the desired PTY name is in the display.
For FM:
2. PTY SCANtuning mode
Push the SCAN tuning button to tune the PTY
name station, and stop at each broadcasting
station for 5 seconds. Pushing the button again
during this 5 second period will stop SCAN
tuning and the radio will remain tuned to that
station. If the SCAN tuning button is not pushed
within 5 seconds, SCAN tuning moves to the
next station.Cassette tape player operationTurn the ignition key to ACC or ON, and then
lightly insert the cassette tape into the tape door.
Heater, air conditioner and audio systems
4-25


04.3.9/R50-D/V5


The cassette tape will be automatically pulled
into the player.
The radio or CD will turn off (if it is on) and the
cassette tape will begin to play.
CAUTION
Do not force the cassette tape into the
tape door. This could cause player dam-
age.
If the system is turned off by pushing the
ON⋅OFF/VOL control knobwith the cassette
tape still in the player, the tape will resume
playing when the system is turned back on.
PLAY:

When the TAPE button is pushed with the
system turned off and a tape loaded, the
system will come on and the tape will play.

When the TAPE button is pushed with either
the radio or compact disc turned on and the
tape loaded, the compact disc or the radio
will automatically be turned off and the tape
will play.

When the TAPE button is pushed while the
tape is being played, the tape side will be
changed.
FF (Fast Forward), REW
(Rewind):
Push the(fast forward) button to fast
forward the tape. To rewind the tape, push the
(rewind) button. Either the FF or REW
symbol illuminates on the right side of the display
window. To stop the FF or REW function, press
the
(fast forward) or
(rewind) again,
or the TAPE button.
APS (Automatic Program
Search) FF, APS REW:
When the(APS FF) button is pushed
while the tape is being played, the next program
will start to play from the beginning. Push the
(APS FF) button several times to skip
through programs. The tape will advance the
number of times the button is pushed (up to nine
programs).
When the
(APS REW) button is pushed
once, the program being played starts over from
the beginning. Push the
(APS REW) but-
ton several times to skip back several selections.
The tape will go back the number of times the
button is pushed. Either the FF or REW symbol
flashes on the right side of the display window
while searching for the selection.
This system searches for the blank intervals
between selections. If there is a blank intervalwithin one program or there is no interval be-
tween programs, the system may not stop in the
desired or expected location.
SCANtuning:
Push the SCAN tuning button while playing
tape, and it stops at the next tape program for 5
seconds. Pushing the button again during this 5
second period will stop SCAN tuning and the
tape program is continued. If the SCAN tuning
button is not pushed within 5 seconds, SCAN
tuning moves to the next tape program.TAPE EJECT:
When this button is pushed with the tape
loaded, the tape will be ejected.
When the tape is ejected while it is being played,
the system will be turned off.
Compact disc (CD) changer
operationTurn the ignition key to the ACC or ON position
and insert the compact disc into the slot with the
label side facing up. The compact disc will be
guided automatically into the slot and start play-
ing.
After loading the disc, the number of tracks on
the disc and the play time will appear on the
display.
If the radio or tape is already operating, it will
4-26
Heater, air conditioner and audio systems


04.3.9/R50-D/V5


automatically turn off and the compact disc will
play.
CAUTION
Do not force the compact disc into the
slot. This could damage the player.
If the system has been turned off while the
compact disc was playing, pushing the
ON⋅OFF/VOL control knobwill start the com-
pact disc.
8 cm diameter compact discs can also be used
without an adapter.
LOAD button:
To insert a CD in the CD changer, push the
LOAD button for less than 1.5 seconds. And
select the loading slot by pushing the CD insert
select button (1 to 6) then insert the CD.
To insert 6 CDs to the CD changer, push the
LOAD button for more than 1.5 seconds.
The inserted slot numbers will illuminate on the
display.PLAY:
When the CD6 button is pushed with the system
off and the compact disc loaded, the system will
turn on and the compact disc will start to play.When the CD6 button is pushed with the com-
pact disc loaded but the tape or the radio
playing, the tape or radio will automatically be
turned off and the compact disc will start to play.
FF (Fast Forward), REW
(Rewind):
When the(fast forward) or
(rewind)
button is pushed while the compact disc is
being played, the compact disc will play while
fast forwarding or rewinding. When the button is
released, the compact disc will return to normal
play speed.
APS (Automatic
Program Search) FF,
APS REW:
When the(APS FF) button is pushed
while the compact disc is being played, the
program next to the present one will start to play
from its beginning. Push several times to skip
through programs. The compact disc will ad-
vance the number of times the button is pushed.
(When the last program on the compact disc is
skipped through, the first program will be
played.) When the
(APS REW) button is
pushed, the program being played returns to its
beginning. Push several times to skip back
through programs. The compact disc will go
back the number of times the button is pushed.CD PLAY button:
To change CD, push the CD play select button
(1 to 6).
SCANtuning:
When the SCAN tuning button is pushed for
less than 1.5 seconds while the CD is being
played, the beginning of all the tracks of CDs will
be played for 10 seconds in sequence.
When the SCAN tuning button is pushed for
more than 1.5 seconds while the CD is being
played, the first program in all the CDs will be
played for 10 seconds.
Pushing the button again during this 10 second
period will stop SCAN tuning.
If the SCAN tuning button is not pushed within
10 seconds, SCAN tuning moves to the next
disc program.REPEAT (RPT):
When the RPT button is pushed while the
compact disc is played, the play pattern can be
changed as follows:
DISPLAY CD TEXT:
To indicate the CD mode text, push the PTY
Heater, air conditioner and audio systems
4-27


04.3.9/R50-D/V5


button during CD playing.
To change the indicated text, push the PTY
button.
The text will change as follows:If the text is more than 11 letters, push the
AUTO.P button to display the remaining text.
CD EJECT:
When the CD EJECT button is pushed with the
compact disc loaded, the compact disc will be
ejected.
To eject the discs selected by the CD select
button, push the EJECT button for less than 1.5
seconds.
To eject all the discs, push the EJECT button for
more than 1.5 seconds.
If the compact disc comes out and is not
removed, it will be pulled back into the slot
to protect it. (without 8 cm diameter com-
pact discs)
CD INindicator:
CD IN indicator appears on the display when the
CD is loaded with the system on.
CD CARE AND CLEANING
Handle a CD by its edges. Never touch the
surface of the disc. Do not bend the disc.

Always place the discs in the storage case
when they are not being used.

To clean a disc, wipe the surface from the
center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.
Do not use a conventional record cleaner or
alcohol intended for industrial use.

A new disc may be rough on its inner and
outer edges. Remove the rough edges using
the side of a pen or pencil as illustrated.1. Mode select switch (if so equipped)
2. Volume control switch (up or down)
3. Memory change seek and APS switch (up)
4. Memory change seek and APS switch
(down)
“MODE” select switch (if so
equipped)Push the mode select switch to change the
mode in the sequence of AM, FM1, FM2, (SAT1,
SAT2 if so equipped), CD autochanger and
Tape.
SAA0451
SAA0827
STEERING WHEEL SWITCH FOR
AUDIO CONTROL (if so equipped)
4-28
Heater, air conditioner and audio systems


04.3.9/R50-D/V5


Volume control switchesPush the upper or lower side switch to increase
or decrease the volume.
Tuning
Memory change (radio):
Push the tuning switch “
”or“
” for
less than 1.5 seconds to change the radio
frequency/channel.
Seek tuning (radio):
Push the tuning switch “
”or“
” for
more than 1.5 seconds to seek the next or
previous FM/AM radio station or satellite radio
channel.
APS (Automatic Program Search) FF,
APS REW (tape or CD changer):
Push the tuning switch “”or
“
” for less than 1.5 seconds to return to
the beginning of the present program or skip to
the next program. Push several times to skip
back or skip through programs.
This system searches for the blank intervals
between selections. If there is a blank interval
within one program or there is no interval be-
tween programs, the system may not stop in the
desired or expected location.FF REW (tape or CD changer):
Push the tuning switch “
”or“
” for
more than 1.5 seconds to rewind or fast forward
the tape or to change the playing disc up or
down.
To stop the FF or REW function, press the
switch you pushed for more than 1.5 seconds
again.
ANTENNA
Manual antennaThe manual antenna on your vehicle remains in
the upper position at all times. The antenna
cannot be shortened, but can be removed.
When you need to remove the antenna, turn the
antenna nut counterclockwise. To install the
antenna rod, turn the antenna nut clockwise.
Tighten the antenna rod to specification using a
suitable tool, such as an open-end wrench. The
antenna rod tightening specification is 3.4 to 3.6
N⋅m (30 to 32 in-lb). Do not use pliers to tighten
the antenna as they can leave marks on the
antenna surface. The antenna rod cannot be
SAA0164
Heater, air conditioner and audio systems
4-29


04.3.9/R50-D/V5

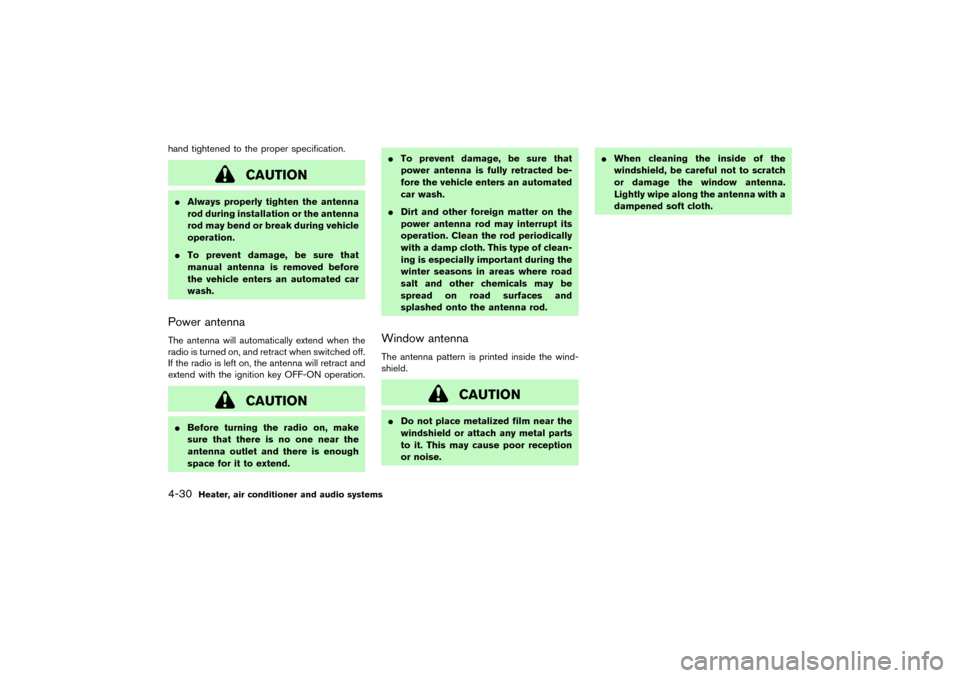

hand tightened to the proper specification.
CAUTION

Always properly tighten the antenna
rod during installation or the antenna
rod may bend or break during vehicle
operation.

To prevent damage, be sure that
manual antenna is removed before
the vehicle enters an automated car
wash.Power antennaThe antenna will automatically extend when the
radio is turned on, and retract when switched off.
If the radio is left on, the antenna will retract and
extend with the ignition key OFF-ON operation.
CAUTION

Before turning the radio on, make
sure that there is no one near the
antenna outlet and there is enough
space for it to extend.
To prevent damage, be sure that
power antenna is fully retracted be-
fore the vehicle enters an automated
car wash.

Dirt and other foreign matter on the
power antenna rod may interrupt its
operation. Clean the rod periodically
with a damp cloth. This type of clean-
ing is especially important during the
winter seasons in areas where road
salt and other chemicals may be
spread on road surfaces and
splashed onto the antenna rod.
Window antennaThe antenna pattern is printed inside the wind-
shield.
CAUTION

Do not place metalized film near the
windshield or attach any metal parts
to it. This may cause poor reception
or noise.
When cleaning the inside of the
windshield, be careful not to scratch
or damage the window antenna.
Lightly wipe along the antenna with a
dampened soft cloth.
4-30
Heater, air conditioner and audio systems


04.3.9/R50-D/V5
