2004 NISSAN PATHFINDER Owners Manual

NISSAN” in the “6. In case of emer-
gency” section of this manual.
Automatic transmissionTo tow a vehicle equipped with an automatic
transmission, an appropriate vehicle dollyMUST
be placed under the towed vehicle’s drive
wheels.Alwaysfollow the dolly manufacturer’s
recommendations when using their product.Manual transmissionAll mode 4WD (four wheel drive) models:
Never tow All mode 4WD models with any of the
wheels on the ground.
Part time four wheel drive models:

Move the transfer case shift lever to the 2H
position.

Move the transmission shift lever to the N
(Neutral) position.
Two wheel drive models:
Move the transmission shift lever to the N (Neu-
tral) position.

Always tow with the manual transmission in
Neutral.
After towing 500 miles, start and idle the
engine with the transmission in Neutral for
two minutes. Failure to idle the engine after
every 500 miles of towing may cause damage
to the transmission’s internal parts.

Always release the parking brake.
UNIFORM TIRE QUALITY GRADINGDOT (Department of Transportation) Quality
Grades: All passenger car tire must conform to
Federal Safety Requirements in addition to these
grades.
Quality grades can be found where applicable
on the tire sidewall between tread shoulder and
maximum section width. For example:
Treadwear 200 Traction AA Temperature ATreadwearTreadwear grade is a comparative rating based
on tire wear rate when tested under controlled
conditions on specified government test
courses. For example, a tire graded 150 would
wear one and a half (1-1/2) times as well on the
government course as a tire graded 100. How-
ever, relative tire performance depends on actual
driving conditions, and may vary significantly due
to variations in driving habits, service practices
and differences in road characteristics and cli-
mate.
Traction AA, A, B and CThe traction grades from highest to lowest are
AA, A, B, and C. Those grades represent the
tire’s ability to stop on wet pavement as mea-
sured under controlled conditions on specified
government test surfaces of asphalt and con-
crete. A tire marked C may have poor traction
performance.
WARNING
The traction grade assigned to your ve-
hicle tires is based on straight-ahead
braking traction tests, and does not in-
clude acceleration, cornering, hydro-
planing, or peak traction characteristics.Temperature A, B and CTemperature grades are A (the highest), B, and
C. They represent a tire’s resistance to heat
build-up, and its ability to dissipate heat when
tested under controlled conditions on a speci-
fied indoor laboratory test wheel. Sustained high
temperature can cause tire material to degener-
ate, reducing tire life. Excessive temperatures
can lead to sudden tire failure. Grade C corre-
sponds to a performance level which all passen-
ger car tires must meet under the Federal MotorTechnical and consumer information
9-23


04.3.9/R50-D/V5


Vehicle Safety Standard No. 109. Grades A and
B represent higher levels of performance on
laboratory test wheels than the minimum re-
quired by law.
WARNING
The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive
speed, under inflation, or excessive
loading, either separately or in combi-
nation, can cause heat build-up and
possible tire failure.Your NISSAN is covered by the following emis-
sion warranties.
For US:

Emission Defects Warranty

Emissions Performance Warranty
For CANADA:
Emission Control System Warranty
Details of these warranties may be found with
other vehicle warranties in your Warranty Infor-
mation Booklet which comes with your NISSAN.
If you did not receive a Warranty Information
Booklet or it becomes lost, you may obtain a
replacement by writing to:

Nissan North America, Inc. Consumer Affairs
Department P.O. Box 191 Gardena. CA
90248-0191

Nissan Canada Inc. 5290 Orbitor Drive Mis-
sissauga, Ontario, L4W 4Z5
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform the Na-
tional Highway Traffic Safety Admin-
istration (NHTSA) in addition to noti-
fying NISSAN.
If NHTSA receives similar complaints,
it may open an investigation, and if it
finds that a safety defect exists in a
group of vehicles, it may order a recall
and remedy campaign. However,
NHTSA cannot become involved in
individual problems between you,
your dealer, or NISSAN.
To contact NHTSA, you may call the
Auto Safety Hotline toll-free at
1-888-327-4236. You may also
write to: NHTSA, U.S. Department of
Transportation, Washington, D.C.
20590. You can also obtain other
information about motor vehicle
safety from the Hotline.
You may notify NISSAN by contact-
ing our Consumer Affairs Depart-
EMISSIONCONTROL SYSTEM
WARRANTYREPORTING SAFETY DEFECTS
(US only)
9-24
Technical and consumer information


04.3.9/R50-D/V5


ment, toll-free, at 1-800-NISSAN-1
(1-800-647-7261). In Hawaii call
(808) 836-0888.
Due to legal requirements in some states/
areas, your vehicle may be required to be in what
is called the ready condition for an
Inspection/Maintenance (I/M) test of the emis-
sion control system.
The vehicle is set to the ready condition when it
is driven through certain driving patterns. Usu-
ally, the ready condition can be obtained by
ordinary usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a not ready condition. Before taking the
I/M test, drive the vehicle through the following
pattern to set the vehicle to the ready condition.
If you cannot or do not want to perform the
driving pattern, a NISSAN dealer can conduct it
for you.
WARNING
Always drive the vehicle in a safe and
prudent manner according to traffic
conditions, and obey all traffic laws.
1. Start the engine. Allow the engine to idle until
the engine coolant temperature gauge needle
points between the C and H (normal operat-
ing temperature).2. Accelerate the vehicle to 55 MPH (88 km/h),
then quickly release the accelerator pedal
completely and keep it released for at least 6
seconds.
3. Quickly depress the accelerator pedal for a
moment, then drive the vehicle at a speed of
53 to 60 MPH (86 to 96 km/h) for at least 5
minutes.
4. Stop the vehicle. Leave the engine running.
5. Accelerate the vehicle to 35 MPH (55 km/h)
and maintain the speed for 20 seconds.
6. Repeat steps 4 and 5 at least 3 times.
7. Accelerate the vehicle to 55 MPH (88 km/h)
and maintain the speed for at least 3 minutes.
8. Stop the vehicle. Place the transmission gear
shift lever in the “P” or “N” position.
9. Turn the engine off.
10.Repeat steps 1 through 8 at least one more
time.
If step 1 through 7 is interrupted, repeat the
preceding step. Any safe driving mode is ac-
ceptable between steps. Do not stop the engine
until step 7 is completed.READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST (US
only)
Technical and consumer information
9-25


04.3.9/R50-D/V5


Dynamometer testing for Inspection/
Maintenance (I/M) test (US only)Due to legal requirements in some states/areas,
your vehicle may be tested for emissions on a
dynamometer. The transfer control lever (if so
equipped) MUST be in the 2H position for I/M
testing on a two wheel dynamometer.
WARNING

If the transfer control lever is not in
the 2H position during the dynamom-
eter I/M testing, the vehicle could
come off the dynamometer and
cause serious personal injury and/or
body damage to the vehicle.

Serious damage will occur to the
4WD system if the transfer control
lever is not in the 2H position.Your vehicle is equipped with a variety of com-
puters that monitor and control a number of
systems to optimize performance and help ser-
vice technicians with diagnosis and repair. De-
pending on the equipment on your vehicle, some
of the computers monitor emission control sys-
tems, braking systems and air bag systems, just
to name a few. Some data about vehicle opera-
tion may be stored in the computers for use
during servicing. Other data may be stored if a
crash event occurs. For example, air bag readi-
ness, air bag performance, and seat belt use by
the driver or passenger may be recorded, de-
pending on vehicle equipment. These types of
systems are sometimes called Event Data Re-
corders.
Special equipment can be used to access the
electronic data that may be stored in the vehi-
cle’s computers (sounds are not recorded).
NISSAN and NISSAN dealers have equipment
to access some of this data; others may also
have this equipment. The data may be retrieved
during routine vehicle servicing or for special
research. It might also be accessed with the
consent of the vehicle owner or lessee, in re-
sponse to a request by law enforcement, or as
otherwise required or permitted by law.
EVENT DATA RECORDERS
9-26
Technical and consumer information


04.3.9/R50-D/V5

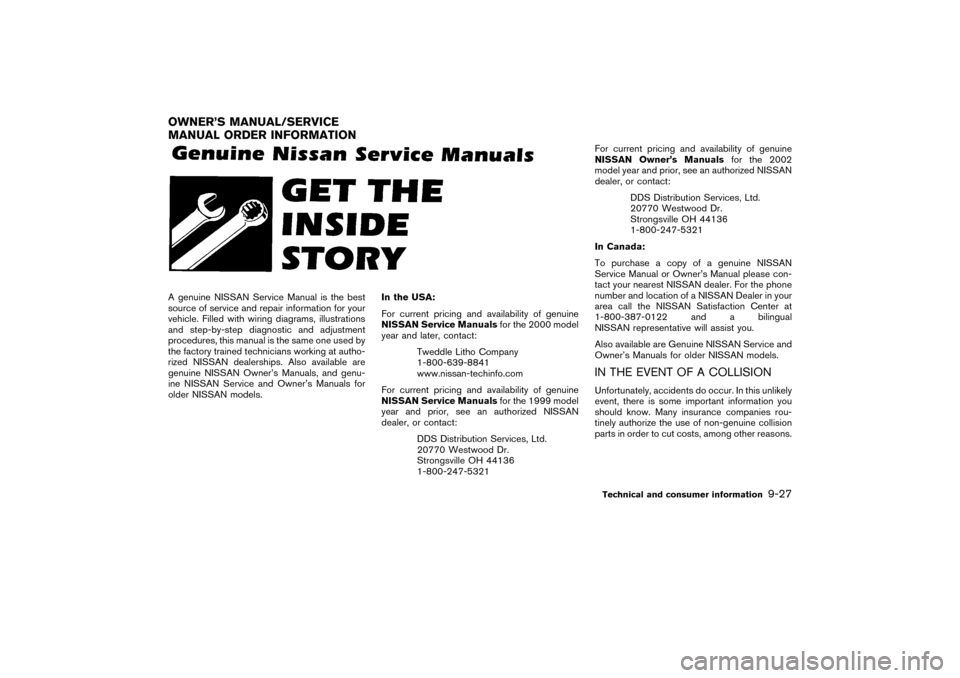

A genuine NISSAN Service Manual is the best
source of service and repair information for your
vehicle. Filled with wiring diagrams, illustrations
and step-by-step diagnostic and adjustment
procedures, this manual is the same one used by
the factory trained technicians working at autho-
rized NISSAN dealerships. Also available are
genuine NISSAN Owner’s Manuals, and genu-
ine NISSAN Service and Owner’s Manuals for
older NISSAN models.In the USA:
For current pricing and availability of genuine
NISSAN Service Manualsfor the 2000 model
year and later, contact:
Tweddle Litho Company
1-800-639-8841
www.nissan-techinfo.com
For current pricing and availability of genuine
NISSAN Service Manualsfor the 1999 model
year and prior, see an authorized NISSAN
dealer, or contact:
DDS Distribution Services, Ltd.
20770 Westwood Dr.
Strongsville OH 44136
1-800-247-5321For current pricing and availability of genuine
NISSAN Owner’s Manualsfor the 2002
model year and prior, see an authorized NISSAN
dealer, or contact:
DDS Distribution Services, Ltd.
20770 Westwood Dr.
Strongsville OH 44136
1-800-247-5321
In Canada:
To purchase a copy of a genuine NISSAN
Service Manual or Owner’s Manual please con-
tact your nearest NISSAN dealer. For the phone
number and location of a NISSAN Dealer in your
area call the NISSAN Satisfaction Center at
1-800-387-0122 and a bilingual
NISSAN representative will assist you.
Also available are Genuine NISSAN Service and
Owner’s Manuals for older NISSAN models.
IN THE EVENT OF A COLLISIONUnfortunately, accidents do occur. In this unlikely
event, there is some important information you
should know. Many insurance companies rou-
tinely authorize the use of non-genuine collision
parts in order to cut costs, among other reasons.
OWNER’S MANUAL/SERVICE
MANUAL ORDER INFORMATION
Technical and consumer information
9-27


04.3.9/R50-D/V5


Insist on the use of Genuine Nissan
Collision Parts!If you want your vehicle to be restored using
parts made to NISSAN’s original exacting speci-
fications — if you want to help it to last and hold
its resale value, the solution is simple.Tell your
insurance agent and your repair shop to
only use Genuine Nissan Collision Parts.
NISSAN does not warrant non-Nissan parts, nor
does NISSAN’s warranty apply to damage
caused by a non-genuine part.
Using Genuine Nissan Parts can help protect
your personal safety, preserve your warranty
protection and maintain the resale value of your
vehicle. And if your vehicle was leased, using
Genuine Nissan Parts may prevent or limit un-
necessary excess wear and tear expenses at the
end of your lease.
NISSAN designs its hoods with crumple zones
to minimize the risk that the hood will penetrate
the windshield of your vehicle in an accident.
Non-genuine (imitation) parts may not provide
such built in safeguards. Also, non-genuine
parts often show premature wear, rust and cor-
rosion.
Why should you take a chance?In over 40 states, the law says you must be
advised if non-genuine parts are used to repair
your vehicle. And some states and provinces
have enacted laws that restrict insurance com-
panies from authorizing the use of non-genuine
collision parts during the new vehicle warranty.
These laws help protect you, so you can take
action to protect yourself.It’s your right!If you should need further information visit us at:
www.nissanusa.com.
9-28
Technical and consumer information


04.3.9/R50-D/V5

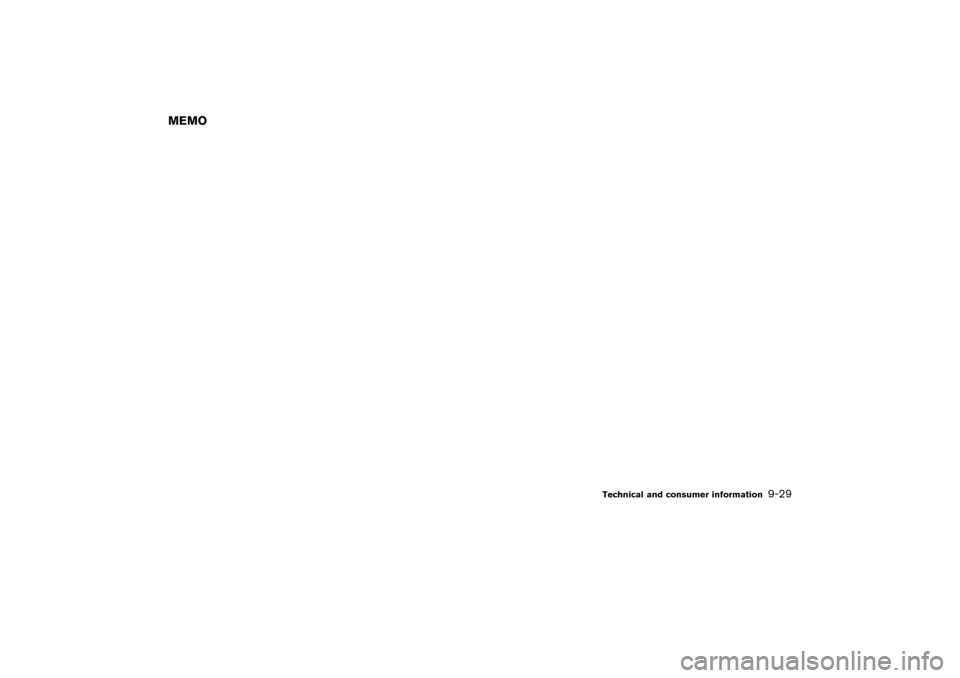

MEMO
Technical and consumer information
9-29


04.3.9/R50-D/V5

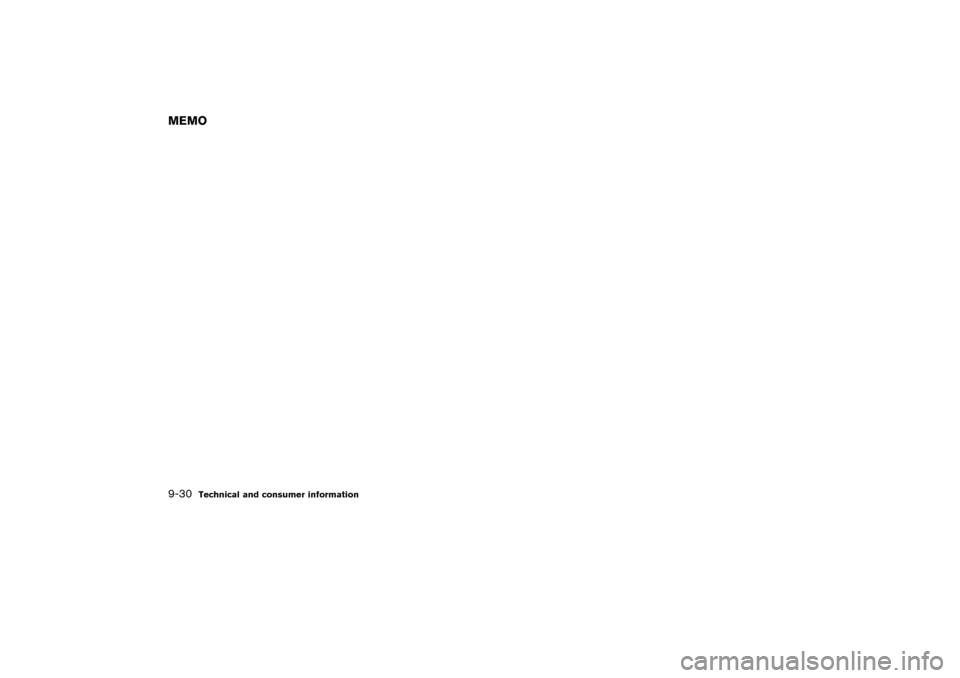

MEMO9-30
Technical and consumer information


04.3.9/R50-D/V5
