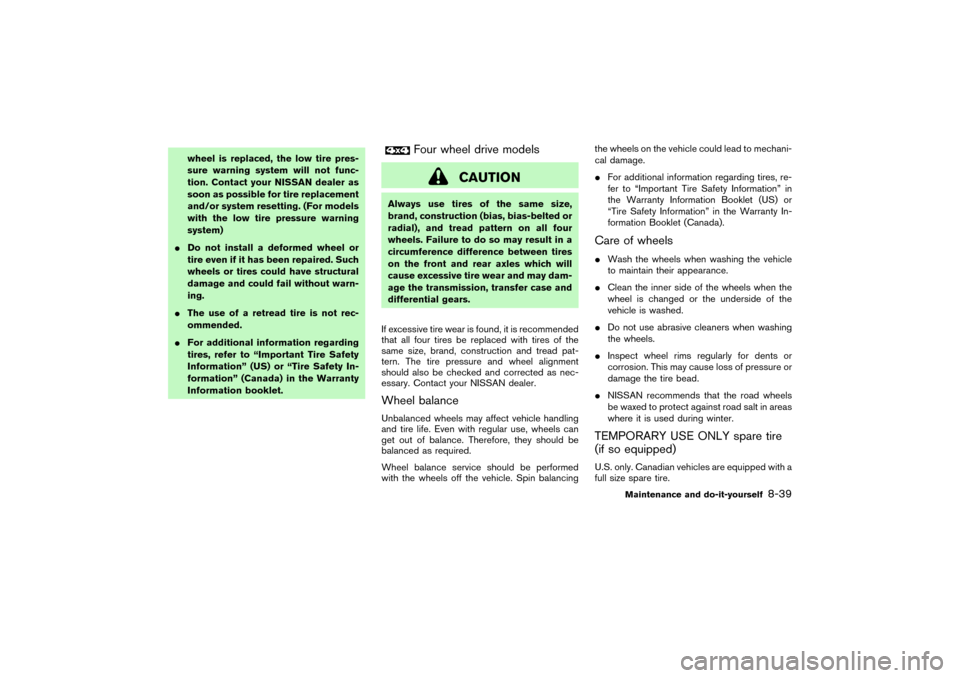

2004 NISSAN PATHFINDER Owners Manual

wheel is replaced, the low tire pres-
sure warning system will not func-
tion. Contact your NISSAN dealer as
soon as possible for tire replacement
and/or system resetting. (For models
with the low tire pressure warning
system)

Do not install a deformed wheel or
tire even if it has been repaired. Such
wheels or tires could have structural
damage and could fail without warn-
ing.

The use of a retread tire is not rec-
ommended.

For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety In-
formation” (Canada) in the Warranty
Information booklet.
Four wheel drive models
CAUTION
Always use tires of the same size,
brand, construction (bias, bias-belted or
radial), and tread pattern on all four
wheels. Failure to do so may result in a
circumference difference between tires
on the front and rear axles which will
cause excessive tire wear and may dam-
age the transmission, transfer case and
differential gears.
If excessive tire wear is found, it is recommended
that all four tires be replaced with tires of the
same size, brand, construction and tread pat-
tern. The tire pressure and wheel alignment
should also be checked and corrected as nec-
essary. Contact your NISSAN dealer.Wheel balanceUnbalanced wheels may affect vehicle handling
and tire life. Even with regular use, wheels can
get out of balance. Therefore, they should be
balanced as required.
Wheel balance service should be performed
with the wheels off the vehicle. Spin balancingthe wheels on the vehicle could lead to mechani-
cal damage.

For additional information regarding tires, re-
fer to “Important Tire Safety Information” in
the Warranty Information Booklet (US) or
“Tire Safety Information” in the Warranty In-
formation Booklet (Canada).
Care of wheels
Wash the wheels when washing the vehicle
to maintain their appearance.

Clean the inner side of the wheels when the
wheel is changed or the underside of the
vehicle is washed.

Do not use abrasive cleaners when washing
the wheels.

Inspect wheel rims regularly for dents or
corrosion. This may cause loss of pressure or
damage the tire bead.

NISSAN recommends that the road wheels
be waxed to protect against road salt in areas
where it is used during winter.TEMPORARY USE ONLY spare tire
(if so equipped)U.S. only. Canadian vehicles are equipped with a
full size spare tire.
Maintenance and do-it-yourself
8-39


04.3.9/R50-D/V5


Observe the following precautions if the TEM-
PORARY USE ONLY spare tire must be used,
otherwise your vehicle could be damaged or
involved in an accident.
WARNING

The TEMPORARY USE ONLY spare
tire should be used only for emer-
gency. It should be replaced by the
standard tire at the first opportunity.

Drive carefully while the TEMPO-
RARY USE ONLY spare tire is in-
stalled.
Avoid sharp turns and abrupt braking
while driving.

Periodically check the TEMPORARY
USE ONLY spare tire inflation pres-
sure, and always keep it at 60 psi (420
kPa, 4.2 bar).

Always keep the pressure of the full
size spare tire (if so equipped) at the
recommended pressure for standard
tires, as indicated on the Tire and
Loading Information label. For TheTire and Loading Information label
location, see “Vehicle identification”
in the “9. Technical and consumer
information” section.

Do not drive your vehicle at speeds
faster than 50 MPH (80 km/h).

When driving on roads covered with
snow or ice, the TEMPORARY USE
ONLY spare tire should be used on
the front axle and original tire used
on the rear axle (drive wheels). Use
tire chains only on the rear (original)
tires.

Tire tread of the TEMPORARY USE
ONLY spare tire will wear at a faster
rate than the original tire. Replace
the TEMPORARY USE ONLY spare
tire as soon as the tread wear indica-
tors appear.

Do not use the TEMPORARY USE
ONLY spare tire on other vehicles.

Do not use more than one TEMPO-
RARY USE ONLY spare tire at the
same time.
Do not tow a trailer while the TEM-
PORARY USE ONLY spare tire is
installed.
CAUTION

Do not use tire chains on a TEMPO-
RARY USE ONLY spare tire. Tire
chains will not fit properly on the
TEMPORARY USE ONLY spare tire
and may cause damage to the ve-
hicle.

Because the TEMPORARY USE
ONLY spare tire is smaller than the
original tire, ground clearance is re-
duced. To avoid damage to the ve-
hicle do not drive over obstacles.
Also do not drive the vehicle through
an automatic car wash since it may
get caught.
8-40
Maintenance and do-it-yourself


04.3.9/R50-D/V5


9 Technical and consumer informationCapacities and recommended fuel/lubricants ................ 9-2
Fuel recommendation ...................................................... 9-4
Engine oil and oil filter recommendation.................... 9-6
Recommended SAE oil viscosity number.................. 9-7
Air conditioning system refrigerant and lubricant
recommendations ............................................................. 9-7
Specifications.......................................................................... 9-9
Engine ................................................................................. 9-9
Wheels and tires ................................................................. 9-11
Dimensions and weights.............................................. 9-11
When traveling or registering your vehicle in another
country.................................................................................... 9-12
Vehicle identification ........................................................... 9-12
Vehicle identification number (VIN) plate ................ 9-12
Vehicle identification number (Chassis
number) ............................................................................ 9-12
Engine serial number .................................................... 9-13
F.M.V.S.S. certification label ....................................... 9-13
Emission control information label ............................ 9-13
Tire and Loading Information label............................ 9-14
Air conditioner specification label ............................. 9-14Vehicle loading information ............................................... 9-14
Terms ................................................................................ 9-14
Vehicle load capacity.................................................... 9-15
Securing the load .......................................................... 9-16
Loading tips .................................................................... 9-17
Vehicle load capacity.................................................... 9-17
Measurement of weights ............................................. 9-17
Towing a trailer .................................................................... 9-18
Maximum load limits ...................................................... 9-18
Towing load/specification chart ................................. 9-20
Towing safety.................................................................. 9-20
Flat towing ....................................................................... 9-22
Uniform tire quality grading ......................................... 9-23
Emission control system warranty ................................... 9-24
Reporting safety defects (US only) ................................ 9-24
Readiness for inspection/maintenance (I/M) test
(US only) ................................................................................ 9-25
Event data recorders ......................................................... 9-26
Owner’s Manual/Service Manual order information ... 9-27
In the event of a collision ............................................ 9-27


04.3.9/R50-D/V5


The following values are approximate capacities. The actual refill capacities may be a little different from them. When refilling, follow
the procedure instructed in the “8. Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate)
Recommended specifications
US
measureImp
measureLiter
Fuel 20-7/8 gal 17-3/8 gal 79Unleaded gasoline with an octane rating of
at least 91 AKI (RON 96) (VQ35DE)*1
Engine oil*4
Drain and refill
with oil filter
change5-1/4 qt 4-3/8 qt 5.0

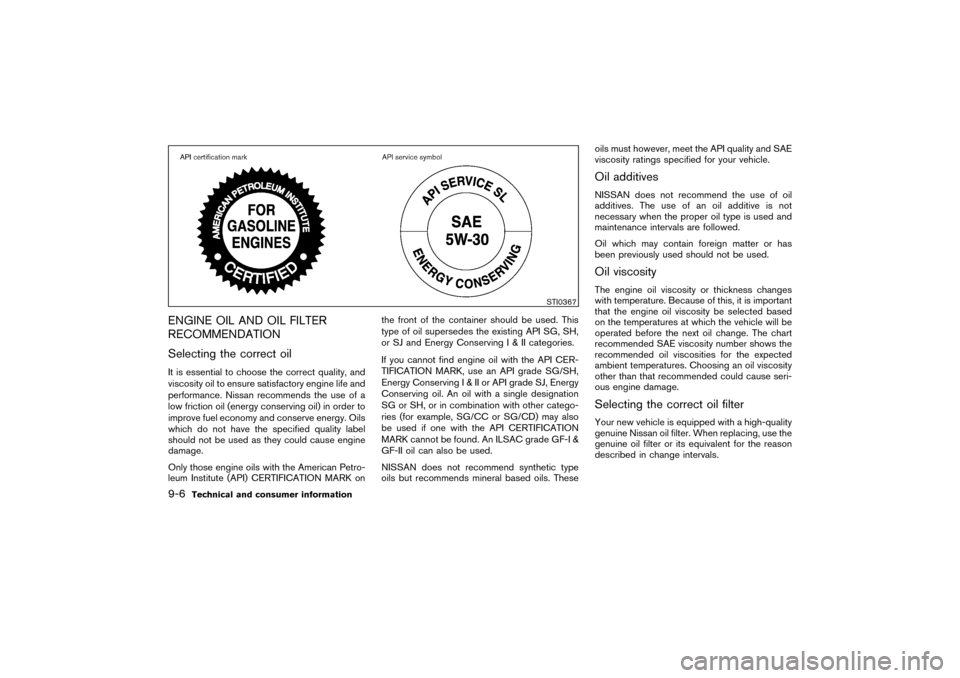

API Certification Mark*2 *3

API grade SG/SH, Energy Conserving I &
II or API grade SJ, SL, Energy Conserv-
ing*2 *3

ILSAC grade GF-I, GF-II & GF-III*2 *3 without oil filter
change5-1/8 qt 4-1/4 qt 4.8
Cooling system (with
heater and reservoir
tank)9-3/4 qt 8-1/8 qt 9.2Genuine Nissan Long Life Anti-Freeze
Coolant or equivalent
*1: See later in this section for fuel recommendation.
*2: See later in this section for recommended SAE viscosity number.
*3: See later in this section for engine oil and oil filter recommendation.
*4: See “Changing engine oil” in the “8. Maintenance and do-it-yourself” section for further details.CAPACITIES AND
RECOMMENDED
FUEL/LUBRICANTS9-2
Technical and consumer information


04.3.9/R50-D/V5


Capacity (Approximate)
Recommended specifications
US
measureImp
measureLiter
Manual transmission— — — API GL-4 Viscosity SAE 75W-85
Differential gear oil (exc. LSD)— — — API GL-5 Viscosity SAE 80W-90*1
Limited-slip differential (LSD) gear oil — — —Only LSD gear oil:
API GL-5 and SAE 80W-90*1 approved for Nissan LSD*2
Automatic transmission fluid
Refill to the proper oil level according to the instructions
in the “8. Maintenance and do-it-yourself” section.Nissan Matic “D” (Continental U.S. and Alaska) or Canada NISSAN
Automatic Transmission Fluid.*6
Power steering fluid (PSF)Genuine NISSAN PSF or equivalent*5
All-mode 4WD transfer fluidNissan Matic “D” (Continental U.S. and Alaska) or Canada NISSAN
Automatic Transmission Fluid.*6
Transfer fluidNissan Matic “D” (Continental U.S. and Alaska) or Canada NISSAN
Automatic Transmission Fluid.*6 or API GL-4 Viscosity SAE 75W-90
Brake and clutch fluidGenuine Nissan Super Heavy Duty Brake Fluid*4 or equivalent
DOT 3 (U.S. F.M.V.S.S. No. 116)
Propeller shaft grease— — — NLGI No. 2 (Lithium soap base)
Multi-purpose grease— — — NLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant— — — HFC-134a (R-134a)*4
Air conditioning system lubricants———Nissan A/C System Oil Type S or exact equivalent*4
*1: For hot areas, viscosity SAE 90 is suitable for ambient temperatures above 0°C (32°F).
*2: Contact your NISSAN dealer for a list of approved oils.
*3: Available in mainland U.S. through your NISSAN dealer.
*4: See “Vehicle identification” later in this section for air conditioner specification label.
*5: For Canada, NISSAN Automatic Transmission Fluid (ATF), DEXRON
TMIII/MERCON
TMor equivalent ATF may also be used.
*6: Dexron
TMIII/Mercon
TM
or equivalent may also be used. Outside the continental U.S. and Alaska contact an authorized NISSAN dealer for more information regarding
suitable fluids, including recommended brand(s) of DEXRON
TMIII/MERCON
TMAutomatic Transmission Fluid.
Technical and consumer information
9-3


04.3.9/R50-D/V5


FUEL RECOMMENDATIONVQ35DE engine:
Use unleaded regular gasoline with an oc-
tane rating of at least 87 AKI (Anti-Knock
Index) number (Research octane number
91).
For improved vehicle performance,
NISSAN recommends the use of unleaded
premium gasoline with an octane rating of
at least 91 AKI number (Research octane
number 96).
CAUTION
Using a fuel other than that specified
could adversely affect the emission con-
trol devices and systems, and could also
affect the warranty coverage.
Under no circumstances should a
leaded gasoline be used since this will
damage the three way catalyst.Reformulated gasolineSome fuel suppliers are now producing reformu-
lated gasolines. These gasolines are specially
designed to reduce vehicle emissions. NISSANsupports efforts towards cleaner air and suggest
that you use reformulated gasoline when avail-
able.
Gasoline containing oxygenatesSome fuel suppliers sell gasoline containing
oxygenates such as ethanol, MTBE and metha-
nol with or without advertising their presence.
Nissan does not recommend the use of fuels of
which the oxygenate content and the fuel com-
patibility for your Nissan cannot be readily deter-
mined.
If you use oxygenate-blend gasoline, please take
the following precautions as the usage of such
fuels may cause vehicle performance problems
and/or fuel system damage.

The fuel should be unleaded and have
an octane rating no lower than that
recommended for unleaded gasoline.

If an oxygenate-blend, excepting a
methanol blend, is used, it should con-
tain no more than 10% oxygenate.
(MTBE may, however, be added up to
15%.)

If a methanol blend is used, it should
contain no more than 5% methanol (me-
thyl alcohol, wood alcohol). It should
also contain a suitable amount of ap-
propriate cosolvents and corrosion in-hibitors. If not properly formulated with
appropriate cosolvents and corrosion
inhibitors, such methanol blends may
cause fuel system damage and/or ve-
hicle performance problems. At this
time, sufficient data is not available to
ensure that all methanol blends are
suitable for use in Nissan vehicles.
If any undesirable driveability problems such as
engine stalling and hard hot starting are experi-
enced after using oxygenate-blend fuels, imme-
diately change to a non-oxygenate fuel or a fuel
with a low blend of MTBE.
Take care not to spill gasoline during refu-
eling. Gasoline containing oxygenates can
cause paint damage.
Aftermarket fuel additivesNISSAN does not recommend the use of any
fuel additives (i.e.: fuel injector cleaner, octane
booster, intake valve deposit removers, etc.)
which are sold commercially. Many of these
additives intended for gum, varnish or deposit
removal may contain active solvents or similar
ingredients that can be harmful to the fuel sys-
tem and engine.Octane rating tipsIn most parts of North America, you should use
9-4
Technical and consumer information


04.3.9/R50-D/V5

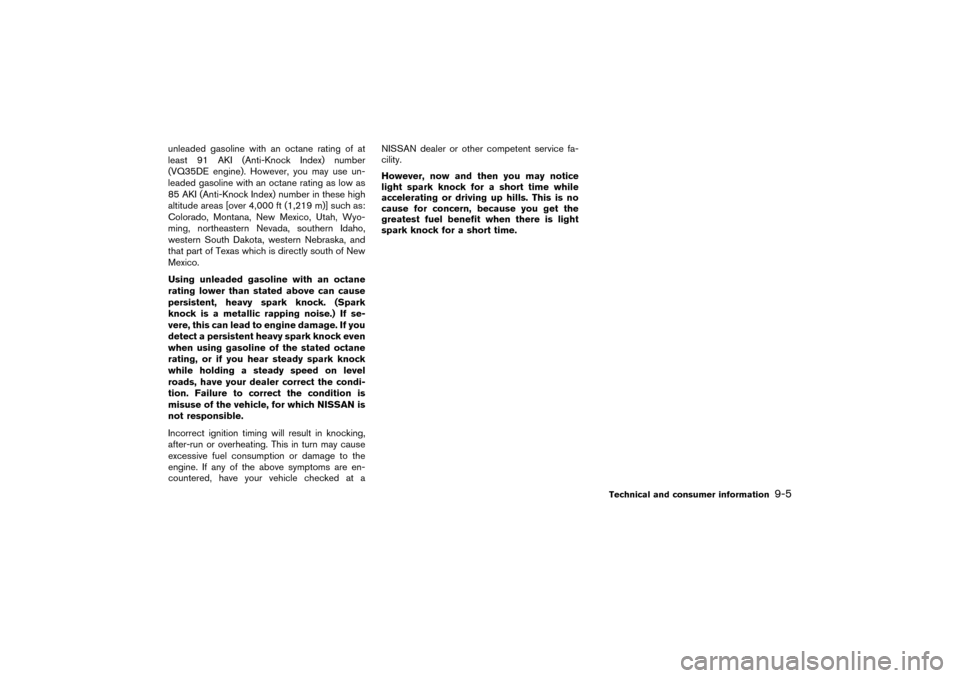

unleaded gasoline with an octane rating of at
least 91 AKI (Anti-Knock Index) number
(VQ35DE engine). However, you may use un-
leaded gasoline with an octane rating as low as
85 AKI (Anti-Knock Index) number in these high
altitude areas [over 4,000 ft (1,219 m)] such as:
Colorado, Montana, New Mexico, Utah, Wyo-
ming, northeastern Nevada, southern Idaho,
western South Dakota, western Nebraska, and
that part of Texas which is directly south of New
Mexico.
Using unleaded gasoline with an octane
rating lower than stated above can cause
persistent, heavy spark knock. (Spark
knock is a metallic rapping noise.) If se-
vere, this can lead to engine damage. If you
detect a persistent heavy spark knock even
when using gasoline of the stated octane
rating, or if you hear steady spark knock
while holding a steady speed on level
roads, have your dealer correct the condi-
tion. Failure to correct the condition is
misuse of the vehicle, for which NISSAN is
not responsible.
Incorrect ignition timing will result in knocking,
after-run or overheating. This in turn may cause
excessive fuel consumption or damage to the
engine. If any of the above symptoms are en-
countered, have your vehicle checked at aNISSAN dealer or other competent service fa-
cility.
However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is no
cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time.
Technical and consumer information
9-5


04.3.9/R50-D/V5


ENGINE OIL AND OIL FILTER
RECOMMENDATION
Selecting the correct oilIt is essential to choose the correct quality, and
viscosity oil to ensure satisfactory engine life and
performance. Nissan recommends the use of a
low friction oil (energy conserving oil) in order to
improve fuel economy and conserve energy. Oils
which do not have the specified quality label
should not be used as they could cause engine
damage.
Only those engine oils with the American Petro-
leum Institute (API) CERTIFICATION MARK onthe front of the container should be used. This
type of oil supersedes the existing API SG, SH,
or SJ and Energy ConservingI&IIcategories.
If you cannot find engine oil with the API CER-
TIFICATION MARK, use an API grade SG/SH,
Energy ConservingI&IIorAPIgrade SJ, Energy
Conserving oil. An oil with a single designation
SG or SH, or in combination with other catego-
ries (for example, SG/CC or SG/CD) may also
be used if one with the API CERTIFICATION
MARK cannot be found. An ILSAC grade GF-I &
GF-II oil can also be used.
NISSAN does not recommend synthetic type
oils but recommends mineral based oils. Theseoils must however, meet the API quality and SAE
viscosity ratings specified for your vehicle.
Oil additivesNISSAN does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used and
maintenance intervals are followed.
Oil which may contain foreign matter or has
been previously used should not be used.Oil viscosityThe engine oil viscosity or thickness changes
with temperature. Because of this, it is important
that the engine oil viscosity be selected based
on the temperatures at which the vehicle will be
operated before the next oil change. The chart
recommended SAE viscosity number shows the
recommended oil viscosities for the expected
ambient temperatures. Choosing an oil viscosity
other than that recommended could cause seri-
ous engine damage.Selecting the correct oil filterYour new vehicle is equipped with a high-quality
genuine Nissan oil filter. When replacing, use the
genuine oil filter or its equivalent for the reason
described in change intervals.
STI0367
9-6
Technical and consumer information


04.3.9/R50-D/V5
