2004 NISSAN PATHFINDER Owners Manual

reaching it. Try not to brake while
actually on the ice, and avoid any
sudden steering maneuvers.

Do not use cruise control on slippery
roads.

Snow can trap dangerous exhaust
gases under your vehicle. Keep snow
clear of the exhaust pipe and from
around your vehicle.
ENGINE BLOCK HEATER (if so
equipped)An engine block heater to assist extreme cold
temperature starting is available through your
NISSAN dealer.
WARNING
Do not use your heater with an un-
grounded electrical system or two-
pronged (cheater) adapters. You can be
injured by an electrical shock if you use
an ungrounded connection.
Starting and driving
5-39


04.3.9/R50-D/V5

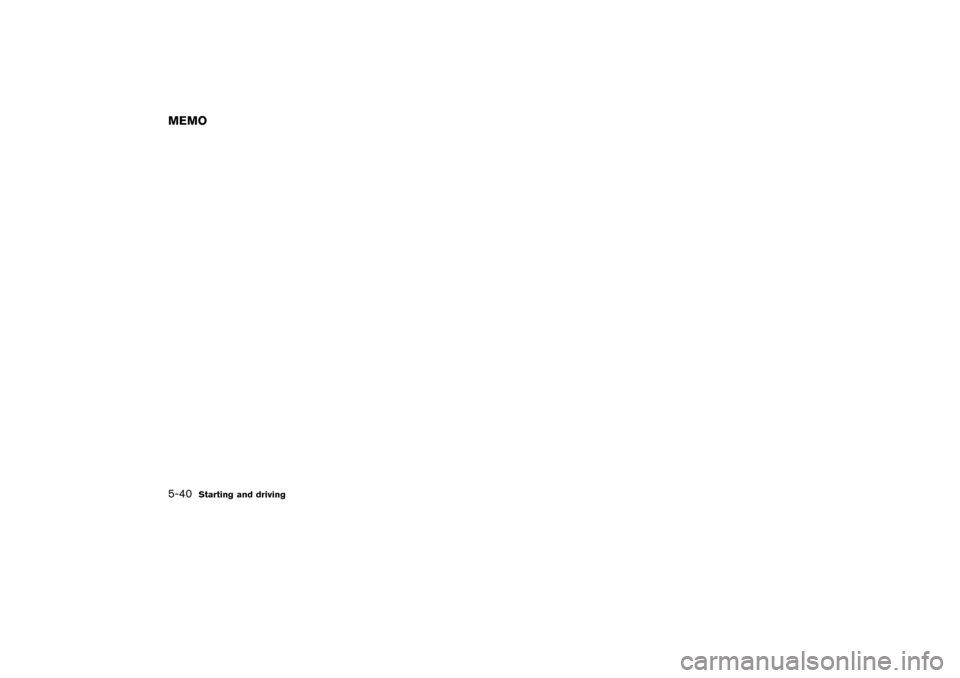

MEMO5-40
Starting and driving


04.3.9/R50-D/V5

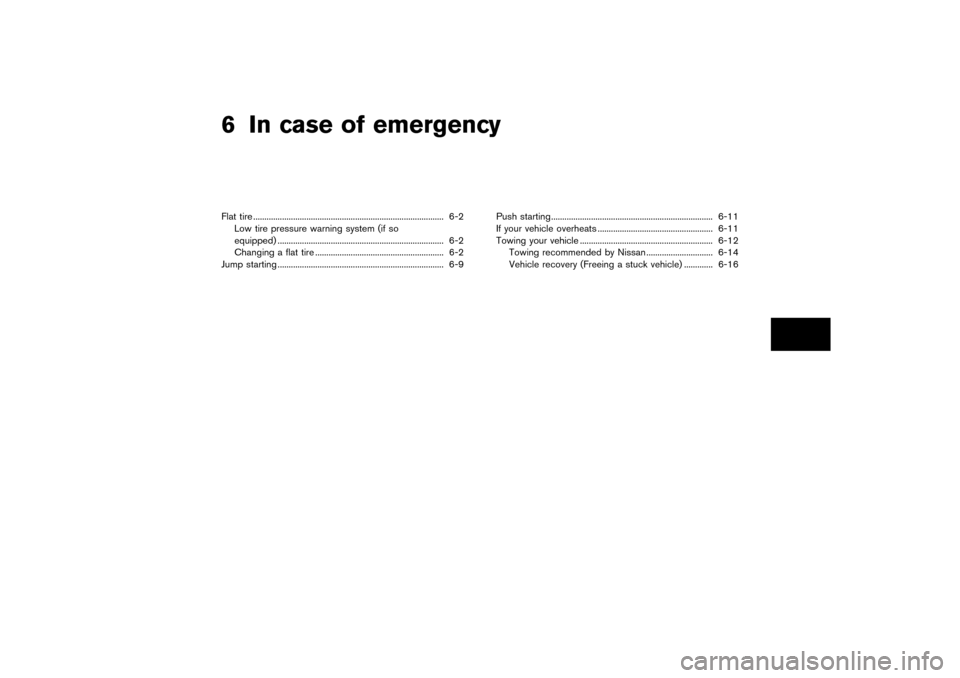

6 In case of emergencyFlat tire ...................................................................................... 6-2
Low tire pressure warning system (if so
equipped) ........................................................................... 6-2
Changing a flat tire .......................................................... 6-2
Jump starting ........................................................................... 6-9Push starting......................................................................... 6-11
If your vehicle overheats .................................................... 6-11
Towing your vehicle ............................................................ 6-12
Towing recommended by Nissan .............................. 6-14
Vehicle recovery (Freeing a stuck vehicle) ............. 6-16


04.3.9/R50-D/V5


LOW TIRE PRESSURE WARNING
SYSTEM (if so equipped)The low tire pressure warning system monitors
tire pressure of all wheels (except the spare tire).
If the vehicle is being driven with a flat tire or low
tire pressure (lower than 25 psi, 171 kPa), the
low tire pressure warning system will activate
and warn you of it by the low tire pressure
warning light. This system will activate only when
the vehicle is driven at speeds above 20 MPH
(32 km/h). For more details, please refer to
“Warning/indicator lights and audible remind-
ers” in the “2. Instruments and controls” section,
and “Low tire pressure warning system” in the
“5. Starting and driving” section.
WARNING

If the low tire pressure warning light
comes on while driving, avoid sudden
steering maneuvers or abrupt brak-
ing, reduce vehicle speed, pull off the
road to a safe location and stop the
vehicle as soon as possible. Serious
vehicle damage could occur and may
lead to an accident and could result
in serious personal injury. Check thetire pressure for all four tires. Adjust
the tire pressure to the recom-
mended COLD tire pressure shown
on the Tire and Loading Information
label to turn the low tire pressure
warning light OFF. If you have a flat
tire, replace it with a spare tire as
soon as possible.

When a spare tire is mounted or a
wheel is replaced, the low tire pres-
sure warning system will not func-
tion. Contact your NISSAN dealer as
soon as possible for tire replacement
and/or system resetting.

Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pres-
sure sensors.
CHANGING A FLAT TIREIf you have a flat tire, follow the instructions
below.Stopping the vehicle1. Safely move the vehicle off the road away
from traffic.2. Turn on the hazard warning flasher.
3. Park on a level surface and apply the parking
brake. Shift the manual transmission into
reverse (automatic transmission in P).
WARNING


The transfer control lever
must be in the 2H, 4H or 4L position.

Never place the transfer control lever
in the Nposition. Otherwise, the ve-
hicle could roll unexpectedly even if
the manual transmission is in gear or
the automatic transmission is in the
P position. This could result in seri-
ous personal injury or property dam-
age.
All-mode 4WD models:

Make sure the 4WD shift indicator
and/or transfer 4LO position indica-
tor light remains illuminated before
stopping the engine.

Make sure the ATP light is off before
stopping the engine. Otherwise, the
vehicle could roll unexpectedly even
FLAT TIRE6-2
In case of emergency


04.3.9/R50-D/V5


if the automatic transmission is in
the P position. This could result in
serious personal injury or property
damage.

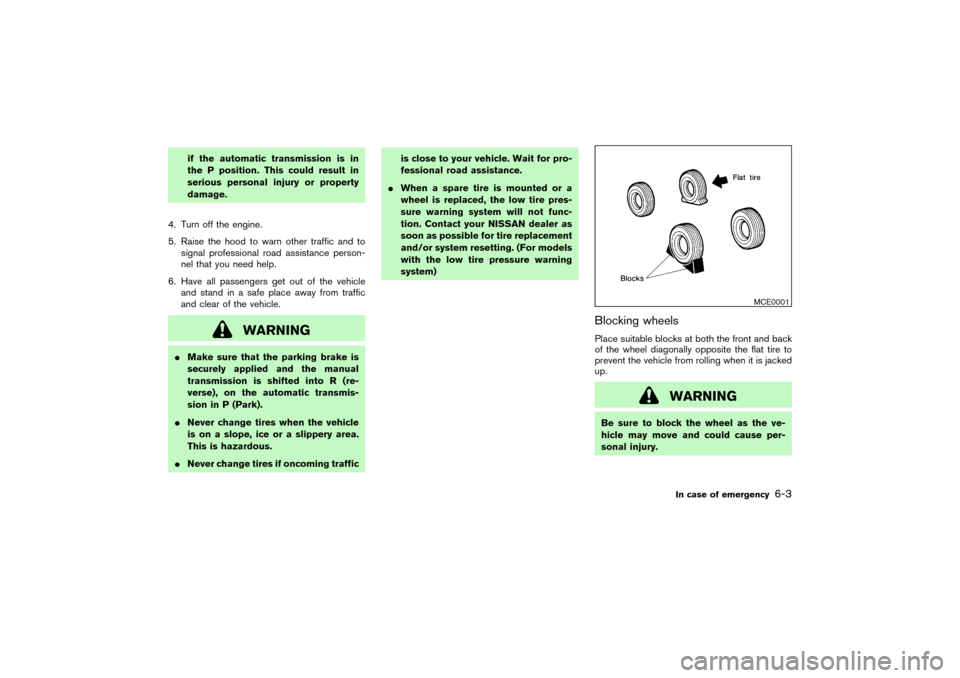

4. Turn off the engine.
5. Raise the hood to warn other traffic and to
signal professional road assistance person-
nel that you need help.
6. Have all passengers get out of the vehicle
and stand in a safe place away from traffic
and clear of the vehicle.
WARNING

Make sure that the parking brake is
securely applied and the manual
transmission is shifted into R (re-
verse), on the automatic transmis-
sion in P (Park).

Never change tires when the vehicle
is on a slope, ice or a slippery area.
This is hazardous.

Never change tires if oncoming trafficis close to your vehicle. Wait for pro-
fessional road assistance.

When a spare tire is mounted or a
wheel is replaced, the low tire pres-
sure warning system will not func-
tion. Contact your NISSAN dealer as
soon as possible for tire replacement
and/or system resetting. (For models
with the low tire pressure warning
system)
Blocking wheelsPlace suitable blocks at both the front and back
of the wheel diagonally opposite the flat tire to
prevent the vehicle from rolling when it is jacked
up.
WARNING
Be sure to block the wheel as the ve-
hicle may move and could cause per-
sonal injury.
MCE0001
In case of emergency
6-3


04.3.9/R50-D/V5

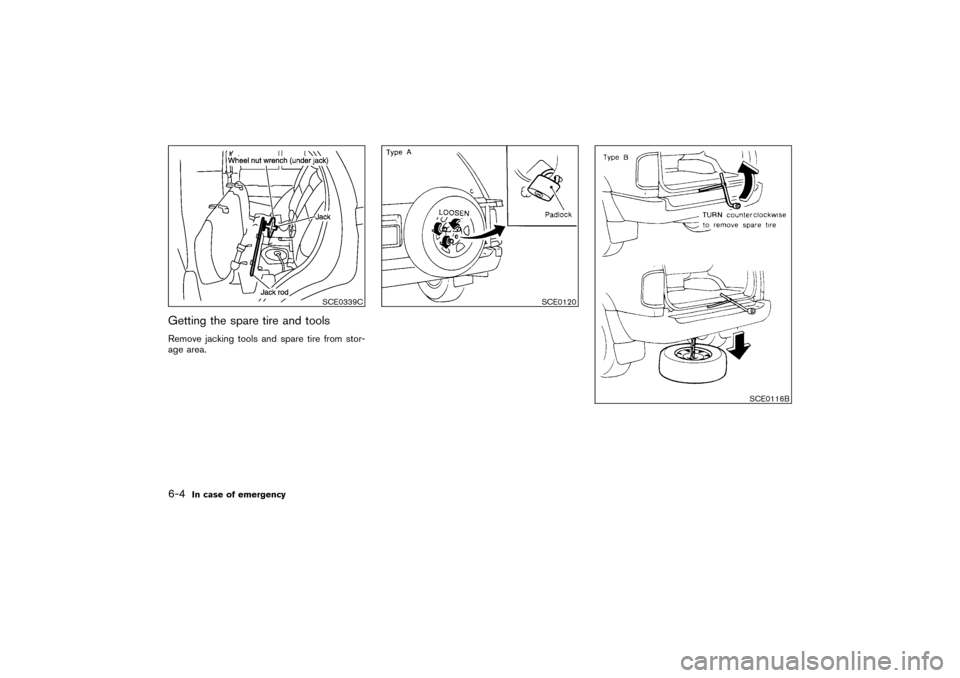

Getting the spare tire and toolsRemove jacking tools and spare tire from stor-
age area.
SCE0339C
SCE0120
SCE0116B
6-4
In case of emergency


04.3.9/R50-D/V5

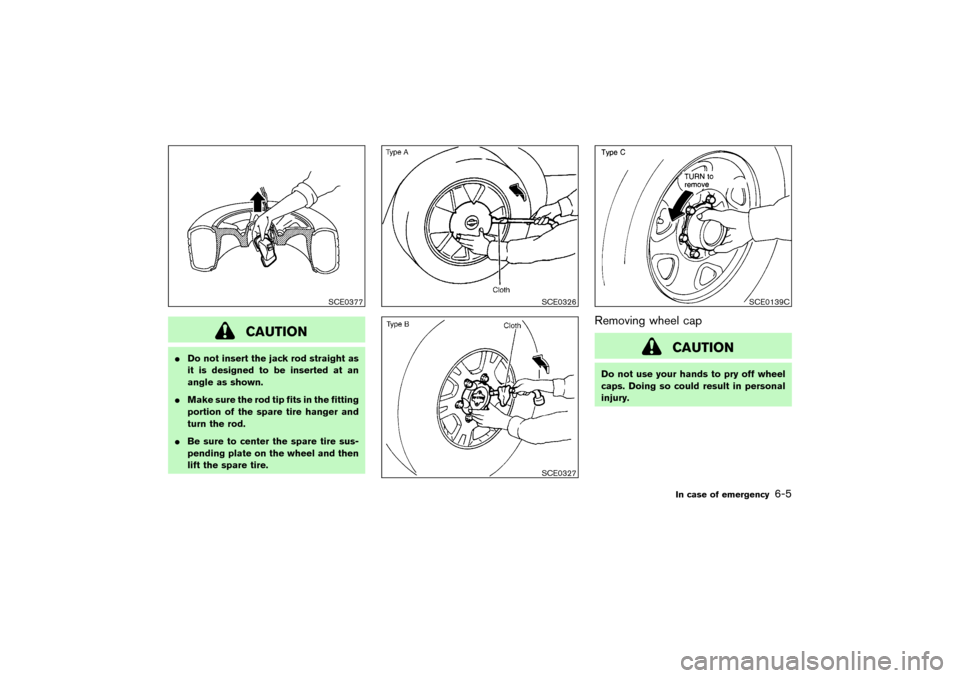

CAUTION

Do not insert the jack rod straight as
it is designed to be inserted at an
angle as shown.

Make sure the rod tip fits in the fitting
portion of the spare tire hanger and
turn the rod.

Be sure to center the spare tire sus-
pending plate on the wheel and then
lift the spare tire.
Removing wheel cap
CAUTION
Do not use your hands to pry off wheel
caps. Doing so could result in personal
injury.
SCE0377
SCE0326SCE0327
SCE0139C
In case of emergency
6-5


04.3.9/R50-D/V5


Jacking up the vehicle and removing
the damaged tire
WARNING

Never get under the vehicle while it is
supported only by the jack.

Use only the jack provided with your
vehicle to lift the vehicle. Do not use
the jack provided with your vehicle
on other vehicles. The jack is de-
signed only for lifting your vehicleduring a tire change.

Use the correct jack up points; never
use any other part of the vehicle for
jack support.

Never jack up the vehicle more than
necessary.

Never use blocks on or under the
jack.

Do not start or run engine while ve-
hicle is on the jack, as it may causethe vehicle to move. This is especially
true for vehicle with limited slip dif-
ferentials.

Do not allow passengers to stay in
the vehicle while it is on the jack.
Carefully read the following instructions.
1. Place the jack directly under the jack-up
point.
The jack should be used on level firm
ground.
2. Loosen each wheel nut one or two turns by
turning counterclockwise with the wheel nut
wrench.
Do not remove the wheel nuts until the tire
is off the ground.
3. Carefully raise the vehicle until the tire clears
the ground. To lift the vehicle, securely hold
the jack lever and rod with both hands as
shown above. Remove the wheel nuts, and
then remove the wheel. Do not remove the
brake drum with the wheel.
SCE0338C
6-6
In case of emergency


04.3.9/R50-D/V5
