2004 NISSAN PATHFINDER Owners Manual

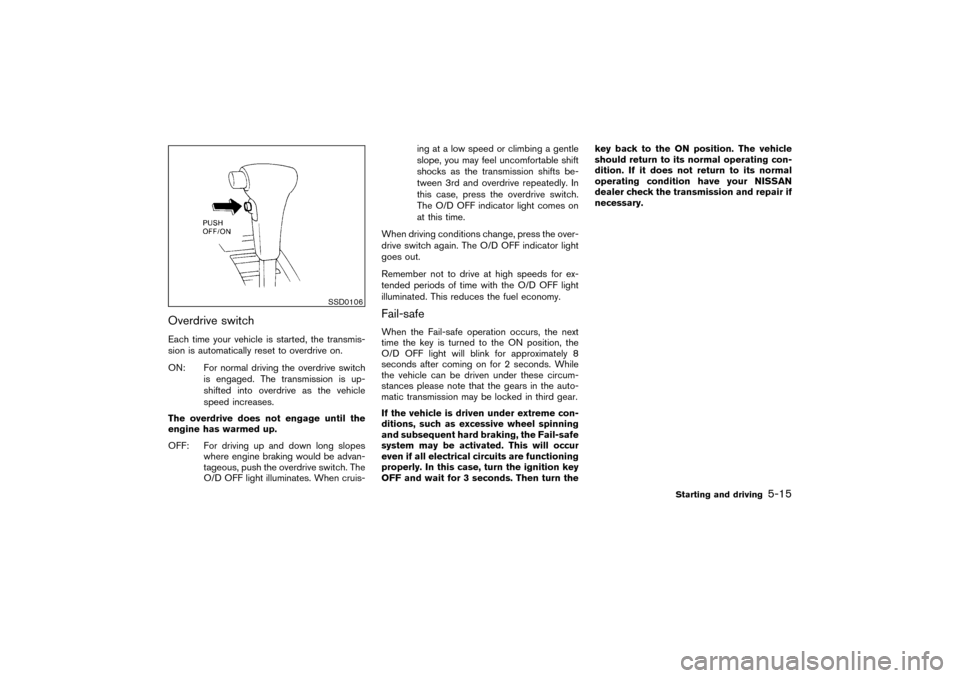

Overdrive switchEach time your vehicle is started, the transmis-
sion is automatically reset to overdrive on.
ON: For normal driving the overdrive switch
is engaged. The transmission is up-
shifted into overdrive as the vehicle
speed increases.
The overdrive does not engage until the
engine has warmed up.
OFF: For driving up and down long slopes
where engine braking would be advan-
tageous, push the overdrive switch. The
O/D OFF light illuminates. When cruis-ing at a low speed or climbing a gentle
slope, you may feel uncomfortable shift
shocks as the transmission shifts be-
tween 3rd and overdrive repeatedly. In
this case, press the overdrive switch.
The O/D OFF indicator light comes on
at this time.
When driving conditions change, press the over-
drive switch again. The O/D OFF indicator light
goes out.
Remember not to drive at high speeds for ex-
tended periods of time with the O/D OFF light
illuminated. This reduces the fuel economy.
Fail-safeWhen the Fail-safe operation occurs, the next
time the key is turned to the ON position, the
O/D OFF light will blink for approximately 8
seconds after coming on for 2 seconds. While
the vehicle can be driven under these circum-
stances please note that the gears in the auto-
matic transmission may be locked in third gear.
If the vehicle is driven under extreme con-
ditions, such as excessive wheel spinning
and subsequent hard braking, the Fail-safe
system may be activated. This will occur
even if all electrical circuits are functioning
properly. In this case, turn the ignition key
OFF and wait for 3 seconds. Then turn thekey back to the ONposition. The vehicle
should return to its normal operating con-
dition. If it does not return to its normal
operating condition have your NISSAN
dealer check the transmission and repair if
necessary.
SSD0106
Starting and driving
5-15


04.3.9/R50-D/V5

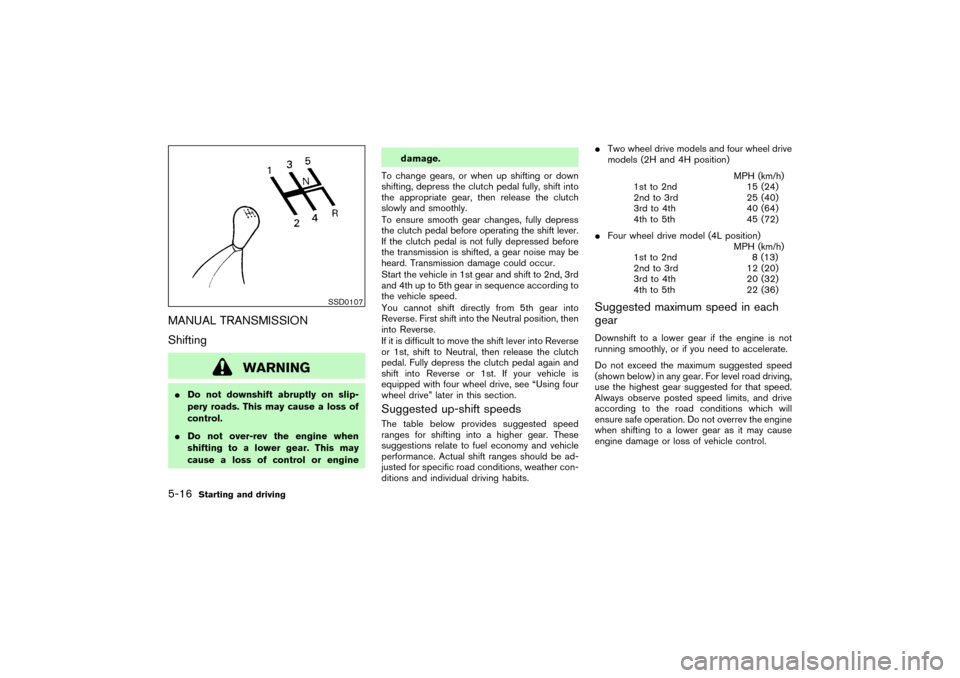

MANUAL TRANSMISSION
Shifting
WARNING

Do not downshift abruptly on slip-
pery roads. This may cause a loss of
control.

Do not over-rev the engine when
shifting to a lower gear. This may
cause a loss of control or enginedamage.
To change gears, or when up shifting or down
shifting, depress the clutch pedal fully, shift into
the appropriate gear, then release the clutch
slowly and smoothly.
To ensure smooth gear changes, fully depress
the clutch pedal before operating the shift lever.
If the clutch pedal is not fully depressed before
the transmission is shifted, a gear noise may be
heard. Transmission damage could occur.
Start the vehicle in 1st gear and shift to 2nd, 3rd
and 4th up to 5th gear in sequence according to
the vehicle speed.
You cannot shift directly from 5th gear into
Reverse. First shift into the Neutral position, then
into Reverse.
If it is difficult to move the shift lever into Reverse
or 1st, shift to Neutral, then release the clutch
pedal. Fully depress the clutch pedal again and
shift into Reverse or 1st. If your vehicle is
equipped with four wheel drive, see “Using four
wheel drive” later in this section.
Suggested up-shift speedsThe table below provides suggested speed
ranges for shifting into a higher gear. These
suggestions relate to fuel economy and vehicle
performance. Actual shift ranges should be ad-
justed for specific road conditions, weather con-
ditions and individual driving habits.
Two wheel drive models and four wheel drive
models (2H and 4H position)
MPH (km/h)
1st to 2nd 15 (24)
2nd to 3rd 25 (40)
3rd to 4th 40 (64)
4th to 5th 45 (72)

Four wheel drive model (4L position)
MPH (km/h)
1st to 2nd 8 (13)
2nd to 3rd 12 (20)
3rd to 4th 20 (32)
4th to 5th 22 (36)
Suggested maximum speed in each
gearDownshift to a lower gear if the engine is not
running smoothly, or if you need to accelerate.
Do not exceed the maximum suggested speed
(shown below) in any gear. For level road driving,
use the highest gear suggested for that speed.
Always observe posted speed limits, and drive
according to the road conditions which will
ensure safe operation. Do not overrev the engine
when shifting to a lower gear as it may cause
engine damage or loss of vehicle control.
SSD0107
5-16
Starting and driving


04.3.9/R50-D/V5

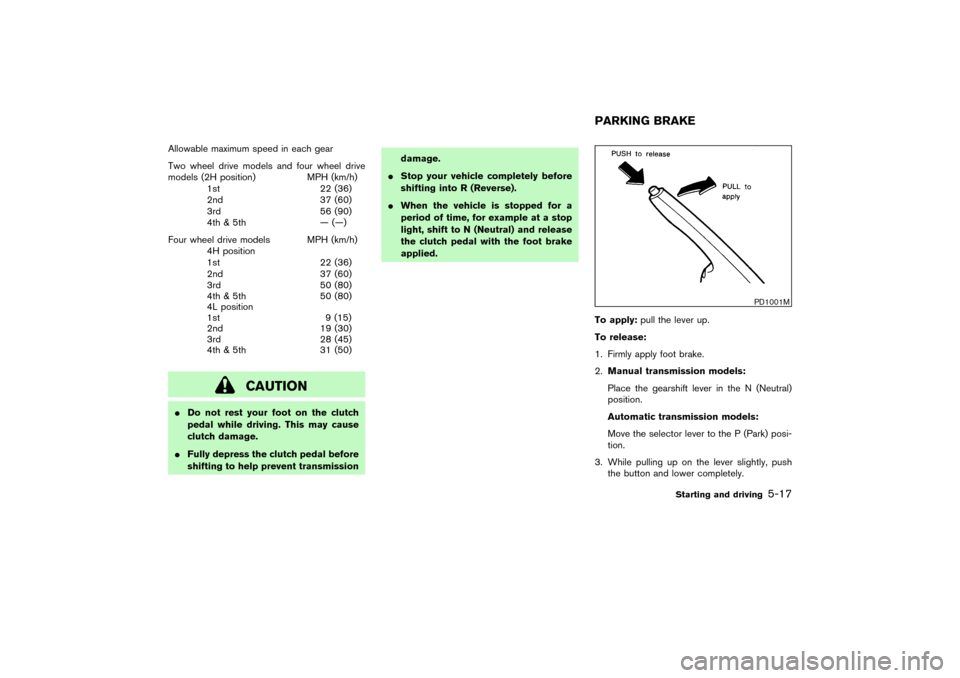

Allowable maximum speed in each gear
Two wheel drive models and four wheel drive
models (2H position) MPH (km/h)
1st 22 (36)
2nd 37 (60)
3rd 56 (90)
4th & 5th — (—)
Four wheel drive models MPH (km/h)
4H position
1st 22 (36)
2nd 37 (60)
3rd 50 (80)
4th & 5th 50 (80)
4L position
1st 9 (15)
2nd 19 (30)
3rd 28 (45)
4th & 5th 31 (50)
CAUTION

Do not rest your foot on the clutch
pedal while driving. This may cause
clutch damage.

Fully depress the clutch pedal before
shifting to help prevent transmissiondamage.

Stop your vehicle completely before
shifting into R (Reverse).

When the vehicle is stopped for a
period of time, for example at a stop
light, shift to N(Neutral) and release
the clutch pedal with the foot brake
applied.
To apply:pull the lever up.
To release:
1. Firmly apply foot brake.
2.Manual transmission models:
Place the gearshift lever in the N (Neutral)
position.
Automatic transmission models:
Move the selector lever to the P (Park) posi-
tion.
3. While pulling up on the lever slightly, push
the button and lower completely.
PD1001M
PARKING BRAKE
Starting and driving
5-17


04.3.9/R50-D/V5

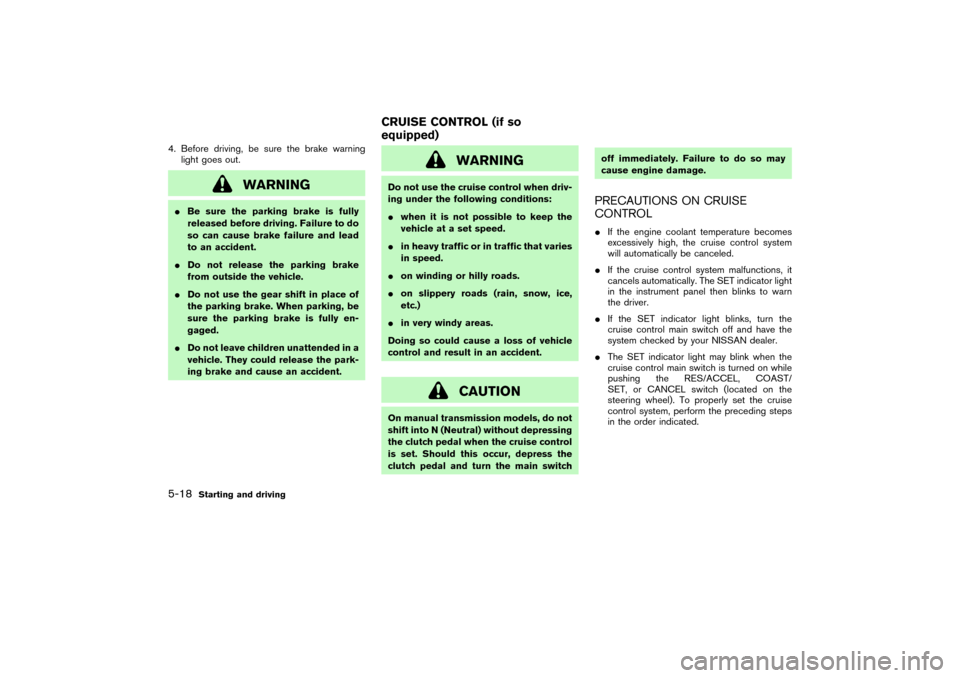

4. Before driving, be sure the brake warning
light goes out.
WARNING

Be sure the parking brake is fully
released before driving. Failure to do
so can cause brake failure and lead
to an accident.

Do not release the parking brake
from outside the vehicle.

Do not use the gear shift in place of
the parking brake. When parking, be
sure the parking brake is fully en-
gaged.

Do not leave children unattended in a
vehicle. They could release the park-
ing brake and cause an accident.
WARNING
Do not use the cruise control when driv-
ing under the following conditions:

when it is not possible to keep the
vehicle at a set speed.

in heavy traffic or in traffic that varies
in speed.

on winding or hilly roads.

on slippery roads (rain, snow, ice,
etc.)

in very windy areas.
Doing so could cause a loss of vehicle
control and result in an accident.
CAUTION
On manual transmission models, do not
shift into N(Neutral) without depressing
the clutch pedal when the cruise control
is set. Should this occur, depress the
clutch pedal and turn the main switchoff immediately. Failure to do so may
cause engine damage.
PRECAUTIONS ON CRUISE
CONTROL
If the engine coolant temperature becomes
excessively high, the cruise control system
will automatically be canceled.

If the cruise control system malfunctions, it
cancels automatically. The SET indicator light
in the instrument panel then blinks to warn
the driver.

If the SET indicator light blinks, turn the
cruise control main switch off and have the
system checked by your NISSAN dealer.

The SET indicator light may blink when the
cruise control main switch is turned on while
pushing the RES/ACCEL, COAST/
SET, or CANCEL switch (located on the
steering wheel). To properly set the cruise
control system, perform the preceding steps
in the order indicated.
CRUISE CONTROL (if so
equipped)
5-18
Starting and driving


04.3.9/R50-D/V5

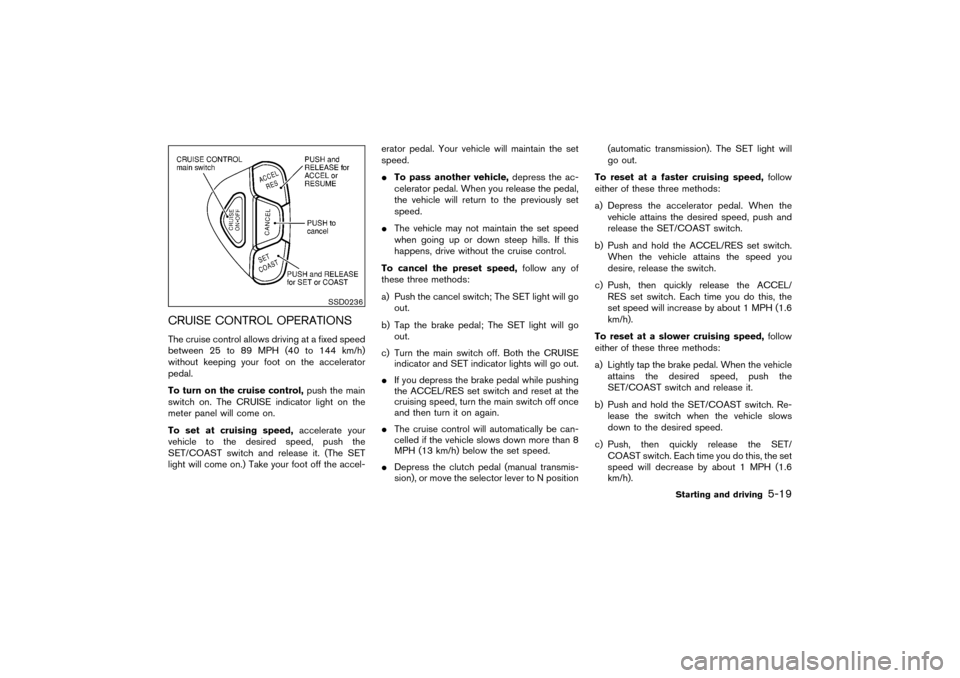

CRUISE CONTROL OPERATIONSThe cruise control allows driving at a fixed speed
between 25 to 89 MPH (40 to 144 km/h)
without keeping your foot on the accelerator
pedal.
To turn on the cruise control,push the main
switch on. The CRUISE indicator light on the
meter panel will come on.
To set at cruising speed,accelerate your
vehicle to the desired speed, push the
SET/COAST switch and release it. (The SET
light will come on.) Take your foot off the accel-erator pedal. Your vehicle will maintain the set
speed.

To pass another vehicle,depress the ac-
celerator pedal. When you release the pedal,
the vehicle will return to the previously set
speed.

The vehicle may not maintain the set speed
when going up or down steep hills. If this
happens, drive without the cruise control.
To cancel the preset speed,follow any of
these three methods:
a) Push the cancel switch; The SET light will go
out.
b) Tap the brake pedal; The SET light will go
out.
c) Turn the main switch off. Both the CRUISE
indicator and SET indicator lights will go out.

If you depress the brake pedal while pushing
the ACCEL/RES set switch and reset at the
cruising speed, turn the main switch off once
and then turn it on again.

The cruise control will automatically be can-
celled if the vehicle slows down more than 8
MPH (13 km/h) below the set speed.

Depress the clutch pedal (manual transmis-
sion), or move the selector lever to N position(automatic transmission). The SET light will
go out.
To reset at a faster cruising speed,follow
either of these three methods:
a) Depress the accelerator pedal. When the
vehicle attains the desired speed, push and
release the SET/COAST switch.
b) Push and hold the ACCEL/RES set switch.
When the vehicle attains the speed you
desire, release the switch.
c) Push, then quickly release the ACCEL/
RES set switch. Each time you do this, the
set speed will increase by about 1 MPH (1.6
km/h).
To reset at a slower cruising speed,follow
either of these three methods:
a) Lightly tap the brake pedal. When the vehicle
attains the desired speed, push the
SET/COAST switch and release it.
b) Push and hold the SET/COAST switch. Re-
lease the switch when the vehicle slows
down to the desired speed.
c) Push, then quickly release the SET/
COAST switch. Each time you do this, the set
speed will decrease by about 1 MPH (1.6
km/h).
SSD0236
Starting and driving
5-19


04.3.9/R50-D/V5

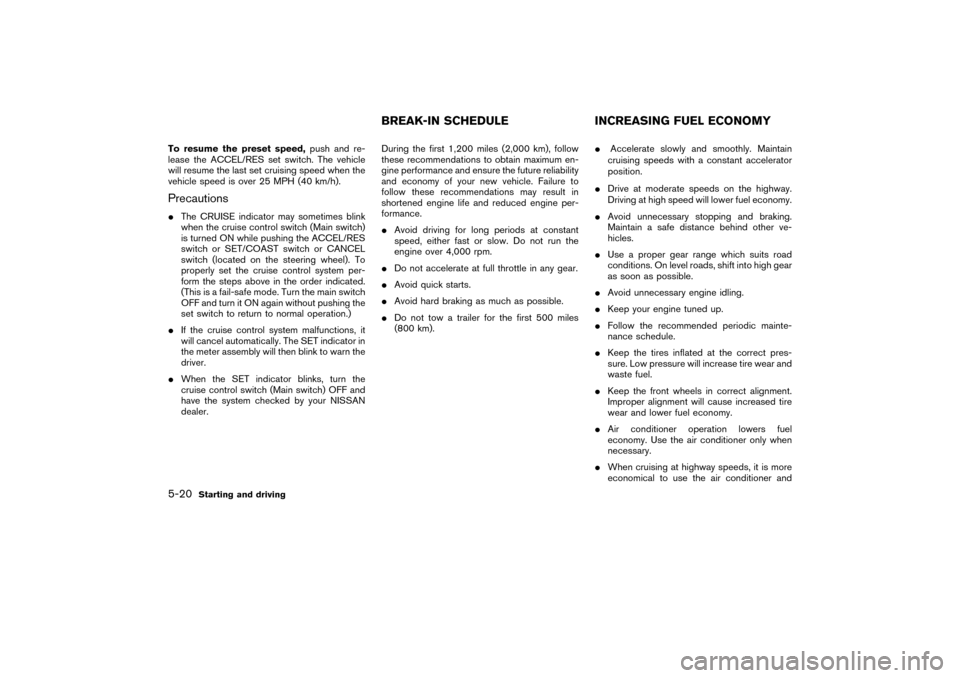

To resume the preset speed,push and re-
lease the ACCEL/RES set switch. The vehicle
will resume the last set cruising speed when the
vehicle speed is over 25 MPH (40 km/h).Precautions
The CRUISE indicator may sometimes blink
when the cruise control switch (Main switch)
is turned ON while pushing the ACCEL/RES
switch or SET/COAST switch or CANCEL
switch (located on the steering wheel). To
properly set the cruise control system per-
form the steps above in the order indicated.
(This is a fail-safe mode. Turn the main switch
OFF and turn it ON again without pushing the
set switch to return to normal operation.)

If the cruise control system malfunctions, it
will cancel automatically. The SET indicator in
the meter assembly will then blink to warn the
driver.

When the SET indicator blinks, turn the
cruise control switch (Main switch) OFF and
have the system checked by your NISSAN
dealer.During the first 1,200 miles (2,000 km), follow
these recommendations to obtain maximum en-
gine performance and ensure the future reliability
and economy of your new vehicle. Failure to
follow these recommendations may result in
shortened engine life and reduced engine per-
formance.

Avoid driving for long periods at constant
speed, either fast or slow. Do not run the
engine over 4,000 rpm.

Do not accelerate at full throttle in any gear.

Avoid quick starts.

Avoid hard braking as much as possible.

Do not tow a trailer for the first 500 miles
(800 km).
Accelerate slowly and smoothly. Maintain
cruising speeds with a constant accelerator
position.

Drive at moderate speeds on the highway.
Driving at high speed will lower fuel economy.

Avoid unnecessary stopping and braking.
Maintain a safe distance behind other ve-
hicles.

Use a proper gear range which suits road
conditions. On level roads, shift into high gear
as soon as possible.

Avoid unnecessary engine idling.

Keep your engine tuned up.

Follow the recommended periodic mainte-
nance schedule.

Keep the tires inflated at the correct pres-
sure. Low pressure will increase tire wear and
waste fuel.

Keep the front wheels in correct alignment.
Improper alignment will cause increased tire
wear and lower fuel economy.

Air conditioner operation lowers fuel
economy. Use the air conditioner only when
necessary.

When cruising at highway speeds, it is more
economical to use the air conditioner and
BREAK-IN SCHEDULE INCREASING FUEL ECONOMY
5-20
Starting and driving


04.3.9/R50-D/V5

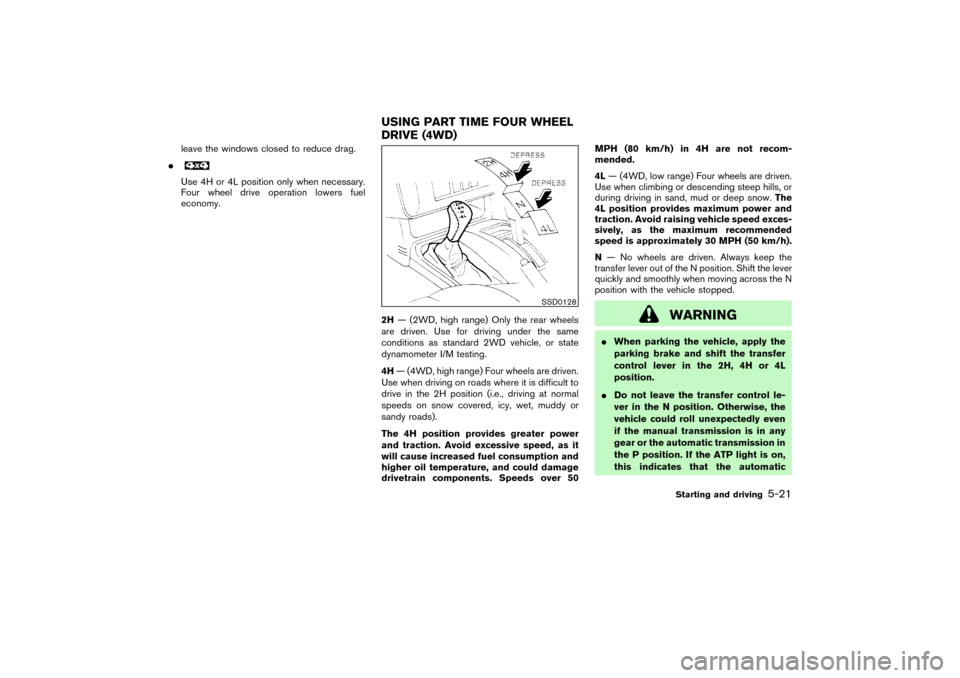

leave the windows closed to reduce drag.

Use 4H or 4L position only when necessary.
Four wheel drive operation lowers fuel
economy.
2H— (2WD, high range) Only the rear wheels
are driven. Use for driving under the same
conditions as standard 2WD vehicle, or state
dynamometer I/M testing.
4H— (4WD, high range) Four wheels are driven.
Use when driving on roads where it is difficult to
drive in the 2H position (i.e., driving at normal
speeds on snow covered, icy, wet, muddy or
sandy roads).
The 4H position provides greater power
and traction. Avoid excessive speed, as it
will cause increased fuel consumption and
higher oil temperature, and could damage
drivetrain components. Speeds over 50MPH (80 km/h) in 4H are not recom-
mended.
4L— (4WD, low range) Four wheels are driven.
Use when climbing or descending steep hills, or
during driving in sand, mud or deep snow.The
4L position provides maximum power and
traction. Avoid raising vehicle speed exces-
sively, as the maximum recommended
speed is approximately 30 MPH (50 km/h).
N— No wheels are driven. Always keep the
transfer lever out of the N position. Shift the lever
quickly and smoothly when moving across the N
position with the vehicle stopped.
WARNING

When parking the vehicle, apply the
parking brake and shift the transfer
control lever in the 2H, 4H or 4L
position.

Do not leave the transfer control le-
ver in the Nposition. Otherwise, the
vehicle could roll unexpectedly even
if the manual transmission is in any
gear or the automatic transmission in
the P position. If the ATP light is on,
this indicates that the automatic
SSD0128
USING PART TIME FOUR WHEEL
DRIVE (4WD)
Starting and driving
5-21


04.3.9/R50-D/V5


transmission P position will not func-
tion and the transfer lever is in neu-
tral.

Failure to engage the transfer control
lever in 2H, 4H or 4L could result in
the vehicle moving unexpectedly, re-
sulting in serious personal injury or
property damage.
CAUTION
Do not drive the vehicle in 4H or 4L on
dry hard surface roads. Driving on dry,
hard surfaces in 4H or 4L may cause
unnecessary noise, tire wear and in-
creased fuel consumption.5-22
Starting and driving


04.3.9/R50-D/V5
