2004 NISSAN PATHFINDER Owners Manual

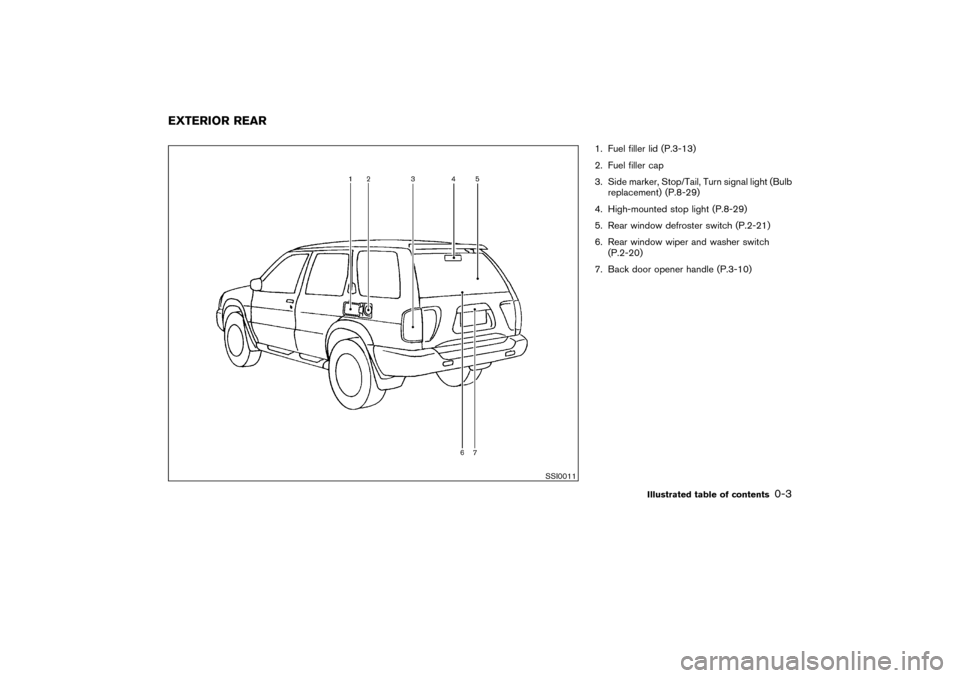

1. Fuel filler lid (P.3-13)
2. Fuel filler cap
3. Side marker, Stop/Tail, Turn signal light (Bulb
replacement) (P.8-29)
4. High-mounted stop light (P.8-29)
5. Rear window defroster switch (P.2-21)
6. Rear window wiper and washer switch
(P.2-20)
7. Back door opener handle (P.3-10)
SSI0011
EXTERIOR REAR
Illustrated table of contents
0-3


04.3.9/R50-D/V5


1. Security indicator light (P.2-17)
2. Headlight/dimmer/turn signal switch (P.2-22)
Front fog light switch (if so equipped)
(P.2-25)
3. Steering switch for audio control (if so
equipped) (P.4-28)4. Driver’s supplemental air bag (P.1-16)
5. Meters/gauges (P.2-3)
6. Cruise control main/set switch (if so
equipped) (P.5-18)
7. Windshield and rear window wiper/washer
switch (P.2-19)8. Hazard warning flasher switch (P.2-25)
9. Air conditioner (P.4-2)
10.Glass hatch/outside mirror defogger switch
(Type A) (P.2-21)
11.Clock (P.2-27)
12.Center ventilator (P.4-2)
13.Passenger air bag (P.1-10)
14.Side ventilator (P.4-2)
15.Instrument brightness control (P.2-23)
16.VDC OFF switch (if so equipped) (P.2-27)
17.Automatic drive positioner system cancel
switch (if so equipped) (P.3-19)
18.Fuse box cover (P.8-24)/Pocket
19.Outside mirror remote control (P.3-16)
20.Tilting steering wheel adjust lever (P.3-15)
21.Ignition switch/steering lock (P.5-7)
22.Glass hatch/outside mirror defogger switch
(Type B) (if so equipped) (P.2-21)
23.Audio system (P.4-13)
24.4WD shift switch (if so equipped) (P.5-25)/
Coin box (if so equipped) (P.2-30)
25.Ashtray (P.2-29)
26.Cigarette lighter (P.2-29) or Power outlet
(P.2-28)
27.Glove box (P.2-33)
SIC1936
INSTRUMENT PANEL0-4
Illustrated table of contents


04.3.9/R50-D/V5


1. Speedometer (P.2-3)
2. Warning/indicator lights (P.2-9)
3. Tachometer (P.2-4)
4. Fuel gauge (P.2-5)5. Odometer/trip odometer (P.2-3)
6. Reset knobfor trip odometer (P.2-3)
7. Engine coolant temperature gauge (P.2-4)
SIC2018
METERS AND GAUGES
Illustrated table of contents
0-5


04.3.9/R50-D/V5


1. Fuse/Fusible link holder (P.8-24)
2. Power steering fluid reservoir (P.8-15)
3. Automatic transmission fluid dipstick (A/T
model) (P.8-14)
4. Engine oil filler cap (P.8-11)
5. Engine oil dipstick (P.8-11)
6. Brake fluid reservoir (P.8-16)
7. Clutch fluid reservoir (M/T model) (P.8-16)
8. Battery (P.8-18)
9. Windshield washer fluid reservoir (P.8-21)
10.Radiator cap (P.8-8)
11.Coolant reservoir (P.8-8)
12.Air cleaner (P.8-20)
SSI0016
ENGINE COMPARTMENT CHECK
LOCATIONS0-6
Illustrated table of contents


04.3.9/R50-D/V5

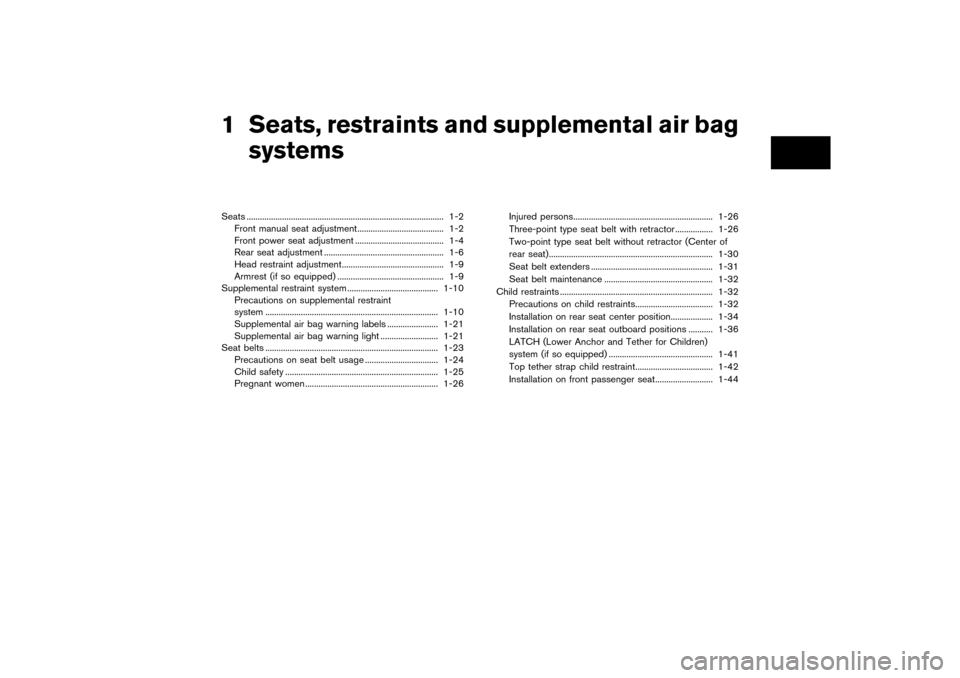

1 Seats, restraints and supplemental air bag
systemsSeats ......................................................................................... 1-2
Front manual seat adjustment....................................... 1-2
Front power seat adjustment ........................................ 1-4
Rear seat adjustment ...................................................... 1-6
Head restraint adjustment.............................................. 1-9
Armrest (if so equipped) ................................................ 1-9
Supplemental restraint system ......................................... 1-10
Precautions on supplemental restraint
system .............................................................................. 1-10
Supplemental air bag warning labels ....................... 1-21
Supplemental air bag warning light .......................... 1-21
Seat belts .............................................................................. 1-23
Precautions on seat belt usage ................................. 1-24
Child safety ..................................................................... 1-25
Pregnant women ............................................................ 1-26Injured persons............................................................... 1-26
Three-point type seat belt with retractor ................. 1-26
Two-point type seat belt without retractor (Center of
rear seat).......................................................................... 1-30
Seat belt extenders ....................................................... 1-31
Seat belt maintenance ................................................. 1-32
Child restraints ..................................................................... 1-32
Precautions on child restraints................................... 1-32
Installation on rear seat center position................... 1-34
Installation on rear seat outboard positions ........... 1-36
LATCH (Lower Anchor and Tether for Children)
system (if so equipped) ............................................... 1-41
Top tether strap child restraint................................... 1-42
Installation on front passenger seat.......................... 1-44


04.3.9/R50-D/V5


WARNING

Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap
belt and receive serious internal
injuries.
For most effective protection when
the vehicle is in motion, the seat
should be upright. Always sit well
back in the seat and adjust the seat
belt properly. See “Precautions on
seat belt usage” later in this section
for precautions on seat belt usage.
FRONT MANUAL SEAT
ADJUSTMENT
WARNING

Do not adjust the driver’s seat while
driving so full attention may be given
to vehicle operation. The seat may
move suddenly and could cause loss
of control of the vehicle.

After adjustment, gently rock in the
seat to make sure it is securely
locked.
See “Automatic seat positioner” in the “3. Pre-
driving checks and adjustments” for automatic
seat positioner operation.
SSS0133
SEATS1-2
Seats, restraints and supplemental air bag systems


04.3.9/R50-D/V5

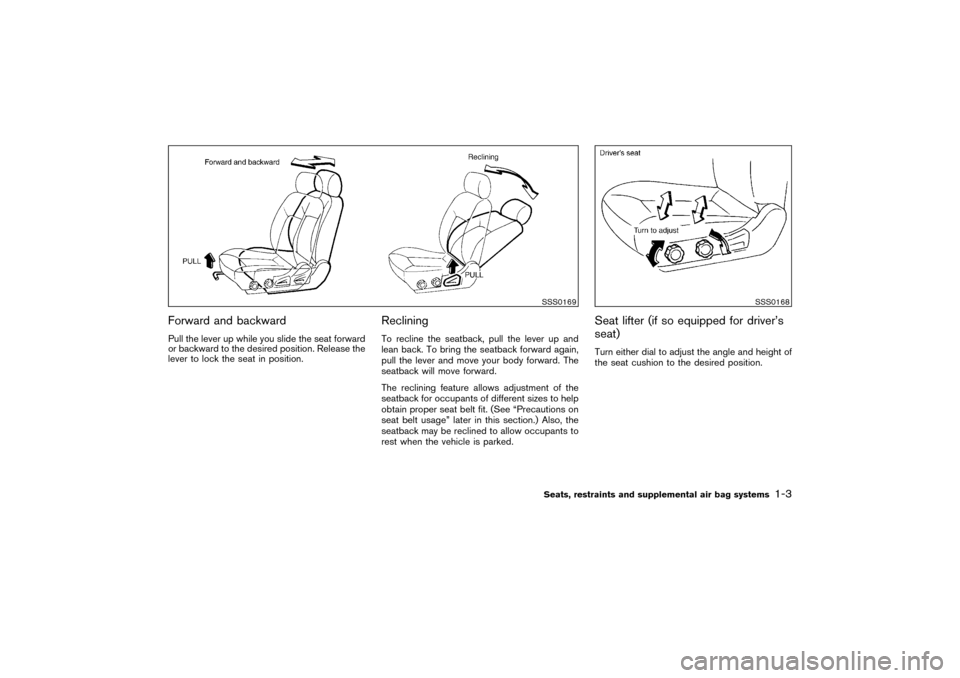

Forward and backwardPull the lever up while you slide the seat forward
or backward to the desired position. Release the
lever to lock the seat in position.
RecliningTo recline the seatback, pull the lever up and
lean back. To bring the seatback forward again,
pull the lever and move your body forward. The
seatback will move forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes to help
obtain proper seat belt fit. (See “Precautions on
seat belt usage” later in this section.) Also, the
seatback may be reclined to allow occupants to
rest when the vehicle is parked.
Seat lifter (if so equipped for driver’s
seat)Turn either dial to adjust the angle and height of
the seat cushion to the desired position.
SSS0169
SSS0168
Seats, restraints and supplemental air bag systems
1-3


04.3.9/R50-D/V5


Lumbar support (if so equipped for
driver’s seat)Turn the lever forward or backward to adjust the
seat lumbar area.
FRONT POWER SEAT
ADJUSTMENT
WARNING

Do not adjust the driver’s seat while
driving so full attention may be given
to vehicle operation.

Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls
which could cause a serious accident.Operating tips
The motor has an auto-reset overload protec-
tion circuit. If the motor stops during opera-
tion, wait 30 seconds, then reactivate the
switch.

Do not operate the power support seat for a
long period of time when the engine is off.
This will discharge the battery.
SPA0465
1-4
Seats, restraints and supplemental air bag systems


04.3.9/R50-D/V5
