2004 NISSAN PATHFINDER Owners Manual

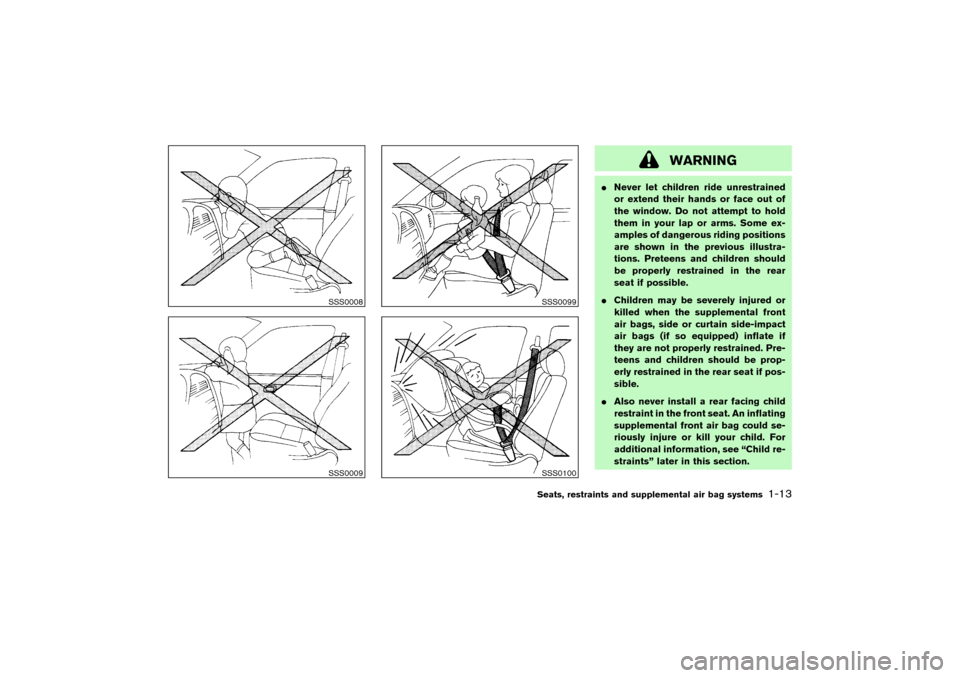

WARNING

Never let children ride unrestrained
or extend their hands or face out of
the window. Do not attempt to hold
them in your lap or arms. Some ex-
amples of dangerous riding positions
are shown in the previous illustra-
tions. Preteens and children should
be properly restrained in the rear
seat if possible.

Children may be severely injured or
killed when the supplemental front
air bags, side or curtain side-impact
air bags (if so equipped) inflate if
they are not properly restrained. Pre-
teens and children should be prop-
erly restrained in the rear seat if pos-
sible.

Also never install a rear facing child
restraint in the front seat. An inflating
supplemental front air bag could se-
riously injure or kill your child. For
additional information, see “Child re-
straints” later in this section.
SSS0008SSS0009
SSS0099SSS0100Seats, restraints and supplemental air bag systems
1-13


04.3.9/R50-D/V5

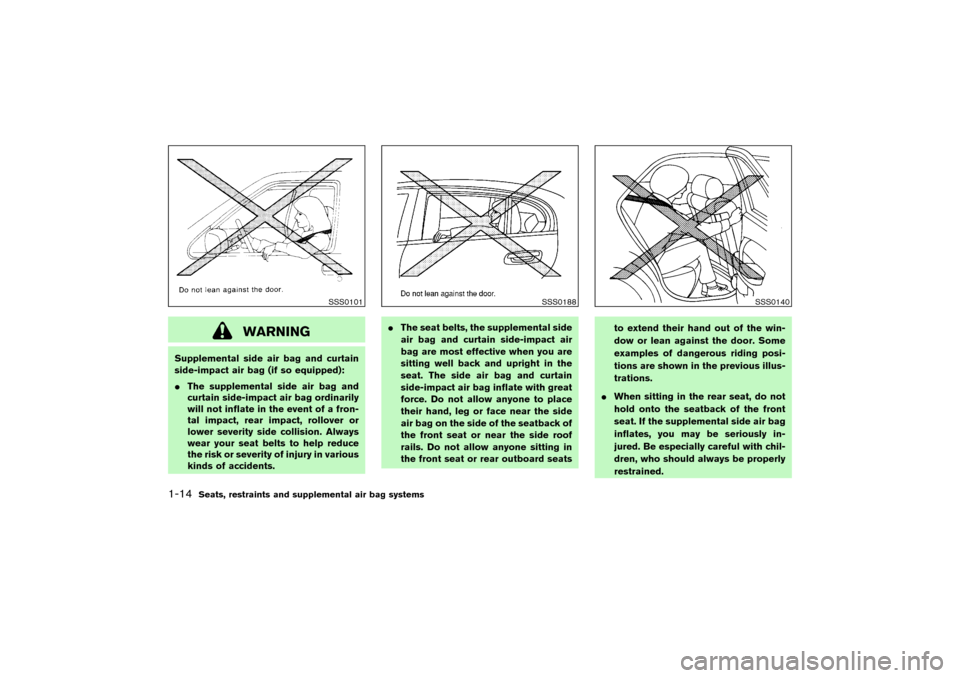

WARNING
Supplemental side air bag and curtain
side-impact air bag (if so equipped):

The supplemental side air bag and
curtain side-impact air bag ordinarily
will not inflate in the event of a fron-
tal impact, rear impact, rollover or
lower severity side collision. Always
wear your seat belts to help reduce
the risk or severity of injury in various
kinds of accidents.
The seat belts, the supplemental side
air bag and curtain side-impact air
bag are most effective when you are
sitting well back and upright in the
seat. The side air bag and curtain
side-impact air bag inflate with great
force. Do not allow anyone to place
their hand, leg or face near the side
air bag on the side of the seatback of
the front seat or near the side roof
rails. Do not allow anyone sitting in
the front seat or rear outboard seatsto extend their hand out of the win-
dow or lean against the door. Some
examples of dangerous riding posi-
tions are shown in the previous illus-
trations.

When sitting in the rear seat, do not
hold onto the seatback of the front
seat. If the supplemental side air bag
inflates, you may be seriously in-
jured. Be especially careful with chil-
dren, who should always be properly
restrained.
SSS0101
SSS0188
SSS0140
1-14
Seats, restraints and supplemental air bag systems


04.3.9/R50-D/V5

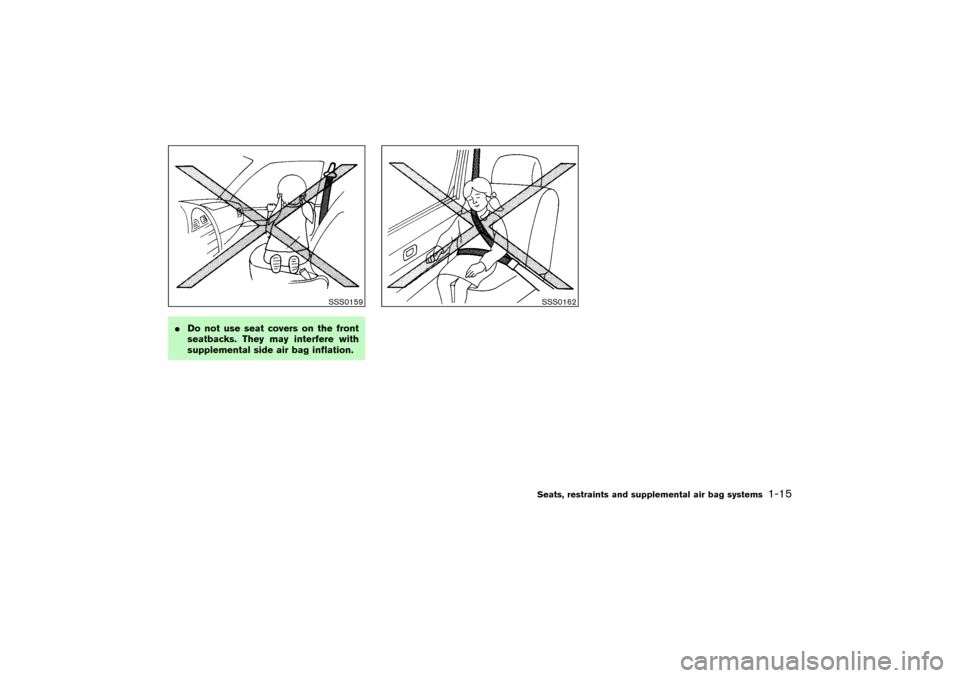

Do not use seat covers on the front
seatbacks. They may interfere with
supplemental side air bag inflation.
SSS0159
SSS0162Seats, restraints and supplemental air bag systems
1-15


04.3.9/R50-D/V5


1. Supplemental front air bag modules
2. Supplemental side air bag modules
3. Supplemental curtain side-impact air bags
4. Supplemental curtain side-impact air bag
modules5. Diagnosis sensor unit
6. Seat belt pre-tensioner retractor
7. Satellite sensors
Supplemental front air bag systemThe driver supplemental air bag is located in the
center of the steering wheel; the front passenger
supplemental air bag is mounted in the instru-
ment panel above the glove box. These systems
are designed to meet optional certification re-
quirements under U.S. regulations. They are also
permitted in Canada. The optional certification
allows front air bags to be designed to inflate
somewhat less forcefully than previously.How-
ever, all of the information, cautions and
warnings in this manual still apply and
must be followed.The front air bags are
designed to inflate in higher severity frontal
collisions, although they may inflate if the forces
in another type of collision are similar to those of
a higher severity frontal impact. They may not
inflate in certain frontal collisions. Vehicle dam-
age (or lack of it) is not always an indication of
proper supplemental air bag operation.
When the supplemental front air bag inflates, a
fairly loud noise may be heard, followed by
release of smoke. This smoke is not harmful and
does not indicate a fire. Care should be taken
not to inhale it, as it may cause irritation and
choking. Those with a history of a breathing
condition should get fresh air promptly.
Supplemental front air bags, along with the use
of seat belts, helps to cushion the impact force
SSS0197
1-16
Seats, restraints and supplemental air bag systems


04.3.9/R50-D/V5

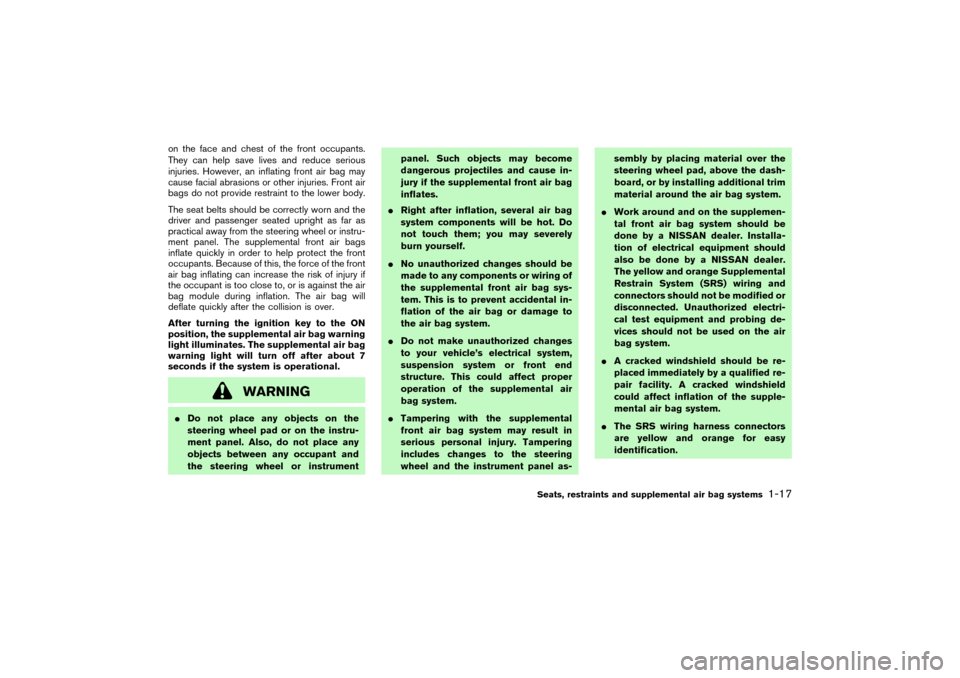

on the face and chest of the front occupants.
They can help save lives and reduce serious
injuries. However, an inflating front air bag may
cause facial abrasions or other injuries. Front air
bags do not provide restraint to the lower body.
The seat belts should be correctly worn and the
driver and passenger seated upright as far as
practical away from the steering wheel or instru-
ment panel. The supplemental front air bags
inflate quickly in order to help protect the front
occupants. Because of this, the force of the front
air bag inflating can increase the risk of injury if
the occupant is too close to, or is against the air
bag module during inflation. The air bag will
deflate quickly after the collision is over.
After turning the ignition key to the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the system is operational.
WARNING

Do not place any objects on the
steering wheel pad or on the instru-
ment panel. Also, do not place any
objects between any occupant and
the steering wheel or instrumentpanel. Such objects may become
dangerous projectiles and cause in-
jury if the supplemental front air bag
inflates.

Right after inflation, several air bag
system components will be hot. Do
not touch them; you may severely
burn yourself.

No unauthorized changes should be
made to any components or wiring of
the supplemental front air bag sys-
tem. This is to prevent accidental in-
flation of the air bag or damage to
the air bag system.

Do not make unauthorized changes
to your vehicle’s electrical system,
suspension system or front end
structure. This could affect proper
operation of the supplemental air
bag system.

Tampering with the supplemental
front air bag system may result in
serious personal injury. Tampering
includes changes to the steering
wheel and the instrument panel as-sembly by placing material over the
steering wheel pad, above the dash-
board, or by installing additional trim
material around the air bag system.

Work around and on the supplemen-
tal front air bag system should be
done by a NISSAN dealer. Installa-
tion of electrical equipment should
also be done by a NISSAN dealer.
The yellow and orange Supplemental
Restrain System (SRS) wiring and
connectors should not be modified or
disconnected. Unauthorized electri-
cal test equipment and probing de-
vices should not be used on the air
bag system.

A cracked windshield should be re-
placed immediately by a qualified re-
pair facility. A cracked windshield
could affect inflation of the supple-
mental air bag system.

The SRS wiring harness connectors
are yellow and orange for easy
identification.
Seats, restraints and supplemental air bag systems
1-17


04.3.9/R50-D/V5

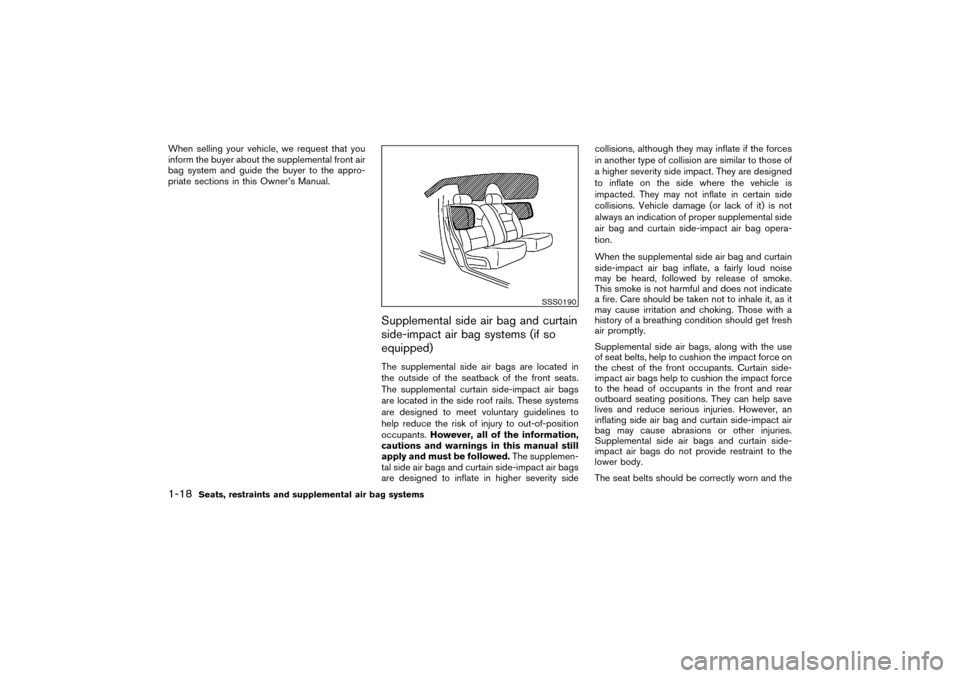

When selling your vehicle, we request that you
inform the buyer about the supplemental front air
bag system and guide the buyer to the appro-
priate sections in this Owner’s Manual.
Supplemental side air bag and curtain
side-impact air bag systems (if so
equipped)The supplemental side air bags are located in
the outside of the seatback of the front seats.
The supplemental curtain side-impact air bags
are located in the side roof rails. These systems
are designed to meet voluntary guidelines to
help reduce the risk of injury to out-of-position
occupants.However, all of the information,
cautions and warnings in this manual still
apply and must be followed.The supplemen-
tal side air bags and curtain side-impact air bags
are designed to inflate in higher severity sidecollisions, although they may inflate if the forces
in another type of collision are similar to those of
a higher severity side impact. They are designed
to inflate on the side where the vehicle is
impacted. They may not inflate in certain side
collisions. Vehicle damage (or lack of it) is not
always an indication of proper supplemental side
air bag and curtain side-impact air bag opera-
tion.
When the supplemental side air bag and curtain
side-impact air bag inflate, a fairly loud noise
may be heard, followed by release of smoke.
This smoke is not harmful and does not indicate
a fire. Care should be taken not to inhale it, as it
may cause irritation and choking. Those with a
history of a breathing condition should get fresh
air promptly.
Supplemental side air bags, along with the use
of seat belts, help to cushion the impact force on
the chest of the front occupants. Curtain side-
impact air bags help to cushion the impact force
to the head of occupants in the front and rear
outboard seating positions. They can help save
lives and reduce serious injuries. However, an
inflating side air bag and curtain side-impact air
bag may cause abrasions or other injuries.
Supplemental side air bags and curtain side-
impact air bags do not provide restraint to the
lower body.
The seat belts should be correctly worn and the
SSS0190
1-18
Seats, restraints and supplemental air bag systems


04.3.9/R50-D/V5

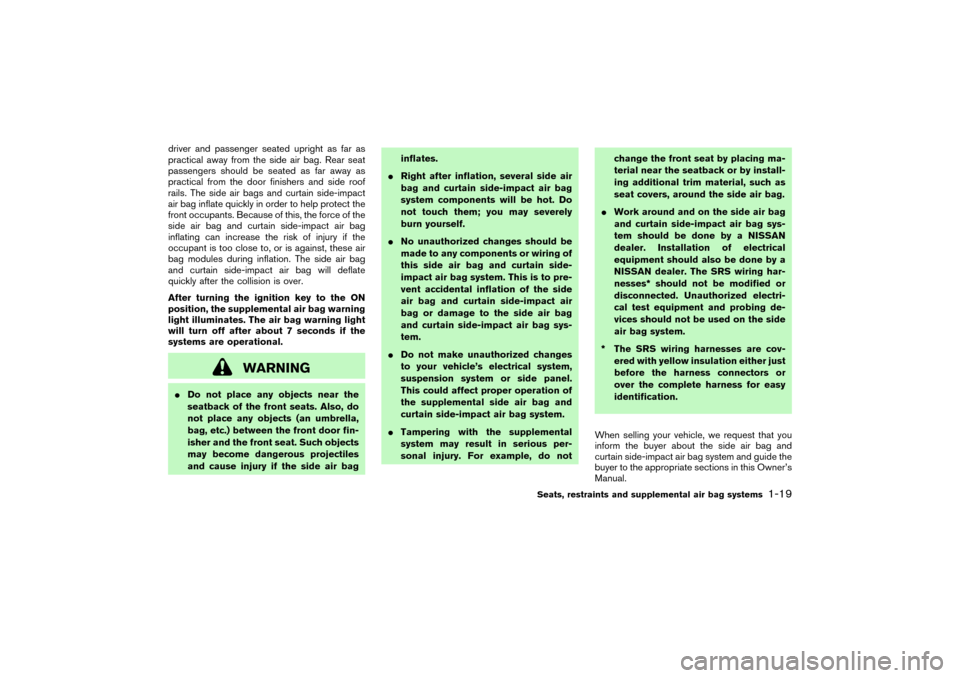

driver and passenger seated upright as far as
practical away from the side air bag. Rear seat
passengers should be seated as far away as
practical from the door finishers and side roof
rails. The side air bags and curtain side-impact
air bag inflate quickly in order to help protect the
front occupants. Because of this, the force of the
side air bag and curtain side-impact air bag
inflating can increase the risk of injury if the
occupant is too close to, or is against, these air
bag modules during inflation. The side air bag
and curtain side-impact air bag will deflate
quickly after the collision is over.
After turning the ignition key to the ON
position, the supplemental air bag warning
light illuminates. The air bag warning light
will turn off after about 7 seconds if the
systems are operational.
WARNING

Do not place any objects near the
seatback of the front seats. Also, do
not place any objects (an umbrella,
bag, etc.) between the front door fin-
isher and the front seat. Such objects
may become dangerous projectiles
and cause injury if the side air baginflates.

Right after inflation, several side air
bag and curtain side-impact air bag
system components will be hot. Do
not touch them; you may severely
burn yourself.

No unauthorized changes should be
made to any components or wiring of
this side air bag and curtain side-
impact air bag system. This is to pre-
vent accidental inflation of the side
air bag and curtain side-impact air
bag or damage to the side air bag
and curtain side-impact air bag sys-
tem.

Do not make unauthorized changes
to your vehicle’s electrical system,
suspension system or side panel.
This could affect proper operation of
the supplemental side air bag and
curtain side-impact air bag system.

Tampering with the supplemental
system may result in serious per-
sonal injury. For example, do notchange the front seat by placing ma-
terial near the seatback or by install-
ing additional trim material, such as
seat covers, around the side air bag.

Work around and on the side air bag
and curtain side-impact air bag sys-
tem should be done by a NISSAN
dealer. Installation of electrical
equipment should also be done by a
NISSAN dealer. The SRS wiring har-
nesses* should not be modified or
disconnected. Unauthorized electri-
cal test equipment and probing de-
vices should not be used on the side
air bag system.
* The SRS wiring harnesses are cov-
ered with yellow insulation either just
before the harness connectors or
over the complete harness for easy
identification.
When selling your vehicle, we request that you
inform the buyer about the side air bag and
curtain side-impact air bag system and guide the
buyer to the appropriate sections in this Owner’s
Manual.
Seats, restraints and supplemental air bag systems
1-19


04.3.9/R50-D/V5

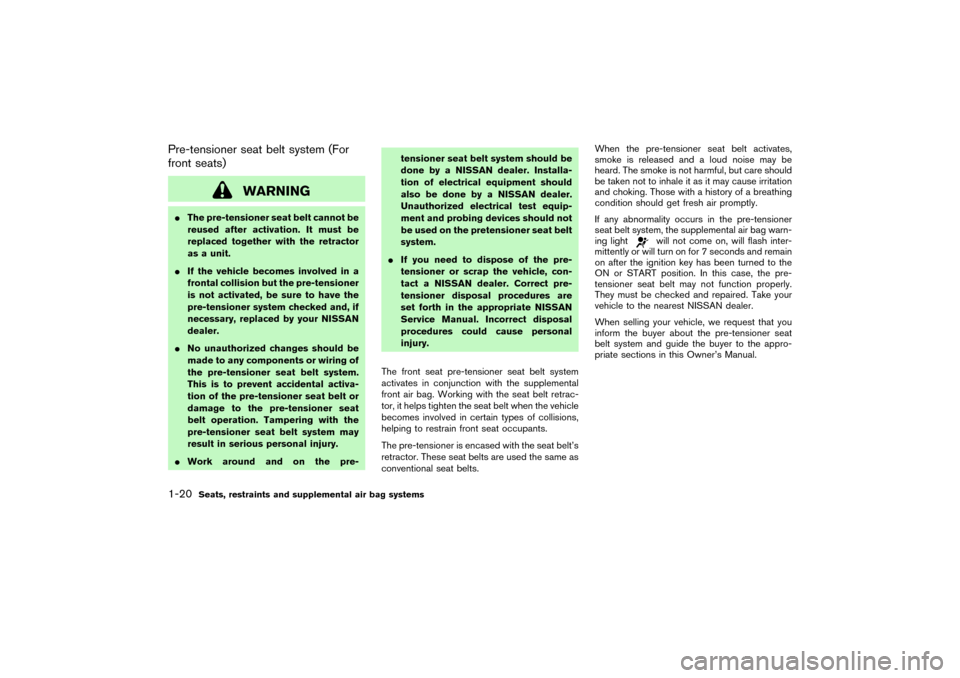

Pre-tensioner seat belt system (For
front seats)
WARNING

The pre-tensioner seat belt cannot be
reused after activation. It must be
replaced together with the retractor
as a unit.

If the vehicle becomes involved in a
frontal collision but the pre-tensioner
is not activated, be sure to have the
pre-tensioner system checked and, if
necessary, replaced by your NISSAN
dealer.

No unauthorized changes should be
made to any components or wiring of
the pre-tensioner seat belt system.
This is to prevent accidental activa-
tion of the pre-tensioner seat belt or
damage to the pre-tensioner seat
belt operation. Tampering with the
pre-tensioner seat belt system may
result in serious personal injury.

Work around and on the pre-tensioner seat belt system should be
done by a NISSAN dealer. Installa-
tion of electrical equipment should
also be done by a NISSAN dealer.
Unauthorized electrical test equip-
ment and probing devices should not
be used on the pretensioner seat belt
system.

If you need to dispose of the pre-
tensioner or scrap the vehicle, con-
tact a NISSAN dealer. Correct pre-
tensioner disposal procedures are
set forth in the appropriate NISSAN
Service Manual. Incorrect disposal
procedures could cause personal
injury.
The front seat pre-tensioner seat belt system
activates in conjunction with the supplemental
front air bag. Working with the seat belt retrac-
tor, it helps tighten the seat belt when the vehicle
becomes involved in certain types of collisions,
helping to restrain front seat occupants.
The pre-tensioner is encased with the seat belt’s
retractor. These seat belts are used the same as
conventional seat belts.When the pre-tensioner seat belt activates,
smoke is released and a loud noise may be
heard. The smoke is not harmful, but care should
be taken not to inhale it as it may cause irritation
and choking. Those with a history of a breathing
condition should get fresh air promptly.
If any abnormality occurs in the pre-tensioner
seat belt system, the supplemental air bag warn-
ing light
will not come on, will flash inter-
mittently or will turn on for 7 seconds and remain
on after the ignition key has been turned to the
ON or START position. In this case, the pre-
tensioner seat belt may not function properly.
They must be checked and repaired. Take your
vehicle to the nearest NISSAN dealer.
When selling your vehicle, we request that you
inform the buyer about the pre-tensioner seat
belt system and guide the buyer to the appro-
priate sections in this Owner’s Manual.
1-20
Seats, restraints and supplemental air bag systems


04.3.9/R50-D/V5
