thumbs on the outside of the rim.

Before operating the vehicle, ensure
that the driver and all passengers
have their seat belts fastened.

Always drive with the floor mats in
place as the floor may become hot.

Lower your speed when encountering
strong crosswinds. With a higher
center of gravity, your NISSAN is
more affected by strong side winds.
Slower speeds ensure better vehicle
control.

Do not drive beyond the performance
of the tires, even with 4WD engaged.
Accelerating quickly, sharp steering
maneuvers or sudden braking may
cause loss of control.

If at all possible, avoid sharp turning
maneuvers, particularly at high
speeds. Your NISSAN four wheel
drive vehicle has a higher center of
gravity than a two wheel drive ve-
hicle. The vehicle is not designed for
cornering at the same speeds as con-ventional two wheel drive vehicles.
Failure to operate this vehicle cor-
rectly could result in loss of control
and/or a roll over accident.

Always use tires of the same type,
size, brand, construction (bias, bias-
belted or radial), and tread pattern on
all four wheels. Install tire chains on
the rear wheels when driving on slip-
pery roads and drive carefully.

Be sure to check the brakes immedi-
ately after driving in mud or water.
See “Brake system” later in this sec-
tion for wet brakes.

Avoid parking your vehicle on steep
hills. If you get out of the vehicle and
it rolls forward, backward or side-
ways, you could be injured.

Whenever you drive off-road through
sand, mud or water as deep as the
wheel hub, more frequent mainte-
nance may be required. See “Peri-
odic maintenance” in the “Service
and Maintenance Guide”.
AUTOMATIC TRANSMISSIONOn automatic transmission models, the ignition
lock is designed so that the key cannot be
turned to LOCK and removed until the selector
lever is moved to the P (Park) position.
When removing the key from the ignition, make
sure the selector lever is in the P (Park) position.
If the selector lever is not returned to P (Park),
the key cannot be moved toward LOCK.
When the key cannot be turned toward the
LOCK position, proceed as follows to remove
the key:
SSD0083
IGNITION SWITCH
Starting and driving
5-7


04.3.9/R50-D/V5


1) Move the selector lever into the P (Park)
position.
2) Turn the ignition key slightly in the ON direc-
tion.
3) Turn the key toward the LOCK position.
4) Remove the key.
If the key is removed from the ignition switch, the
selector lever cannot be moved from P (Park).
The selector lever can be moved if the
ignition switch is in the ONposition and
the foot brake pedal is depressed.
There is an OFF position in between LOCK and
ACC, although it does not show on the lock
cylinder. When the ignition is in OFF the steering
wheel is not locked.
In order for the steering wheel to be locked, it
must be turned about 1/6 of a turn clockwise
from the straight up position.
To lock the steering wheel, turn the key to
the LOCK position. Remove the key. To
unlock the steering wheel, insert the key
and turn it gently while rotating the steer-
ing wheel slightly right and left.
WARNING
Never remove or turn the key to the
LOCK position while driving. The steer-
ing wheel will lock. This may cause the
driver to lose control of the vehicle and
could result in serious vehicle damage
or personal injury.

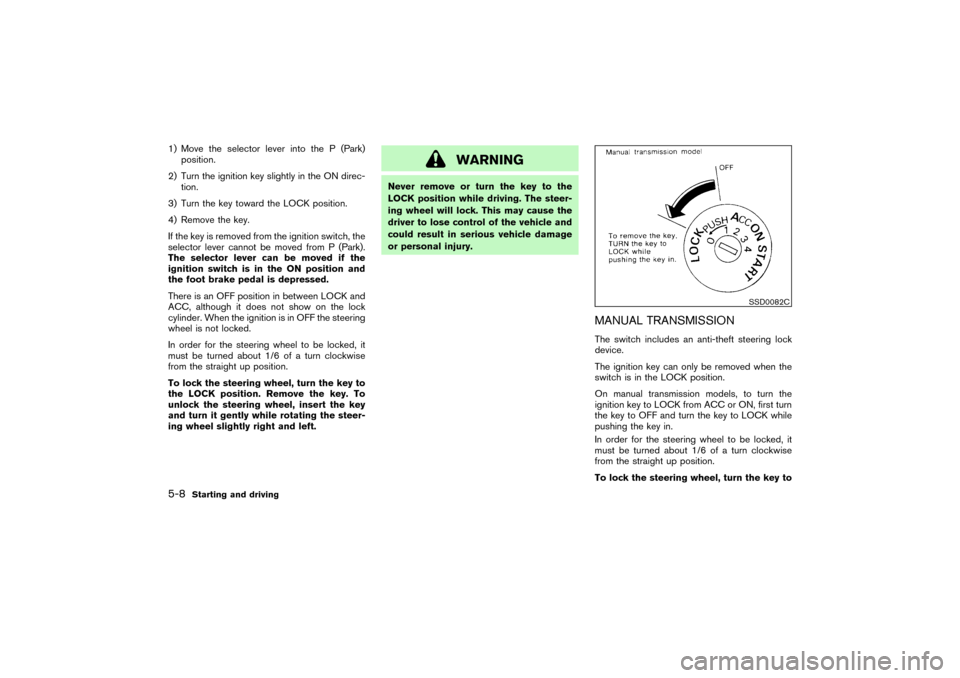

MANUAL TRANSMISSIONThe switch includes an anti-theft steering lock
device.
The ignition key can only be removed when the
switch is in the LOCK position.
On manual transmission models, to turn the
ignition key to LOCK from ACC or ON, first turn
the key to OFF and turn the key to LOCK while
pushing the key in.
In order for the steering wheel to be locked, it
must be turned about 1/6 of a turn clockwise
from the straight up position.
To lock the steering wheel, turn the key to
SSD0082C
5-8
Starting and driving


04.3.9/R50-D/V5


the LOCK position. Remove the key. To
unlock the steering wheel, insert the key
and turn it gently while rotating the steer-
ing wheel slightly right and left.
WARNING
Never remove or turn the key to the
LOCK position while driving. The steer-
ing wheel will lock. This may cause the
driver to lose control of the vehicle and
could result in serious vehicle damage

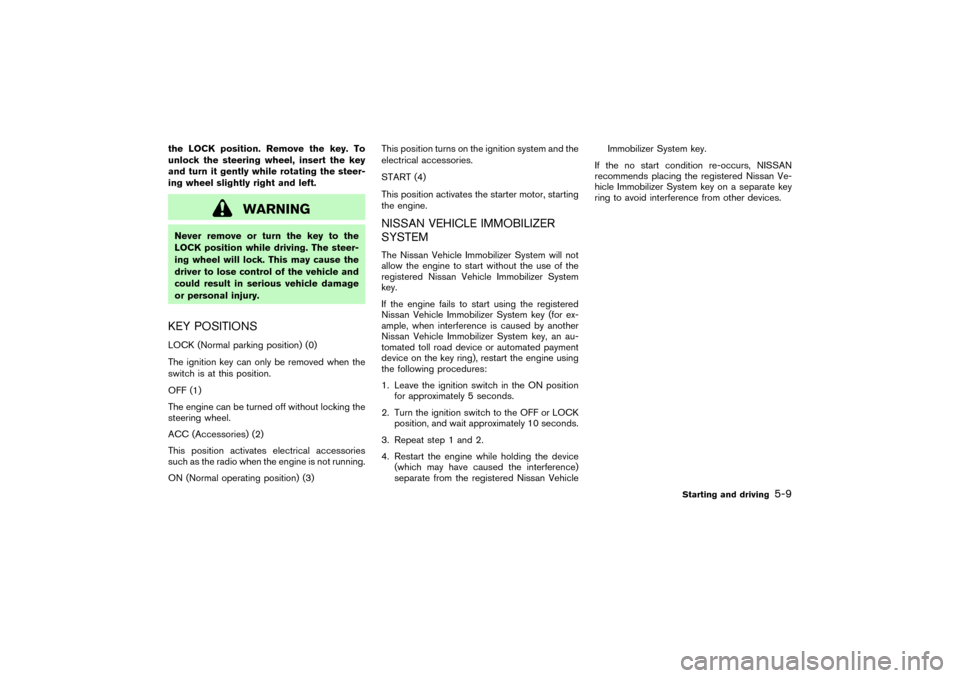

or personal injury.KEY POSITIONSLOCK (Normal parking position) (0)
The ignition key can only be removed when the
switch is at this position.
OFF (1)
The engine can be turned off without locking the
steering wheel.
ACC (Accessories) (2)
This position activates electrical accessories
such as the radio when the engine is not running.
ON (Normal operating position) (3)This position turns on the ignition system and the
electrical accessories.
START (4)
This position activates the starter motor, starting
the engine.
NISSAN VEHICLE IMMOBILIZER
SYSTEMThe Nissan Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered Nissan Vehicle Immobilizer System
key.
If the engine fails to start using the registered
Nissan Vehicle Immobilizer System key (for ex-
ample, when interference is caused by another
Nissan Vehicle Immobilizer System key, an au-
tomated toll road device or automated payment
device on the key ring), restart the engine using
the following procedures:
1. Leave the ignition switch in the ON position
for approximately 5 seconds.
2. Turn the ignition switch to the OFF or LOCK
position, and wait approximately 10 seconds.
3. Repeat step 1 and 2.
4. Restart the engine while holding the device
(which may have caused the interference)
separate from the registered Nissan VehicleImmobilizer System key.
If the no start condition re-occurs, NISSAN
recommends placing the registered Nissan Ve-
hicle Immobilizer System key on a separate key
ring to avoid interference from other devices.
Starting and driving
5-9


04.3.9/R50-D/V5


Make sure the area around the vehicle is
clear.

Check fluid levels such as engine oil, coolant,
brake and clutch fluid, window washer fluid
as frequently as possible, at least whenever
you refuel.

Check to be sure that all windows and light
lenses are clean.

Visually inspect tires for their appearance and
condition. Also check tires for proper infla-
tion.

Lock all doors.

Position seat and adjust head restraints.

Adjust inside and outside mirrors.

Fasten seat belts and ask all passengers to
do likewise.

Check the operation of warning lights when
key is turned to the ON (3) position.1. Apply the parking brake.
2.Automatic transmission:
Move the selector lever to P (Park position) or
N (Neutral position). (P preferred)
The selector lever cannot be moved out
of P and into any of the other gear
positions if the ignition key is turned to
LOCK or if the key is removed from the
switch.
The starter is designed not to operate if
the selector lever is in one of the driving
positions.
Manual transmission:
Move the gearshift lever to N (Neutral posi-
tion), and depress the clutch pedal to the
floor while starting the engine.
The starter is designed not to operate
unless the clutch pedal is fully de-
pressed.
3. Crank the enginewith your foot off the
accelerator pedalby turning the ignition
key to START. Release the key when the
engine starts. If the engine starts, but fails to
run, repeat the above procedure.

If the engine is very hard to start in extremely
cold weather or when restarting, depress theaccelerator pedal a little (approximately 1/3
to the floor) and hold it then crank the engine.
Release the key and the accelerator pedal
when the engine starts.

If the engine is very hard to start because it is
flooded, depress the accelerator pedal all the
way to the floor and hold it. Crank the engine
for 5 to 6 seconds. After cranking the engine,
release the accelerator pedal. Crank the en-
ginewith your foot off the accelerator
pedalby turning the ignition key to START.
Release the key when the engine starts. If the
engine starts, but fails to run, repeat the
above procedure.
CAUTION
Do not operate the starter for more than
15 seconds at a time. If the engine does
not start, turn the key off and wait 10
seconds before cranking again, other-
wise the starter could be damaged.
4.Warm-up
Always allow the engine to idle for at least 30
seconds after starting. Do not race the en-
gine while warming it up. Drive at moderate
speed for a short distance first, especially in
BEFORE STARTING THE ENGINE STARTING THE ENGINE5-10
Starting and driving


04.3.9/R50-D/V5


cold weather. In cold weather, keep the
engine running for a minimum of2-3minutes
before shutting it off. Starting and stopping
the engine over a short period of time may
make the vehicle more difficult to start.

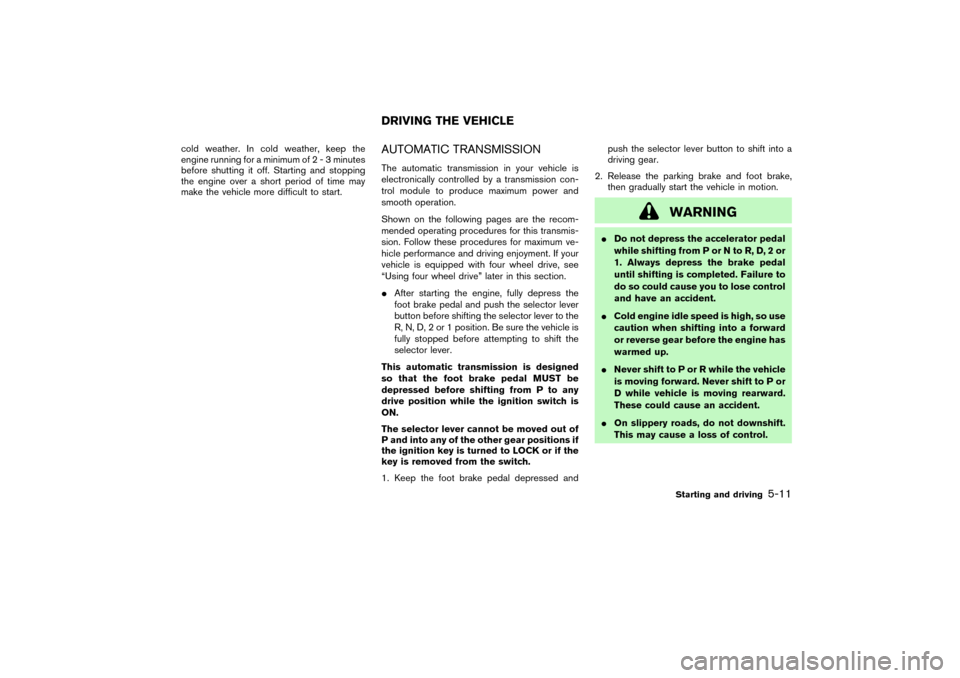

AUTOMATIC TRANSMISSIONThe automatic transmission in your vehicle is
electronically controlled by a transmission con-
trol module to produce maximum power and
smooth operation.
Shown on the following pages are the recom-
mended operating procedures for this transmis-
sion. Follow these procedures for maximum ve-
hicle performance and driving enjoyment. If your
vehicle is equipped with four wheel drive, see
“Using four wheel drive” later in this section.

After starting the engine, fully depress the
foot brake pedal and push the selector lever
button before shifting the selector lever to the
R, N, D, 2 or 1 position. Be sure the vehicle is
fully stopped before attempting to shift the
selector lever.
This automatic transmission is designed
so that the foot brake pedal MUST be
depressed before shifting from P to any
drive position while the ignition switch is
ON.
The selector lever cannot be moved out of
P and into any of the other gear positions if
the ignition key is turned to LOCK or if the
key is removed from the switch.
1. Keep the foot brake pedal depressed andpush the selector lever button to shift into a
driving gear.
2. Release the parking brake and foot brake,
then gradually start the vehicle in motion.
WARNING

Do not depress the accelerator pedal
while shifting from P or Nto R, D, 2 or
1. Always depress the brake pedal
until shifting is completed. Failure to
do so could cause you to lose control
and have an accident.

Cold engine idle speed is high, so use
caution when shifting into a forward
or reverse gear before the engine has
warmed up.

Never shift to P or R while the vehicle
is moving forward. Never shift to P or
D while vehicle is moving rearward.
These could cause an accident.

On slippery roads, do not downshift.
This may cause a loss of control.
DRIVING THE VEHICLE
Starting and driving
5-11


04.3.9/R50-D/V5


CAUTION
When stopping the vehicle on an uphill
grade, do not hold the vehicle by de-
pressing the accelerator pedal. The foot
brake should be used for this purpose.
ShiftingPush the button to shift into P, R or from D to 2.
All other positions can be selected without
pushing the button.
P (Park):
Use this selector position when the vehicle is
parked or when starting the engine. Make sure
the vehicle is completely stopped.The brake
pedal must be depressed and the selector
lever button pushed in to move the selec-
tor lever from N(Neutral) or any drive
position to P (Park).Apply the parking brake.
When parking on a hill, apply the parking brakefirst, then move the lever to the P (Park) position.
R (Reverse):
Use this position to back up. Always be sure the
vehicle is completely stopped before selecting R
(Reverse).The brake pedal must be de-
pressed and selector lever button pushed
in to move the selector lever from P (Park),
N(Neutral) or any drive position to R (Re-
verse).
N(Neutral):
Neither forward nor reverse gear is engaged.
The engine can be started in this position. You
may shift to N and restart a stalled engine while
the vehicle is moving.
D (Drive):
Use this position for all normal forward driving.
2 (Second gear):
Use for hill climbing, effective engine braking on
downhill grades or starting on slippery roads.
Do not downshift into the 2 position at speeds
over the following speeds and do not exceed the
following speeds in the 2 position:
Two wheel drive:
60 MPH (95 km/h)
SSD0092
5-12
Starting and driving


04.3.9/R50-D/V5


Four wheel drive:
(Part time)
2H and 4H positions 50 MPH (80 km/h)
4L position 19 MPH (30 km/h)
(All-mode)
2WD and AUTO positions
60 MPH (95 km/h)
4H position 50 MPH (80 km/h)
4LO position 22 MPH (35 km/h)
1 (Low gear):
Use this position when climbing steep hills
slowly or driving slowly through deep snow,
sand or mud, or for maximum engine braking on
steep downhill grades.
Do not shift into 1 position at speeds over the
following speeds:
Two wheel drive:
60 MPH (95 km/h)
Four wheel drive:
(Part time)
2H and 4H positions 50 MPH (80 km/h)
4L position 19 MPH (30 km/h)(All-mode)
2WD and AUTO positions
30 MPH (50 km/h)
4H position 30 MPH (50 km/h)
4LO position 10 MPH (15 km/h)
Do not exceed the following speeds in the 1
position:
Two wheel drive:
30 MPH (50 km/h)
Four wheel drive:
(Part time)
2H and 4H positions 30 MPH (50 km/h)
4L position 12 MPH (19 km/h)
(All-mode)
2WD and AUTO positions
30 MPH (50 km/h)
4H position 30 MPH (50 km/h)
4LO position 10 MPH (15 km/h)
SSD0212A
Starting and driving
5-13


04.3.9/R50-D/V5


Shift lock releaseIf the battery charge is low, the select lever may
not be moved from the P position even with the
brake pedal depressed and the select lever
button pushed.
To move the select lever, remove the shift lock
cover using a flat-bladed screwdriver, and push
the shift lock release button and select lever
button with the parking brake securely applied
and the brake pedal firmly depressed. The select
lever can be moved to N (Neutral).
To push the shift lock release button, follow the
procedure as illustrated.
If the lever cannot be moved out of P (Park) have
your NISSAN dealer check the automatic trans-
mission system as soon as possible.
WARNING
If the selector lever cannot be moved
from the P position while the engine is
running and the brake pedal is de-
pressed, the stop lights may not work.
Malfunctioning stop lights could cause
an accident injuring yourself and others.
Accelerator downshift
— In D position —For rapid passing or hill climbing, fully depress
the accelerator pedal to the floor. This shifts the
transmission down into second gear or first gear,
depending on the vehicle speed.
SSD0111B
5-14
Starting and driving


04.3.9/R50-D/V5
