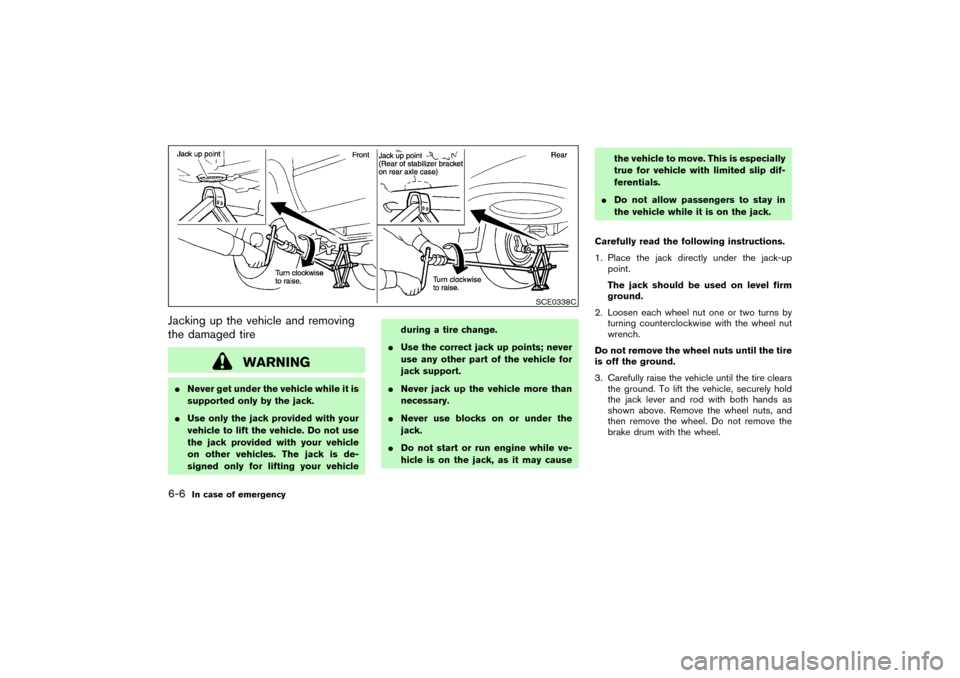

Jacking up the vehicle and removing
the damaged tire
WARNING
Never get under the vehicle while it is
supported only by the jack.
Use only the jack provided with your
vehicle to lift the vehicle. Do not use
the jack provided with your vehicle
on other vehicles. The jack is de-
signed only for lifting your vehicleduring a tire change.
Use the correct jack up points; never
use any other part of the vehicle for
jack support.
Never jack up the vehicle more than
necessary.
Never use blocks on or under the
jack.
Do not start or run engine while ve-
hicle is on the jack, as it may causethe vehicle to move. This is especially
true for vehicle with limited slip dif-
ferentials.
Do not allow passengers to stay in
the vehicle while it is on the jack.
Carefully read the following instructions.
1. Place the jack directly under the jack-up
point.
The jack should be used on level firm
ground.
2. Loosen each wheel nut one or two turns by
turning counterclockwise with the wheel nut
wrench.
Do not remove the wheel nuts until the tire
is off the ground.
3. Carefully raise the vehicle until the tire clears
the ground. To lift the vehicle, securely hold
the jack lever and rod with both hands as
shown above. Remove the wheel nuts, and
then remove the wheel. Do not remove the
brake drum with the wheel.
SCE0338C
6-6
In case of emergency
04.3.9/R50-D/V5
