2004 NISSAN PATHFINDER Control

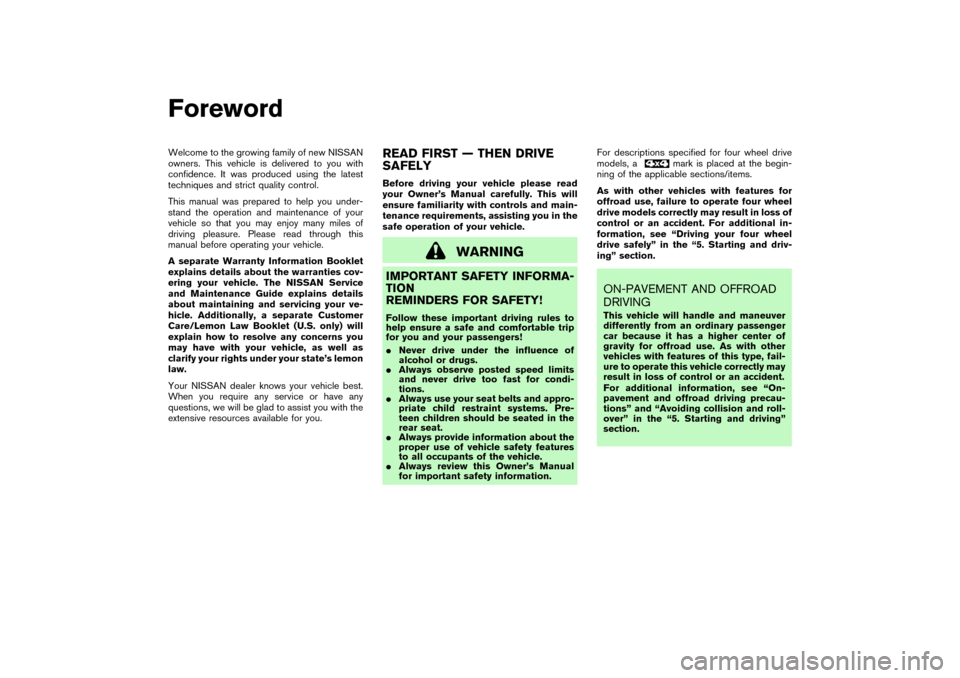

ForewordWelcome to the growing family of new NISSAN
owners. This vehicle is delivered to you with
confidence. It was produced using the latest
techniques and strict quality control.
This manual was prepared to help you under-
stand the operation and maintenance of your
vehicle so that you may enjoy many miles of
driving pleasure. Please read through this
manual before operating your vehicle.
A separate Warranty Information Booklet
explains details about the warranties cov-
ering your vehicle. The NISSAN Service
and Maintenance Guide explains details
about maintaining and servicing your ve-
hicle. Additionally, a separate Customer
Care/Lemon Law Booklet (U.S. only) will
explain how to resolve any concerns you
may have with your vehicle, as well as
clarify your rights under your state’s lemon
law.
Your NISSAN dealer knows your vehicle best.
When you require any service or have any
questions, we will be glad to assist you with the
extensive resources available for you.
READ FIRST — THENDRIVE
SAFELYBefore driving your vehicle please read
your Owner’s Manual carefully. This will
ensure familiarity with controls and main-
tenance requirements, assisting you in the
safe operation of your vehicle.
WARNING
IMPORTANT SAFETY INFORMA-
TION
REMINDERS FOR SAFETY!Follow these important driving rules to
help ensure a safe and comfortable trip
for you and your passengers!

Never drive under the influence of
alcohol or drugs.

Always observe posted speed limits
and never drive too fast for condi-
tions.

Always use your seat belts and appro-
priate child restraint systems. Pre-
teen children should be seated in the
rear seat.

Always provide information about the
proper use of vehicle safety features
to all occupants of the vehicle.

Always review this Owner’s Manual
for important safety information.For descriptions specified for four wheel drive
models, a
mark is placed at the begin-
ning of the applicable sections/items.
As with other vehicles with features for
offroad use, failure to operate four wheel
drive models correctly may result in loss of
control or an accident. For additional in-
formation, see “Driving your four wheel
drive safely” in the “5. Starting and driv-
ing” section.
ON-PAVEMENT AND OFFROAD
DRIVINGThis vehicle will handle and maneuver
differently from an ordinary passenger
car because it has a higher center of
gravity for offroad use. As with other
vehicles with features of this type, fail-
ure to operate this vehicle correctly may
result in loss of control or an accident.
For additional information, see “On-
pavement and offroad driving precau-
tions” and “Avoiding collision and roll-
over” in the “5. Starting and driving”
section.


04.3.9/R50-D/V5

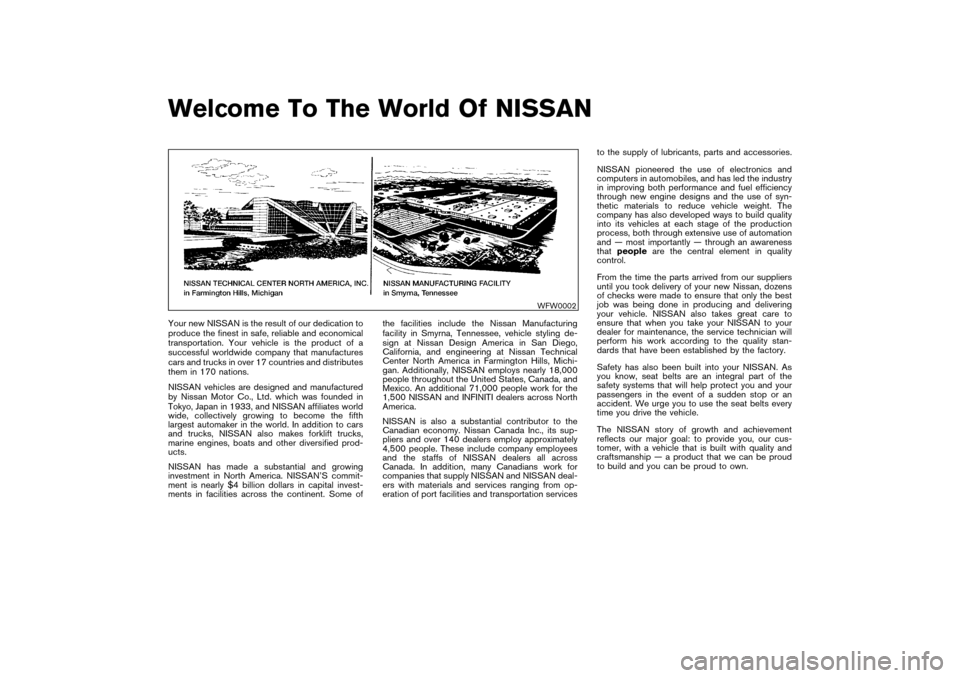

Welcome To The World Of NISSANYour new NISSAN is the result of our dedication to
produce the finest in safe, reliable and economical
transportation. Your vehicle is the product of a
successful worldwide company that manufactures
cars and trucks in over 17 countries and distributes
them in 170 nations.
NISSAN vehicles are designed and manufactured
by Nissan Motor Co., Ltd. which was founded in
Tokyo, Japan in 1933, and NISSAN affiliates world
wide, collectively growing to become the fifth
largest automaker in the world. In addition to cars
and trucks, NISSAN also makes forklift trucks,
marine engines, boats and other diversified prod-
ucts.
NISSAN has made a substantial and growing
investment in North America. NISSAN’S commit-
ment is nearly $4 billion dollars in capital invest-
ments in facilities across the continent. Some ofthe facilities include the Nissan Manufacturing
facility in Smyrna, Tennessee, vehicle styling de-
sign at Nissan Design America in San Diego,
California, and engineering at Nissan Technical
Center North America in Farmington Hills, Michi-
gan. Additionally, NISSAN employs nearly 18,000
people throughout the United States, Canada, and
Mexico. An additional 71,000 people work for the
1,500 NISSAN and INFINITI dealers across North
America.
NISSAN is also a substantial contributor to the
Canadian economy. Nissan Canada Inc., its sup-
pliers and over 140 dealers employ approximately
4,500 people. These include company employees
and the staffs of NISSAN dealers all across
Canada. In addition, many Canadians work for
companies that supply NISSAN and NISSAN deal-
ers with materials and services ranging from op-
eration of port facilities and transportation servicesto the supply of lubricants, parts and accessories.
NISSAN pioneered the use of electronics and
computers in automobiles, and has led the industry
in improving both performance and fuel efficiency
through new engine designs and the use of syn-
thetic materials to reduce vehicle weight. The
company has also developed ways to build quality
into its vehicles at each stage of the production
process, both through extensive use of automation
and — most importantly — through an awareness
thatpeopleare the central element in quality
control.
From the time the parts arrived from our suppliers
until you took delivery of your new Nissan, dozens
of checks were made to ensure that only the best
jobwas being done in producing and delivering
your vehicle. NISSAN also takes great care to
ensure that when you take your NISSAN to your
dealer for maintenance, the service technician will
perform his work according to the quality stan-
dards that have been established by the factory.
Safety has also been built into your NISSAN. As
you know, seat belts are an integral part of the
safety systems that will help protect you and your
passengers in the event of a sudden stop or an
accident. We urge you to use the seat belts every
time you drive the vehicle.
The NISSAN story of growth and achievement
reflects our major goal: to provide you, our cus-
tomer, with a vehicle that is built with quality and
craftsmanship — a product that we can be proud
to build and you can be proud to own.
WFW0002


04.3.9/R50-D/V5

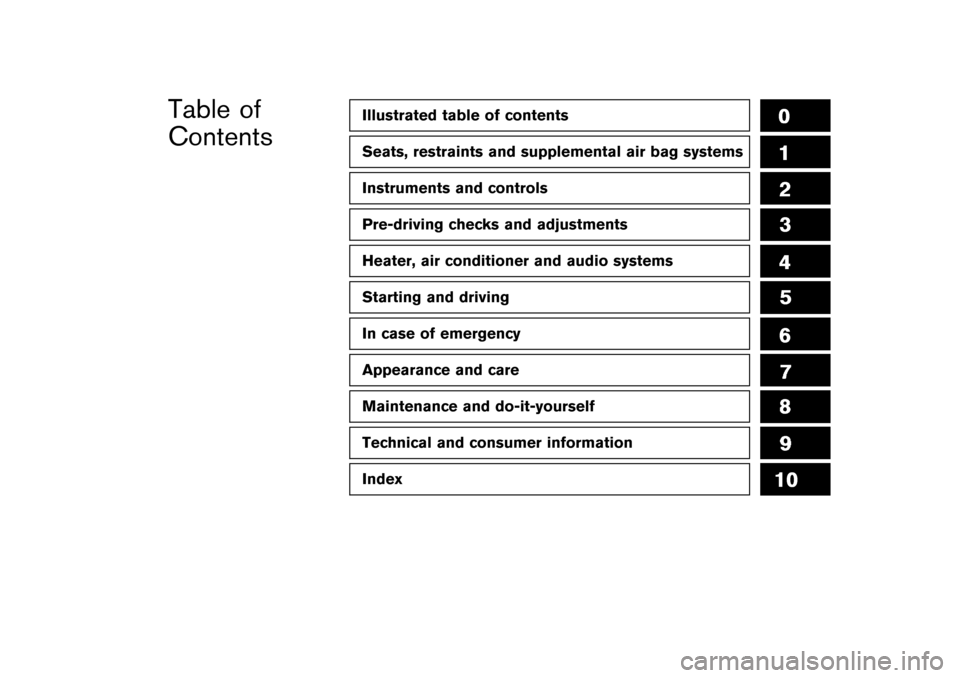

Table of
Contents
Illustrated table of contentsSeats, restraints and supplemental air bag systemsInstruments and controlsPre-driving checks and adjustmentsHeater, air conditioner and audio systemsStarting and drivingIn case of emergencyAppearance and careMaintenance and do-it-yourselfTechnical and consumer informationIndex


04.3.9/R50-D/V5

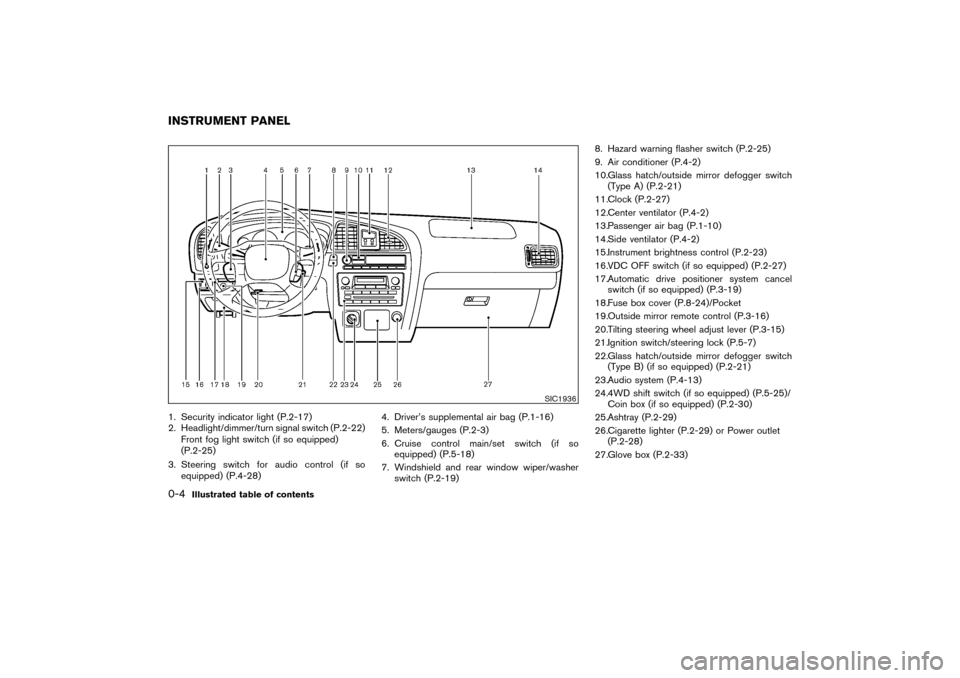

1. Security indicator light (P.2-17)
2. Headlight/dimmer/turn signal switch (P.2-22)
Front fog light switch (if so equipped)
(P.2-25)
3. Steering switch for audio control (if so
equipped) (P.4-28)4. Driver’s supplemental air bag (P.1-16)
5. Meters/gauges (P.2-3)
6. Cruise control main/set switch (if so
equipped) (P.5-18)
7. Windshield and rear window wiper/washer
switch (P.2-19)8. Hazard warning flasher switch (P.2-25)
9. Air conditioner (P.4-2)
10.Glass hatch/outside mirror defogger switch
(Type A) (P.2-21)
11.Clock (P.2-27)
12.Center ventilator (P.4-2)
13.Passenger air bag (P.1-10)
14.Side ventilator (P.4-2)
15.Instrument brightness control (P.2-23)
16.VDC OFF switch (if so equipped) (P.2-27)
17.Automatic drive positioner system cancel
switch (if so equipped) (P.3-19)
18.Fuse box cover (P.8-24)/Pocket
19.Outside mirror remote control (P.3-16)
20.Tilting steering wheel adjust lever (P.3-15)
21.Ignition switch/steering lock (P.5-7)
22.Glass hatch/outside mirror defogger switch
(Type B) (if so equipped) (P.2-21)
23.Audio system (P.4-13)
24.4WD shift switch (if so equipped) (P.5-25)/
Coin box (if so equipped) (P.2-30)
25.Ashtray (P.2-29)
26.Cigarette lighter (P.2-29) or Power outlet
(P.2-28)
27.Glove box (P.2-33)
SIC1936
INSTRUMENT PANEL0-4
Illustrated table of contents


04.3.9/R50-D/V5

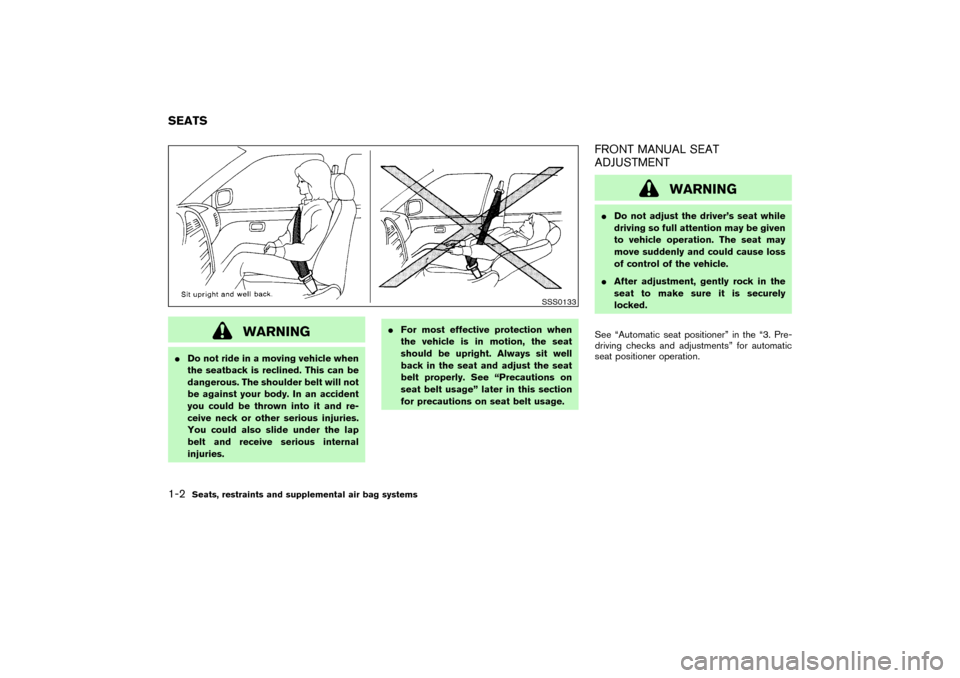

WARNING

Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap
belt and receive serious internal
injuries.
For most effective protection when
the vehicle is in motion, the seat
should be upright. Always sit well
back in the seat and adjust the seat
belt properly. See “Precautions on
seat belt usage” later in this section
for precautions on seat belt usage.
FRONT MANUAL SEAT
ADJUSTMENT
WARNING

Do not adjust the driver’s seat while
driving so full attention may be given
to vehicle operation. The seat may
move suddenly and could cause loss
of control of the vehicle.

After adjustment, gently rock in the
seat to make sure it is securely
locked.
See “Automatic seat positioner” in the “3. Pre-
driving checks and adjustments” for automatic
seat positioner operation.
SSS0133
SEATS1-2
Seats, restraints and supplemental air bag systems


04.3.9/R50-D/V5

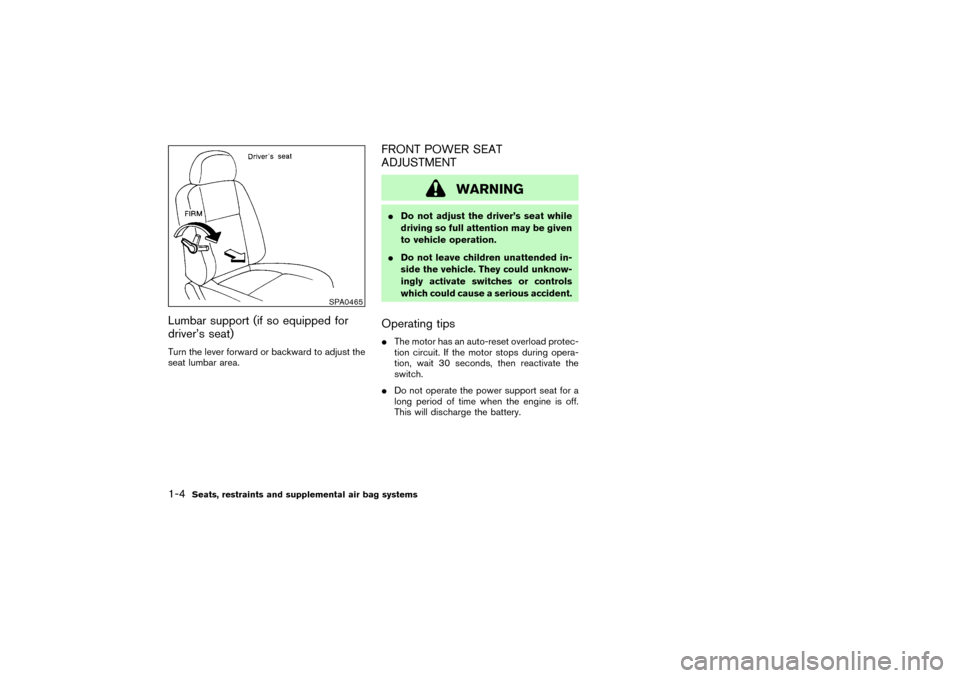

Lumbar support (if so equipped for
driver’s seat)Turn the lever forward or backward to adjust the
seat lumbar area.
FRONT POWER SEAT
ADJUSTMENT
WARNING

Do not adjust the driver’s seat while
driving so full attention may be given
to vehicle operation.

Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls
which could cause a serious accident.Operating tips
The motor has an auto-reset overload protec-
tion circuit. If the motor stops during opera-
tion, wait 30 seconds, then reactivate the
switch.

Do not operate the power support seat for a
long period of time when the engine is off.
This will discharge the battery.
SPA0465
1-4
Seats, restraints and supplemental air bag systems


04.3.9/R50-D/V5

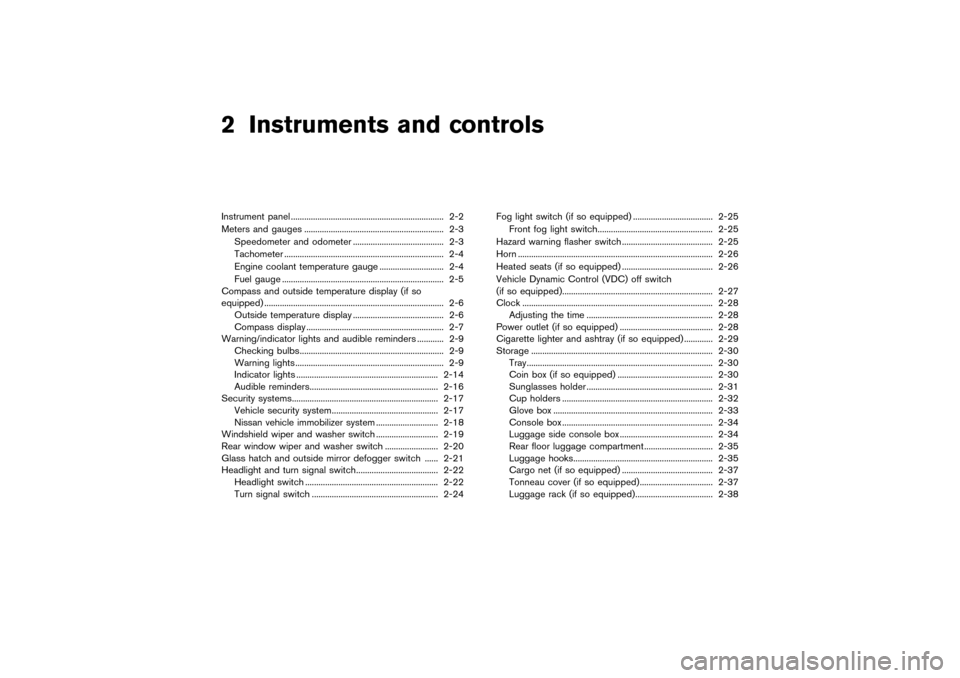

2 Instruments and controlsInstrument panel ..................................................................... 2-2
Meters and gauges ............................................................... 2-3
Speedometer and odometer ......................................... 2-3
Tachometer ........................................................................ 2-4
Engine coolant temperature gauge ............................. 2-4
Fuel gauge ......................................................................... 2-5
Compass and outside temperature display (if so
equipped) ................................................................................. 2-6
Outside temperature display ......................................... 2-6
Compass display .............................................................. 2-7
Warning/indicator lights and audible reminders ............ 2-9
Checking bulbs................................................................. 2-9
Warning lights ................................................................... 2-9
Indicator lights ................................................................ 2-14
Audible reminders.......................................................... 2-16
Security systems.................................................................. 2-17
Vehicle security system................................................ 2-17
Nissan vehicle immobilizer system ............................ 2-18
Windshield wiper and washer switch ............................ 2-19
Rear window wiper and washer switch ........................ 2-20
Glass hatch and outside mirror defogger switch ...... 2-21
Headlight and turn signal switch..................................... 2-22
Headlight switch ............................................................ 2-22
Turn signal switch ......................................................... 2-24Fog light switch (if so equipped) .................................... 2-25
Front fog light switch.................................................... 2-25
Hazard warning flasher switch ......................................... 2-25
Horn ........................................................................................ 2-26
Heated seats (if so equipped) ......................................... 2-26
Vehicle Dynamic Control (VDC) off switch
(if so equipped).................................................................... 2-27
Clock ...................................................................................... 2-28
Adjusting the time ......................................................... 2-28
Power outlet (if so equipped) .......................................... 2-28
Cigarette lighter and ashtray (if so equipped) ............. 2-29
Storage .................................................................................. 2-30
Tray.................................................................................... 2-30
Coin box (if so equipped) ........................................... 2-30
Sunglasses holder ......................................................... 2-31
Cup holders .................................................................... 2-32
Glove box ........................................................................ 2-33
Console box .................................................................... 2-34
Luggage side console box .......................................... 2-34
Rear floor luggage compartment............................... 2-35
Luggage hooks............................................................... 2-35
Cargo net (if so equipped) ......................................... 2-37
Tonneau cover (if so equipped)................................. 2-37
Luggage rack (if so equipped)................................... 2-38


04.3.9/R50-D/V5


1. Security indicator light (P.2-17)
2. Headlight/dimmer/turn signal switch (P.2-22)
Front fog light switch (if so equipped)
(P.2-25)
3. Steering switch for audio control (if so
equipped) (P.4-28)4. Driver’s supplemental air bag (P.1-16)
5. Meters/gauges (P.2-3)
6. Cruise control main/set switch
(if so equipped) (P.5-18)
7. Windshield and rear window wiper/washer
switch (P.2-19)8. Hazard warning flasher switch (P.2-25)
9. Air conditioner (P.4-2)
10.Glass hatch/outside mirror defogger switch
(Type A) (P.2-21)
11.Clock (P.2-27)
12.Center ventilator (P.4-2)
13.Passenger air bag (P.1-10)
14.Side ventilator (P.4-2)
15.Instrument brightness control (P.2-23)
16.VDC OFF switch (if so equipped) (P.2-27)
17.Automatic drive positioner system cancel
switch (if so equipped) (P.3-19)
18.Fuse box cover (P.8-24)/Pocket
19.Outside mirror remote control (P.3-16)
20.Tilting steering wheel adjust lever (P.3-15)
21.Ignition switch/steering lock (P.5-7)
22.Glass hatch/outside mirror defogger switch
(Type B) (if so equipped) (P.2-21)
23.Audio system (P.4-13)
24.4WD shift switch (if so equipped) (P.5-25)/
Coin box (if so equipped) (P.2-30)
25.Ashtray (if so equipped) (P.2-29)
26.Cigarette lighter (P.2-29) or Power outlet
(P.2-28)
27.Glove box (P.2-33)
See the page indicated in parentheses for
operating details.
SIC1936
INSTRUMENT PANEL2-2
Instruments and controls


04.3.9/R50-D/V5
