2004 NISSAN PATHFINDER Owners Manual

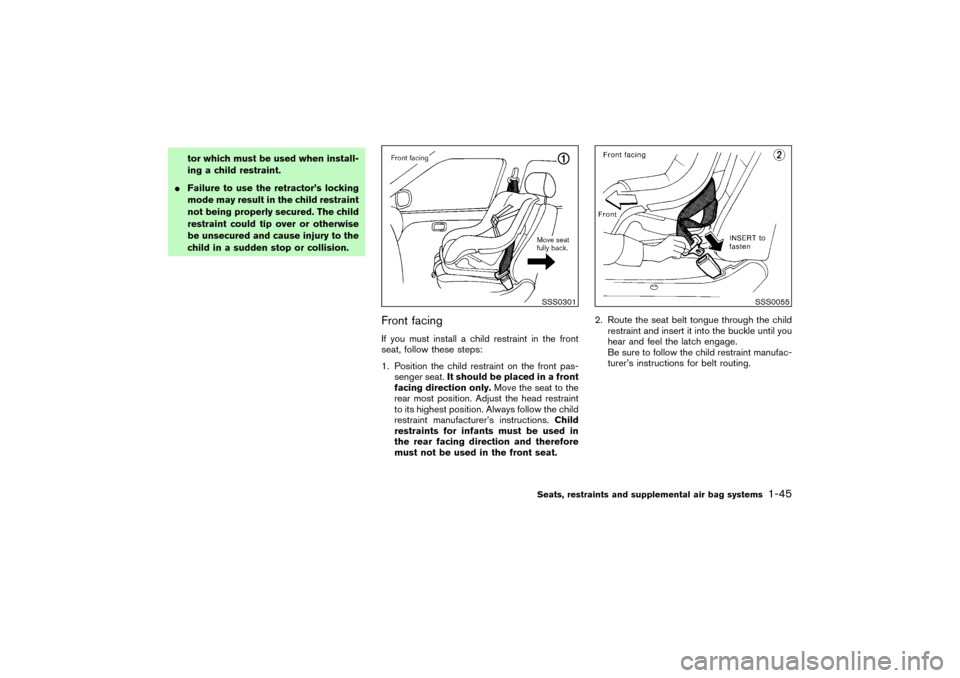

tor which must be used when install-
ing a child restraint.

Failure to use the retractor’s locking
mode may result in the child restraint
not being properly secured. The child
restraint could tip over or otherwise
be unsecured and cause injury to the
child in a sudden stop or collision.
Front facingIf you must install a child restraint in the front
seat, follow these steps:
1. Position the child restraint on the front pas-
senger seat.It should be placed in a front
facing direction only.Move the seat to the
rear most position. Adjust the head restraint
to its highest position. Always follow the child
restraint manufacturer’s instructions.Child
restraints for infants must be used in
the rear facing direction and therefore
must not be used in the front seat.2. Route the seat belt tongue through the child
restraint and insert it into the buckle until you
hear and feel the latch engage.
Be sure to follow the child restraint manufac-
turer’s instructions for belt routing.
SSS0301
SSS0055
Seats, restraints and supplemental air bag systems
1-45


04.3.9/R50-D/V5

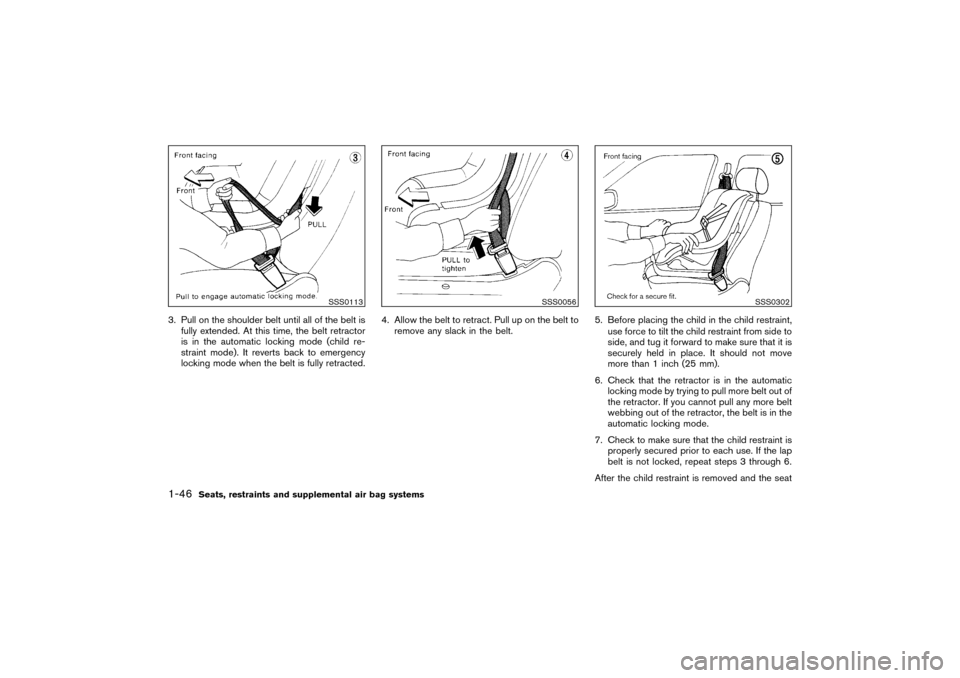

3. Pull on the shoulder belt until all of the belt is
fully extended. At this time, the belt retractor
is in the automatic locking mode (child re-
straint mode). It reverts back to emergency
locking mode when the belt is fully retracted.4. Allow the belt to retract. Pull up on the belt to
remove any slack in the belt.5. Before placing the child in the child restraint,
use force to tilt the child restraint from side to
side, and tug it forward to make sure that it is
securely held in place. It should not move
more than 1 inch (25 mm).
6. Check that the retractor is in the automatic
locking mode by trying to pull more belt out of
the retractor. If you cannot pull any more belt
webbing out of the retractor, the belt is in the
automatic locking mode.
7. Check to make sure that the child restraint is
properly secured prior to each use. If the lap
belt is not locked, repeat steps 3 through 6.
After the child restraint is removed and the seat
SSS0113
SSS0056
SSS0302
1-46
Seats, restraints and supplemental air bag systems


04.3.9/R50-D/V5

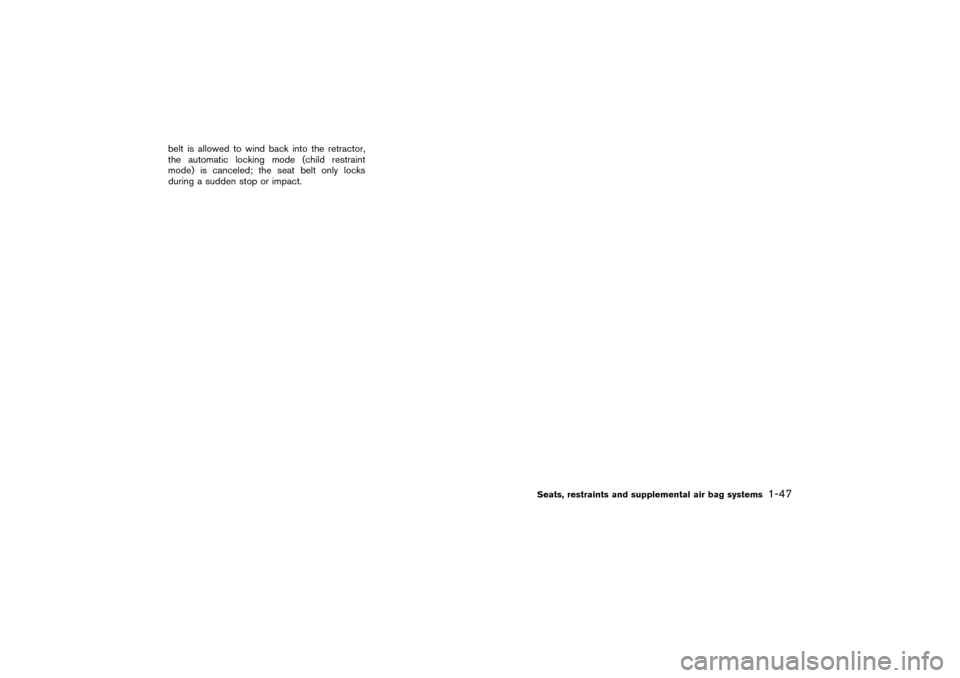

belt is allowed to wind back into the retractor,
the automatic locking mode (child restraint
mode) is canceled; the seat belt only locks
during a sudden stop or impact.
Seats, restraints and supplemental air bag systems
1-47


04.3.9/R50-D/V5


2 Instruments and controlsInstrument panel ..................................................................... 2-2
Meters and gauges ............................................................... 2-3
Speedometer and odometer ......................................... 2-3
Tachometer ........................................................................ 2-4
Engine coolant temperature gauge ............................. 2-4
Fuel gauge ......................................................................... 2-5
Compass and outside temperature display (if so
equipped) ................................................................................. 2-6
Outside temperature display ......................................... 2-6
Compass display .............................................................. 2-7
Warning/indicator lights and audible reminders ............ 2-9
Checking bulbs................................................................. 2-9
Warning lights ................................................................... 2-9
Indicator lights ................................................................ 2-14
Audible reminders.......................................................... 2-16
Security systems.................................................................. 2-17
Vehicle security system................................................ 2-17
Nissan vehicle immobilizer system ............................ 2-18
Windshield wiper and washer switch ............................ 2-19
Rear window wiper and washer switch ........................ 2-20
Glass hatch and outside mirror defogger switch ...... 2-21
Headlight and turn signal switch..................................... 2-22
Headlight switch ............................................................ 2-22
Turn signal switch ......................................................... 2-24Fog light switch (if so equipped) .................................... 2-25
Front fog light switch.................................................... 2-25
Hazard warning flasher switch ......................................... 2-25
Horn ........................................................................................ 2-26
Heated seats (if so equipped) ......................................... 2-26
Vehicle Dynamic Control (VDC) off switch
(if so equipped).................................................................... 2-27
Clock ...................................................................................... 2-28
Adjusting the time ......................................................... 2-28
Power outlet (if so equipped) .......................................... 2-28
Cigarette lighter and ashtray (if so equipped) ............. 2-29
Storage .................................................................................. 2-30
Tray.................................................................................... 2-30
Coin box (if so equipped) ........................................... 2-30
Sunglasses holder ......................................................... 2-31
Cup holders .................................................................... 2-32
Glove box ........................................................................ 2-33
Console box .................................................................... 2-34
Luggage side console box .......................................... 2-34
Rear floor luggage compartment............................... 2-35
Luggage hooks............................................................... 2-35
Cargo net (if so equipped) ......................................... 2-37
Tonneau cover (if so equipped)................................. 2-37
Luggage rack (if so equipped)................................... 2-38


04.3.9/R50-D/V5

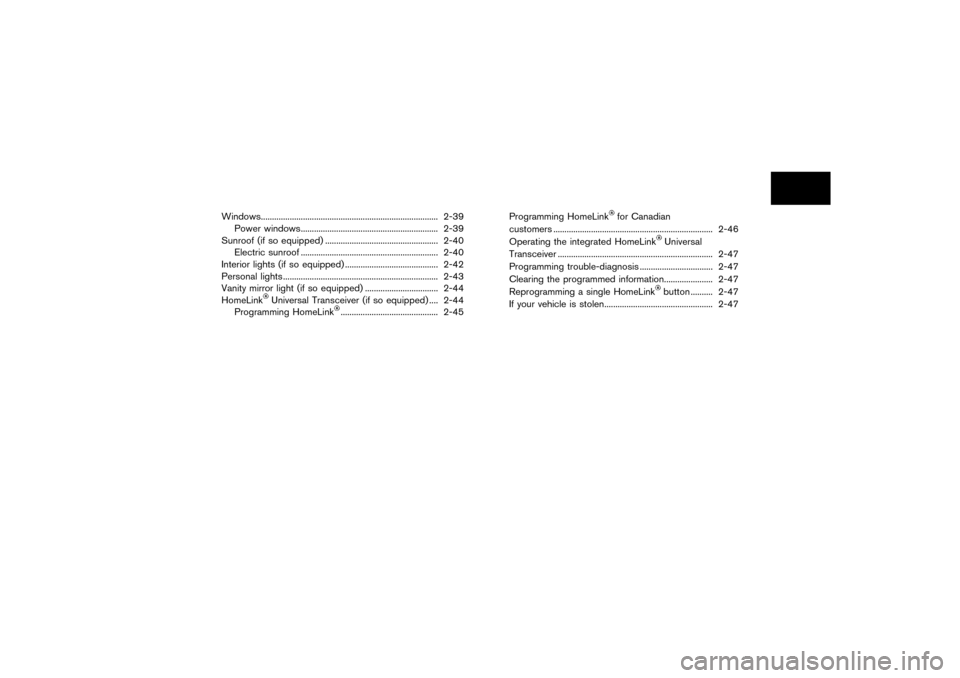

Windows................................................................................ 2-39
Power windows.............................................................. 2-39
Sunroof (if so equipped) ................................................... 2-40
Electric sunroof .............................................................. 2-40
Interior lights (if so equipped) .......................................... 2-42
Personal lights ...................................................................... 2-43
Vanity mirror light (if so equipped) ................................. 2-44
HomeLink
Universal Transceiver (if so equipped) .... 2-44
Programming HomeLink
............................................ 2-45Programming HomeLink
for Canadian
customers ........................................................................ 2-46
Operating the integrated HomeLink
Universal
Transceiver ...................................................................... 2-47
Programming trouble-diagnosis ................................. 2-47
Clearing the programmed information...................... 2-47
Reprogramming a single HomeLinkbutton .......... 2-47
If your vehicle is stolen................................................. 2-47


04.3.9/R50-D/V5


1. Security indicator light (P.2-17)
2. Headlight/dimmer/turn signal switch (P.2-22)
Front fog light switch (if so equipped)
(P.2-25)
3. Steering switch for audio control (if so
equipped) (P.4-28)4. Driver’s supplemental air bag (P.1-16)
5. Meters/gauges (P.2-3)
6. Cruise control main/set switch
(if so equipped) (P.5-18)
7. Windshield and rear window wiper/washer
switch (P.2-19)8. Hazard warning flasher switch (P.2-25)
9. Air conditioner (P.4-2)
10.Glass hatch/outside mirror defogger switch
(Type A) (P.2-21)
11.Clock (P.2-27)
12.Center ventilator (P.4-2)
13.Passenger air bag (P.1-10)
14.Side ventilator (P.4-2)
15.Instrument brightness control (P.2-23)
16.VDC OFF switch (if so equipped) (P.2-27)
17.Automatic drive positioner system cancel
switch (if so equipped) (P.3-19)
18.Fuse box cover (P.8-24)/Pocket
19.Outside mirror remote control (P.3-16)
20.Tilting steering wheel adjust lever (P.3-15)
21.Ignition switch/steering lock (P.5-7)
22.Glass hatch/outside mirror defogger switch
(Type B) (if so equipped) (P.2-21)
23.Audio system (P.4-13)
24.4WD shift switch (if so equipped) (P.5-25)/
Coin box (if so equipped) (P.2-30)
25.Ashtray (if so equipped) (P.2-29)
26.Cigarette lighter (P.2-29) or Power outlet
(P.2-28)
27.Glove box (P.2-33)
See the page indicated in parentheses for
operating details.
SIC1936
INSTRUMENT PANEL2-2
Instruments and controls


04.3.9/R50-D/V5


1. Speedometer
2. Warning/indicator lights
3. Tachometer
4. Fuel gauge5. Odometer/trip odometer
6. Reset knobfor trip odometer
7. Engine coolant temperature gauge
SPEEDOMETER AND ODOMETER
SpeedometerThe speedometer indicates vehicle speed.Odometer/twin trip odometerThe odometer/twin trip odometer are displayed
when the ignition key is in the ON position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance of
individual trips.
SIC2018
SIC1440
METERS AND GAUGES
Instruments and controls
2-3


04.3.9/R50-D/V5


Changing the display:
Push the reset knobto change the display as
follows:
TRIP A→TRIP B→TRIP A
Resetting the trip odometer:
Push the reset knobfor more than 1 second to
reset the trip odometer to zero.
TACHOMETERThe tachometer indicates engine speed in revo-
lutions per minute (rpm).
CAUTION
When engine speed approaches the red
zone, shift to a higher gear. Operating
the engine in the red zone may cause
serious engine damage.
ENGINE COOLANT TEMPERATURE
GAUGEThe gauge indicates the engine coolant tem-
perature.
The engine coolant temperature will vary with the
outside air temperature and driving conditions.
CAUTION
If the gauge indicates engine coolant
temperature over the normal range,
stop
SIC1588
SIC0173
2-4
Instruments and controls


04.3.9/R50-D/V5
