2004 NISSAN PATHFINDER Owners Manual

CAUTION

Never tow automatic transmission
models with the rear wheels on the
ground or four wheels on the ground,
as this may cause serious and expen-
sive damage to the transmission. If it
is necessary to tow the vehicle with
the front wheels raised, always use
towing dollies under the rear wheels.

When towing automatic or manual
transmission models with the front
wheels on the ground or on towing
dollies:

Move the transfer case shift lever
to the 2H position.

Turn the ignition key to the OFF
position, and secure the steering
wheel in a straight ahead position
with a rope or similar device. Never
secure the steering wheel by turn-
ing the ignition key to the LOCK
position. This may damage the
steering lock mechanism.
If you have to tow manual transmis-
sion models with the rear wheels on
the ground (if you do not use towing
dollies) or four wheels on the ground:

Move the transfer case shift lever
to the 2H position.

Move the transmission shift lever
to the N(Neutral) position.

Always release the parking brake.

Observe the following restricted tow-
ing speeds and distances manual
transmission models only:

Speed: Below 60 MPH (95 km/h)

Distance: Less than 500 miles (800
km)
If the speed or distance must necessarily be
greater, remove the front and rear propeller
shafts before towing to prevent damage to the
transmission.
In case of emergency
6-15


04.3.9/R50-D/V5

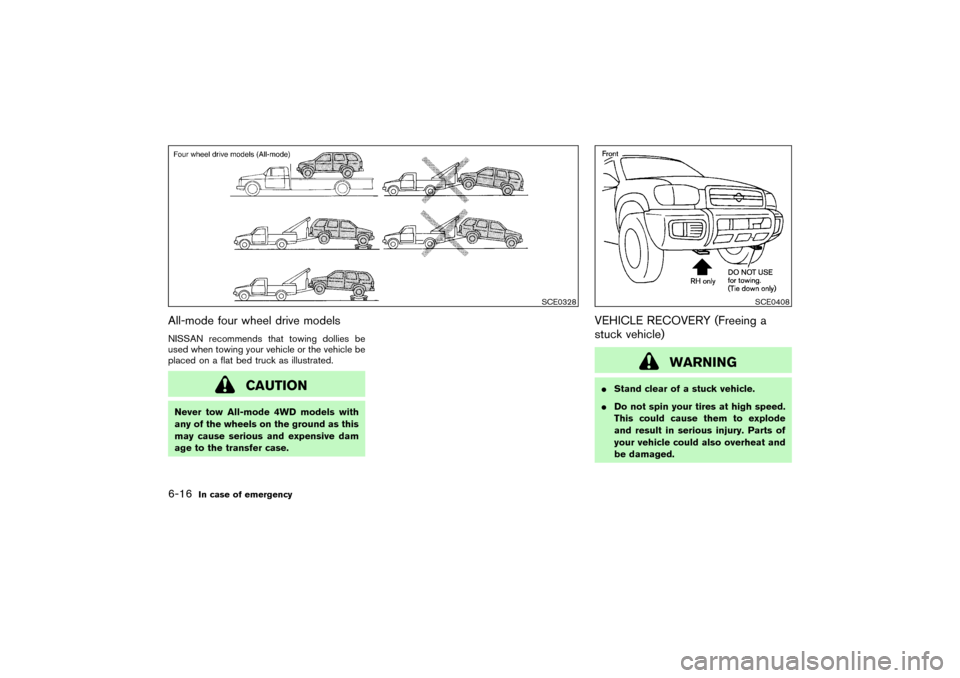

All-mode four wheel drive modelsNISSAN recommends that towing dollies be
used when towing your vehicle or the vehicle be
placed on a flat bed truck as illustrated.
CAUTION
Never tow All-mode 4WD models with
any of the wheels on the ground as this
may cause serious and expensive dam
age to the transfer case.
VEHICLE RECOVERY (Freeing a
stuck vehicle)
WARNING

Stand clear of a stuck vehicle.

Do not spin your tires at high speed.
This could cause them to explode
and result in serious injury. Parts of
your vehicle could also overheat and
be damaged.
SCE0328
SCE0408
6-16
In case of emergency


04.3.9/R50-D/V5

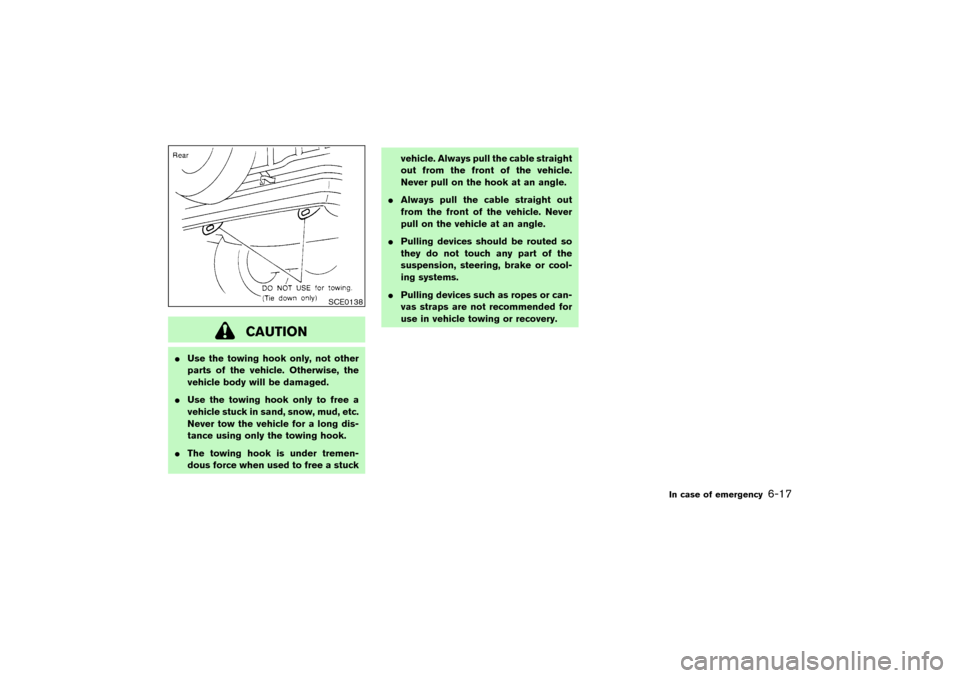

CAUTION

Use the towing hook only, not other
parts of the vehicle. Otherwise, the
vehicle body will be damaged.

Use the towing hook only to free a
vehicle stuck in sand, snow, mud, etc.
Never tow the vehicle for a long dis-
tance using only the towing hook.

The towing hook is under tremen-
dous force when used to free a stuckvehicle. Always pull the cable straight
out from the front of the vehicle.
Never pull on the hook at an angle.

Always pull the cable straight out
from the front of the vehicle. Never
pull on the vehicle at an angle.

Pulling devices should be routed so
they do not touch any part of the
suspension, steering, brake or cool-
ing systems.

Pulling devices such as ropes or can-
vas straps are not recommended for
use in vehicle towing or recovery.
SCE0138
In case of emergency
6-17


04.3.9/R50-D/V5

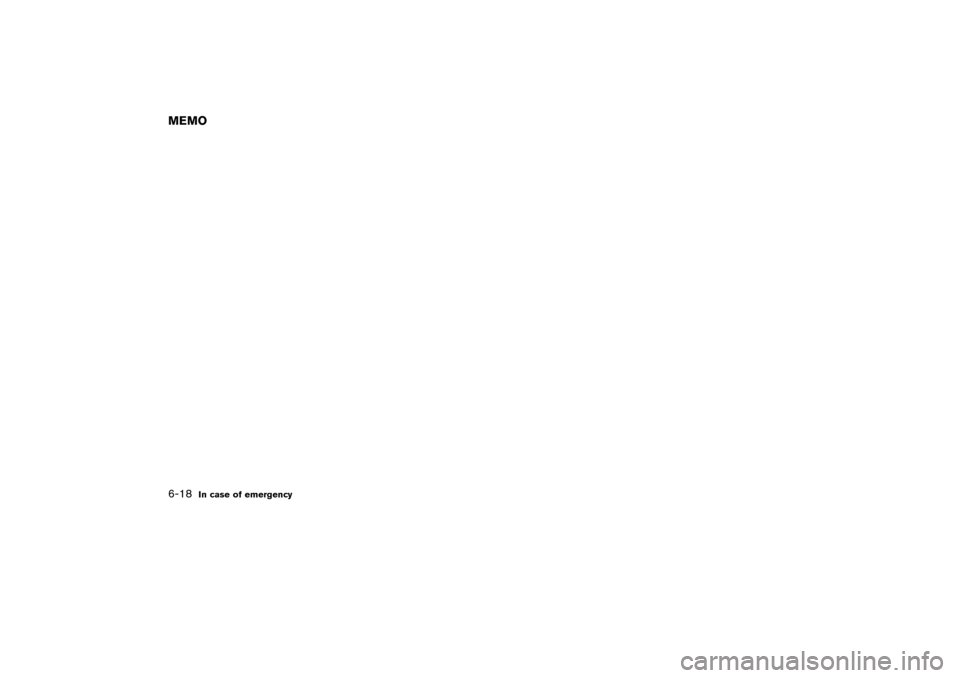

MEMO6-18
In case of emergency


04.3.9/R50-D/V5

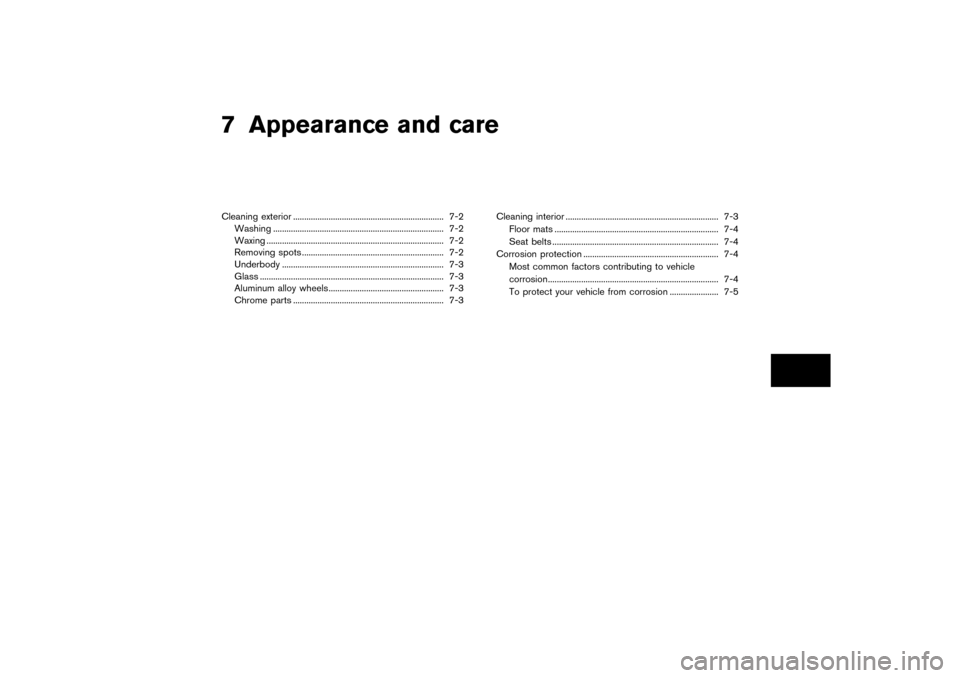

7 Appearance and careCleaning exterior .................................................................... 7-2
Washing ............................................................................. 7-2
Waxing ................................................................................ 7-2
Removing spots ................................................................ 7-2
Underbody ......................................................................... 7-3
Glass ................................................................................... 7-3
Aluminum alloy wheels.................................................... 7-3
Chrome parts .................................................................... 7-3Cleaning interior ..................................................................... 7-3
Floor mats .......................................................................... 7-4
Seat belts ........................................................................... 7-4
Corrosion protection ............................................................. 7-4
Most common factors contributing to vehicle
corrosion............................................................................. 7-4
To protect your vehicle from corrosion ...................... 7-5


04.3.9/R50-D/V5

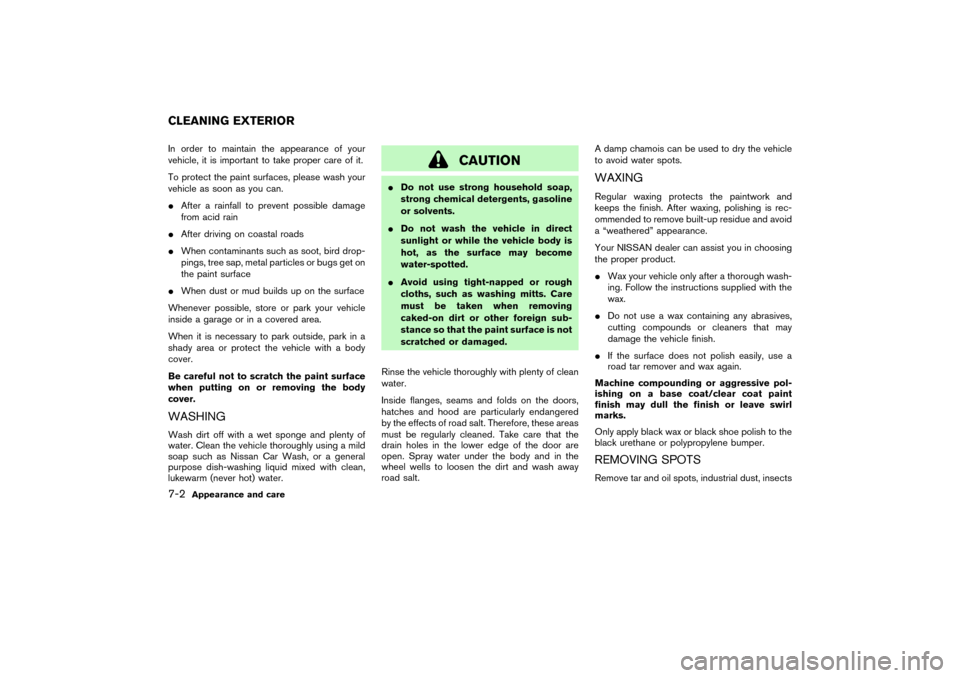

In order to maintain the appearance of your
vehicle, it is important to take proper care of it.
To protect the paint surfaces, please wash your
vehicle as soon as you can.

After a rainfall to prevent possible damage
from acid rain

After driving on coastal roads

When contaminants such as soot, bird drop-
pings, tree sap, metal particles or bugs get on
the paint surface

When dust or mud builds up on the surface
Whenever possible, store or park your vehicle
inside a garage or in a covered area.
When it is necessary to park outside, park in a
shady area or protect the vehicle with a body
cover.
Be careful not to scratch the paint surface
when putting on or removing the body
cover.WASHINGWash dirt off with a wet sponge and plenty of
water. Clean the vehicle thoroughly using a mild
soap such as Nissan Car Wash, or a general
purpose dish-washing liquid mixed with clean,
lukewarm (never hot) water.
CAUTION

Do not use strong household soap,
strong chemical detergents, gasoline
or solvents.

Do not wash the vehicle in direct
sunlight or while the vehicle body is
hot, as the surface may become
water-spotted.

Avoid using tight-napped or rough
cloths, such as washing mitts. Care
must be taken when removing
caked-on dirt or other foreign sub-
stance so that the paint surface is not
scratched or damaged.
Rinse the vehicle thoroughly with plenty of clean
water.
Inside flanges, seams and folds on the doors,
hatches and hood are particularly endangered
by the effects of road salt. Therefore, these areas
must be regularly cleaned. Take care that the
drain holes in the lower edge of the door are
open. Spray water under the body and in the
wheel wells to loosen the dirt and wash away
road salt.A damp chamois can be used to dry the vehicle
to avoid water spots.
WAXINGRegular waxing protects the paintwork and
keeps the finish. After waxing, polishing is rec-
ommended to remove built-up residue and avoid
a “weathered” appearance.
Your NISSAN dealer can assist you in choosing
the proper product.

Wax your vehicle only after a thorough wash-
ing. Follow the instructions supplied with the
wax.

Do not use a wax containing any abrasives,
cutting compounds or cleaners that may
damage the vehicle finish.

If the surface does not polish easily, use a
road tar remover and wax again.
Machine compounding or aggressive pol-
ishing on a base coat/clear coat paint
finish may dull the finish or leave swirl
marks.
Only apply black wax or black shoe polish to the
black urethane or polypropylene bumper.REMOVING SPOTSRemove tar and oil spots, industrial dust, insects
CLEANING EXTERIOR7-2
Appearance and care


04.3.9/R50-D/V5

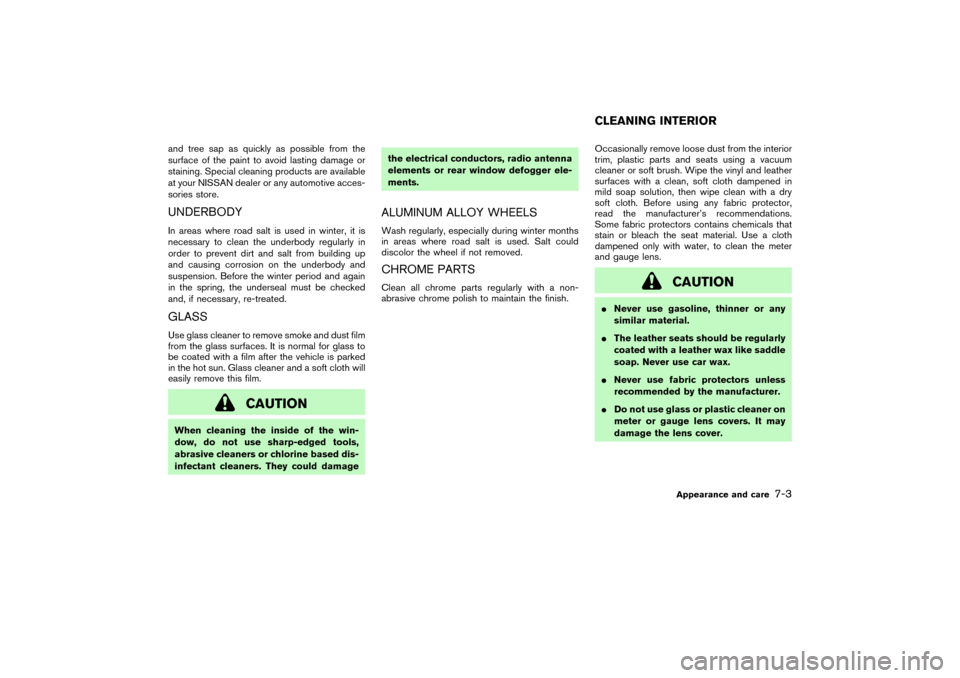

and tree sap as quickly as possible from the
surface of the paint to avoid lasting damage or
staining. Special cleaning products are available
at your NISSAN dealer or any automotive acces-
sories store.UNDERBODYIn areas where road salt is used in winter, it is
necessary to clean the underbody regularly in
order to prevent dirt and salt from building up
and causing corrosion on the underbody and
suspension. Before the winter period and again
in the spring, the underseal must be checked
and, if necessary, re-treated.GLASSUse glass cleaner to remove smoke and dust film
from the glass surfaces. It is normal for glass to
be coated with a film after the vehicle is parked
in the hot sun. Glass cleaner and a soft cloth will
easily remove this film.
CAUTION
When cleaning the inside of the win-
dow, do not use sharp-edged tools,
abrasive cleaners or chlorine based dis-
infectant cleaners. They could damagethe electrical conductors, radio antenna
elements or rear window defogger ele-
ments.
ALUMINUM ALLOY WHEELSWash regularly, especially during winter months
in areas where road salt is used. Salt could
discolor the wheel if not removed.CHROME PARTSClean all chrome parts regularly with a non-
abrasive chrome polish to maintain the finish.Occasionally remove loose dust from the interior
trim, plastic parts and seats using a vacuum
cleaner or soft brush. Wipe the vinyl and leather
surfaces with a clean, soft cloth dampened in
mild soap solution, then wipe clean with a dry
soft cloth. Before using any fabric protector,
read the manufacturer’s recommendations.
Some fabric protectors contains chemicals that
stain or bleach the seat material. Use a cloth
dampened only with water, to clean the meter
and gauge lens.
CAUTION

Never use gasoline, thinner or any
similar material.

The leather seats should be regularly
coated with a leather wax like saddle
soap. Never use car wax.

Never use fabric protectors unless
recommended by the manufacturer.

Do not use glass or plastic cleaner on
meter or gauge lens covers. It may
damage the lens cover.CLEANING INTERIOR
Appearance and care
7-3


04.3.9/R50-D/V5

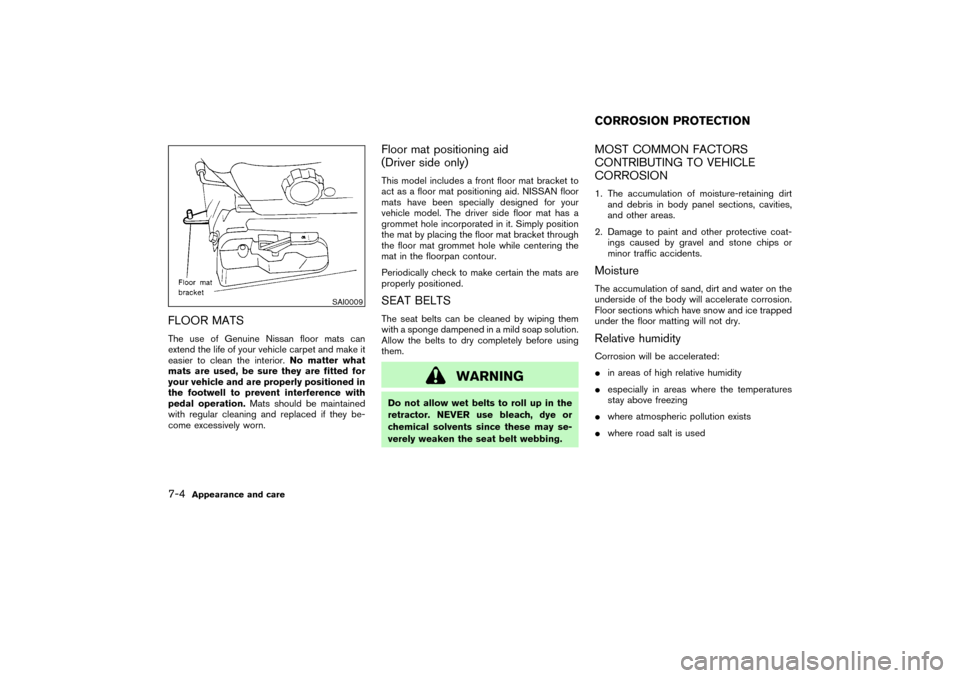

FLOOR MATSThe use of Genuine Nissan floor mats can
extend the life of your vehicle carpet and make it
easier to clean the interior.No matter what
mats are used, be sure they are fitted for
your vehicle and are properly positioned in
the footwell to prevent interference with
pedal operation.Mats should be maintained
with regular cleaning and replaced if they be-
come excessively worn.
Floor mat positioning aid
(Driver side only)This model includes a front floor mat bracket to
act as a floor mat positioning aid. NISSAN floor
mats have been specially designed for your
vehicle model. The driver side floor mat has a
grommet hole incorporated in it. Simply position
the mat by placing the floor mat bracket through
the floor mat grommet hole while centering the
mat in the floorpan contour.
Periodically check to make certain the mats are
properly positioned.SEAT BELTSThe seat belts can be cleaned by wiping them
with a sponge dampened in a mild soap solution.
Allow the belts to dry completely before using
them.
WARNING
Do not allow wet belts to roll up in the
retractor. NEVER use bleach, dye or
chemical solvents since these may se-
verely weaken the seat belt webbing.
MOST COMMON FACTORS
CONTRIBUTING TO VEHICLE
CORROSION1. The accumulation of moisture-retaining dirt
and debris in body panel sections, cavities,
and other areas.
2. Damage to paint and other protective coat-
ings caused by gravel and stone chips or
minor traffic accidents.MoistureThe accumulation of sand, dirt and water on the
underside of the body will accelerate corrosion.
Floor sections which have snow and ice trapped
under the floor matting will not dry.Relative humidityCorrosion will be accelerated:

in areas of high relative humidity

especially in areas where the temperatures
stay above freezing

where atmospheric pollution exists

where road salt is used
SAI0009
CORROSIONPROTECTION
7-4
Appearance and care


04.3.9/R50-D/V5
