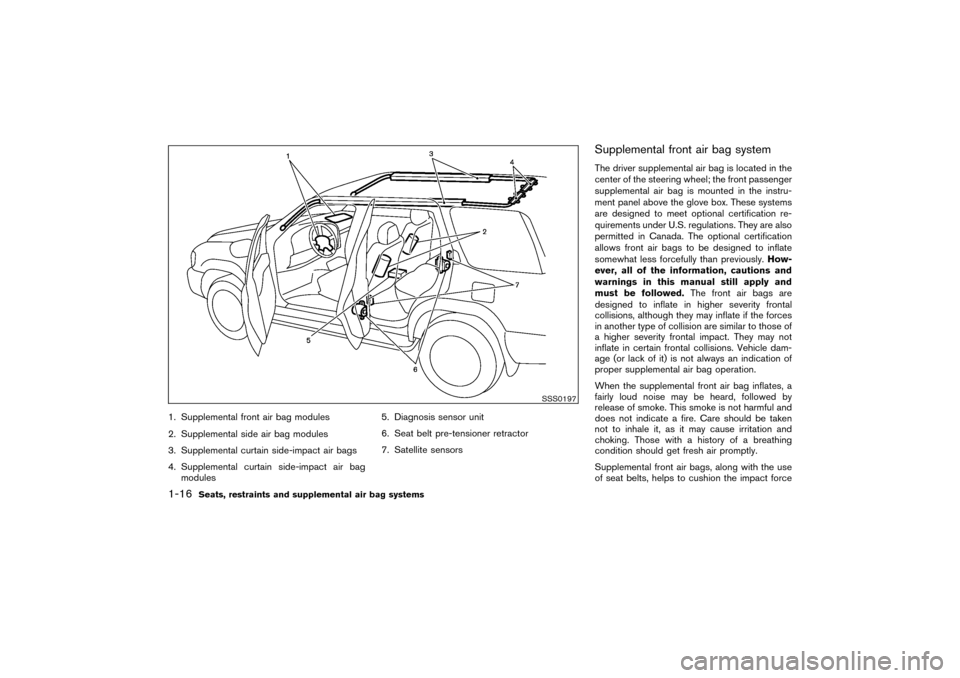

2004 NISSAN PATHFINDER sensor

1. Supplemental front air bag modules
2. Supplemental side air bag modules
3. Supplemental curtain side-impact air bags
4. Supplemental curtain side-impact air bag
modules5. Diagnosis sensor unit
6. Seat belt pre-tensioner retractor
7. Satellite sensors
Supplemental front air bag systemThe driver supplemental air bag is located in the
center of the steering wheel; the front passenger
supplemental air bag is mounted in the instru-
ment panel above the glove box. These systems
are designed to meet optional certification re-
quirements under U.S. regulations. They are also
permitted in Canada. The optional certification
allows front air bags to be designed to inflate
somewhat less forcefully than previously.How-
ever, all of the information, cautions and
warnings in this manual still apply and
must be followed.The front air bags are
designed to inflate in higher severity frontal
collisions, although they may inflate if the forces
in another type of collision are similar to those of
a higher severity frontal impact. They may not
inflate in certain frontal collisions. Vehicle dam-
age (or lack of it) is not always an indication of
proper supplemental air bag operation.
When the supplemental front air bag inflates, a
fairly loud noise may be heard, followed by
release of smoke. This smoke is not harmful and
does not indicate a fire. Care should be taken
not to inhale it, as it may cause irritation and
choking. Those with a history of a breathing
condition should get fresh air promptly.
Supplemental front air bags, along with the use
of seat belts, helps to cushion the impact force
SSS0197
1-16
Seats, restraints and supplemental air bag systems


04.3.9/R50-D/V5

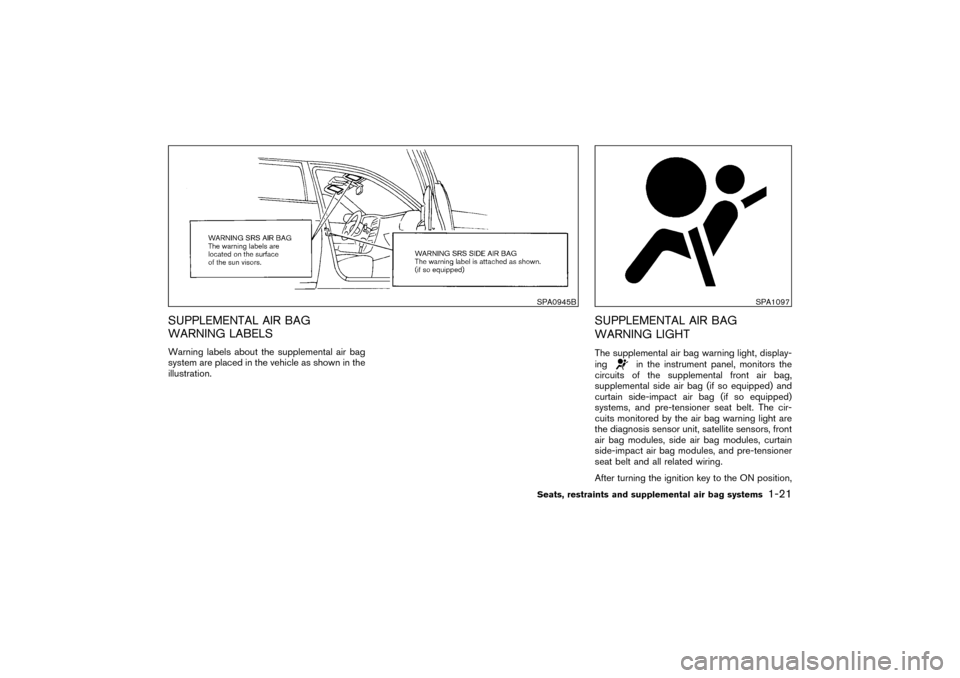

SUPPLEMENTAL AIR BAG
WARNING LABELSWarning labels about the supplemental air bag
system are placed in the vehicle as shown in the
illustration.
SUPPLEMENTAL AIR BAG
WARNING LIGHTThe supplemental air bag warning light, display-
ing
in the instrument panel, monitors the
circuits of the supplemental front air bag,
supplemental side air bag (if so equipped) and
curtain side-impact air bag (if so equipped)
systems, and pre-tensioner seat belt. The cir-
cuits monitored by the air bag warning light are
the diagnosis sensor unit, satellite sensors, front
air bag modules, side air bag modules, curtain
side-impact air bag modules, and pre-tensioner
seat belt and all related wiring.
After turning the ignition key to the ON position,
SPA0945B
SPA1097
Seats, restraints and supplemental air bag systems
1-21


04.3.9/R50-D/V5


This unit is a display unit with the following
functions:

Function to measure terrestrial magnetism
and indicate heading direction of vehicle

Function to indicate outside air temperature

Function to indicate caution for frozen road
surfaces
OUTSIDE TEMPERATURE DISPLAYPush the switch when the ignition key is in the
ACC or ON position. The outside temperature
will be displayed in °F.

Selecting the indication range
Push the switch to change from °F to °C.

If the outside temperature drops below the
freezing point, the display indicates ICE.
When the outside temperature is be-
tween 130°F (55°C) and 158°F (70°C), the
display shows 130°F (55°C).

When the outside temperature is lower
than −20°F (−30°C) or higher than 158°F
(70°C), the display shows only
---
though it is operating. This is not a
malfunction.

The outside temperature sensor is lo-
cated in front of the radiator. The sensor
may be affected by road or engine heat,
wind direction and other driving condi-
tions. The display may differ from the
actual outside temperature or the tem-
perature displayed on various signs or
billboards.
CAUTION
Use the ICE indication for reference
only. Confirm the traffic information and
road conditions to drive safely.
SIC0590
SIC0610
COMPASS AND OUTSIDE
TEMPERATURE DISPLAY
(if so equipped)2-6
Instruments and controls


04.3.9/R50-D/V5


HEADLIGHT SWITCH
LightingTurn the switch to the AUTO position:
When the ignition key is in the ON position, the
tail light, headlight, instrument light and other
lights turn on automatically, depending on the
brightness of the surroundings. The headlight
will automatically turn off 5 minutes after the
ignition switch is turned to the OFF position and
the driver’s or front passenger’s door is opened.
The headlight will also automatically turn off 45
seconds after a front door is opened and closed.
When the light switch is turned to the
position, the headlight low or high beam
will turn off.
Turn the switch to the
position:
The side combination, tail, license plate and
instrument lights will come on.
Turn the switch to theposition:
Headlights will come on and all the other lights
remain on.Be sure not to put anything on top of the
photo sensor located on the top right-hand
side of the instrument panel. The photo
sensor controls the autolight; if it is cov-
ered, the photo sensor reacts as if it is dark
and the headlights will illuminate.
Battery saver system
When the headlight switch is in the
or
position while the ignition switch is in
the ON position, the lights (including the front
fog light) will automatically turn off 5 minutes
after the ignition switch has been turned to
the OFF position.
SIC1938
SIC1573A
HEADLIGHT AND TURN SIGNAL
SWITCH2-22
Instruments and controls


04.3.9/R50-D/V5

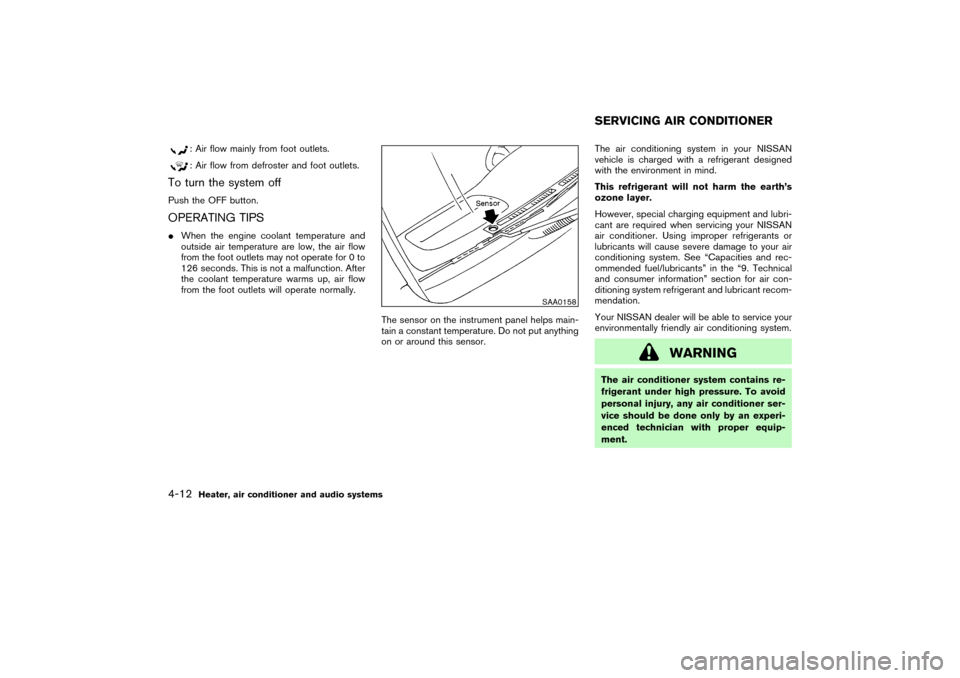

: Air flow mainly from foot outlets.: Air flow from defroster and foot outlets.
To turn the system offPush the OFF button.OPERATING TIPS
When the engine coolant temperature and
outside air temperature are low, the air flow
from the foot outlets may not operate for 0 to
126 seconds. This is not a malfunction. After
the coolant temperature warms up, air flow
from the foot outlets will operate normally.
The sensor on the instrument panel helps main-
tain a constant temperature. Do not put anything
on or around this sensor.The air conditioning system in your NISSAN
vehicle is charged with a refrigerant designed
with the environment in mind.
This refrigerant will not harm the earth’s
ozone layer.
However, special charging equipment and lubri-
cant are required when servicing your NISSAN
air conditioner. Using improper refrigerants or
lubricants will cause severe damage to your air
conditioning system. See “Capacities and rec-
ommended fuel/lubricants” in the “9. Technical
and consumer information” section for air con-
ditioning system refrigerant and lubricant recom-
mendation.
Your NISSAN dealer will be able to service your
environmentally friendly air conditioning system.
WARNING
The air conditioner system contains re-
frigerant under high pressure. To avoid
personal injury, any air conditioner ser-
vice should be done only by an experi-
enced technician with proper equip-
ment.
SAA0158
SERVICING AIR CONDITIONER
4-12
Heater, air conditioner and audio systems


04.3.9/R50-D/V5


example a flat tire while driving).
Frequently check the tire pressure and adjust
pressure of each tire properly.LOW TIRE PRESSURE warningIf the vehicle is being driven with a low tire
pressure (lower than 25 psi, 171 kPa), the low
tire pressure warning light comes on and the
chime sounds for about 10 seconds.
For additional information regarding the above
warning, see “Warning/indicator lights and au-
dible reminders” in the “2. Instruments and
controls” section.
WARNING

If the low tire pressure warning light
illuminates and the chime sounds for
about 10 seconds while driving, avoid
sudden steering maneuvers or abrupt
braking, reduce vehicle speed, pull
off the road to a safe location and
stop the vehicle as soon as possible.
Serious vehicle damage could occur
and may lead to an accident and
could result in serious personal in-
jury. Check the tire pressure for allfour tires. Adjust the tire pressure to
the recommended COLD tire pres-
sure shown on the Tire and Loading
Information label to turn the low tire
pressure warning light OFF. If you
have a flat tire, replace it with a spare
tire as soon as possible. (See “Flat
tire” in the “6. In case of emergency”
section for changing a flat tire.)

When a spare tire is mounted or a
wheel is replaced, the low tire pres-
sure warning system will not func-
tion. Contact your NISSAN dealer as
soon as possible for tire replacement
and/or system resetting.

Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pres-
sure sensors.
CAUTION
Do not place metalized film or any metal
parts (antenna, etc.) on the windows.This may cause poor reception of the
signals from the tire pressure sensors,
and the low tire pressure warning sys-
tem will not function properly.
FCC Notice:
Changes or modifications not expressly
approved by the manufacturer compliance
could void the user’s authority to operate
the equipment.
This device complies with Part 15 of the
FCC Rules and RSS-210 of Industry
Canada.
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device
must accept any interference received, in-
cluding interference that may cause undes-
ired operation of the device.
ON-PAVEMENT AND OFFROAD
DRIVING PRECAUTIONSUtility vehicles have a significantly higher
rollover rate than other types of vehicles.
They have higher ground clearance than passen-
ger cars to make them capable of performing in
a variety of on-pavement and offroad applica-
5-4
Starting and driving


04.3.9/R50-D/V5


If a tire slips on rough roads for more than
10 seconds, the ABS brake warning light
may come on. Turn OFF the ignition key,
restart the engine and drive the vehicle at
speeds above 20 MPH (30 km/h). If the
warning light does not go out, have the
vehicle checked at a NISSAN dealer.Self-test featureThe anti-lock brake system consists of electronic
sensors, electric pumps, and hydraulic solenoids
controlled by a computer. The computer has a
built-in diagnostic feature that tests the system
each time you start the engine and move the
vehicle at a low speed in forward or reverse.
When the self-test occurs, you may hear a clunk
noise and/or feel a pulsation in the brake pedal.
This is normal and is not an indication of any
malfunction. If the computer senses any mal-
function, it switches the anti-lock brake system
OFF and turns on the ABS brake warning light in
the dashboard. The brake system will then be-
have normally, but without anti-lock assistance.
If the light comes on during the self check, or
while you are driving, you should take your
vehicle to your NISSAN dealer for repair at your
earliest convenience.
WARNING
The anti-lock brake system is a sophis-
ticated device, but it cannot prevent ac-
cidents resulting from careless or dan-
gerous driving techniques. It can help
maintain vehicle control during braking
on slippery surfaces, but remember that
the stopping distance on slippery sur-
faces will be longer than on normal
surfaces, even with the anti-lock sys-
tem. Stopping distances may also be
longer on rough, gravel or snow covered
roads, or if you are using tire chains.
Always maintain a safe distance from
the vehicle in front of you. Ultimately,
the responsibility for safety of self and
others rests in the hands of the driver.
Tire type and condition of tires may also
affect braking effectiveness.

When replacing tires, install the
specified size of tires on all four
wheels.

When installing a spare tire, make
sure it is the proper size and type asspecified on the Tire and Loading
Information label. See “Vehicle iden-
tification” in the “9. Technical and
consumer information” section for
Vehicle identification location infor-
mation.
Starting and driving
5-35


04.3.9/R50-D/V5


When accelating or driving on slippery surfaces
or suddenly avoiding obstacles on roads, the
tires might spin or slip. With the vehicle dynamic
control (VDC) system, sensors detect these
movements and control the braking and engine
output to help improve vehicle stability.

When the vehicle dynamic control system
(TCS) is operating, the slip indicator in the
instrument panel blinks.

When only the traction control system (TCS)
portion of the vehicle dynamic control system
is operating, the slip indicator will also blink.

If the slip indicator blinks, the road conditions
are slippery. Adjust your speed and driving to
the conditions. See “Slip indicator light”, and
“Vehicle dynamic control off indicator light” in
the “2. Instruments and controls” section.

Indicator light
If a malfunction occurs in the system, the
SLIP and
indicator lights come on in
the meter panel.
As long as these warning lights are on, the
traction control function is canceled.
If the vehicle is operated with the vehicle dy-
namic control system turned off, all VDC func-
tions will be turned off. The Active Brake Limited
Slip (ABLS) and ABS system will still operate
with the VDC system off. VDC system includesABLS. The ABLS system works when the one of
driving wheels is spinning on a slippery surface.
The ABLS system brakes the spinning driving
wheel, then distributes the driving power to
another. While the ABLS system or the ABS
system is activated, the slip indicator light will
blink and you may feel a pulsation in the brake
pedal and hear operation sound. This is normal.
While the VDC system is operating, you may feel
a pulsation in the brake pedal and hear a noise or
vibration from under the hood. This is normal and
indicates that the VDC system is working prop-
erly.
The computer has a built in diagnostic feature
that tests the system each time you start the
engine and move the vehicle forward or in
reverse at a slow speed. When the self-test
occurs, you may hear a clunk noise and/or feel a
pulsation in the brake pedal. This is normal and is
not an indication of a malfunction.
WARNING

The vehicle dynamic control system
is designed to help improve driving
stability but does not prevent acci-
dents due to abrupt steering opera-tion at high speeds or by careless or
dangerous driving techniques. Re-
duce vehicle speed and be especially
careful when driving and cornering
on slippery surfaces and always drive
carefully.

Do not modify the vehicle’s suspen-
sion. The vehicle dynamic control
system may not operate correctly.

If suspension parts such as shock
absorbers, struts, springs and bush-
ings are not standard equipment or
are extremely deteriorated, the ve-
hicle dynamic control system may not
operate properly and the vehicle dy-
namic control OFF indicator light
may come on.

When driving on extremely inclined
surfaces such as higher banked cor-
ners, the vehicle dynamic control sys-
tem may not operate properly or the
vehicle dynamic control off indicator
light may come on. Do not drive on
these types of roads.
VEHICLE DYNAMIC CONTROL
(VDC) SYSTEM (if so equipped)5-36
Starting and driving


04.3.9/R50-D/V5
