2004 NISSAN PATHFINDER technical data

9 Technical and consumer informationCapacities and recommended fuel/lubricants ................ 9-2
Fuel recommendation ...................................................... 9-4
Engine oil and oil filter recommendation.................... 9-6
Recommended SAE oil viscosity number.................. 9-7
Air conditioning system refrigerant and lubricant
recommendations ............................................................. 9-7
Specifications.......................................................................... 9-9
Engine ................................................................................. 9-9
Wheels and tires ................................................................. 9-11
Dimensions and weights.............................................. 9-11
When traveling or registering your vehicle in another
country.................................................................................... 9-12
Vehicle identification ........................................................... 9-12
Vehicle identification number (VIN) plate ................ 9-12
Vehicle identification number (Chassis
number) ............................................................................ 9-12
Engine serial number .................................................... 9-13
F.M.V.S.S. certification label ....................................... 9-13
Emission control information label ............................ 9-13
Tire and Loading Information label............................ 9-14
Air conditioner specification label ............................. 9-14Vehicle loading information ............................................... 9-14
Terms ................................................................................ 9-14
Vehicle load capacity.................................................... 9-15
Securing the load .......................................................... 9-16
Loading tips .................................................................... 9-17
Vehicle load capacity.................................................... 9-17
Measurement of weights ............................................. 9-17
Towing a trailer .................................................................... 9-18
Maximum load limits ...................................................... 9-18
Towing load/specification chart ................................. 9-20
Towing safety.................................................................. 9-20
Flat towing ....................................................................... 9-22
Uniform tire quality grading ......................................... 9-23
Emission control system warranty ................................... 9-24
Reporting safety defects (US only) ................................ 9-24
Readiness for inspection/maintenance (I/M) test
(US only) ................................................................................ 9-25
Event data recorders ......................................................... 9-26
Owner’s Manual/Service Manual order information ... 9-27
In the event of a collision ............................................ 9-27


04.3.9/R50-D/V5

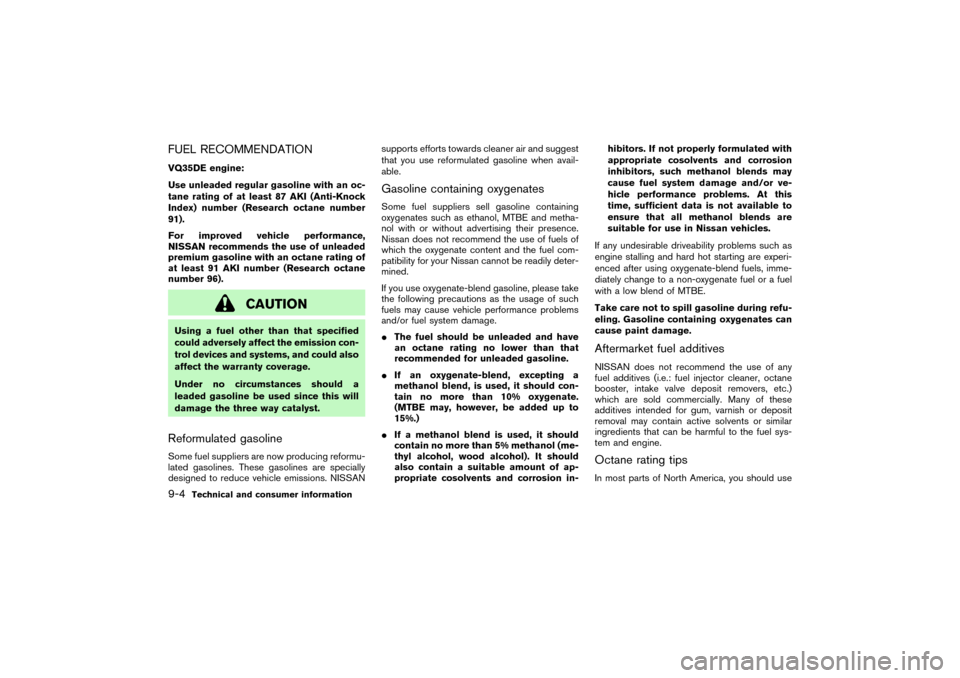

FUEL RECOMMENDATIONVQ35DE engine:
Use unleaded regular gasoline with an oc-
tane rating of at least 87 AKI (Anti-Knock
Index) number (Research octane number
91).
For improved vehicle performance,
NISSAN recommends the use of unleaded
premium gasoline with an octane rating of
at least 91 AKI number (Research octane
number 96).
CAUTION
Using a fuel other than that specified
could adversely affect the emission con-
trol devices and systems, and could also
affect the warranty coverage.
Under no circumstances should a
leaded gasoline be used since this will
damage the three way catalyst.Reformulated gasolineSome fuel suppliers are now producing reformu-
lated gasolines. These gasolines are specially
designed to reduce vehicle emissions. NISSANsupports efforts towards cleaner air and suggest
that you use reformulated gasoline when avail-
able.
Gasoline containing oxygenatesSome fuel suppliers sell gasoline containing
oxygenates such as ethanol, MTBE and metha-
nol with or without advertising their presence.
Nissan does not recommend the use of fuels of
which the oxygenate content and the fuel com-
patibility for your Nissan cannot be readily deter-
mined.
If you use oxygenate-blend gasoline, please take
the following precautions as the usage of such
fuels may cause vehicle performance problems
and/or fuel system damage.

The fuel should be unleaded and have
an octane rating no lower than that
recommended for unleaded gasoline.

If an oxygenate-blend, excepting a
methanol blend, is used, it should con-
tain no more than 10% oxygenate.
(MTBE may, however, be added up to
15%.)

If a methanol blend is used, it should
contain no more than 5% methanol (me-
thyl alcohol, wood alcohol). It should
also contain a suitable amount of ap-
propriate cosolvents and corrosion in-hibitors. If not properly formulated with
appropriate cosolvents and corrosion
inhibitors, such methanol blends may
cause fuel system damage and/or ve-
hicle performance problems. At this
time, sufficient data is not available to
ensure that all methanol blends are
suitable for use in Nissan vehicles.
If any undesirable driveability problems such as
engine stalling and hard hot starting are experi-
enced after using oxygenate-blend fuels, imme-
diately change to a non-oxygenate fuel or a fuel
with a low blend of MTBE.
Take care not to spill gasoline during refu-
eling. Gasoline containing oxygenates can
cause paint damage.
Aftermarket fuel additivesNISSAN does not recommend the use of any
fuel additives (i.e.: fuel injector cleaner, octane
booster, intake valve deposit removers, etc.)
which are sold commercially. Many of these
additives intended for gum, varnish or deposit
removal may contain active solvents or similar
ingredients that can be harmful to the fuel sys-
tem and engine.Octane rating tipsIn most parts of North America, you should use
9-4
Technical and consumer information


04.3.9/R50-D/V5


Dynamometer testing for Inspection/
Maintenance (I/M) test (US only)Due to legal requirements in some states/areas,
your vehicle may be tested for emissions on a
dynamometer. The transfer control lever (if so
equipped) MUST be in the 2H position for I/M
testing on a two wheel dynamometer.
WARNING

If the transfer control lever is not in
the 2H position during the dynamom-
eter I/M testing, the vehicle could
come off the dynamometer and
cause serious personal injury and/or
body damage to the vehicle.

Serious damage will occur to the
4WD system if the transfer control
lever is not in the 2H position.Your vehicle is equipped with a variety of com-
puters that monitor and control a number of
systems to optimize performance and help ser-
vice technicians with diagnosis and repair. De-
pending on the equipment on your vehicle, some
of the computers monitor emission control sys-
tems, braking systems and air bag systems, just
to name a few. Some data about vehicle opera-
tion may be stored in the computers for use
during servicing. Other data may be stored if a
crash event occurs. For example, air bag readi-
ness, air bag performance, and seat belt use by
the driver or passenger may be recorded, de-
pending on vehicle equipment. These types of
systems are sometimes called Event Data Re-
corders.
Special equipment can be used to access the
electronic data that may be stored in the vehi-
cle’s computers (sounds are not recorded).
NISSAN and NISSAN dealers have equipment
to access some of this data; others may also
have this equipment. The data may be retrieved
during routine vehicle servicing or for special
research. It might also be accessed with the
consent of the vehicle owner or lessee, in re-
sponse to a request by law enforcement, or as
otherwise required or permitted by law.
EVENT DATA RECORDERS
9-26
Technical and consumer information


04.3.9/R50-D/V5
