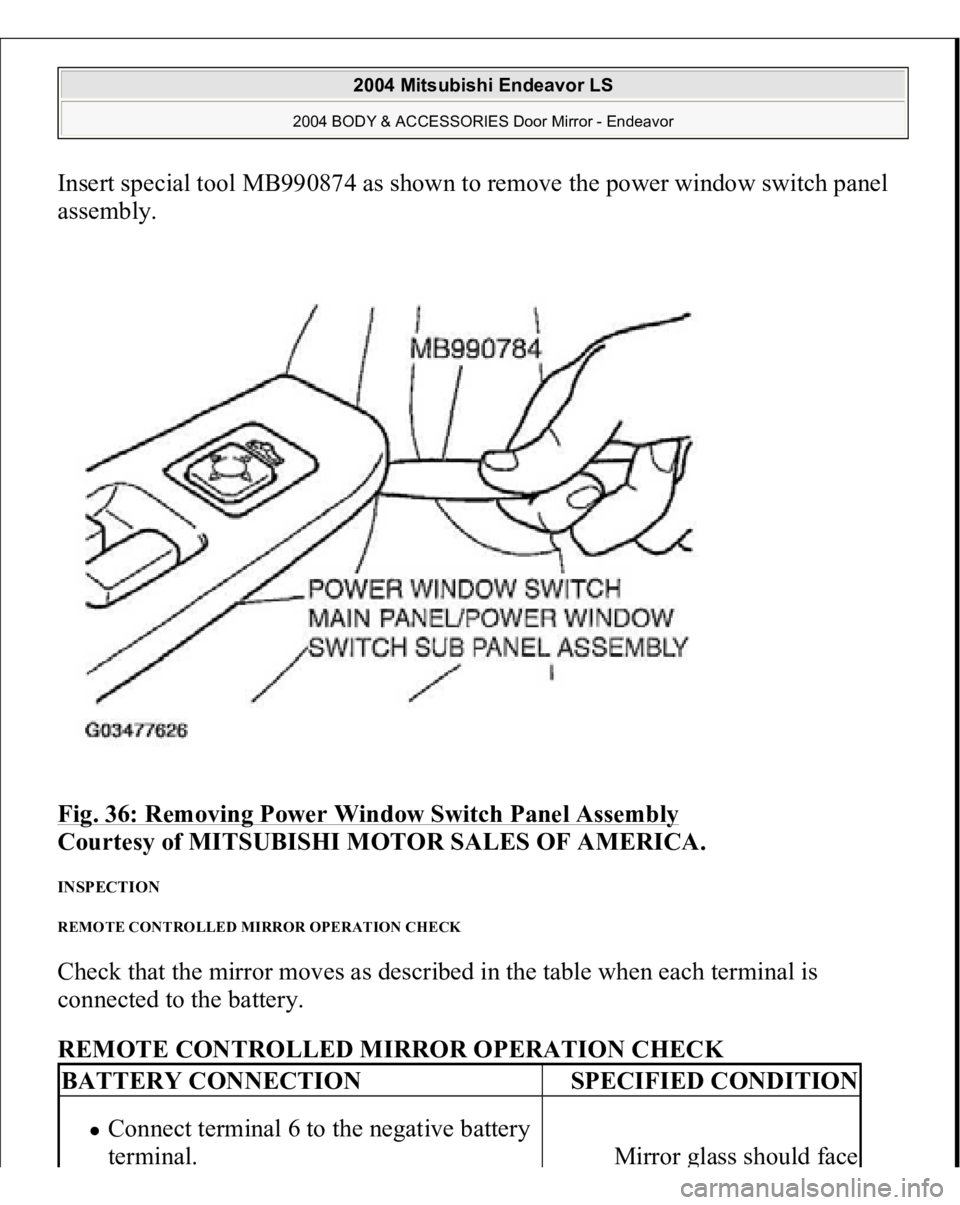

Insert special tool MB990874 as shown to remove the power window switch panel
assembly.
Fig. 36: Removing Power Window Switch Panel Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSPECTION REMOTE CONTROLLED MIRROR OPERATION CHECK Check that the mirror moves as described in the table when each terminal is
connected to the battery.
REMOTE CONTROLLED MIRROR OPERATION CHECK BATTERY CONNECTION
SPECIFIED CONDITION
Connect terminal 6 to the negative battery
terminal.
Mirror
glass should face

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor

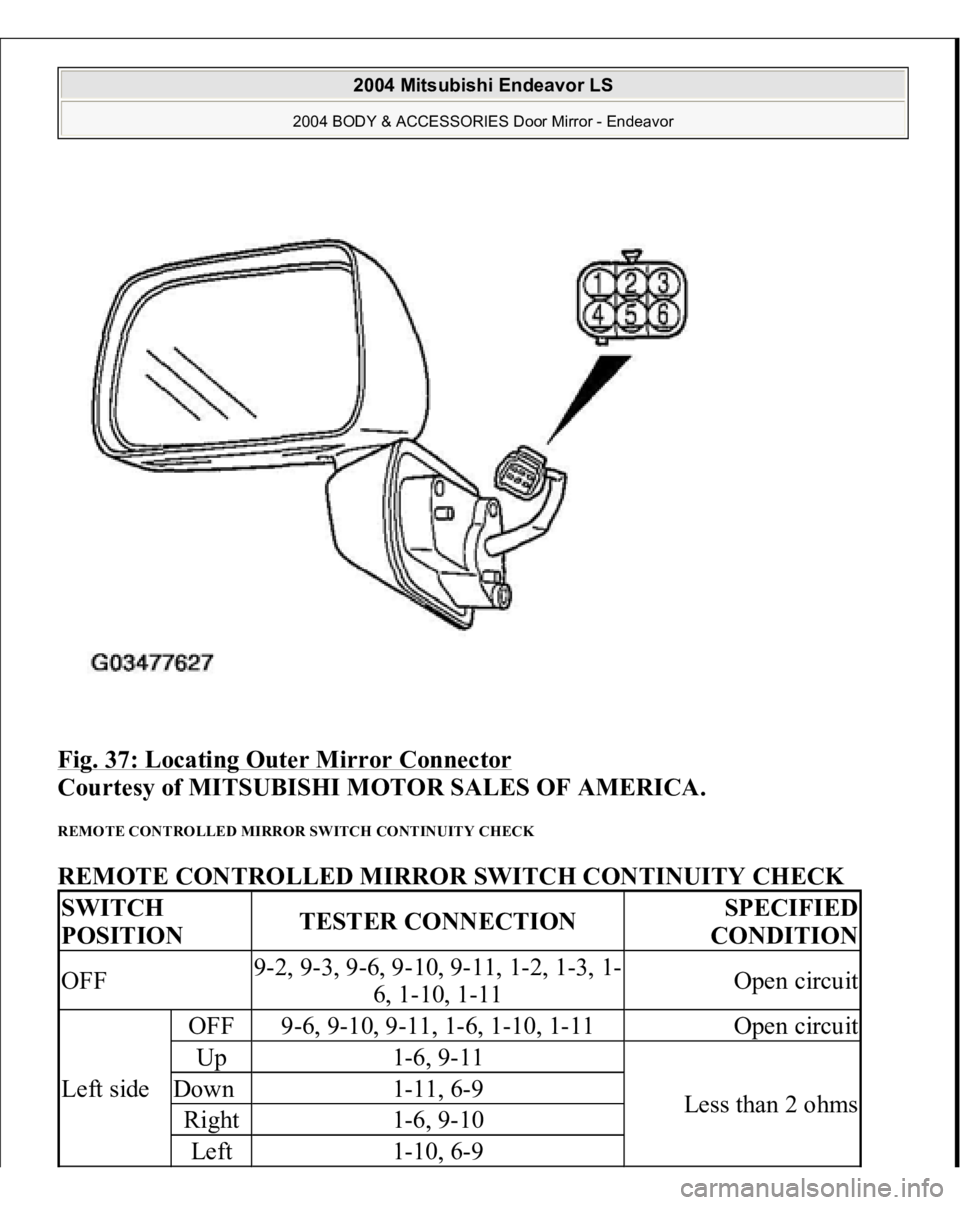

Fig. 37: Locating Outer Mirror Connector

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REMOTE CONTROLLED MIRROR SWITCH CONTINUITY CHECK REMOTE CONTROLLED MIRROR SWITCH CONTINUITY CHECK SWITCH
POSITION
TESTER CONNECTION
SPECIFIED
CONDITION
OFF
9-2, 9-3, 9-6, 9-10, 9-11, 1-2, 1-3, 1-
6, 1-10, 1-11
Open circuit
Left side
OFF
9-6, 9-10, 9-11, 1-6, 1-10, 1-11
Open circuit
Up
1-6, 9-11
Less than 2 ohms
Down
1-11, 6-9
Right
1-6, 9-10
Left
1-10, 6-9

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor

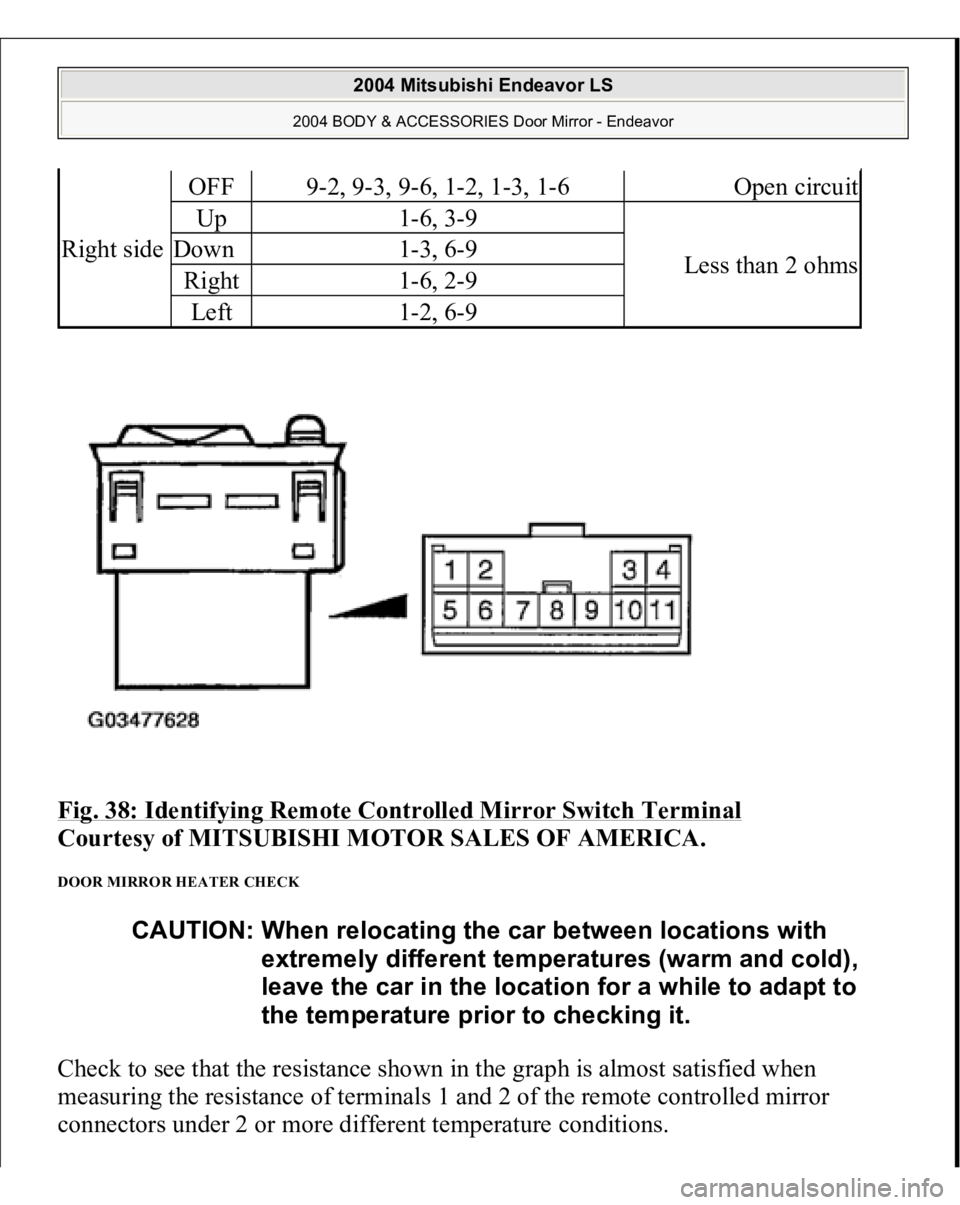

Fig. 38: Identifying Remote Controlled Mirror Switch Terminal

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
DOOR MIRROR HEATER CHECK Check to see that the resistance shown in the graph is almost satisfied when
measuring the resistance of terminals 1 and 2 of the remote controlled mirror
connectors under 2 or more different temperature conditions.Right side
OFF
9-2, 9-3, 9-6, 1-2, 1-3, 1-6
Open circuit
Up
1-6, 3-9
Less than 2 ohms
Down
1-3, 6-9
Right
1-6, 2-9
Left
1-2, 6-9
CAUTION: When relocating the car between locations with
extremely different temperatures (warm and cold),
leave the car in the location for a while to adapt to
the temperature prior to checking it.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor

2004 Mitsubishi ENDEAVOR 04 - Engine > ENGINE AND ENGINE COOLING :
ENGINE [Part 061000 ]
TSB No: 0413004 NHTSA ID: , July 01, 2004 : Replacement: 0413004R
Summary: power train control module (pcm) reprogramming for spark knock / diagnostic
trouble code (dtc) 0171. *tt

2004 Mitsubishi ENDEAVOR 04 - Power Train > POWER TRAIN [Part 100000 ]
TSB No: 0423001 NHTSA ID: , July 01, 2004 : Replacement: 0423001R
Summary: power train control module (pcm) reprogramming for a/t shift delay. *tt

2004 Mitsubishi ENDEAVOR 04 - Equipment > EQUIPMENT [Part 350000 ]
TSB No: 0454004 NHTSA ID: , May 01, 2004 : Replacement:
Summary: overhead console service parts. *tt

2004 Mitsubishi ENDEAVOR 04 - Air Bag > AIR BAGS [Part 140000 ]
TSB No: 0452B002 NHTSA ID: , March 01, 2004 : Replacement:
Summary: corrected advanced air bag troubleshooting procedures - service manual
revision. *tt

2004 Mitsubishi ENDEAVOR 04 - Differential Unit > POWER TRAIN : DRIVELINE
: DIFFERENTIAL UNIT [Part 105500 ]
TSB No: 0427001 NHTSA ID: , February 01, 2004 : Replacement:
Summary: rear differential noise diagnosis. *mr

2004 Mitsubishi ENDEAVOR 04 - Electrical Equipment > EQUIPMENT :
ELECTRICAL [Part 353000 ]
TSB No: 0442A001 NHTSA ID: , February 01, 2004 : Replacement:
Summary: remote keyless entry (all 2004 models). *tt

2004 Mitsubishi ENDEAVOR 04 - ABS Antilock > SERVICE BRAKES,
HYDRAULIC : ANTILOCK [Part 036000 ]
TSB No: 0435002 NHTSA ID: , January 01, 2004 : Replacement:
Summary: abs and tcl diagnostic trouble codes - service manual revision. *tt
