2004 MITSUBISHI ENDEAVOR remote control

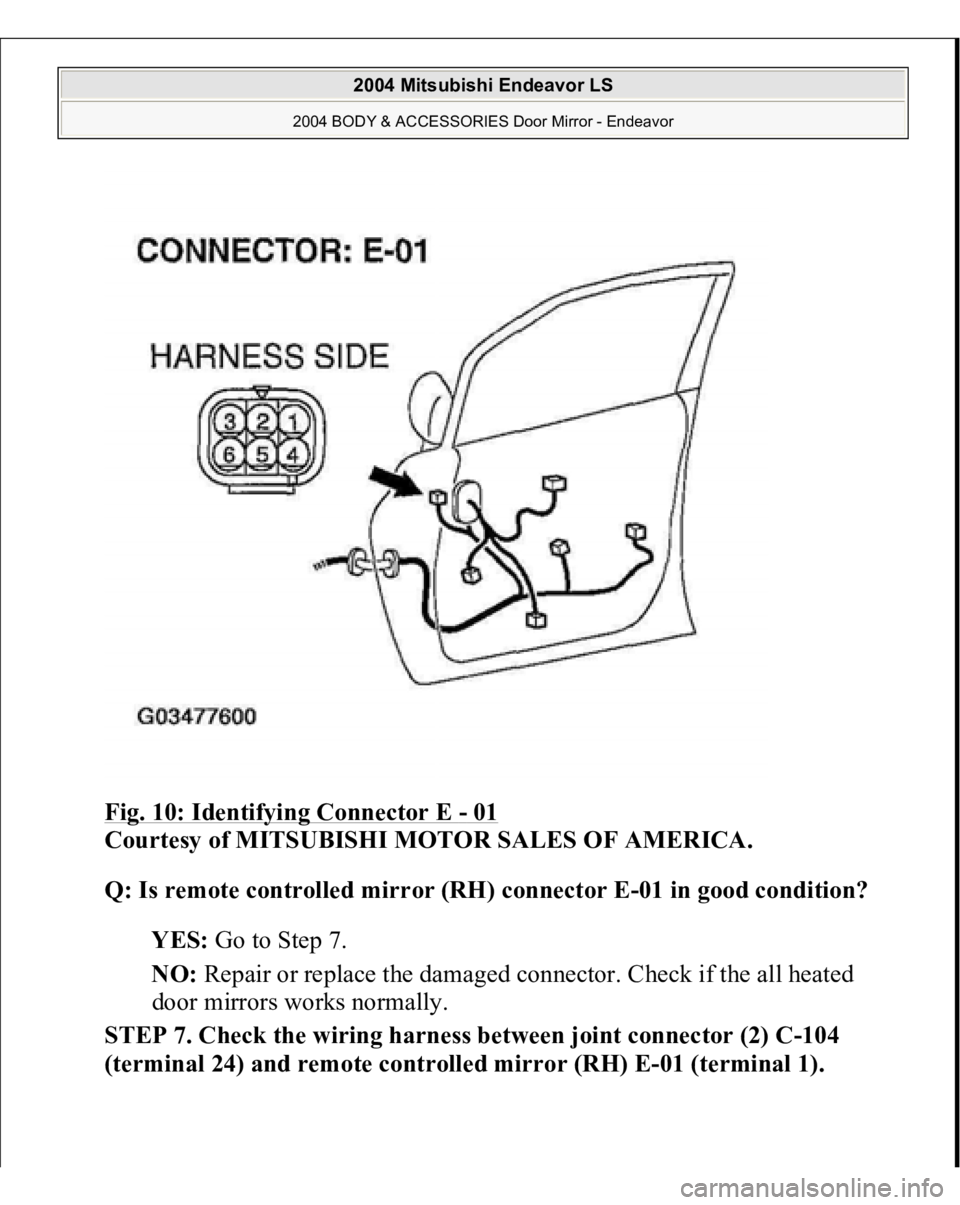

Fig. 10: Identifying Connector E
- 01

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is remote controlled mirror (RH) connector E-01 in good condition?
YES: Go to Step 7.
NO: Repair or replace the damaged connector. Check if the all heated
door mirrors works normally.
STEP 7. Check the wiring harness between joint connector (2) C-104
(terminal 24) and remote controlled mirror (RH) E-01 (terminal 1).

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor

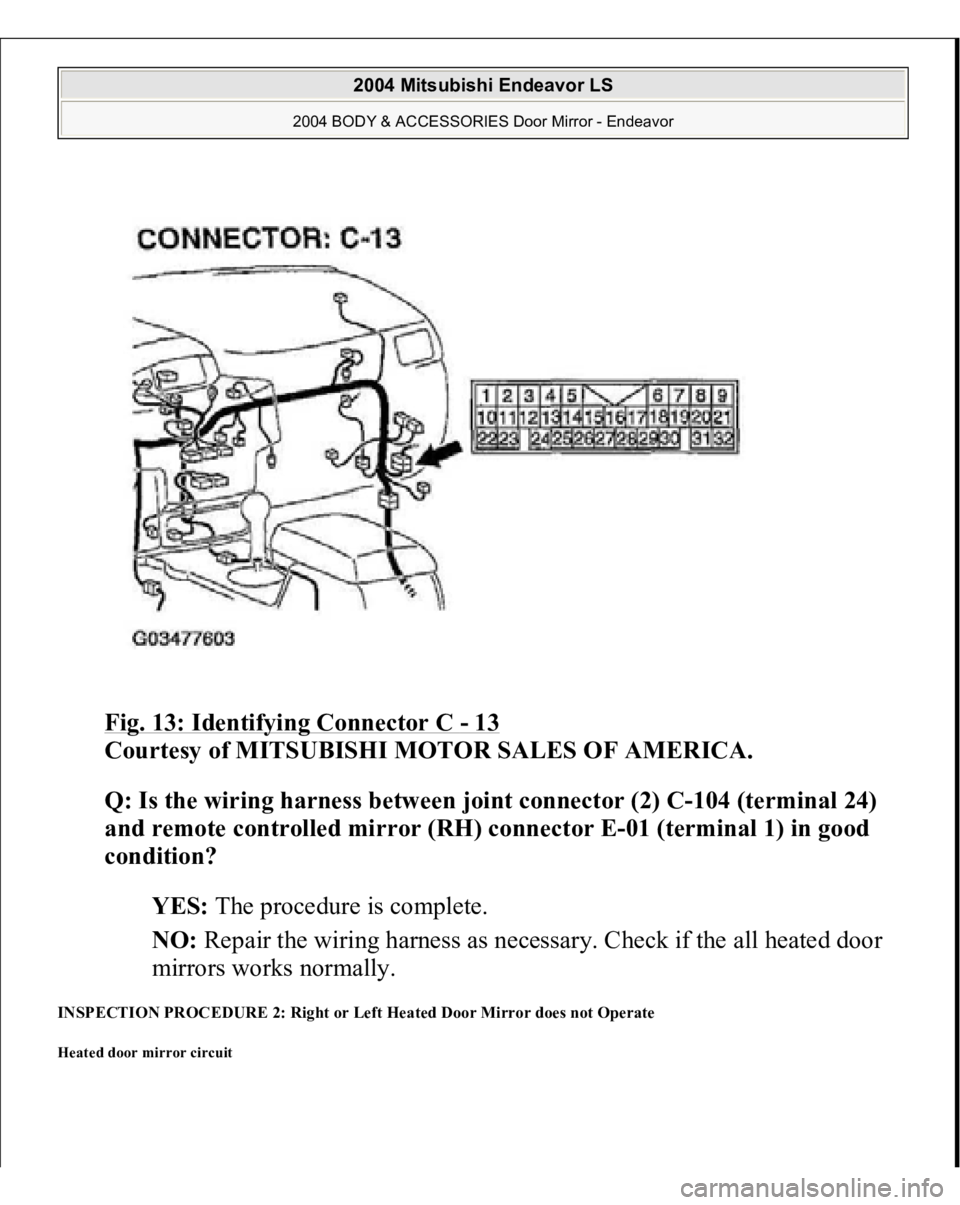

Fig. 13: Identifying Connector C
- 13

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the wiring harness between joint connector (2) C-104 (terminal 24)
and remote controlled mirror (RH) connector E-01 (terminal 1) in good
condition?
YES: The procedure is complete.
NO: Repair the wiring harness as necessary. Check if the all heated door
mirrors works normally.
INSPECTION PROCEDURE 2: Right or Left Heated Door Mirror does not Operate Heated door mirror circuit
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor

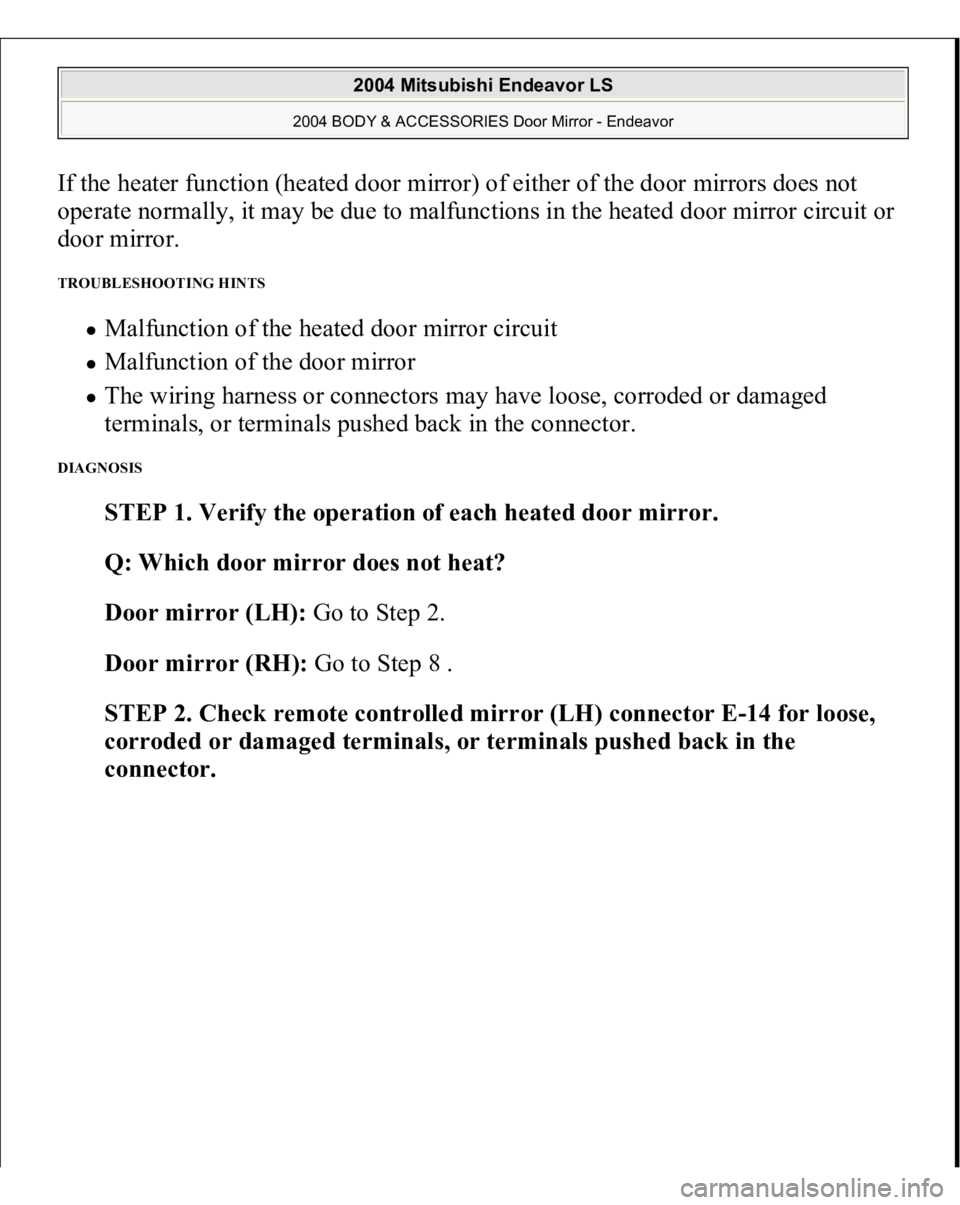

If the heater function (heated door mirror) of either of the door mirrors does not
operate normally, it may be due to malfunctions in the heated door mirror circuit or
door mirror. TROUBLESHOOTING HINTS
Malfunction of the heated door mirror circuit Malfunction of the door mirror The wiring harness or connectors may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
DIAGNOSIS
STEP 1. Verify the operation of each heated door mirror.
Q: Which door mirror does not heat?
Door mirror (LH): Go to Step 2.
Door mirror (RH): Go to Step 8 .
STEP 2. Check remote controlled mirror (LH) connector E-14 for loose,
corroded or damaged terminals, or terminals pushed back in the
connector.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor

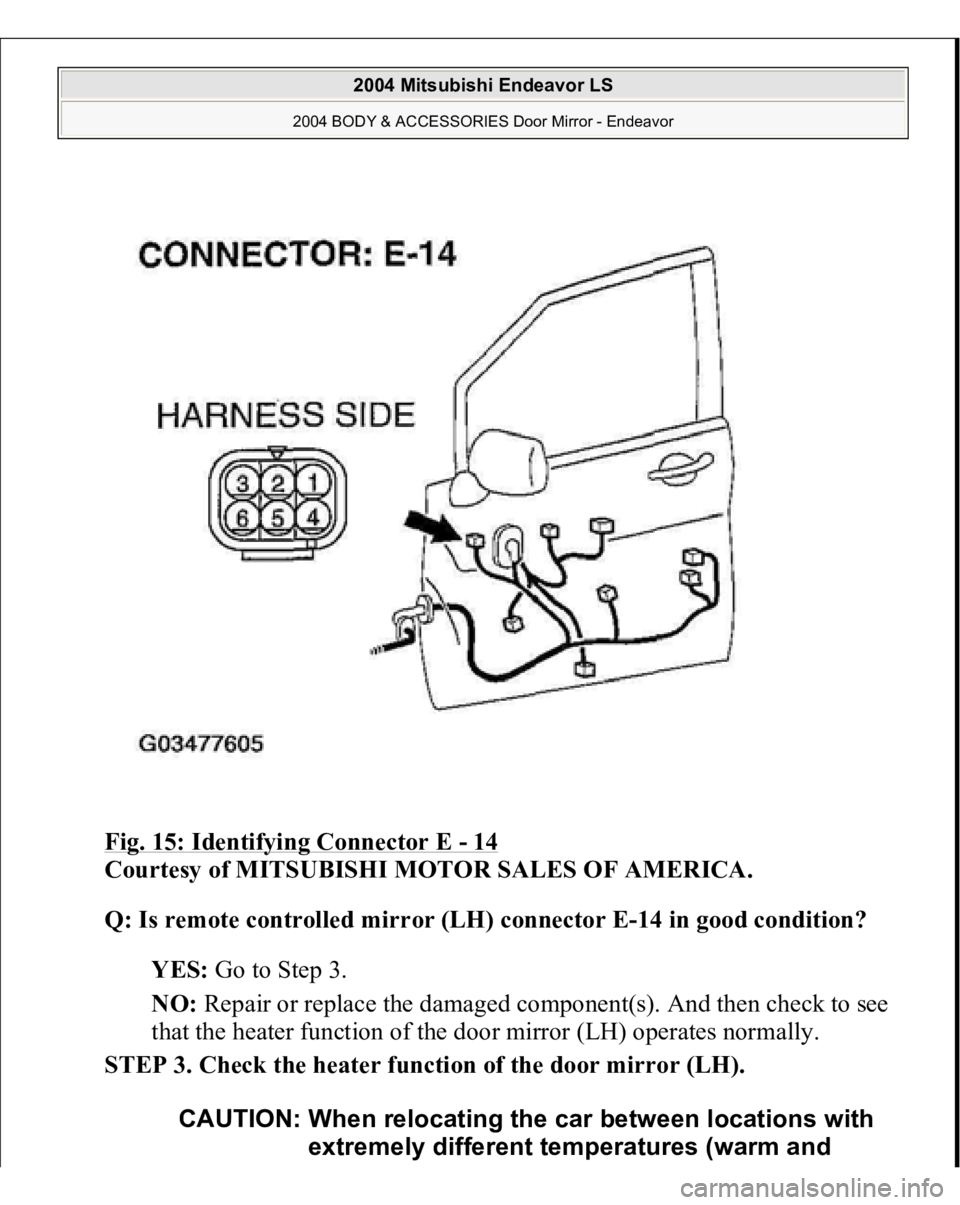

Fig. 15: Identifying Connector E
- 14

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is remote controlled mirror (LH) connector E-14 in good condition?
YES: Go to Step 3.
NO: Repair or replace the damaged component(s). And then check to see
that the heater function of the door mirror (LH) operates normally.
STEP 3. Check the heater function of the door mirror (LH).
CAUTION: When relocating the car between locations with
extremely different temperatures (warm and

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor

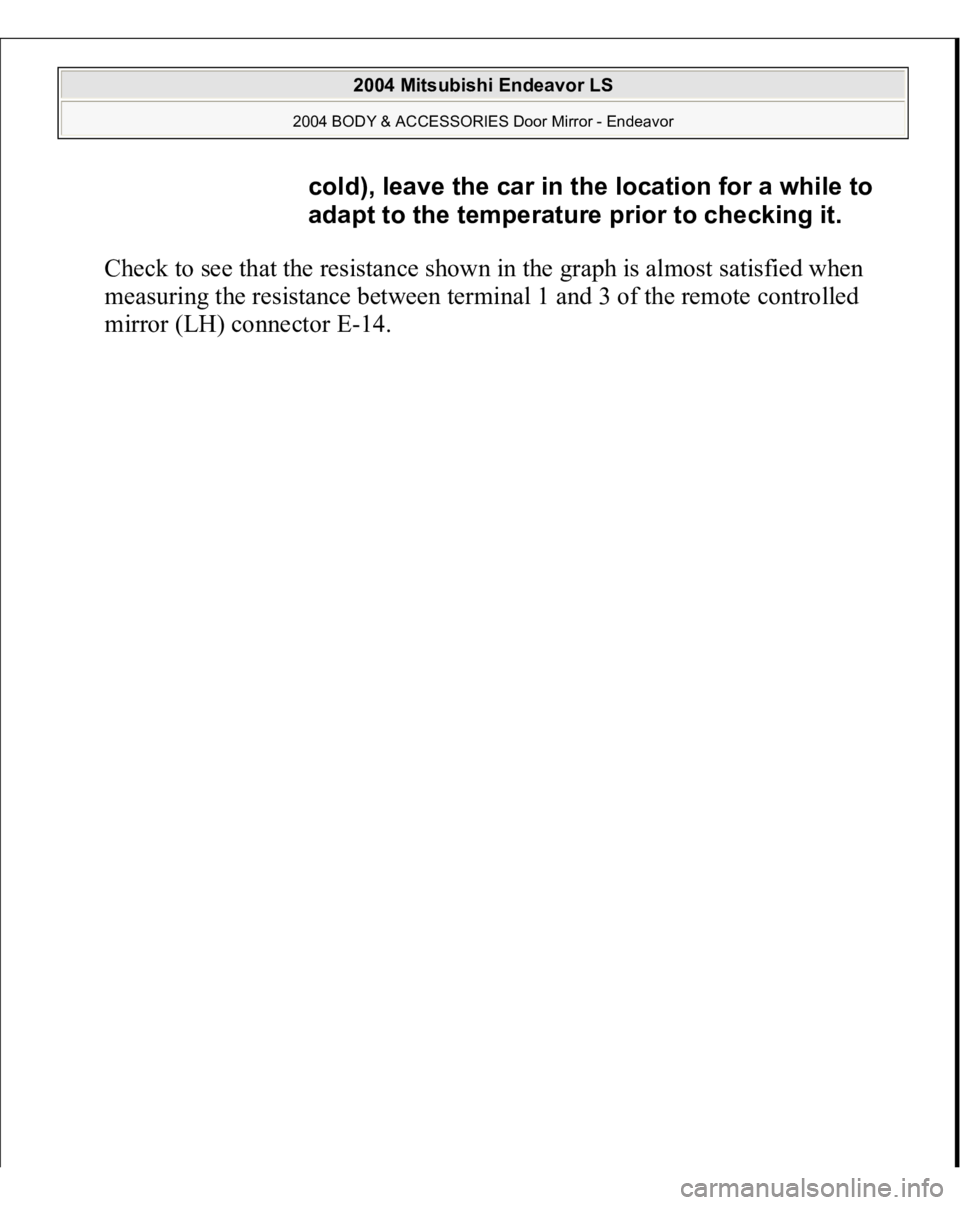

Check to see that the resistance shown in the graph is almost satisfied when
measuring the resistance between terminal 1 and 3 of the remote controlled
mirror
(LH
) connector
E-14.
cold), leave the car in the location for a while to
adapt to the temperature prior to checking it.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor

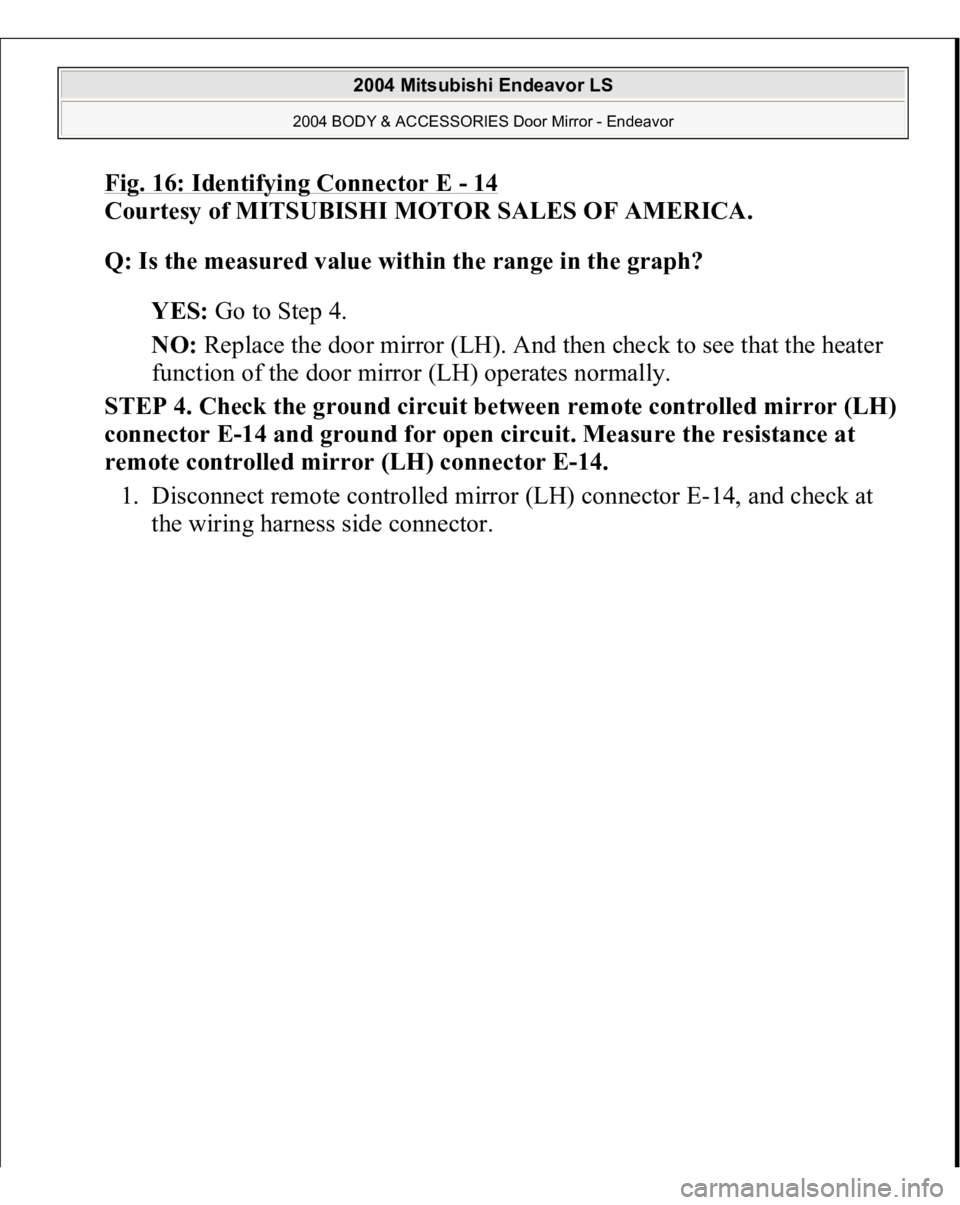

Fig. 16: Identifying Connector E
-14
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the measured value within the range in the graph?
YES: Go to Step 4.
NO: Replace the door mirror (LH). And then check to see that the heater
function of the door mirror (LH) operates normally.
STEP 4. Check the ground circuit between remote controlled mirror (LH)
connector E-14 and ground for open circuit. Measure the resistance at
remote controlled mirror (LH) connector E-14.
1. Disconnect remote controlled mirror (LH) connector E-14, and check at
the wirin
g harness side connector.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor

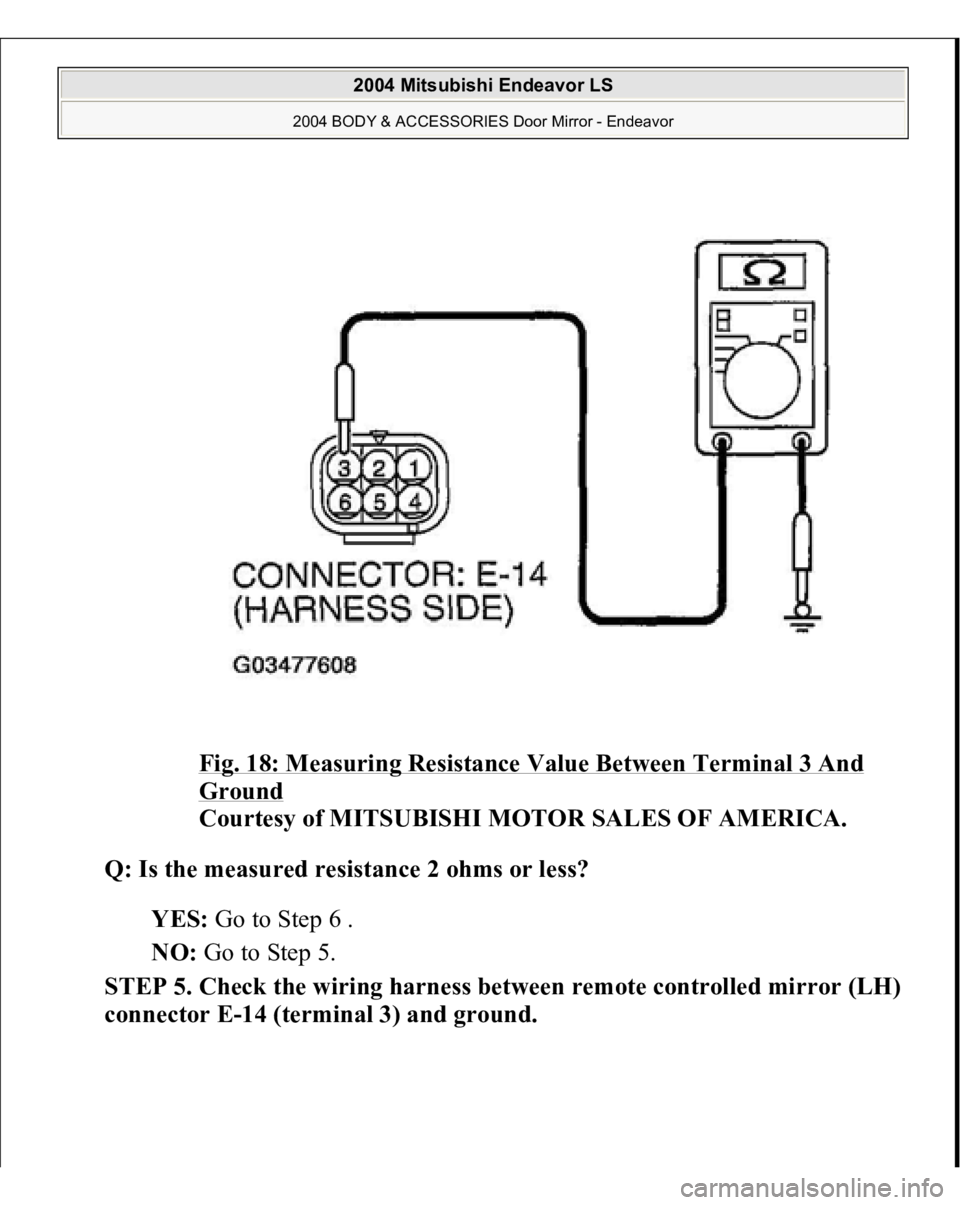

Fig. 18: Measuring Resistance Value Between Terminal 3 And Ground

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the measured resistance 2 ohms or less?
YES: Go to Step 6 .
NO: Go to Step 5.
STEP 5. Check the wiring harness between remote controlled mirror (LH)
connector E-14 (terminal 3) and ground.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor

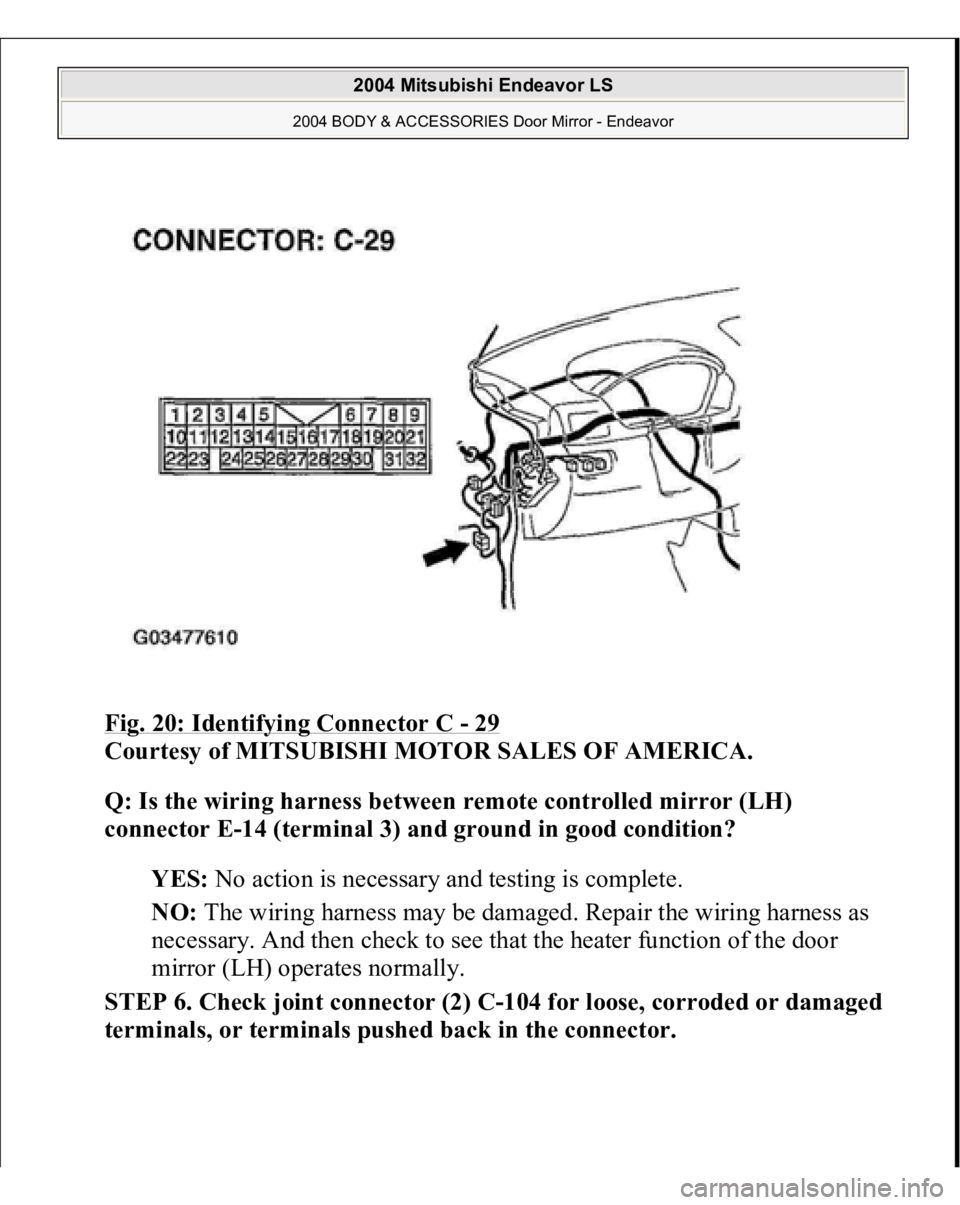

Fig. 20: Identifying Connector C
- 29

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the wiring harness between remote controlled mirror (LH)
connector E-14 (terminal 3) and ground in good condition?
YES: No action is necessary and testing is complete.
NO: The wiring harness may be damaged. Repair the wiring harness as
necessary. And then check to see that the heater function of the door
mirror (LH) operates normally.
STEP 6. Check joint connector (2) C-104 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor
