2004 MITSUBISHI ENDEAVOR remote control

Fig. 31: Switch Position Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the resistance between terminals 2 and 3 normal?
YES: This malfunction is intermittent. Refer to HOW TO COPE WITH
INTERMITTENT MALFUNCTIONS
.
NO: Go to Step 8.
STEP 8. Measure the resistance at clock spring terminal.
1. Remove the clock spring (Refer to AIR BAG RESTRAINT
SYSTEMS
).
2. Measure the resistance at clock s
prin
g connectors C-303 and C-306.
NOTE: When checking the right remote controlled radio
switch, do not operate the left remote controlled
radio switch.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

Fig. 35: Identifying Connector C
-301 C
-303

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are clock spring connector C-303 and switch (RH) connector C-301 in
good condition?
YES: Go to step 10.
NO: Repair or replace the damaged component(s). The remote controlled
radio switch should work normally.
STEP 10. Check the wiring harness between clock spring connector C-303
(terminals 4 and 5) and switch (RH) connector C-301 (terminals 1 and 2).

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

Fig. 36: Identifying Connector C
-301 C
-303

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the wiring harness between clock spring connector C-303 (terminals
4 and 5) and switch (RH) connector C-301 (terminals 1 and 2) in good
condition?
YES: Go to Step 11.
NO: Repair the wiring harness. The remote controlled radio switch should
work normally.
STEP 11. Measure the resistance at remote controlled radio switch (RH).
1. Remove the airbag module (Refer to AIR BAG RESTRAINT
SYSTEMS
).
2. Measure the resistance b
y operatin
g the remote controlled radio switch

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

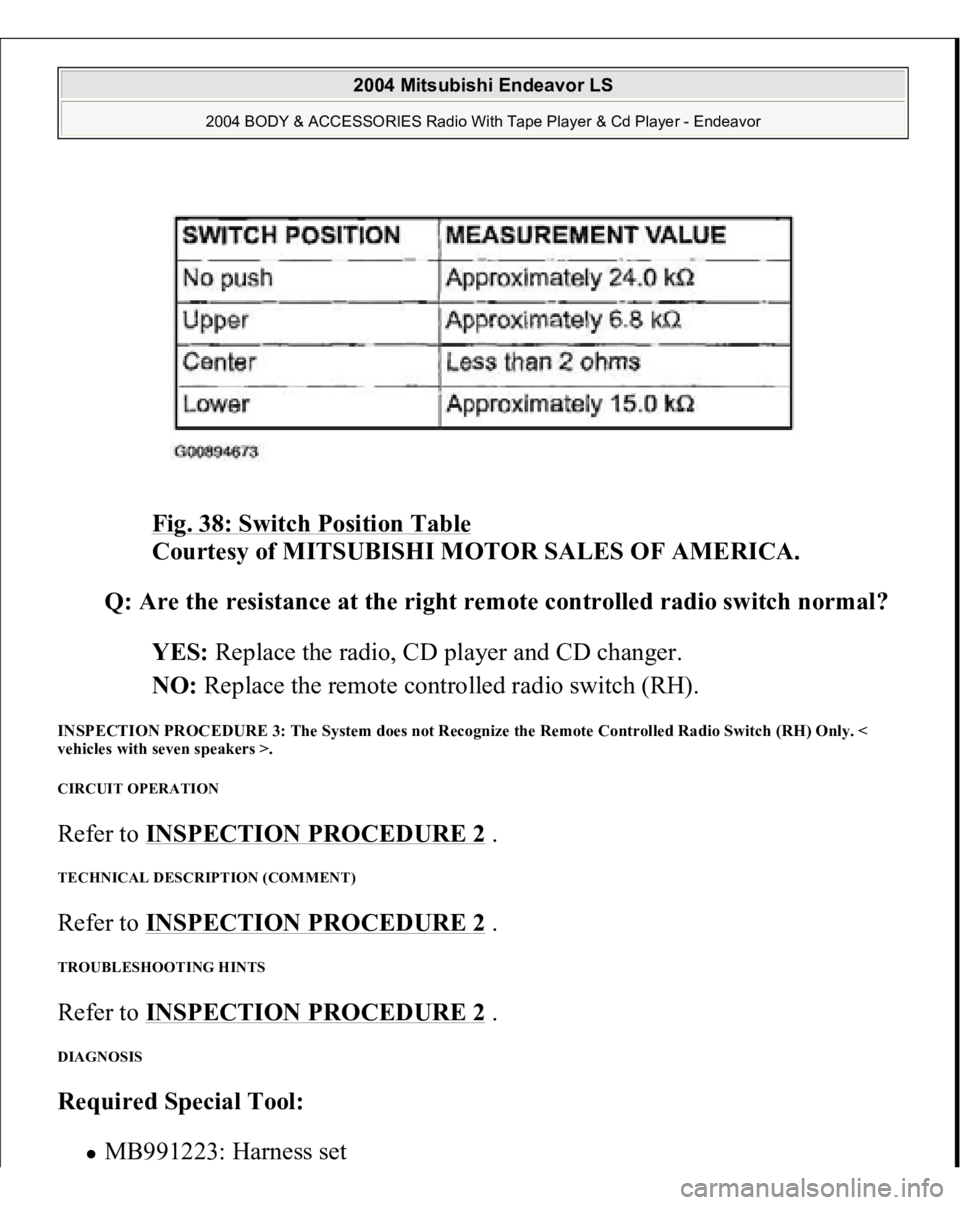

Fig. 38: Switch Position Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are the resistance at the right remote controlled radio switch normal?
YES: Replace the radio, CD player and CD changer.
NO: Replace the remote controlled radio switch (RH).
INSPECTION PROCEDURE 3: The System does not Recognize the Remote Controlled Radio Switch (RH) Only. <
vehicles with seven speakers >. CIRCUIT OPERATION Refer to INSPECTION PROCEDURE 2
.
TECHNICAL DESCRIPTION (COMMENT) Refer to INSPECTION PROCEDURE 2
.
TROUBLESHOOTING HINTS Refer to INSPECTION PROCEDURE 2
.
DIAGNOSIS Required Special Tool:
MB991223: Harness set

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

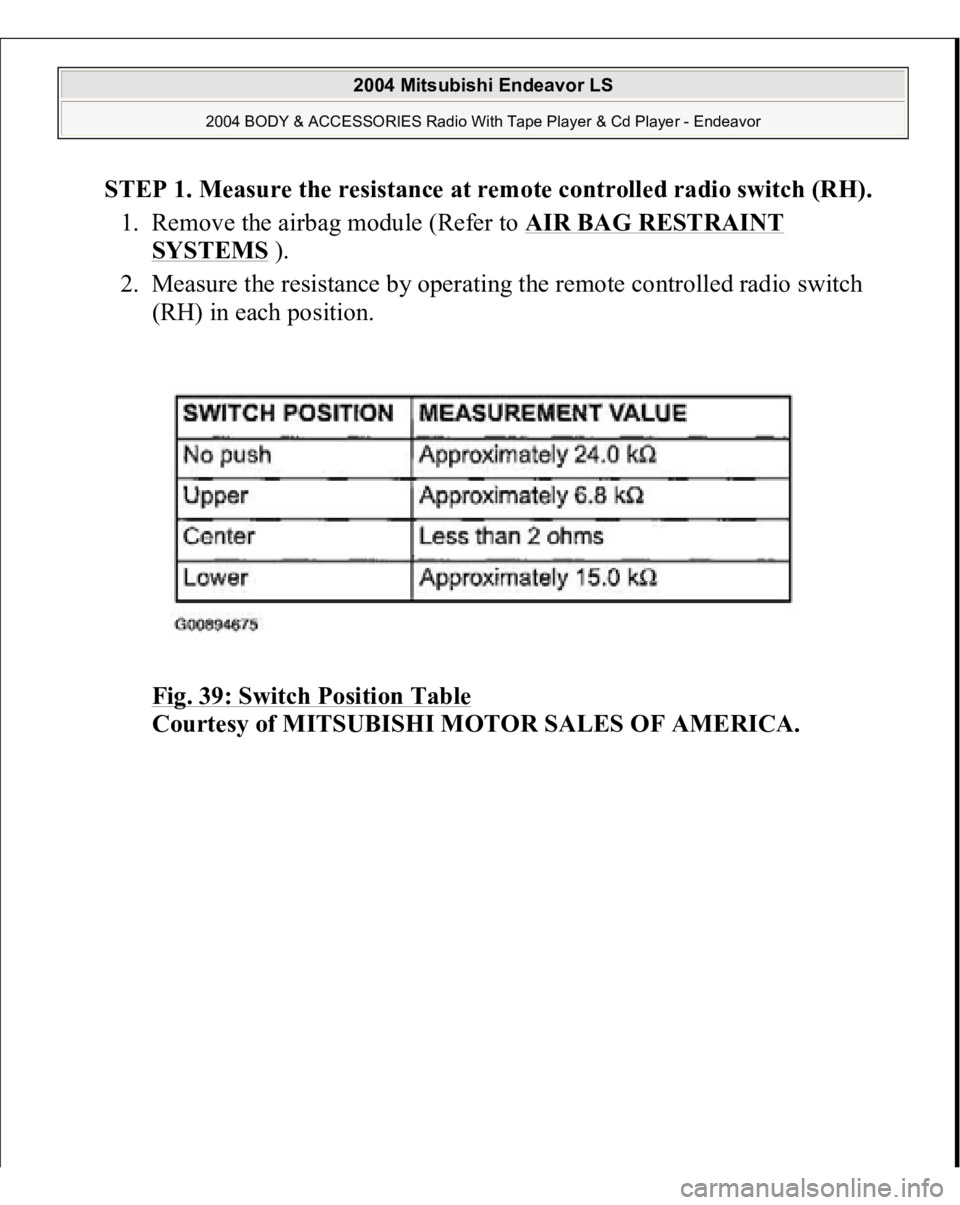

STEP 1. Measure the resistance at remote controlled radio switch (RH).
1. Remove the airbag module (Refer to AIR BAG RESTRAINT
SYSTEMS
).
2. Measure the resistance by operating the remote controlled radio switch
(RH) in each position.
Fig. 39: Switch Position Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

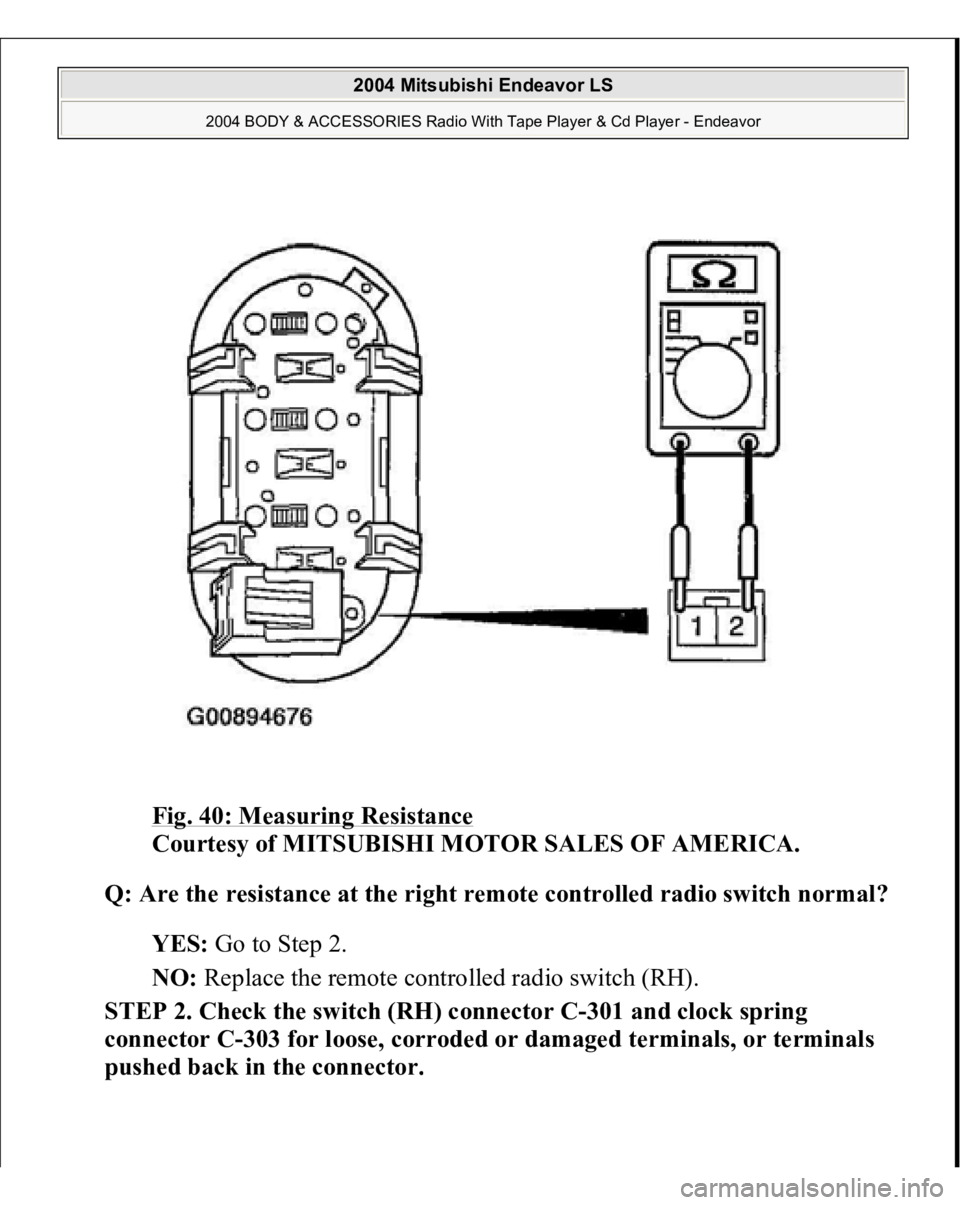

Fig. 40: Measuring Resistance

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are the resistance at the right remote controlled radio switch normal?
YES: Go to Step 2.
NO: Replace the remote controlled radio switch (RH).
STEP 2. Check the switch (RH) connector C-301 and clock spring
connector C-303 for loose, corroded or damaged terminals, or terminals
pushed back in the connector
.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

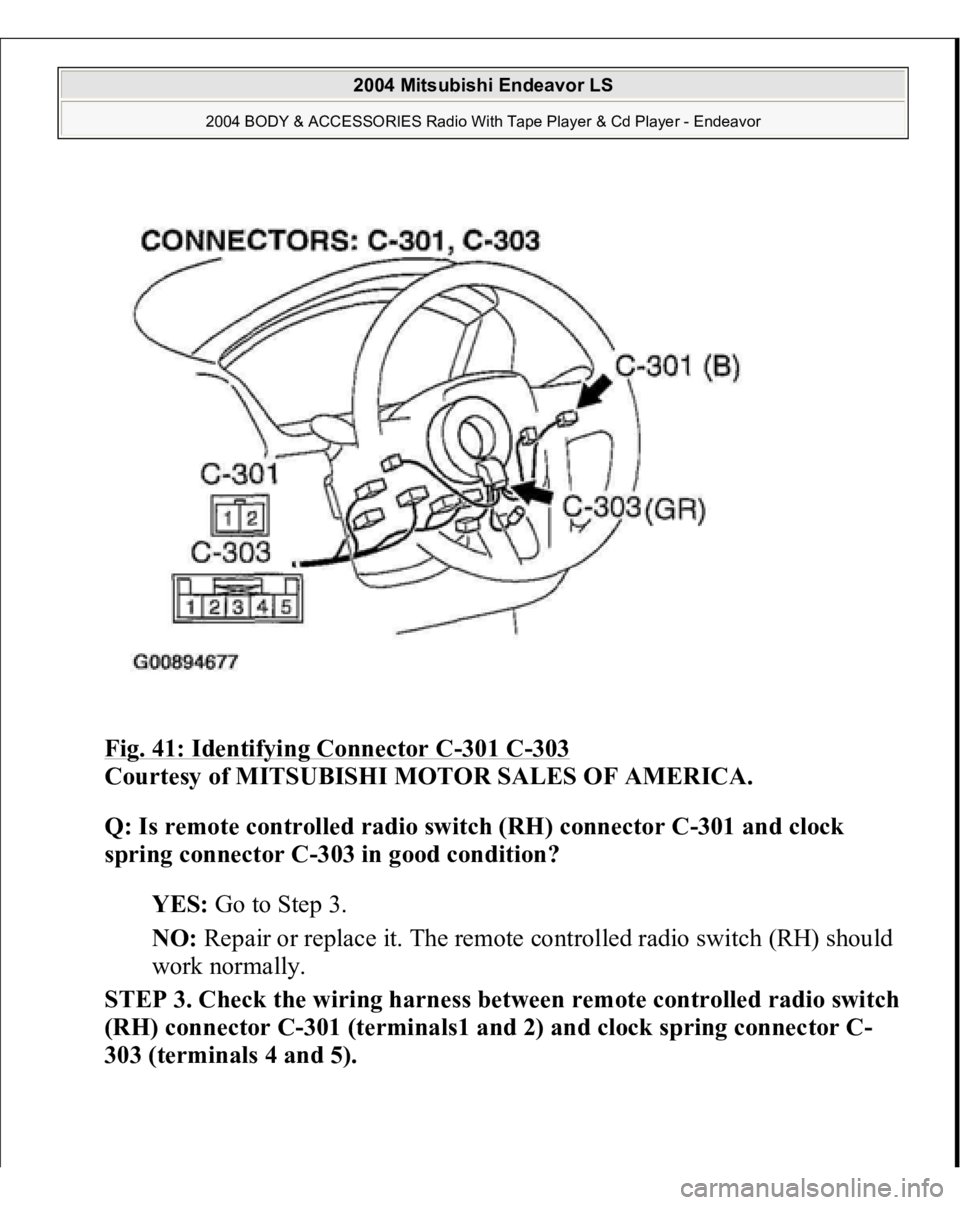

Fig. 41: Identifying Connector C
-301 C
-303

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is remote controlled radio switch (RH) connector C-301 and clock
spring connector C-303 in good condition?
YES: Go to Step 3.
NO: Repair or replace it. The remote controlled radio switch (RH) should
work normally.
STEP 3. Check the wirin
g harness between remote controlled radio switch
(RH) connector C-301 (terminals1 and 2) and clock spring connector C-
303 (terminals 4 and 5).

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

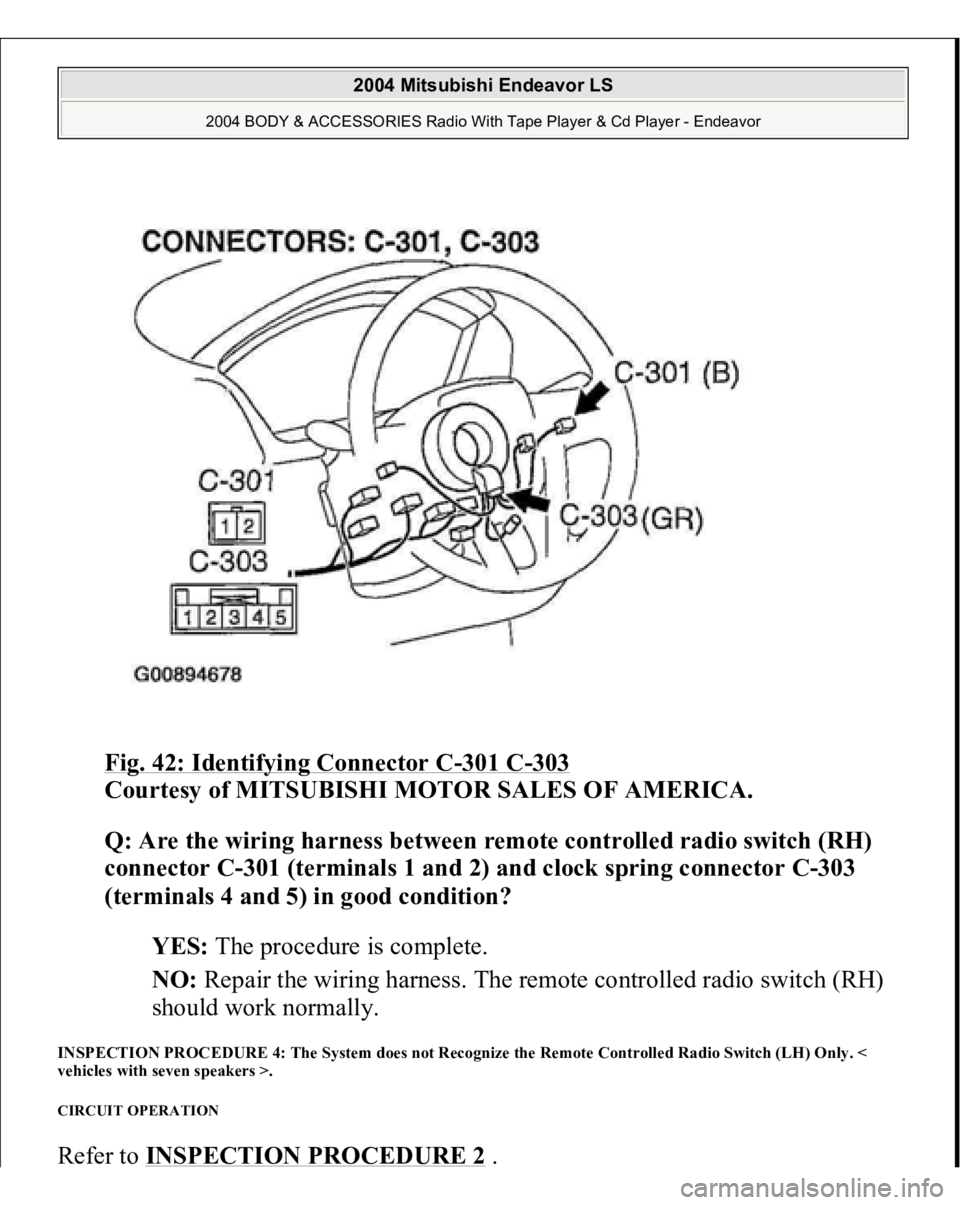

Fig. 42: Identifying Connector C
-301 C
-303

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are the wiring harness between remote controlled radio switch (RH)
connector C-301 (terminals 1 and 2) and clock spring connector C-303
(terminals 4 and 5) in good condition?
YES: The procedure is complete.
NO: Repair the wiring harness. The remote controlled radio switch (RH)
should work normally.
INSPECTION PROCEDURE 4: The System does not Recognize the Remote Controlled Radio Switch (LH) Only. <
vehicles with seven speakers >. CIRCUIT OPERATION Refer to INSPECTION PROCEDURE 2
.
