2004 MITSUBISHI ENDEAVOR remote control

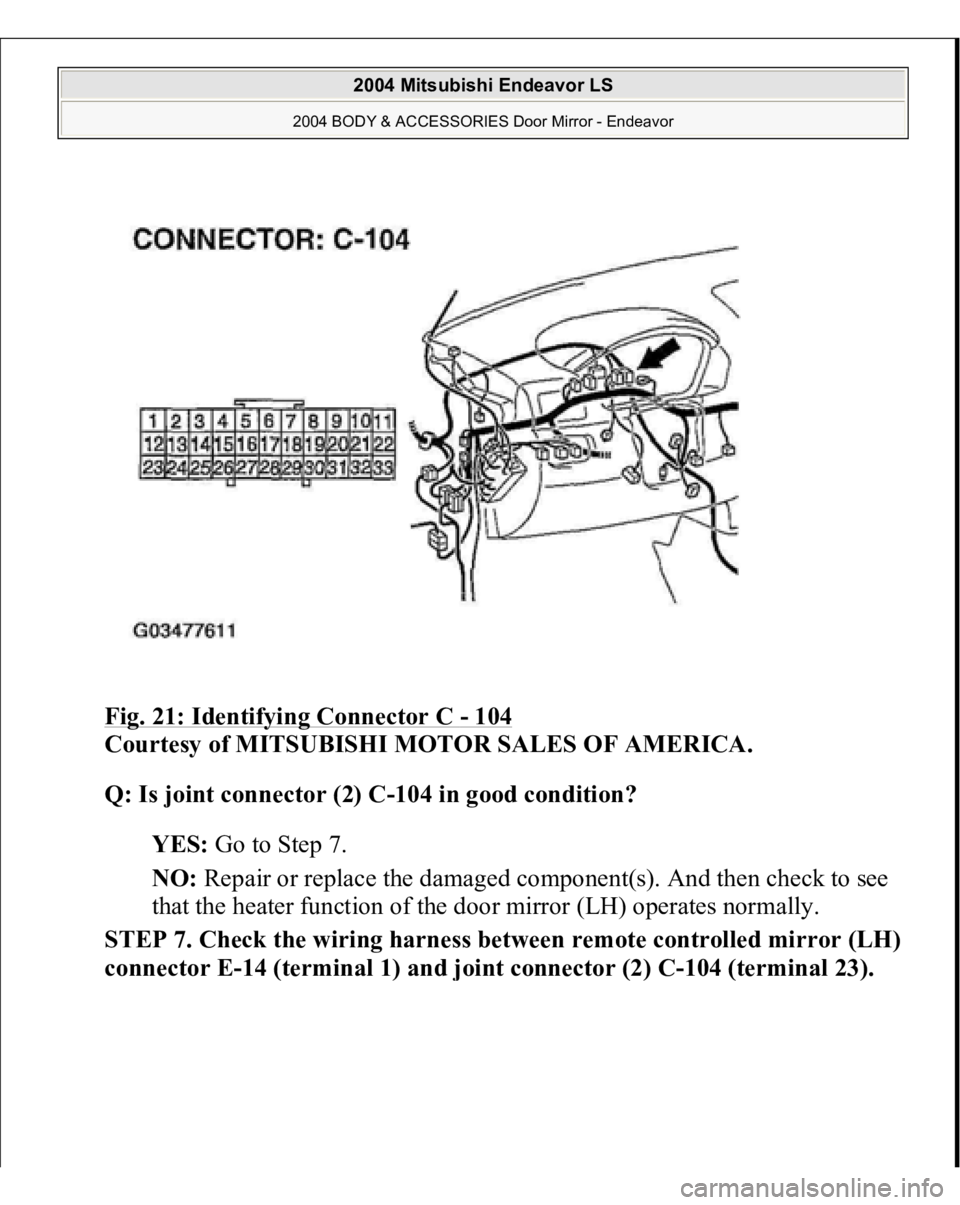

Fig. 21: Identifying Connector C
- 104

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is joint connector (2) C-104 in good condition?
YES: Go to Step 7.
NO: Repair or replace the damaged component(s). And then check to see
that the heater function of the door mirror (LH) operates normally.
STEP 7. Check the wiring harness between remote controlled mirror (LH)
connector E-14 (terminal 1) and
joint connector (2) C-104 (terminal 23)
.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor

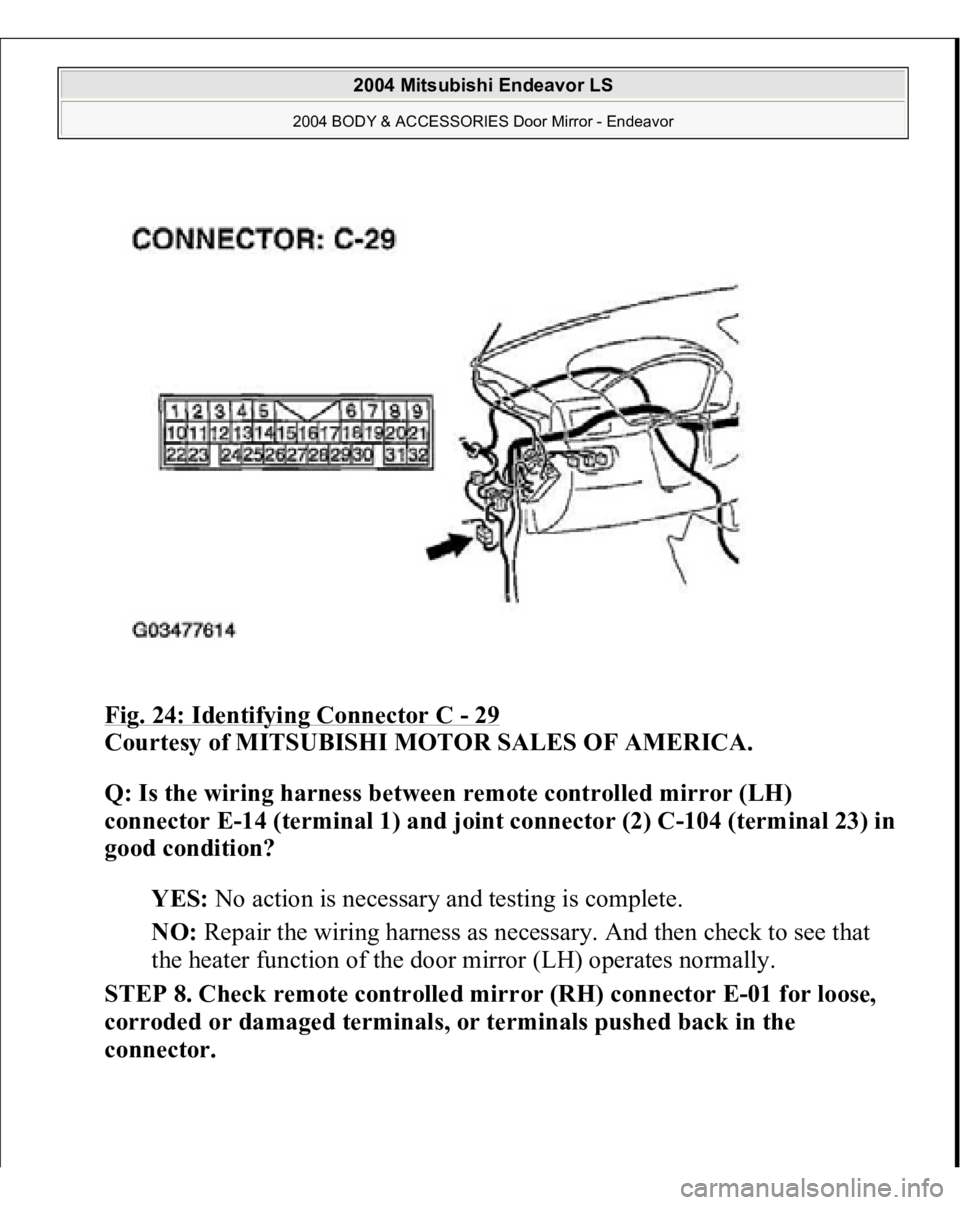

Fig. 24: Identifying Connector C
- 29

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the wiring harness between remote controlled mirror (LH)
connector E-14 (terminal 1) and joint connector (2) C-104 (terminal 23) in
good condition?
YES: No action is necessary and testing is complete.
NO: Repair the wiring harness as necessary. And then check to see that
the heater function of the door mirror (LH) operates normally.
STEP 8. Check remote controlled mirror (RH) connector E-01 for loose,
corroded or damaged terminals, or terminals pushed back in the
connector.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor

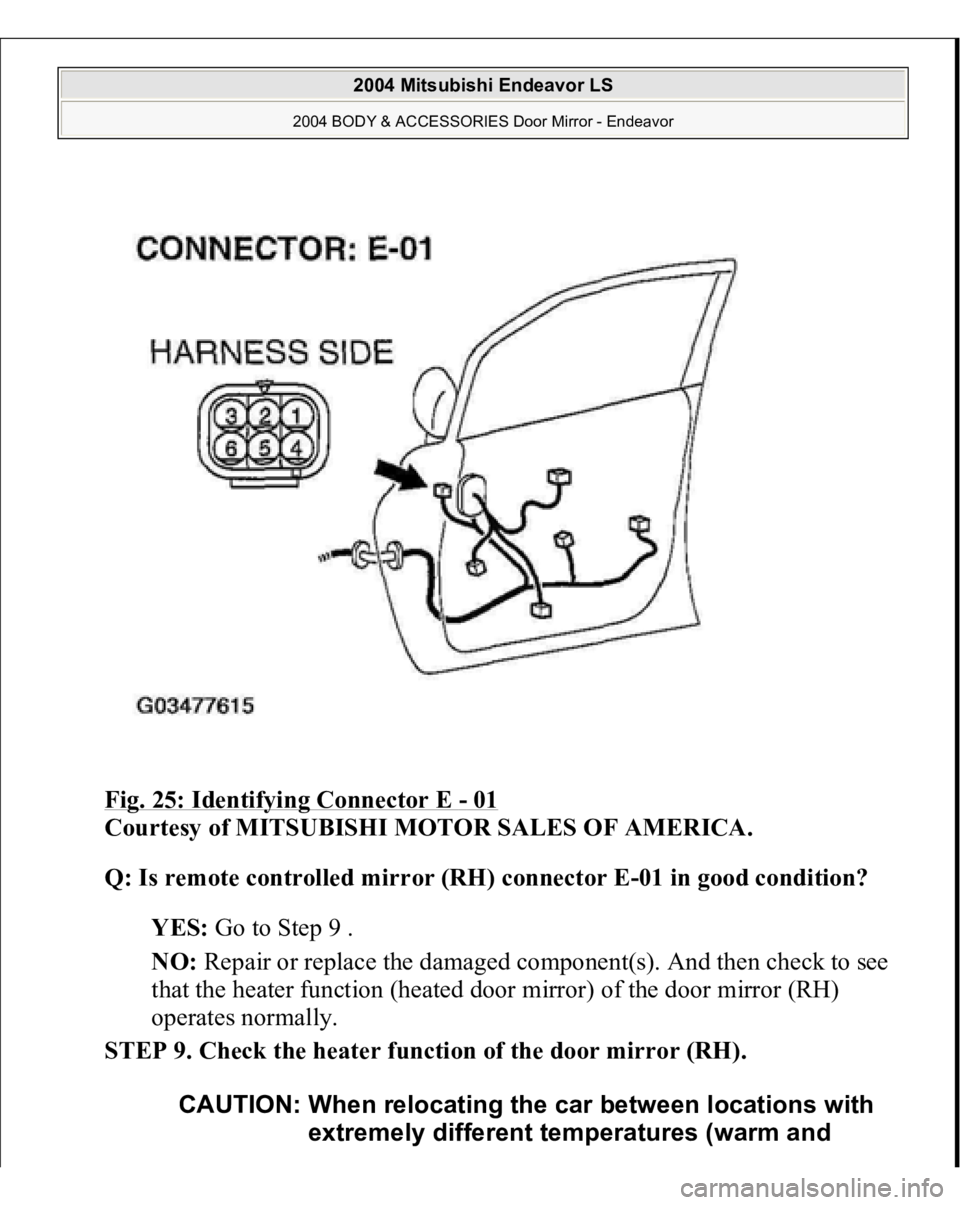

Fig. 25: Identifying Connector E
- 01

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is remote controlled mirror (RH) connector E-01 in good condition?
YES: Go to Step 9 .
NO: Repair or replace the damaged component(s). And then check to see
that the heater function (heated door mirror) of the door mirror (RH)
operates normally.
STEP 9. Check the heater function of the door mirror (RH).
CAUTION: When relocating the car between locations with
extremely different temperatures (warm and

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor

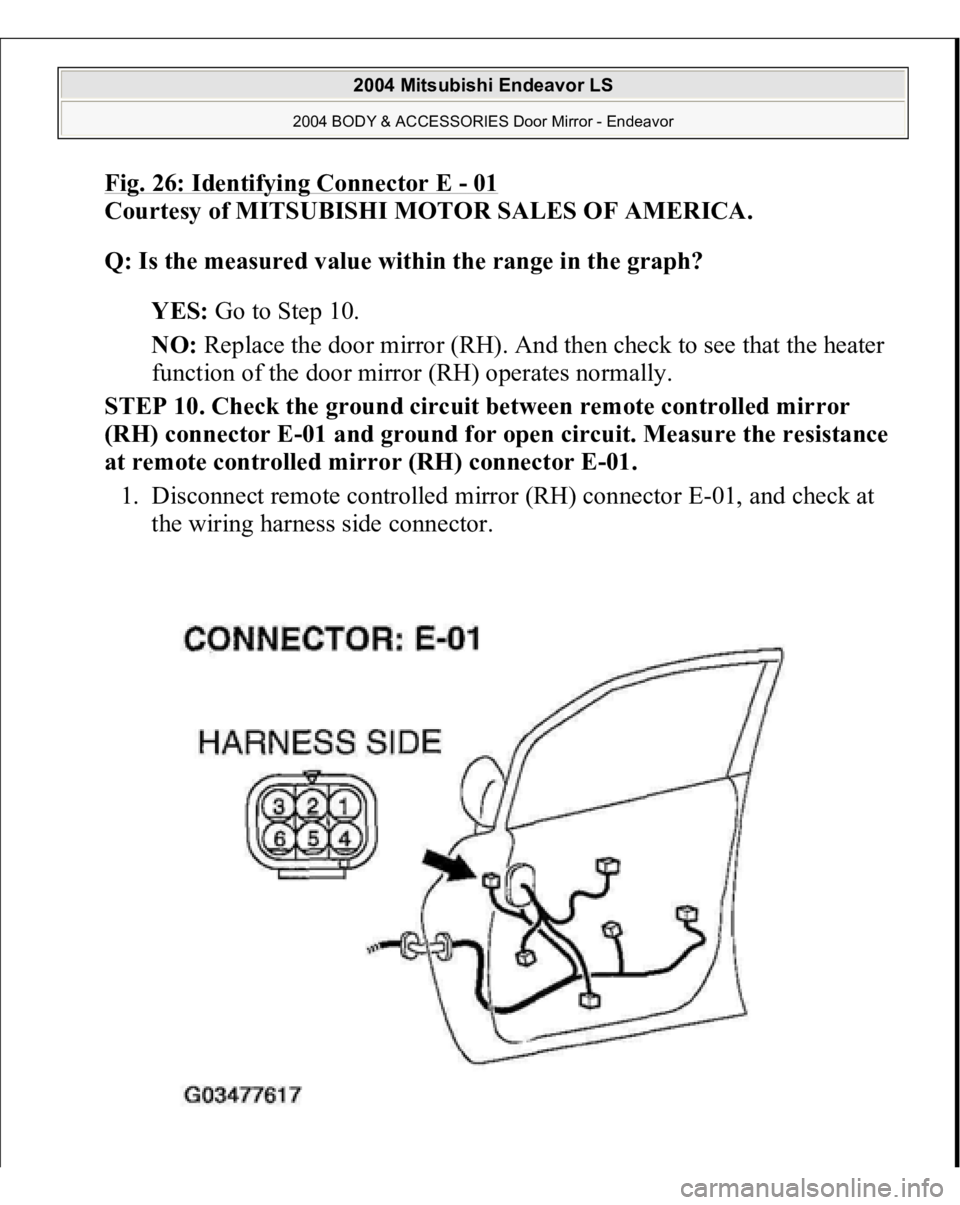

Fig. 26: Identifying Connector E
-01
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the measured value within the range in the graph?
YES: Go to Step 10.
NO: Replace the door mirror (RH). And then check to see that the heater
function of the door mirror (RH) operates normally.
STEP 10. Check the ground circuit between remote controlled mirror
(RH) connector E-01 and ground for open circuit. Measure the resistance
at remote controlled mirror (RH) connector E-01.
1. Disconnect remote controlled mirror (RH) connector E-01, and check at
the wiring harness side connector.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor

Fig. 27: Identifying Connector E
-01
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Measure the resistance value between terminal 3 and ground.
The resistance should equal 2 ohms or less.

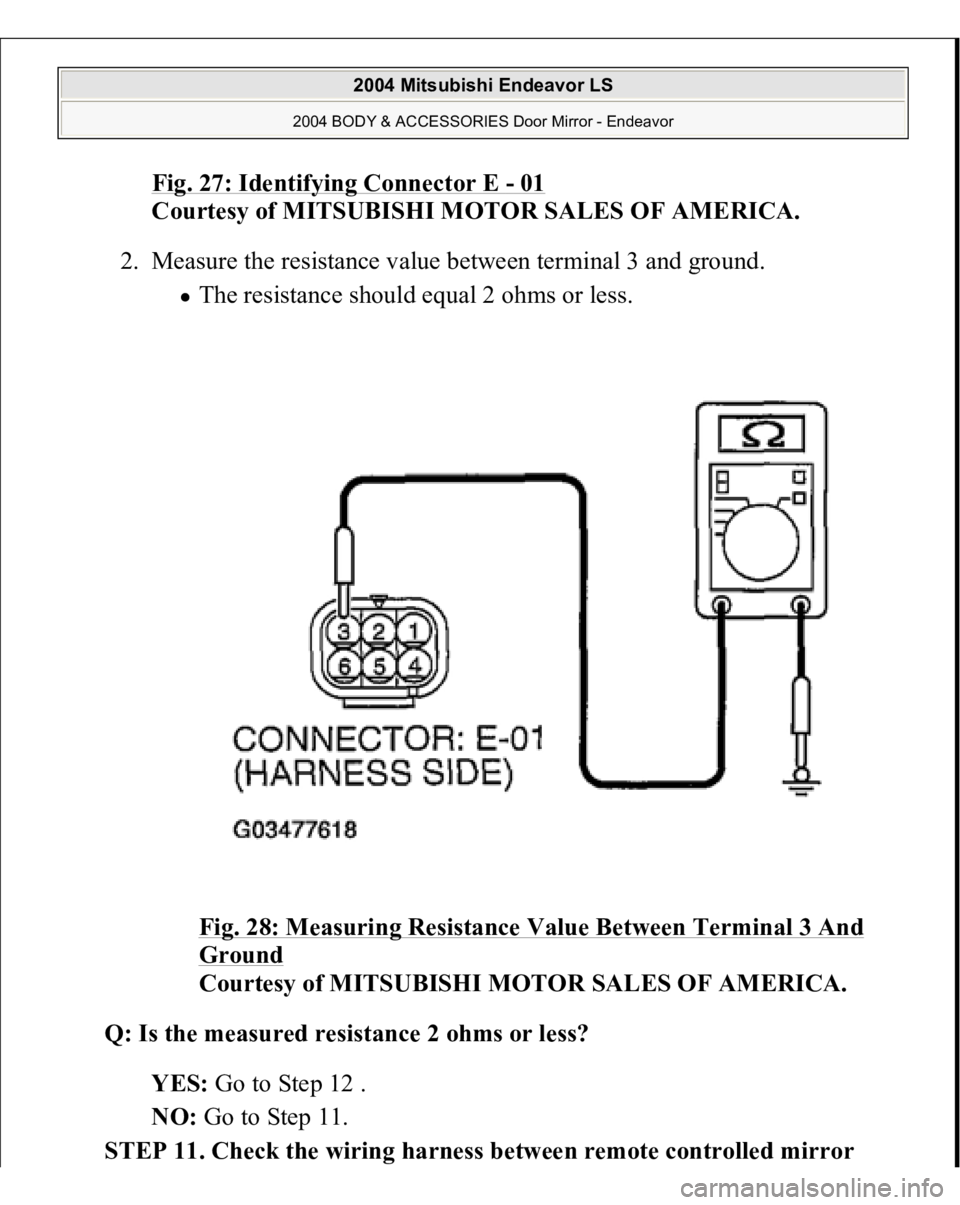

Fig. 28: Measuring Resistance Value Between Terminal 3 And Ground

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the measured resistance 2 ohms or less?
YES: Go to Step 12 .
NO: Go to Step 11.
STEP 11. Check the wiring harness between remote controlled mirror

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor

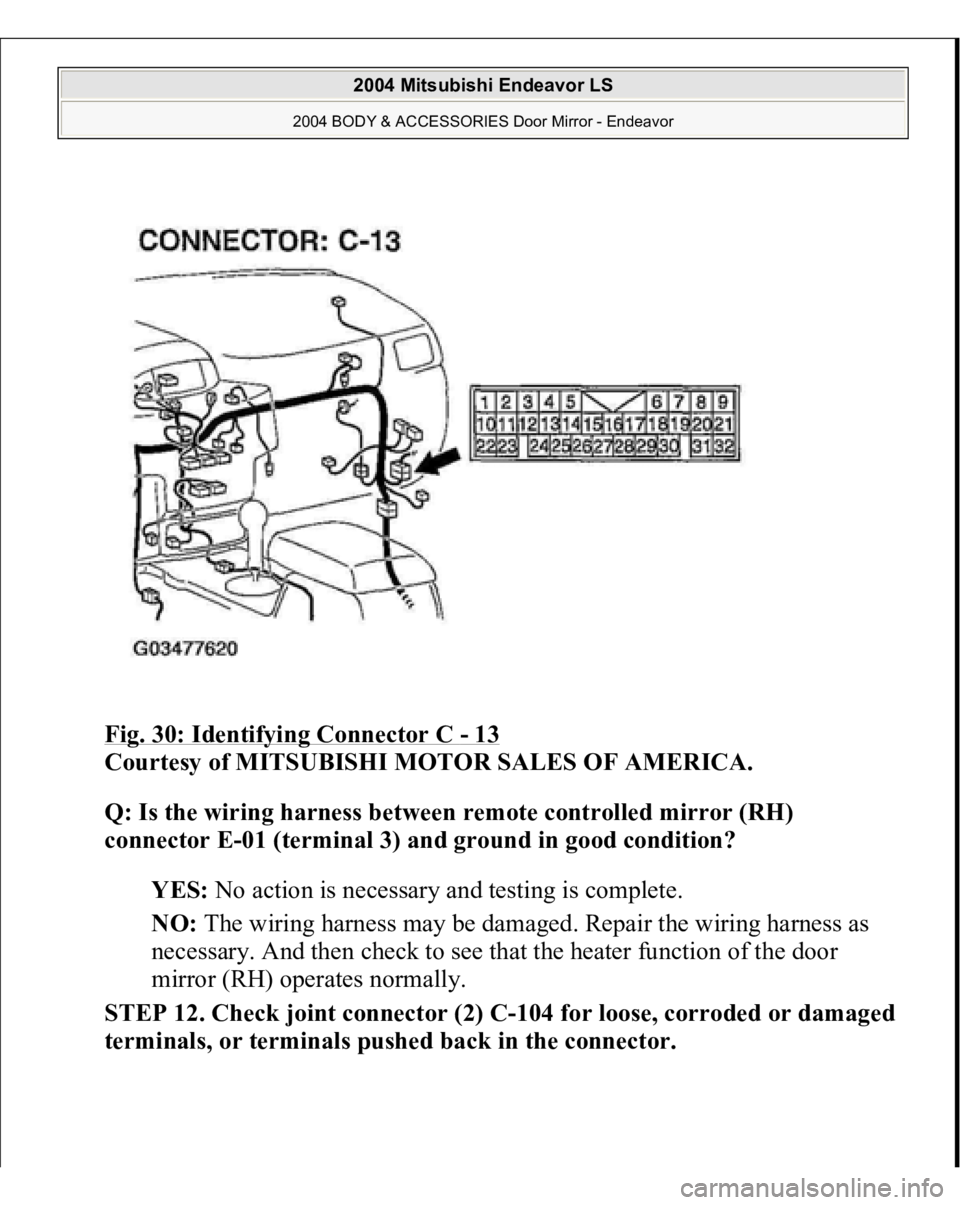

Fig. 30: Identifying Connector C
- 13

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the wiring harness between remote controlled mirror (RH)
connector E-01 (terminal 3) and ground in good condition?
YES: No action is necessary and testing is complete.
NO: The wiring harness may be damaged. Repair the wiring harness as
necessary. And then check to see that the heater function of the door
mirror (RH) operates normally.
STEP 12. Check joint connector (2) C-104 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor

Fig. 31: Identifying Connector C
- 104

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is joint connector (2) C-104 in good condition?
YES: Go to Step 13 .
NO: Repair or replace the damaged component(s). And then check to see
that the heater function of the door mirror (RH) operates normally.
STEP 13. Check the wiring harness between remote controlled mirror
(RH) connector E-01 (terminal 1) and joint connector (2) C-104 (terminal
24).

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor

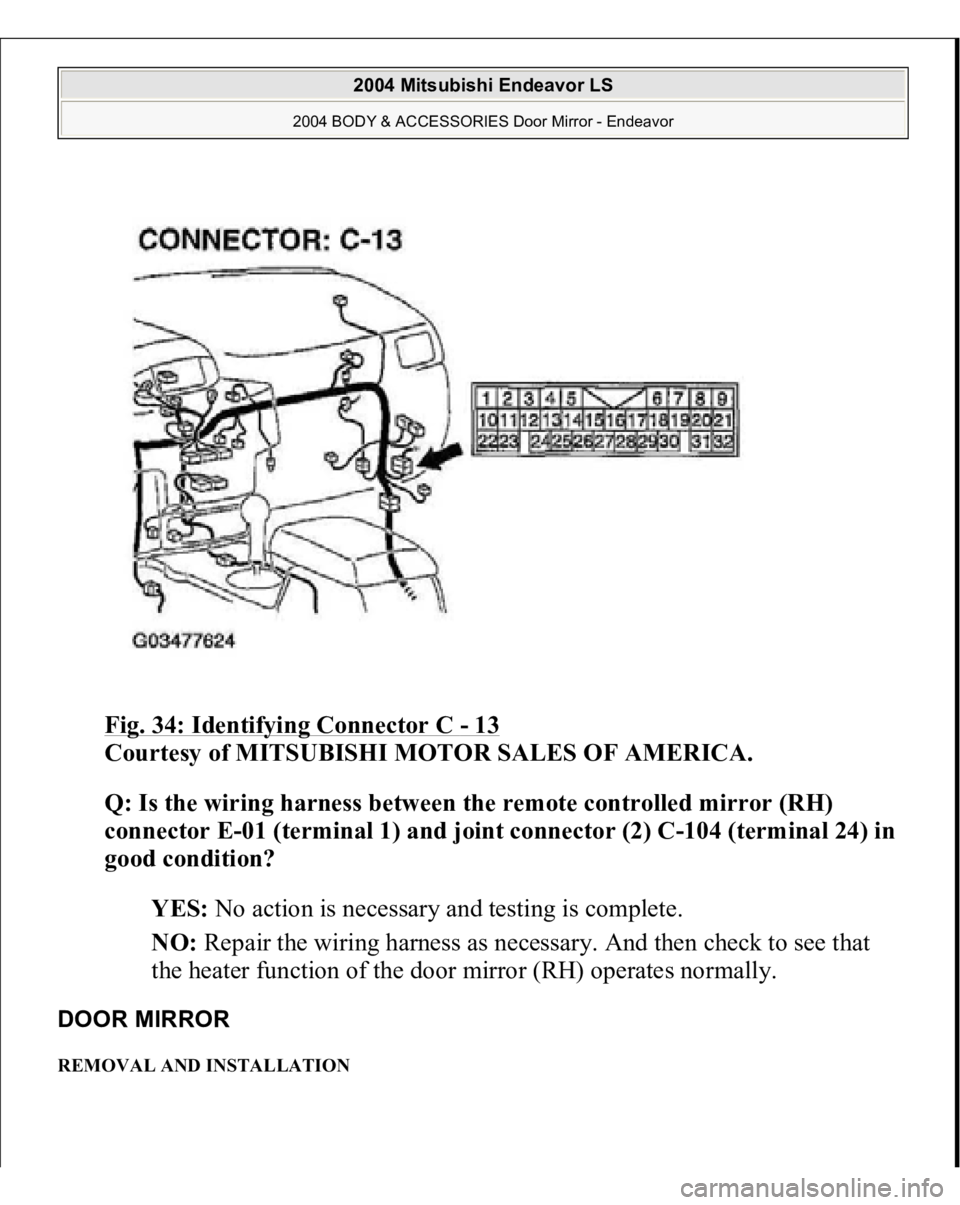

Fig. 34: Identifying Connector C
- 13

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the wiring harness between the remote controlled mirror (RH)
connector E-01 (terminal 1) and joint connector (2) C-104 (terminal 24) in
good condition?
YES: No action is necessary and testing is complete.
NO: Repair the wiring harness as necessary. And then check to see that
the heater function of the door mirror (RH) operates normally.
DOOR MIRROR REMOVAL AND INSTALLATION
