2004 MITSUBISHI ENDEAVOR sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
6. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC C1505 set?
YES: Go to Step 5.
NO: The procedure is complete.

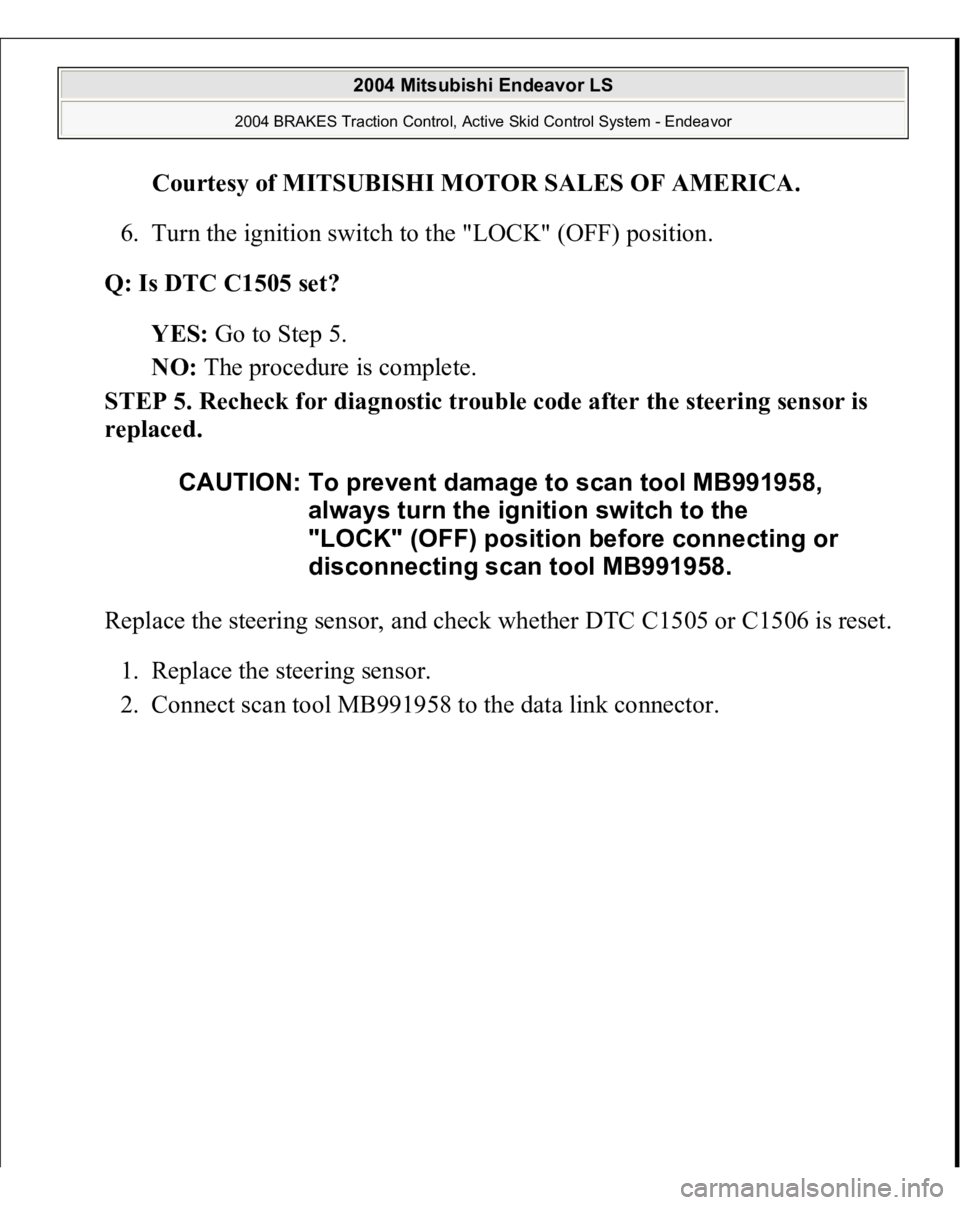

STEP 5. Recheck for diagnostic trouble code after the steering sensor is
replaced.
Replace the steering sensor, and check whether DTC C1505 or C1506 is reset.
1. Replace the steering sensor.
2. Connect scan tool MB991958 to the data link connec
tor. CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
6. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC U1073 set?
YES: Go to Step 1.
NO: The procedure is complete.

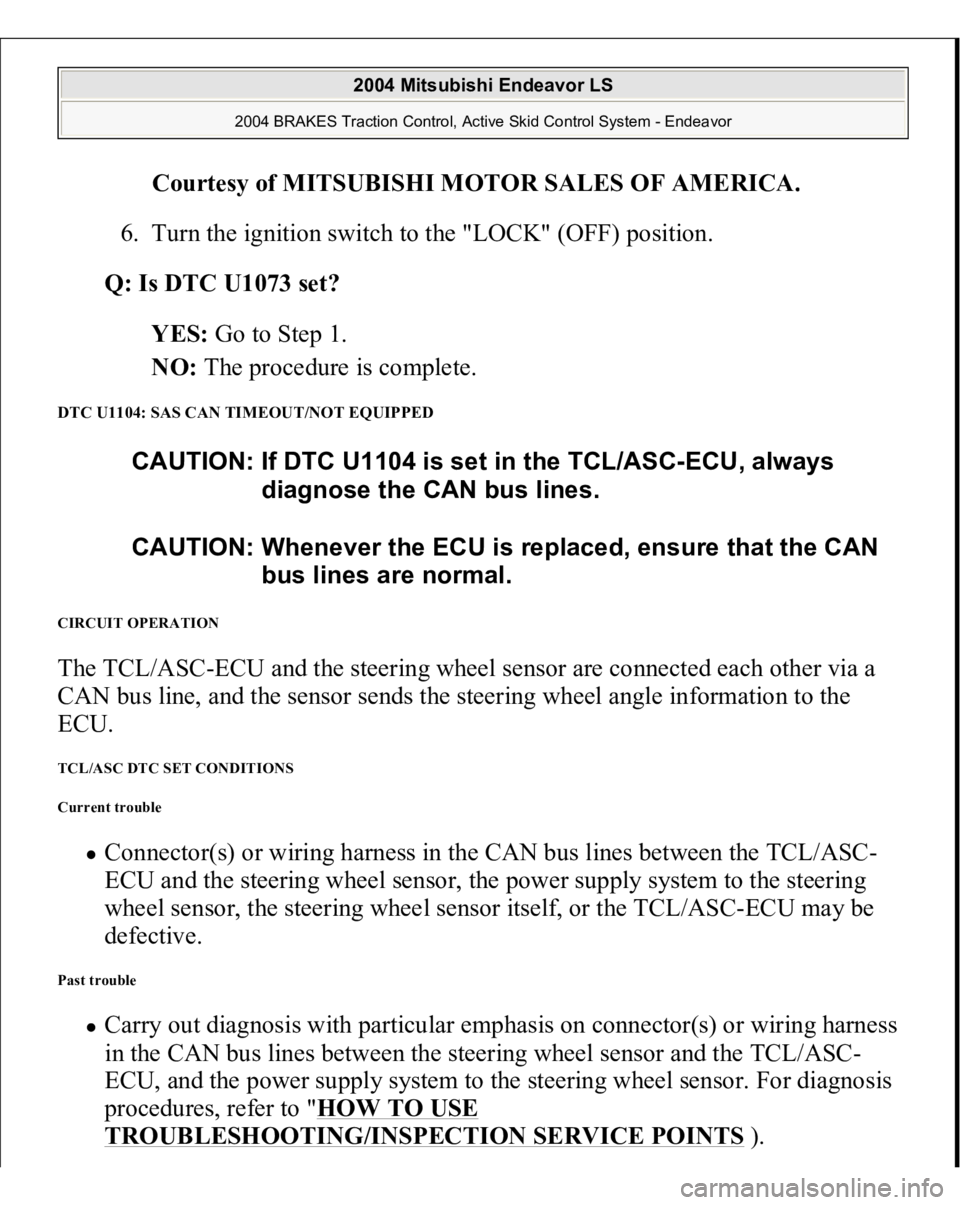

DTC U1104: SAS CAN TIMEOUT/NOT EQUIPPED CIRCUIT OPERATION The TCL/ASC-ECU and the steering wheel sensor are connected each other via a
CAN bus line, and the sensor sends the steering wheel angle information to the
ECU. TCL/ASC DTC SET CONDITIONS
Current trouble
Connector(s) or wiring harness in the CAN bus lines between the TCL/ASC-
ECU and the steering wheel sensor, the power supply system to the steering
wheel sensor, the steering wheel sensor itself, or the TCL/ASC-ECU may be
defective.
Past trouble
Carry out diagnosis with particular emphasis on connector(s) or wiring harness
in the CAN bus lines between the steering wheel sensor and the TCL/ASC-
ECU, and the power supply system to the steering wheel sensor. For diagnosis
procedures, refer to "HOW TO USE TROUBLESHOOTING/INSPECTION SERVICE POINTS
). CAUTION: If DTC U1104 is set in the TCL/ASC-ECU, always
diagnose the CAN bus lines.
CAUTION: Whenever the ECU is replaced, ensure that the CAN
bus lines are normal.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

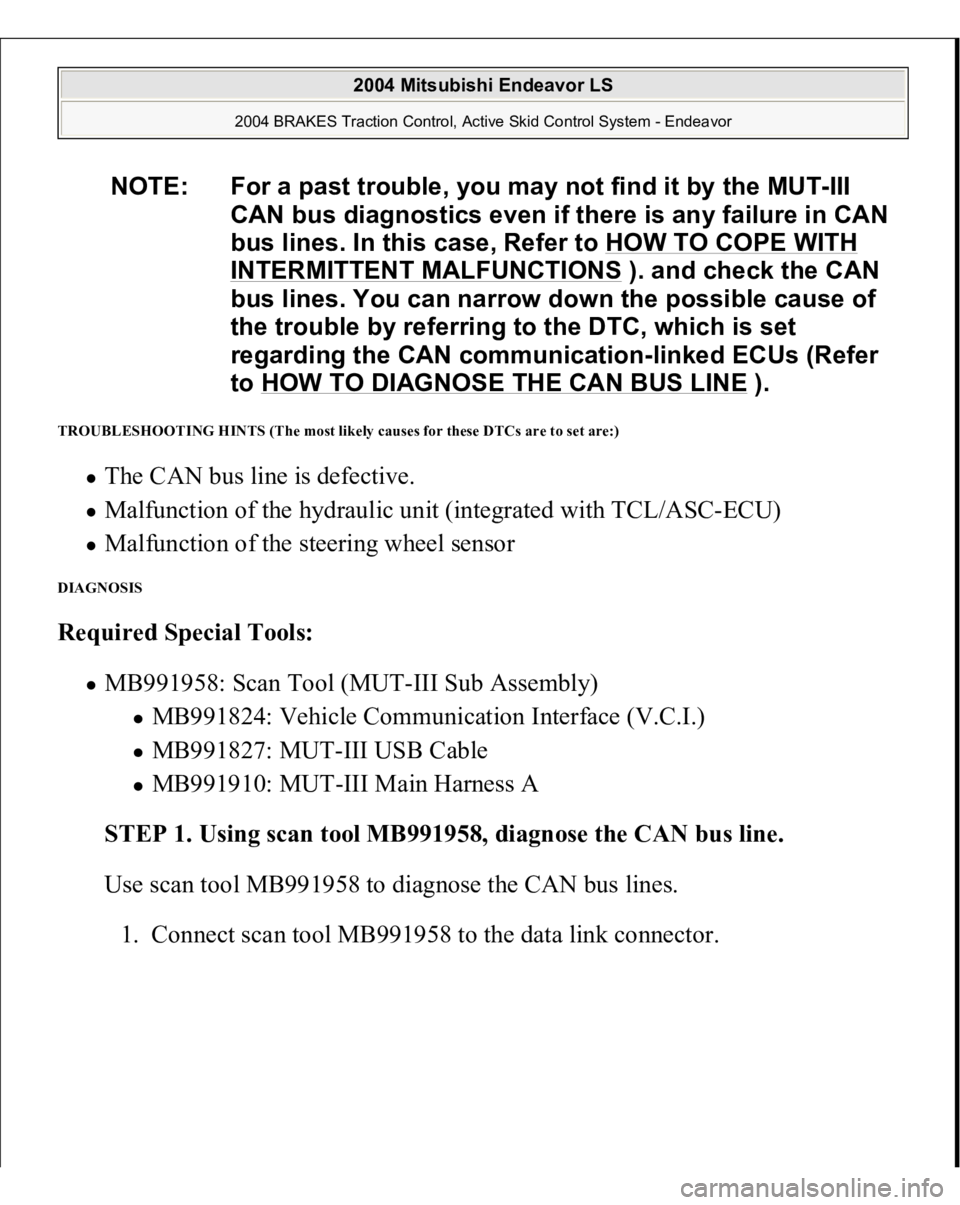

TROUBLESHOOTING HINTS (The most likely causes for these DTCs are to set are:)
The CAN bus line is defective. Malfunction of the hydraulic unit (integrated with TCL/ASC-ECU) Malfunction of the steering wheel sensor
DIAGNOSIS Required Special Tools:
MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A
STEP 1. Using scan tool MB991958, diagnose the CAN bus line.
Use scan tool MB991958 to diagnose the CAN bus lines.
1. Connect scan tool MB991958 to the data link connec
tor. NOTE: For a past trouble, you may not find it by the MUT-III
CAN bus diagnostics even if there is any failure in CAN
bus lines. In this case, Refer to HOW TO COPE WITH
INTERMITTENT MALFUNCTIONS
). and check the CAN
bus lines. You can narrow down the possible cause of
the trouble by referring to the DTC, which is set
regarding the CAN communication-linked ECUs (Refer
to HOW TO DIAGNOSE THE CAN BUS LINE
).

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

2. Turn the ignition switch to "ON" position.
3. Diagnose the CAN bus line.
Q: Is the check result satisfactory?
YES: Go to Step 2
NO: Repair the CAN bus lines (Refer to DIAGNOSTIC TROUBLE
CODE DIAGNOSIS
or DIAGNOSIS < VEHICLES WITHOUT
ADVANCED AIR BAG
). On completion, go to Step 6.
STEP 2. Using scan tool MB991958, read the steering wheel sensor
diagnostic trouble code.
Check if a steering wheel sensor DTC is set.
Q: Is the DTC set?
YES: Diagnose the steering wheel sensor by referring to DIAGNOSTIC
TROUBLE CODE CHART
.
NO: Go to Step 3.
STEP 3. Using scan tool MB991958 read any of the diagnostic trouble
code.
Check if a DTC, which relates to CAN communication-linked systems below,
is set.
Power train control module
DTC U1100: ABS-ECU time-out
Combination meter DTC 011: ABS-ECU time-out
Q: Is the DTC set?
YES: Go to Step 4. NO:
Go to Step
5.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

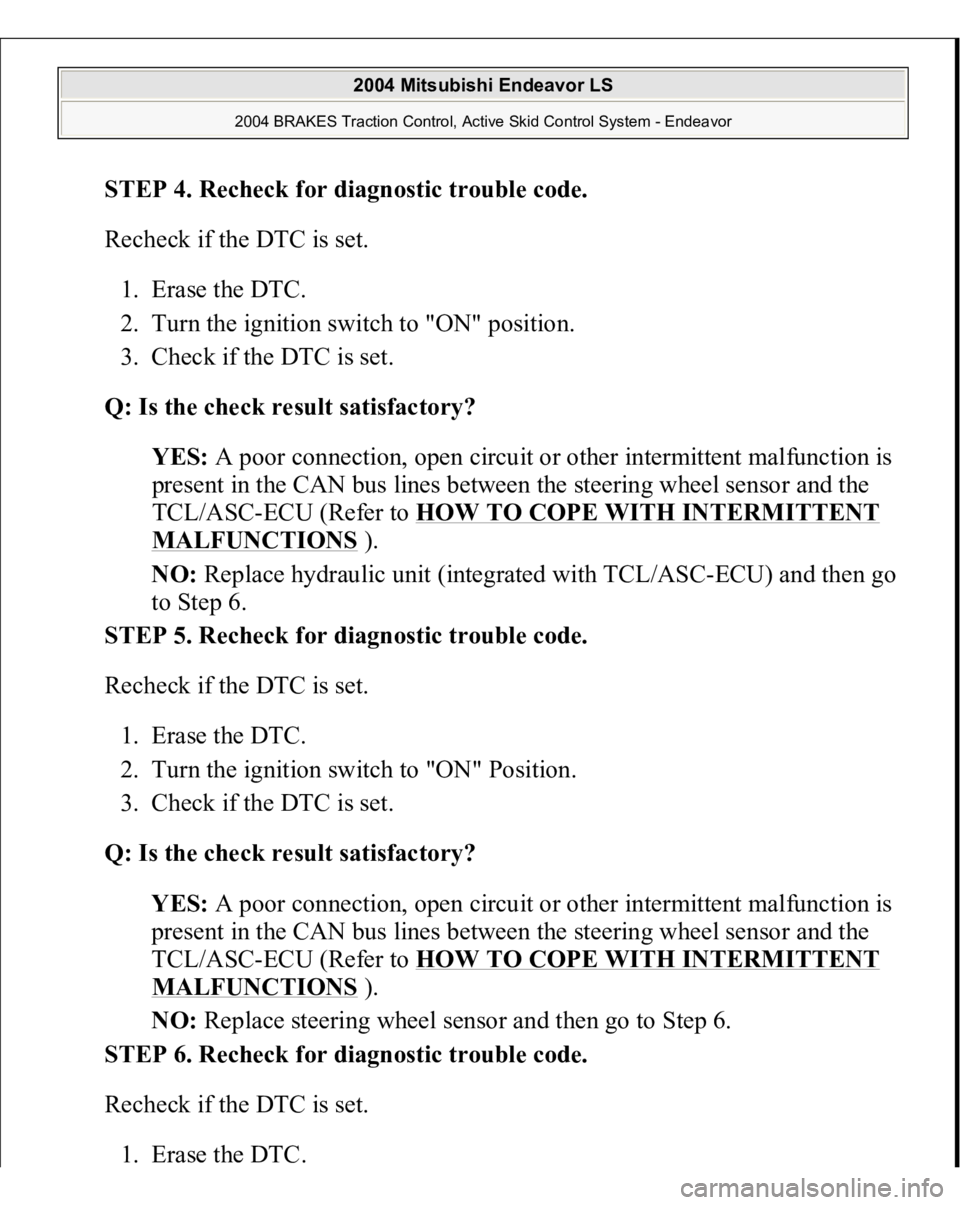

STEP 4. Recheck for diagnostic trouble code.
Recheck if the DTC is set.
1. Erase the DTC.
2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.
Q: Is the check result satisfactory?
YES: A poor connection, open circuit or other intermittent malfunction is
present in the CAN bus lines between the steering wheel sensor and the
TCL/ASC-ECU (Refer to HOW TO COPE WITH INTERMITTENT
MALFUNCTIONS
).
NO: Replace hydraulic unit (integrated with TCL/ASC-ECU) and then go
to Step 6.
STEP 5. Recheck for diagnostic trouble code.
Recheck if the DTC is set.
1. Erase the DTC.
2. Turn the ignition switch to "ON" Position.
3. Check if the DTC is set.
Q: Is the check result satisfactory?
YES: A poor connection, open circuit or other intermittent malfunction is
present in the CAN bus lines between the steering wheel sensor and the
TCL/ASC-ECU (Refer to HOW TO COPE WITH INTERMITTENT
MALFUNCTIONS
).
NO: Replace steering wheel sensor and then go to Step 6.
STEP 6. Recheck for diagnostic trouble code.
Recheck if the DTC is set.
1. Erase the DTC.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.
Q: Is the check result satisfactory?
YES: The procedure is complete.
NO: Go to Step 1.

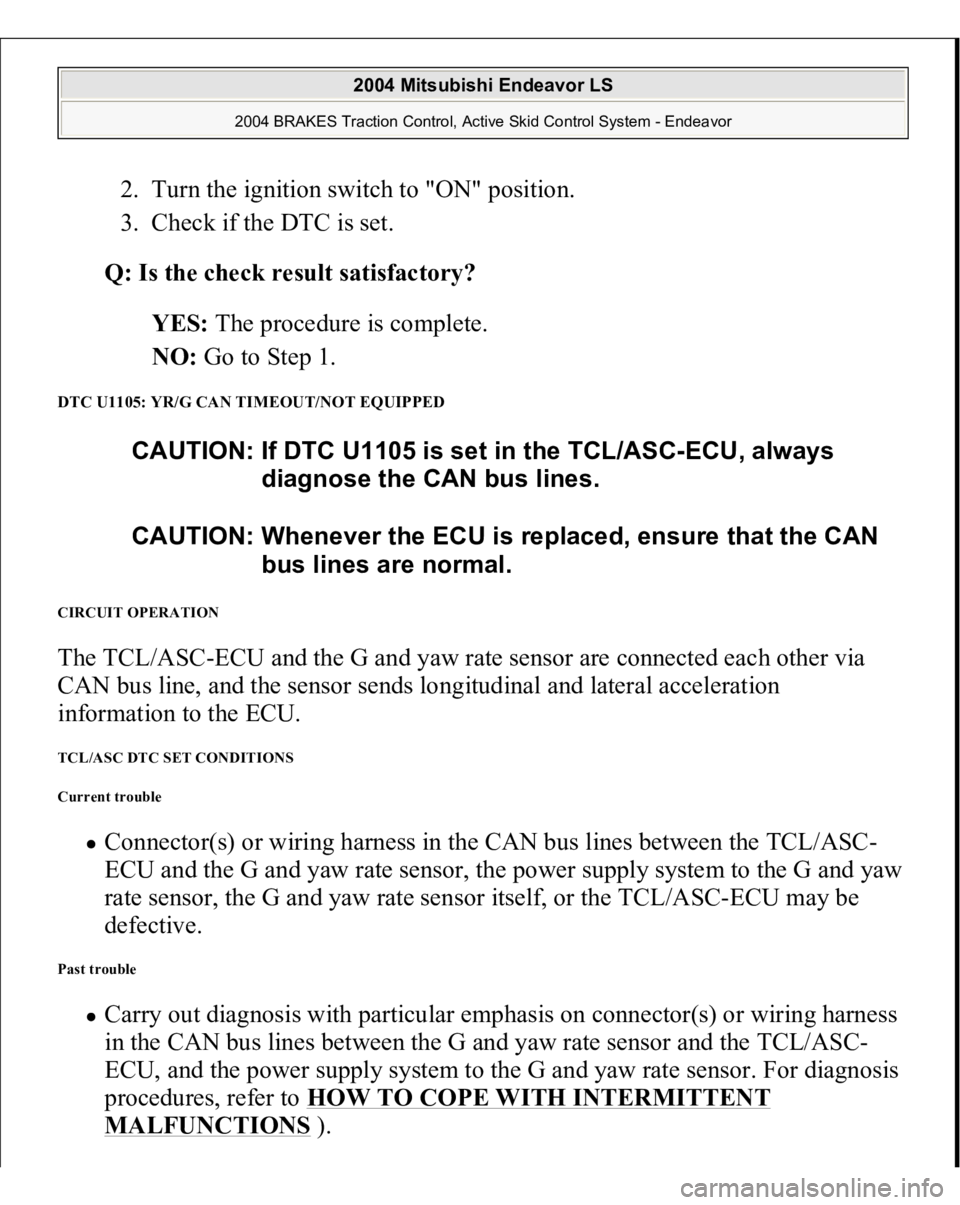

DTC U1105: YR/G CAN TIMEOUT/NOT EQUIPPED CIRCUIT OPERATION The TCL/ASC-ECU and the G and yaw rate sensor are connected each other via
CAN bus line, and the sensor sends longitudinal and lateral acceleration
information to the ECU. TCL/ASC DTC SET CONDITIONS
Current trouble
Connector(s) or wiring harness in the CAN bus lines between the TCL/ASC-
ECU and the G and yaw rate sensor, the power supply system to the G and yaw
rate sensor, the G and yaw rate sensor itself, or the TCL/ASC-ECU may be
defective.
Past trouble
Carry out diagnosis with particular emphasis on connector(s) or wiring harness
in the CAN bus lines between the G and yaw rate sensor and the TCL/ASC-
ECU, and the power supply system to the G and yaw rate sensor. For diagnosis
procedures, refer to HOW TO COPE WITH INTERMITTENT MALFUNCTIONS
). CAUTION: If DTC U1105 is set in the TCL/ASC-ECU, always
diagnose the CAN bus lines.
CAUTION: Whenever the ECU is replaced, ensure that the CAN
bus lines are normal.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

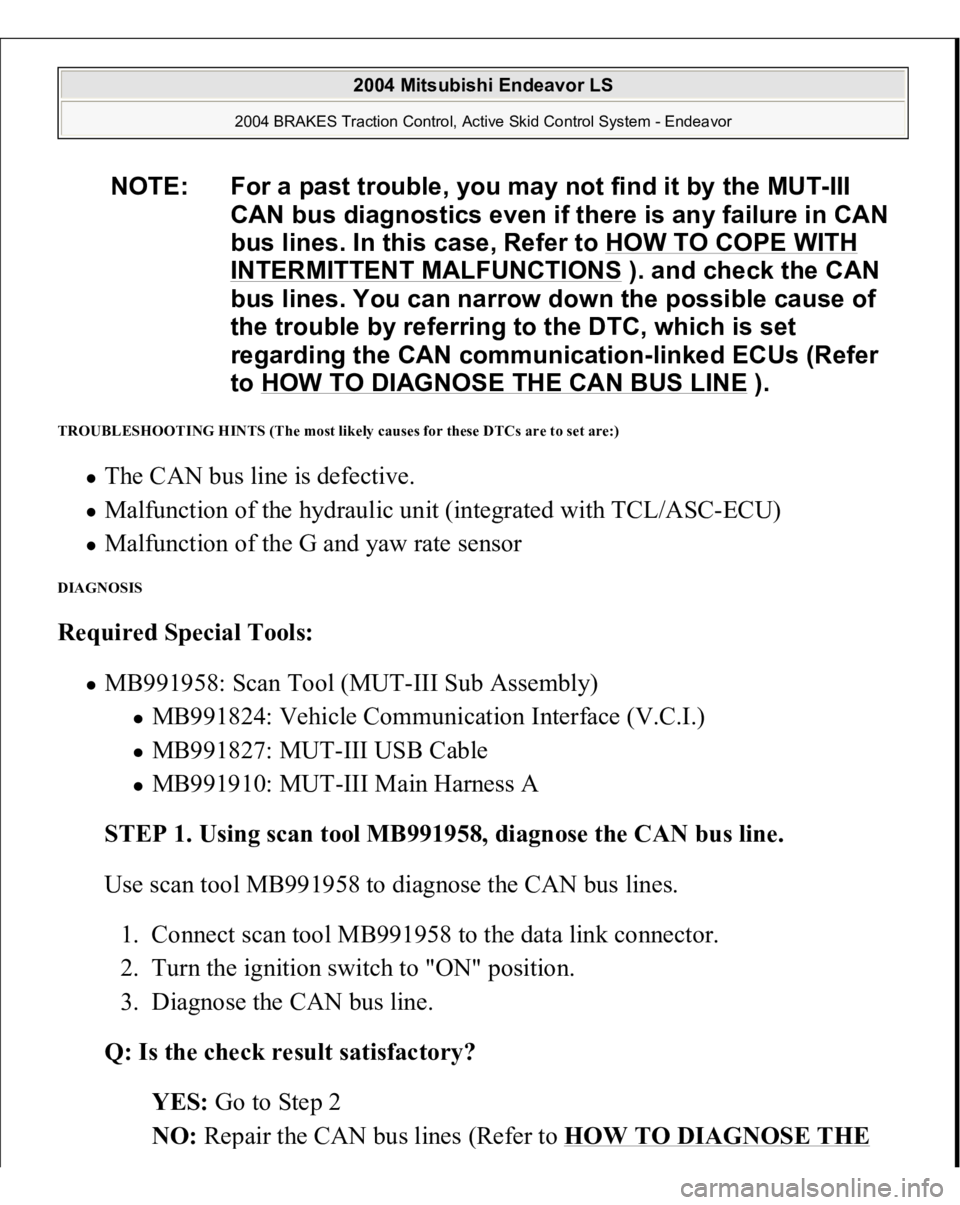

TROUBLESHOOTING HINTS (The most likely causes for these DTCs are to set are:)
The CAN bus line is defective. Malfunction of the hydraulic unit (integrated with TCL/ASC-ECU) Malfunction of the G and yaw rate sensor
DIAGNOSIS Required Special Tools:
MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A
STEP 1. Using scan tool MB991958, diagnose the CAN bus line.
Use scan tool MB991958 to diagnose the CAN bus lines.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to "ON" position.
3. Diagnose the CAN bus line.
Q: Is the check result satisfactory?
YES: Go to Step 2
NO: Re
pair the CAN bus lines
(Refer to HOW TO DIAGNOSE THE
NOTE: For a past trouble, you may not find it by the MUT-III
CAN bus diagnostics even if there is any failure in CAN
bus lines. In this case, Refer to HOW TO COPE WITH
INTERMITTENT MALFUNCTIONS
). and check the CAN
bus lines. You can narrow down the possible cause of
the trouble by referring to the DTC, which is set
regarding the CAN communication-linked ECUs (Refer
to HOW TO DIAGNOSE THE CAN BUS LINE
).

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
STEP 2. Using scan tool MB991958 read the diagnostic trouble code.
Check if a DTC, which relates to CAN communication-linked systems below,
is set.
Power train control module
DTC U1102: ABS-ECU time-out
Combination meter DTC 018: ABS-ECU time-out
Q: Is the DTC set?
YES: Go to Step 3.
NO: Go to Step 4.
STEP 3. Recheck for diagnostic trouble code.
Recheck if the DTC is set.
1. Erase the DTC.
2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.
Q: Is the check result satisfactory?
YES: A poor connection, open circuit or other intermittent malfunction is
present in the CAN bus lines between the G and yaw rate sensor and the
TCL/ASC-ECU (Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTIONS
).
NO: Replace hydraulic unit (integrated with TCL/ASC-ECU) and then go
to Step 4.
STEP 4. Recheck for diagnostic trouble code.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
