2004 MITSUBISHI ENDEAVOR sensor

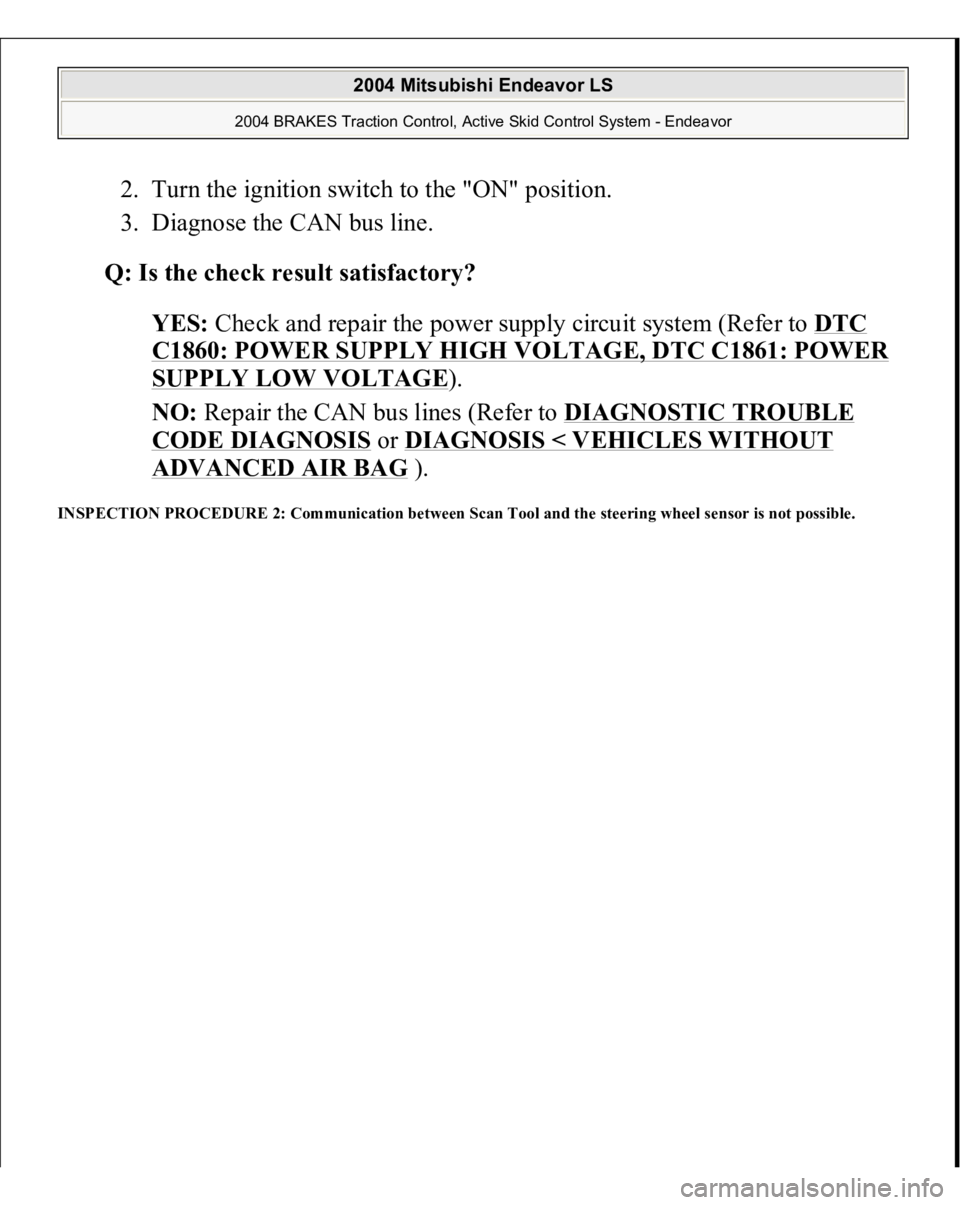

2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
Q: Is the check result satisfactory?
YES: Check and repair the power supply circuit system (Refer to DTC
C1860: POWER SUPPLY HIGH VOLTAGE, DTC C1861: POWER SUPPLY LOW VOLTAGE
).
NO: Repair the CAN bus lines (Refer to DIAGNOSTIC TROUBLE
CODE DIAGNOSIS
or DIAGNOSIS < VEHICLES WITHOUT
ADVANCED AIR BAG
).
INSPECTION PROCEDURE 2: Communication between Scan Tool and the steering wheel sensor is not possible.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

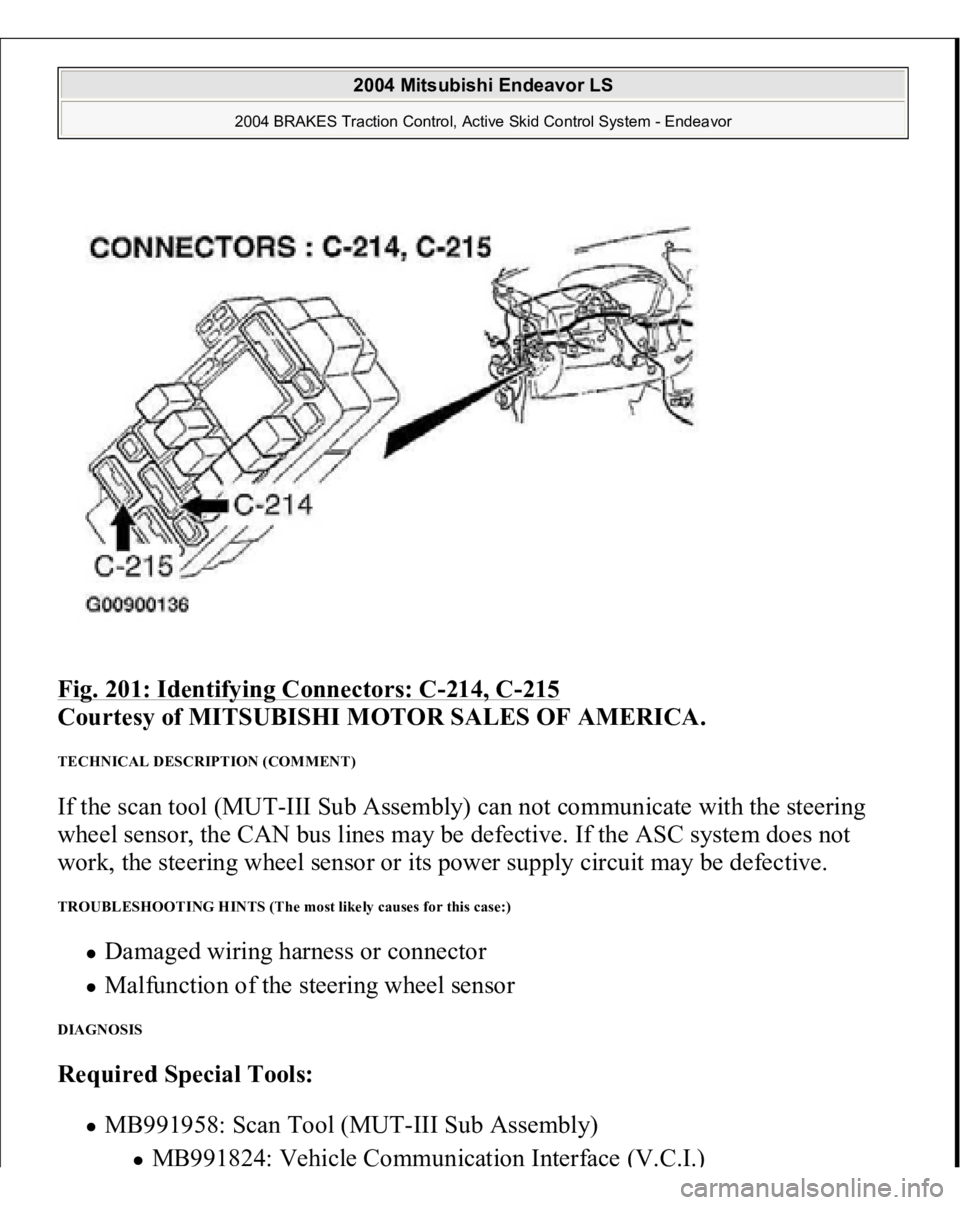

Fig. 201: Identifying Connectors: C
-214, C
-215

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
TECHNICAL DESCRIPTION (COMMENT) If the scan tool (MUT-III Sub Assembly) can not communicate with the steering
wheel sensor, the CAN bus lines may be defective. If the ASC system does not
work, the steering wheel sensor or its power supply circuit may be defective. TROUBLESHOOTING HINTS (The most likely causes for this case:)
Damaged wiring harness or connector Malfunction of the steering wheel sensor
DIAGNOSIS Required Special Tools:
MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface
(V.C.I.
)

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

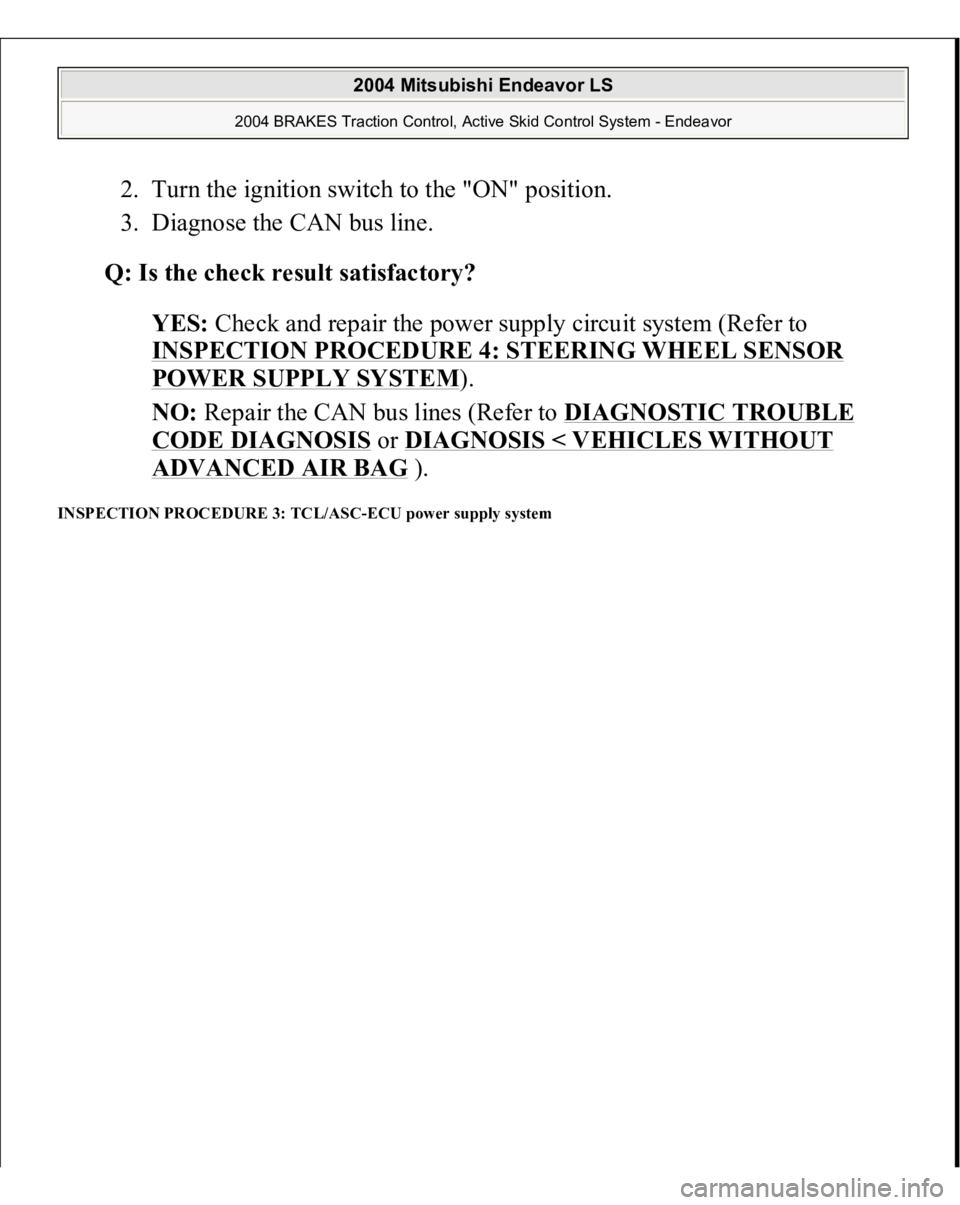

2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
Q: Is the check result satisfactory?
YES: Check and repair the power supply circuit system (Refer to
INSPECTION PROCEDURE 4: STEERING WHEEL SENSOR
POWER SUPPLY SYSTEM
).
NO: Repair the CAN bus lines (Refer to DIAGNOSTIC TROUBLE
CODE DIAGNOSIS
or DIAGNOSIS < VEHICLES WITHOUT
ADVANCED AIR BAG
).
INSPECTION PROCEDURE 3: TCL/ASC-ECU power supply system
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

YES: The procedure is complete.
NO: Go to Step 1.
INSPECTION PROCEDURE 4: Steering wheel sensor power supply system
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

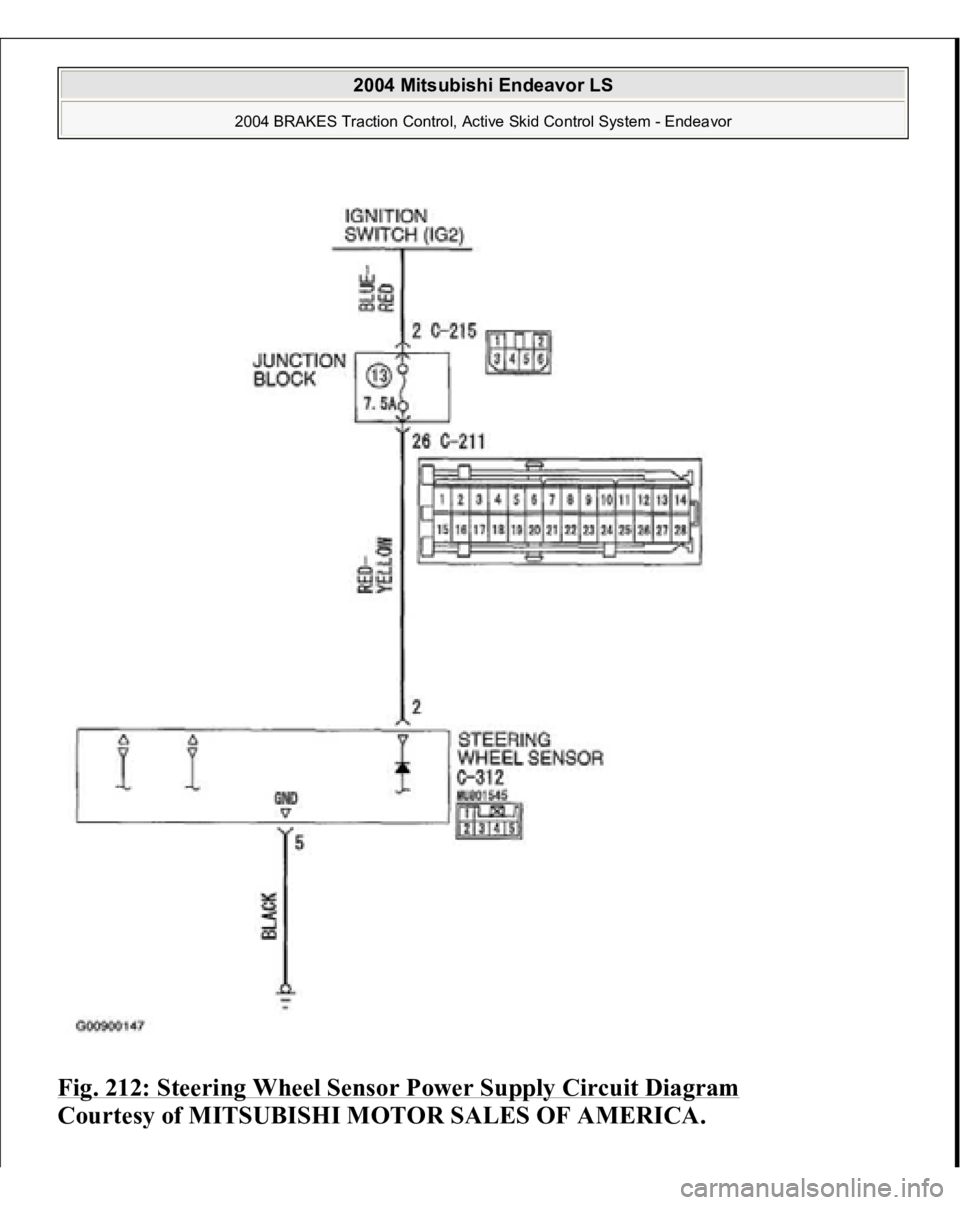

Fig. 212: Steering Wheel Sensor Power Supply Circuit Diagram

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Fig. 213: Identifying Connectors: C
-211, C
-215, C
-312

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CIRCUIT OPERATION
The steering wheel sensor is energized by the ignition switch (IG2) through
multi-purpose fuse 13 and the steering wheel sensor terminal 2. If the power supply to the steering wheel sensor has failed, scan tool (MUT-III
Sub Assembly) will not be able to communicate with it.
TROUBLESHOOTING HINTS (The most likely causes for this case:)
Damaged wiring harness or connector Defective battery Charging system failed Malfunction of the steering wheel sensor
DIAGNOSIS Required Special Tools:
MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A
MB991952: ABS Check Harness
STEP 1. Measure the volta
ge at steerin
g wheel sensor connector C-312
.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

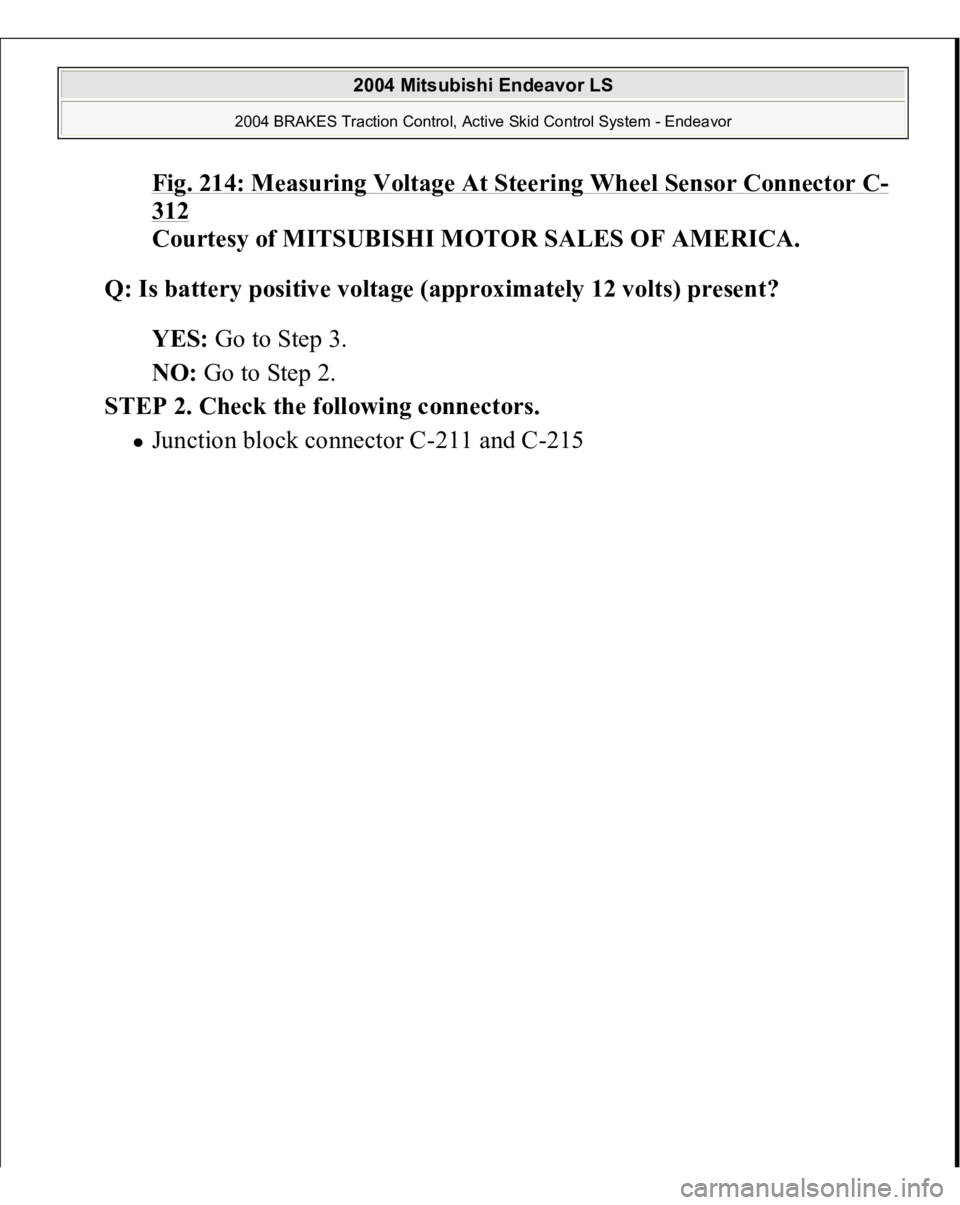

Fig. 214: Measuring Voltage At Steering Wheel Sensor Connector C
-
312

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is battery positive voltage (approximately 12 volts) present?
YES: Go to Step 3.
NO: Go to Step 2.
STEP 2. Check the following connectors.
Junction block connector C-211 and C-215

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

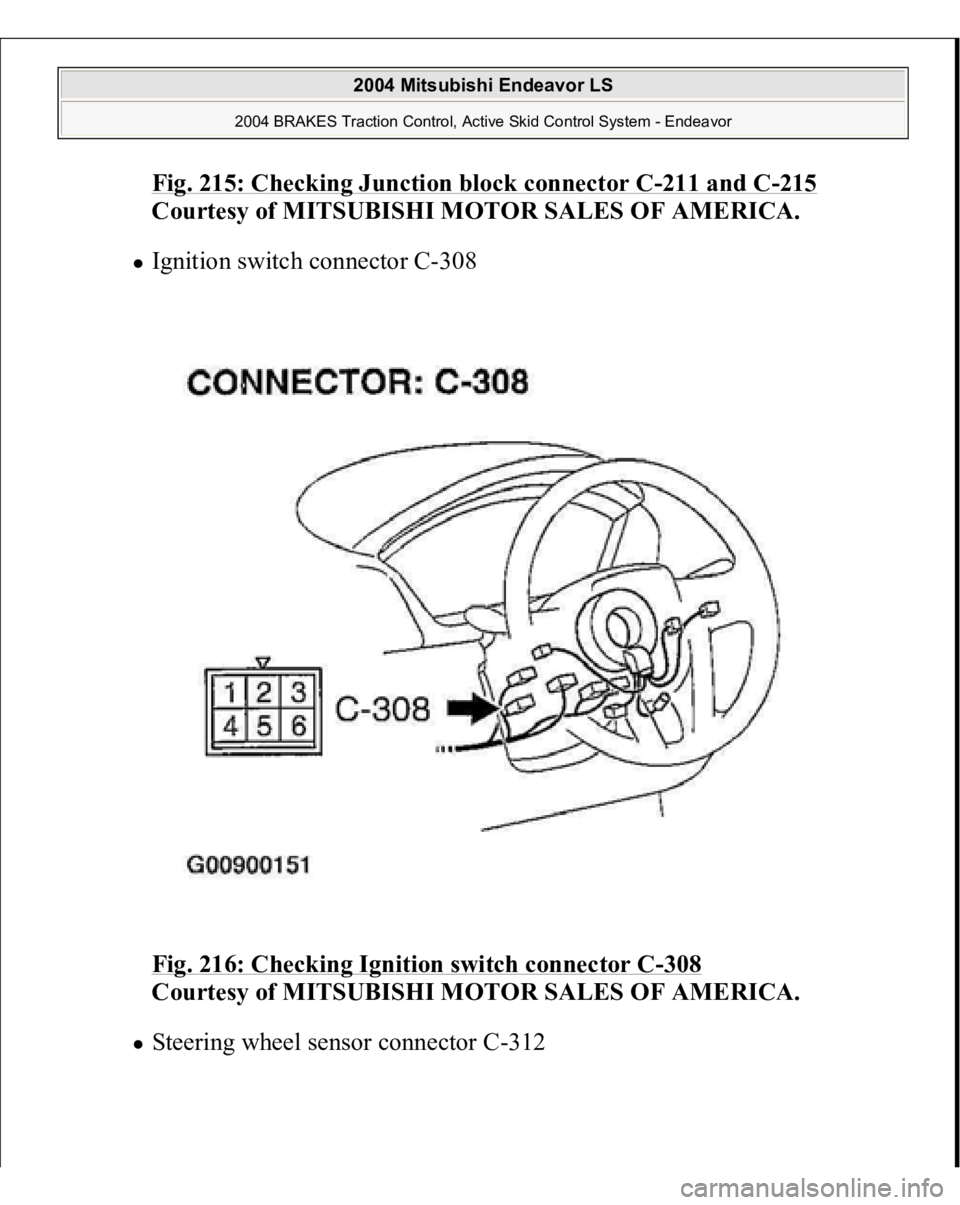

Fig. 215: Checking Junction block connector C
-211 and C
-215

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Ignition switch connector C-308
Fig. 216: Checking Ignition switch connector C
-308

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Steerin
g wheel sensor connector C-312

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
