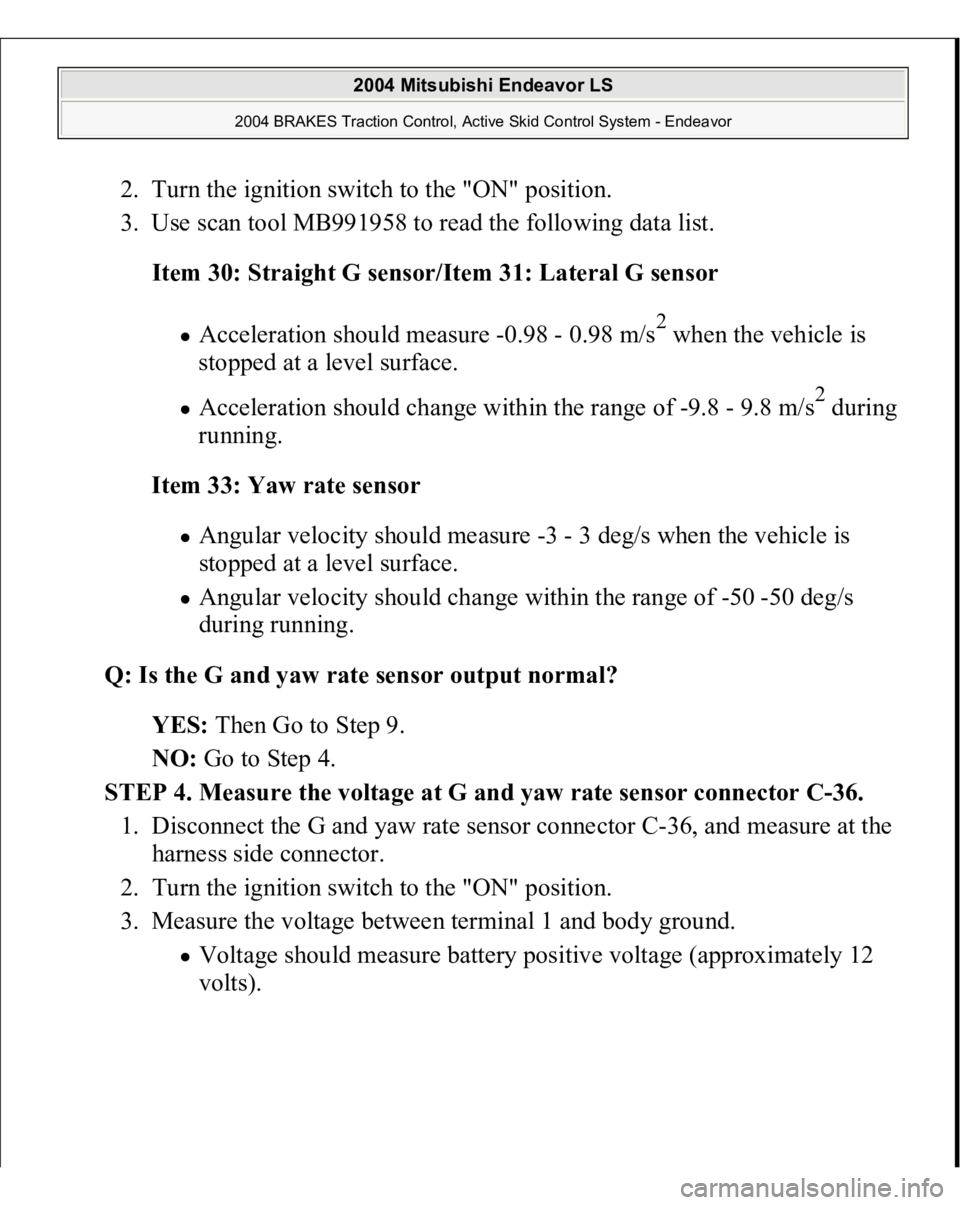

2. Turn the ignition switch to the "ON" position.
3. Use scan tool MB991958 to read the following data list.
Item 30: Straight G sensor/Item 31: Lateral G sensor
Acceleration should measure -0.98 - 0.98 m/s
2 when the vehicle is
stopped at a level surface.
Acceleration should change within the range of -9.8 - 9.8 m/s
2 during
running.
Item 33: Yaw rate sensor
Angular velocity should measure -3 - 3 deg/s when the vehicle is
stopped at a level surface. Angular velocity should change within the range of -50 -50 deg/s
during running.
Q: Is the G and yaw rate sensor output normal?
YES: Then Go to Step 9.
NO: Go to Step 4.
STEP 4. Measure the voltage at G and yaw rate sensor connector C-36.
1. Disconnect the G and yaw rate sensor connector C-36, and measure at the
harness side connector.
2. Turn the ignition switch to the "ON" position.
3. Measure the voltage between terminal 1 and body ground. Voltage should measure battery positive voltage (approximately 12
volts
).
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3340 of 3870

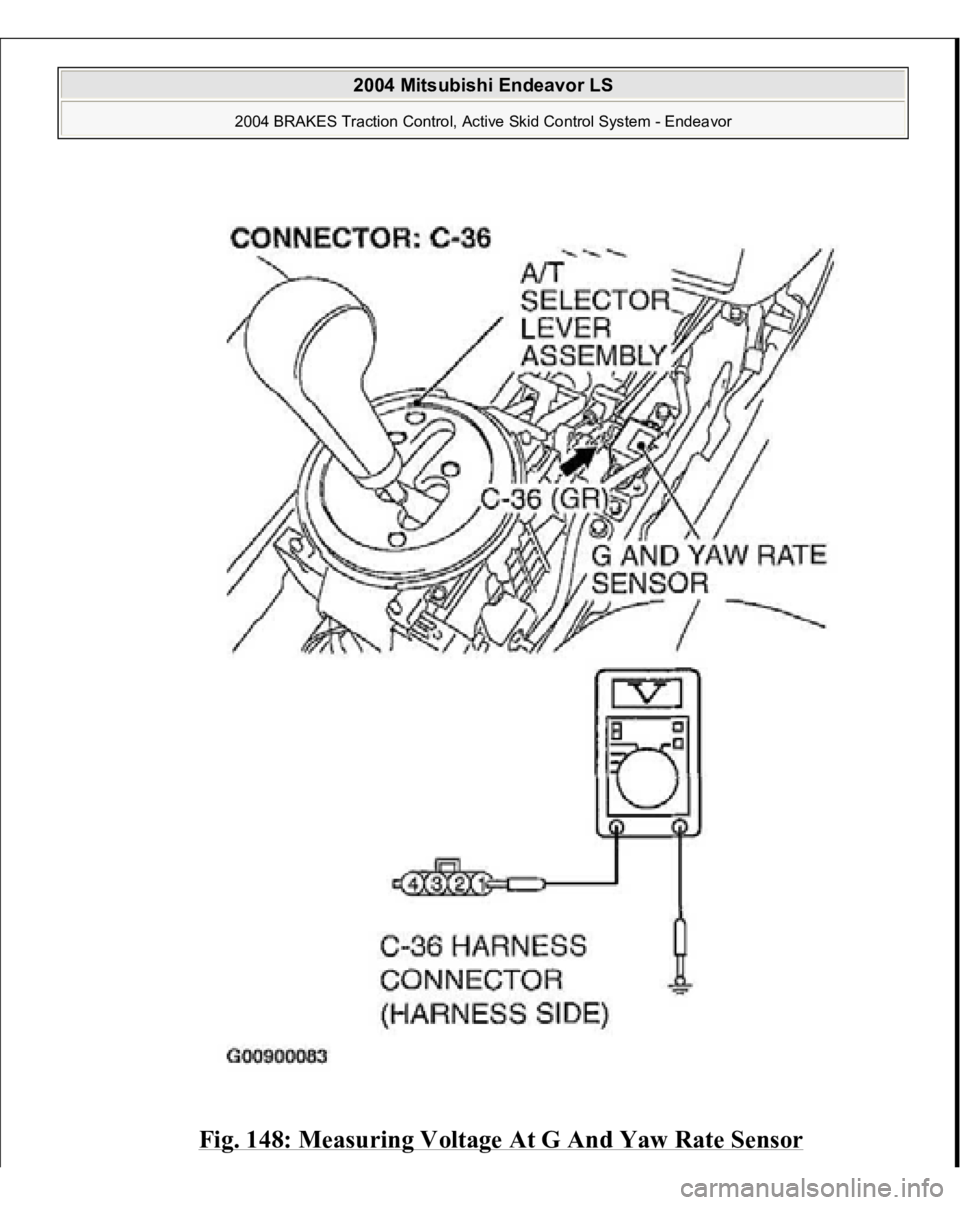

Fig. 148: Measuring Voltage At G And Yaw Rate Sensor
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3343 of 3870

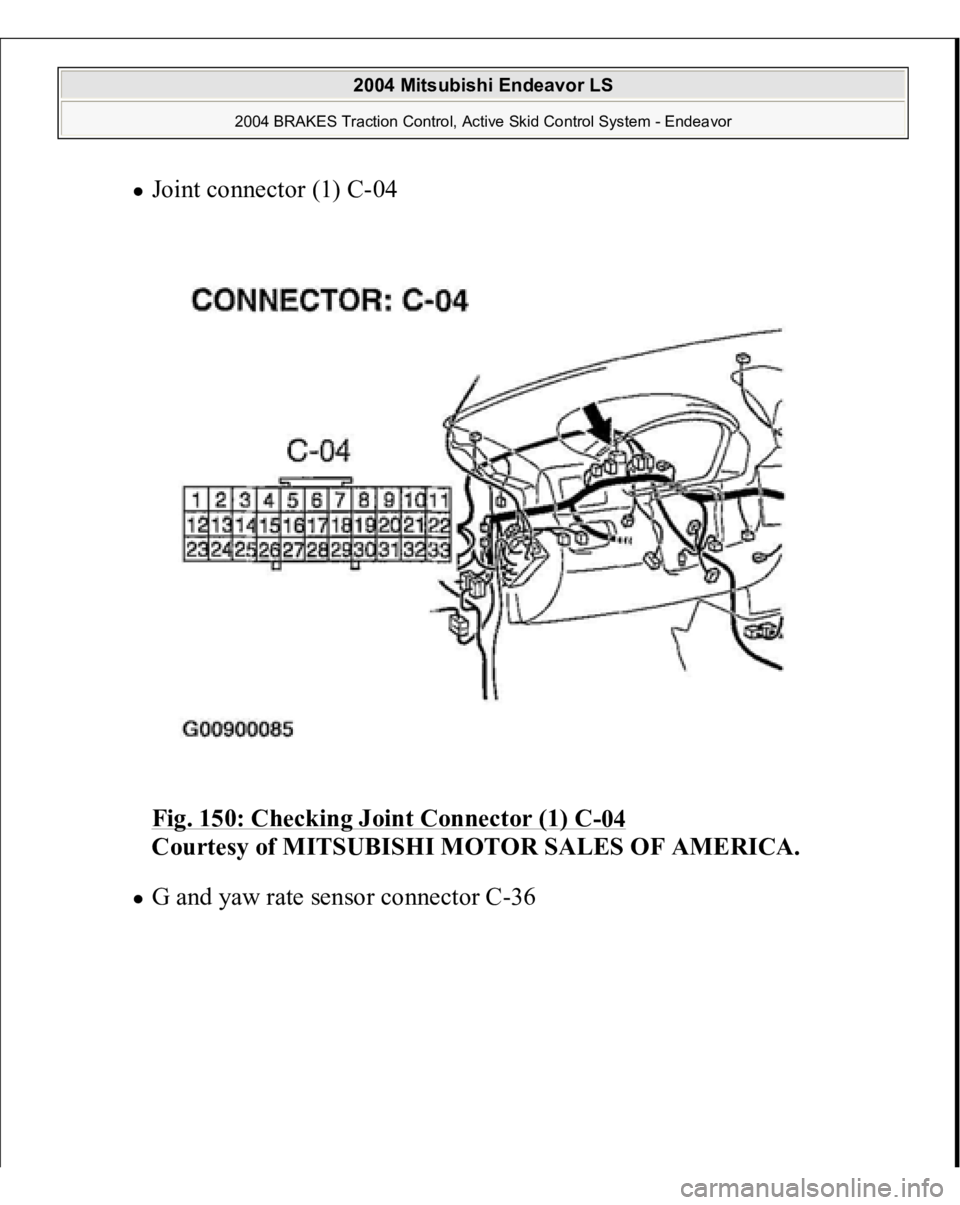

Joint connector (1) C-04
Fig. 150: Checking Joint Connector (1) C
-04
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
G and yaw rate sensor connector C-36
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3344 of 3870
Fig. 151: Checking G And Yaw Rate Sensor Connector C
-36
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Check the connectors, for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Are the connectors and terminals in good condition?
YES: Open or short circuit may be present in the G and yaw rate sensor
power supply lines. Repair the wiring harness between G and yaw rate
sensor connector C-36 terminal 1 and junction block connector C-215
terminal 2. Then go to Step 10.
NO: Repair or replace the damaged component(s).
STEP 6. Measure the resistance at the G and yaw rate sensor connector C-
36.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3345 of 3870
1. Disconnect the G and yaw rate sensor connector C-36, and measure at the
harness side connector.
2. Measure the resistance between terminal 4 and body ground.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3346 of 3870

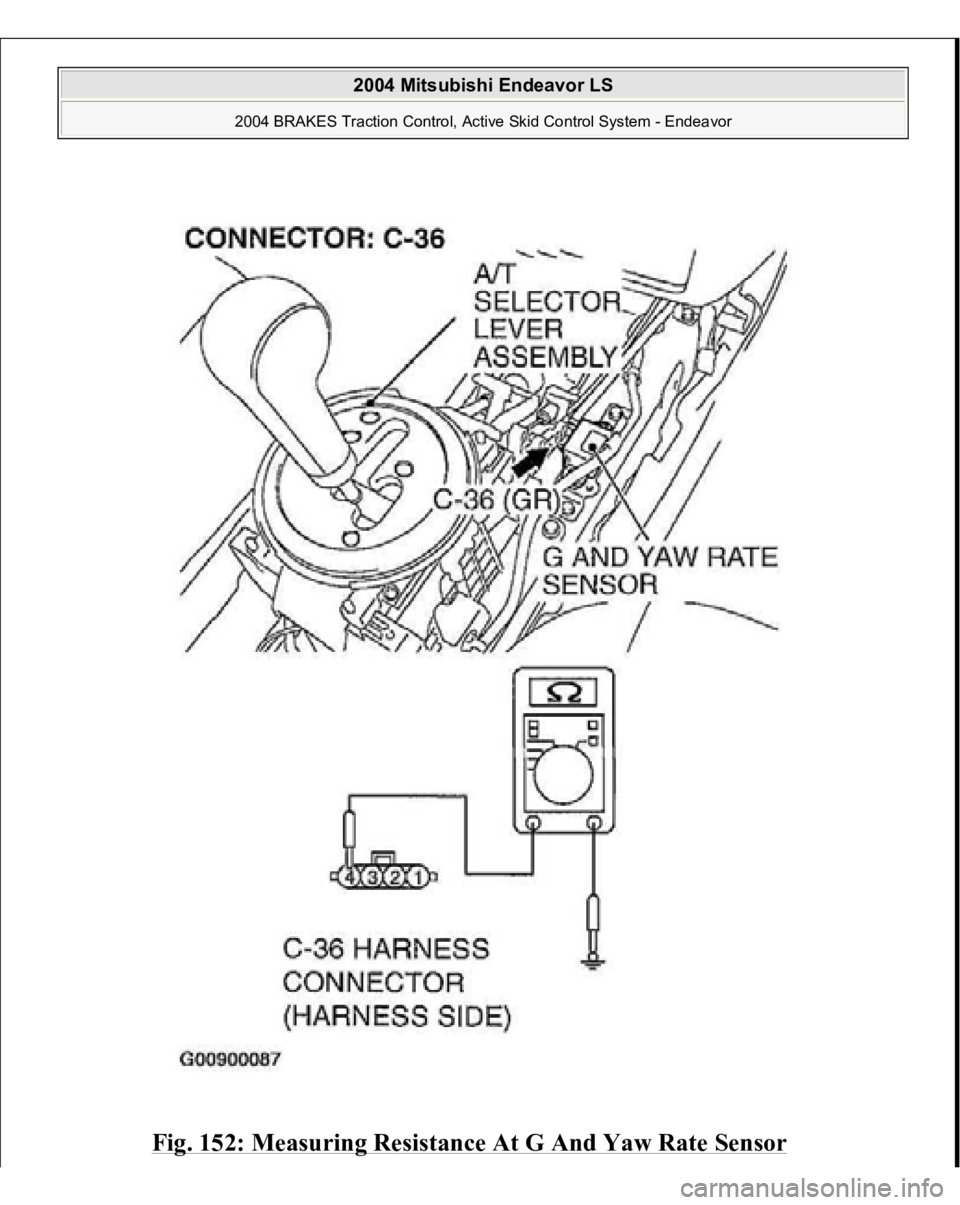

Fig. 152: Measuring Resistance At G And Yaw Rate Sensor
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3348 of 3870

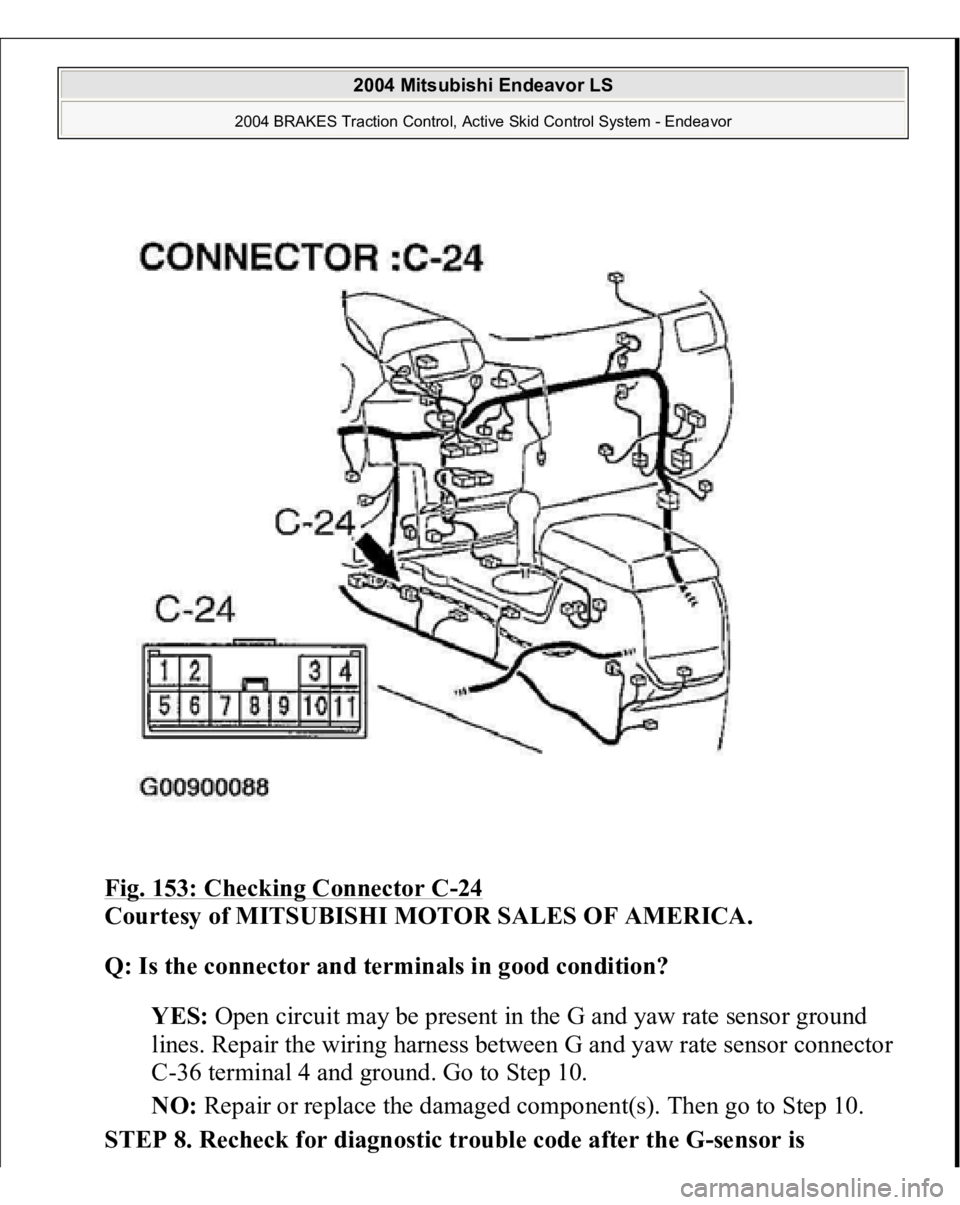

Fig. 153: Checking Connector C
-24
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the connector and terminals in good condition?
YES: Open circuit may be present in the G and yaw rate sensor ground
lines. Repair the wiring harness between G and yaw rate sensor connector
C-36 terminal 4 and ground. Go to Step 10.
NO: Repair or replace the damaged component(s). Then go to Step 10.

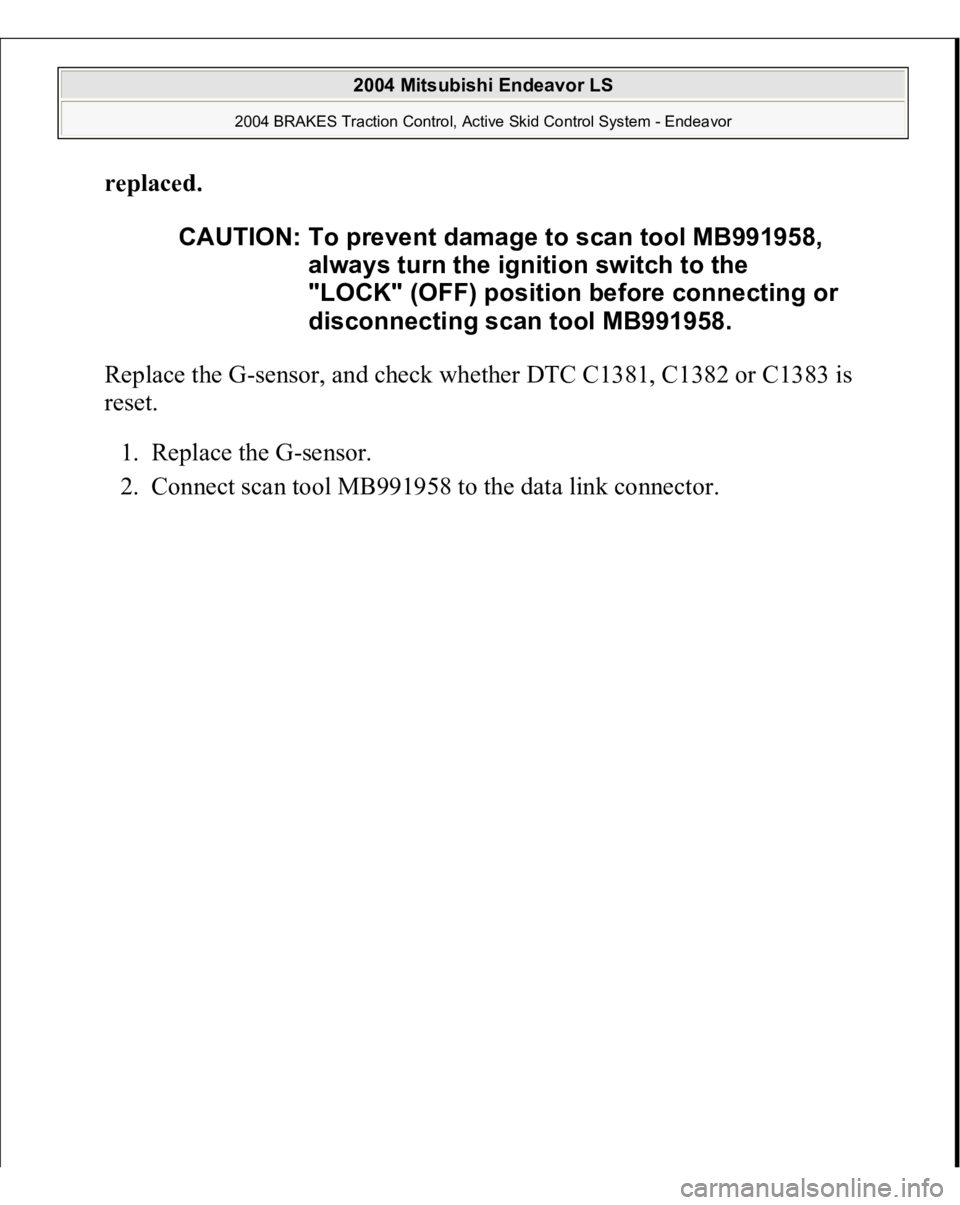

STEP 8. Recheck for diagnostic trouble code after the G-sensor is
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3349 of 3870
replaced
.
Replace the G-sensor, and check whether DTC C1381, C1382 or C1383 is
reset.
1. Replace the G-sensor.
2. Connect scan tool MB991958 to the data link connec
tor. CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.
