3. Tighten the nut of special tool MB990903 a little at a time, while measuring
the turning torque of the drive pinion. Then confirm that the turning torque
(without the drive pinion oil seal) is at the standard value.
Standard value:
Fig. 70: Tightening Nut Of Special Tool
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. Clean thorou
ghly the side bearin
g seat of the differential carrier.
NOTE: Because the special tool cannot be turned one turn,
turn it several times within the range that it can be
turned; then, after fitting to the bearing, measure the
turning torque.
2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor
Page 3011 of 3870
Fig. 72: Bearing Division Turning Torque Table
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
5. Place special tool MB991365 in the side bearing seat of the differential carrier,
and then select a drive pinion rear shim of a thickness which corresponds to the
gap between the special tools.
NOTE: When selecting the drive pinion rear shims, keep the
number of shims to a minimum.
2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor
Page 3013 of 3870
Fig. 74: Fitting Drive Pinion Rear Bearing Inner Race
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
>>E<
1. Insert the drive pinion into the differential carrier, and then install the
following parts in sequence from the carrier rear side: drive pinion spacer,
drive pinion front shim, drive pinion front bearing inner race and companion
flange.
2. Tighten the companion flange self-locking nut to the specified torque while
holdin
g the com
panion flan
ge with s
pecial tool MB990850.
NOTE: Do not install the oil seal.
2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor
Page 3014 of 3870
Tightening torque: 186 +/- 29 N.m (137 +/- 21 f
t-lb)
Fig. 75: Tightening Companion Flange Self Locking Nut
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Use special tools MB990685 and MB990326 to measure the drive pinion
turning torque (without the drive pinion oil seal).
Standard value:
CAUTION: There should be no gear oil adhered to the
bearing.
2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor
Page 3015 of 3870
Fig. 76: Measuring Drive Pinion Turning Torque
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig. 77: Bearing Division Turning Torque Table
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. If the drive pinion turning torque is not within the standard value, adjust the
turnin
g tor
que b
y re
placin
g the drive
pinion front shim
(s) or the drive
pinion
2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor
Page 3018 of 3870

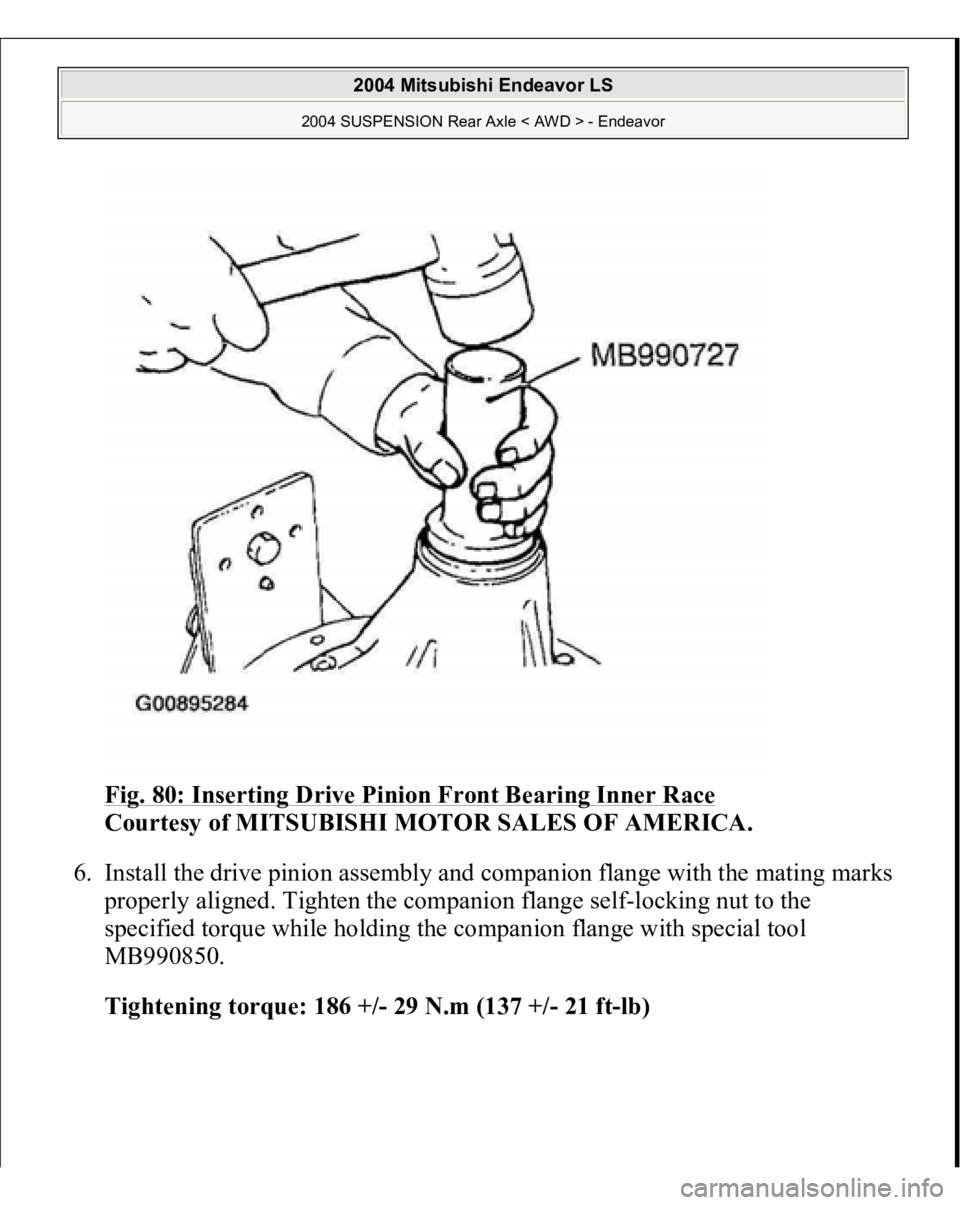

Fig. 80: Inserting Drive Pinion Front Bearing Inner Race
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
6. Install the drive pinion assembly and companion flange with the mating marks
properly aligned. Tighten the companion flange self-locking nut to the
specified torque while holding the companion flange with special tool
MB990850.
Tightening torque: 186 +/- 29 N.m (137 +/- 21 ft-lb)
2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor
Page 3019 of 3870
Fig. 81: Tightening Companion Flange Self Locking Nut
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
7. Use special tools MB990685 and MB990326 to measure the drive pinion
turning torque (with drive pinion oil seal) to verify that the drive pinion turning
torque complies with the standard value.
Standard value:
2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor
Page 3020 of 3870

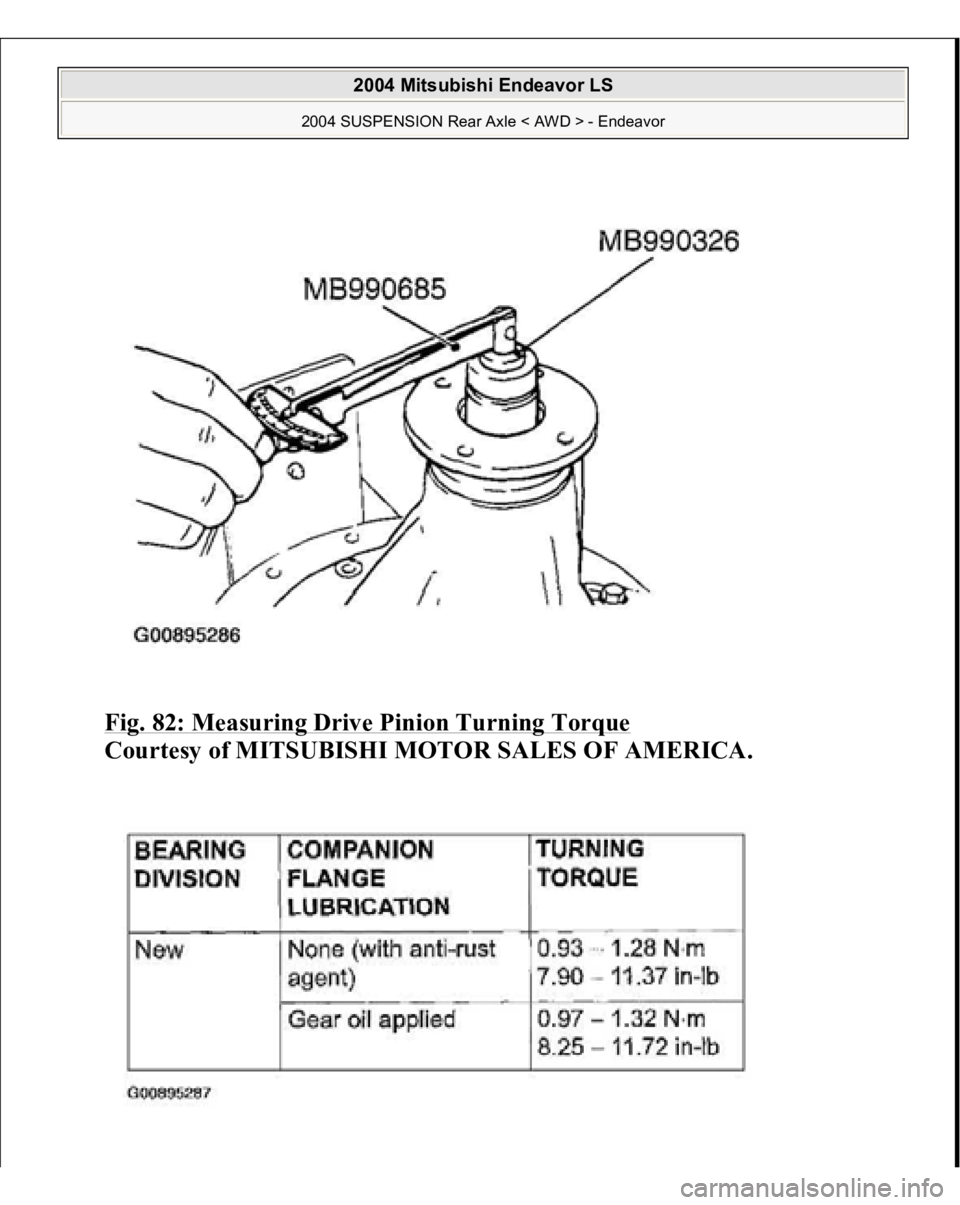

Fig. 82: Measuring Drive Pinion Turning Torque
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
