2004 MITSUBISHI ENDEAVOR torque

Fig. 83: Turning Torque Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
8. If the turning torque is not within the standard value, check the tightening
torque of the companion flange self-locking nut, and the installation of the oil
seal.
>>F<< DIFFERENTIAL GEAR BACKLASH ADJUSTMENT Adjust the differential gear backlash by the following procedure:
1. Assemble the side gears, side gear spacers, pinion gears, and pinion washers
into the differential case.

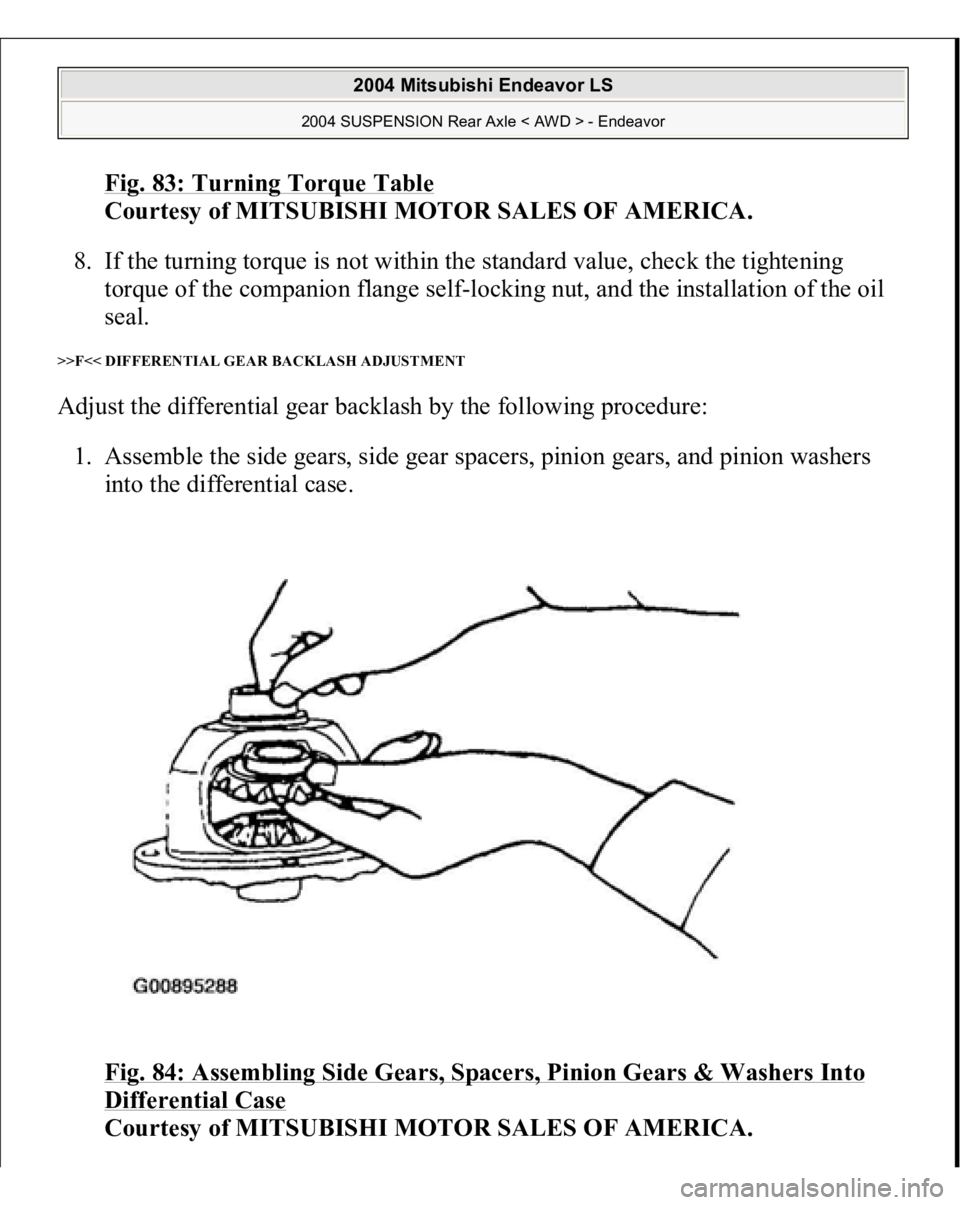

Fig. 84: Assembling Side Gears, Spacers, Pinion Gears & Washers Into
Differential Case

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor

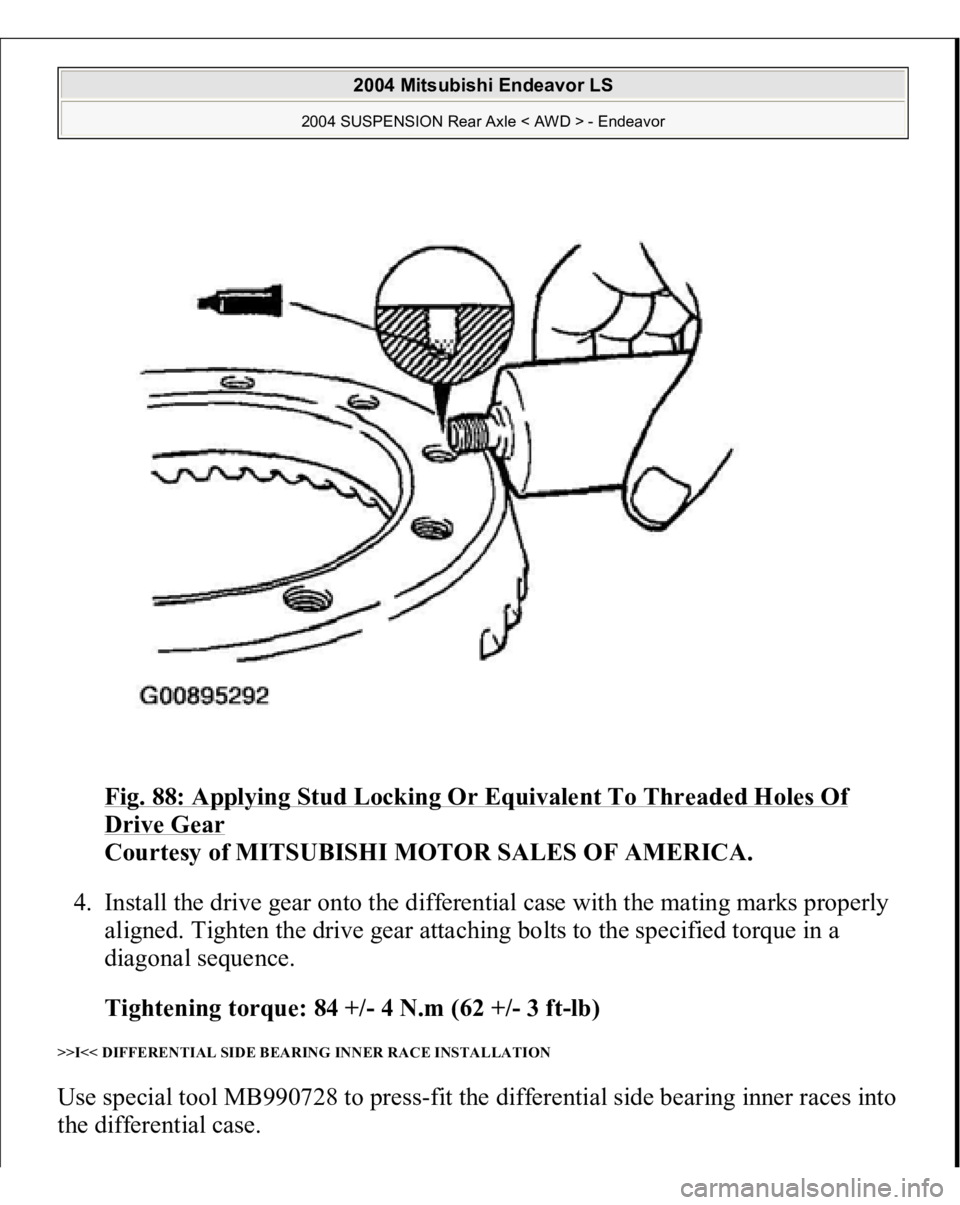

Fig. 88: Applying Stud Locking Or Equivalent To Threaded Holes Of Drive Gear

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. Install the drive gear onto the differential case with the mating marks properly
aligned. Tighten the drive gear attaching bolts to the specified torque in a
diagonal sequence.
Tightening torque: 84 +/- 4 N.m (62 +/- 3 ft-lb)
>>I<< DIFFERENTIAL SIDE BEARING INNER RACE INSTALLATION Use special tool MB990728 to press-fit the differential side bearing inner races into
the differential case.
2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor

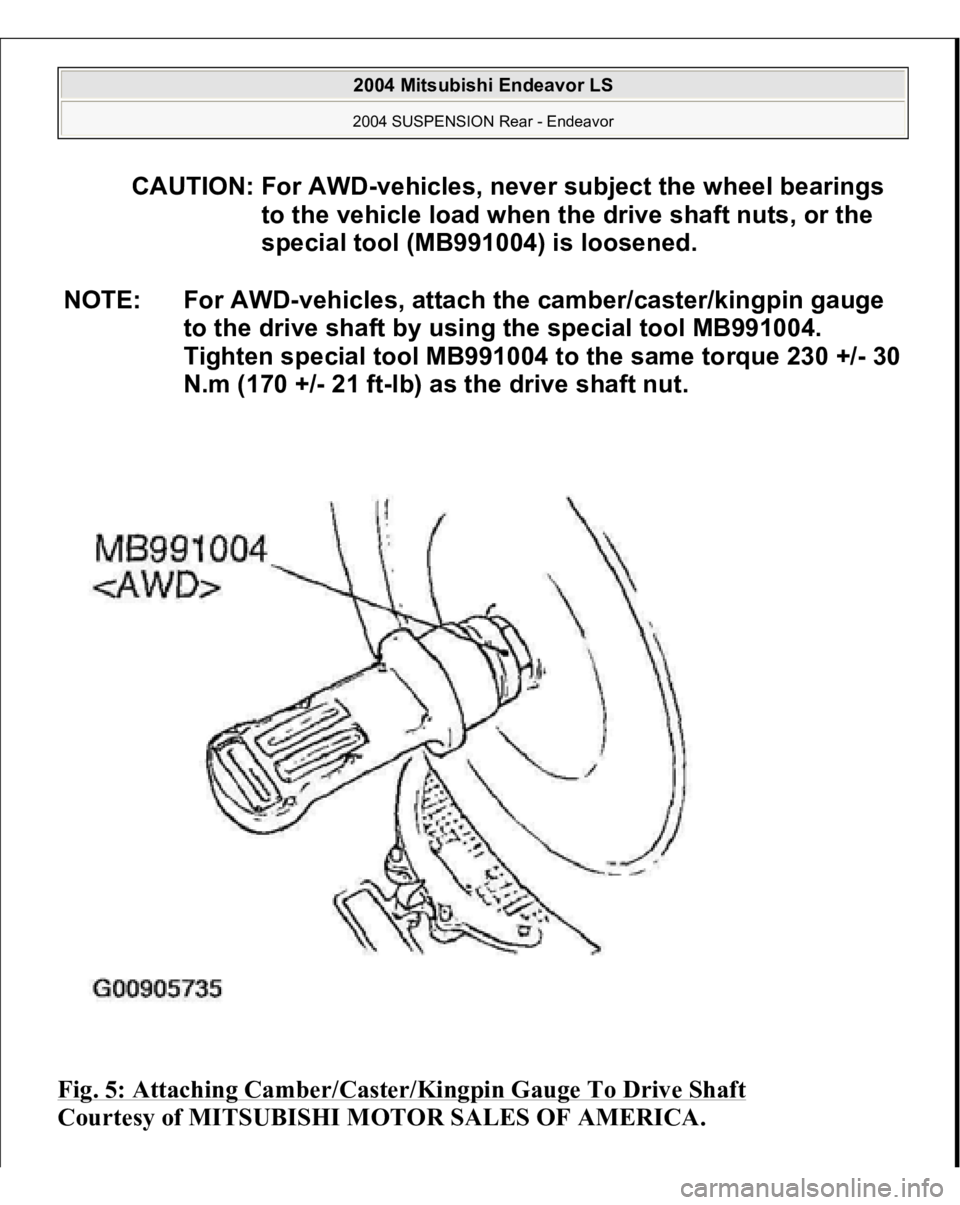

Fig. 5: Attaching Camber/Caster/Kingpin Gauge To Drive Shaft

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: For AWD-vehicles, never subject the wheel bearings
to the vehicle load when the drive shaft nuts, or the
special tool (MB991004) is loosened.
NOTE: For AWD-vehicles, attach the camber/caster/kingpin gauge
to the drive shaft by using the special tool MB991004.
Tighten special tool MB991004 to the same torque 230 +/- 30
N.m (170 +/- 21 ft-lb) as the drive shaft nut.

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

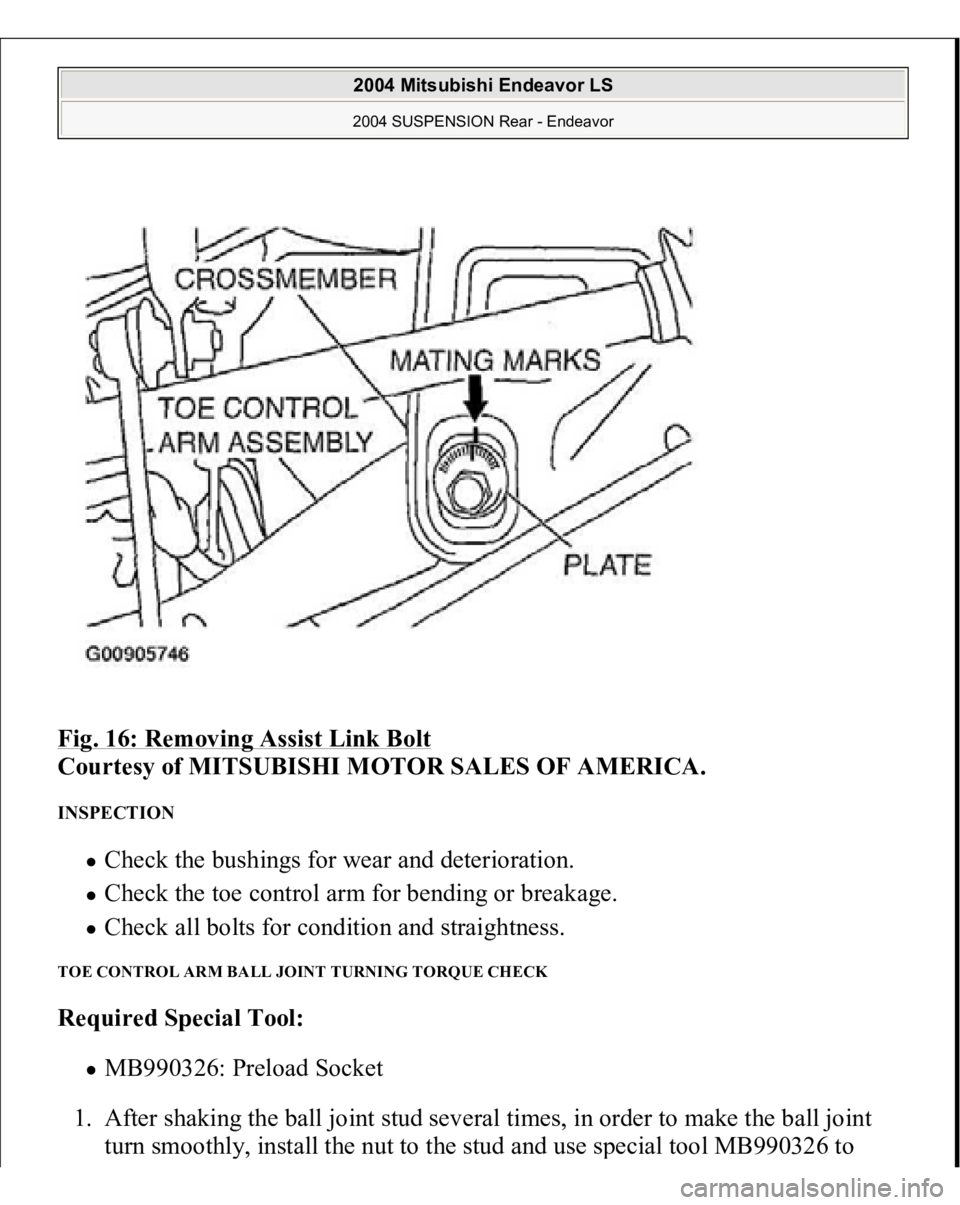

Fig. 16: Removing Assist Link Bolt

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSPECTION
Check the bushings for wear and deterioration. Check the toe control arm for bending or breakage. Check all bolts for condition and straightness.
TOE CONTROL ARM BALL JOINT TURNING TORQUE CHECK Required Special Tool:
MB990326: Preload Socket
1. After shaking the ball joint stud several times, in order to make the ball joint
turn smoothl
y, install the nut to the stud and use s
pecial tool MB990326 to

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

measure the turning torque of the ball joint.
Standard value: 1.0 - 2.6 N.m (8.9 - 23 in-lb)
2. If the measured value exceeds the standard value, replace the toe control arm
assembly.
3. If the measured value is lower than the standard value, check that the ball joint
turns smoothly without excessive play. If so, it is possible to re-use that ball
joint.

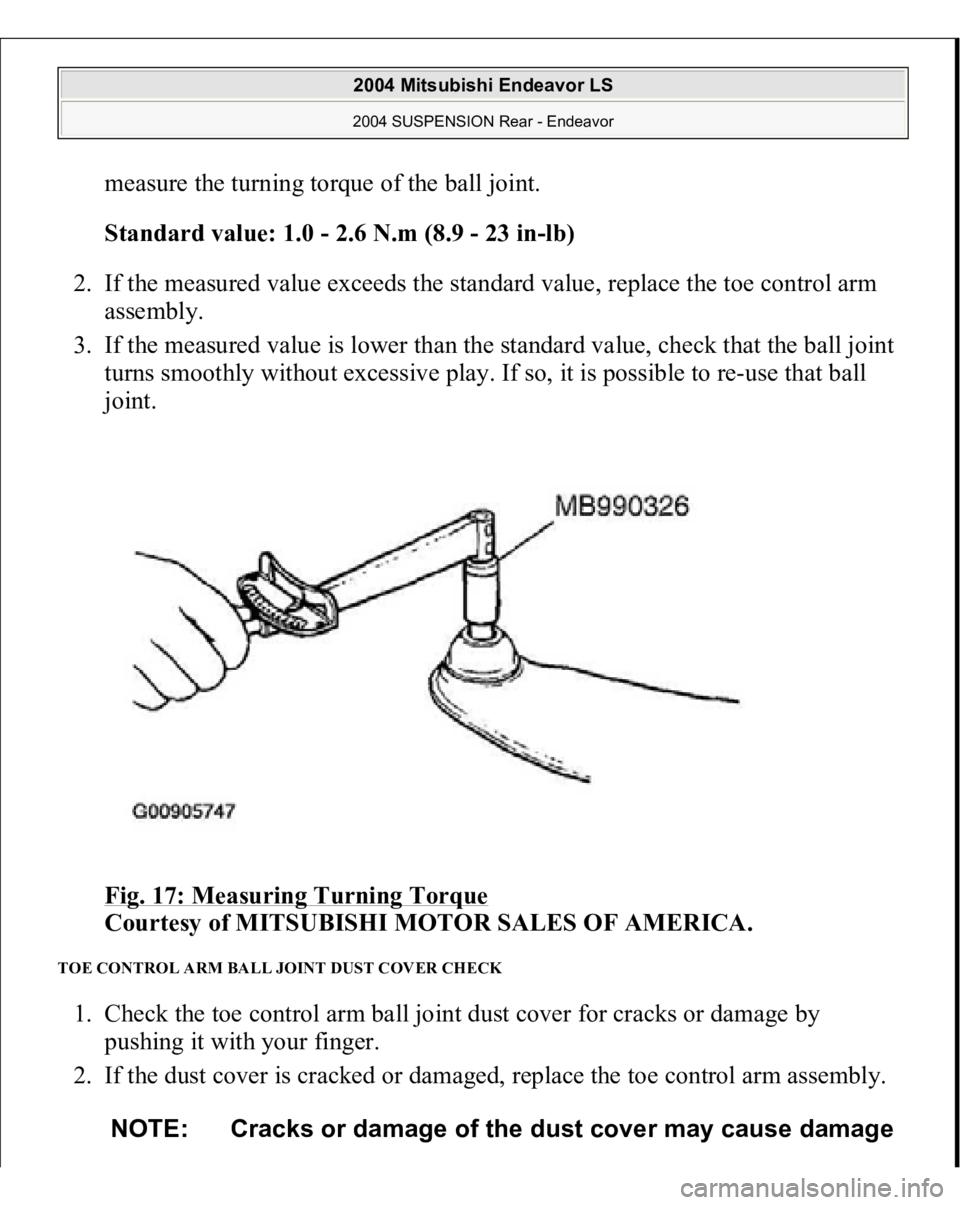

Fig. 17: Measuring Turning Torque

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
TOE CONTROL ARM BALL JOINT DUST COVER CHECK 1. Check the toe control arm ball joint dust cover for cracks or damage by
pushing it with your finger.
2. If the dust cover is cracked or damaged, replace the toe control arm assembly.
NOTE: Cracks or damage of the dust cover may cause damage

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

Fig. 31: Adjusting Identification Paint Position (AWD)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSPECTION
Check the stabilizer bushings for wear and deterioration. Check the stabilizer bar for deterioration or damage. Check all bolts for condition and straightness.
STABILIZER BAR LINK BALL JOINT BREAKAWAY TORQUE CHECK Required Special Tool:
MB990326: Preload Socket
1. After shaking the ball joint stud several times, install the nut to the stud and use
special tool MB990326 to measure the breakaway torque of the ball joint.

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

Standard value: 3.4 - 9.0 N.m (30 - 80 i
n-lb)
2. When the measured value exceeds the standard value, replace the stabilizer bar
link assembly.
3. When the measured value is lower than the standard value, check that the ball
joint turns smoothly without excessive play. If so, it is possible to re-use that
ball joint.
Fig. 32: Checking Breakaway Torque
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
STABILIZER BAR LINK BALL JOINT DUST COVER CHECK 1. Check the dust cover for cracks or dama
ge b
y pushin
g it with
your fin
ger.

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Temporarily tighten the bolts in mounting locations shown in the illustration
with no weight on the front seat cushion.
3. Tighten the nuts and bolts in all mounting locations to the specified torque.
INSPECTION HEATED SEAT SWITCH CHECK CONTINUITY TEST OF HEATED SEAT SWITCH 1. Check for continuity between terminals.

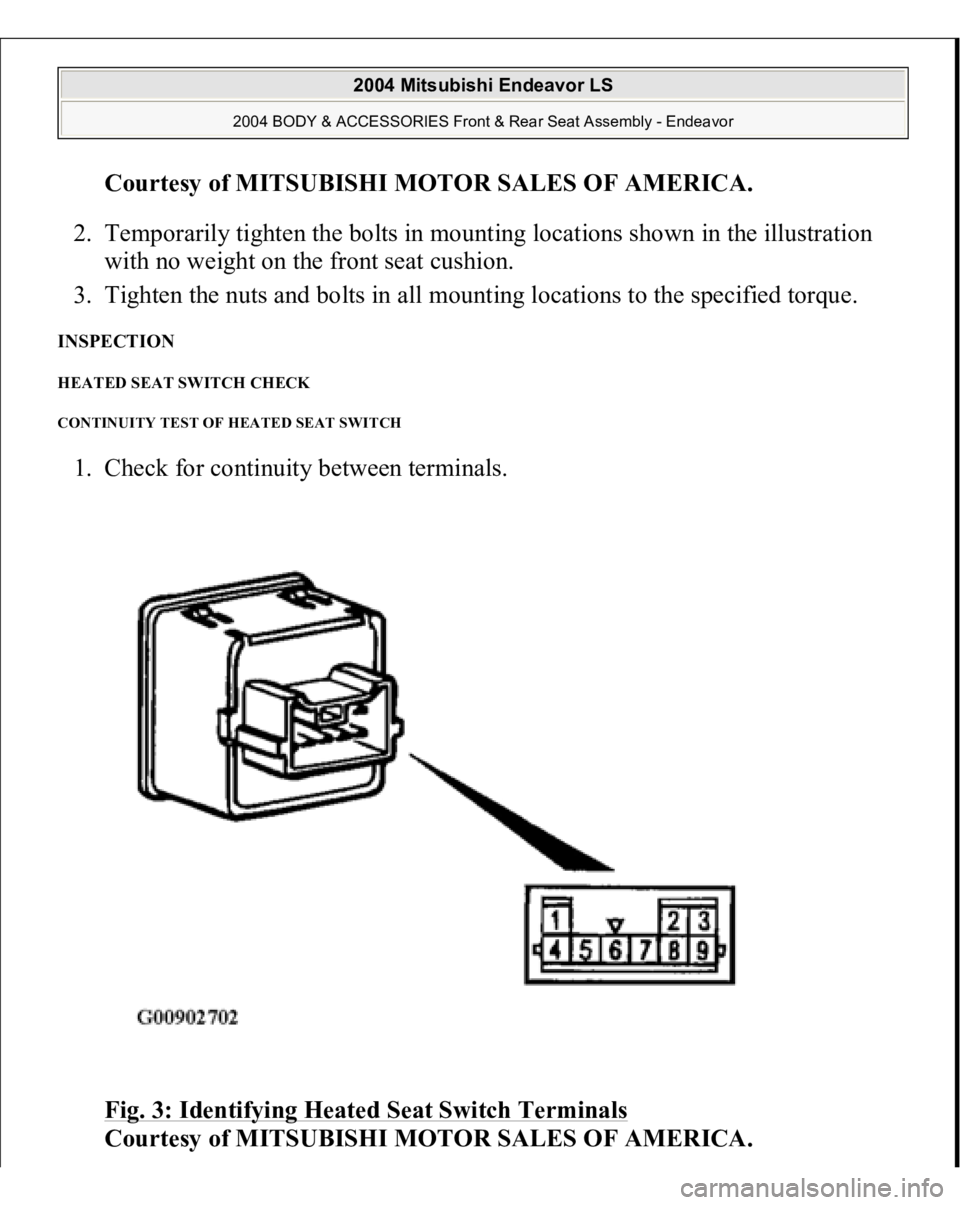

Fig. 3: Identifying Heated Seat Switch Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Front & Rear Seat Assembly - Endeavor
