2003 LEXUS LS430 Identifying ac

Fig. 79: Identifying Speed Sensor Rear LH Bolt
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
27.INSTALL REAR AXLE SHAFT NUT
a. While applying brakes, use a socket wrench (32 mm) to install the nut.
Torque: 290 N.m, (2,960 kgf.cm, 214 ft.lbf)
b. Install the lock cap and a new cotter pin.
If the holes for the cotter pin are not ali
gned, tighten the nut a further 10°.

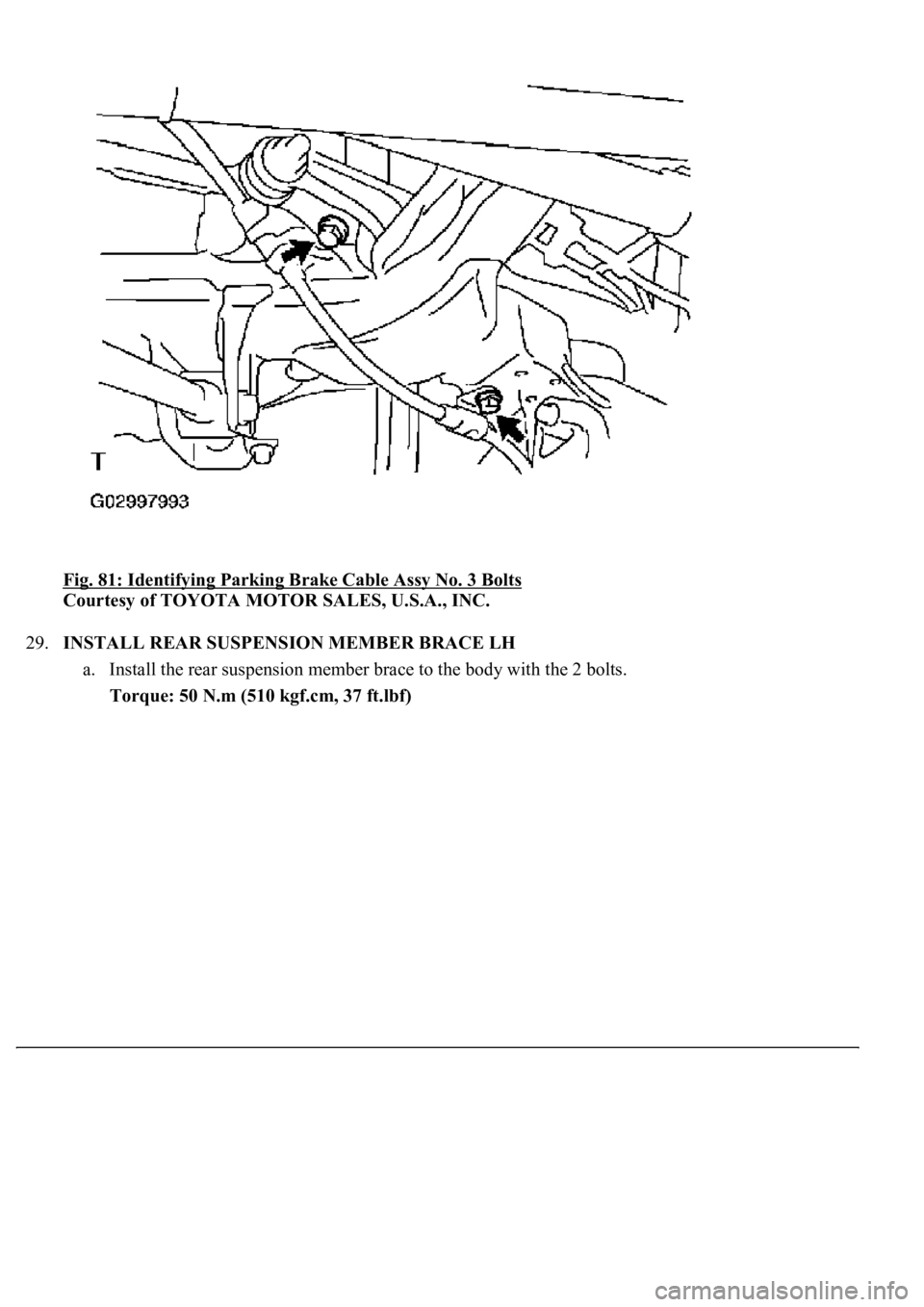

Fig. 81: Identifying Parking Brake Cable Assy No. 3 Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
29.INSTALL REAR SUSPENSION MEMBER BRACE LH
a. Install the rear suspension member brace to the body with the 2 bolts.
Torque: 50 N.m (510 kgf.cm, 37 ft.lbf)

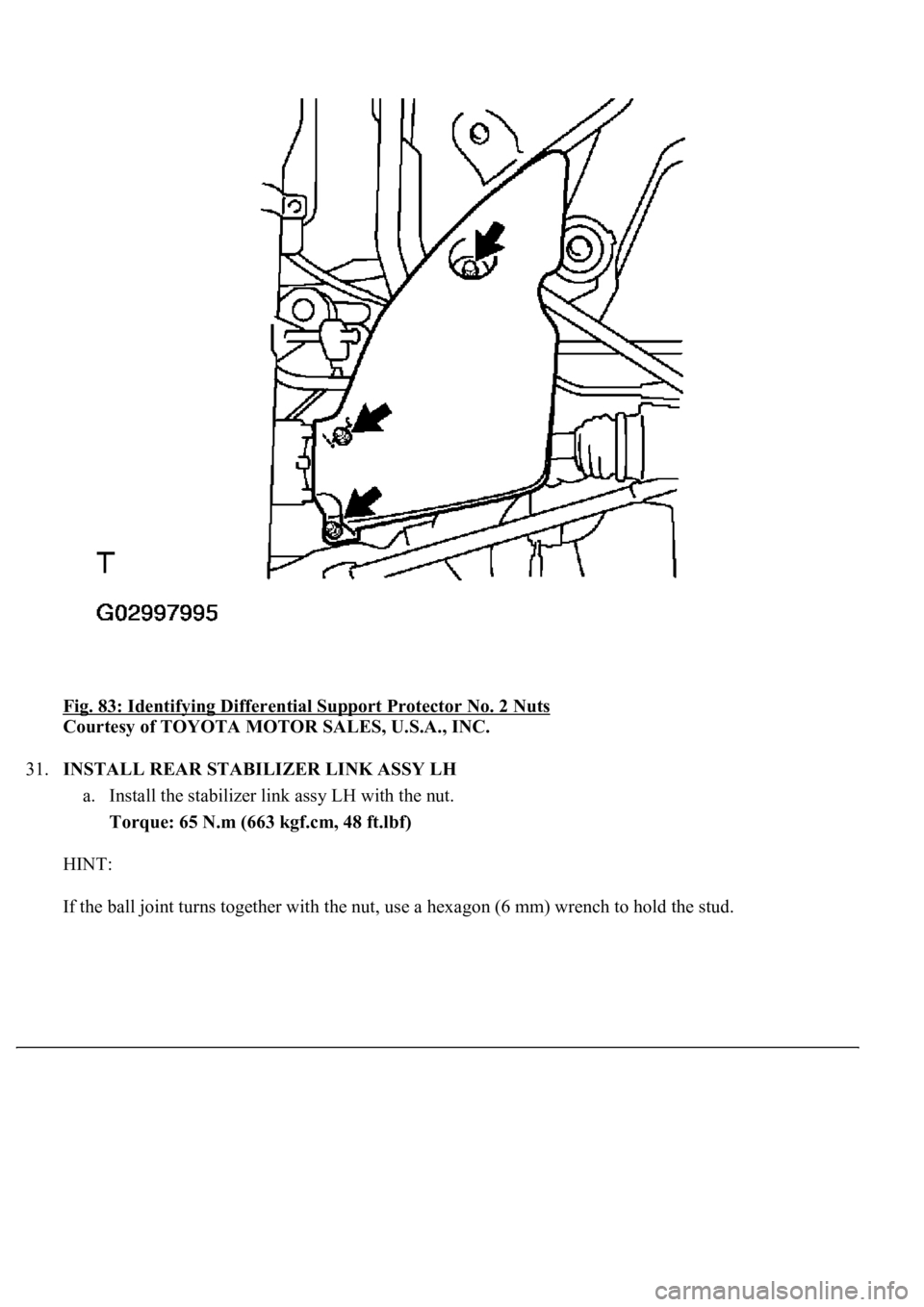

Fig. 83: Identifying Differential Support Protector No. 2 Nuts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
31.INSTALL REAR STABILIZER LINK ASSY LH
a. Install the stabilizer link assy LH with the nut.
Torque: 65 N.m (663 kgf.cm, 48 ft.lbf)
HINT:
If the ball
joint turns together with the nut, use a hexagon (6 mm) wrench to hold the stud.

Fig. 95: Identifying Upper Control Arm Assy Rear LH Nut
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
26.INSTALL REAR SUSPENSION ARM ASSY NO. 2 LH
a. Install the rear suspension arm assy No. 2 LH with the new nut.
Torque: 70 N.m (714 kgf.cm, 52 ft.lbf)

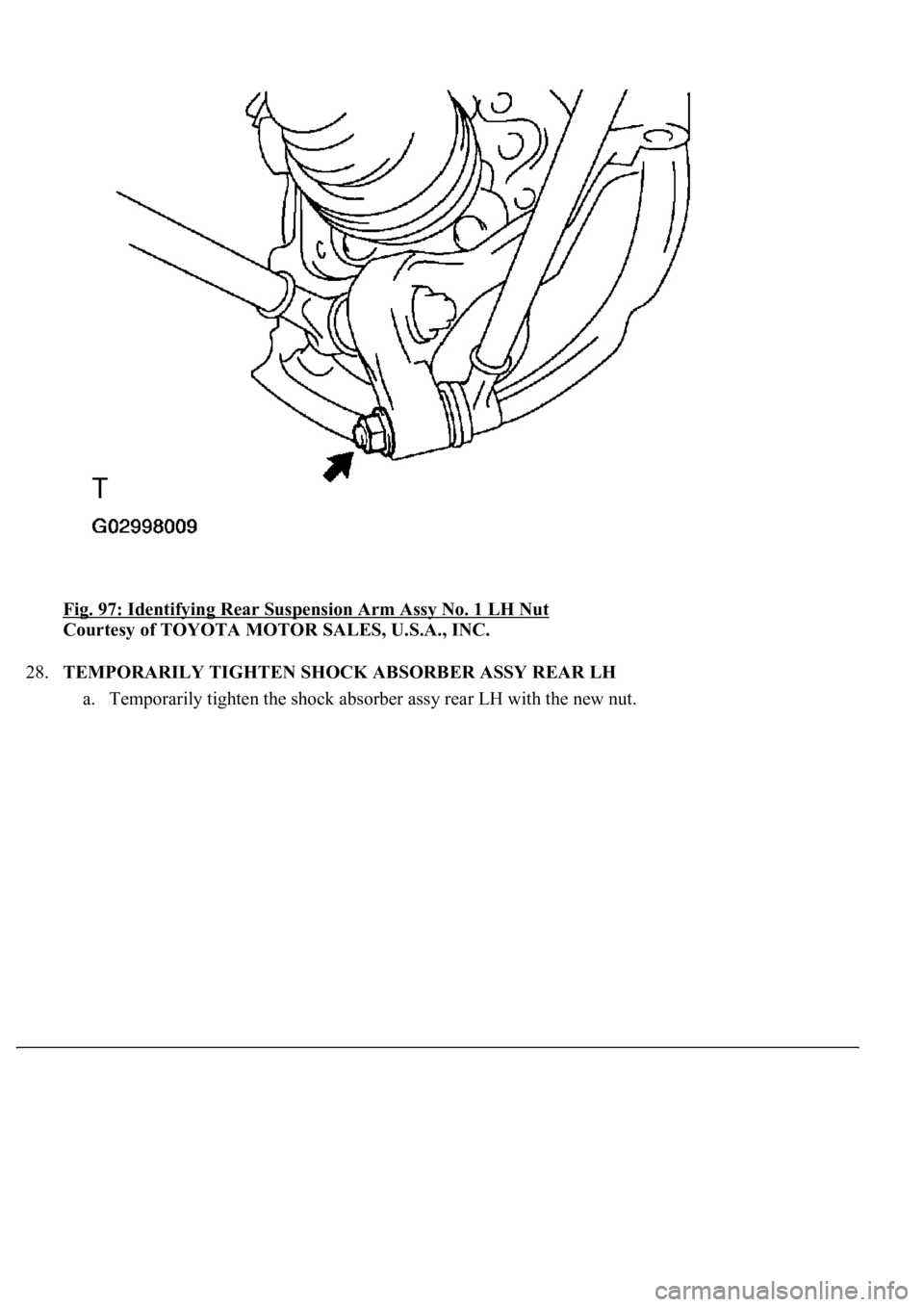

Fig. 97: Identifying Rear Suspension Arm Assy No. 1 LH Nut
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
28.TEMPORARILY TIGHTEN SHOCK ABSORBER ASSY REAR LH
a. Temporaril
y tighten the shock absorber assy rear LH with the new nut.

Fig. 99: Identifying Toe Control Link Sub-Assy LH Nut
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
30.FULLY TIGHTEN UPPER CONTROL ARM ASSY REAR LH
a. Fully tighten the upper control arm assy LH with the new nut.
Torque: 70 N.m (714 kgf.cm, 52 ft.lbf)

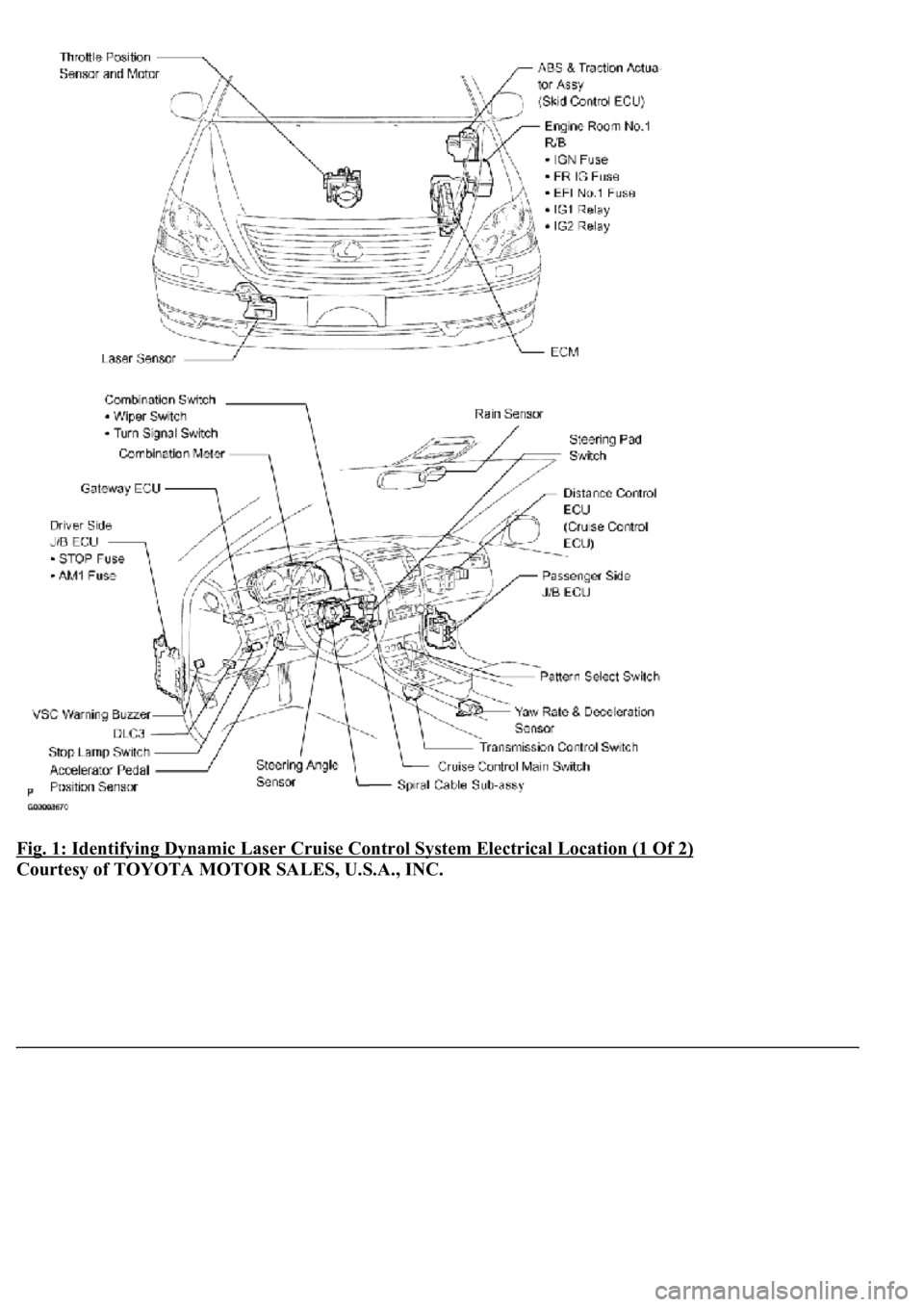

Fig. 1: Identifying Dynamic Laser Cruise Control System Electrical Location (1 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

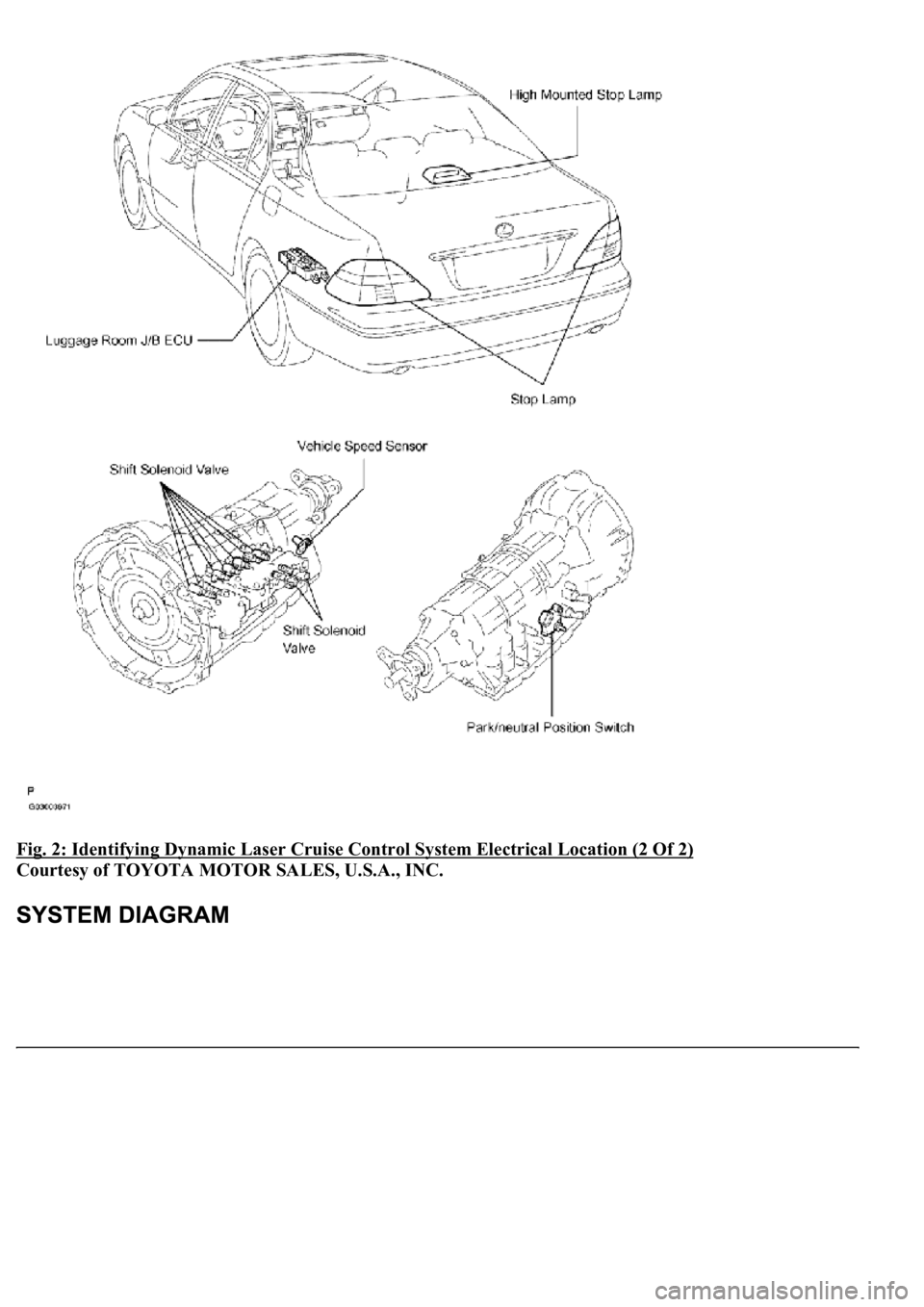

Fig. 2: Identifying Dynamic Laser Cruise Control System Electrical Location (2 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
