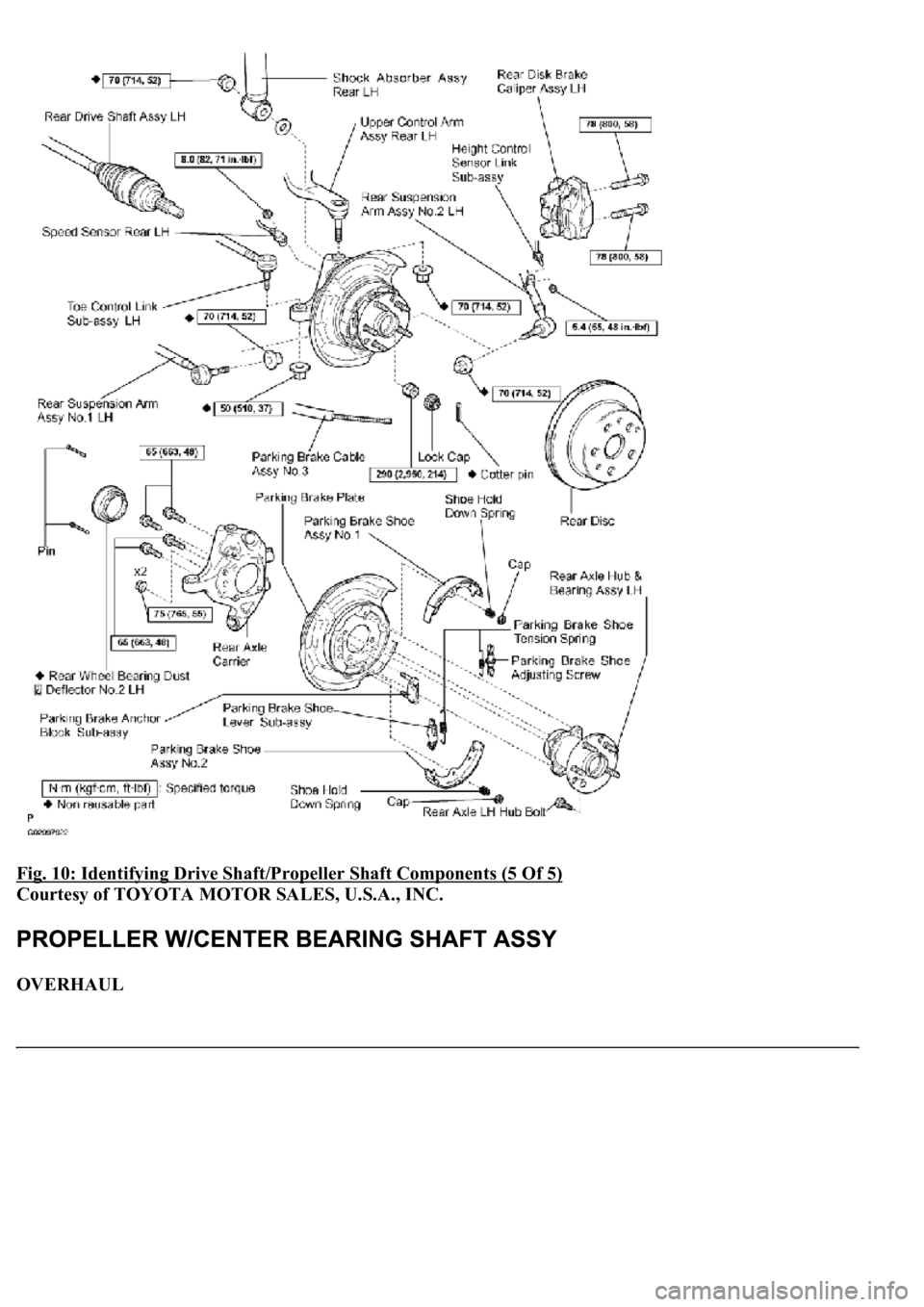

Fig. 10: Identifying Drive Shaft/Propeller Shaft Components (5 Of 5)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OVERHAUL
Page 2317 of 4500

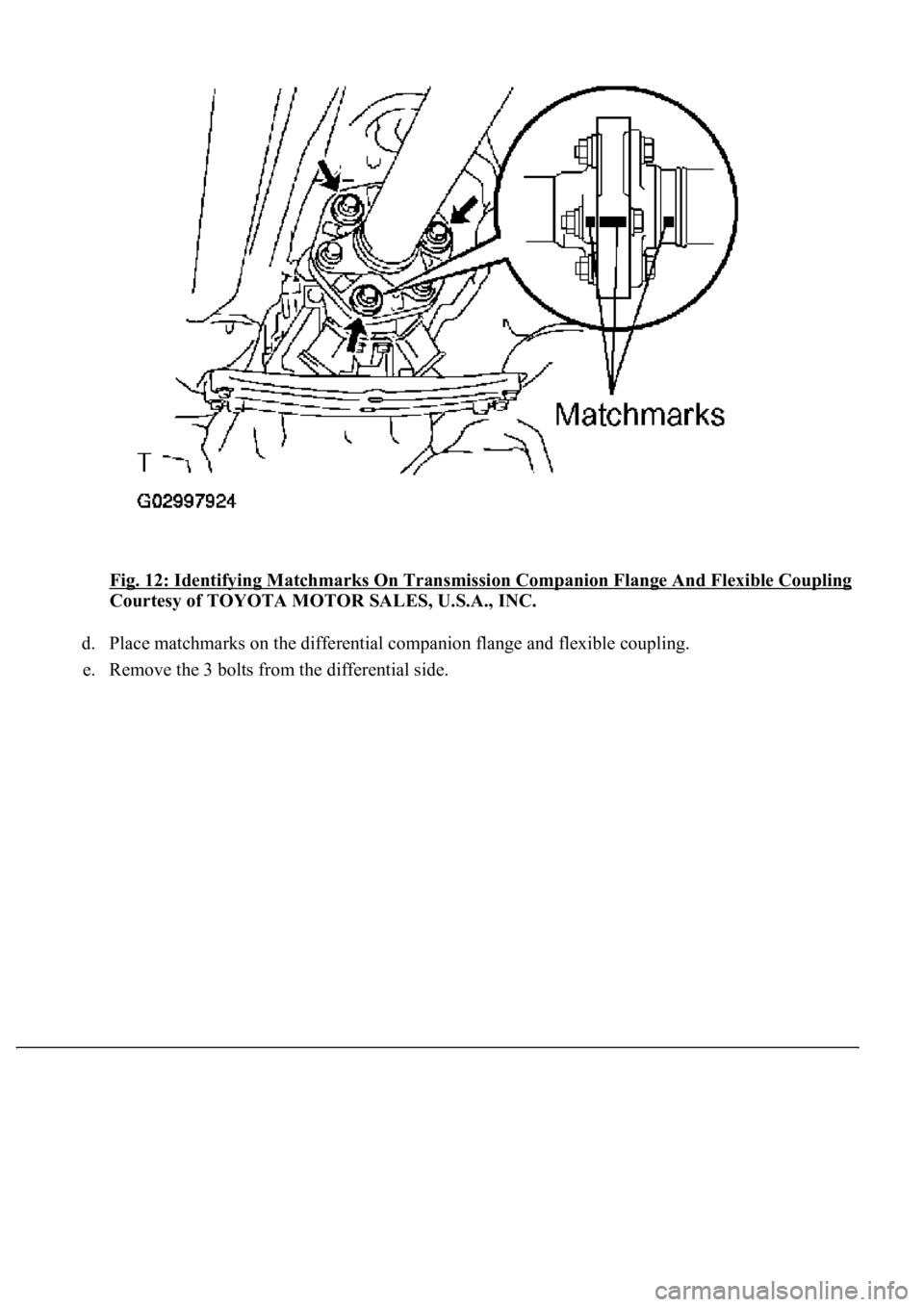

Fig. 12: Identifying Matchmarks On Transmission Companion Flange And Flexible Coupling
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
d. Place matchmarks on the differential companion flange and flexible coupling.
e. Remove the 3 bolts from the differential side.
Page 2318 of 4500

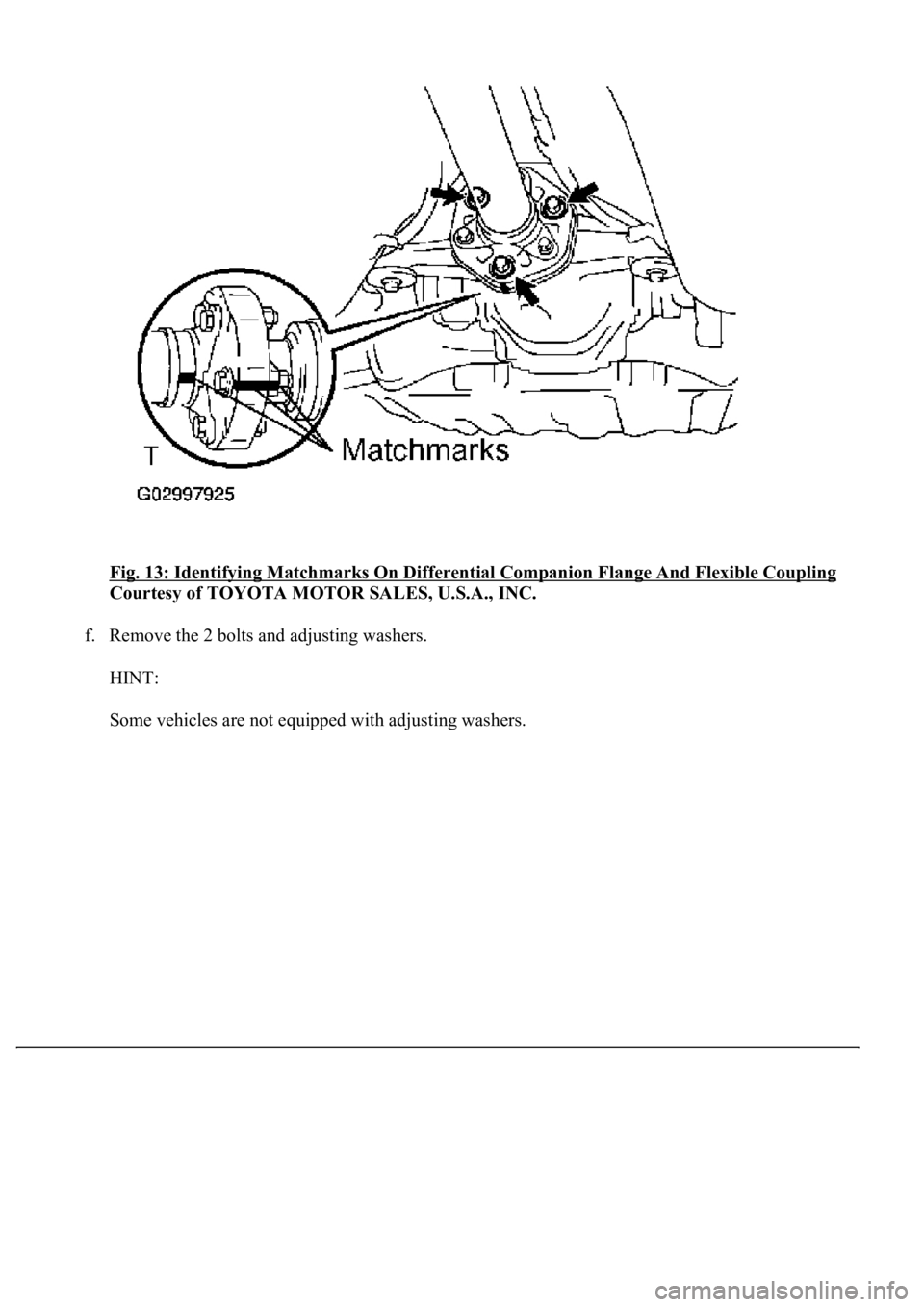

Fig. 13: Identifying Matchmarks On Differential Companion Flange And Flexible Coupling
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
f. Remove the 2 bolts and adjusting washers.
HINT:
Some vehicles are not equipped with adjusting washers.
Page 2323 of 4500
Fig. 18: Identifying Matchmarks On Intermediate Shaft And Propeller Shaft
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Remove the dust boot from the propeller shaft.
HINT:
If the dust boot is reused, remove it after wrappin
g vinyl tape around the spline, so it will not be damaged.
Page 2337 of 4500
Fig. 32: Identifying Direction Of Intermediate Shaft And Propeller Shaft Companion Flange
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
27.INSTALL FLEXIBLE COUPLING
a. Install and torque the 3 bolts, washers and nuts.
Torque: 79 N.m (805 kgf.cm, 58 ft.lbf)
Page 2365 of 4500
The procedures listed below are for the LH side.
1.REMOVE REAR TIRE
2.SEPARATE HEIGHT CONTROL SENSOR LINK SUB-ASSY REAR
a. Place matchmarks on the height control sensor link and bracket.
b. Remove the nut from the height control sensor link.
Fig. 59: Identifying Matchmarks On Height Control Sensor Link And Bracket
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
3.REMOVE REAR STABILIZER LINK ASSY LH
a. Remove the nut, and separate the stabilizer link assy LH.
HINT:
If the ball
joint turns together with the nut, use a hexagon wrench (6 mm) to hold the stud.
Page 2379 of 4500
Fig. 73: Identifying Upper Control Arm Assy Rear LH Nut
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
20.INSTALL SHOCK ABSORBER ASSY REAR LH
a. Install the shock absorber assy LH with the new nut.
Torque: 70 N.m (714 kgf.cm, 52 ft.lbf)
Page 2381 of 4500
Fig. 75: Identifying Rear Suspension Arm Assy No. 2 LH Nut
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
22.INSTALL TOE CONTROL LINK SUB-ASSY LH
a. Install the toe control link assy LH with the new nut.
Torque: 50 N.m (510 kgf.cm, 37 ft.lbf)
