2003 LEXUS LS430 torque

Centering bolts are used to mount the door hinge to the vehicle body and door. The door cannot be
adjusted with the centering bolts on. Substitute the centering bolts with standard bolts (w/washers) when
making adjustments.
A bolt without a torque specification is shown in the standard bolt chart (see STANDARD BOLT ).
Fig. 140: Identifying Centering Bolts

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
1.INSPECT LUGGAGE COMPARTMENT DOOR PANEL SUB-ASSY
Fig. 141: Inspecting Luggage Compartment Door Panel Sub
-Assy

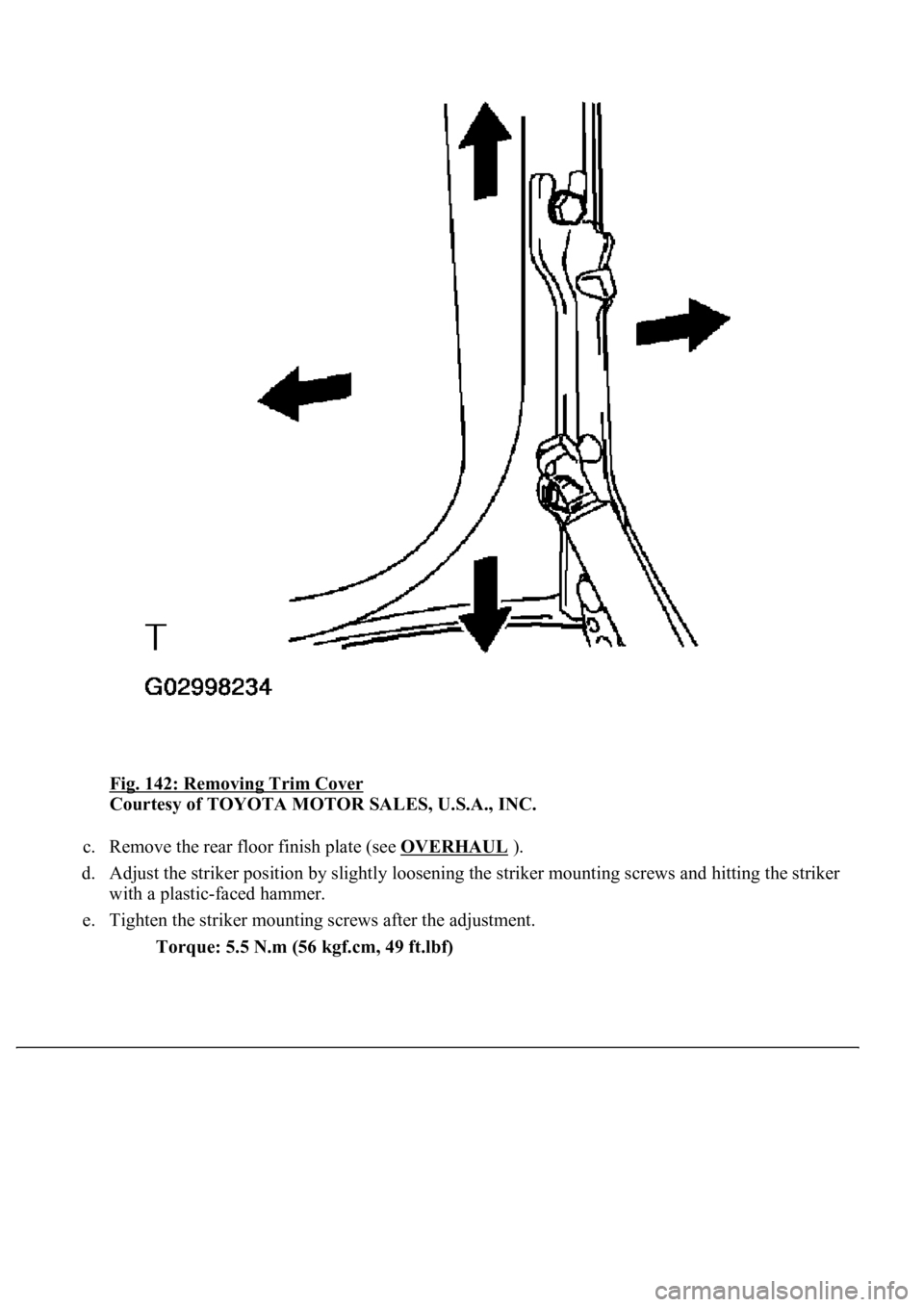

Fig. 142: Removing Trim Cover
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Remove the rear floor finish plate (see OVERHAUL
).
d. Adjust the striker position by slightly loosening the striker mounting screws and hitting the striker
with a plastic-faced hammer.
e. Tighten the striker mounting screws after the adjustment.
Torque: 5.5 N.m (56 kgf.cm, 49 ft.lbf)

Fig. 143: Removing Rear Floor Finish Plate
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OVERHAUL
HINT:
The installation procedures are the removal procedures in reverse order. However, only installation
procedures requiring additional information are included.
A bolt without a torque specification is shown in the standard bolt chart (see STANDARD BOLT ).
1.REMOVE REAR COMBINATION LAMP SERVICE COVER LH
a. Using a screwdriver, disengage the 2 clips and remove the cover.
HINT:
Tape the screwdriver tip before use.
2.REMOVE REAR COMBINATION LAMP SERVICE COVER RH
a. Using a screwdriver, disengage the 2 clips and remove the cover.
HINT:

Fig. 168: Removing Luggage Compartment Door Striker Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
24.INSTALL LUGGAGE COMPARTMENT DOOR STRIKER ASSY
a. Install the striker with the 2 bolts.
Torque: 5.5 N.m (56 kgf.cm, 49 ft.lbf)
b. Connect the connector.

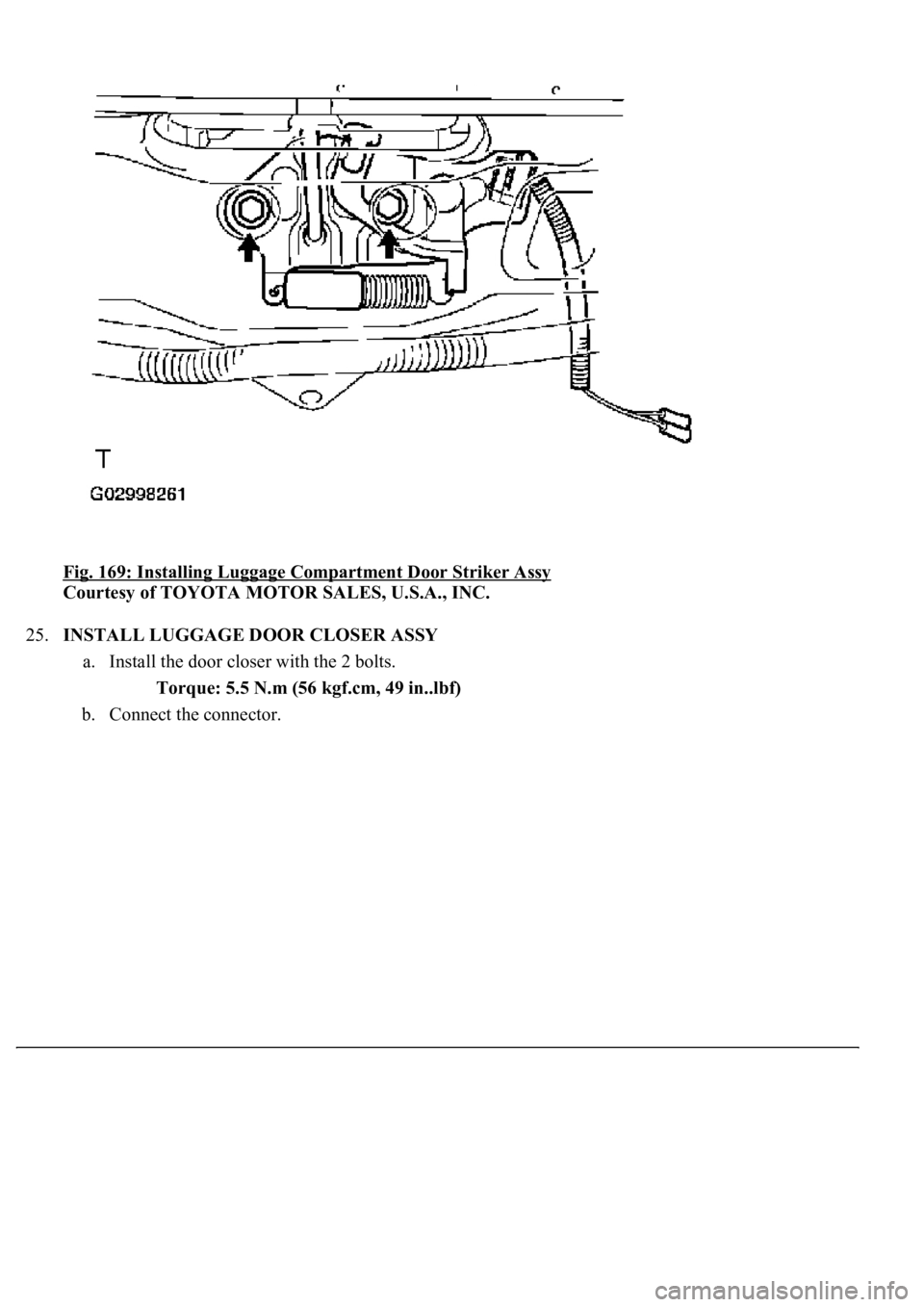

Fig. 169: Installing Luggage Compartment Door Striker Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
25.INSTALL LUGGAGE DOOR CLOSER ASSY
a. Install the door closer with the 2 bolts.
Torque: 5.5 N.m (56 kgf.cm, 49 in..lbf)
b. Connect the connector.

Fig. 170: Installing Luggage Door Closer Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
26.INSTALL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSY
a. Install the lock cylinder with the 2 nuts.
Torque: 5.5 N.m (56 kgf.cm, 49 in..lbf)
b. Connect the connector.

Fig. 171: Installing Lock Cylinder With Nuts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
27.w/ Smart key system:
INSTALL LUGGAGE ELECTRICAL KEY SWITCH
a. Install the switch with the 2 nuts.
Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)
b. Connect the connector.
28.w/o Smart key system:
INSTALL LUGGAGE ELECTRICAL KEY SWITCH COVER
a. Install the cover with the 2 nuts.
Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)

Fig. 38: Lifting Engine Out Of Vehicle
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
43.DISCONNECT ENGINE WIRE
a. Disconnect the engine wire from the transmission.
1. Disconnect the VSV connector.
2. Disconnect the PNP switch connector.
3. Disconnect the solenoid connector.
4. Disconnect the direct clutch speed sensor connector.
5. Disconnect the engine wire from the 3 wire clamps.
6. Disconnect the oil level sensor connector.
44.REMOVE TRANSMISSION OIL FILTER TUBE SUB-ASSY
45.REMOVE OIL COOLER OUTLET TUBE NO.1
46.REMOVE OIL COOLER INLET TUBE NO.1
47.REMOVE AUTOMATIC TRANSMISSION ASSY
a. Remove the torque converter clutch bolts.
1. Remove the 2 bolts and fl
ywheel housing under cover.
