2003 LEXUS LS430 torque

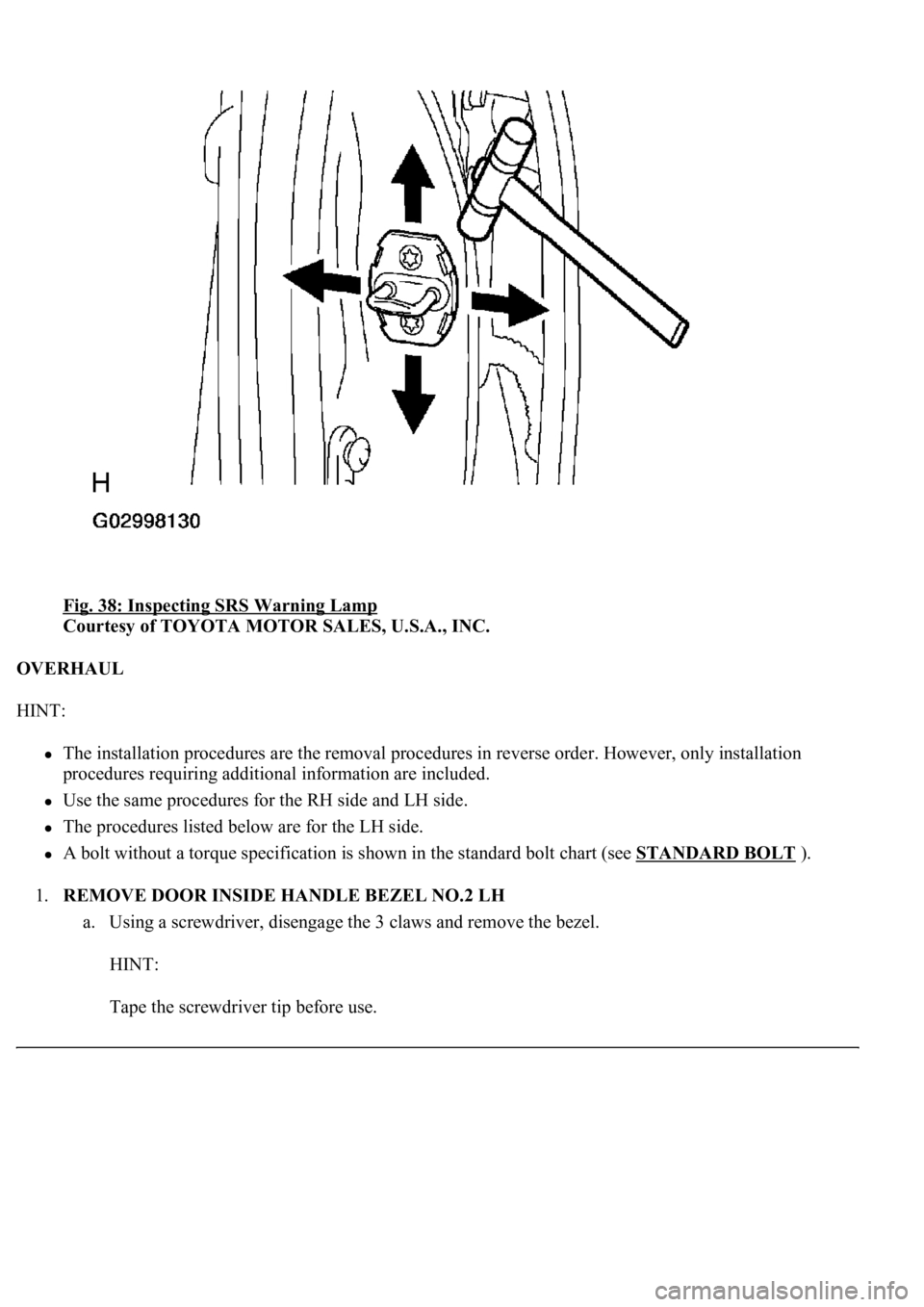

Fig. 38: Inspecting SRS Warning Lamp
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OVERHAUL
HINT:
The installation procedures are the removal procedures in reverse order. However, only installation
procedures requiring additional information are included.
Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.
A bolt without a torque specification is shown in the standard bolt chart (see STANDARD BOLT ).
1.REMOVE DOOR INSIDE HANDLE BEZEL NO.2 LH
a. Using a screwdriver, disengage the 3 claws and remove the bezel.
HINT:
Tape the screwdriver tip before use.

If clips are damaged during removal, replace them.
25.INSTALL FRONT DOOR CHECK ASSY LH
a. Apply MP grease to the sliding areas of the door check.
b. Install the door check to the door panel with the 2 nuts.
Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)
c. Apply adhesive to the threads of the bolt.
Adhesive:
Part No. 08833-00070, THREE BOND 1324 or equivalent
d. Install the door check to the body panel with the bolt.
Torque: 27 N.m (275 kgf.cm, 20 ft.lbf)
e. Install the cover.

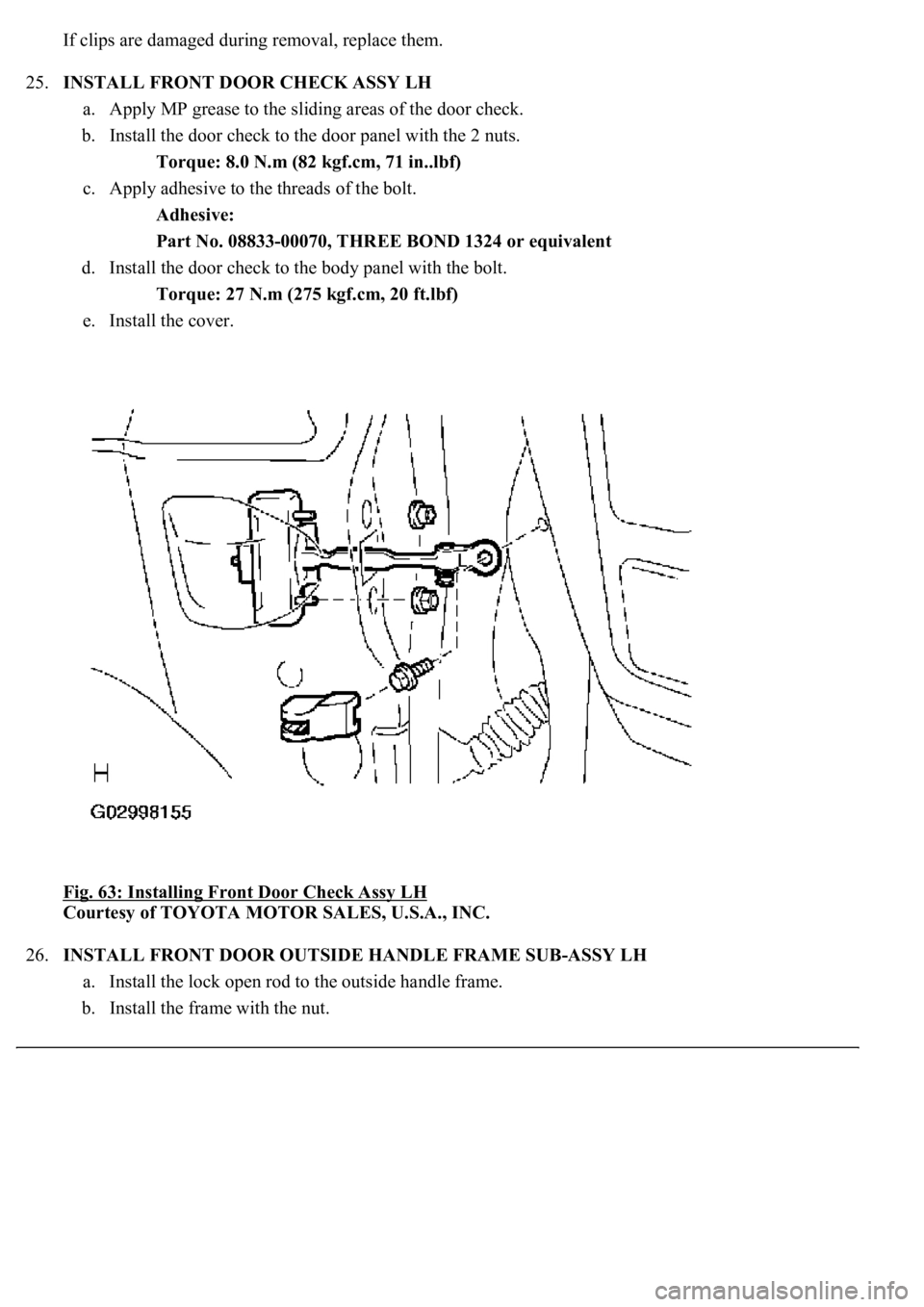

Fig. 63: Installing Front Door Check Assy LH

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
26.INSTALL FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSY LH
a. Install the lock open rod to the outside handle frame.
b. Install the frame with the nut.

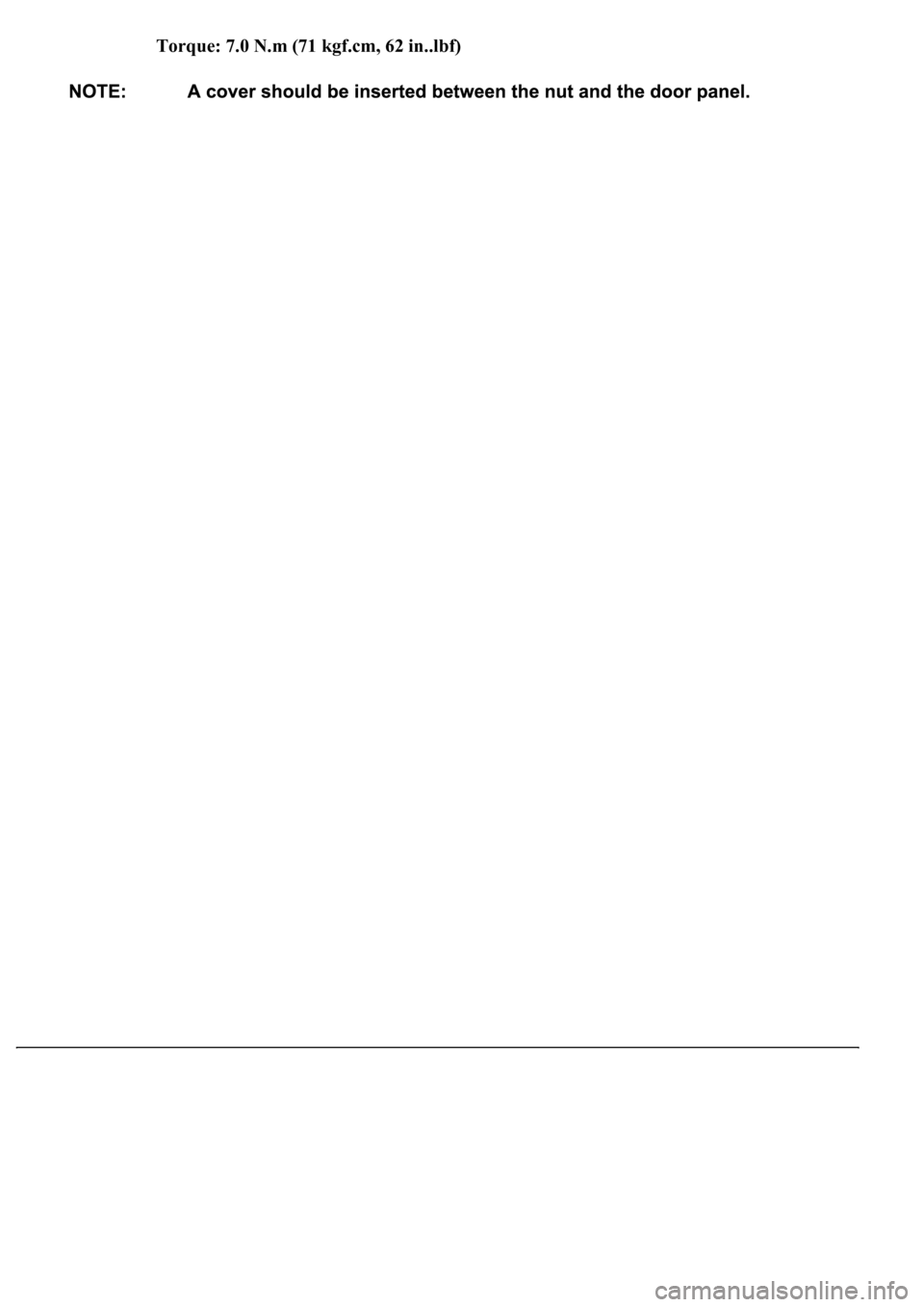

Torque: 7.0 N.m (71 kgf.cm, 62 in..lbf)

Adhesive:
Part No. 08833-00070, THREE BOND 1324 or equivalent
c. Using a T30 Torx° wrench, install the door lock with the 3 screws.
Torque: 5.5 N.m (56 kgf.cm, 49 in..lbf)
d. w/ Door closer:
Using a T30 Torx° wrench, install the 2 screws.
Torque: 5.5 N.m (56 kgf.cm, 49 in..lbf)
e. Connect the door lock connector.

Fig. 68: Connecting Door Lock Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
29.INSTALL DOOR OUTSIDE HANDLE COVER ASSY
a. Using a T30 Torx° wrench, install the outside handle cover with the screw.
Torque: 5.5 N.m (56 kgf.cm, 49 in..lbf)
b. Install the hole plug.

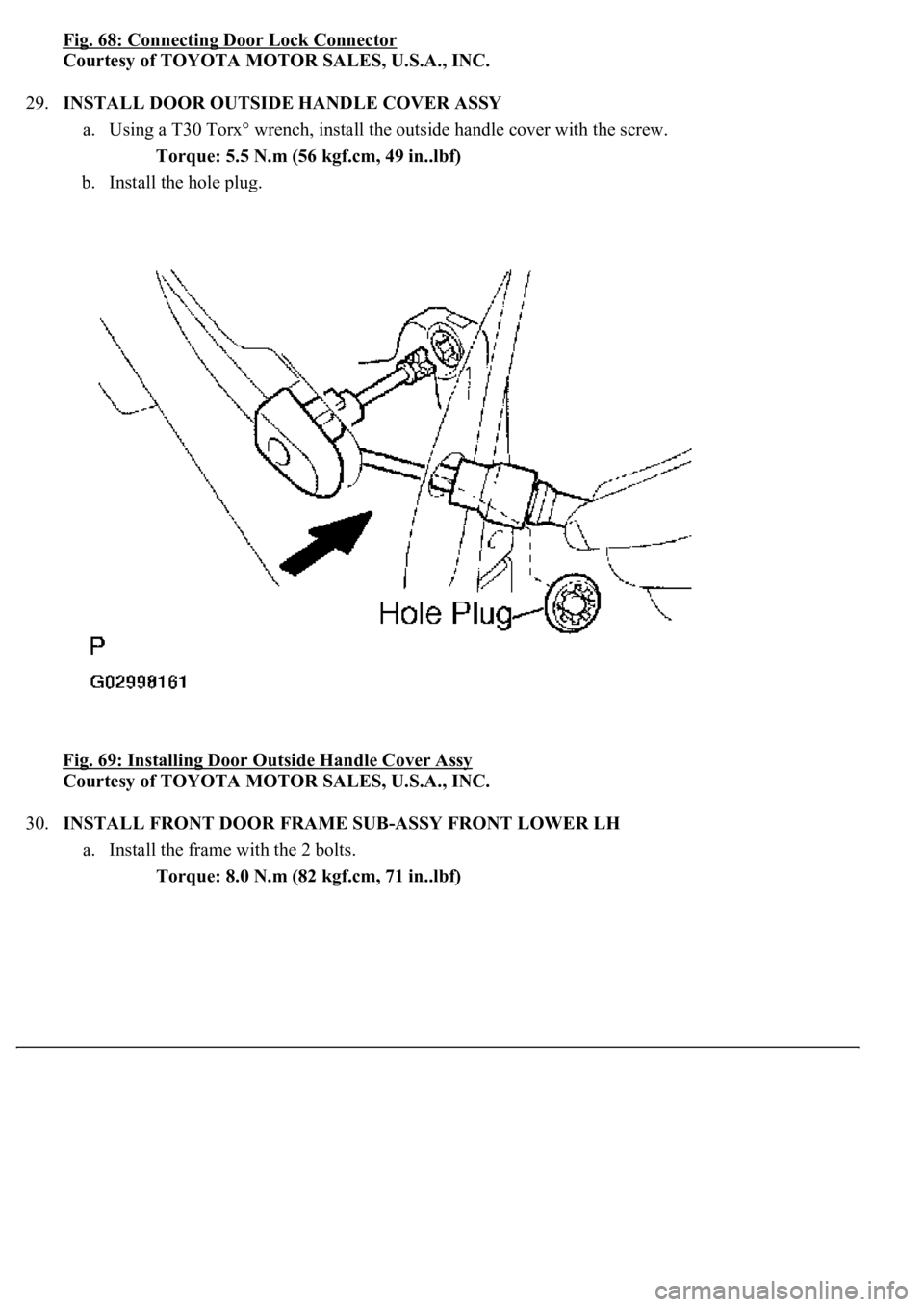

Fig. 69: Installing Door Outside Handle Cover Assy

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
30.INSTALL FRONT DOOR FRAME SUB-ASSY FRONT LOWER LH
a. Install the frame with the 2 bolts.
Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)

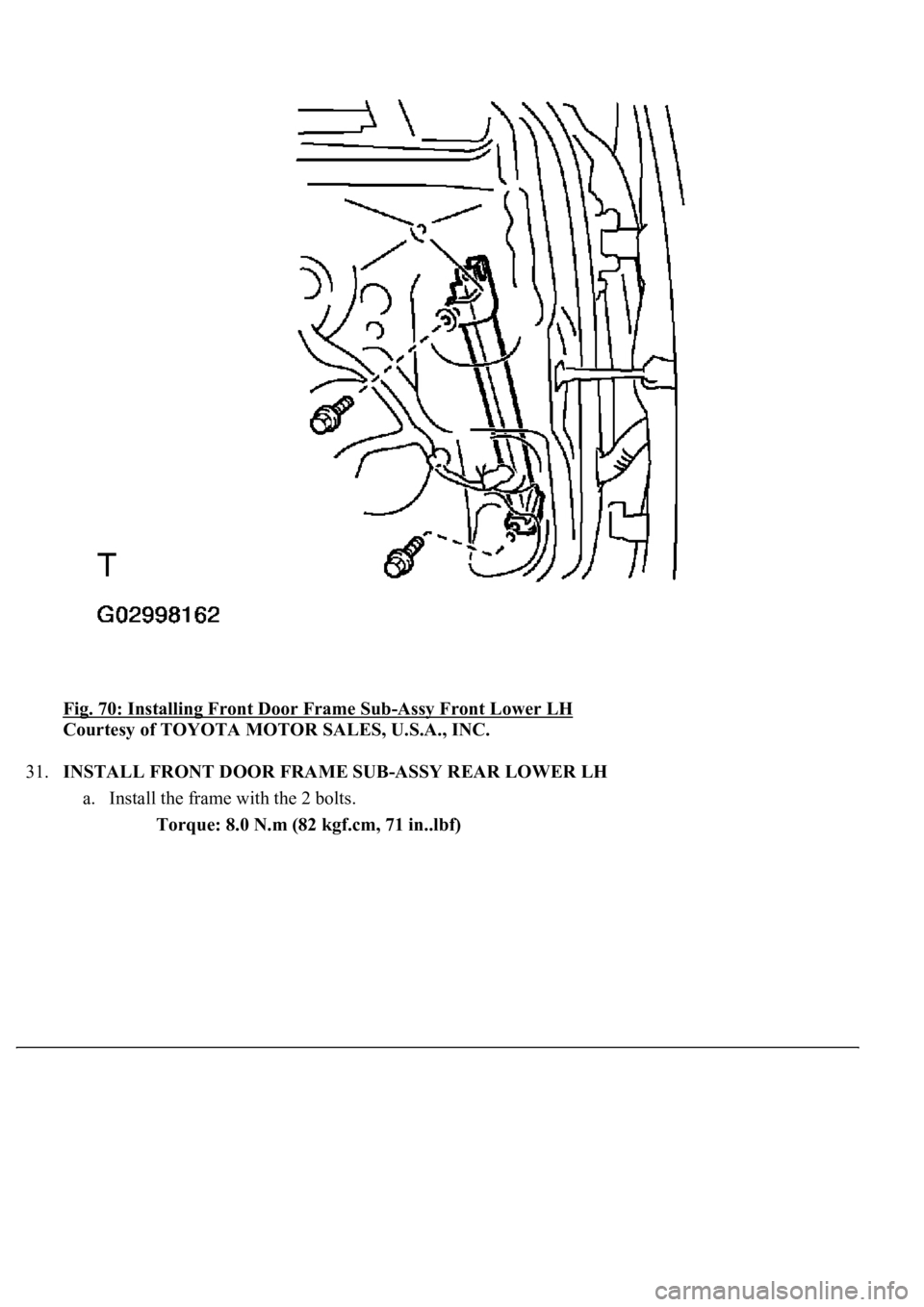

Fig. 70: Installing Front Door Frame Sub-Assy Front Lower LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
31.INSTALL FRONT DOOR FRAME SUB-ASSY REAR LOWER LH
a. Install the frame with the 2 bolts.
Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)

Fig. 72: Installing Power Window Regulator Motor Assy LH Front
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Using a T25 Torx° driver, install the motor with the 3 screws.
Torque: 5.5 N.m (56 kgf.cm, 49 in..lbf)

Fig. 74: Installing Front Door Window Regulator Sub-Assy LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Install the window regulator with the 6 bolts.
Torque: 11 N.m (115 kgf.cm, 8 ft.lbf)
