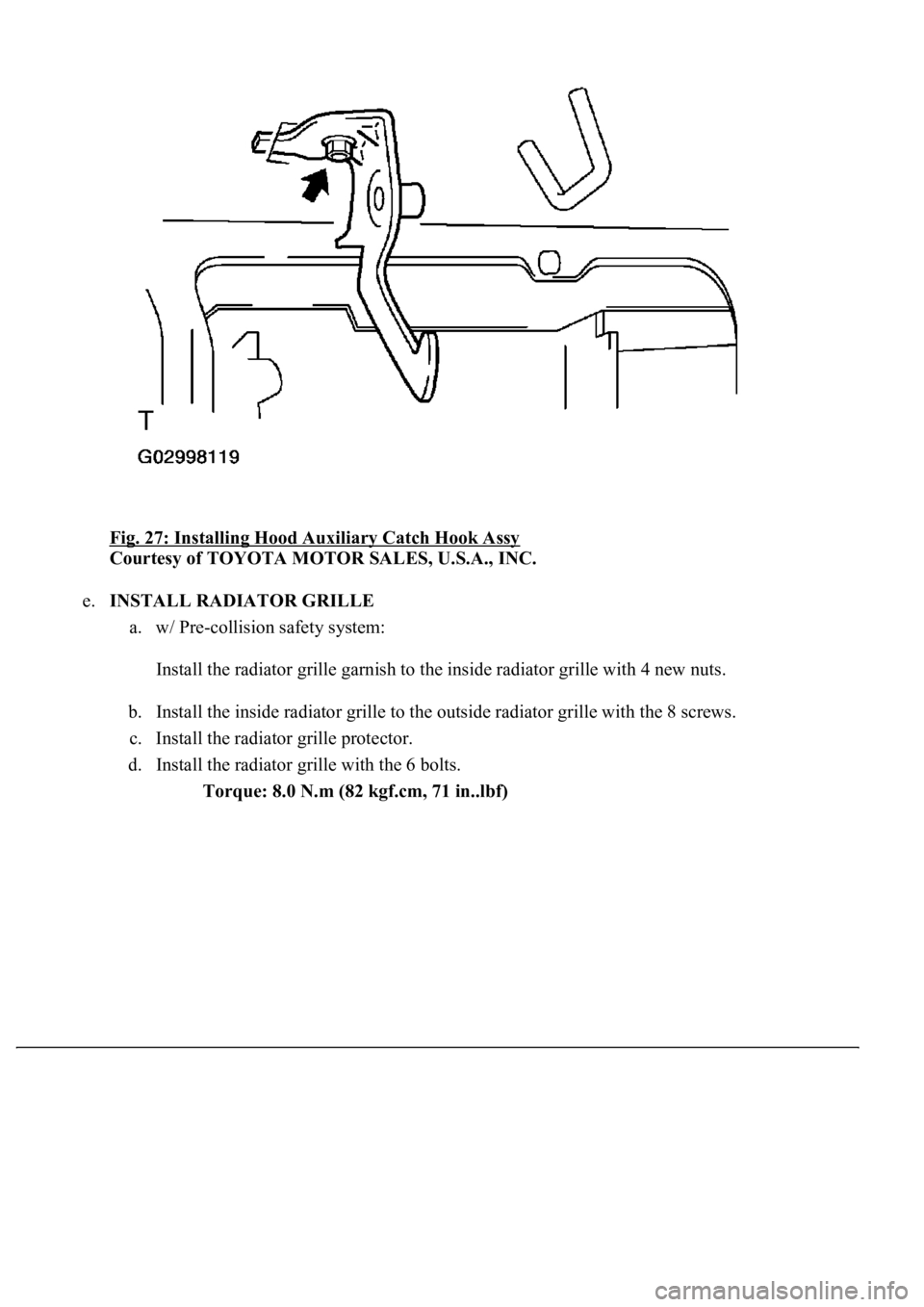

Fig. 27: Installing Hood Auxiliary Catch Hook Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
e.INSTALL RADIATOR GRILLE
a. w/ Pre-collision safety system:
Install the radiator grille garnish to the inside radiator grille with 4 new nuts.
b. Install the inside radiator grille to the outside radiator grille with the 8 screws.
c. Install the radiator grille protector.
d. Install the radiator grille with the 6 bolts.
Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)

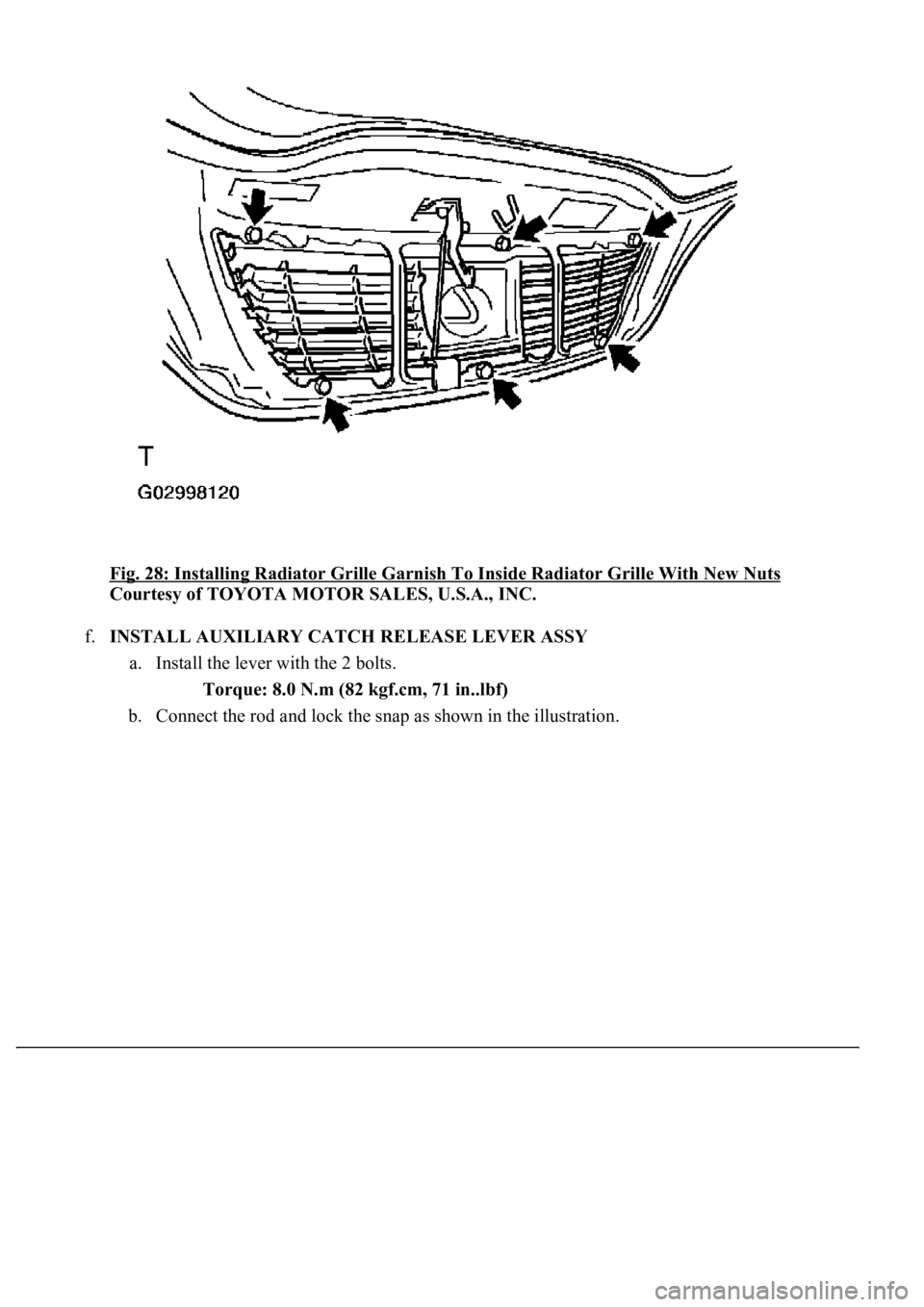

Fig. 28: Installing Radiator Grille Garnish To Inside Radiator Grille With New Nuts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
f.INSTALL AUXILIARY CATCH RELEASE LEVER ASSY
a. Install the lever with the 2 bolts.
Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)
b. Connect the rod and lock the snap as shown in the illustration.

Fig. 29: Installing Lever With Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REPLACEMENT
HINT:
Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.
A bolt without a torque specification is a standard bolt (see STANDARD BOLT ).
1.REMOVE HOOD SUPPORT ASSY LH
a. Remove the 2 bolts and hood support.
HINT:
<00350048005000520059004800030057004b00480003004b005200520047000300560058005300530052005500570003005a004b004c004f004800030056005800530053005200550057004c0051004a00030057004b00480003004b005200520047000300
53004400510048004f0003005a004c0057004b0003005c0052[ur hands.

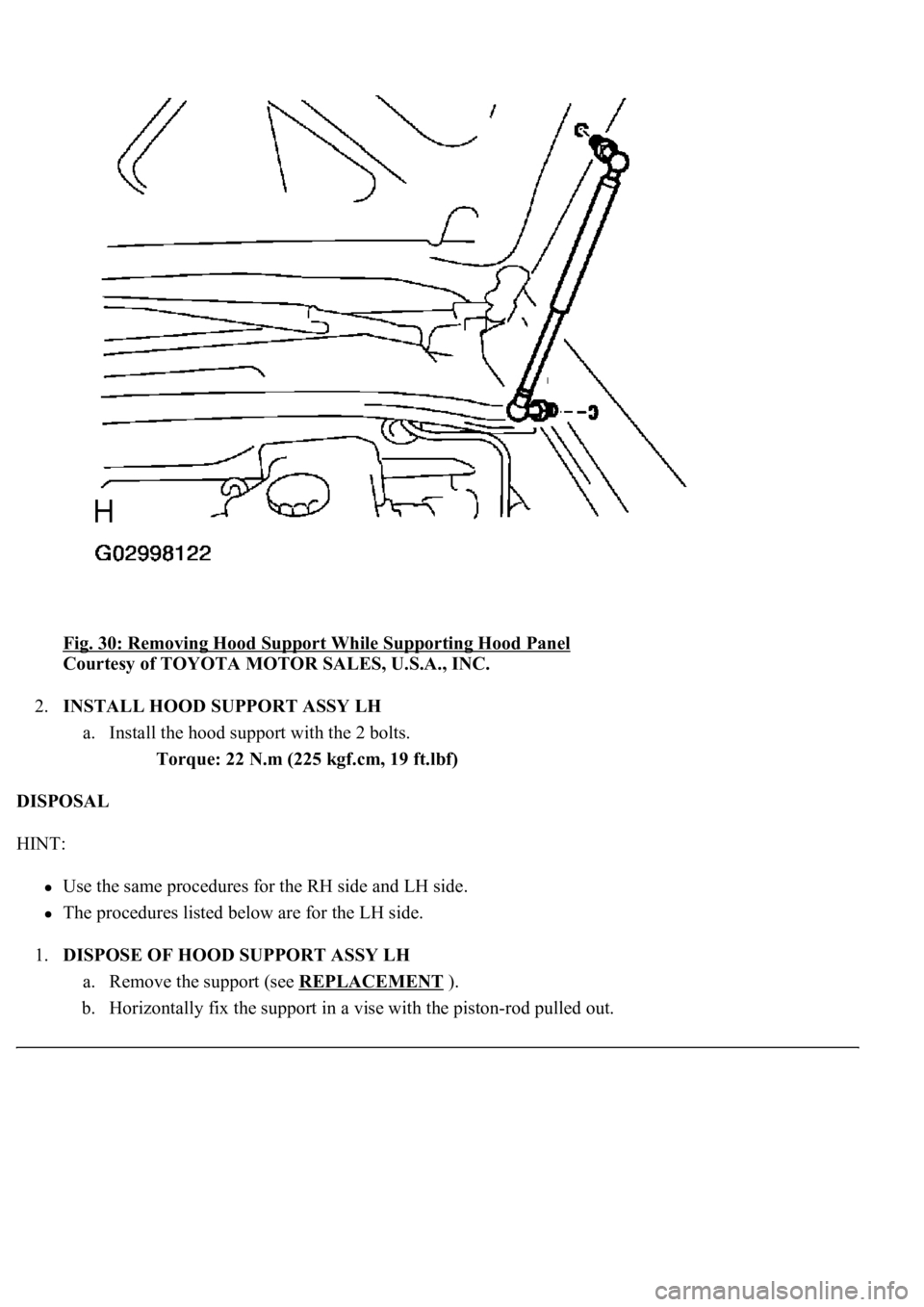

Fig. 30: Removing Hood Support While Supporting Hood Panel
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2.INSTALL HOOD SUPPORT ASSY LH
a. Install the hood support with the 2 bolts.
Torque: 22 N.m (225 kgf.cm, 19 ft.lbf)
DISPOSAL
HINT:
Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.
1.DISPOSE OF HOOD SUPPORT ASSY LH
a. Remove the support (see REPLACEMENT
).
b. Horizontally fix the support in a vise with the piston-rod pulled out.

sure to disconnect the battery. After adjustment, inspect the SRS warning lamp, the side airbag system
and the curtain shield airbag system for normal operation (see DIAGNOSIS SYSTEM
). Then initialize
both airbag systems (see INITIALIZATION
).
<00380056004800030057004b0048000300560044005000480003005300550052004600480047005800550048000300490052005500030057004b004800030035002b00030056004c0047004800030044005100470003002f002b00030056004c0047004800
1100030003[
The procedures listed below are for the LH side.
Centering bolts are used to mount the door hinge to the vehicle body and door. The door cannot be
adjusted with the centering bolts on. Substitute the centering bolts with standard bolts (w/washers) when
making adjustments.
A bolt without a torque specification is shown in the standard bolt chart (see STANDARD BOLT ).
Fig. 33: Identifying Centering Bolts

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
1.INSPECT FRONT DOOR PANEL SUB-ASSY LH
a. Check that the clearance is within the standard ran
ge.

Fig. 34: Inspecting Front Door Panel Sub-Assy LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
AREA MEASUREMENT REFERENCE STANDARD:
2.ADJUST FRONT DOOR PANEL SUB-ASSY LH
a. Disconnect the negative (-) terminal cable from the battery.
b. Using SST, adjust the door horizontally and vertically by loosening the body side hinge bolts.
SST 09812-00010, 09812-00020
c. Tighten the body side hinge bolts after the adjustment.
Torque: 32.5 N.m (332 kgf.cm, 24 ft.lbf)
AreaMeasurementAreaMeasurement
A8.0 +/- 1.5 mm (0.315 +/- 0.059 in.)C4.0 +/- 1.5 mm (0.157 +/- 0.059
in.)
B2.5 +/- 1.5 mm (0.098 +/- 0.059 in.)D4.0 +/- 1.5 mm (0.157 +/- 0.059
in.)

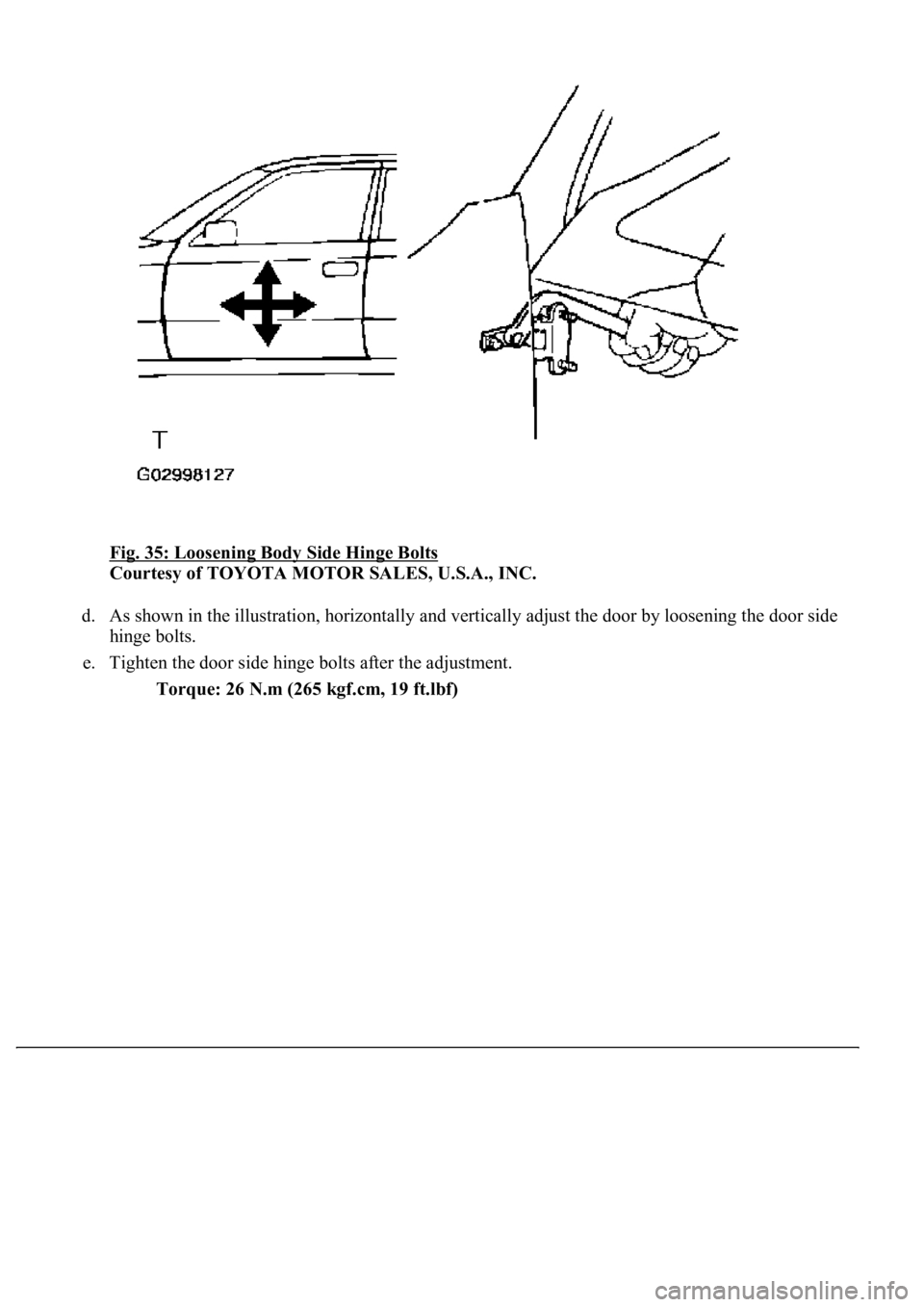

Fig. 35: Loosening Body Side Hinge Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
d. As shown in the illustration, horizontally and vertically adjust the door by loosening the door side
hinge bolts.
e. Tighten the door side hinge bolts after the adjustment.
Torque: 26 N.m (265 kgf.cm, 19 ft.lbf)

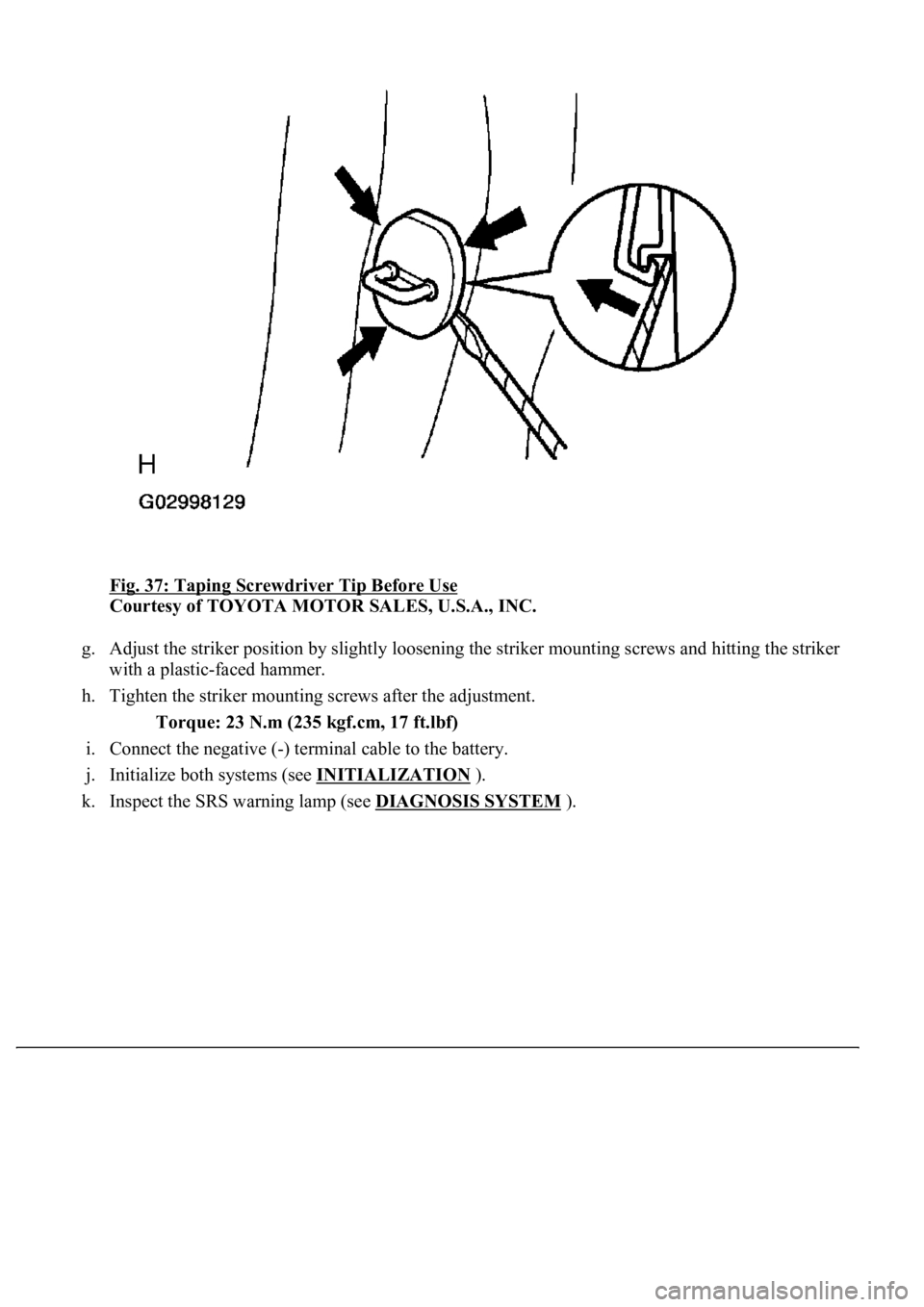

Fig. 37: Taping Screwdriver Tip Before Use
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
g. Adjust the striker position by slightly loosening the striker mounting screws and hitting the striker
with a plastic-faced hammer.
h. Tighten the striker mounting screws after the adjustment.
Torque: 23 N.m (235 kgf.cm, 17 ft.lbf)
i. Connect the negative (-) terminal cable to the battery.
j. Initialize both systems (see INITIALIZATION
).
k. Inspect the SRS warning lamp (see DIAGNOSIS SYSTEM
).
