CONNECTORS LOCATION
Luggage Oscillator (Outer)Behind right side of rear bumper. See Fig. 28 .
Noise FilterOn luggage room J/B. See Fig. 11 .
Noise Filter (Ignition) (Left Bank)On left rear of engine. See Fig. 15 .
Noise Filter (Ignition) (Right Bank)On right front of engine. See Fig. 15 .
Noise Filter (Rear Window Defogger)Behind left headlight. See Fig. 15 .
Pretensioner Front LHNear base of left "B" pillar. See Fig. 29 .
Pretensioner Front RHNear base of right "B" pillar. See Fig. 29 .
Pretensioner Rear LHNear base of left "C" pillar. See Fig. 29 .
Pretensioner Rear RHIn right rear door. See Fig. 29 .
Rear Window DefoggerAt rear window. See Fig. 29 .
RheostatLeft side of dash. See Fig. 18 .
Room Oscillator (Front)In center console. See Fig. 18 .
Room Oscillator (Rear)Center of passenger compartment. See Fig. 29 .
Seat Heater Front LHIn left front seat. See Fig. 31 .
Seat Heater Front RHIn right front seat. See Fig. 31 .
Seat Heater Rear LHIn left rear seat. See Fig. 32 .
Seat Heater Rear LHIn left side of rear seat. See Fig. 32 .
Seat Heater Rear RHIn right rear seat. See Fig. 32 .
Seat Heater Rear RHIn right side of rear seat. See Fig. 32 .
Short Connector 1Left front of engine compartment. See Fig. 15 .
Short Connector 2Left front of engine compartment. See Fig. 15 .
Short Connector 8 (Height Control)Right end of dash. See Fig. 18 .
Short Connector 9 (Height Control)Right end of dash. See Fig. 18 .
Short Connector 43Right end of dash. See Fig. 17 .
Short Connector 43Right end of dash. See Fig. 18 .
Side Airbag Squib LHIn left front seat. See Fig. 31 .
Side Airbag Squib RHIn right front seat. See Fig. 31 .
Stereo Component AmplifierOn right side of luggage compartment, behind trim.
See Fig. 4
.
Telephone Transceiver & Speaker RelayOn right side of luggage compartment. See Fig. 4 .
Theft Deterrent HornOn right rear of engine compartment. See Fig. 15 .
Transponder Key AmplifierOn right side of steering column. See Fig. 18 .
Vibrator LHIn left rear seat. See Fig. 32 .
Vibrator RHIn right rear seat. See Fig. 32 .
ComponentLocation
BA1 (White, 6 Pin)At left "B" pillar. See Fig. 23 .
BA2 (White, 10 Pin)At left "B" pillar. See Fig. 23 .
BB1 (White, 6 Pin)At right "B" pillar. See Fig. 23 .
BB2 (White, 10 Pin)At right "B" pillar. See Fig. 23 .
BC2 (White, 16 Pin)Left rear of luggage compartment. See Fig. 23 .
BD1 (White, 10 Pin)Behind left side of rear bumper. See Fig. 23 .
BE3 (White, 16 Pin)Behind right rear bumper. See Fig. 23 .
BE4 (Gray, 22 Pin)Behind right rear bumper. See Fig. 23 .
BF2 (White, 20 Pin)Under driver's seat. See Fig. 26 .
BG3 (White, 20 Pin)Under passenger seat. See Fig. 26 .
BH2 (White, 25 Pin)Lower left side of rear seat. See Fig. 27 .
BH3 (White, 17 Pin)Lower left side of rear seat. See Fig. 27 .
BI2 (White, 25 Pin)Right rear seat bottom. See Fig. 27 .
BI3 (White, 17 Pin)Right rear seat bottom. See Fig. 27 .
BJ1 (White, 10 Pin)In left front door. See Fig. 25 .
BK1 (White, 10 Pin)In right front door. See Fig. 25 .
BL1 (White, 10 Pin)In left rear door. See Fig. 25 .
BM1 (White, 10 Pin)Right "B" pillar. See Fig. 25 .
BN1 (White, 2 Pin)Right front floor pan. See Fig. 25 .
BO1 (White, 11 Pin)Left rear of luggage compartment. See Fig. 25 .
BP1 (White, 4 Pin)Left rear of luggage compartment. See Fig. 25 .
BQ1 (White, 10 Pin)Left rear luggage compartment. See Fig. 25 .
BR1 (Gray, 3 Pin)Left rear luggage compartment. See Fig. 25 .
BS1 (White, 8 Pin)Left side of rear seat. See Fig. 27 .
BT1 (White, 20 Pin)Center of rear seat. See Fig. 27 .
BT2 (White, 10 Pin)Center rear seat. See Fig. 27 .
BU1 (White, 20 Pin)Center of rear seat. See Fig. 27 .
BV1 (White, 8 Pin)In right rear seat back. See Fig. 27 .
EA1 (Black, 8 Pin)Under left headlight. See Fig. 3 .
EB1 (White, 14 Pin)Inside ECU box. See Fig. 3 .
EB2 (White, 10 Pin)Inside ECU box. See Fig. 3 .
EC1 (White, 3 Pin)Behind intake manifold. See Fig. 3 .
EC2 (Black, 6 Pin)Center rear of engine compartment. See Fig. 3 .
ED1 (Black, 6 Pin)Right front of engine compartment. See Fig. 3 .
IA1 (White, 17 Pin)At left kick panel. See Fig. 20 .
IB1 (Yellow, 2 Pin)At left side of dash. See Fig. 20 .
IB5 (White, 18 Pin)Left end of dash. See Fig. 20 .
IB6 (White, 18 Pin)Left end of dash. See Fig. 20 .
IB7 (White, 25 Pin)Left end of dash. See Fig. 20 .
IC4 (Gray, 22 Pin)Left end of dash. See Fig. 20 .
IC5 (White, 17 Pin)Left end of dash. See Fig. 20 .
ID2 (White, 20 Pin)Left end of dash. See Fig. 20 .
IE1 (White, 2 Pin)At left kick panel. See Fig. 20 .
IF3(Wht 14P )

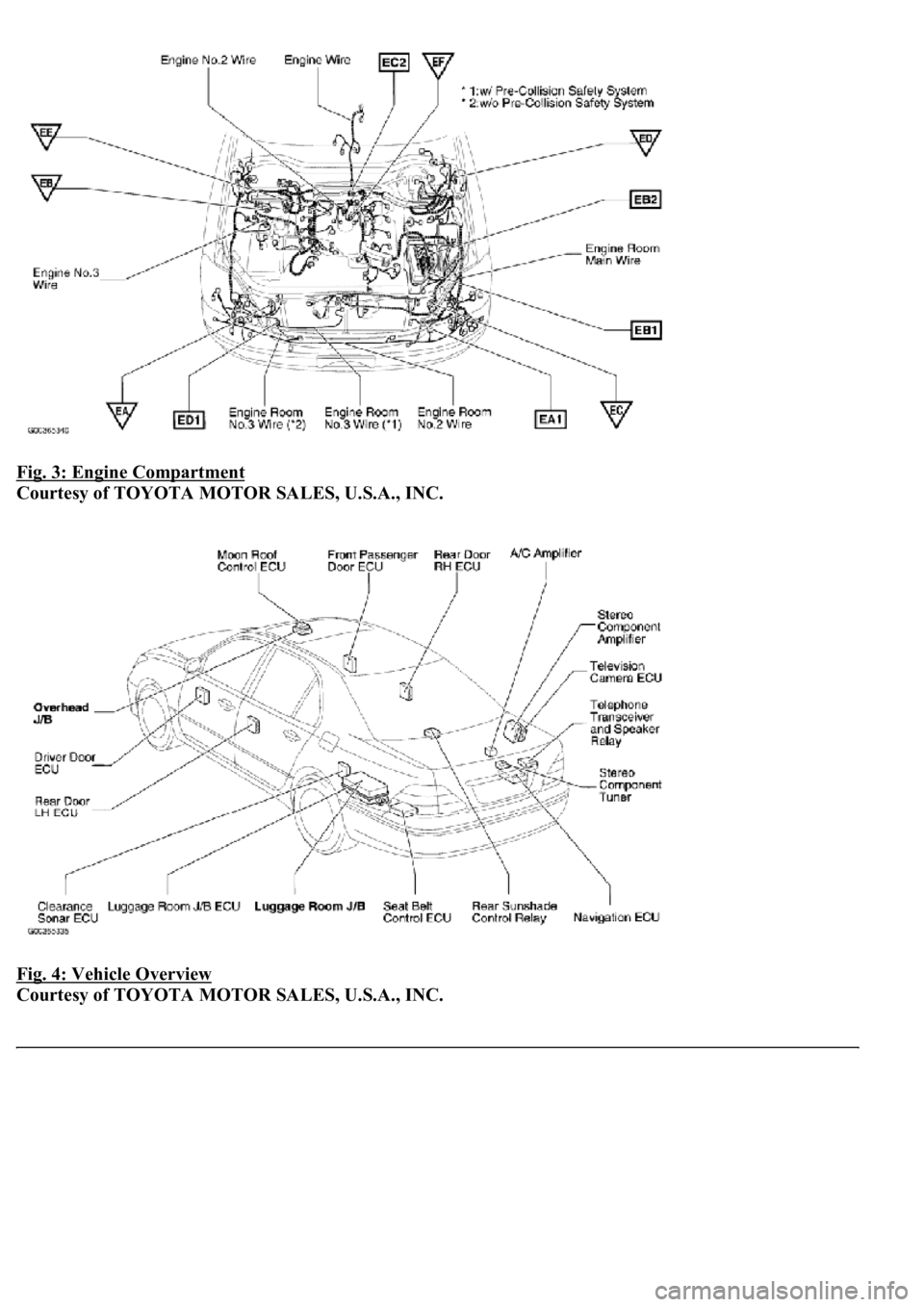

Fig. 3: Engine Compartment
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Fig. 4: Vehicle Overview
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
