DAIHATSU
DAIHATSU - IMPORTED CARS & TRUCKS
CHRYSLER GROUP LLC
CHRYSLER GROUP LLC - IMPORTED CARS & TRUCKS
1992-95Outside Of Engine Compartment
Fuse/Relay Block
528eOn Intake Manifold Bracket, Behind
Thermostat Housing
635CSiOn Bracket, Next To Fuse/Relay Block
735i
1986-87On Bracket, On Top Of Engine
1988-92On Right Side Of Engine
Compartment, On Shock Tower
740 & 750Under Left Side Of Dash, Behind Panel
Labeled OBD
740i & 740iL (1993-01)Behind Cover On Lower Left Corner Of
A/C Control Panel
750iLBehind Cover On Lower Left Corner Of
A/C Control Panel
ApplicationConnector Location
CharadeAt Upper Section Of Transmission
RockyOn Right Front Fender Panel
ApplicationConnector Location
Colt & Summit
1986-87Above Inside Of Glove Compartment
1988On Left Rear Corner Of Engine
Compartment
1989-98Under Left Side Of Dash, Near Fuse/Relay
Block
Colt Vista
1987Behind Glove Compartment

FERRARI
FERRARI - IMPORTED CARS & TRUCKS
FORD MOTOR CO.
FORD MOTOR CO. - IMPORTED CARS & TRUCKS
1988-89Under Left Side Of Dash, Near Hood
Release Handle
1990-96Under Right Side Of Dash
Conquest & StarionBehind Glove Compartment
ExpoUnder Left Side Of Dash, Near Fuse/Relay
Block
MedallionOn Left Side Of Firewall
PickupUnder Left Side Of Dash, Near Fuse/Relay
Block
Ram-50Under Left Side Of Dash, Near Fuse/Relay
Block
SigmaIn Glove Compartment
Stealth
1991-98Under Left Side Of Dash, On Fuse/Relay
Block
1999Under Left Side Of Dash, Left Of Center
Console
Summit WagonUnder Right Side Of Dash
Vista WagonUnder Right Side Of Dash
ApplicationConnector Location
All Models
1996-Behind Left Side Of Dash
ApplicationConnector Location
Aspire
1994-95On Left Rear Corner Of Engine Compartment
1996-97Under Left Side Of Dash
Capri
1991Behind Right Side Of Dash, Behind Glove
Compartment
1992
1.3LOn Left Rear Corner Of Engine

GENERAL MOTORS
GENERAL MOTORS & GEO - IMPORTED CARS & TRUCKS
Compartment
1.6LOn Right Rear Corner Of Engine
Compartment
1993-94On Right Rear Corner Of Engine
Compartment
Festiva
1992-93
1.3LOn Left Rear Corner Of Engine
Compartment
1.6LOn Right Rear Corner Of Engine
Compartment
Merkur XR4TiOn Right Front Fender Apron, Near Battery
ScorpioOn Right Rear Corner Of Engine Compartment
TracerOn Left Rear Corner Of Engine Compartment
ApplicationConnector Location
LeMansBehind Right Kick Panel, Above ECM
Metro
1989-95Under Left Side Of Dash, Near Fuse Block
1996Under Right Side Of Dash, Near Center
Console
1997-01Under Left Side Of Dash
Prizm & Prizm LSi
1989-95On Left Front Strut Tower
1996-02Under Left Side Of Dash
SpectrumUnder Right Side Of Dash, Above A/C-Heater
Blower Motor
SprintOn Left Front Shock Tower, Near Battery
Storm
1990-91Behind Right Side Of Dash, Above A/C-
Heater Blower Motor
1992-93Behind Right Kick Panel
Tracker
1989-95Under Left Side Of Dash, Near Fuse Block
1996In Engine Compartment, Near MAP Sensor
1997-Under Left Side Of Dash

JAGUAR
JAGUAR - IMPORTED CARS & TRUCKS
KIA
Rodeo
1991-95Behind Left Kick Panel
1996-Lower Left Side Of Dash, Behind Small
Cover
StylusBehind Right Kick Panel
Trooper & Trooper II
1986Under Left Side Of Dash
1987-91Under Center Console
1992
DOHCBehind Center Of Dash, Right Of Steering
Column
SOHCUnder Left Side Of Dash
1993-95Under Left Side Of Dash, Right Of Steering
Column
1996-02Lower Left Side Of Dash, Behind Small
Cover
VehiCROSSUnder Left Side Of Dash
ApplicationConnector Location
XJR (1995-97)Near Center Console
XJS
1992On Left Rear Trunk Wheel Arch, Behind
Trim Panel
1993-94Under Battery Tray, On Right Front Of
Luggage Compartment
1995-96Near Center Console
XJ6
1992On Left Rear Of Engine Compartment
1993-94Under Battery Tray, On Right Front Of
Luggage Compartment
1995-97Under Left Side Of Dash, Near Center
Console
XJ12Near Center Console

MAZDA
MAZDA - IMPORTED CARS & TRUCKS
Total Diagnostic Communication Link ConnectorUnder Left Side Of Dash
1992-94
DLC No. 1On Bracket, Behind Right Front Strut
Tower
DLC No. 2 & 3Under Left Side Of Dash
1995-97In Fuse Box At Lower Left Of Dash
GS Series
1990-95
DLC No. 1On Bracket, On Top Of Engine
DLC No. 2Under Left Side Of Dash
1996-00In Fuse Box At Lower Left Of Dash
LS Series
1990-94
DLC No. 1On Bracket, On Top Of Engine
DLC No. 2Under Left Side Of Dash
1995-00In Fuse Box At Lower Left Of Dash
SC Series
1992-95
DLC No. 1On Bracket, Behind Right Front Strut
Tower
DLC No. 2 & 3Under Left Side Of Dash
1996-00In Fuse Box At Lower Left Of Dash
ApplicationConnector Location
B-Series
1987-88On Right Front Fender Apron
1989-93
Engine Control Check Connector (Black 6-Pin)Near Windshield Washer Motor
Trouble Codes Connector (Green 1-Pin)Near Black 6-Pin Connector (Engine
Control)
1994-95On Right Front Fender Panel
Miata (1990-95)On Left Rear Of Engine Compartment, Near
Master Cylinder
MPV (1989-95)
Engine Control Unit (Green 6-Pin & 1-Pin On Left Side Of Engine Compartment, Near

MERCEDES-BENZ
MERCEDES-BENZ - IMPORTED CARS & TRUCKS
Connectors)Inner Fender Panel
MX-3Mounted On Bracket, On Left Front Strut Tower
MX-6 & 626
1988Behind Left Front Shock Tower
1989On Left Front Corner Of Engine
Compartment
1990-91At ECU Connector Terminal
1992On Left Rear Corner Of Engine Compartment
1993On Side Of Fuse/Relay Block, Near Battery
1994-95On Left Front Fender Apron
Navajo
1991-93On Right Rear Corner Of Engine
Compartment
1994-95On Right Front Fender Panel
Protege
1987-89On Passenger's Footwell (Left Foot Area)
1990-95On Left Side Of Firewall, Near Wiper Motor
RX7
1986-88 (3 Check Connectors)At Left & Right Corners Of Engine
Compartment
1989-91 (Green 6-Pin Connector)Behind Ignition Coil
1993-95On Bracket, On Left Front Strut Tower
323
1986-88Front Left Of Engine Compartment, Near
Ignition Coil
1989 (Green 6-Pin & Green 1-Pin Connectors)On Left Side Of Firewall
1990-95On Left Side Of Firewall, Near Wiper Motor
929
1989Near Air Cleaner
1990-91 (Green 6-Pin Connector)In Left Front Corner Of Engine Compartment
1992-93Mounted On Air Cleaner Housing
1994-95On Left Front Strut Tower
ApplicationConnector Location
C-Class (1994)On Right Rear Of Engine Compartment

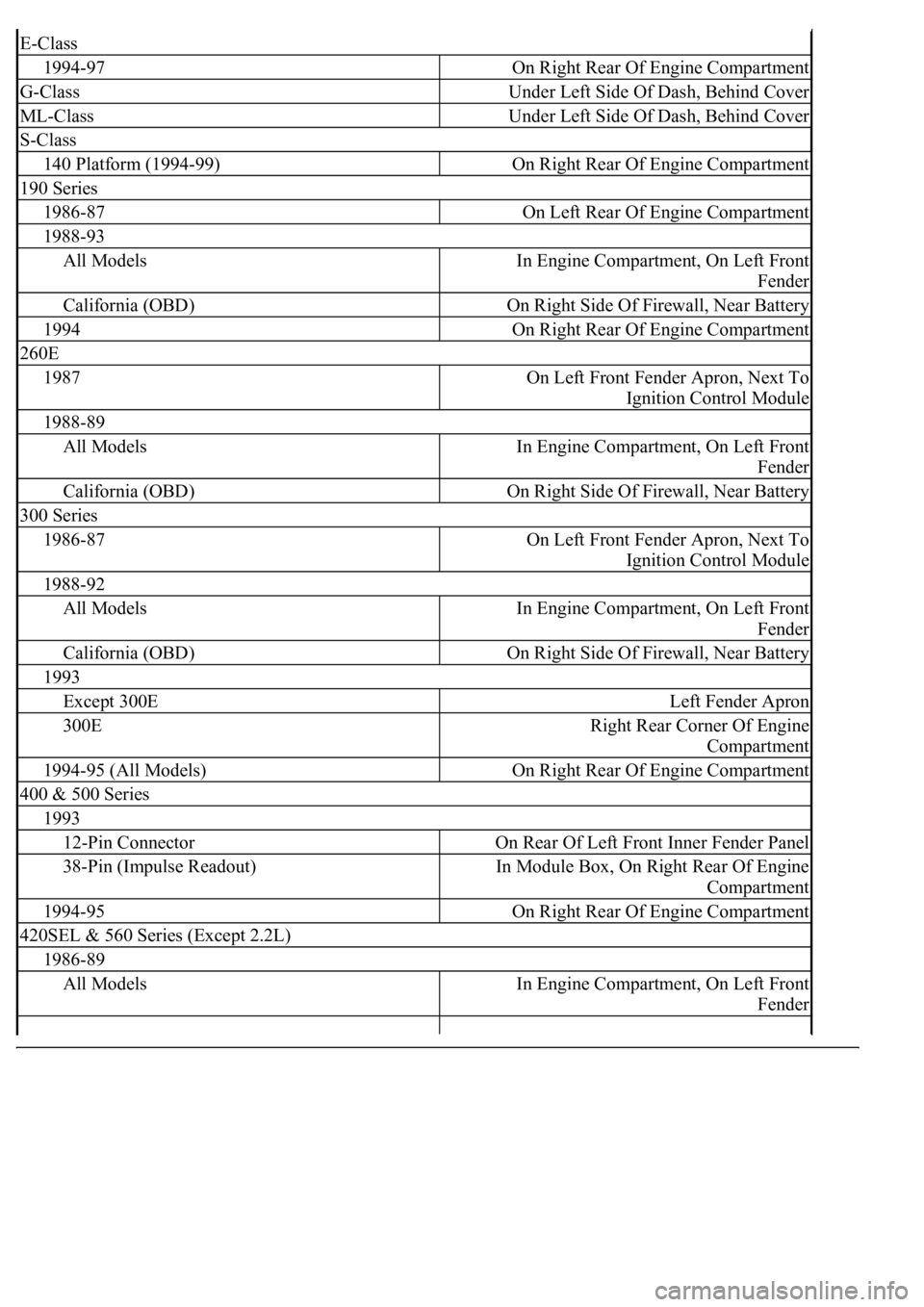

E-Class
1994-97On Right Rear Of Engine Compartment
G-ClassUnder Left Side Of Dash, Behind Cover
ML-ClassUnder Left Side Of Dash, Behind Cover
S-Class
140 Platform (1994-99)On Right Rear Of Engine Compartment
190 Series
1986-87On Left Rear Of Engine Compartment
1988-93
All ModelsIn Engine Compartment, On Left Front
Fender
California (OBD)On Right Side Of Firewall, Near Battery
1994On Right Rear Of Engine Compartment
260E
1987On Left Front Fender Apron, Next To
Ignition Control Module
1988-89
All ModelsIn Engine Compartment, On Left Front
Fender
California (OBD)On Right Side Of Firewall, Near Battery
300 Series
1986-87On Left Front Fender Apron, Next To
Ignition Control Module
1988-92
All ModelsIn Engine Compartment, On Left Front
Fender
California (OBD)On Right Side Of Firewall, Near Battery
1993
Except 300ELeft Fender Apron
300ERight Rear Corner Of Engine
Compartment
1994-95 (All Models)On Right Rear Of Engine Compartment
400 & 500 Series
1993
12-Pin ConnectorOn Rear Of Left Front Inner Fender Panel
38-Pin (Impulse Readout)In Module Box, On Right Rear Of Engine
Compartment
1994-95On Right Rear Of Engine Compartment
420SEL & 560 Series (Except 2.2L)
1986-89
All ModelsIn Engine Compartment, On Left Front
Fender

MITSUBISHI
MITSUBISHI - IMPORTED CARS & TRUCKS
NISSAN
NISSAN - IMPORTED CARS & TRUCKS
California (OBD)On Right Side Of Firewall, Near Battery
1990-91In Engine Compartment, On Left Front
Fender
560 Series (2.2L)On Lower Left Side Of Engine Connector
ApplicationConnector Location
Diamante (1992-98)Under Left Side Of Dash, Near Fuse/Relay
Block
ExpoUnder Left Side Of Dash, Near Fuse/Relay
Block
Montero
1986-88Left Rear Corner Of Engine Compartment
1989-91Behind Glove Compartment
PickupUnder Left Side Of Dash, Near Fuse/Relay
Block
Raider
1987-88Left Rear Corner Of Engine Compartment
1989Behind Glove Compartment
3000GT
1991-98Under Left Side Of Dash, On Fuse/Relay
Block
1999Under Left Side Of Dash, Left Of Center
Console
ApplicationConnector Location
Altima
1993-94On Driver-Side Of Center Console, Above
Accelerator Pedal
1995-96Below Fuse Box
